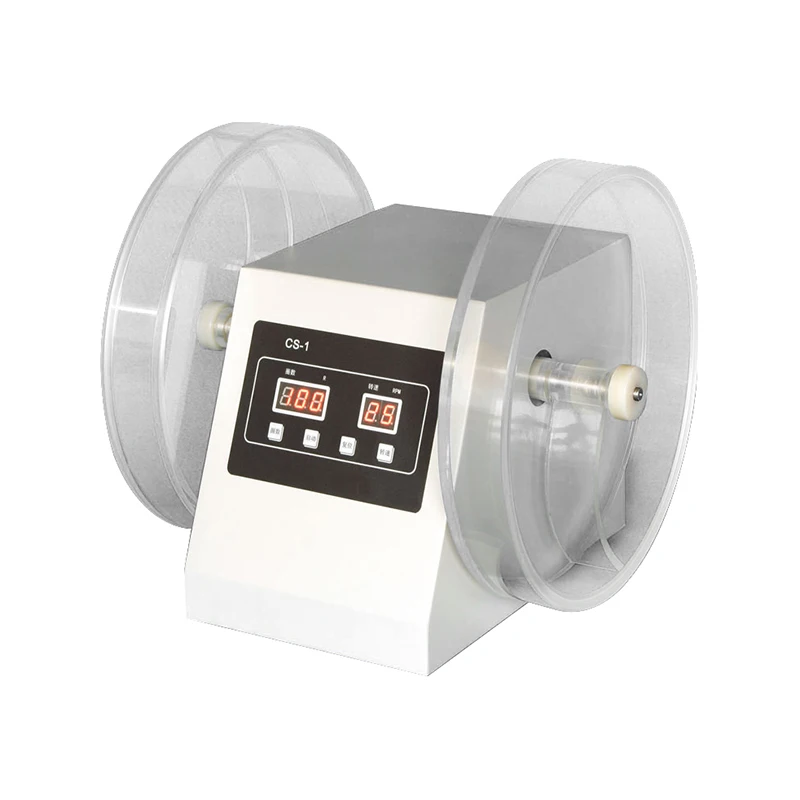

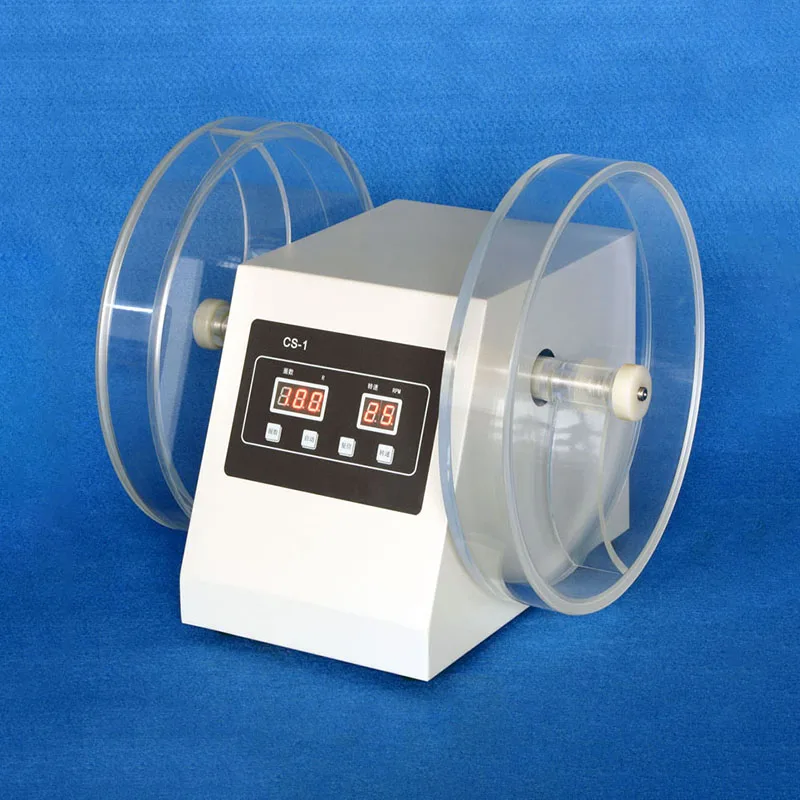

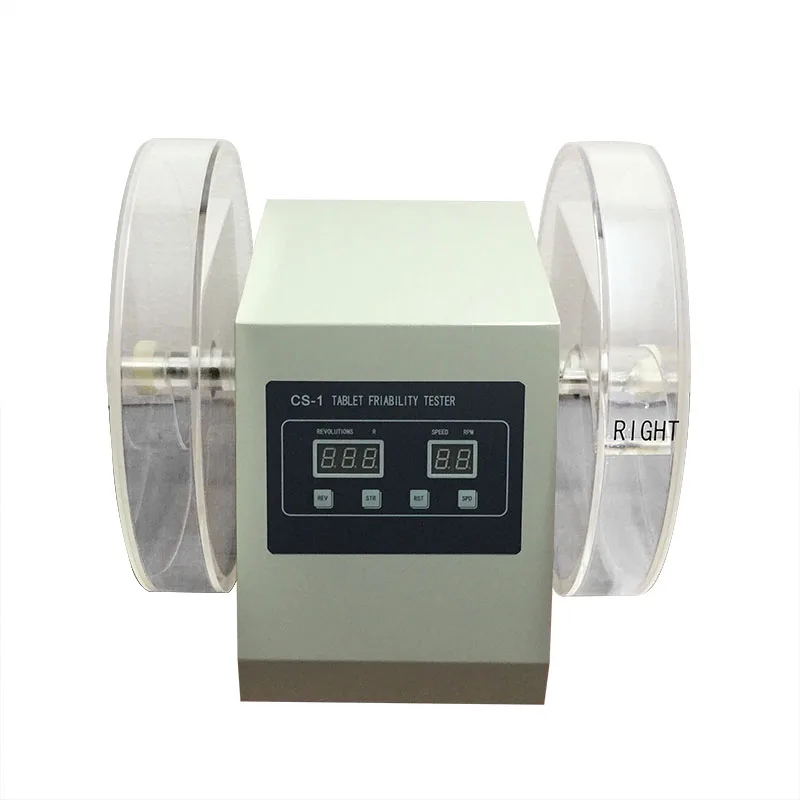

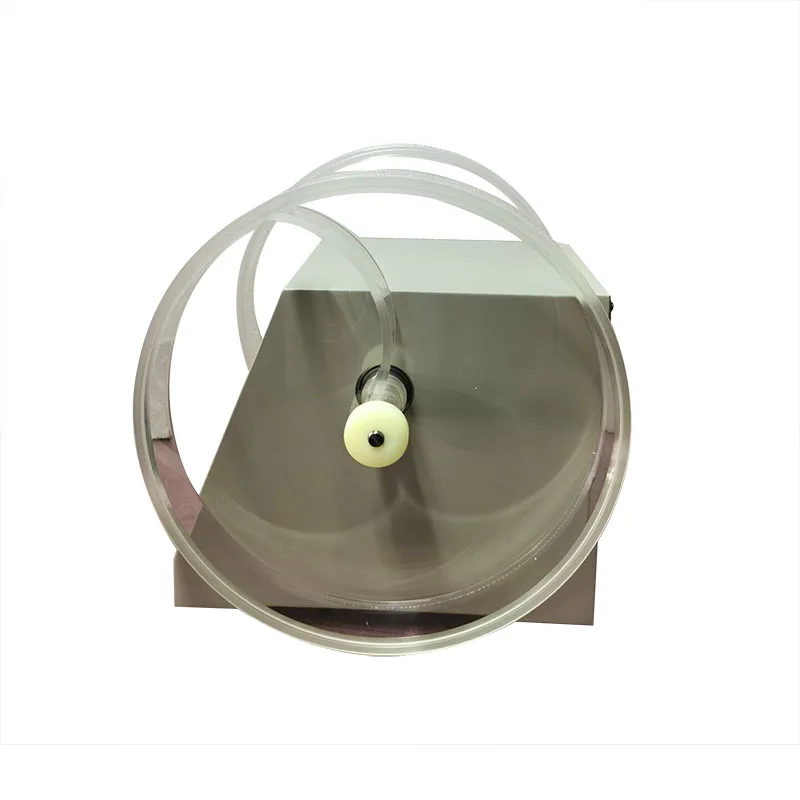

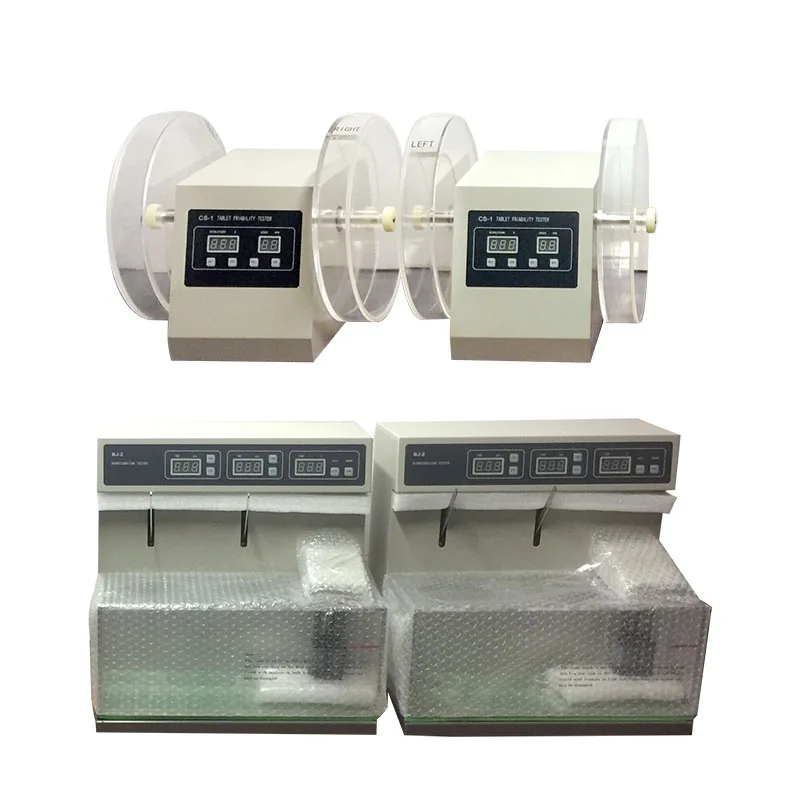

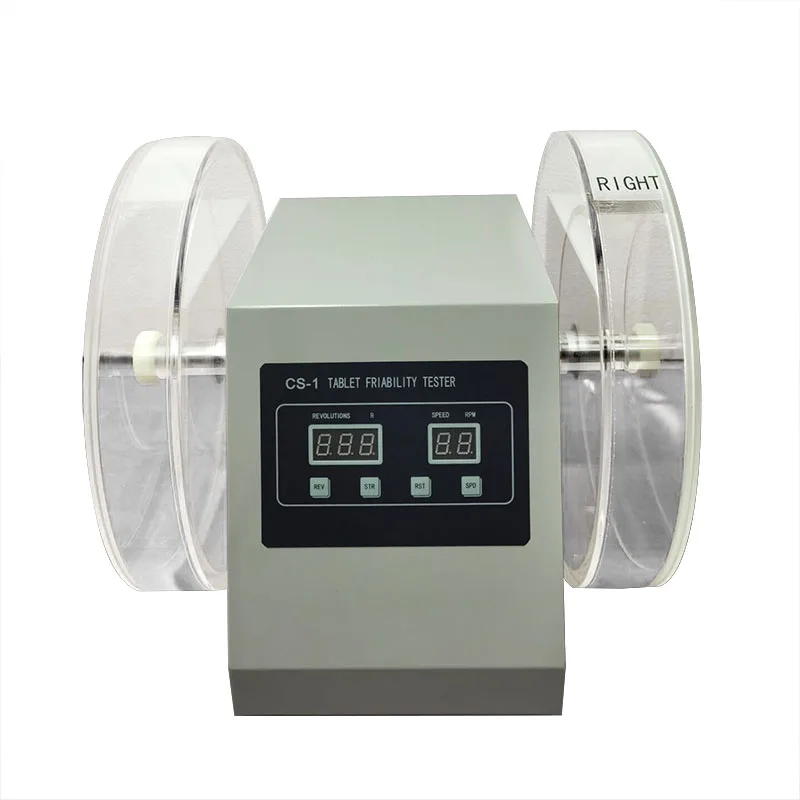

Nade Testing Equipment Cs 1 Tablet Friability Tester Tablet Friability Test Apparatus
- Category: >>>
- Supplier: Zhejiang Nade Scientific Instrument Co. Ltd.
Share on (1600559189387):
Product Overview
Description
Features:
1.Two drums run synchronously. Auto stop at timing point.
2.The drum is made of high quality hyaline acryl.
3.The speed and revolution of the drum is constant, either preset or real data is displayed on the LED.
4.A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
2.The drum is made of high quality hyaline acryl.
3.The speed and revolution of the drum is constant, either preset or real data is displayed on the LED.
4.A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
5.Automation: auto-test, auto-diagnose, auto-alarm.
IQ OQ PQ Certification Service
We can provide IQ/OQ/PQ documents if purchase equipment with us.
Installation Qualification (IQ)
Provide documentation to prove that all specifications and parameters of the user's installation environment fully comply with the manufacturer's description and safety requirements
Operation Qualification(OQ)
Performance Qualification (PQ)
(PQ) Operational verification to prove that the equipment (system) is suitable for Perform specific analysis tasks. It can only use the user's sample according to the user's method regulations, compare CAMAG's OO and the corresponding instrument manual, and CAMAG assists the customer to carry out the certification.
Applicable standards: National standard( Chinese codex ) /2020

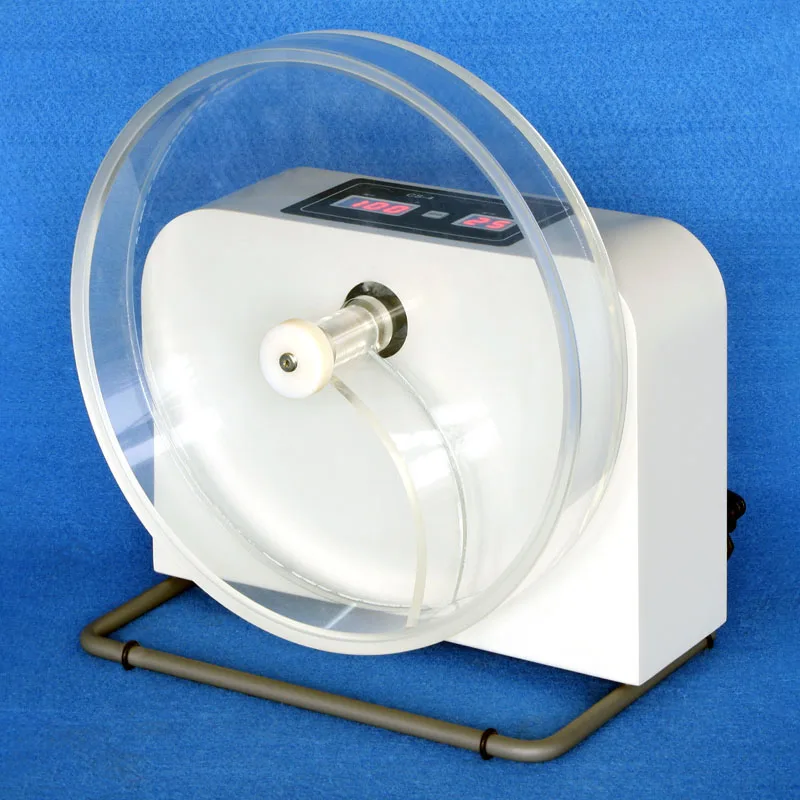

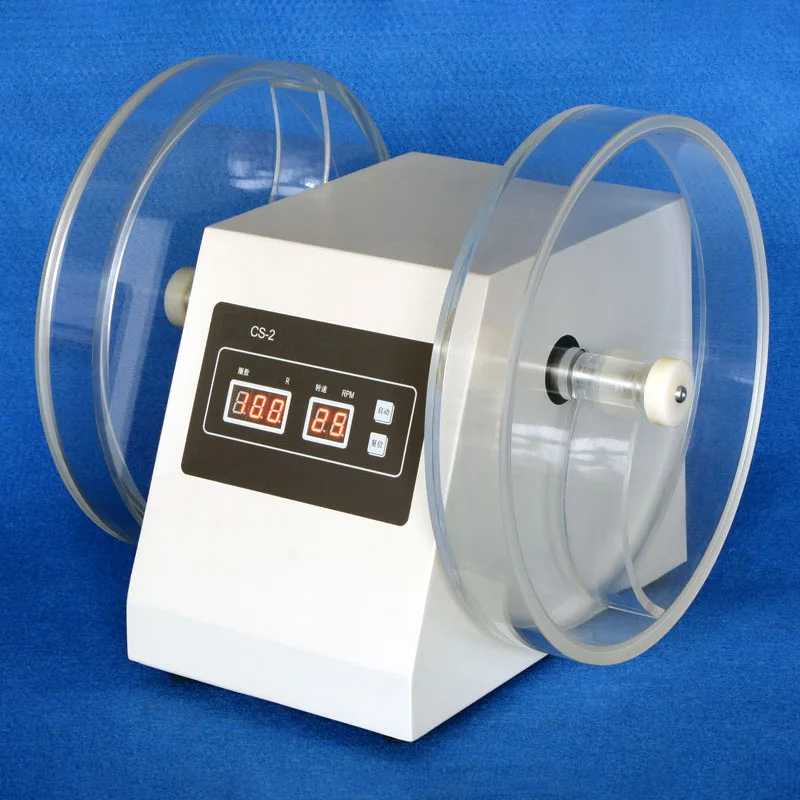

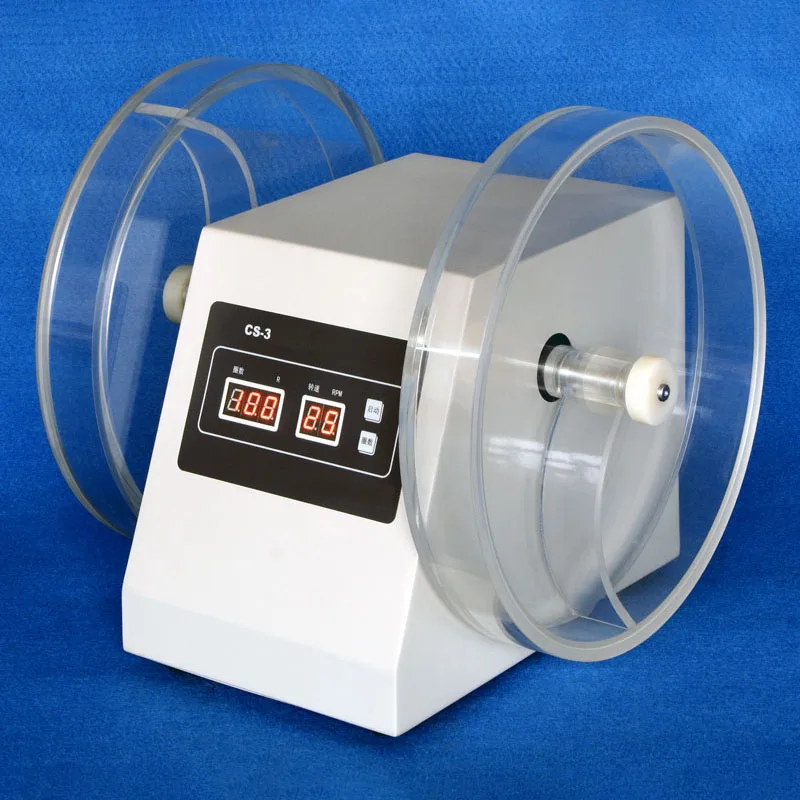

Model | CS-1 | CS-2 | CS-3 | CS-4 |
Cylinder number | 2 | 2 | 2 | 1 |
Cylinder radius | Φ286mm | Φ286mm | Φ286mm | Φ286mm |
Cylinder depth | 39mm | 39mm | 39mm | 39mm |
Tablet fall height | 156mm | 156mm | 156mm | 156mm |
Rotation speed | 20~90 rpm | 25rpm | 25rpm | 25rpm |
Rotation Speed accuracy | ±1rpm | ±1rpm | ±1rpm | ±1rpm |
Rotation count | 10~900 rounds | 100 rounds | 10~900 rounds | 100 rounds |
Rotation count accuracy | ±1round | ±1round | ±1round | ±1 round |
Power | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W | 220V/ 50Hz/ 20W or 110V/ 60Hz/ 20W |
Continuous working hours | >=24 hours | 24 hours | >=24 hours | > 24 hours |
Dimension | (370×300×340)mm3 | (370×300×340)mm3 | (370×300×340)mm3 | (300×200×340)mm3 |
Weight | 14 kg | 11 kg | 14 kg | 6 kg |
Packing size | 43*42*51cm (0.092CBM) | 43*42*51cm (0.092CBM) | 43*42*51cm (0.092CBM) | 39*26*43cm (0.044CBM) |
Gross weight | 17 kg | 14 kg | 17 kg | 8.5 kg |
Application
CS series of instruments are used for detecting friability/ abrasion of tablet. Especially suit for pharmaceutical factory
Q: How long is the delivery time?
A: Just inquire NADE sales to get a schedule.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by NADE ?
A: The after-sales service of NADE is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience,our instruments works well during warranty period.
A: Just inquire NADE sales to get a schedule.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by NADE ?
A: The after-sales service of NADE is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience,our instruments works well during warranty period.
