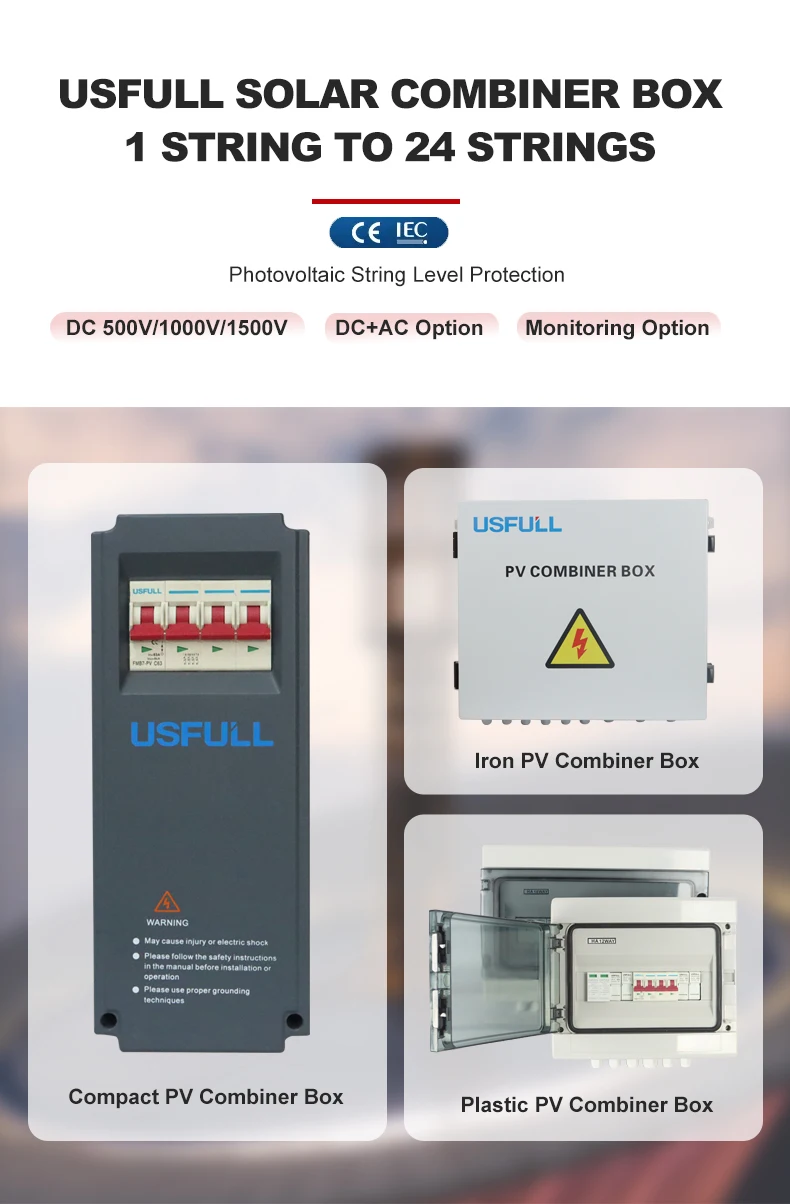

USFULL Top Quality DC 1000V 1500V 2 4 5 6 8 10 12 16 24 Ways String Solar PV Combiner Box 6 In 1 Out for Energy Storage System
- Category: >>>
- Supplier: Zhejiang Fullwill Electric Co. Ltd.
Share on (1600559189879):
Product Overview

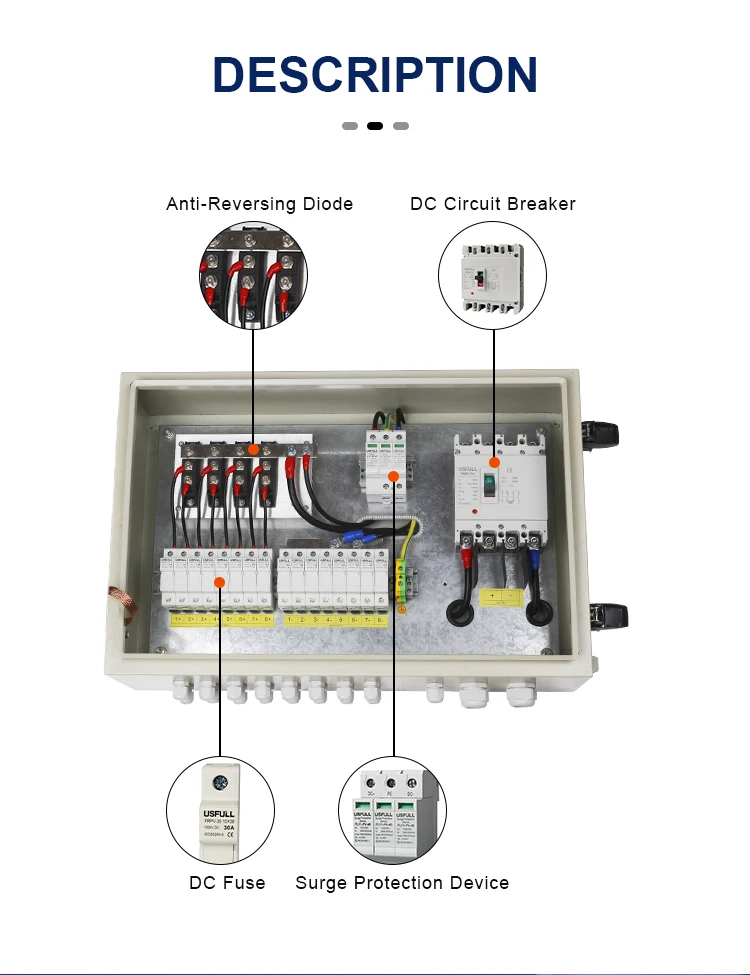

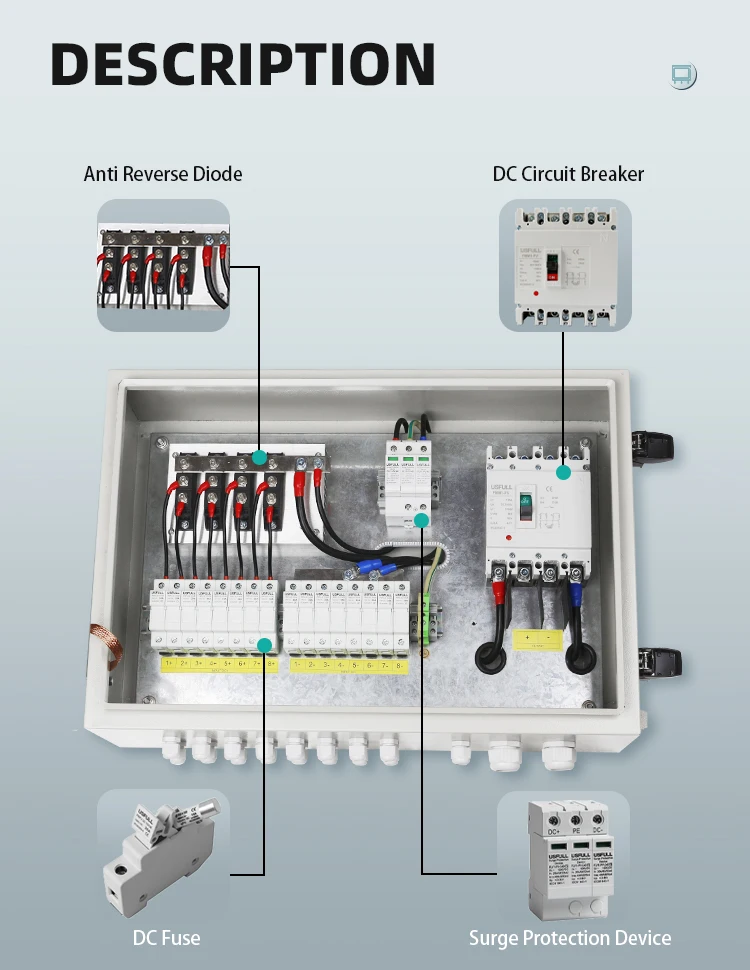

Description
Company Profile

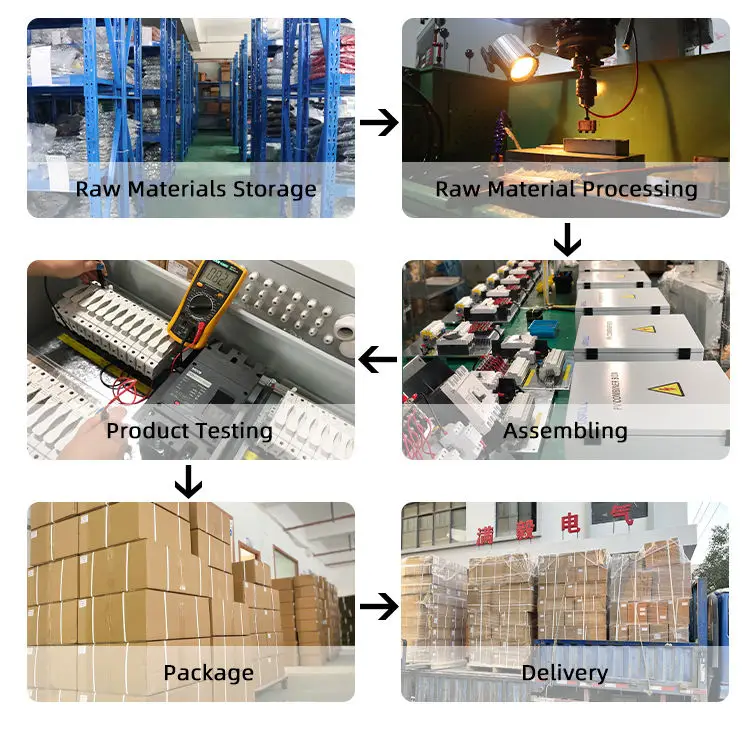

Production Process
Product Description
Model (FUCB Series) | MD2/1 | MD4/1 | MD6/1 | MD8/1 | MD10/1 | MD12/1 | ||||||
Number of DC Inputs | 2 | 4 | 6 | 8 | 10 | 12 | ||||||
Material of Box | Coated Iron | |||||||||||

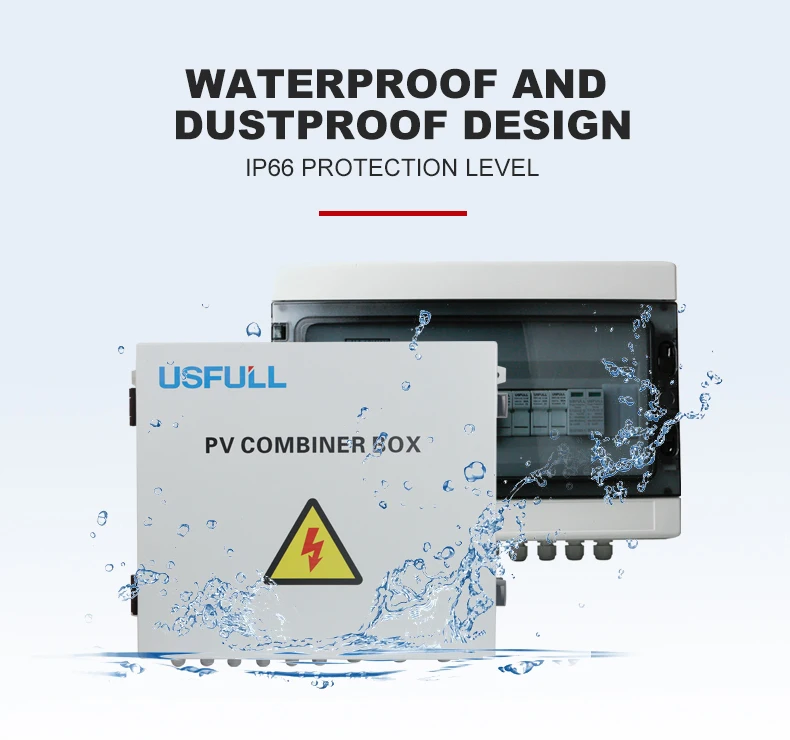

Protection Level | IP65 | |||||||||||
IK Impact Resistance Class | IK08 | |||||||||||
Max. Rated Voltage DC | 1000V (Support 1500V) | |||||||||||
DC Fuse | 15A (Recommend 15A, support other ampere) | |||||||||||
Fuse Holder | 1000V DC 32A | |||||||||||
DC Breaker | 32A | 63A | 100A | 125A | 150A | 200A | ||||||
Surge Protection DC | Type II, In=20kA, Imax=40kA, Ucpv=1000VDC | |||||||||||
Over-Voltage Category | Cat III | |||||||||||
Diode for The Function of Anti-Reflux | Built-in | |||||||||||
Connection Type DC Input | PG or MC4 connector, IP68 | |||||||||||
Input Cable Size for Negative and Positive | Φ4-8 mm | |||||||||||
Number of DC Outputs | 1 (Support customization for multiple outputs number) | |||||||||||
Connection Type DC Output | PG11 | PG11 | PG13.5 | PG19 | PG19 | PG19 | ||||||
Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 | |||||||||||
Ambient Temperature Range/Humidity | Temperature: -20℃~ +60℃, Humidity: 0-99% | |||||||||||
Altitude | ≤2000m Derating for above 2000m | |||||||||||
Installation | Wall mounting/Padlockable latch | |||||||||||

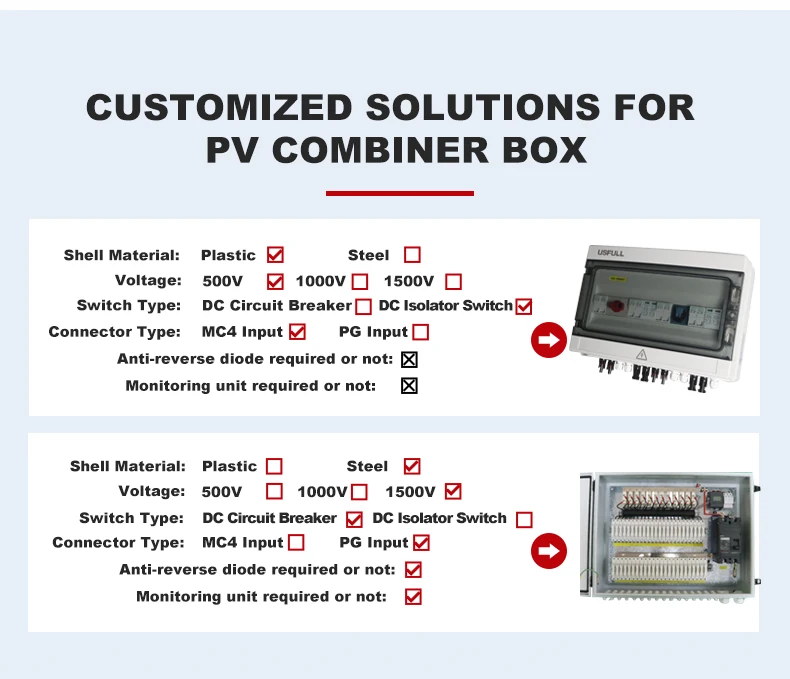

Optional Customized Service: 1. Support 1500V 2. Support PV MC4 connector 3. Support monitoring function 4. Support installation of DC isolator switch 5. Support 2 input 2 output, 4 input 2 output, etc. | ||||||||||||
Model (FUCB Series) | MD14/1 | MD16/1 | MD18/1 | MD20/1 | MD22/1 | MD24/1 | ||||||
Number of DC Inputs | 14 | 16 | 18 | 20 | 22 | 24 | ||||||
Material of Box | Coated Iron | |||||||||||
Protection Level | IP65 | |||||||||||
IK Impact Resistance Class | IK08 | |||||||||||
Max. Rated Voltage DC | 1000V (Support 1500V) | |||||||||||
DC Fuse | 15A (Recommend 15A, support other ampere) | |||||||||||
Fuse Holder | 1000V DC 32A | |||||||||||
DC Breaker | 225A | 250A | 275A | 300A | 315A | 350A | ||||||
Surge Protection DC | Type II, In=20kA, Imax=40kA, Ucpv=1000VDC | |||||||||||
Over-Voltage Category | Cat III | |||||||||||
Diode for The Function of Anti-Reflux | Built-in | |||||||||||
Connection Type DC Input | PG or MC4 connector, IP68 | |||||||||||
Input Cable Size for Negative and Positive | Φ4-8 mm | |||||||||||
Number of DC Outputs | 1 (Support customization for multiple outputs number) | |||||||||||
Connection Type DC Output | PG25 | PG25 | PG29 | PG29 | PG29 | PG29 | ||||||
Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 | |||||||||||
Ambient Temperature Range/Humidity | Temperature: -20℃~ +60℃, Humidity: 0-99% | |||||||||||
Altitude | ≤2000m Derating for above 2000m | |||||||||||
Installation | Wall mounting/Padlockable latch | |||||||||||
Optional Customized Service: 1. Support 1500V 2. Support PV MC4 connector 3. Support monitoring function 4. Support installation of DC isolator switch 5. Support 2 input 2 output, 4 input 2 output, etc. | ||||||||||||

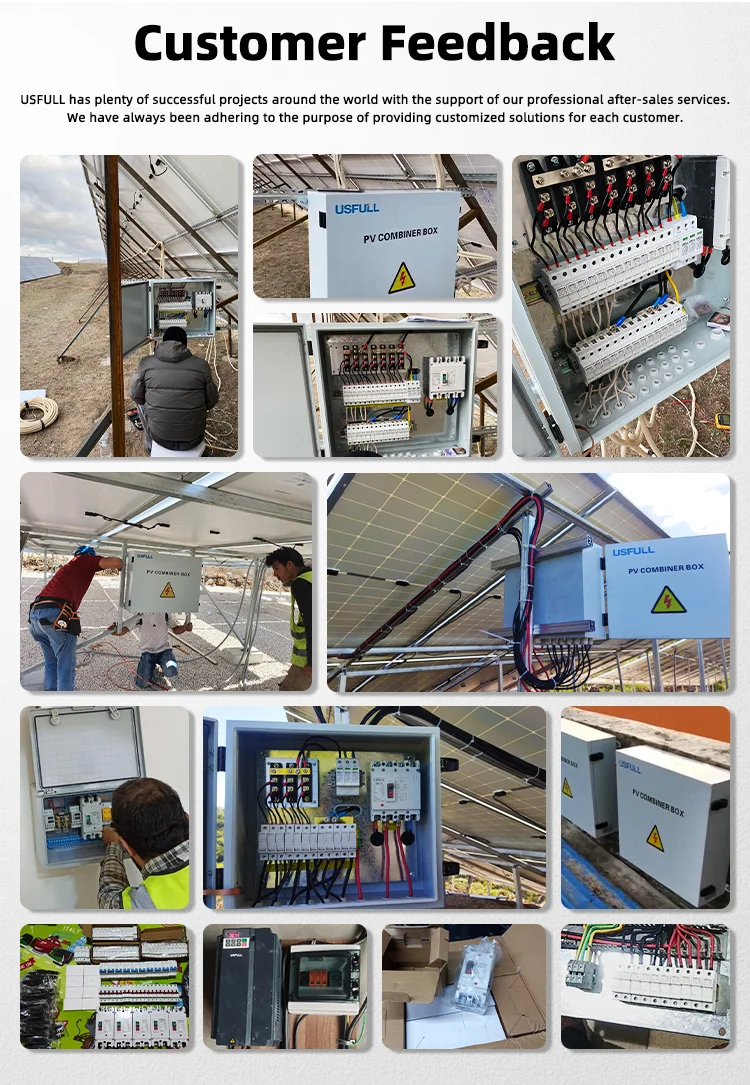

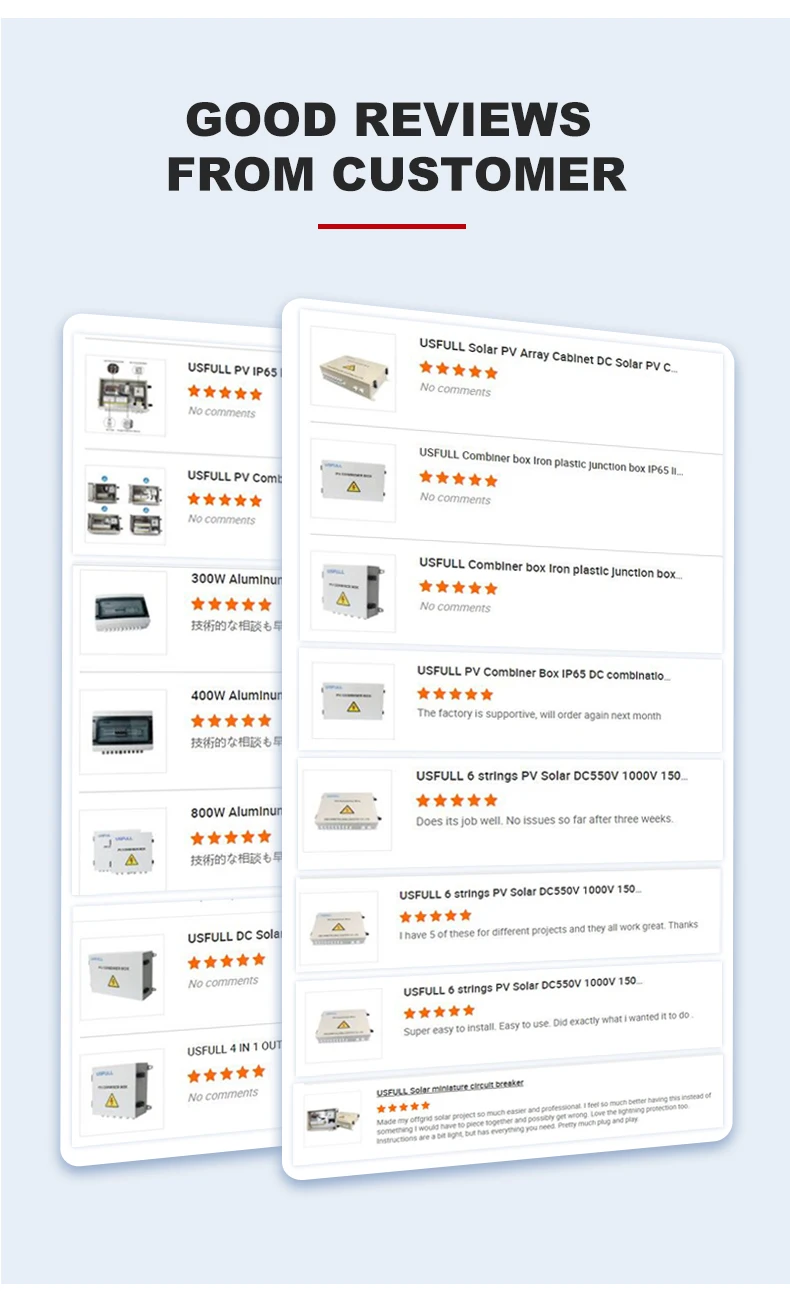

Customer Feedback
FAQ
1. What's the payment term?
We accept T/T, L/C, D/P, PAYPAL, CASH.
2. What's the production ability?
30000 pcs combiner box monthly and rush order for any quantity.
3. What is the standard of package?
Export standard package or special package with requirement
4. Do you accept OEM business?
We accept OEM with your authorization.
5. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. Which market do you already sell?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
7. What kind of certification do you have?
We have CE, IEC, ISO90001 etc.
We accept T/T, L/C, D/P, PAYPAL, CASH.
2. What's the production ability?
30000 pcs combiner box monthly and rush order for any quantity.
3. What is the standard of package?
Export standard package or special package with requirement
4. Do you accept OEM business?
We accept OEM with your authorization.
5. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. Which market do you already sell?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
7. What kind of certification do you have?
We have CE, IEC, ISO90001 etc.
