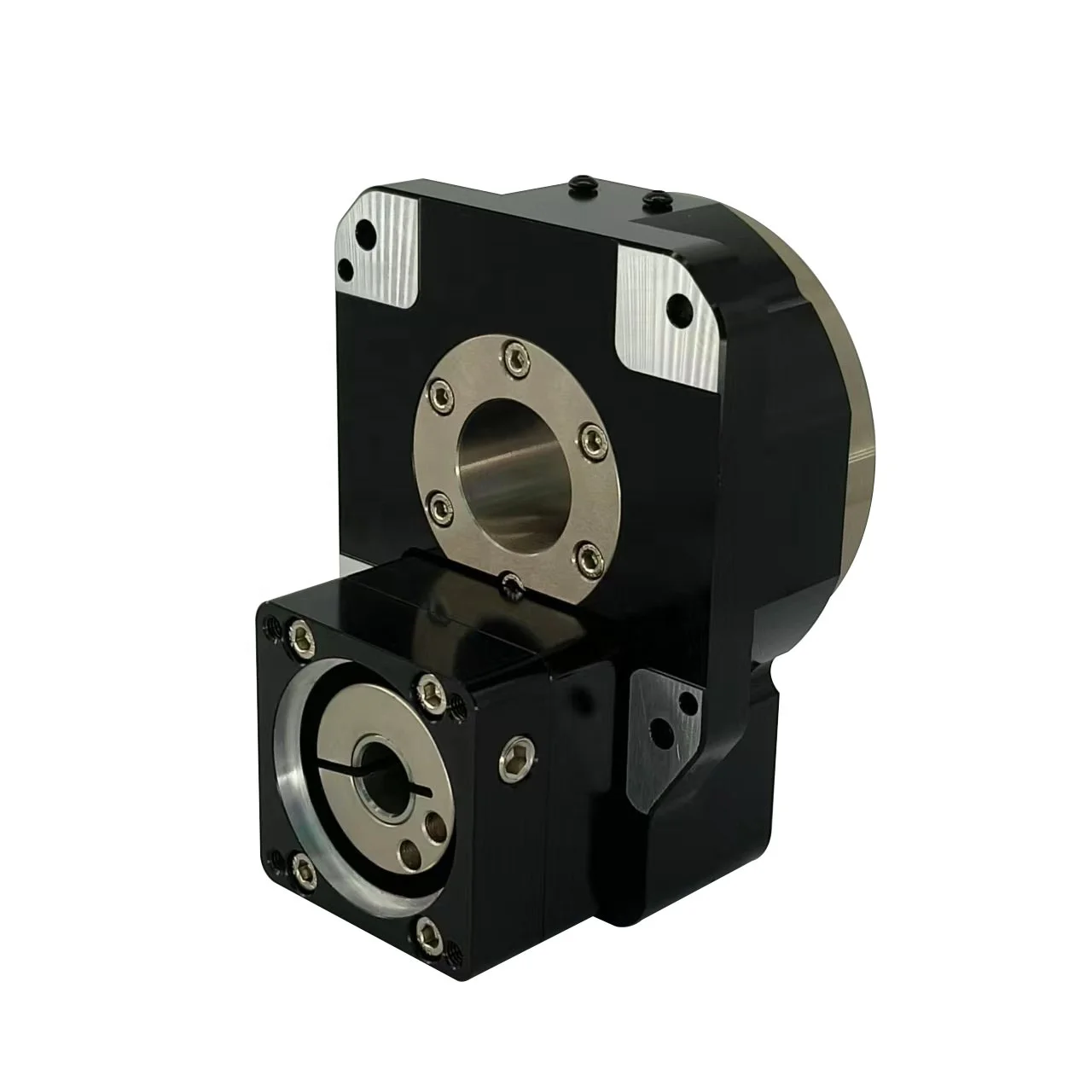

Hollow rotary actuator planetary gearbox reducer ZK275 mount to the face of your motor with ISO quality system
- Category: >>>
- Supplier: Taiqi Electromechanical Equipment (Shanghai) Co. Ltd.
Share on (1600559190197):
Product Overview
Description
Product Overview
Model | ZK060,ZK100,ZK130,ZK200,ZK275 |
Ratio | 1:5 ~ 1:50 |
Backlash | 1arcmin ~ 5arcmin |
Matching motor | Stepper motor, servo motor, BLDC motor |
Efficiency | 94%~97% |
MOQ | 1pc |

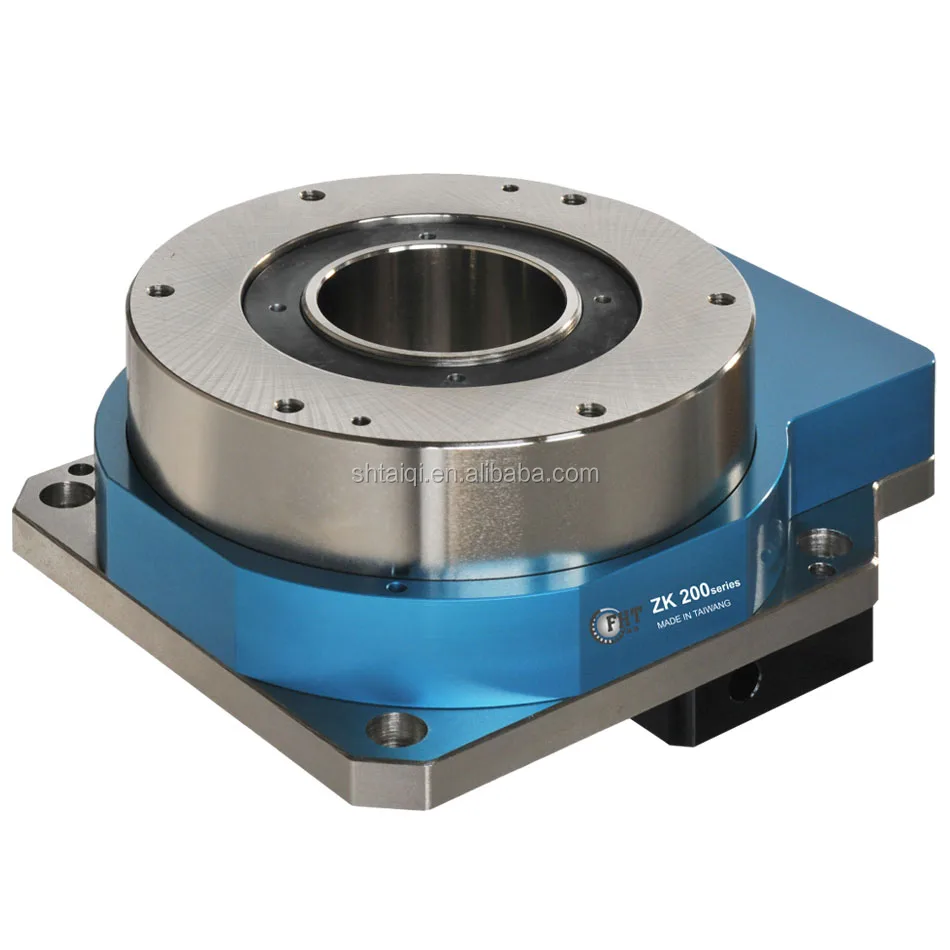

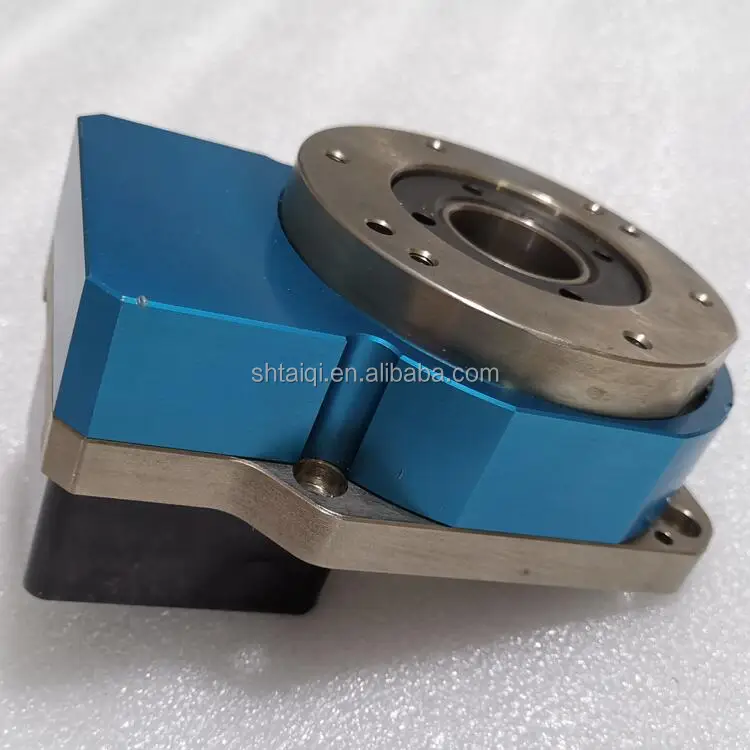

ZK Hollow rotary actuators is the planetary gearbox with flange output, which allows for direct mounting of work piece for added convenience in work piece loading. The hollow structure design makes ZK hollow rotating table convenient for electric wiring or piping work.The mechanical connection of this flange gearbox to your machine is executed quickly and simply, and is additionally secured by a dowel hole in the output flange.
The gear part of the reduction mechanism adopts the ultra-precision processing gears, which eliminates the tooth gap through its own adjustment mechanism, that’s why ZK hollow rotary actuators is with high positioning accuracy up to be 15sec in a very short time. Such high precision gearbox is usually the ideal option of cell phone factories,camera producing,mulch applicator fields,etc
ZK hollow rotary gearbox itself has a fixed ratio 1:5 , 1:8, 1:10. It can be matched with single stage planetary gearbox to get more different ratio like 1:15, 1:16, 1:20, 1:24, 1:30, 1:32, 1:40, 1:50. ZK series normally match with servo motors and stepper motors, below for your reference to choose a correct model:
ZK60 series--100W AC servo motor, model 42 stepper motor
ZK100 series-- 200-400W AC servo motor, model 60 stepper motor
ZK-130 series-- 200-400W AC servo motor, model 60 stepper motor
ZK-200 series-- 750W AC servo motor, model 86 stepper motor
ZK-275 series-- 750W AC servo motor, model 86 stepper motor
The gear part of the reduction mechanism adopts the ultra-precision processing gears, which eliminates the tooth gap through its own adjustment mechanism, that’s why ZK hollow rotary actuators is with high positioning accuracy up to be 15sec in a very short time. Such high precision gearbox is usually the ideal option of cell phone factories,camera producing,mulch applicator fields,etc
ZK hollow rotary gearbox itself has a fixed ratio 1:5 , 1:8, 1:10. It can be matched with single stage planetary gearbox to get more different ratio like 1:15, 1:16, 1:20, 1:24, 1:30, 1:32, 1:40, 1:50. ZK series normally match with servo motors and stepper motors, below for your reference to choose a correct model:
ZK60 series--100W AC servo motor, model 42 stepper motor
ZK100 series-- 200-400W AC servo motor, model 60 stepper motor
ZK-130 series-- 200-400W AC servo motor, model 60 stepper motor
ZK-200 series-- 750W AC servo motor, model 86 stepper motor
ZK-275 series-- 750W AC servo motor, model 86 stepper motor

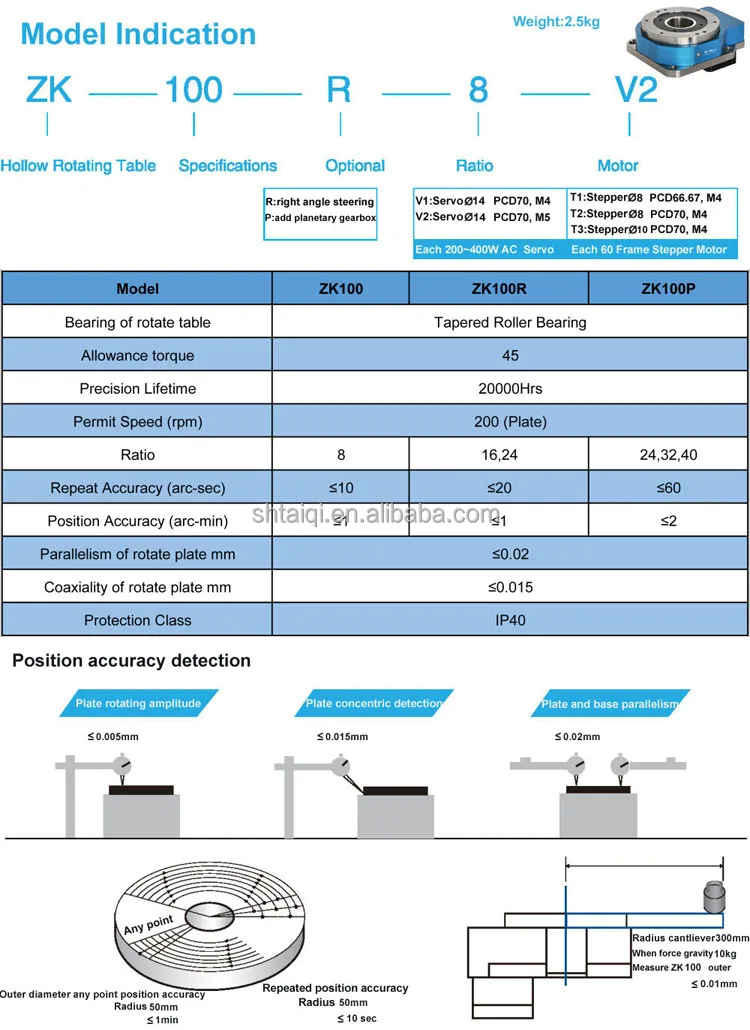

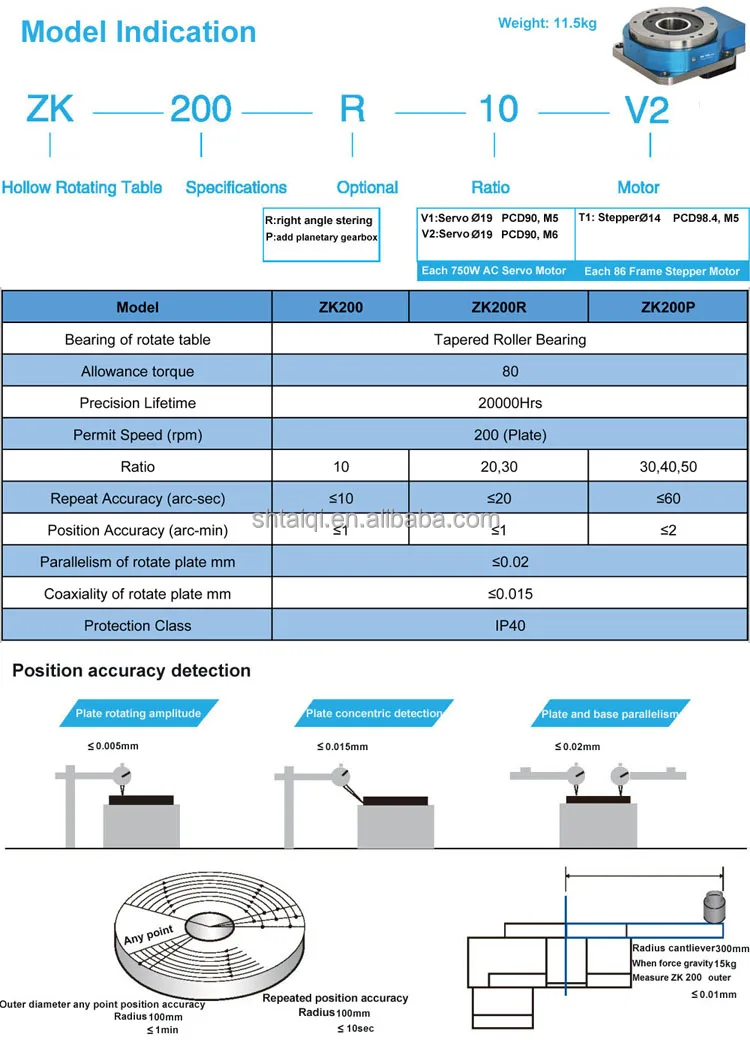

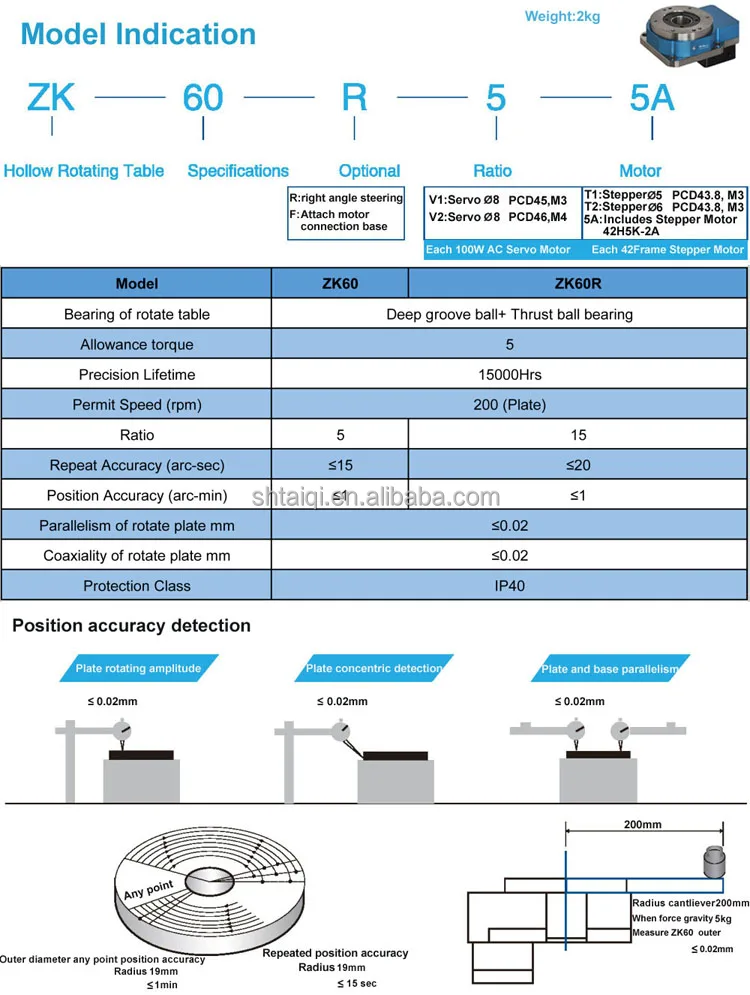

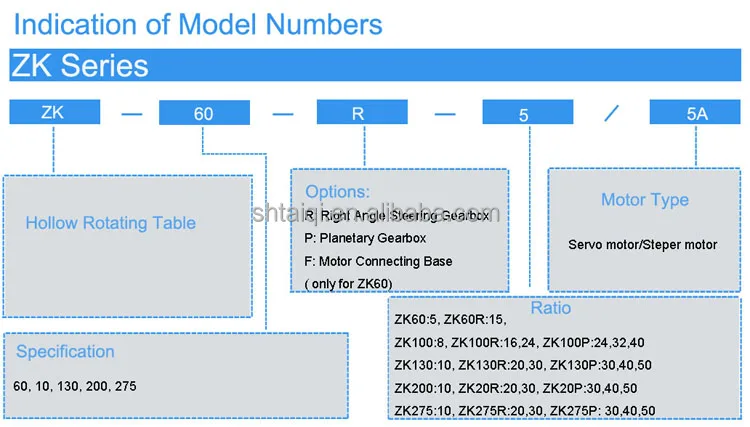

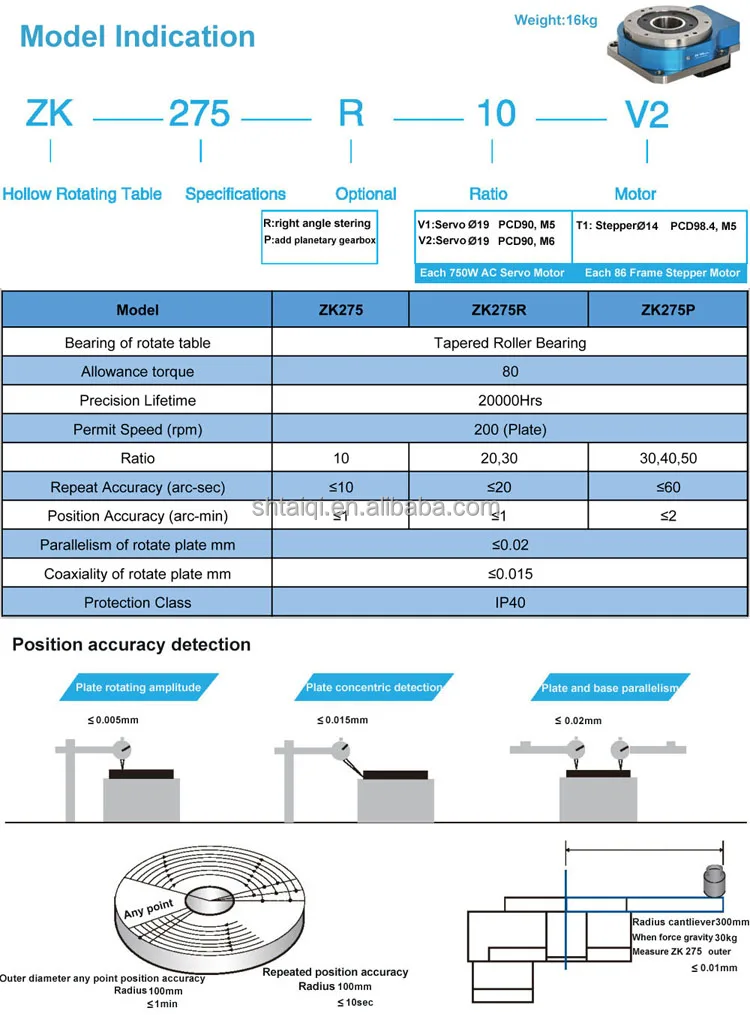

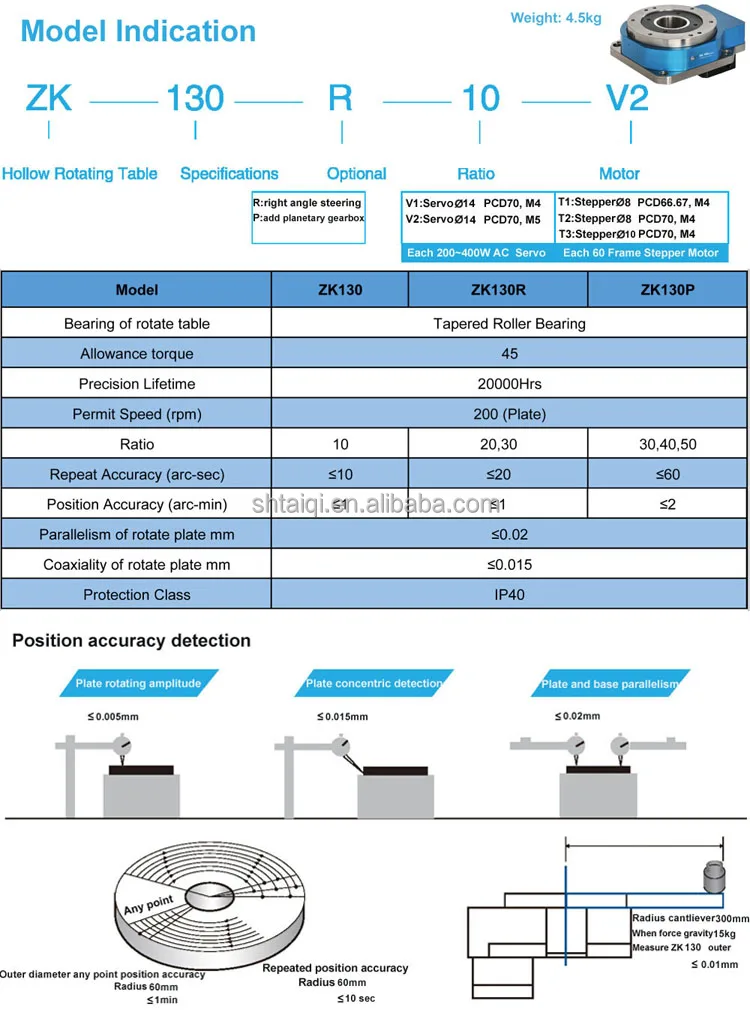

Model Selection

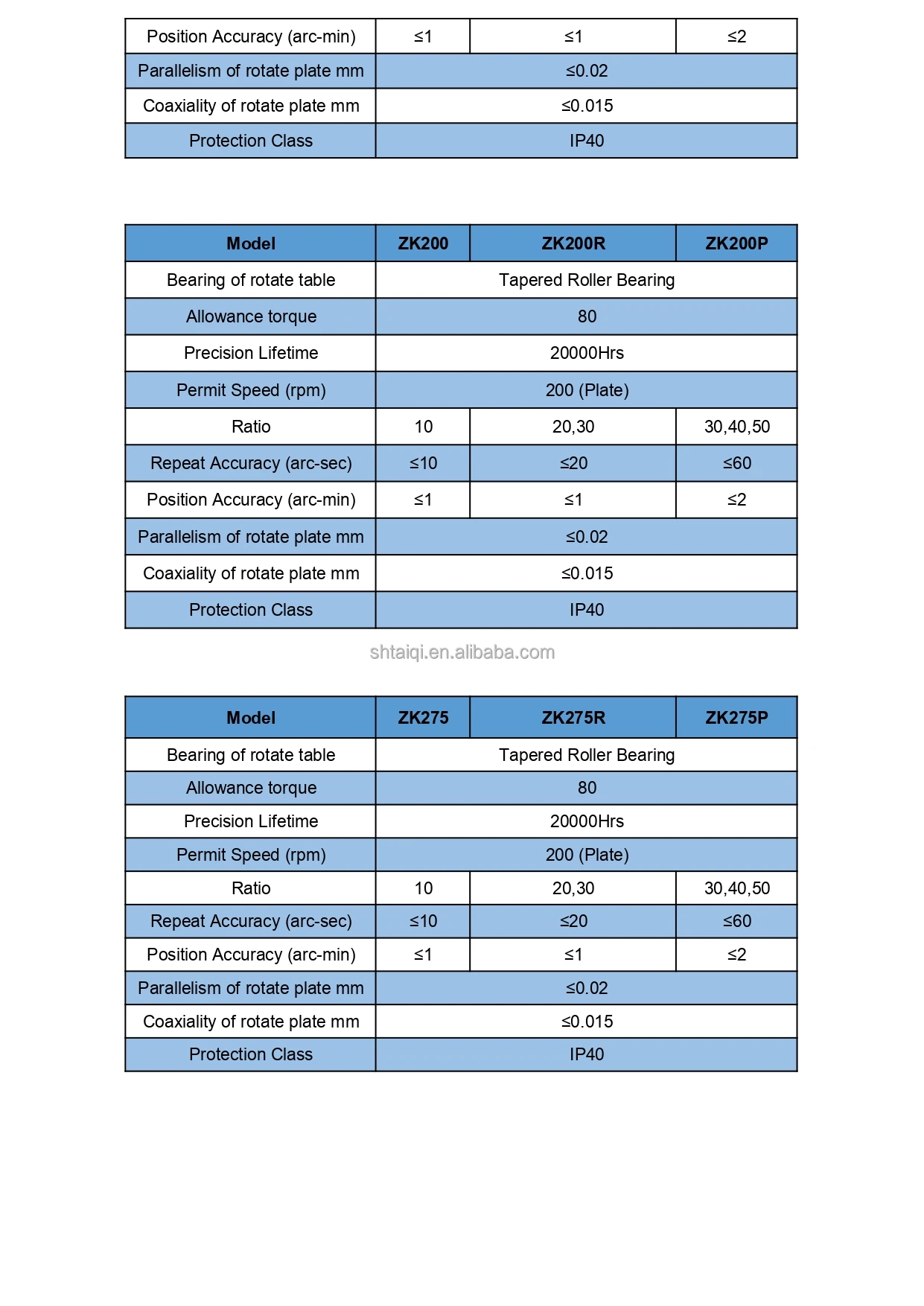

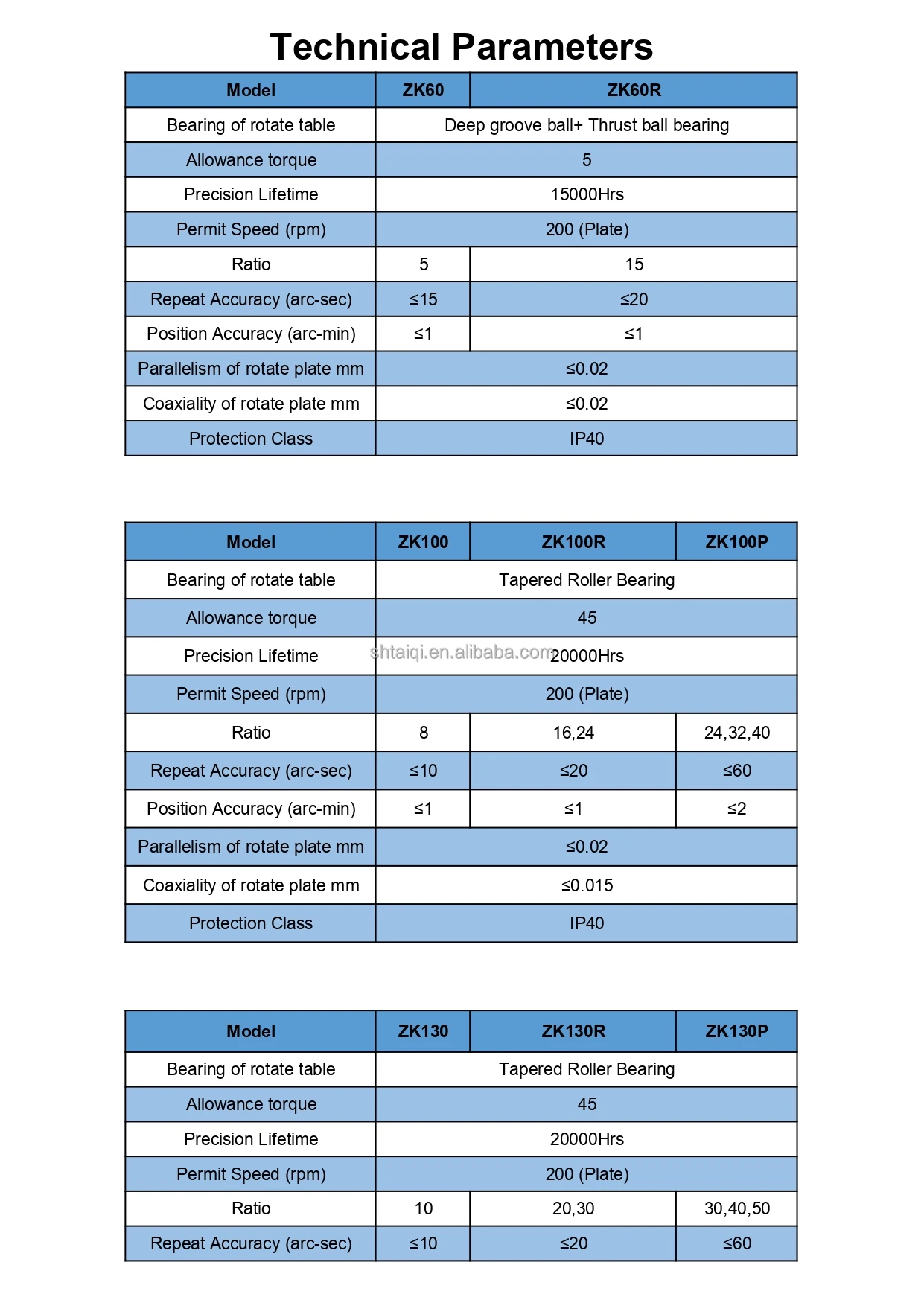

Technical Parameters

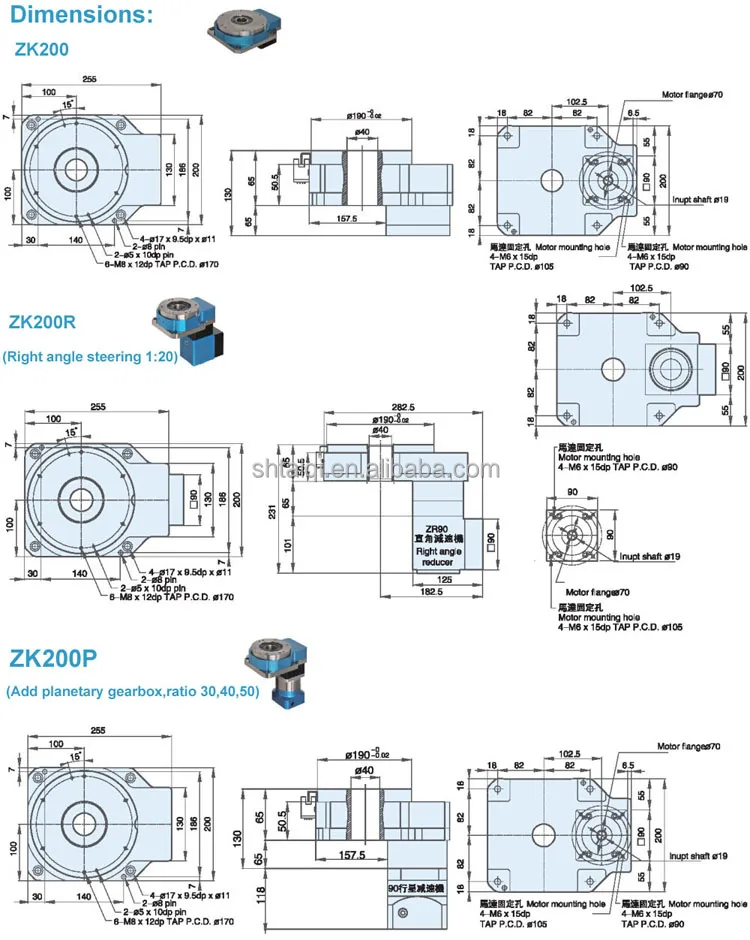

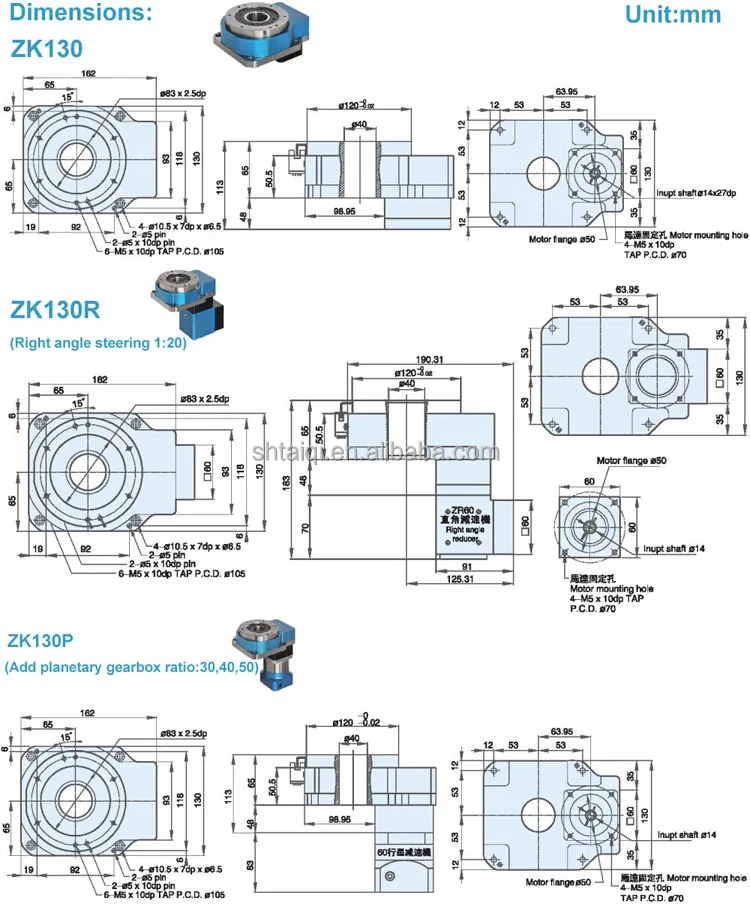

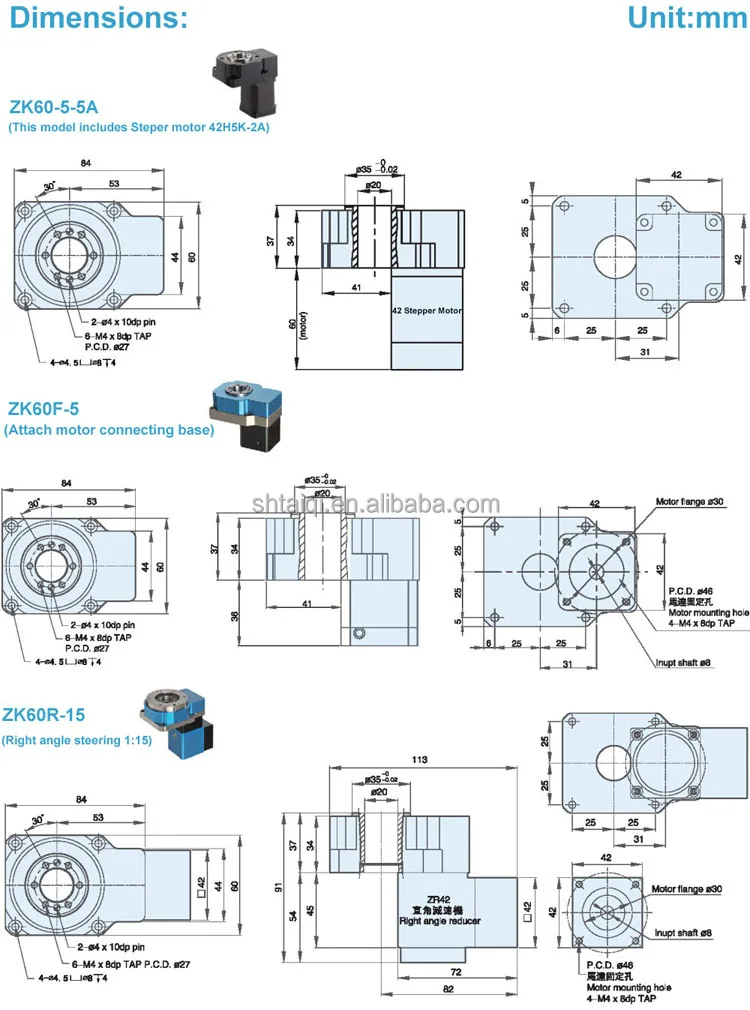

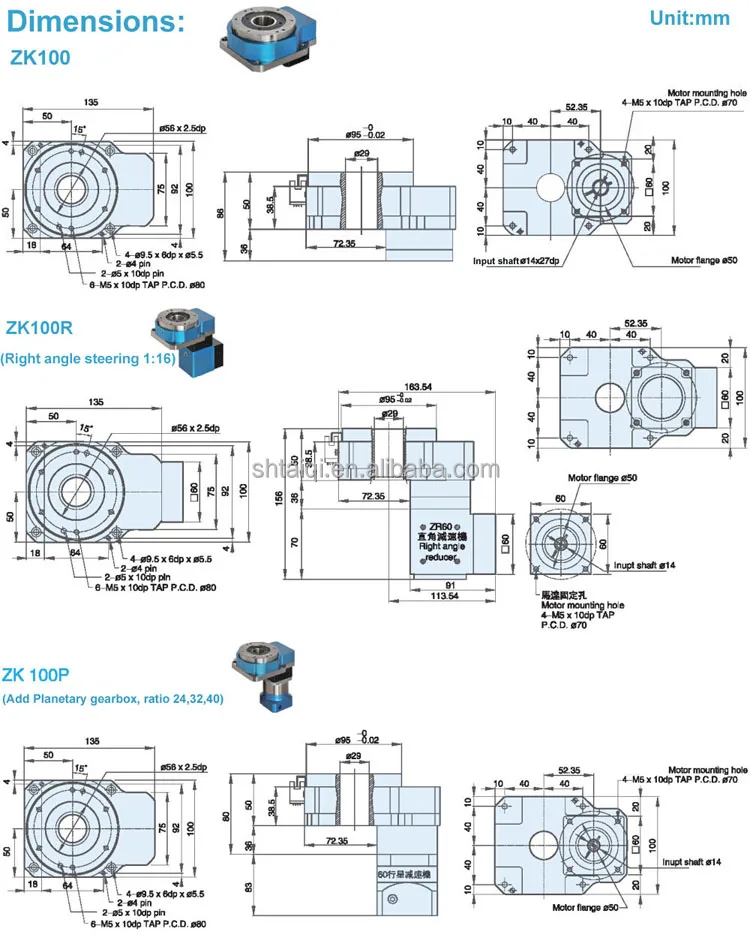

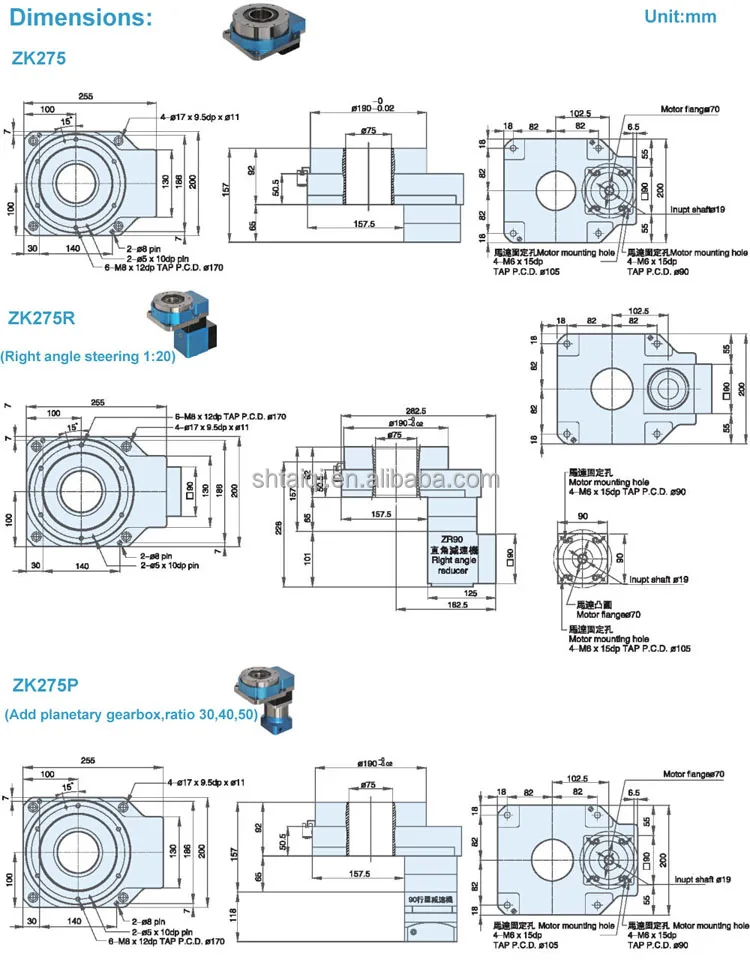

Specifications and Dimensions

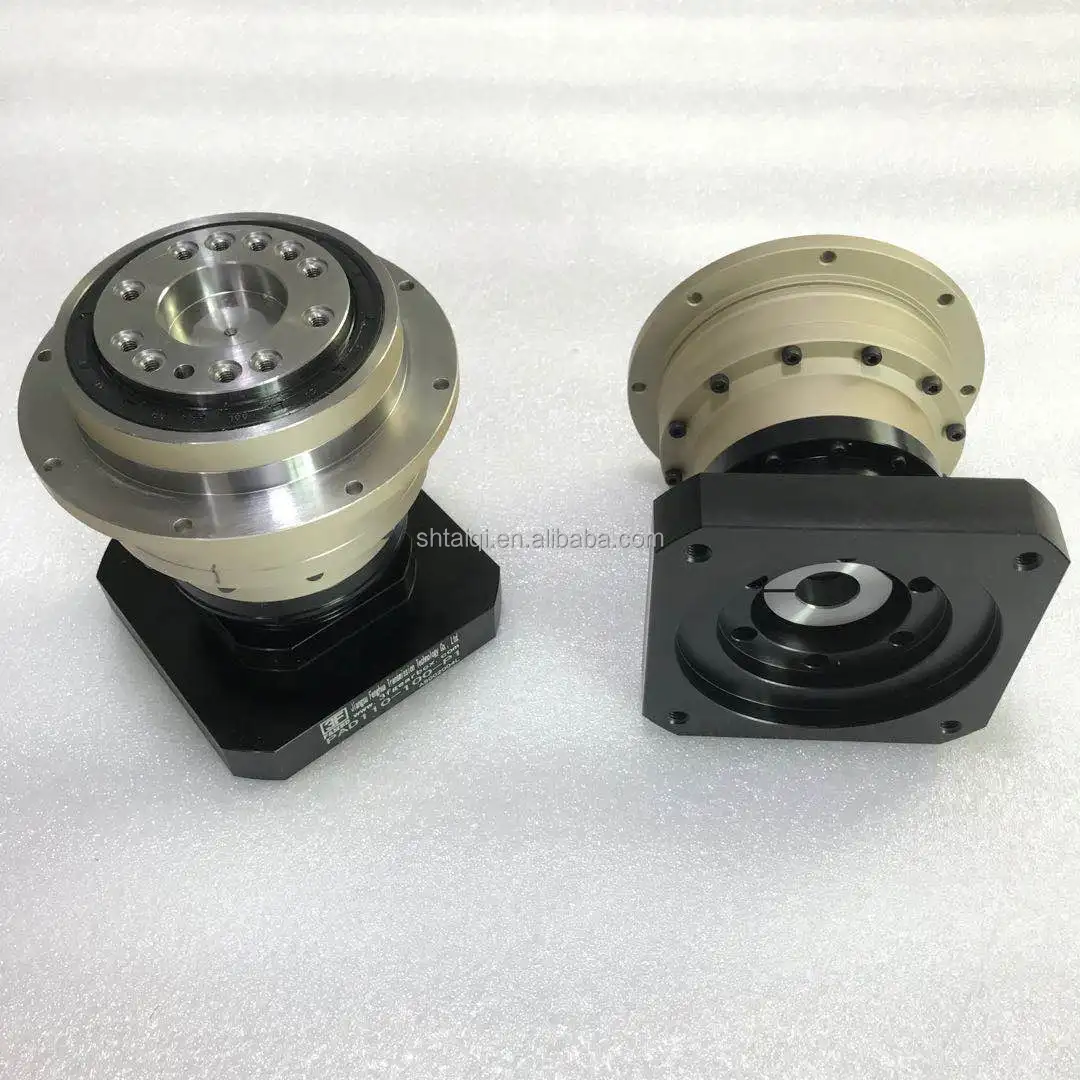

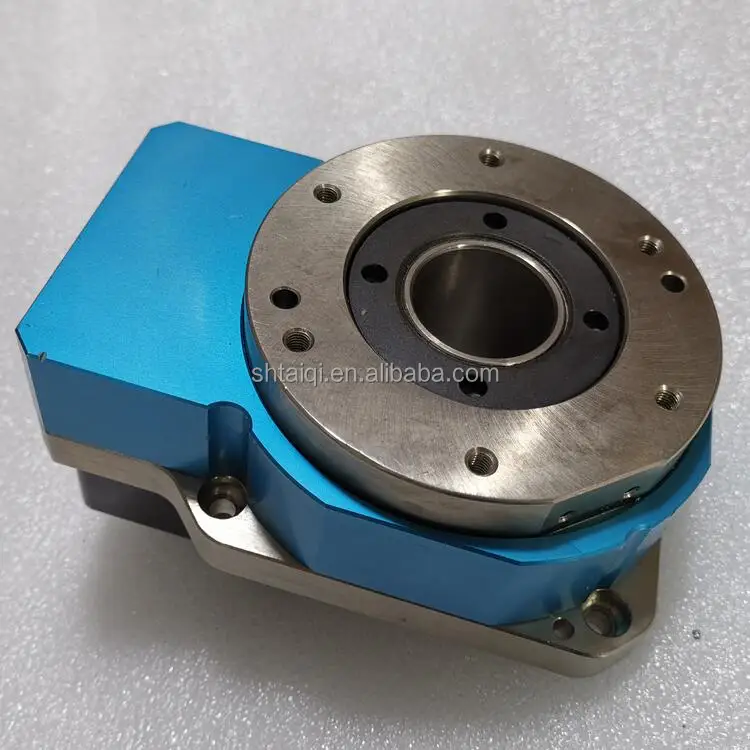

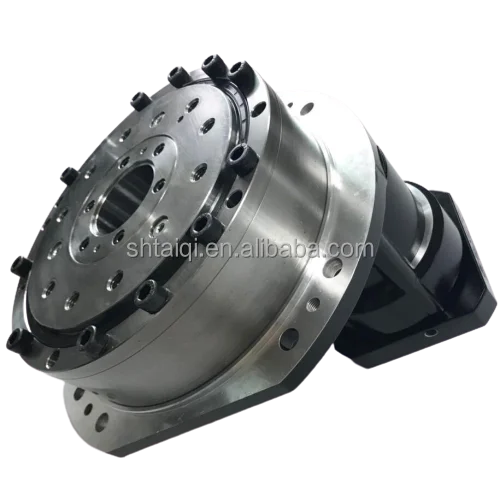

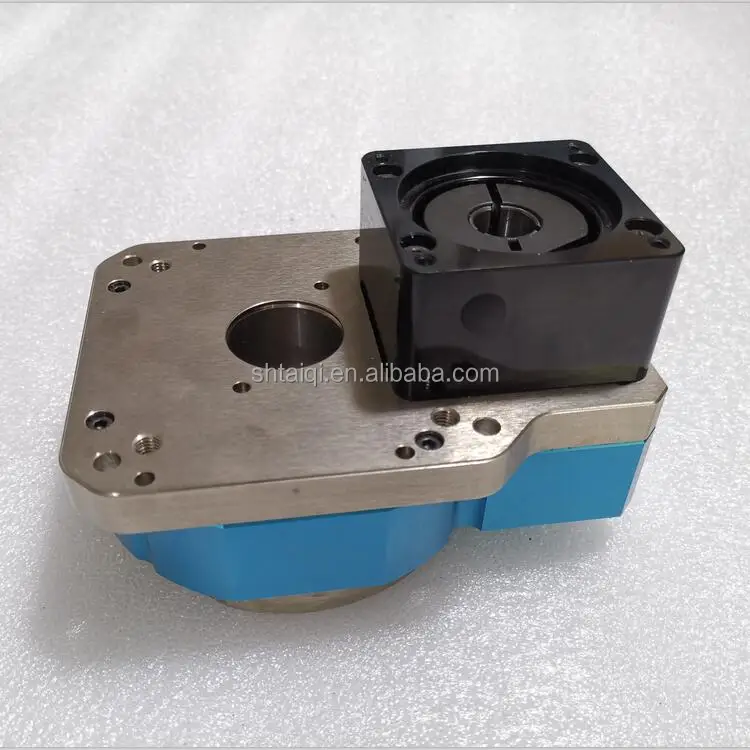

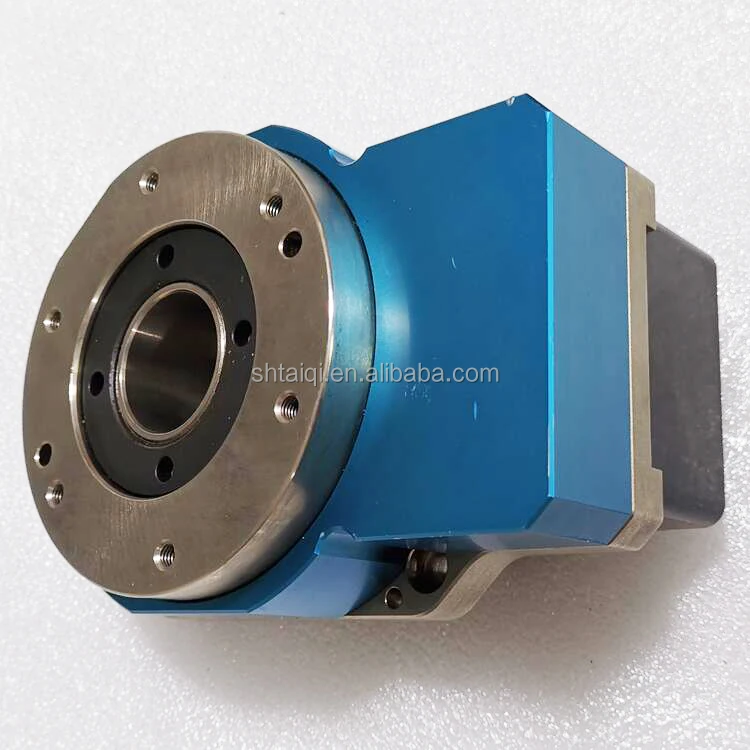

Real Figures

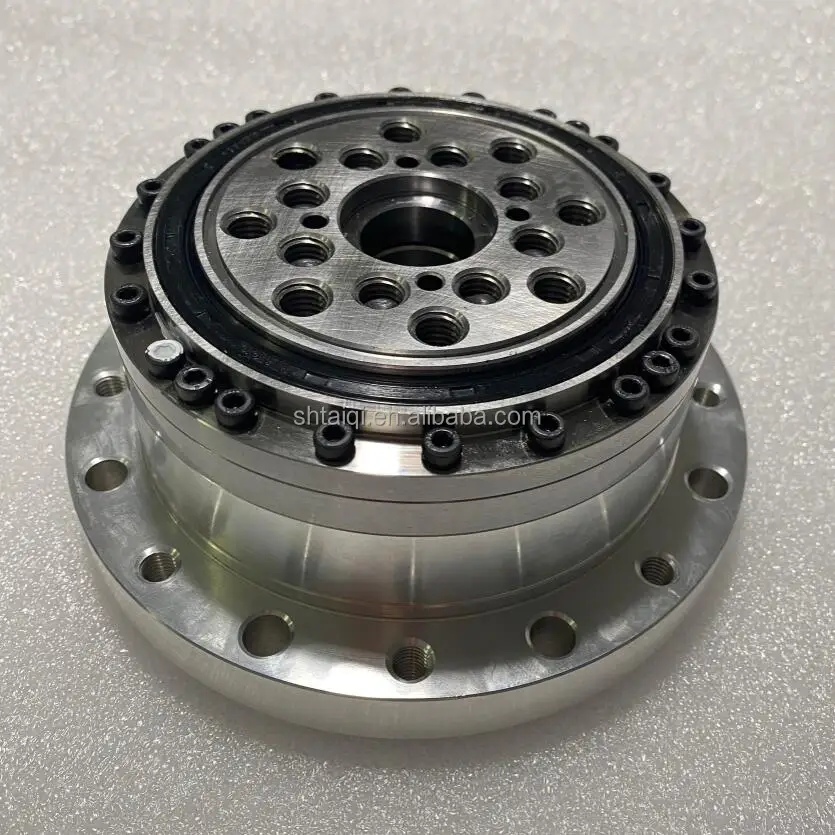

SIMILAR PRODUCTS
Why Choose Us
Our Services & Strength
1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc.
2. Delivery time could be negotiated if you are urgent.
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc.
2. Delivery time could be negotiated if you are urgent.
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
