Wall mount verified supplier Lifepo4 Battery pack 48v 60v100ah 150ah lipo4 Power Wall Lithium Ion lifepo4 battery solar systems
- Category: >>>
- Supplier: Shenzhen Cloud lithium Battery New Energy Co. LTD.
Share on (1600559240268):
Product Overview
Description
Technical Specification

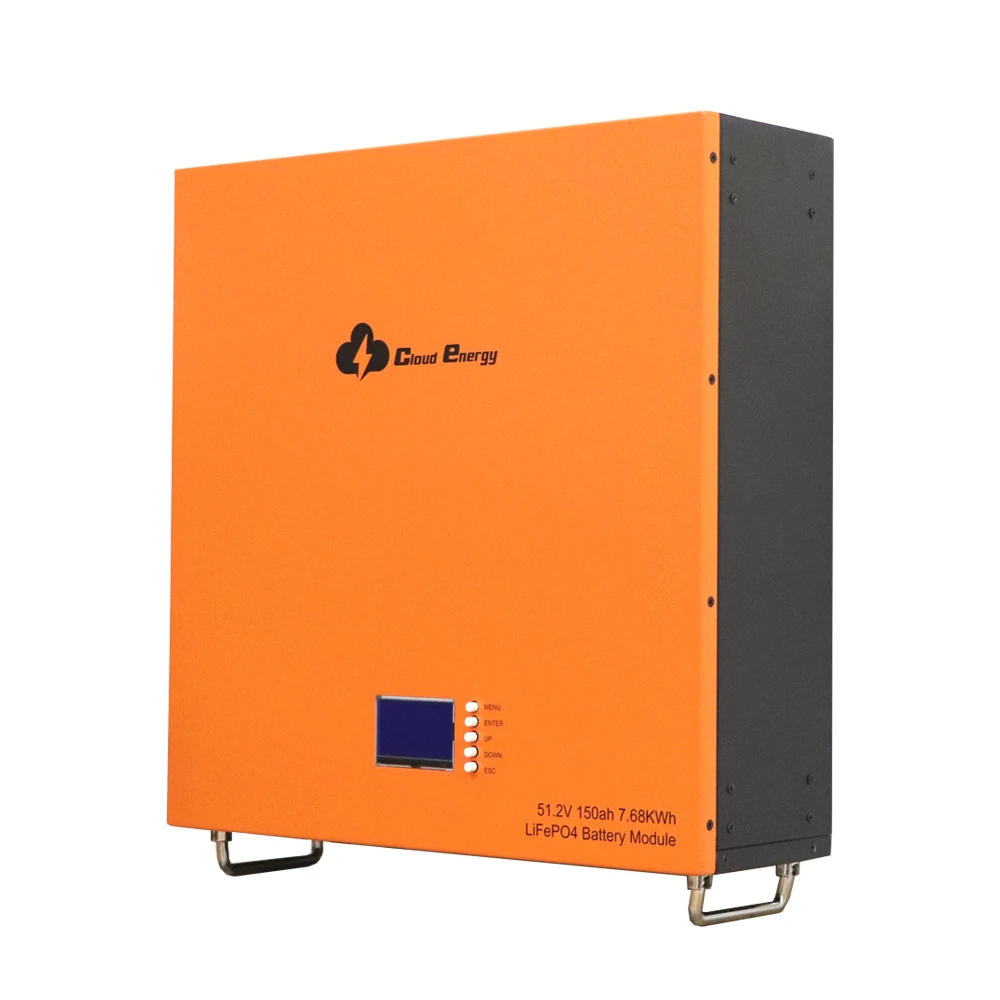

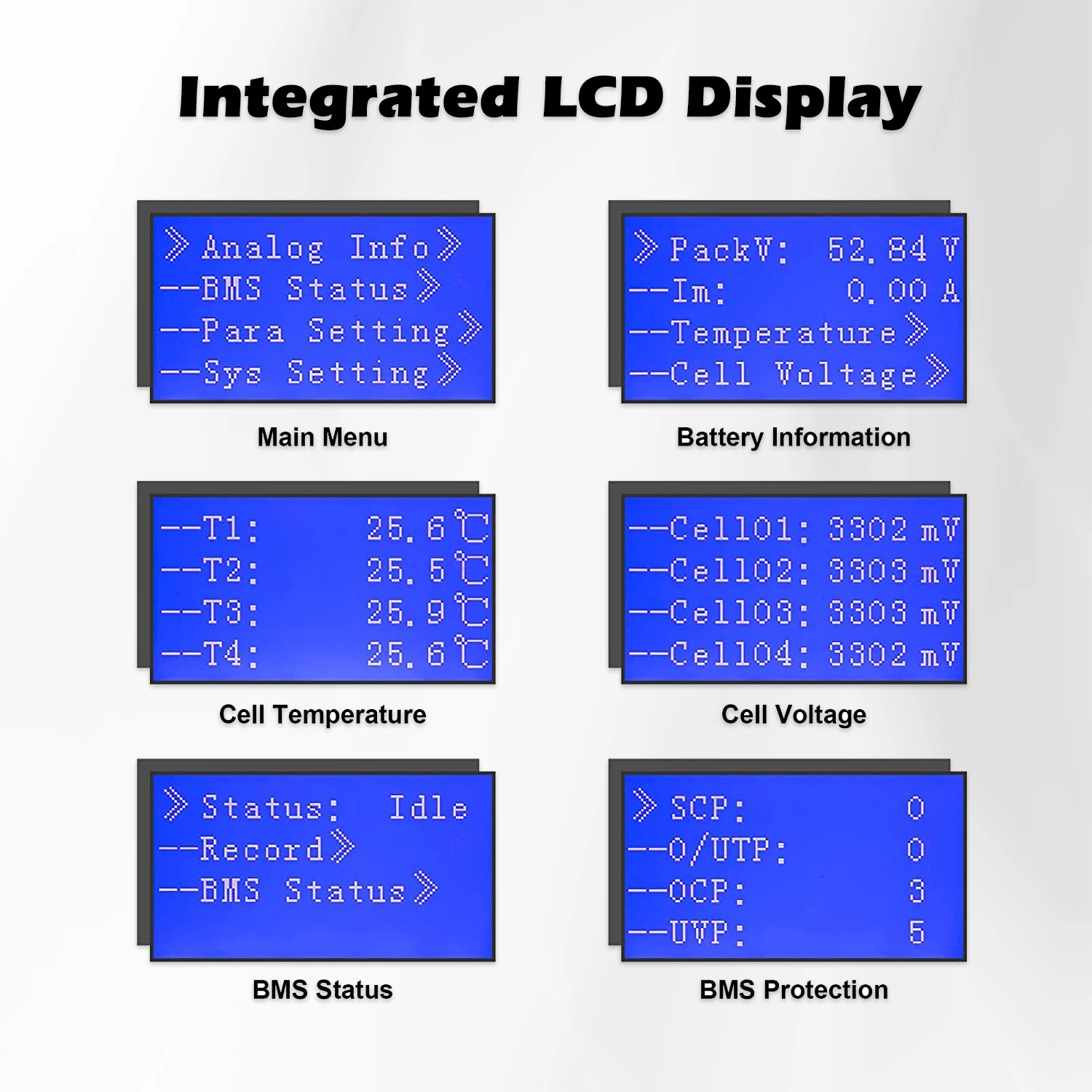

Cloud Energy Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and
cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!
cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!

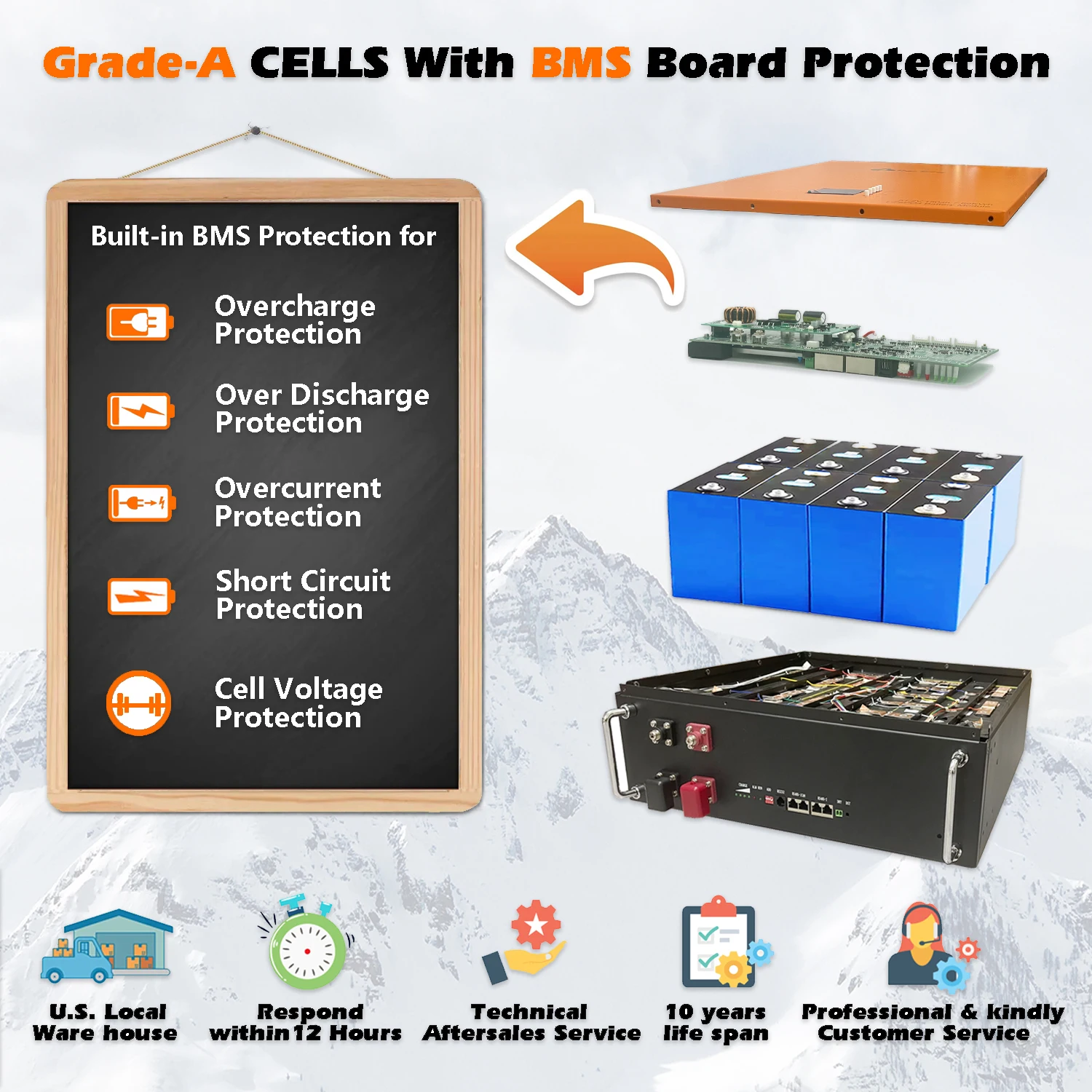

Cloud Energy Power wall is equipped with A grade lithium battery cell, high-quality BMS and superior accessories. All energy storage batteries can installation flexibility and maintenance-free.

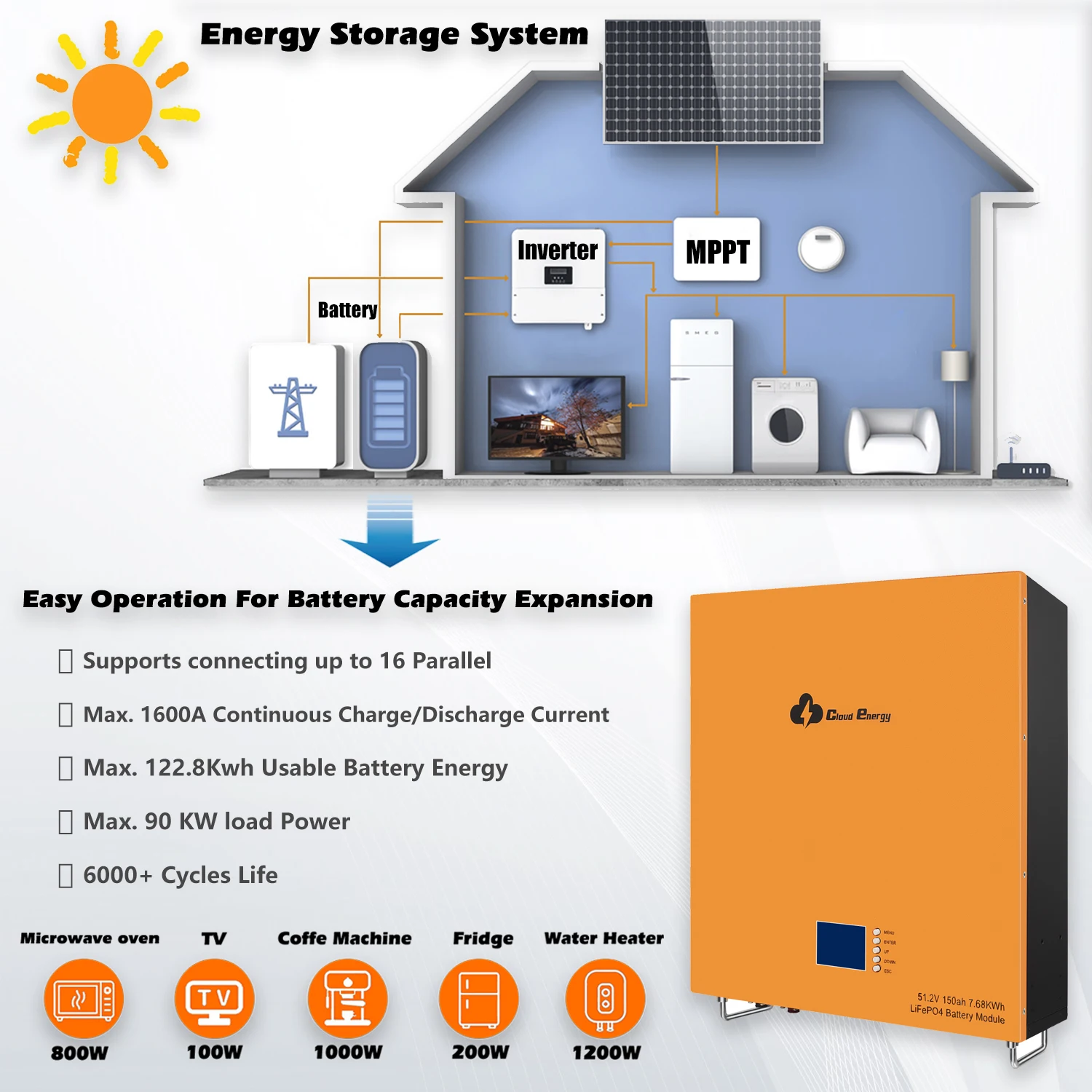

it support max. 16 parallels for highest Contains the capacity of all batteries

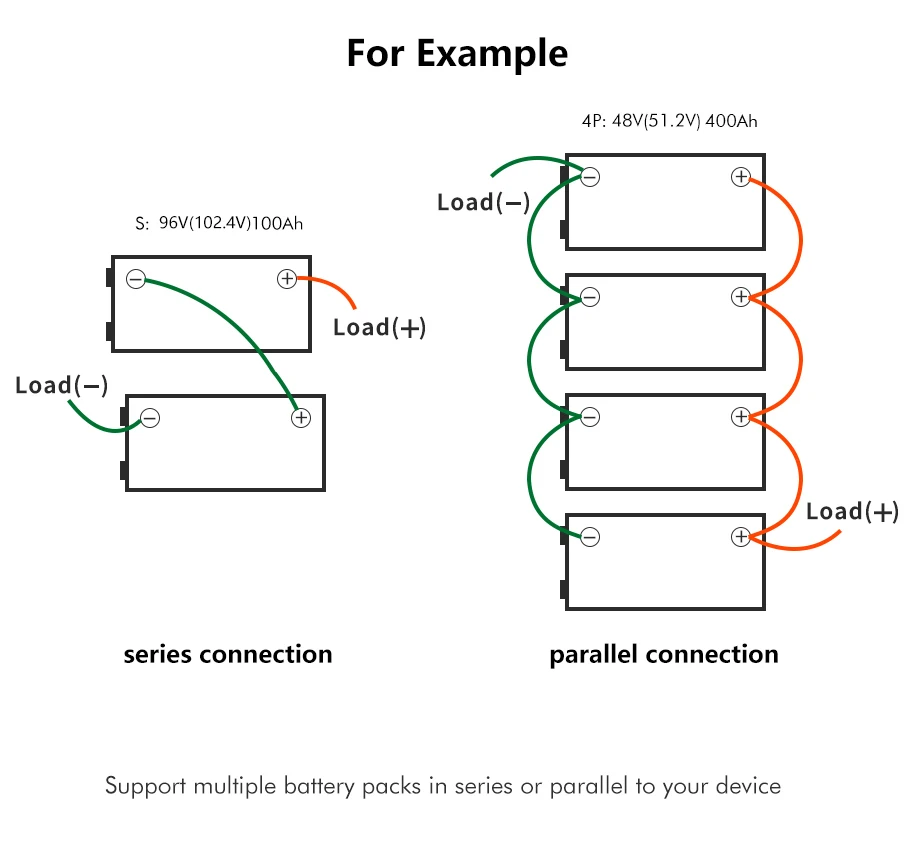

Cloud Energy Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to
comprehensive hybrid and off grid inverters!Type | Power Wall（Cabinet installation） | Powerwall | |||||
Model | CL-WM100 | CL-WM100 | CL-WM150 | CL-WM200 | |||
Battery Capacity [Ah] | 100Ah | 100Ah | 150Ah | 200Ah | |||
Nominal Battery Energy [kwh] | 5.12 | 51.2 | 7.68 | 10.24 | |||
Max.charge Current [A] | 50A | 50 | 50A | 100A | |||
Max.Discharge Current [A] | 100A | 100A | 150A | ||||
Max.Charge Current | 50A | 50A | 100A | ||||
Max.Discharge Current | 120A | 120A | 170A | ||||
Net Weight [KG] | 44 | 44 | 52 | 64 | |||
Dimension [H*W*D, mm] | 480*448*180 | 480*448*150 | 480*448*180 | 600*480*180 | |||
Operating Temperature Range | -20 ~ 50 [℃ ] | ||||||
Nominal Voltage(V) | 48V/51.2V | ||||||
Max.Charge Voltage | 58.4V | 58.4V | 58.4V | ||||
Cut-off Voltage | 40V | 40V | 40V | ||||
Life Cycles | >6000 | ||||||
Stand ard Charge Current | 50A/0.25C | ||||||

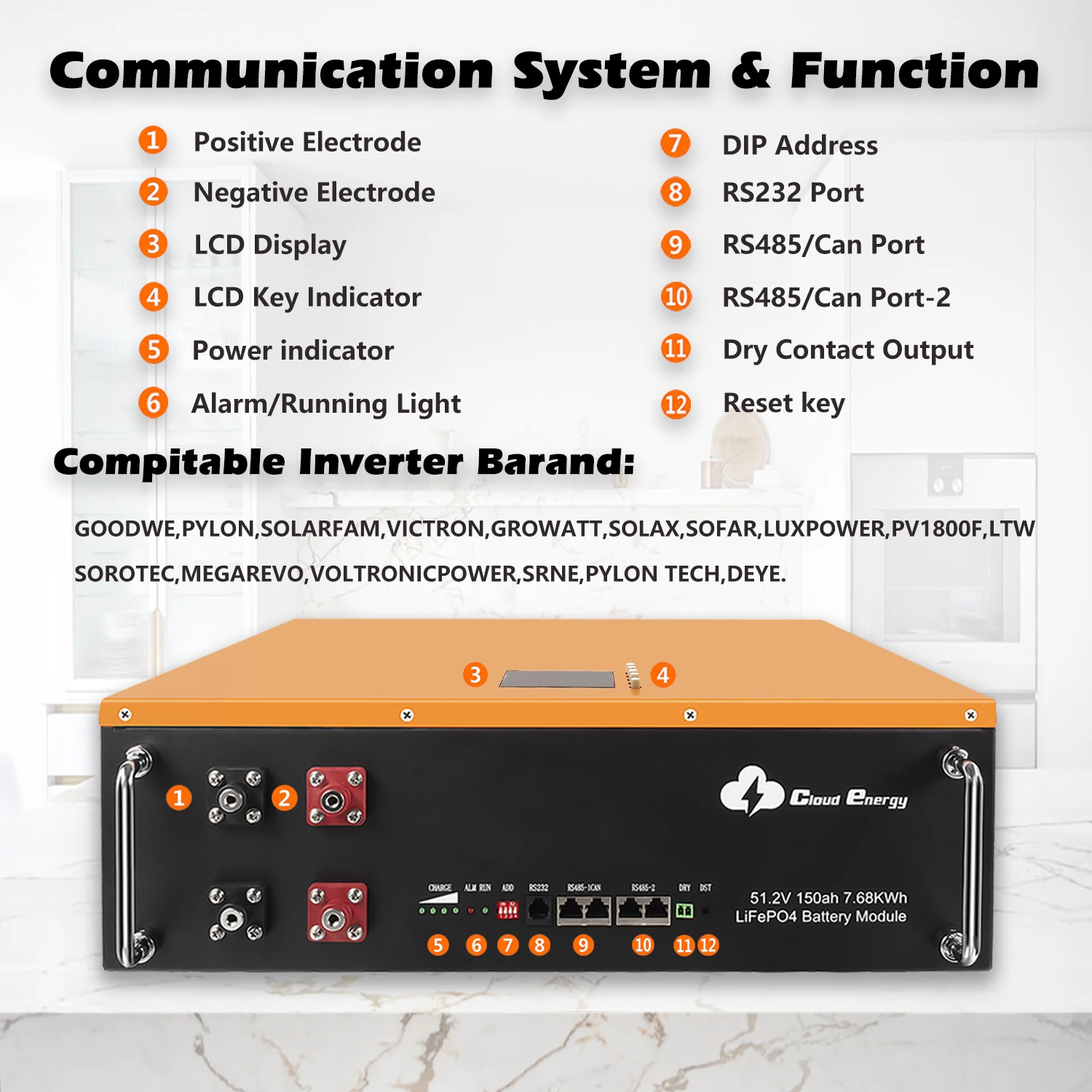

Communication | CAN/RS485/RS232/DRY CONTACT | ||||||
Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||||
Warranty | 10 Years | ||||||
Alarms | Battery Operation/Out of Battery/System fault | ||||||
Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | ||||||
Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system | ||||||
Compitable Inverter Brand | GOODWE, PYLON, SOLARFAM, VICTRON, GROWATT, SOLAX, SOFAR, LUXPOWER, PV1800F, LTW, SOROTEC, MEGAREVO, VOLTRONICPOWER, SRNE, PYLON TECH, Deye. | ||||||
Design Life | 10+Years (25℃/77℉) | ||||||
Parallels | Up to 16 units wallpower parallel | ||||||
