CE Approved Liquid Drinking Sachet Pure Water Making Company Beverage Pouch Packing Bags Filling And Sealing Machine Automatic
- Category: >>>
- Supplier: Ningbo Golden Yangtze River Water Treatment Equipment Co. Ltd.
Share on (1600559258793):
Product Overview
Description
Product Overview

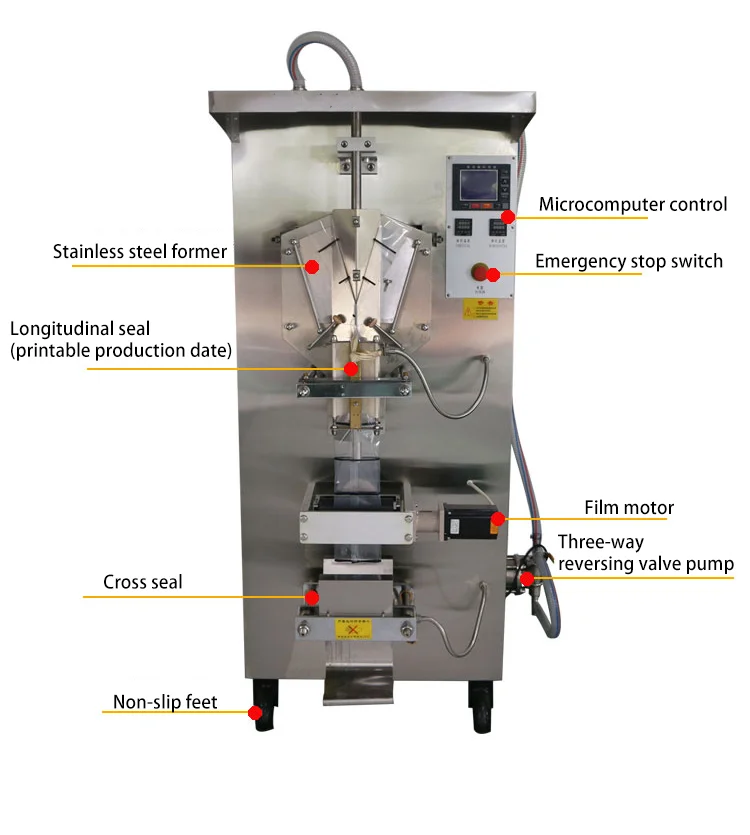

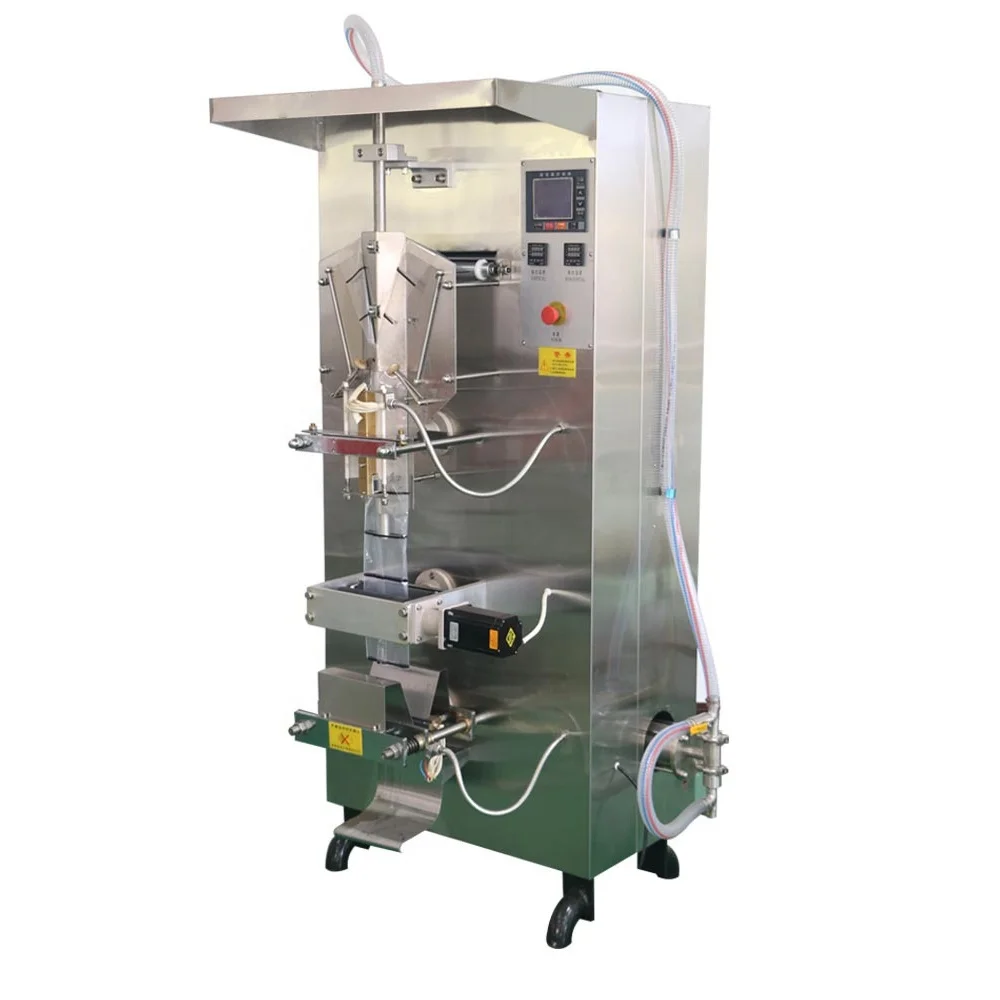

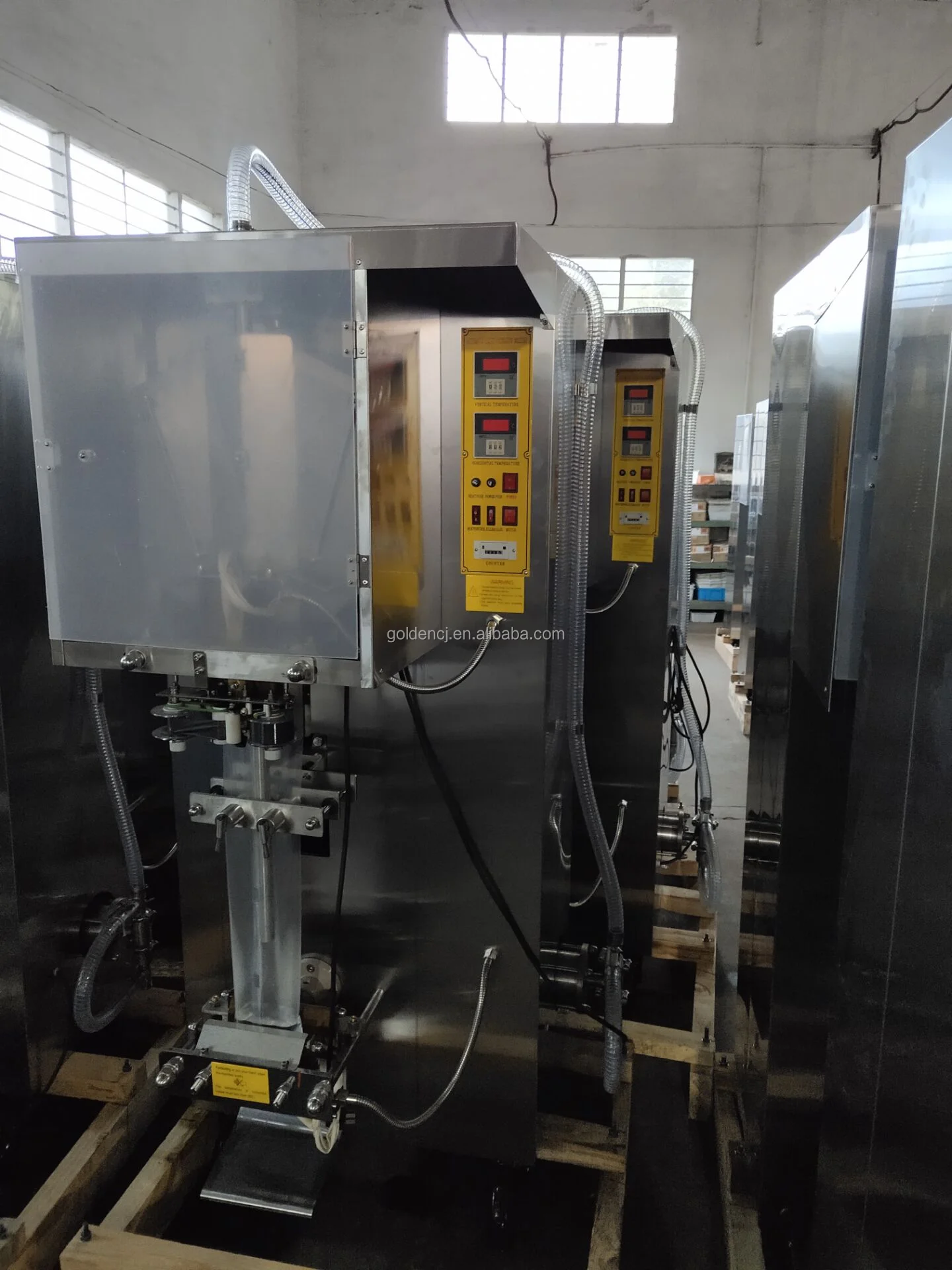

Pouch Bag Packing Machine
This machine is high precision packing machine and the most advanced liquid compound packing machine in china, which is standing,three side sealing and intermittent. It can automatically complete Bag-making, filling, sealing, printing, cutting and counting.Controlled by microprocessor and automatic photocell. It is widely used to pack all kinds of liquid without gas, especially soy,wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products.
FEATURES AT A GLANCE

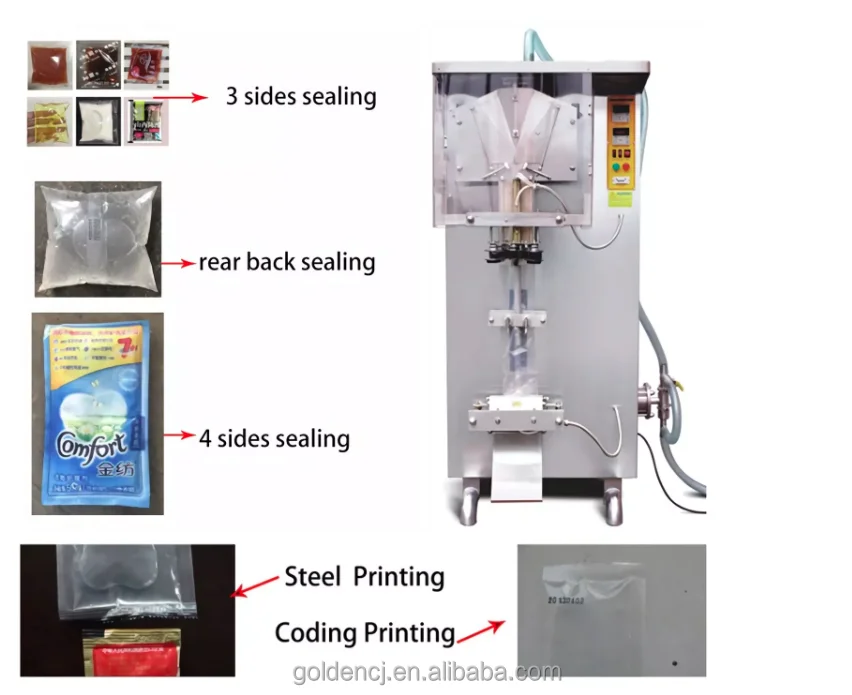

1.Back sealing,valve piston pump filling meter.
2.Double-way valve piston pump filling measuring.
3. The finished packed products are elegant and reliable, hygiene and security.
4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
5. The body and the parts touching the material are made of stainless steel.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Production Speed | 2000-2200 bags/hour |
2 | Bag Capacity | 100-500ml |
3 | Bag-making length | 50-150mm |
4 | Bag-making width | 40-150mm |
5 | Packing film width | 100-320mm |
6 | Packing capacity | 100-500ml |
7 | Power | 1.6KW |
8 | Dimension | 880*760*1800mm |
Certifications
Why Choose Us
1.The pouch filling and sealing machine installs at aeration and dry place, is full of sunshine, makes it stable. This automatic filling machine can fix four feet if necessary.
2.The tube which is going to fill material fills full of water (or 75 CC)，the rubber tube cover the material out（avoid
horizontal seal copper cake and then lead to sewer or recycle .The bagging equipment takes 5-10 minutes to wash pipe while starting the machine.It makes sure to reach the standard of food sanitation.

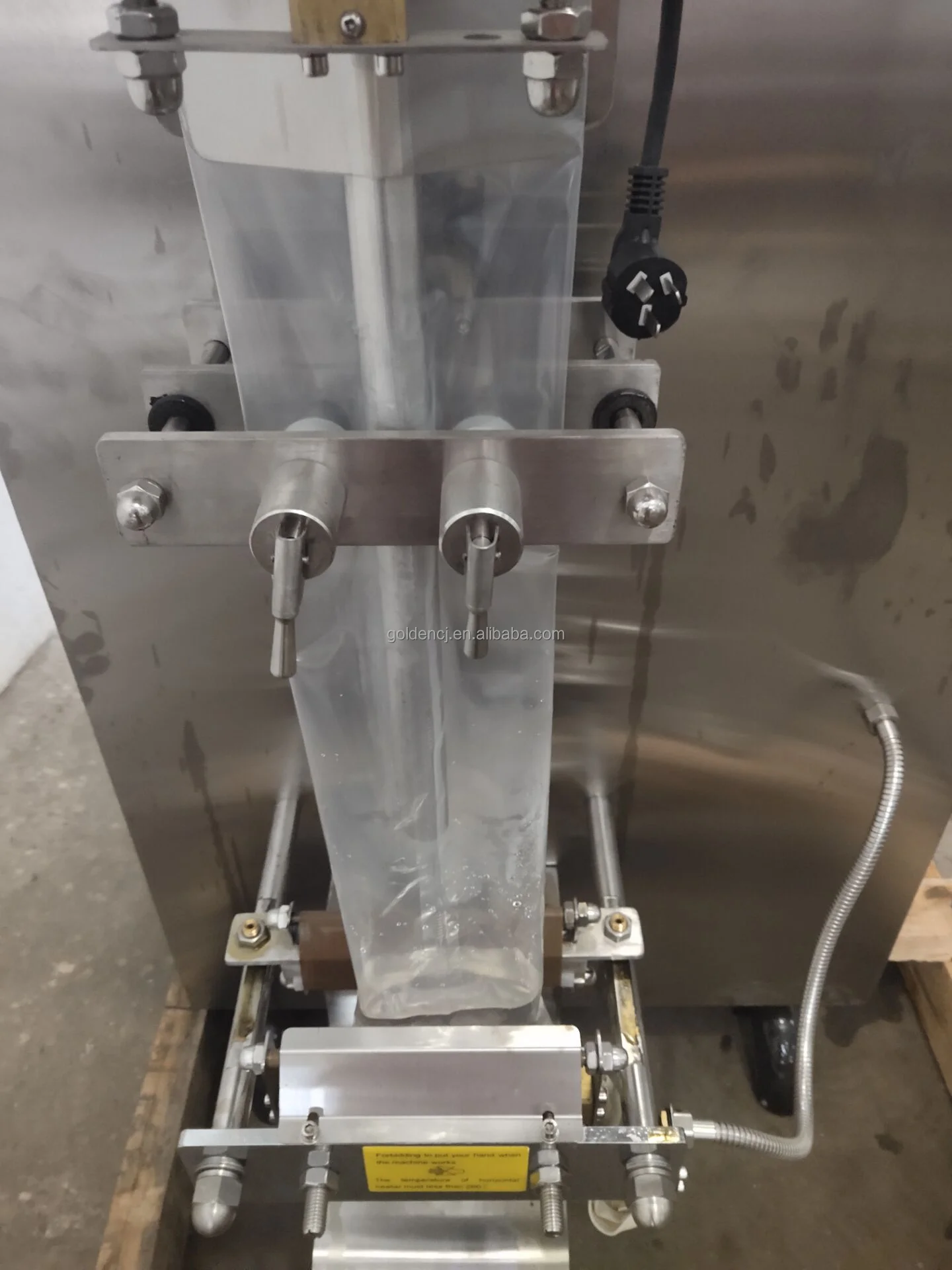

3.The plastic tool insert to the wheel, and adjust the central line, and make sure the same width when the roll is molding. Then screw the bolt separately. It is good through adjusting the pole of spring stress, ration automatically sway automatically. It is the best for braking well.
4.The sack pass through the tube, then buckle shaped utensil to make sure the strip symmetry. Date adjust to the daily date from up to down year XX month XX day XX.
The vertical hot seal temperature adjusts to 120~150℃，the horizontal seal temperature adjusts to 180~240℃（No more than 260℃, or the head of hot seal film is easy to damage），the exact temperature will be adjusted according to the film material and thickness.It can start to fill after pre-heat 20 minutes, then it can produce continuously as long as the power is not off.
5.This Sachet Packaging Machine can get the length of sack through adjusting the position of pole on the winch.Adjusting-in is short, adjusting-out is long. First the power is off, then adjust. First loosen nut then adjust knob. Screw down the nut before starting the machine.
6.The sachet water filling machine can get the filling volume through adjusting ration pump on the winch. Adjusting-in is
reduced, adjusting-out is enlarged. The same method with 5.5.
7.The piston is adjustable module. When it used for a period, if it is found the piston pole dropped, you could loosen the screw on the end piston. Screw piston clockwise, it makes piston large and it will eliminate the phenomenon of drop. ( Note: the adjusting must be small, or the piston is easy to damage). Screw down the screw to prevent loosening after adjusting.
8.The liquid sachet filling machine is ok to press the button and no need workers when it works. The output will show
automatically by the counter. The the film is used up, it need to stop at once, and change into another film, then provide liquid and the machine starts. The PE Bag Water Packing Machine needs to pre-treat and filter when the solid substances is more in the tube which fill the liquid.When the vertical and horizontal seal no viscidity is worn after a period, it may loosen the tube to adjust. The bag filling machine can work after screwing down.( it is useless to adjust when it is worn completely). The liquid in the tube can not be more than 0.5 meters to insure the precision. The bag filling machines can not be close when starts the machine, and when it has control valve in the liquid pipe.
9.Inspect the vertical and horizontal seal copper cake in a certain time, and clean up the sundries. Or the small bag filling
machine will affect the hot sealing. The bag filling and sealing machine can not be cleaned with metal tool and sand paper, or it will damage the surface and can not work. The bag filling machinery should be cleaned with cloth or wooden organic solvent after the temperature is down, and clean up the sundries.
10.The bag packing machine should rub methyl silicone oil on the vertical and horizontal seal cloth with a certain time, in order to prolong the life of no viscidity cloth and increase the hot sealing.（methyl silicone oil model:210~350CS）。
11.When it appears non-well seal, one sack connects another sack, leakage etc. it forbids pick it up with hands and kinds of tools. The liquid filling machinery should be stopped at once.
12.The automatic bag filling machines is the best condition of all the program and dimension before delivery. If it needs
experienced technician to maintenance, and write down the dimension, then it can take down.
2.The tube which is going to fill material fills full of water (or 75 CC)，the rubber tube cover the material out（avoid
horizontal seal copper cake and then lead to sewer or recycle .The bagging equipment takes 5-10 minutes to wash pipe while starting the machine.It makes sure to reach the standard of food sanitation.
3.The plastic tool insert to the wheel, and adjust the central line, and make sure the same width when the roll is molding. Then screw the bolt separately. It is good through adjusting the pole of spring stress, ration automatically sway automatically. It is the best for braking well.
4.The sack pass through the tube, then buckle shaped utensil to make sure the strip symmetry. Date adjust to the daily date from up to down year XX month XX day XX.
The vertical hot seal temperature adjusts to 120~150℃，the horizontal seal temperature adjusts to 180~240℃（No more than 260℃, or the head of hot seal film is easy to damage），the exact temperature will be adjusted according to the film material and thickness.It can start to fill after pre-heat 20 minutes, then it can produce continuously as long as the power is not off.
5.This Sachet Packaging Machine can get the length of sack through adjusting the position of pole on the winch.Adjusting-in is short, adjusting-out is long. First the power is off, then adjust. First loosen nut then adjust knob. Screw down the nut before starting the machine.
6.The sachet water filling machine can get the filling volume through adjusting ration pump on the winch. Adjusting-in is
reduced, adjusting-out is enlarged. The same method with 5.5.
7.The piston is adjustable module. When it used for a period, if it is found the piston pole dropped, you could loosen the screw on the end piston. Screw piston clockwise, it makes piston large and it will eliminate the phenomenon of drop. ( Note: the adjusting must be small, or the piston is easy to damage). Screw down the screw to prevent loosening after adjusting.
8.The liquid sachet filling machine is ok to press the button and no need workers when it works. The output will show
automatically by the counter. The the film is used up, it need to stop at once, and change into another film, then provide liquid and the machine starts. The PE Bag Water Packing Machine needs to pre-treat and filter when the solid substances is more in the tube which fill the liquid.When the vertical and horizontal seal no viscidity is worn after a period, it may loosen the tube to adjust. The bag filling machine can work after screwing down.( it is useless to adjust when it is worn completely). The liquid in the tube can not be more than 0.5 meters to insure the precision. The bag filling machines can not be close when starts the machine, and when it has control valve in the liquid pipe.
9.Inspect the vertical and horizontal seal copper cake in a certain time, and clean up the sundries. Or the small bag filling
machine will affect the hot sealing. The bag filling and sealing machine can not be cleaned with metal tool and sand paper, or it will damage the surface and can not work. The bag filling machinery should be cleaned with cloth or wooden organic solvent after the temperature is down, and clean up the sundries.
10.The bag packing machine should rub methyl silicone oil on the vertical and horizontal seal cloth with a certain time, in order to prolong the life of no viscidity cloth and increase the hot sealing.（methyl silicone oil model:210~350CS）。
11.When it appears non-well seal, one sack connects another sack, leakage etc. it forbids pick it up with hands and kinds of tools. The liquid filling machinery should be stopped at once.
12.The automatic bag filling machines is the best condition of all the program and dimension before delivery. If it needs
experienced technician to maintenance, and write down the dimension, then it can take down.

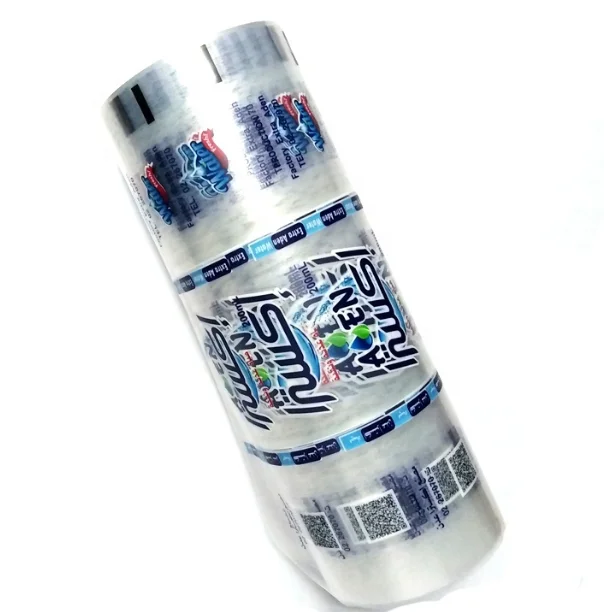

Where can I find the source of consumables, say PE film for Sachet Water Filling Machine? Water sachets pure water in Africa 500ml plastic pouches
To save shipping freight, we would recommend our customers to find the PE film locally, but we also offer PE film including
printing at a competitive price, and if you are into the most popular sachet / pouch pure/mineral water business, we can also
offer you a total solution including the water treatment, sachet / pouch filling machines, packaging plastic material and even
factory design. Pls consult our sales engineer for more info.
printing at a competitive price, and if you are into the most popular sachet / pouch pure/mineral water business, we can also
offer you a total solution including the water treatment, sachet / pouch filling machines, packaging plastic material and even
factory design. Pls consult our sales engineer for more info.
Automatic Drinking Water Liquid Packing Machine This automatic drinking water Liquid Packing Machine adopts food grade 316/304 stainless steel structure, which reaches the international health standard.This machine has stable and reliable performance,simple operation and low failure rate.
* Widely uses in the milk, the fermented bean curd, each kind of drink, the soy sauce, the vinegar, the liquor and so on each kind of liquid.
* single polyethylene film wrapper, can carry on the ultraviolet ray to be antiseptic automatically, the feed bag formation, the date printing, the quota fill install, seal gather shut off disposable complete.
* The complete machine uses the stainless steel structure, achieves the international sanitation standard.
* Machine performance steady reliable, the operation is simple, the failure rate is low.
* Optional: organic glass shade , Ribbon code printer , ultraviolet radiation sterilization, etc function .
we can customize the special size according to customer's demands. 2,The machine disposition may make the choice.
* single polyethylene film wrapper, can carry on the ultraviolet ray to be antiseptic automatically, the feed bag formation, the date printing, the quota fill install, seal gather shut off disposable complete.
* The complete machine uses the stainless steel structure, achieves the international sanitation standard.
* Machine performance steady reliable, the operation is simple, the failure rate is low.
* Optional: organic glass shade , Ribbon code printer , ultraviolet radiation sterilization, etc function .
we can customize the special size according to customer's demands. 2,The machine disposition may make the choice.
50-500ml Automatic Sachet Pouch Water Filling and Packing Machine 110V 220V
1. Special sizes can be customized according to customer needs.
2. Fast Delivery/Quality Products/Professional After-sales Services (Video or Picture and Speech tutorials)
3. We are a manufacturer of direct sales, 20 years of production and sales of goods experience, the best quality, and
service,welcome to consult any relevant machine problems. 4.Shipping channel by sea for 20-30 days! The price is not included Tax and Destination Delivery Charges.
The sachet machine can be used to fill pouches with a wide variety of liquids such as water, juices, wine, alcoholic beverages,soy milk, and various other liquids. This sachet machine has been proven to be very reliable and is very commonly used in areas such as Latin America and Africa, but can be used anywhere worldwide.
The sachet machine fills the sachet with water then uses a heat-sealing system to ensure that the filled sachet or pouch does not leak water. Heat-sealing also ensures that there are no adhesives, glues, or resins used to seal the bag, preventing any possible contamination from sealing. The heat-sealing system uses thermal transverse vertical sealing to seal the bag, meaning that the bag feeds vertically and is thermally (heat) sealed. It is designed to use wither PE film or composite film bags making it versatile to various applications. It can be used with films with preprinted logos or films without logos. The machine then cuts the sachet and drops it into the finished product area.
The water sachet packing machine features date lamination, which laminates the date of production on the bag allowing you to track which pouches were produced on a given date. It also features automatic counting to track the number of bags produced by the machine rather than other machines which do not include this feature.
The sachet machine uses UV sterilization when filling the sachets to prevent any possible contamination. Therefore you can be sure that the water inside the bag has not been contaminated after it has been purified by your water purification system.
The water sachet machine is built to be very reliable and dependable, however, it does come with a 1-year warranty due to
manufacturer defect. It also comes with several free maintenance parts and other parts as well which are listed below.
The ribbon coding machine is a customized part with additional cost.
2. Fast Delivery/Quality Products/Professional After-sales Services (Video or Picture and Speech tutorials)
3. We are a manufacturer of direct sales, 20 years of production and sales of goods experience, the best quality, and
service,welcome to consult any relevant machine problems. 4.Shipping channel by sea for 20-30 days! The price is not included Tax and Destination Delivery Charges.
The sachet machine can be used to fill pouches with a wide variety of liquids such as water, juices, wine, alcoholic beverages,soy milk, and various other liquids. This sachet machine has been proven to be very reliable and is very commonly used in areas such as Latin America and Africa, but can be used anywhere worldwide.
The sachet machine fills the sachet with water then uses a heat-sealing system to ensure that the filled sachet or pouch does not leak water. Heat-sealing also ensures that there are no adhesives, glues, or resins used to seal the bag, preventing any possible contamination from sealing. The heat-sealing system uses thermal transverse vertical sealing to seal the bag, meaning that the bag feeds vertically and is thermally (heat) sealed. It is designed to use wither PE film or composite film bags making it versatile to various applications. It can be used with films with preprinted logos or films without logos. The machine then cuts the sachet and drops it into the finished product area.
The water sachet packing machine features date lamination, which laminates the date of production on the bag allowing you to track which pouches were produced on a given date. It also features automatic counting to track the number of bags produced by the machine rather than other machines which do not include this feature.
The sachet machine uses UV sterilization when filling the sachets to prevent any possible contamination. Therefore you can be sure that the water inside the bag has not been contaminated after it has been purified by your water purification system.
The water sachet machine is built to be very reliable and dependable, however, it does come with a 1-year warranty due to
manufacturer defect. It also comes with several free maintenance parts and other parts as well which are listed below.
The ribbon coding machine is a customized part with additional cost.
How Can We Help? Pure Water Factory Set-up,Maintenance of sachet water machine,SETUP THE WATER SACHET WATER POUCH FACTORY IN AFRICA
We specializes manufacturer water purification equipment such as water filtration systems to produce pure water for your sachet plant. We also offer sachet filling machine and water bagging machine that are currently used worldwide. We will assist you with establishing your bagged water purification and packaging plant from the conception of the idea to when you are ready to open your plant. Please call or email us to find out more on this profitable business and to see how LIBAIJIA (Shandong) Water Treatment Equipment Co.,Ltd can help you start your operation.Life-long maintance consulting service by Email, and Telephone. If necessary,
we send our engineer to amend it abroad for you.However, the cost for our engineer such as dormitory,travel cost is on buyer’s account. Warranty: One year factory maintance guarantee and life-long service by Email, and Telephone information.
1. Drilling of boreholes
2. Supply & Installation of Water Packaging Machine
3. Supply & Installation of Water Treatment Machine
4. Engineering the Sachet water Production Line unit

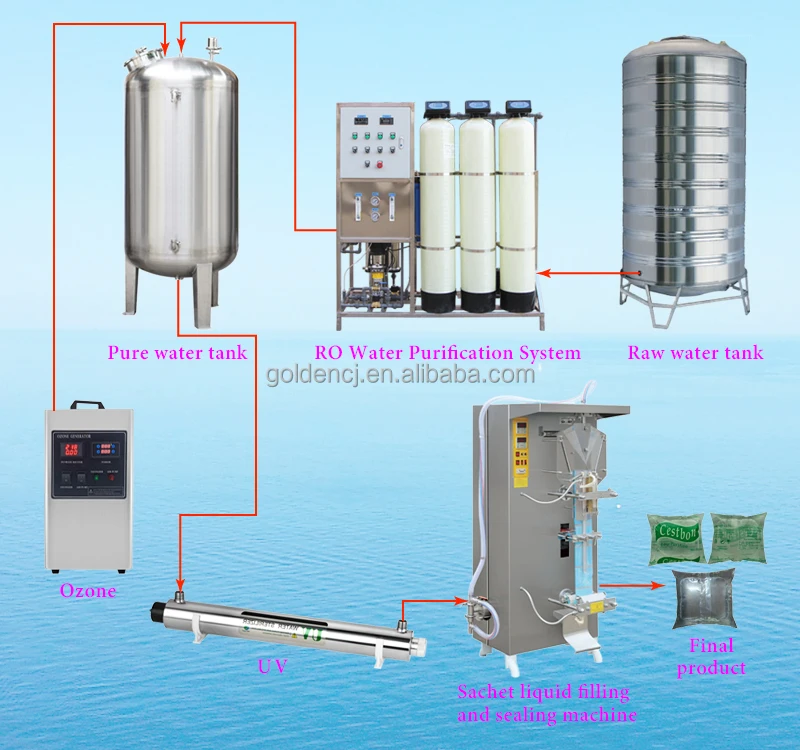

How to setup the water sachet water pouch factory in Africa? The best is setup the complete line,it include the pure water
treatment with RO system,pure water tank,sachet water filling machine, UV sterilizer and so on. For the sachet water producing
line,the smallest produce capacity is 2000sachet/h,If need the bigger type,it can make ad your request.
we send our engineer to amend it abroad for you.However, the cost for our engineer such as dormitory,travel cost is on buyer’s account. Warranty: One year factory maintance guarantee and life-long service by Email, and Telephone information.
1. Drilling of boreholes
2. Supply & Installation of Water Packaging Machine
3. Supply & Installation of Water Treatment Machine
4. Engineering the Sachet water Production Line unit
How to setup the water sachet water pouch factory in Africa? The best is setup the complete line,it include the pure water
treatment with RO system,pure water tank,sachet water filling machine, UV sterilizer and so on. For the sachet water producing
line,the smallest produce capacity is 2000sachet/h,If need the bigger type,it can make ad your request.
