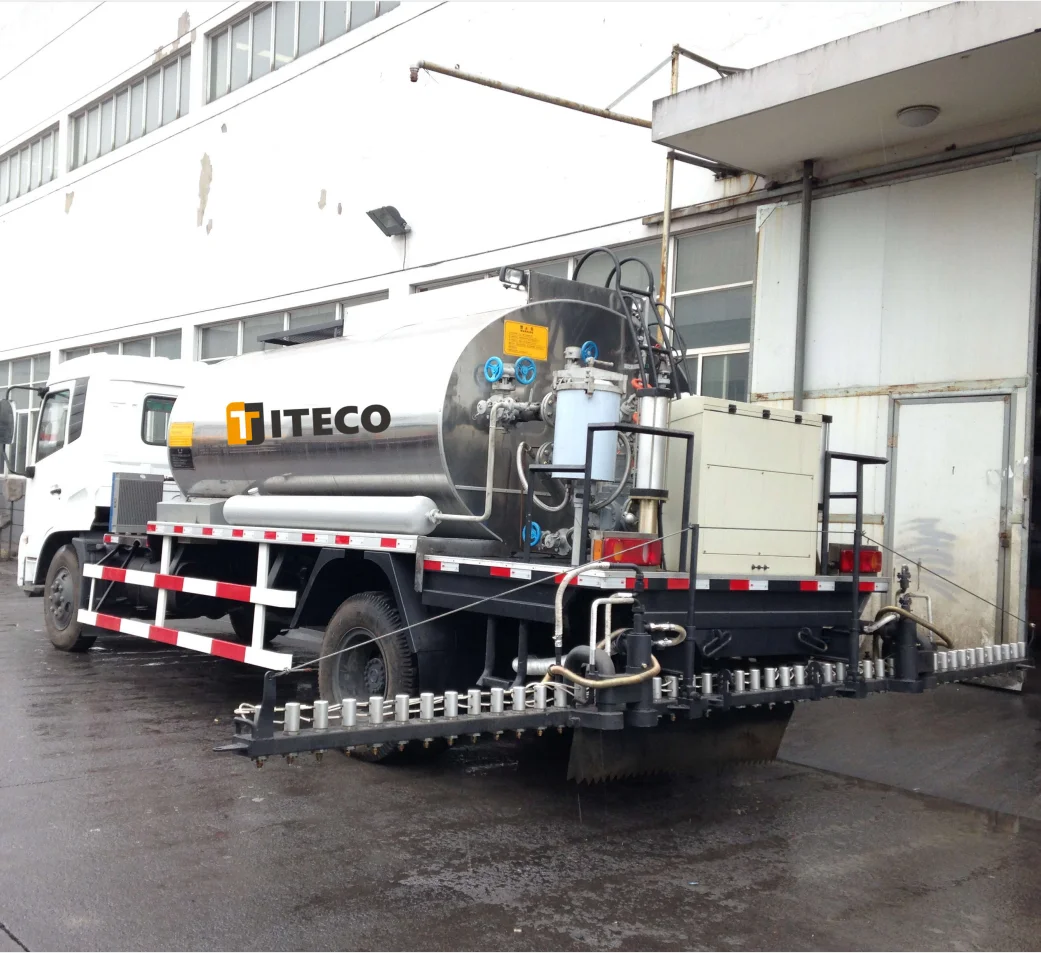

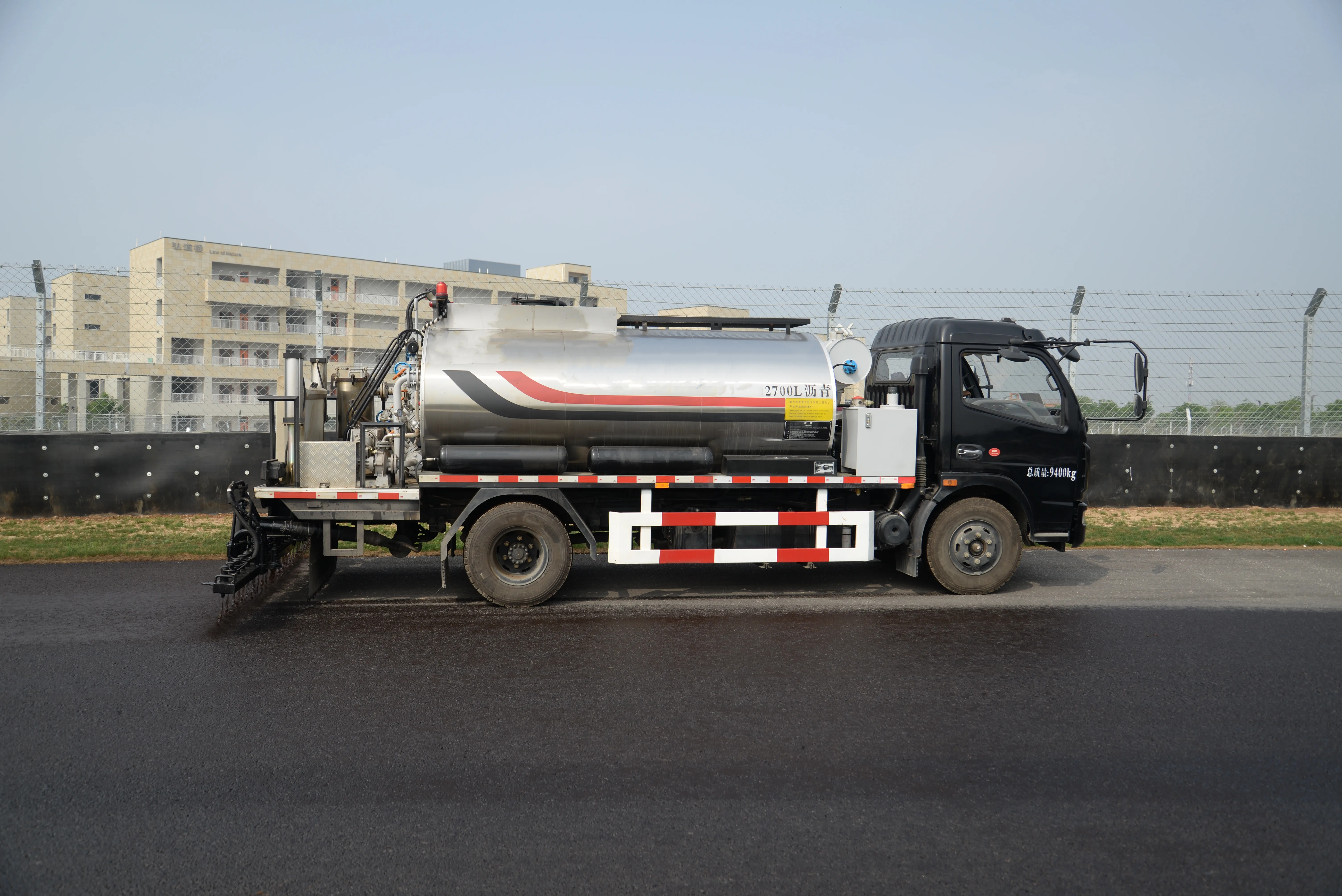

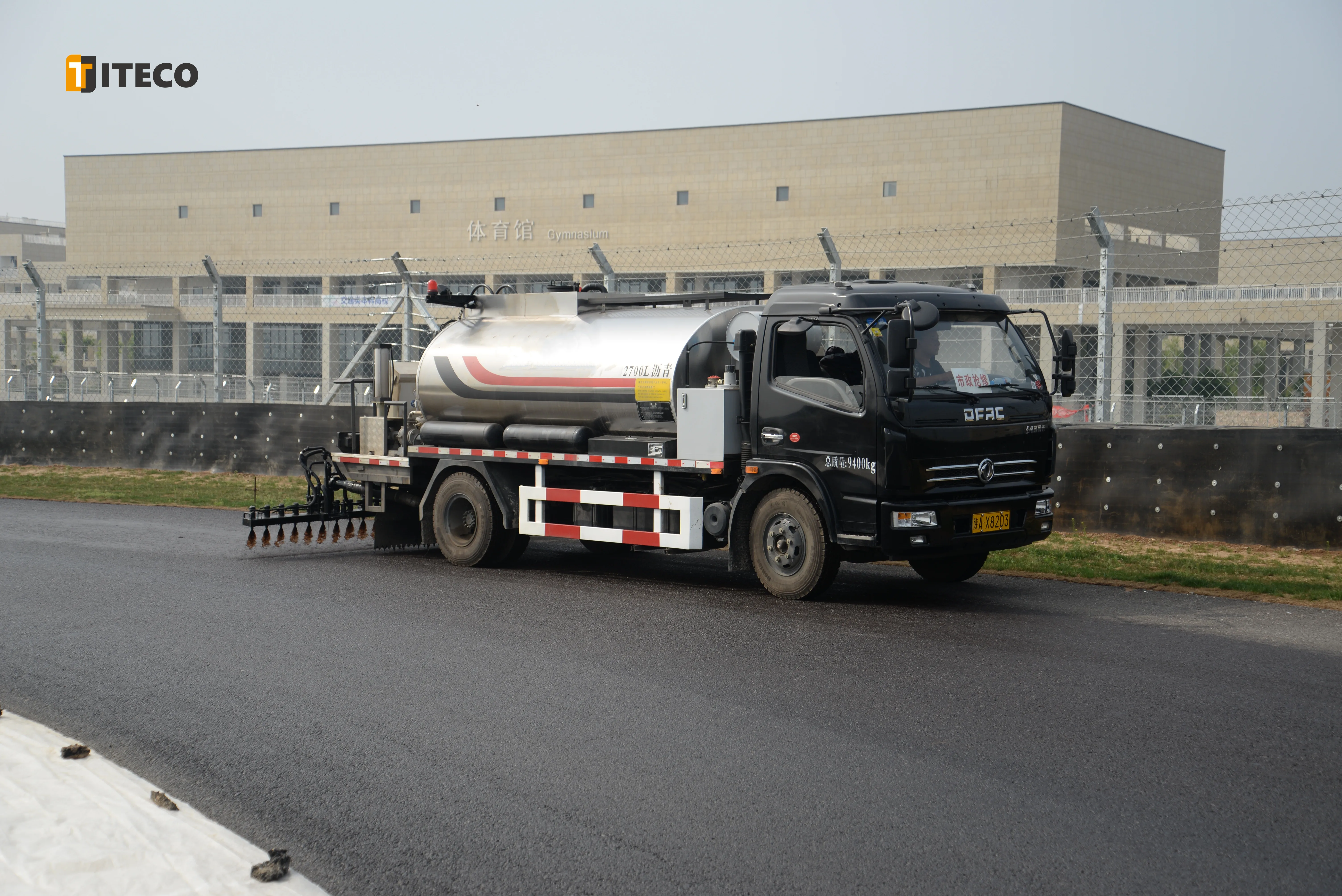

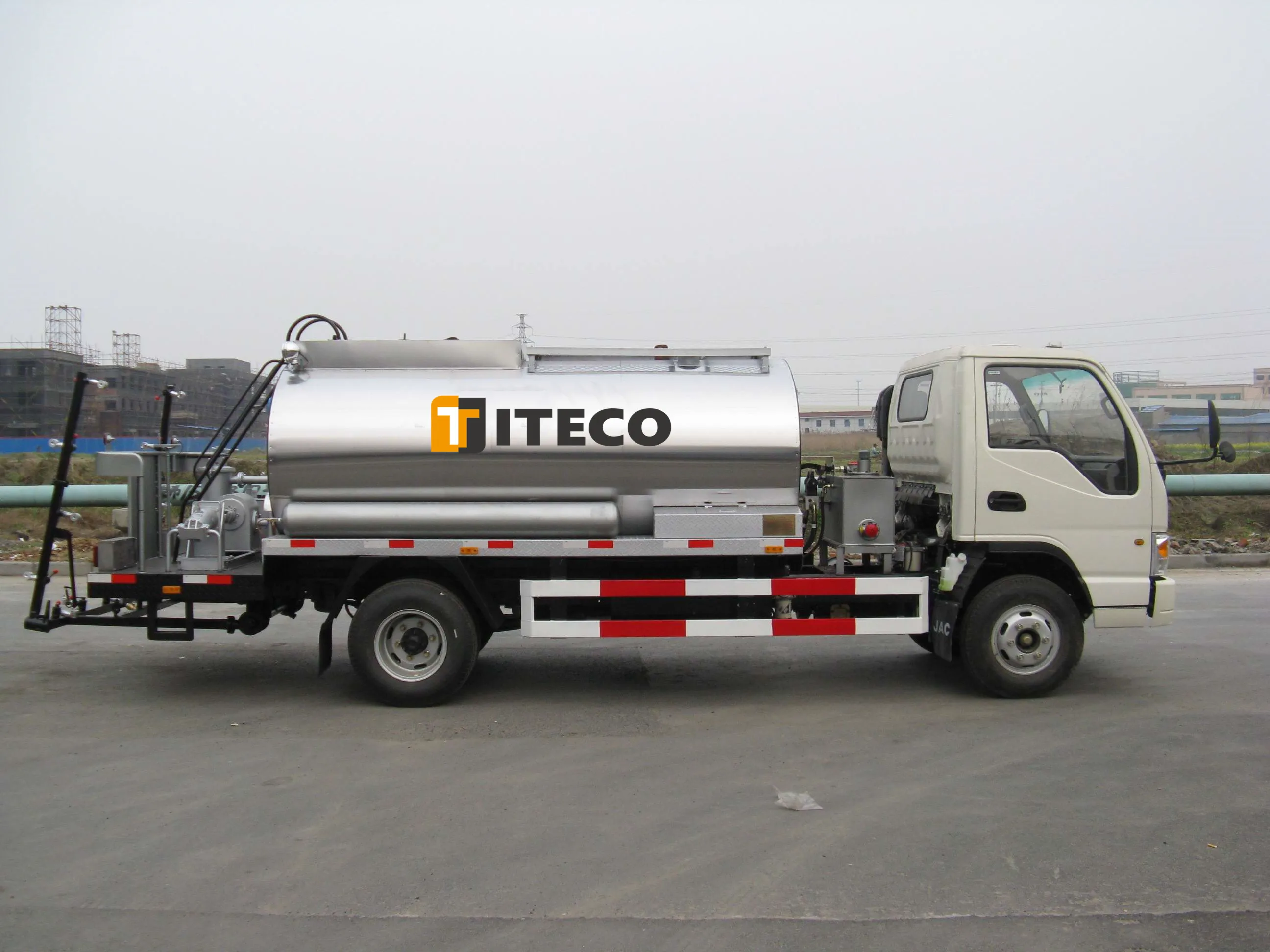

6M 3M Adjustable Asphalt Bitumen Spraying Width Asphalt Distributor Truck
- Category: >>>
- Supplier: Titeco Industry Technology Inc.
Share on (1600559282584):
Product Overview
Description
Products Description
Automatic asphalt distributor | ||||||||
Model | LMT5251GLQ | LMT5162GLQ | LMT5111GLQ | LMT5090GLQ | ||||
Chassis brand | SIONTRUK / DONGFENG / FAW | DONGFEN / FAW / JAC | ||||||
Vehicle type | 6X4 | 4X2 | ||||||
Asphalt tank capacity | 13000L | 8000L/10000L | 6000L | 5000L | ||||
Spraying width | 0-6M | 0-4M | ||||||
Spraying volume | 0.2-3.0 L/㎡ | |||||||
Dimension (LxWxH) | 10500×2496×3360mm | 9140×2490×3200 mm | 8640×2315×2900mm | 7320×2115×2550mm | ||||
Introduction:
Automatic asphalt distributor is made of II vehicle chassis and asphalt distribution device carefully developed by our company. The asphalt tank is wrapped with stainless steel, which is beautiful and elegant. Aluminum silicate insulation material is used for heat insulation, and the thermal insulation performance is good. The operation of asphalt pump is controlled by hydraulic system, and the transmission is stable, safe and reliable. According to the construction situation, there are two ways to spray asphalt: automatic spraying controlled by computer or spraying by hand spraying gun. The amount of spraying is controlled by computer, which is very accurate. The asphalt pump and pipeline system are heated and insulated with heat transfer oil, the pipeline and nozzle cleaned by diesel with high pressure air, so the pipes and nozzles are not easy to be blocked. The maximum spraying width is 6 meters. The spraying is efficient and convenient, and the working performance is safe and reliable.Micro-surfacing paver advantage:
1. Hydraulic pump, asphalt pump, asphalt pump drive motor, burner, temperature controller, control system and other main parts are imported or domestic famous brand components;
2. The asphalt tank is covered with aluminum silicate thermal insulation material with good thermal insulation performance and stainless steel, which is beautiful and elegant;
3. Asphalt spray nozzle use multi-layer filter to ensure spraying quality.
4.The asphalt is spraying in three overlaps, and the spraying amount is automatically adjusted according to the walking speed.
5. The whole process of asphalt distribution can be completed in the cab.
6. Each nozzle is controlled by computer independently, and the spraying width can be adjusted at any time.
7. The vehicle control program is equipped with two sets of control systems (cab and rear operation platform) to ensure the reliability of asphalt spraying.
8. The computer control system adopts modular design with low failure rate and easy maintenance.
9. The thermal insulation performance of tank asphalt, average temperature drop ≤ 1 ℃ / h. The heating capacity of asphalt is 10-15 ℃ / h.
10. It is equipped with self-priming and transfer devices, and can transfer the external asphalt tank.
11. The vehicle is equipped with hand spray gun , which can be used to replenish asphalt at corners.
12. The heat transfer oil can heat the asphalt pump, nozzle and tank in an all-round way, and can also control the heating separately.
13. Safe and reliable automatic control of heating oil is realized.
14. Two speed measurement configurations are available: infrared pulse sensor and America dickey-john radar.
15.The cab is flat head, half row, reversible, with sleeper.
Company Profile
TITECO is a global producer of construction equipment and vehicles, which is specialist in road building, repair and maintenance machinery equipment and vehicles. We offer our customers technologically first-class quality products, creative design services and sound service for optimum, economic production processes. With over 20 years experience in concrete & asphalt road building and maintenance, TITECO's applied technology service will help you to improve your performance. All our products are synonymous of power and stability, always provide the innovative solutions for complex issues.
Our Advantages
1. More than 20 years of cutting edge innovation and expertise help us to provide you all the best solutions of your projects.
2. With all kinds of our products commissioned for the concrete and asphalt industry projects,we believed that we know the cares and concerns of our customers well.
3. TITECO manufactures all equipment in our own factory under the strick quaility control system, makes the equipment much more reliable.
