11 Axis jewellery cnc machine cnc machine for gold bangles diamond cutting cnc machine
- Category: >>>
- Supplier: Shenzhen Hasung Precious Metals Equipment Technology Co. Ltd
Share on (1600559333329):
Product Overview
Description
Product Description

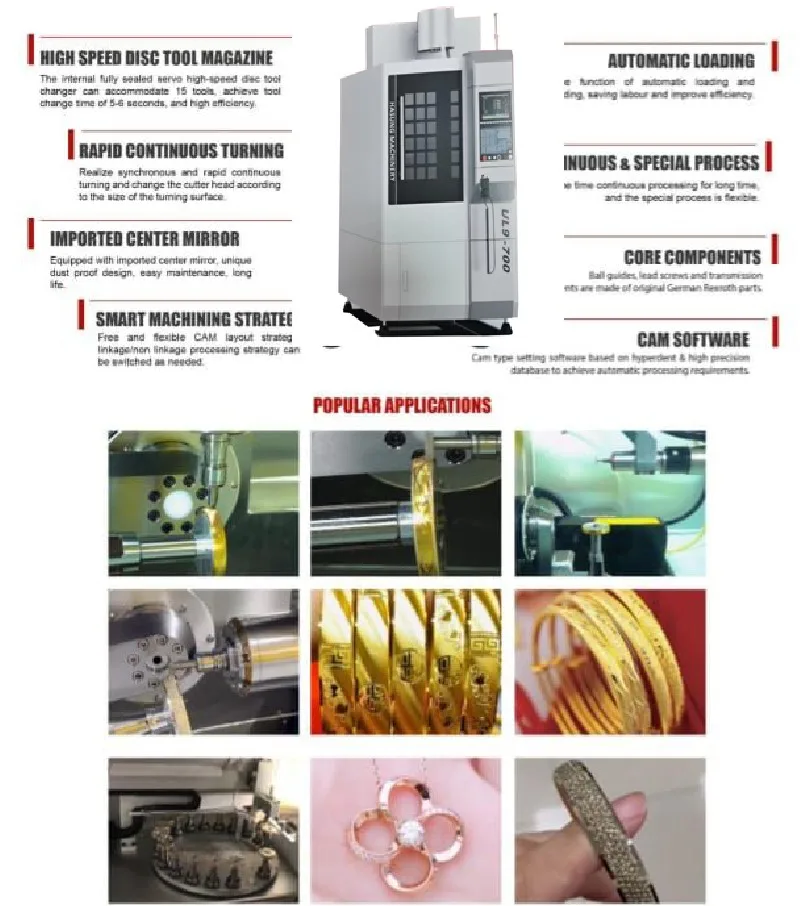

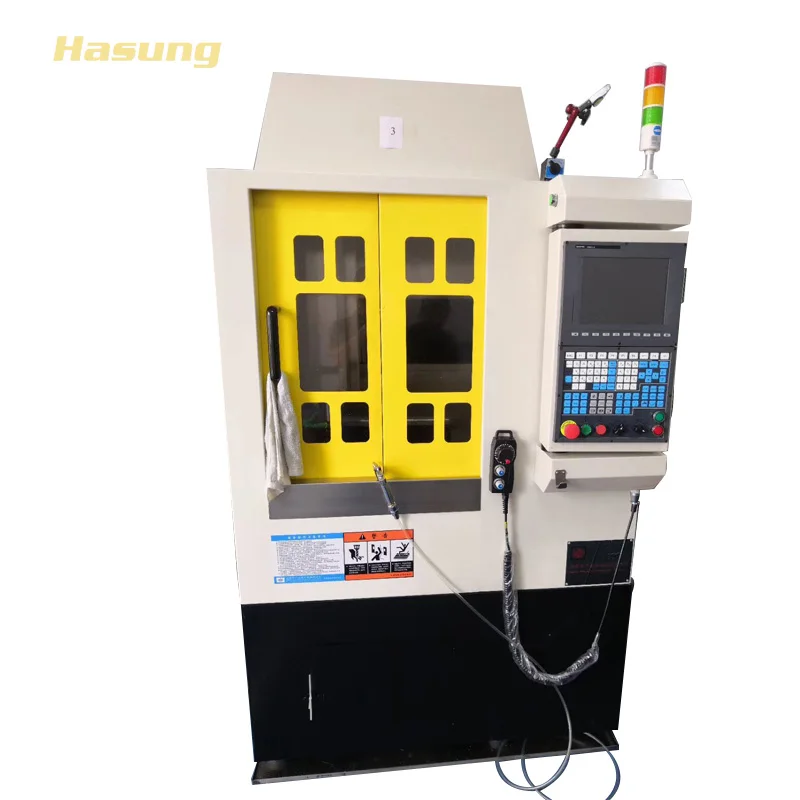

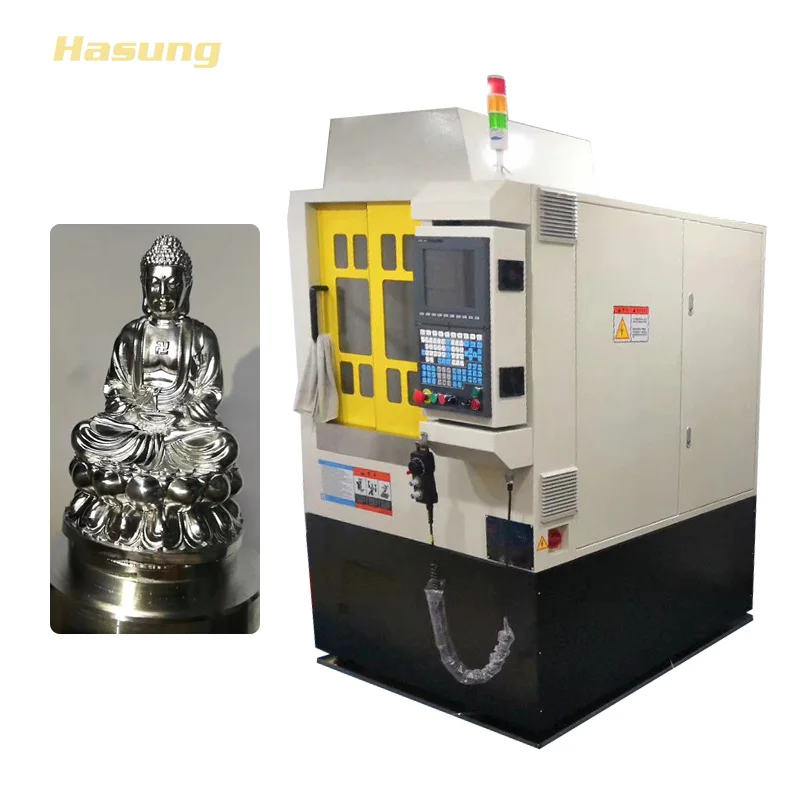

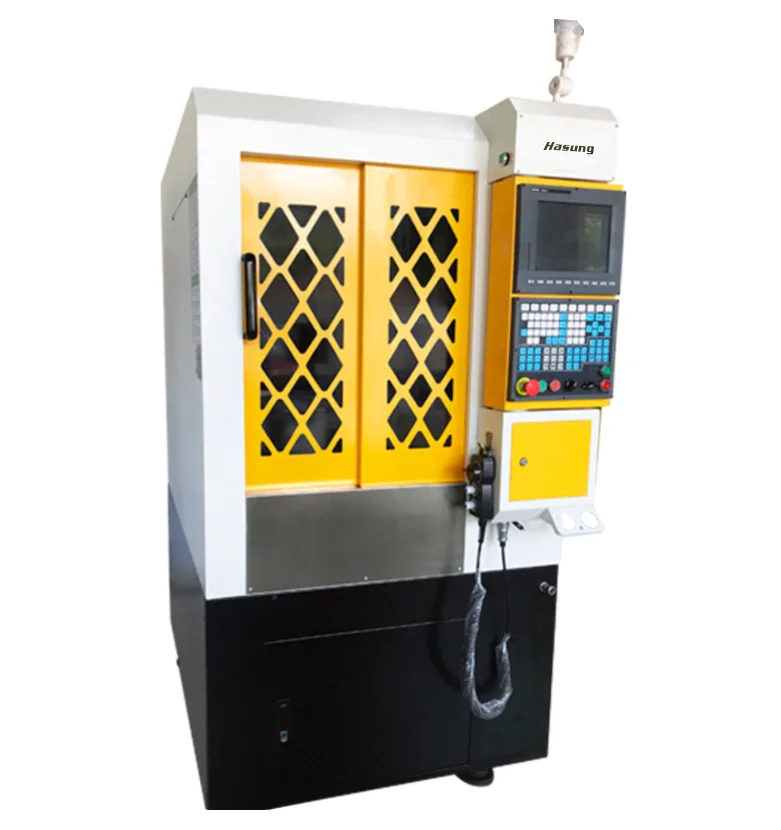

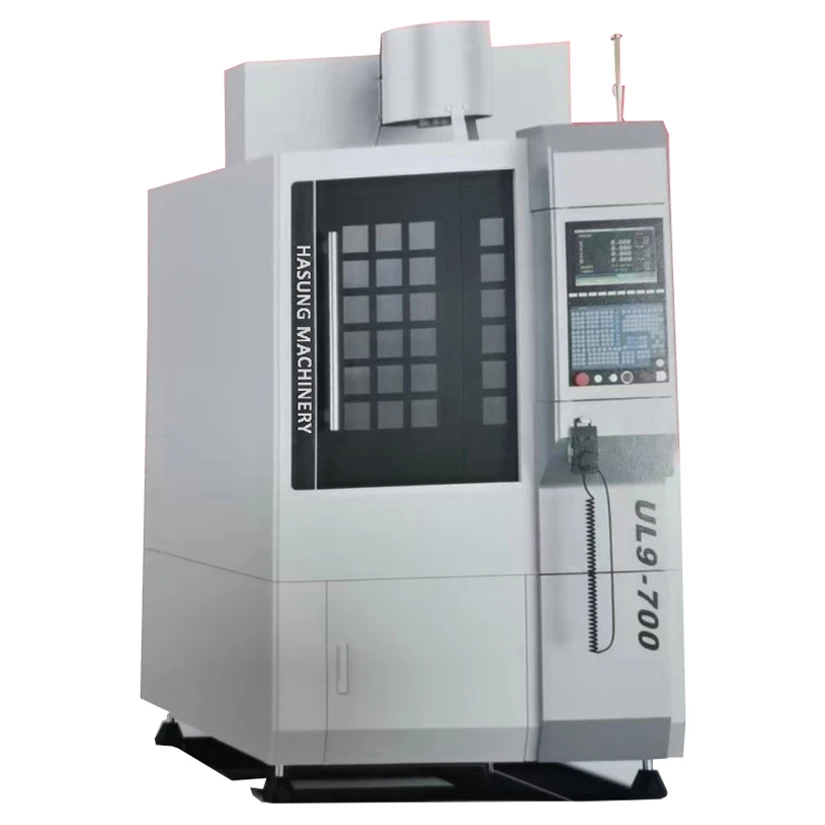

Factory Sales 11 Axis Automatic CNC Engraver Machine For Making Jewelry

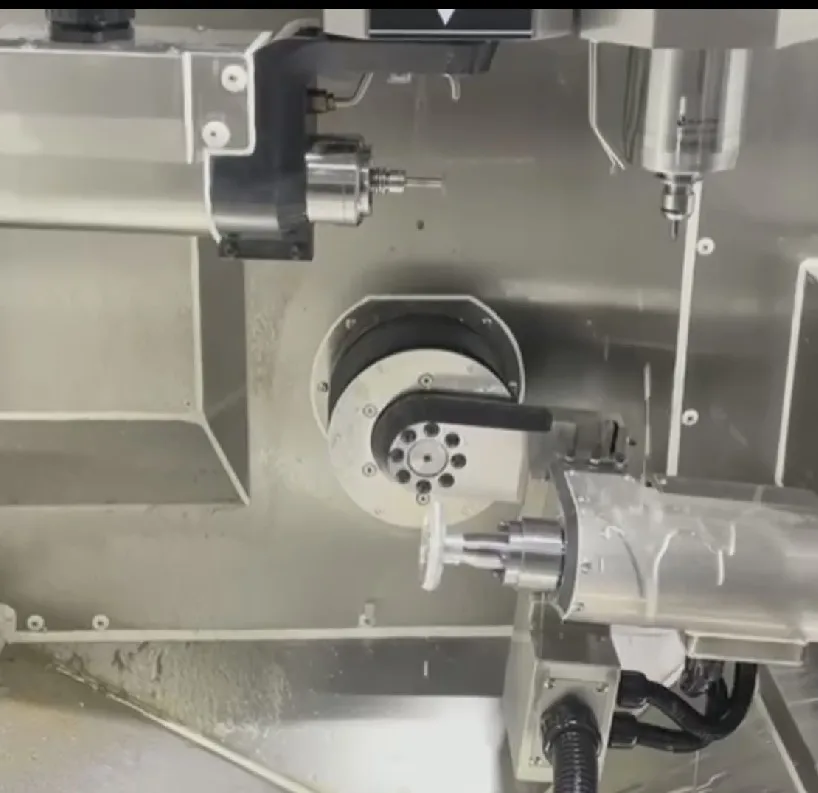

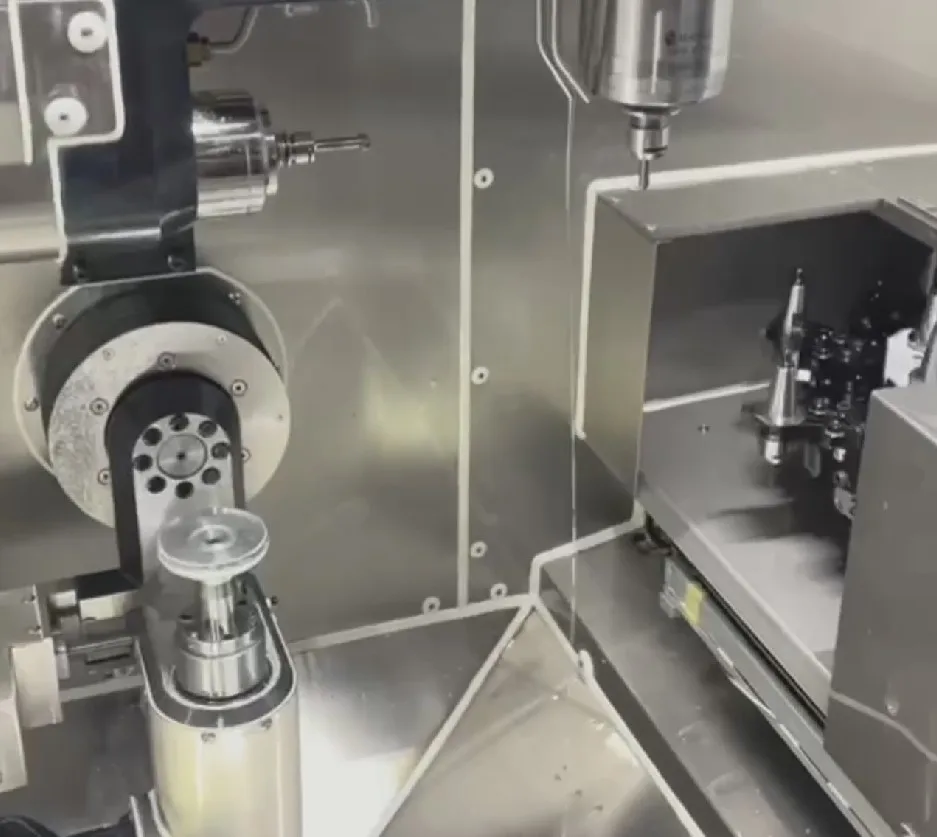

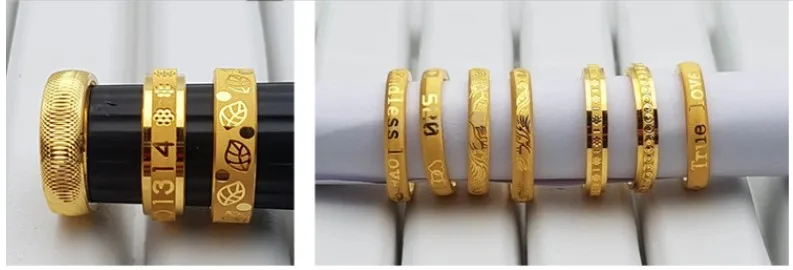

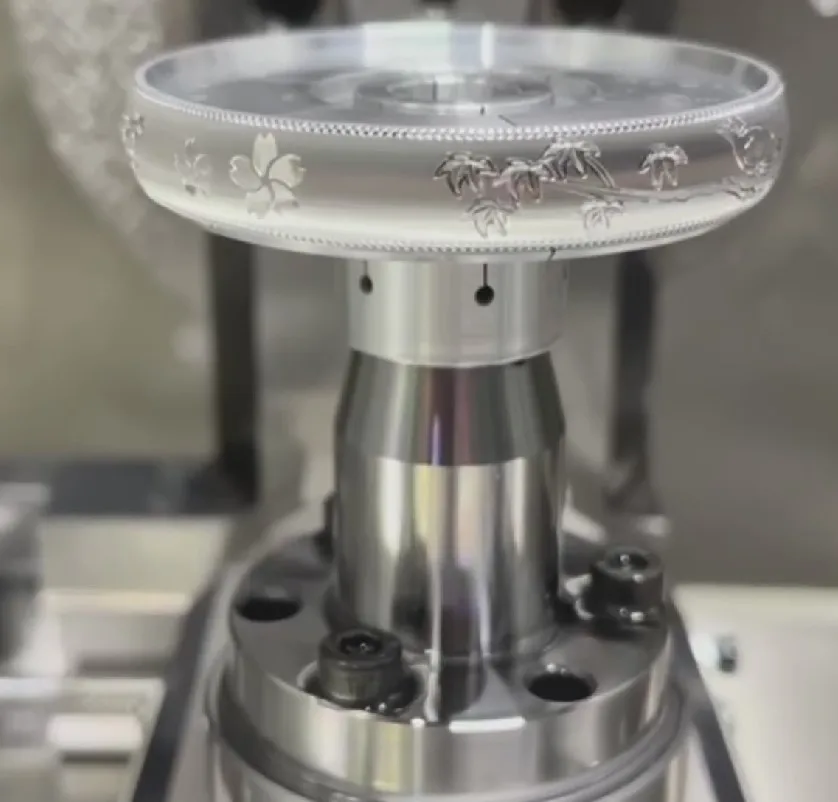

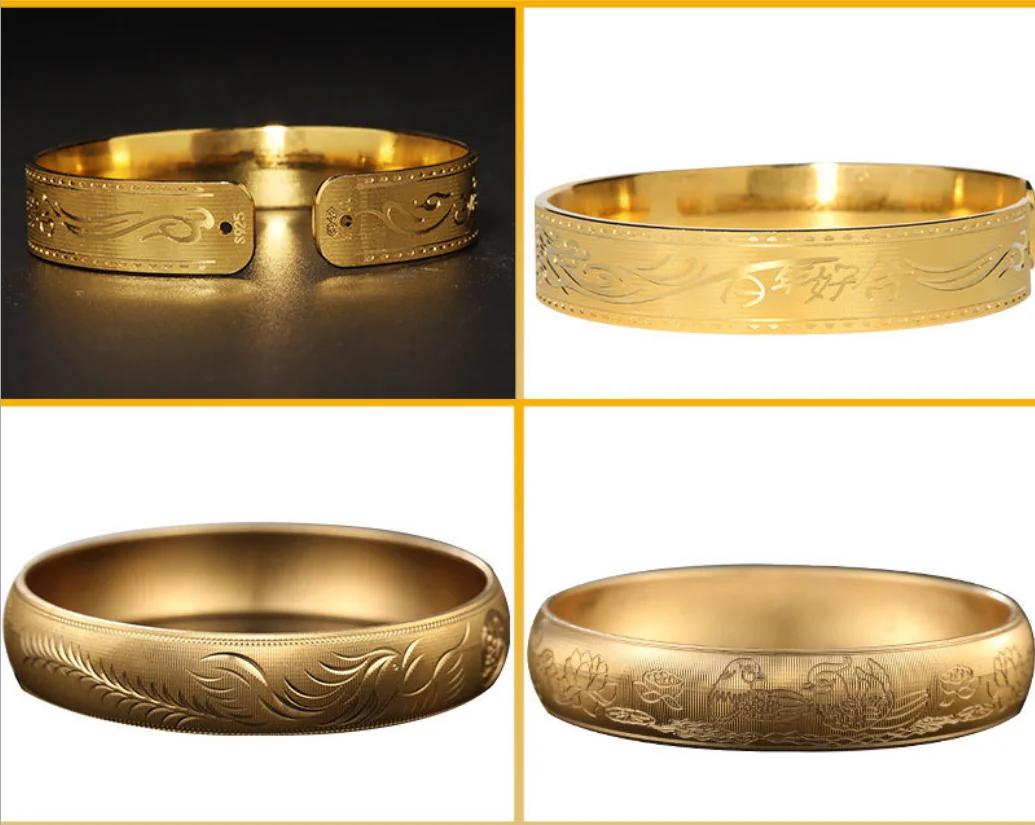

11 Axis Automatic CNC Engraver for Gold Bangle and Ring

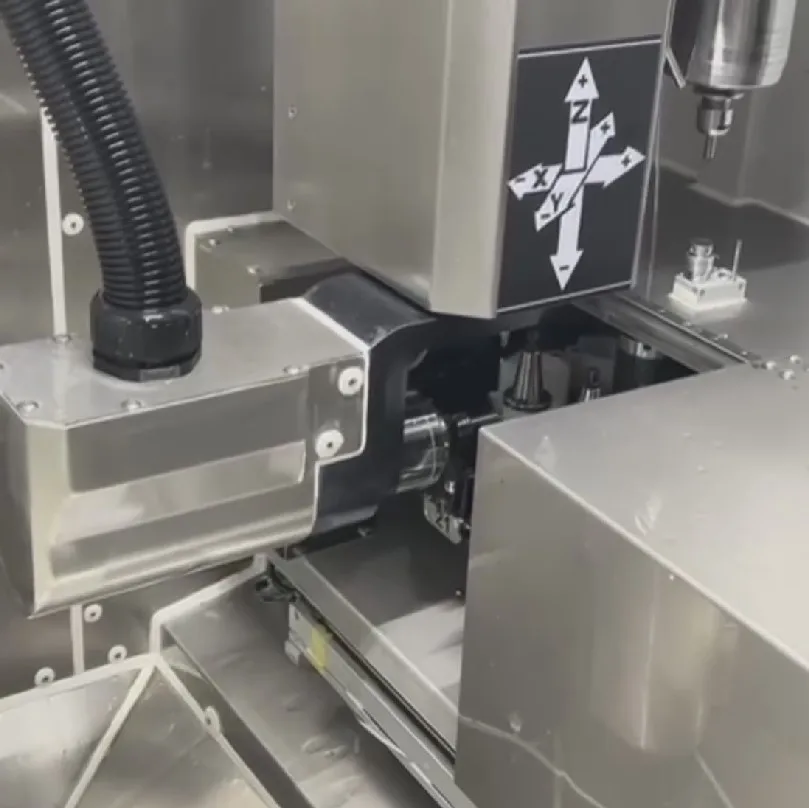

Machine configuration
Control system: Taiwan's new generation control system 220MA-5.
Servo drive: Japan Yaskawa (X1, Y axis 0.75KW, X2 axis Z3 axis 0.1KW, C axis A axis w axis Z1 axis Z2 axis 0.4KW absolute value
Power off with memory function).
Control system: Taiwan's new generation control system 220MA-5.
Servo drive: Japan Yaskawa (X1, Y axis 0.75KW, X2 axis Z3 axis 0.1KW, C axis A axis w axis Z1 axis Z2 axis 0.4KW absolute value
Power off with memory function).
Germany Rex Lego high precision screw guide (imported from Germany).
The fifth-axis high-precision reducer imported from Germany. .
Special bearing for German high-precision ball screw support.

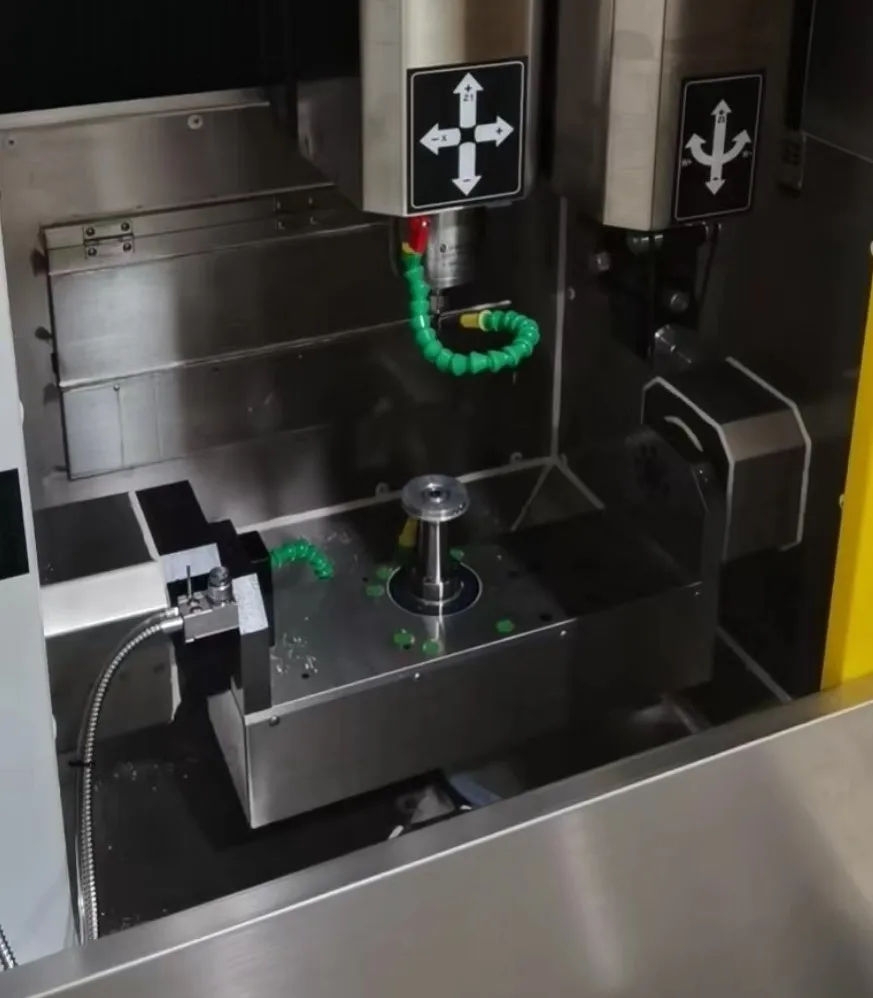

1 CNC dedicated high-speed and high-precision automatic tool-changing spindle: 62 in diameter with encoder, rated power 2.5KW (0-60000 rpm).
1 CNC special high-speed and high-precision automatic tool changing spindle: 80 diameter with encoder, rated power 4.0KW (0-40000 rpm).
Haina Chuan automatic tool setting instrument and automatic chip blowing device, automatic compensation of tool length.
Taiwan Liming reducer turntable servo tool magazine is equipped with 16-station IS020-ER16 + 8-station T10-ER11.
The industrial control components of the electric box adopt French Schneider Electric.
Pneumatic components adopt Taiwan AirTAC.
The wire element adopts the special wire for cnc robot (high-flexible drag chain cable to ensure that the wire is not easy to age).
The Swiss oil oil cooler ensures that the main shaft can operate at a high speed at a reasonable temperature.
Equipped with yellow grease lubrication system (complete separation from cutting oil, improve viscosity, improve recovery rate, reduce loss).
The Swiss oil oil cooler ensures that the main shaft can operate at a high speed at a reasonable temperature.
Equipped with yellow grease lubrication system (complete separation from cutting oil, improve viscosity, improve recovery rate, reduce loss).
Adopt honeycomb base, high cabinet gantry] frame structure design, stable and rigid enough.
1 set of hexagon keys; 1 set of spindle wrench; 16 sets of IS020 tool holders + 8 pieces of T10 tool handles; 16+8 sets of cable nozzles; 1 set of electronic manuals
1 set of hexagon keys; 1 set of spindle wrench; 16 sets of IS020 tool holders + 8 pieces of T10 tool handles; 16+8 sets of cable nozzles; 1 set of electronic manuals
1 set of air gun spring tube; 1 network cable (10 meters); 1 main power cord (5 meters), 1 gas pipe (5 meters).
Oil mist separator - set.
Machine parameters
Linear axis travel: 700X 160 X 240mm (X1 XY x|Servo motor power: 750W/400W
Z1, Z2)
X2: 50m, Z3: 50mm
Rotary axis travel: C axis 0- 360 degrees A axis plus or minus 155 degrees
Spindle speed 40000 rpm, rate: 4. OKW
W axis 0-190 degrees
Flower batch spindle speed 60000 rpm, rate: 2.5KW
Working load bearing: 0-20Kg
Shank Specifications: IS020/ER16, T10-ER11
Body weight: about 2.0 tons
Repeat positioning accuracy 0.005mm
Dimensions: 1250X1 700X1900mm
XYZ axis running reciprocating accuracy: +0. 01/700mm
Power configuration: three-phase four-wire 380V/50HZ
Table plane: +0. 0075mm
Machine parameters
Linear axis travel: 700X 160 X 240mm (X1 XY x|Servo motor power: 750W/400W
Z1, Z2)
X2: 50m, Z3: 50mm
Rotary axis travel: C axis 0- 360 degrees A axis plus or minus 155 degrees
Spindle speed 40000 rpm, rate: 4. OKW
W axis 0-190 degrees
Flower batch spindle speed 60000 rpm, rate: 2.5KW
Working load bearing: 0-20Kg
Shank Specifications: IS020/ER16, T10-ER11
Body weight: about 2.0 tons
Repeat positioning accuracy 0.005mm
Dimensions: 1250X1 700X1900mm
XYZ axis running reciprocating accuracy: +0. 01/700mm
Power configuration: three-phase four-wire 380V/50HZ
Table plane: +0. 0075mm
| Power supply | AC 380V 50-60Hz |
| Power | 10 KWA |
| Air supply | 0.5Mpa/6kgf/cm2 |
| Servo motor | 0.4KW/0.75KW |
| Spindle rated power | 3.2KW/4.0KW |
Packaging & Shipping
Payment method
Company Information
Shenzhen Hasung Precious Metals Equipment Co., Ltd is one of the largest and most experienced jewelry casting & melting companies in China, we have the second production line for rolling mill which our company's equipment involves in making rings, bracelets and chains. We are acknowledged in the industry as a technology leader.
Hasung Precious Metals Equipment has proudly served the precious metal casting & forming industry with vacuum pressure casting equipment, continuous casting machine, gold induction melting furnaces, gold bullion vacuum casting machine, chain tunnel furnace, annealing furnace, rolling mill machines, etc.
Our R & D department is always working on developing casting and melting technologies to suit our ever changing industry for gold casting, silver casting, platinum casting, palladium casting and more. Our rolling mill machines applied Italian technology which is specially used for gold chain jewelry factories.
