Product Overview
Description
Product Overview
Xenon Lamp Aging Resistance Test Chamber
fastness and photo stability tests.
It is designed as a tabletop unit with a microprocessor controller for simple operation.
FEATURE
Xenon Lamp Aging Resistance Test Chamber
1. Air cooled Xenon lamp with 1.5 KW Measure, control and display of irradiance energy from 250 to 765 W/m²
2. Measure, control and display of black panel temperature ( BPT/BST) from 30℃ to 90℃.
3. Measure and display of test chamber temperature.
4. Measure, control and display of relative humidity % RH.
5. Setting and display the testing cumulative energy KJ/m².
6. Record the used hours of Xenon lamp.

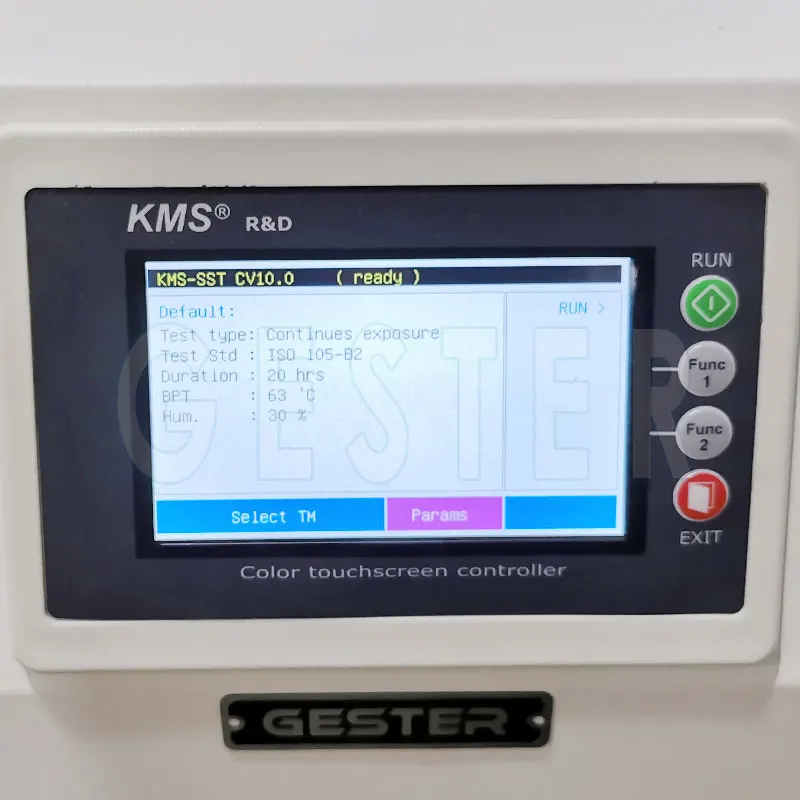

7. Microprocessor control with data display, Programming with keyboard.
2. Measure, control and display of black panel temperature ( BPT/BST) from 30℃ to 90℃.
3. Measure and display of test chamber temperature.
4. Measure, control and display of relative humidity % RH.
5. Setting and display the testing cumulative energy KJ/m².
6. Record the used hours of Xenon lamp.
7. Microprocessor control with data display, Programming with keyboard.
Standards
AATCC TM16- Option 3
AATCC TM16- Option 3
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | GT-D01 | |
Test Mode | Timing Mode and Energy Mode | |
Xenon Lamp | 1.5 KW Life Time: 500 hours | |
Humidity | 30-95%RH | |
BPT/BST | 35℃ to 100℃ | |
Irradiance Monitoring | 1.1W/m²@420nm | |
Specimen Exposure Area | 200×280mm | |
Noise Level | Max.70dB(A) | |
Power Supply | AC 220V 50/60HZ 4kw | |
Weight | 56kg | |
Dimensions | 1080×700×950 mm(W×D×H) | |

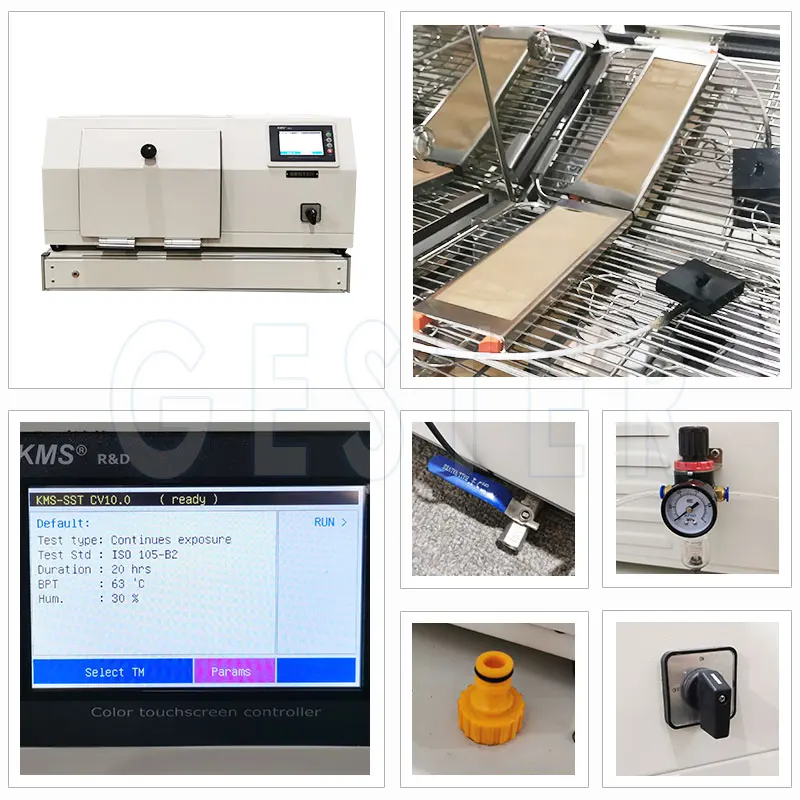

PRODUCT DETAILS IMAGE
