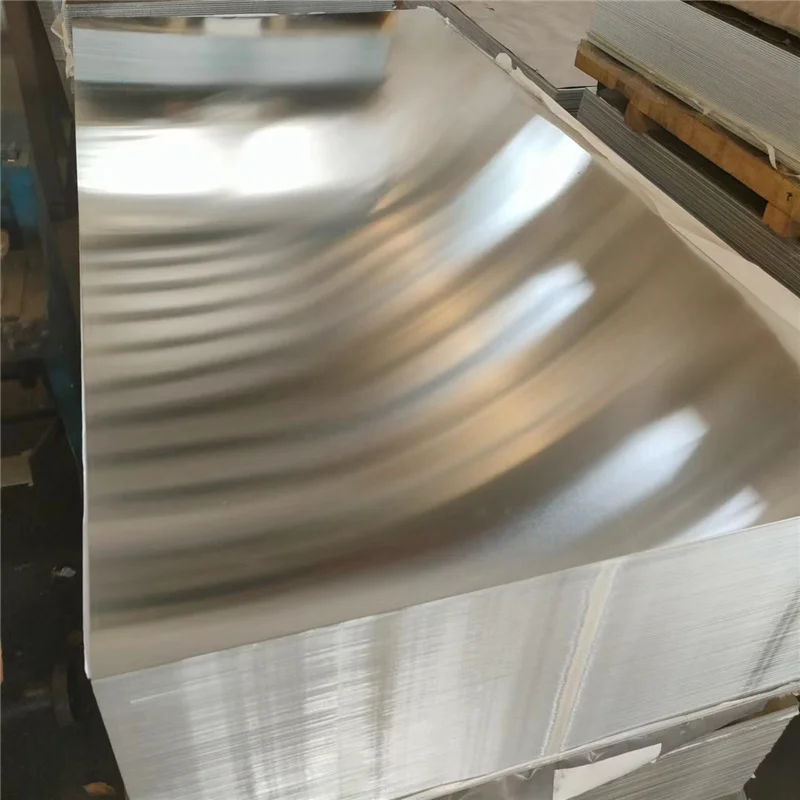

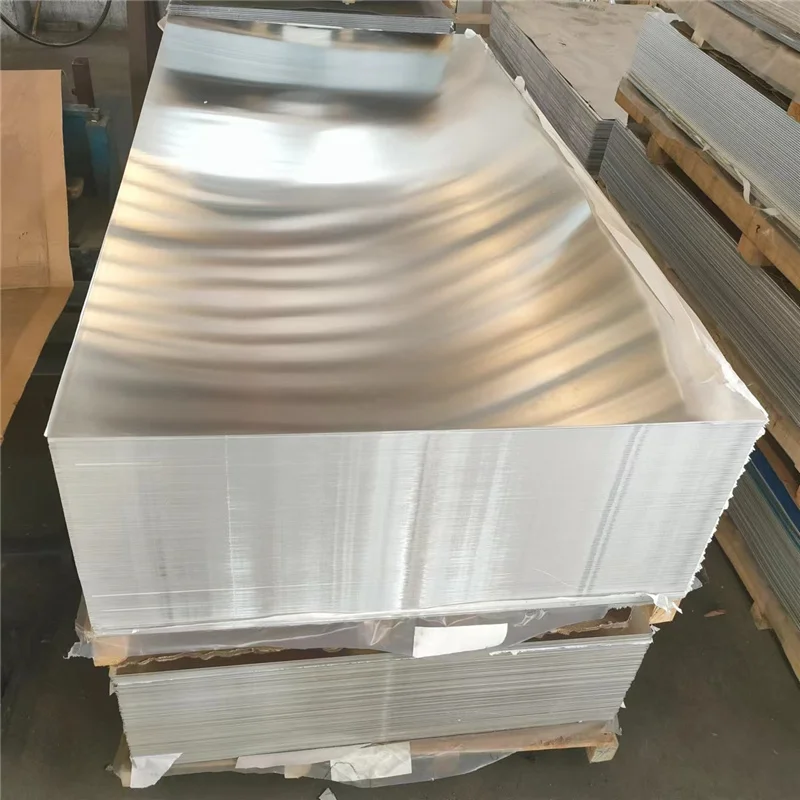

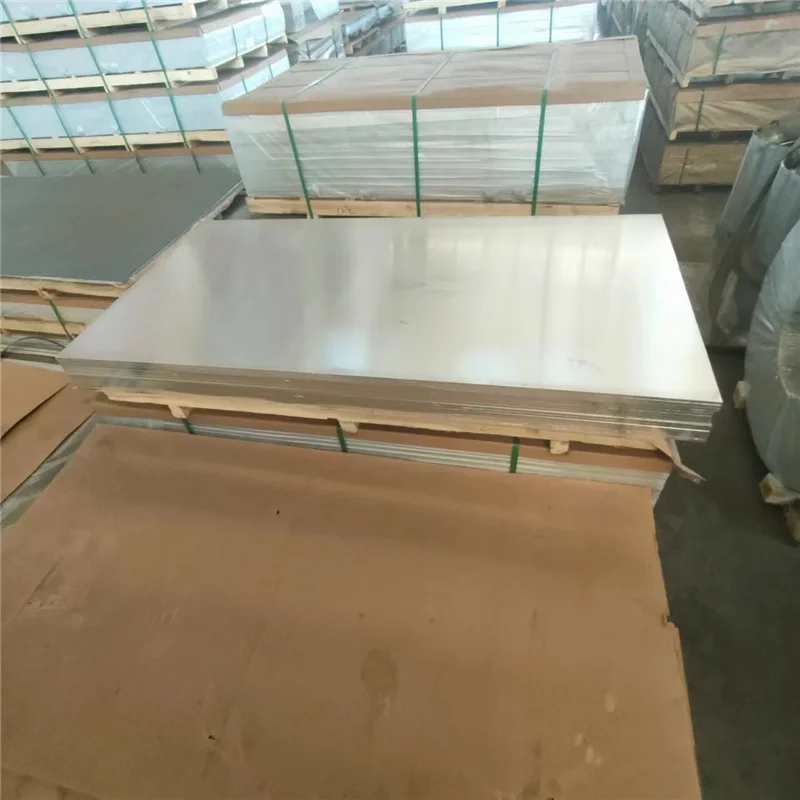

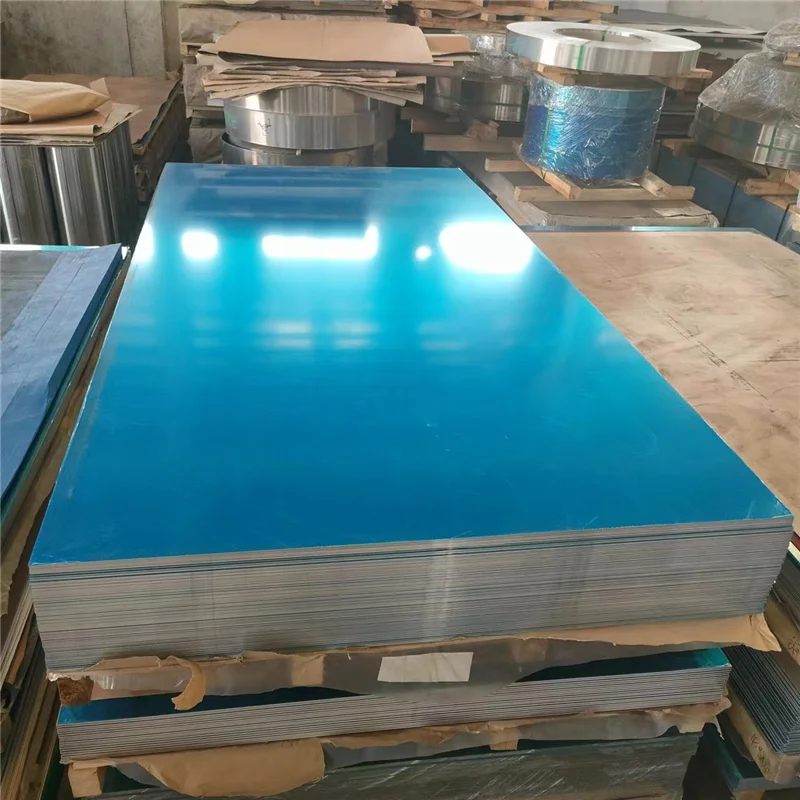

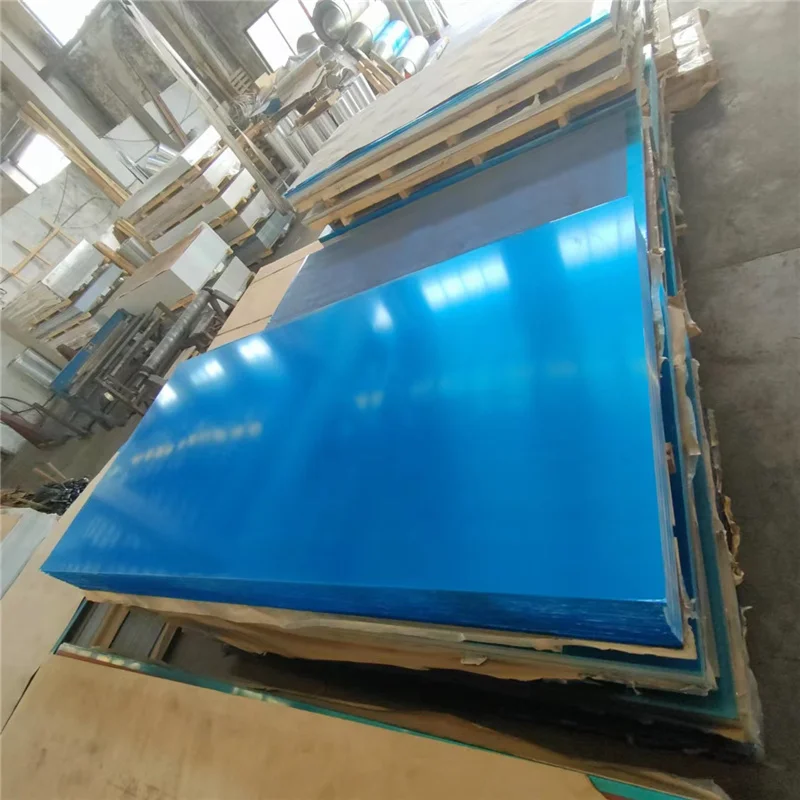

High Strength Structural Precision Wholesale Factory Stock 1050 1060 5083 6005 Aluminum Alloy Plate for Building Material
- Category: >>>
- Supplier: Shanghai Huagang Steel Co. Ltd.
Share on (1600559348186):
Product Overview
Description
Product Introduction
Aluminum in its various forms is stocked in a range of strengths varying from that of Specification 1100-0 (which has a yield strength of around 5000 lbs. per square inch) to that of Specification 7075-T6 (yield strength of about 70,000 lbs. per square inch).
Here are a few typical applications within the range of these specifications –Utility Sheet, is used for all general sheet metal work such as flashings, ductwork, lining walls, etc.
1100-0 is used primarily for spinning and deep drawing operations such as utensils, ornaments, etc.
1100-H14 and 3003-H14 are specification alloys used for general forming operations.
5005-H14 similar in physical characteristics to 3003-H14 with superior corrosion resistance and a homogenous smooth surface finish suitable for anodizing. This alloy is suitable for curtain walls, decorative trim, control panel boxes and signs, etc.
5052-H32 and H34 is a superior strength alloy of good forming qualities and is especially suited for Marine applications.
5083-H321 and H323 is one alloy of different tempers that produces high weld joint efficiencies. It is used for tank work, heavy transport, etc., where its welded properties can be used to advantage.
5454-H32 is a sister alloy to 5083 with a lower rating to stress corrosion when functioning in the 150°F to 300°F range. Typical uses are truck dump bodies, tanker trucks, exhaust stacks, chemical handling tanks on vessels, etc.
6061-T6 is an excellent all purpose alloy, having high strength and good corrosion resistance. It is used for all structural
applications such as mine cars, logging chutes, and ship construction.
Painted Aluminum: 1100, 3003, 3105, 5005 and 5052 are just some of common alloys available in painted product. Painted aluminum is produced in a broad range of mechanical properties and the spectrum of finishes includes high durability exterior coatings,specialized epoxies, polyesters, textured polyesters, fluorocarbons and metallics as well as wash coat primers. Standard colours can be selected from or custom colour matching can be done to specification. Most coatings are available on one and two sides.
Here are a few typical applications within the range of these specifications –Utility Sheet, is used for all general sheet metal work such as flashings, ductwork, lining walls, etc.
1100-0 is used primarily for spinning and deep drawing operations such as utensils, ornaments, etc.
1100-H14 and 3003-H14 are specification alloys used for general forming operations.
5005-H14 similar in physical characteristics to 3003-H14 with superior corrosion resistance and a homogenous smooth surface finish suitable for anodizing. This alloy is suitable for curtain walls, decorative trim, control panel boxes and signs, etc.
5052-H32 and H34 is a superior strength alloy of good forming qualities and is especially suited for Marine applications.
5083-H321 and H323 is one alloy of different tempers that produces high weld joint efficiencies. It is used for tank work, heavy transport, etc., where its welded properties can be used to advantage.
5454-H32 is a sister alloy to 5083 with a lower rating to stress corrosion when functioning in the 150°F to 300°F range. Typical uses are truck dump bodies, tanker trucks, exhaust stacks, chemical handling tanks on vessels, etc.
6061-T6 is an excellent all purpose alloy, having high strength and good corrosion resistance. It is used for all structural
applications such as mine cars, logging chutes, and ship construction.
Painted Aluminum: 1100, 3003, 3105, 5005 and 5052 are just some of common alloys available in painted product. Painted aluminum is produced in a broad range of mechanical properties and the spectrum of finishes includes high durability exterior coatings,specialized epoxies, polyesters, textured polyesters, fluorocarbons and metallics as well as wash coat primers. Standard colours can be selected from or custom colour matching can be done to specification. Most coatings are available on one and two sides.
Product Paramenters
Substrates | AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc. |
Thickness | 0.08-1.5mm |
Width | ＜1800mm |
Coils core diameter | 150mm ,405mm, 505mm, 508mm, 510mm |
Coating thickness | PVDF >=25micron POLYESTER>=18micron |
Pencil hardness | > 2HB |
Coating adhesive | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
Bend strength | >100 times |
Boiling point | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive | surface deep in the 5% muriatic acid and 5% NaCL, interior deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Impact resistance | 0.2-0.3mm, ≥30kg·cm >0.3mm, ≥50kg·cm |
Gloss tolerance | ≤5°(Gloss ≥70°) ≤10°(Glossiness<70°) |
Product packaging
Application
Recommend Products
Company Profile
Shanghai Huagang Steel Co., Ltd. is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipment for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry. The company's annual sales amount is more than 100 million yuan.
Through the global sales network, the products sell well in domestic and foreign markets, Huagang Steel has exported steel products to over 100 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service.
We now have 5 branch offices in China now, the head factory is located in ChenQiao Road, Fengxian District, Shanghai.We have been engaged in stainless steel business since 2009,with 12 years growth,Huagang Steel has become a competitive steel conglomerate in China.
Our company aims to provide customers with high-quality and low-price steel products and strives to create value for customers. We have advanced processing equipment and powerful logistics distribution system, which can meet customers' various needs at any time.
We adhere to the principle of "customer first" to provide our customers with high-quality services. Our company has won the trust and praise from customers with the business advantages of complete specifications, cheap price and fast transmission, and the service concept of keeping promise and focusing on quality.
Through the global sales network, the products sell well in domestic and foreign markets, Huagang Steel has exported steel products to over 100 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service.
We now have 5 branch offices in China now, the head factory is located in ChenQiao Road, Fengxian District, Shanghai.We have been engaged in stainless steel business since 2009,with 12 years growth,Huagang Steel has become a competitive steel conglomerate in China.
Our company aims to provide customers with high-quality and low-price steel products and strives to create value for customers. We have advanced processing equipment and powerful logistics distribution system, which can meet customers' various needs at any time.
We adhere to the principle of "customer first" to provide our customers with high-quality services. Our company has won the trust and praise from customers with the business advantages of complete specifications, cheap price and fast transmission, and the service concept of keeping promise and focusing on quality.
Customers Visit
Certificates
FAQ
Q1.Are you a manufacturer or trader?
We are a manufacturer ,and we can have our own factory produced many steel products.
Q2.Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection;100% on-time shipment protection; 100% payment protection)
Q3.Can we get the some samples?Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4.How do we build up business relations with your company ?
Send us your requirement which includes size , coating info ,parameters,quantity ,destination .
Q5.What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6.What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
We are a manufacturer ,and we can have our own factory produced many steel products.
Q2.Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection;100% on-time shipment protection; 100% payment protection)
Q3.Can we get the some samples?Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4.How do we build up business relations with your company ?
Send us your requirement which includes size , coating info ,parameters,quantity ,destination .
Q5.What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6.What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
