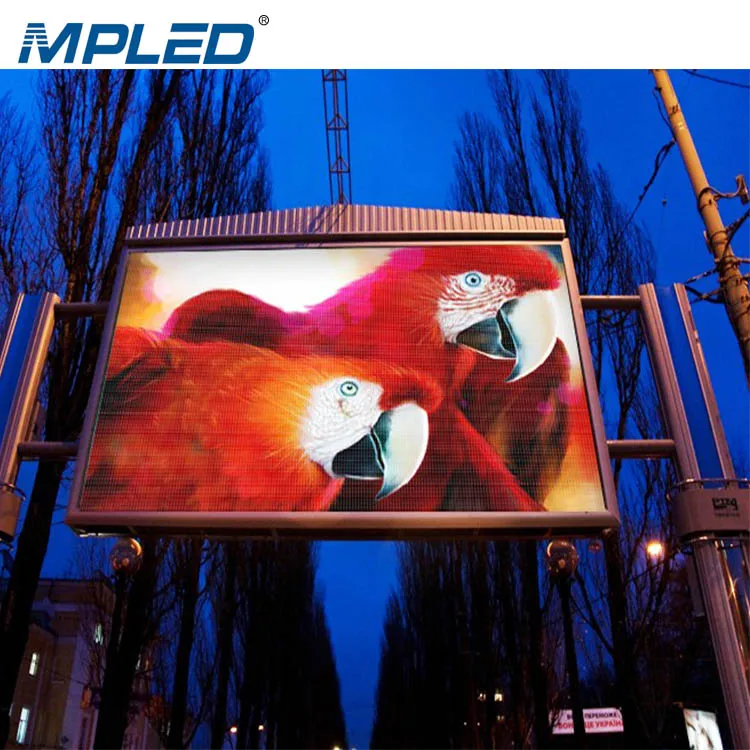

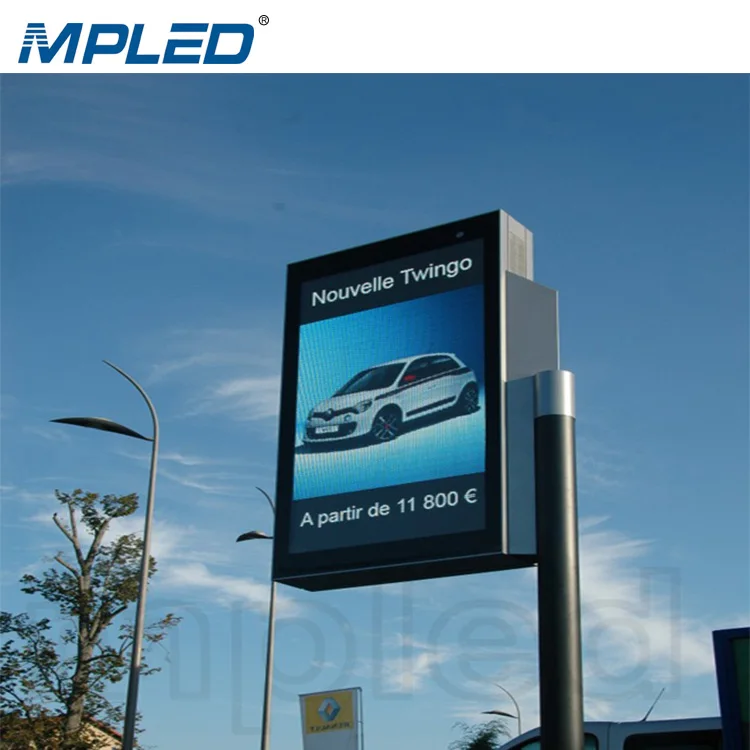

the naked eye 3d Ultra wide viewing angle digital billboard advertising cost
- Category: >>>
- Supplier: Shenzhen Mp Led Technology Co. Ltd.
Share on (1600559381081):
Product Overview
Description
Pixel pitch | MG Pro series | MG Pro series | MG Pro series | MG Pro series |
Pixel pitch | P10 | P8 | P6 | P2.5 |
LED configuration | SMD3535 | SMD3535 | SMD3535 | SMD1515 |
Brightness | 6500 nits | 6500 nits | 6000 nits | 5500 nits |
Viewing angle | 160°/ 140°（H/V） | 160°/ 140°（H/V） | 160°/ 140°（H/V） | 160°/ 140°（H/V） |
Scan mode | 1/2 | 1/5 | 1/6 | 1/10 |
Refresh rate | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
Processing | 14 bits | 14 bits | 14 bits | 14 bits |
Module size | 320mm x 160mm (W x H ) | 320mm x 160mm (W x H ) | 320mm x 160mm (W x H ) | 320mm x 160mm (W x H ) |
Cabinet size | 960mm x 960mm x 101mm (W x H x D) | 960mm x 960mm x 101mm (W x H x D) | 960mm x 960mm x 101mm (W x H x D) | 960mm x 960mm x 101mm (W x H x D) |
Cabinet weight | 23kg | 25kg | 25kg | 25kg |
Input voltage | AC110~240V 50/60 HZ | AC110~240V 50/60 HZ | AC110~240V 50/60 HZ | AC110~240V 50/60 HZ |
Power consumption (Avg) | 240W/sqm | 165W/sqm | 165W/sqm | 165W/sqm |
Power consumption (Max) | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm |
Working temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
IP rating | IP65 | IP65 | IP65 | IP65 |
Life span | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs |
Warranty | 24 months | 24 months | 24 months | 24 months |
