Product Overview

Description



Product Description




Function:

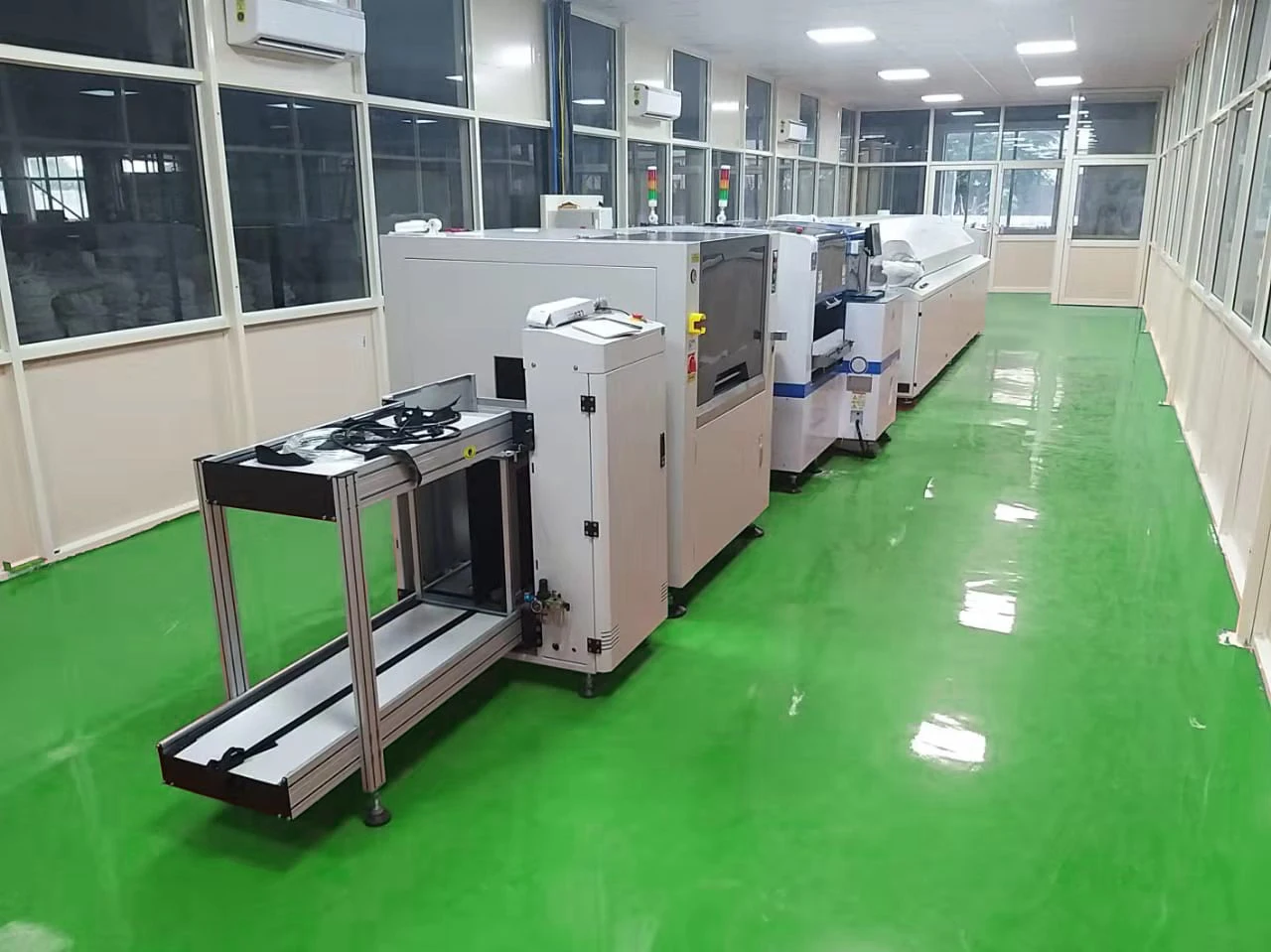

Vacuum Loader used for SMT production line, the bare board automatically send board.


Product Features


1.The device of loading PCB in the SMT production line;
2.PLC control, color man-machine interface operation;
3.Adopting the structure of stepping motor to push the board, the force and speed of the pushing board can be adjusted;
4.Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5.Multiple electrical distribution circuit protection, safe and reliable;
6.Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance;
7.Standard SMEMA signal communication mode.


Specification


Fully automatic loader
LD250
Description
This equipment is used for the board loading operation of the circuit board in the production line
Number of turnover boxes
One box on working,two boxes out of frame segment,two boxes Into the frame segment(Or customer specified)
Send board time
Around 6s
Frame change time
Around 25s
PCB Thickness
0.4～3.0mm
step pitches Selection
1～4（10mm step pitches）
Transmission Height
900±20mm
Transmission Direction
Left→Right,Right→Left
Power Consumption
Single-phase AC110～220V (optional), maximum 300 VA
Air pressure and Air flow
4～6Bar,Up to 1 L/min
Specification parameter
PCB size L*W(mm)
80*50-330*250
Dimension(L*W*H)(mm)
1455*800*1200
Size of Turnover frame（mm）
355*320*565
Approximate Weight(kg)
About 140

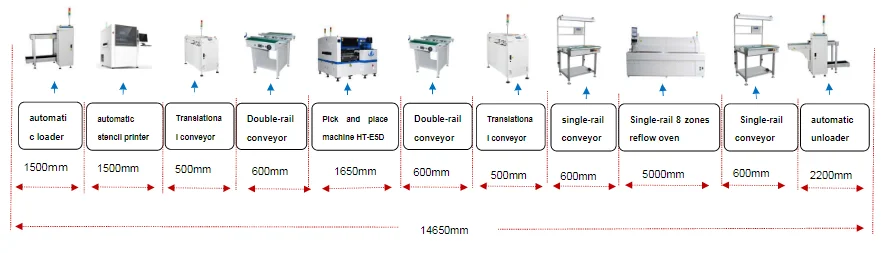

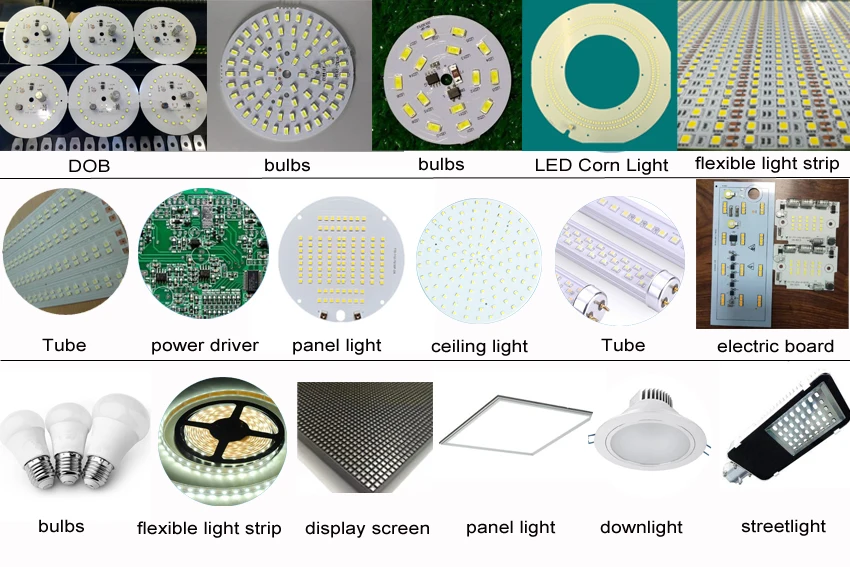

Application






Application

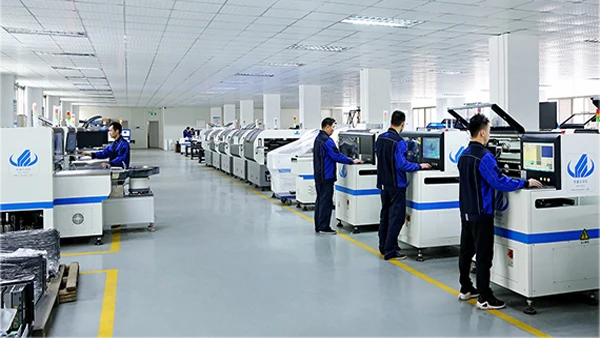

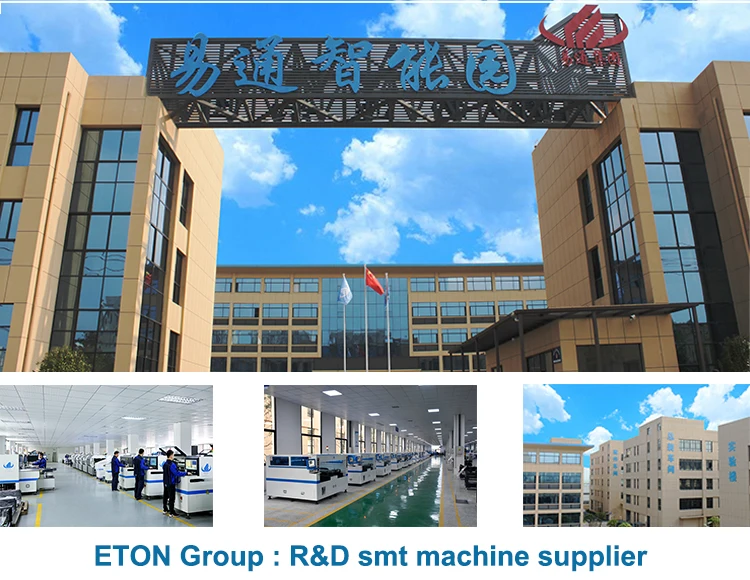

Company Profile

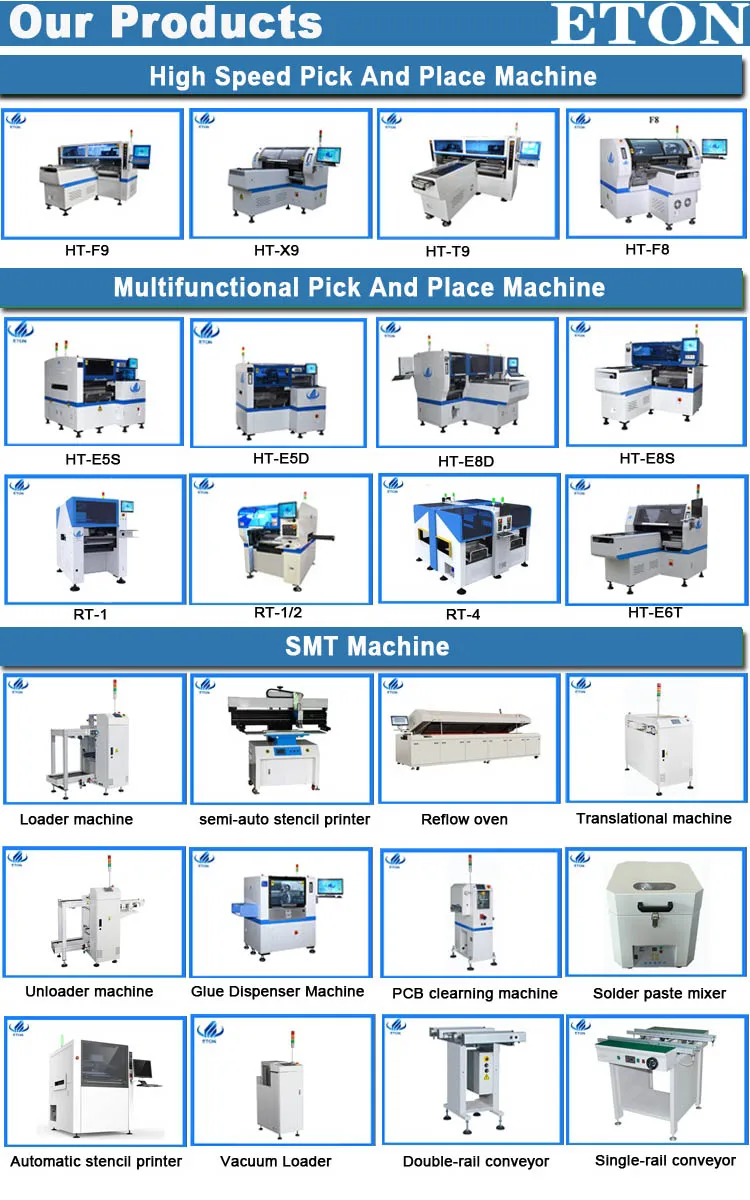

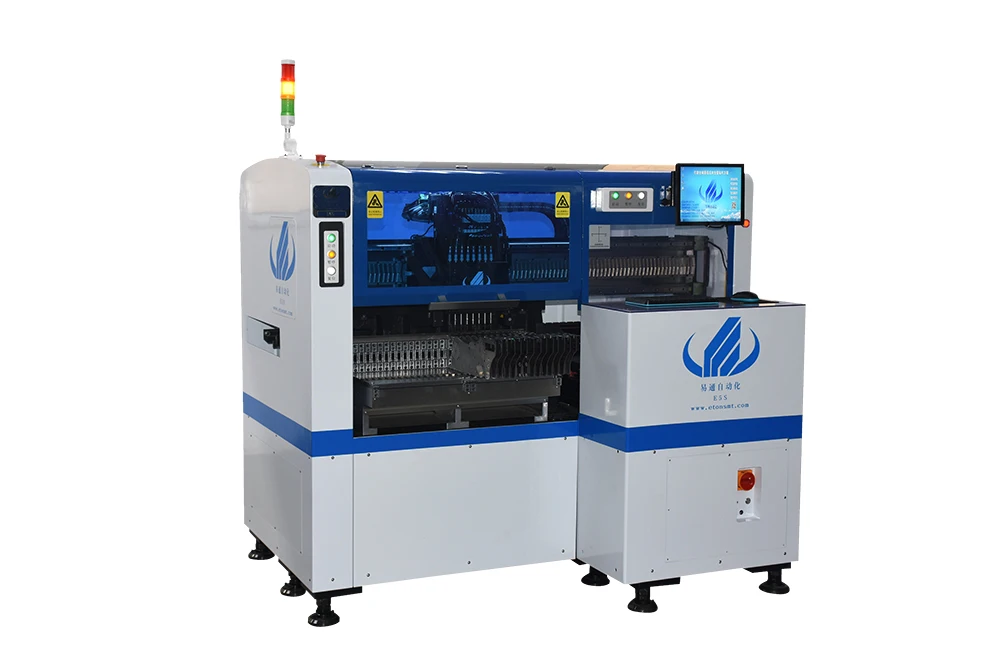

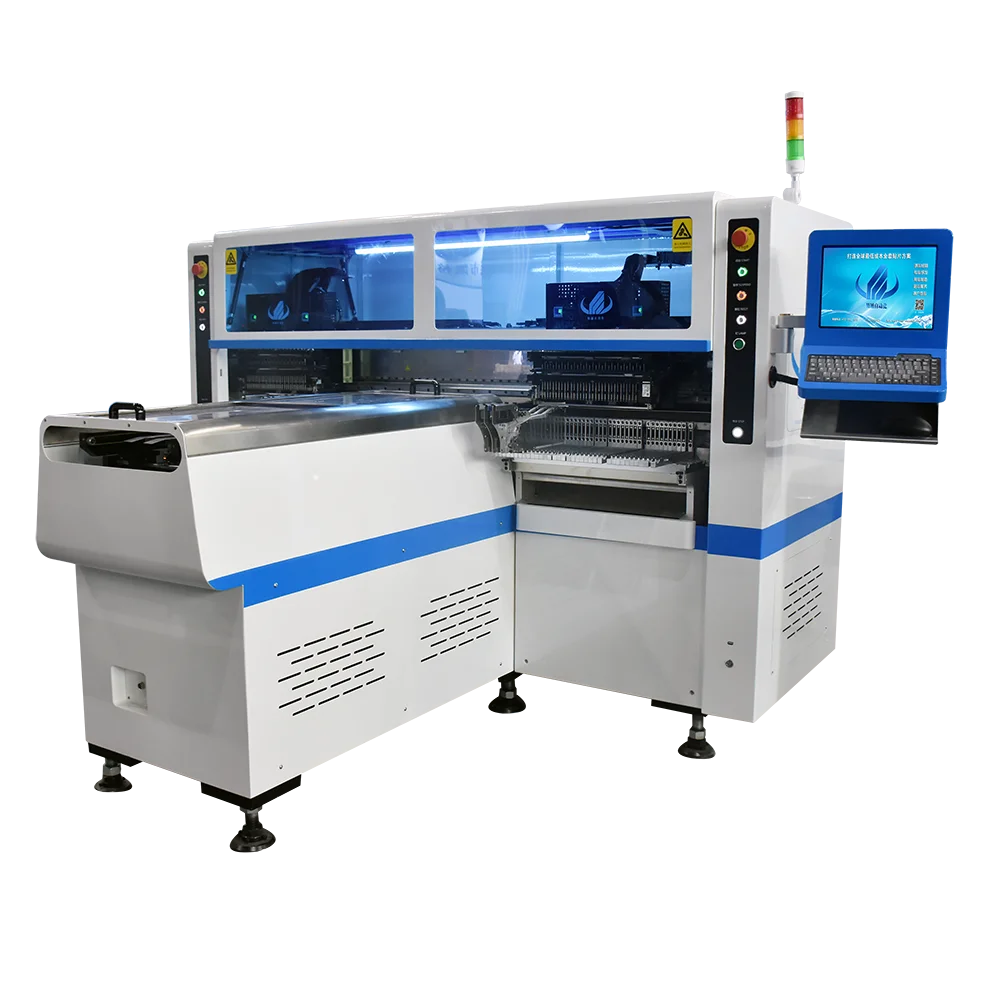

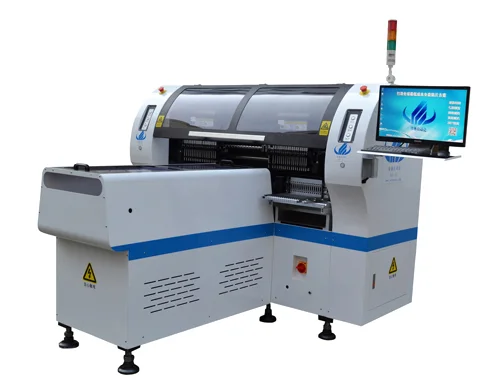

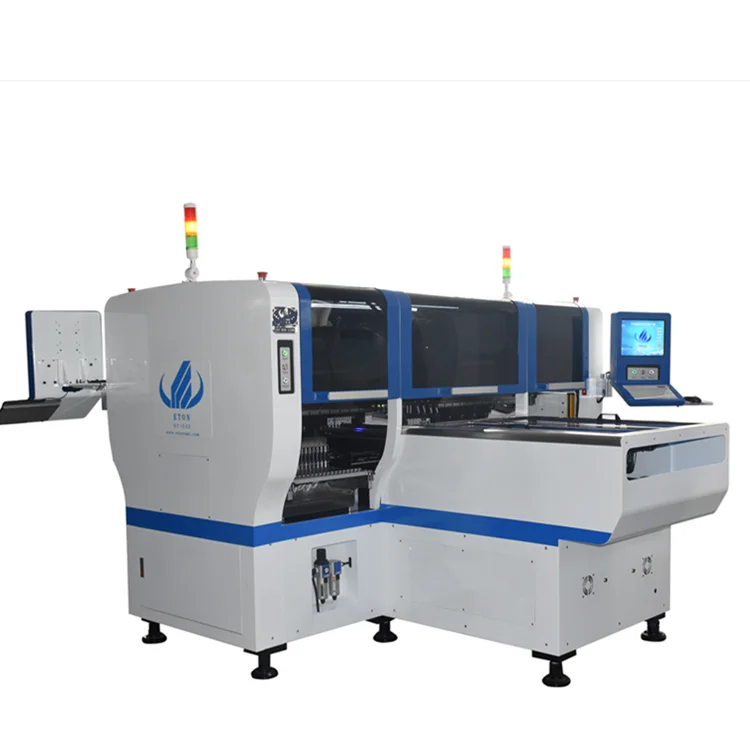

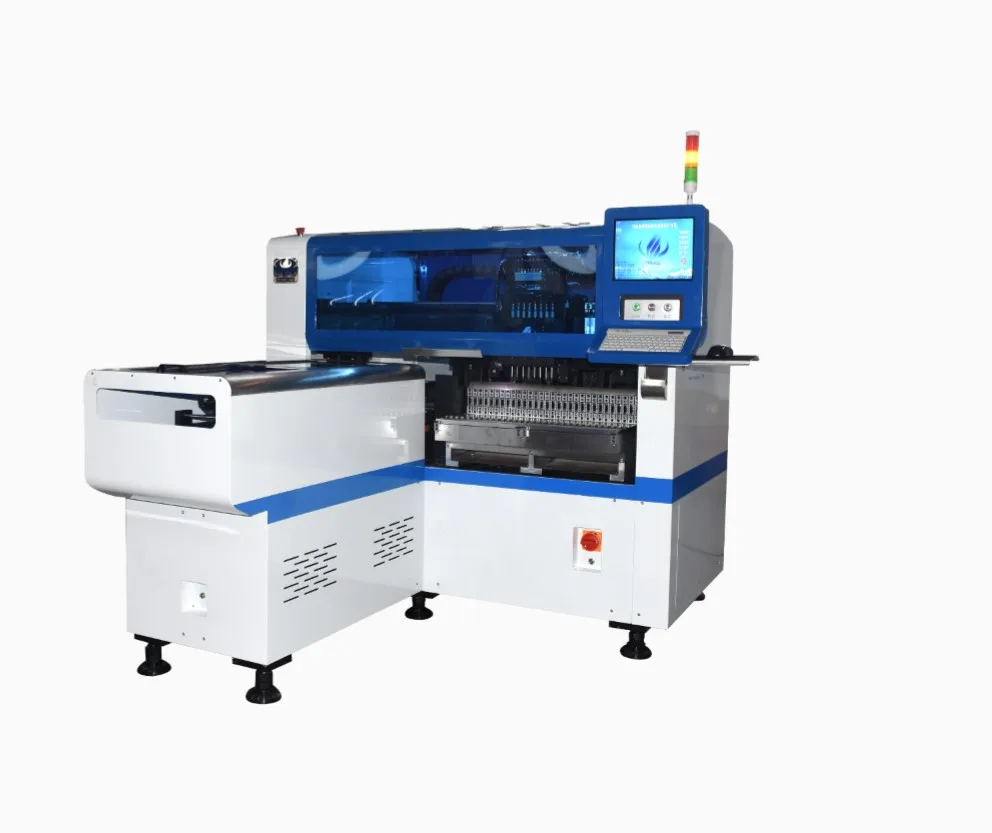

SMT pick and place machine for led light,multifunctional pick and place machine and high speed pick and place machine.


Packing & Delivery




Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your
requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.


ETON after-sales service






FAQ

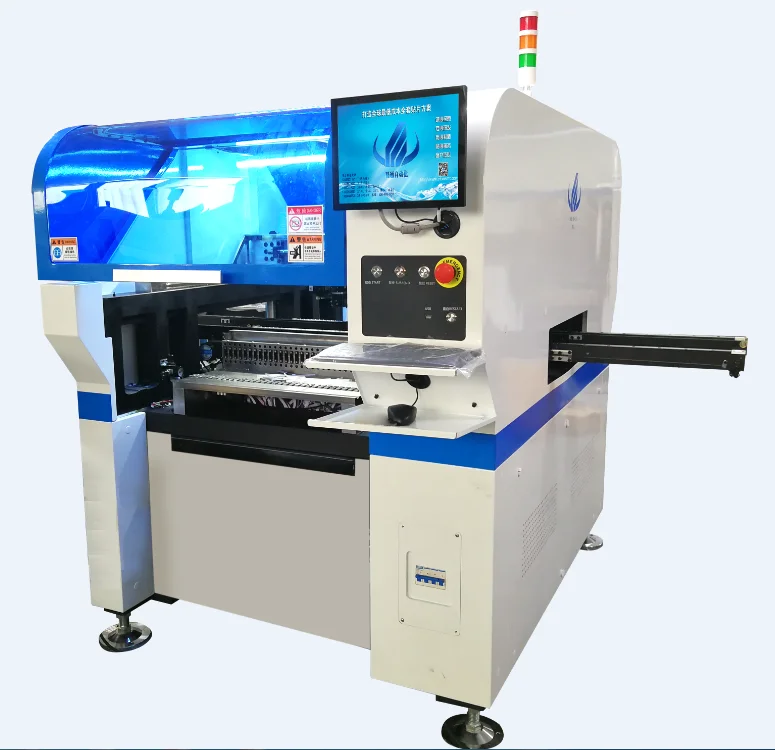

1.How many cameras does the machine have?
There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.
2.What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3. What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
4. What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
5.Is your software interface in English?
English interface and Chinese interface are both available.
