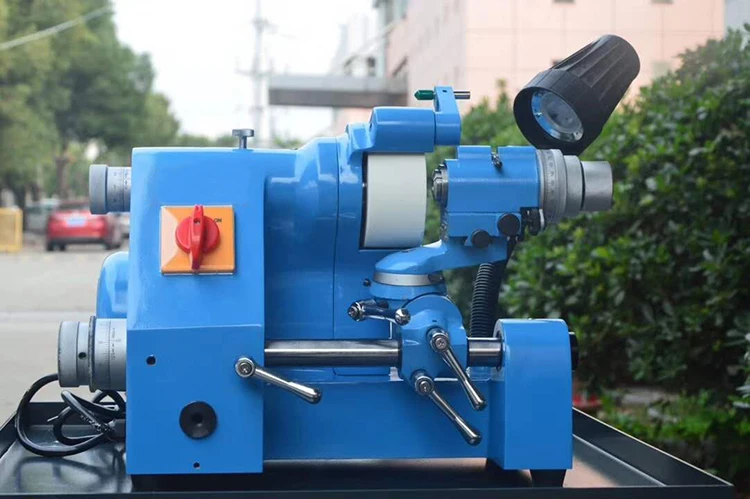

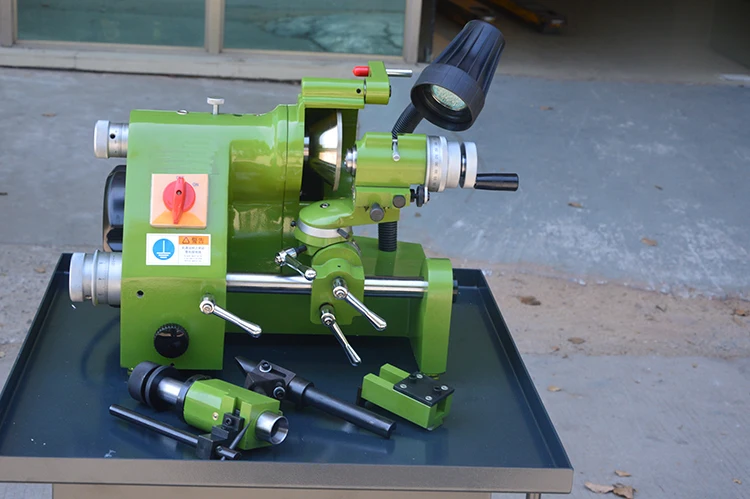

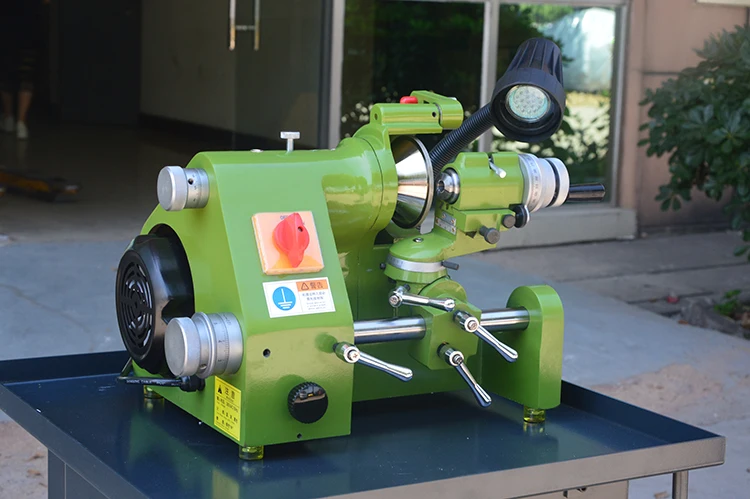

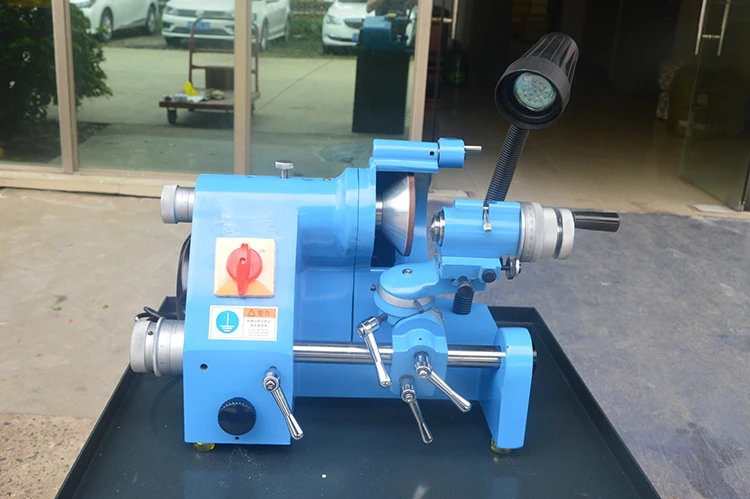

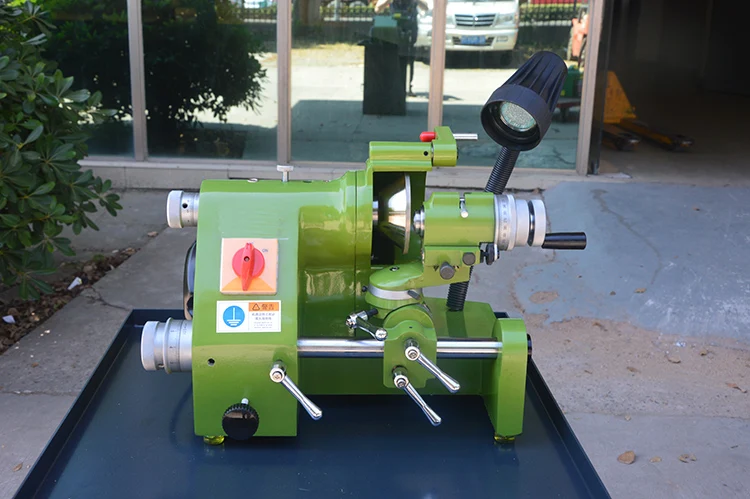

drilling tool universal cutter tool sharpener U2 cutting tool grinding
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (1600559481563):
Product Overview
Description
Products Description
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.
The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the attachment to the index head without any complex setup.
The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the attachment to the index head without any complex setup.
Model | U2 |
Max. collet capacity | Φ16 mm |
Max. grinding dia. | Φ25 mm |
Longitudinal traver of index head carrier | 140mm |
Longitudinal adjustment trave of index head carrier | 180mm |
Spindle and wheel longltudinal adjustment travel | 600mm |
Taper angle range | 0~ 180 (degree) |
Relief angle range | 0~ 45 (degree) |
Negative angle range | 0~ 25 (degree) |
Motor | 1/3HP 220V/380V 50HZ |
Grinding spindle | 5200rpm |
Grinding wheel | Φ100×50×Φ20 |
Dimension | 55×46×49cm |
Weight | 60KG |

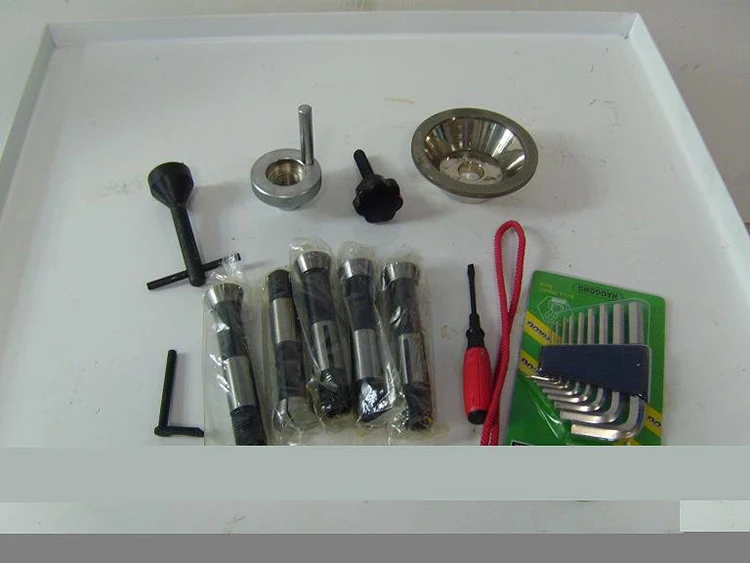

Standard Equipment | 5 collets: Φ4, Φ 6, Φ 8, Φ 10, Φ 12 |
White corundum grinding wheel ×1 | |
Resin wheel×1 | |
Option Equipment | Belt×1 |
Diamond pen×1 | |
Twist drill grinding attachment×1 | |
End mill grinding attachment×1 | |
Lathe tools grinding attachment×1 | |
Eleven piece collets: Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18 |
Details Display
