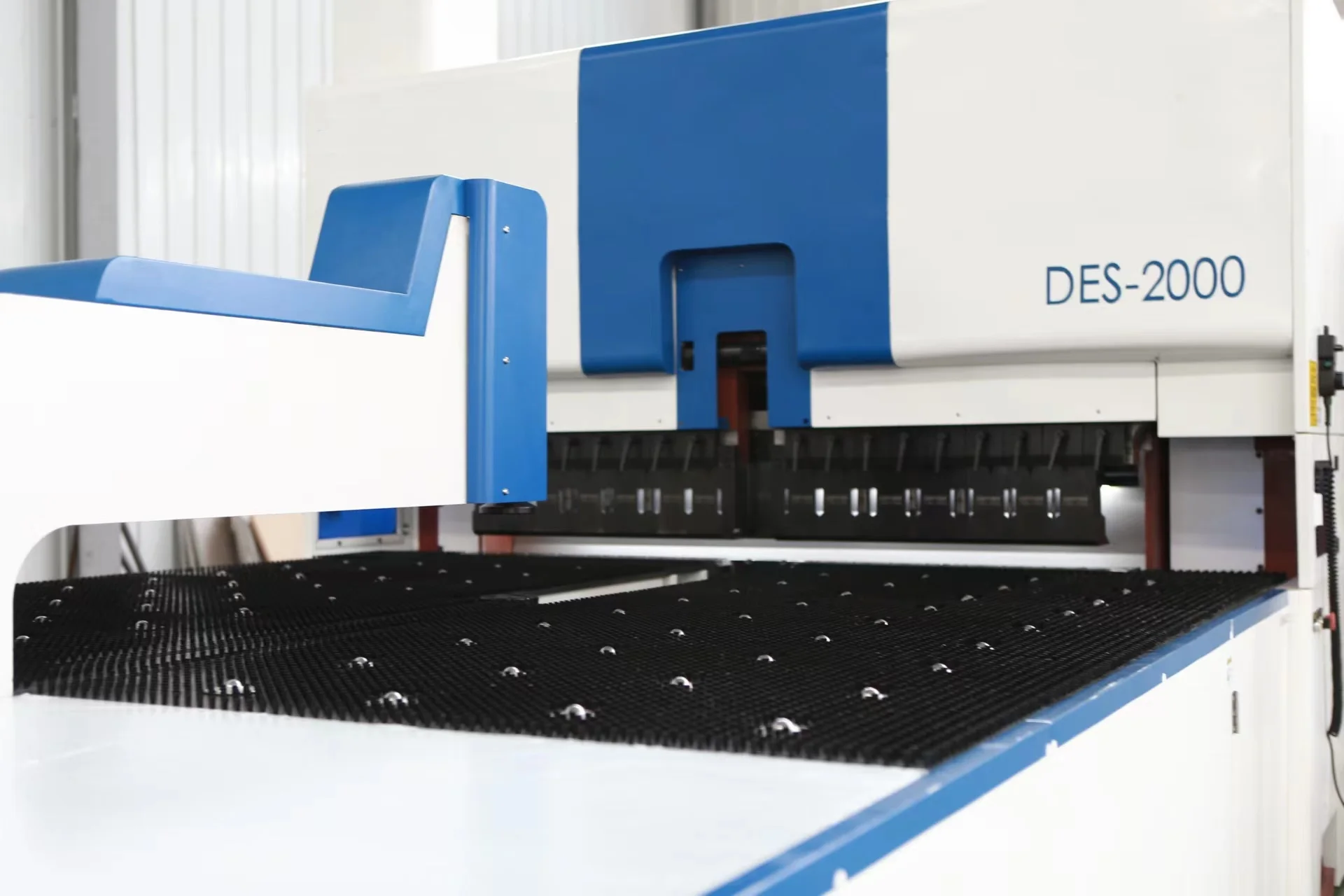

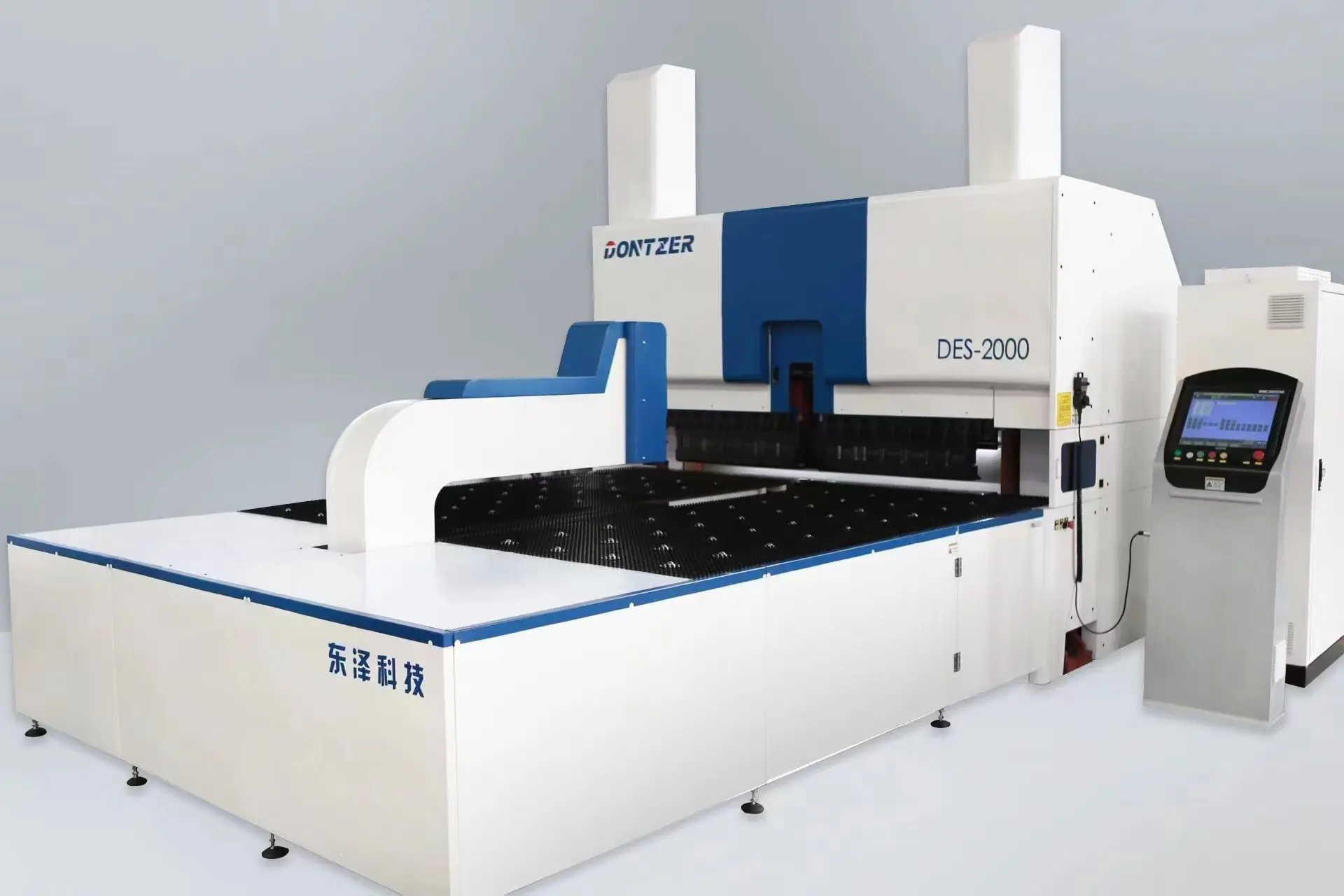

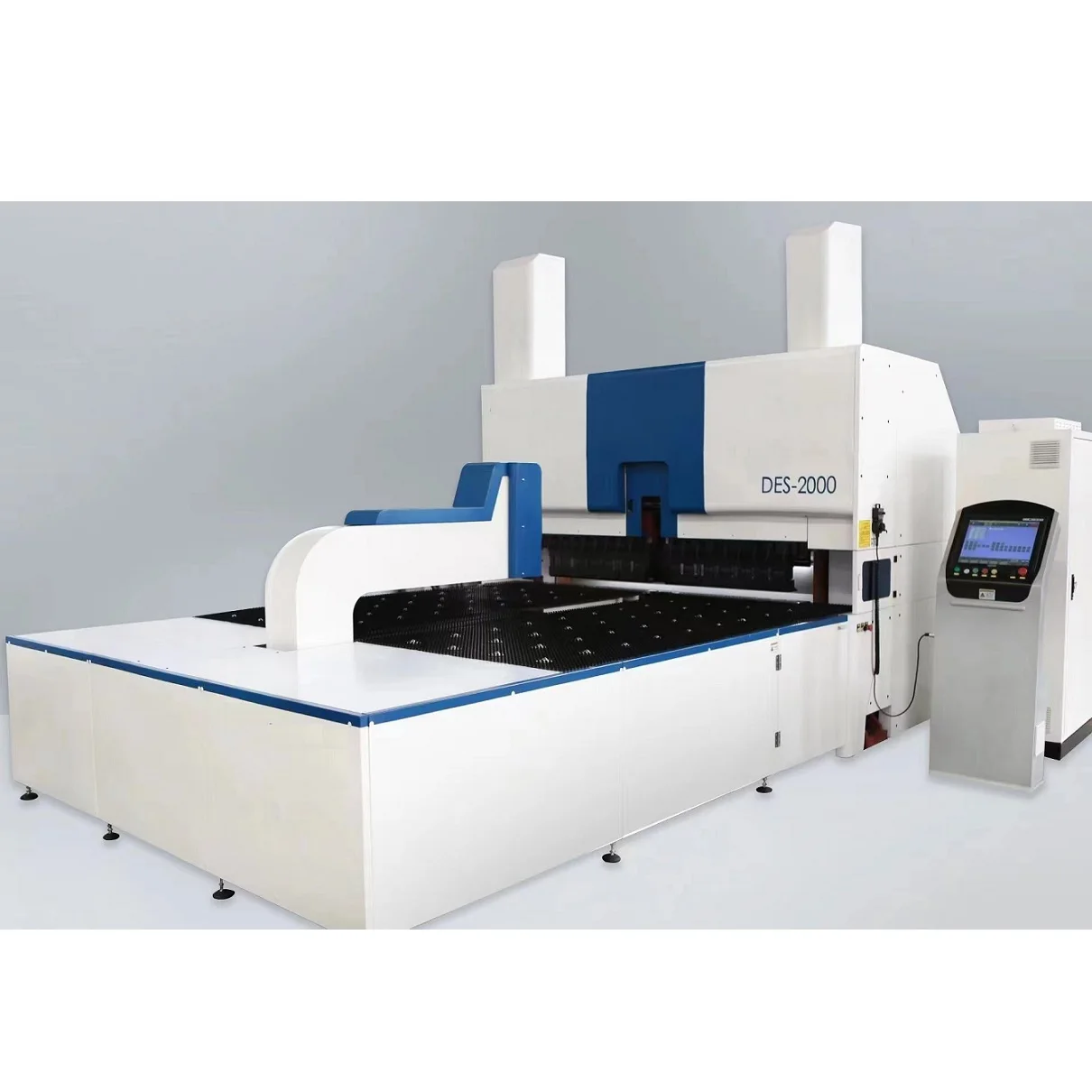

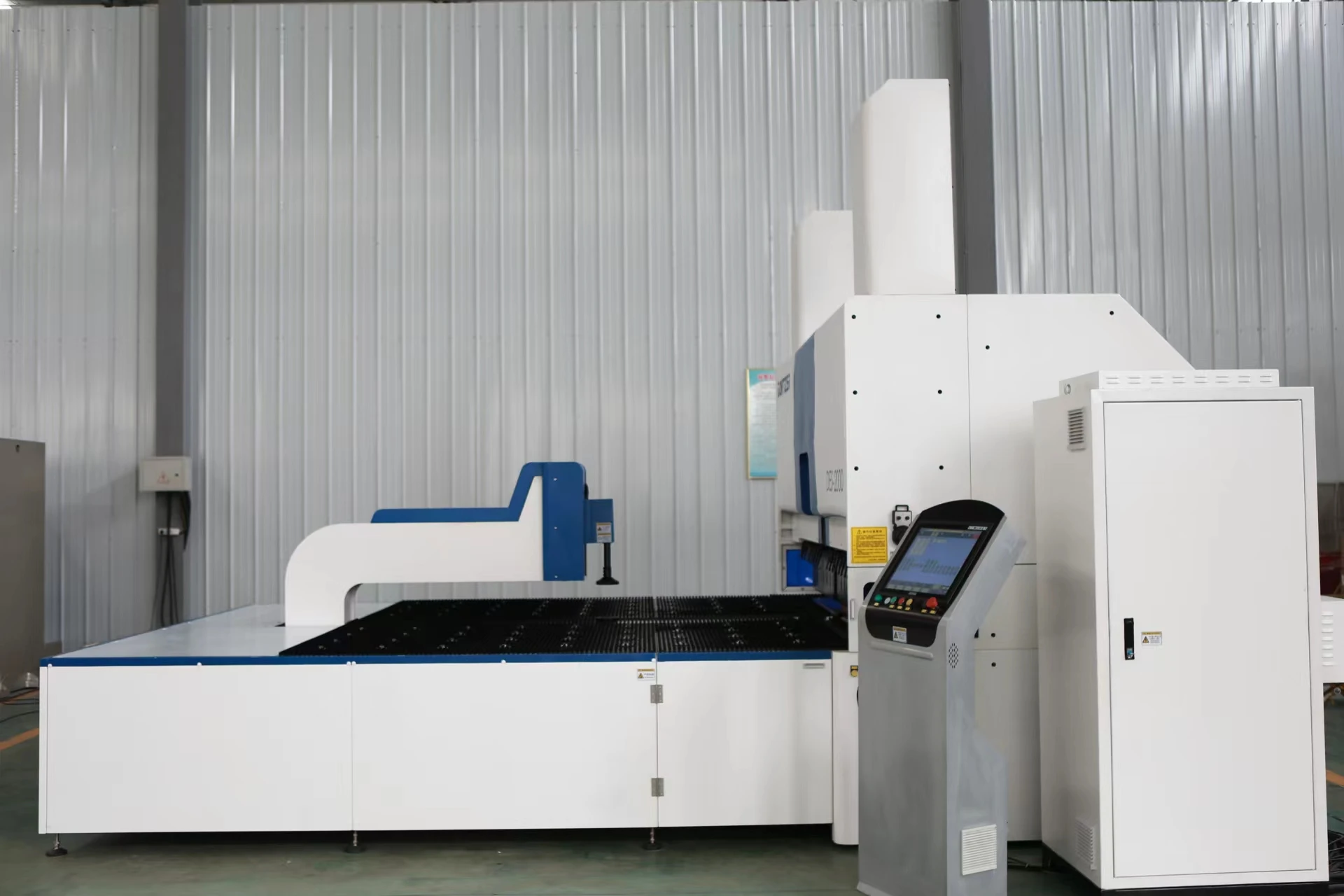

CNC Intelligent flexible bending machine center automatic bending machine factory price
- Category: >>>
- Supplier: Qingdao Proway Industrial Co. Ltd.
Share on (1600559534243):
Product Overview
Description
Product Description
Description
Intelligent flexible bending center is an automation product developed for sheet metal industry to improve production
efficiency,reduce labor intensity and enhance corporate image.The equipment has 4.0 industrial architecture,intelligent flexibility,fast working speed,rapid workpiece forming,high consistency,low power consumption,simple daily maintenance,high degree of automation and simple operation.It is suitable for processing stainless steed,cold plate and aluminum plate and other industries,can bend right angle,non right angle,arc,up fold,dead edge and other complex shape combination,and can be compatible with manual loading and unloading or robot loading an unloading or manipulator loading and unloading.
* Fully automatic bending, high efficiency, energy saving and environmental protection.* Bus control technology, can directly connect with IOT for remote control and monitoring.
* Special high-load screw and linear guide, high load-bearing capacity, high positioning accuracy and long life.
* Fully automatic lubrication system, maintenance free.
* Double servo control rotation.
efficiency,reduce labor intensity and enhance corporate image.The equipment has 4.0 industrial architecture,intelligent flexibility,fast working speed,rapid workpiece forming,high consistency,low power consumption,simple daily maintenance,high degree of automation and simple operation.It is suitable for processing stainless steed,cold plate and aluminum plate and other industries,can bend right angle,non right angle,arc,up fold,dead edge and other complex shape combination,and can be compatible with manual loading and unloading or robot loading an unloading or manipulator loading and unloading.
Features
* Fully automatic bending, high efficiency, energy saving and environmental protection.* Bus control technology, can directly connect with IOT for remote control and monitoring.
* Special high-load screw and linear guide, high load-bearing capacity, high positioning accuracy and long life.
* Fully automatic lubrication system, maintenance free.
* Double servo control rotation.
No | Item | DES-1200 | DES-1400 | DES-2000 |
1 | Max Bending Speed | 0.5s | 0.2s | 0.2s |
2 | Bending Length | 1200 | 1400mm | 2000mm |
3 | Bending Height | 175mm | 175mm | 175mm |
4 | Min Inner Size of Four Bending Sides | 200mm*130mm | 200mm130mm | 200mm130mm |
5 | Min. Inner Size for One-side Bending | 130mm | 130mm | 130mm |
6 | Min Sheet Thickness | 0.35mm | 0.35mm | 0.35mm |
7 | Max Sheet Thickness | Stainless Steel 1.0mm Mild Steel 1.5mm Aluminum 1.6mm | Stainless Steel 1.0mm Mild Steel 1.5mm Aluminum 1.6mm | Stainless Steel 1.0mm Mild Steel 1.5mm Aluminum 1.6mm |
8 | Peak Power | 13kw | 15kw | 22kw |
9 | Average Power | 1.2kw | 1.5kw | 2kw |
10 | Software | Win CE | Win CE | Win CE |
11 | Machine dimension | L 320cm * W 210cm * H 290cm | L 340cm * W 230cm * H 290cm | L 550cm * W 290cm * H 320cm |
