dental used surgical microscope for Hospital or Clinic
- Category: >>>
- Supplier: Wuhan Easy Vision Technology Co. Ltd.
Share on (1600559711977):
Product Overview
Description
Product Description

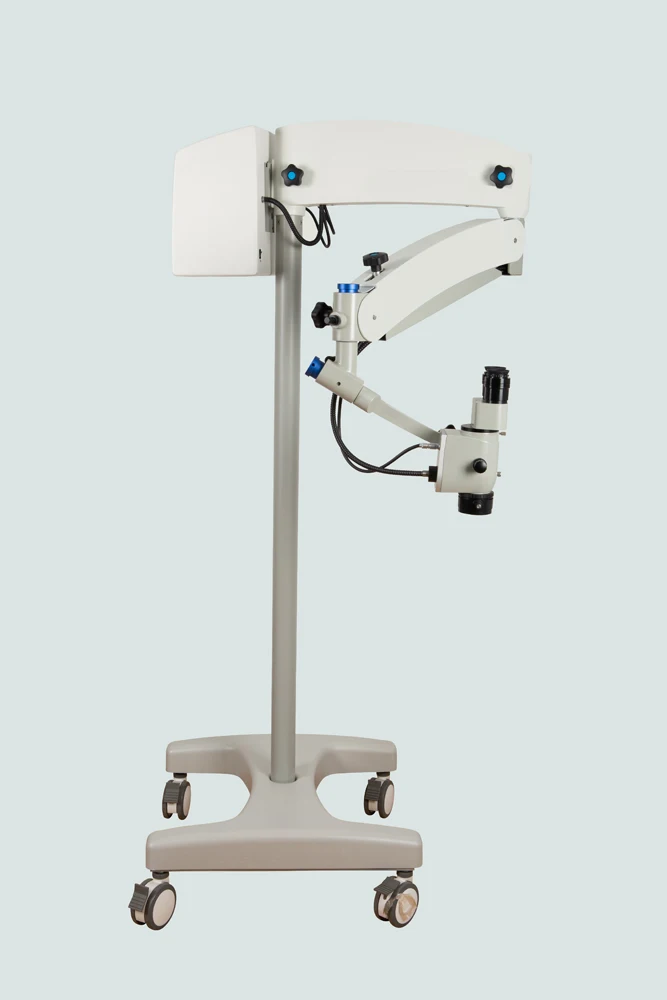

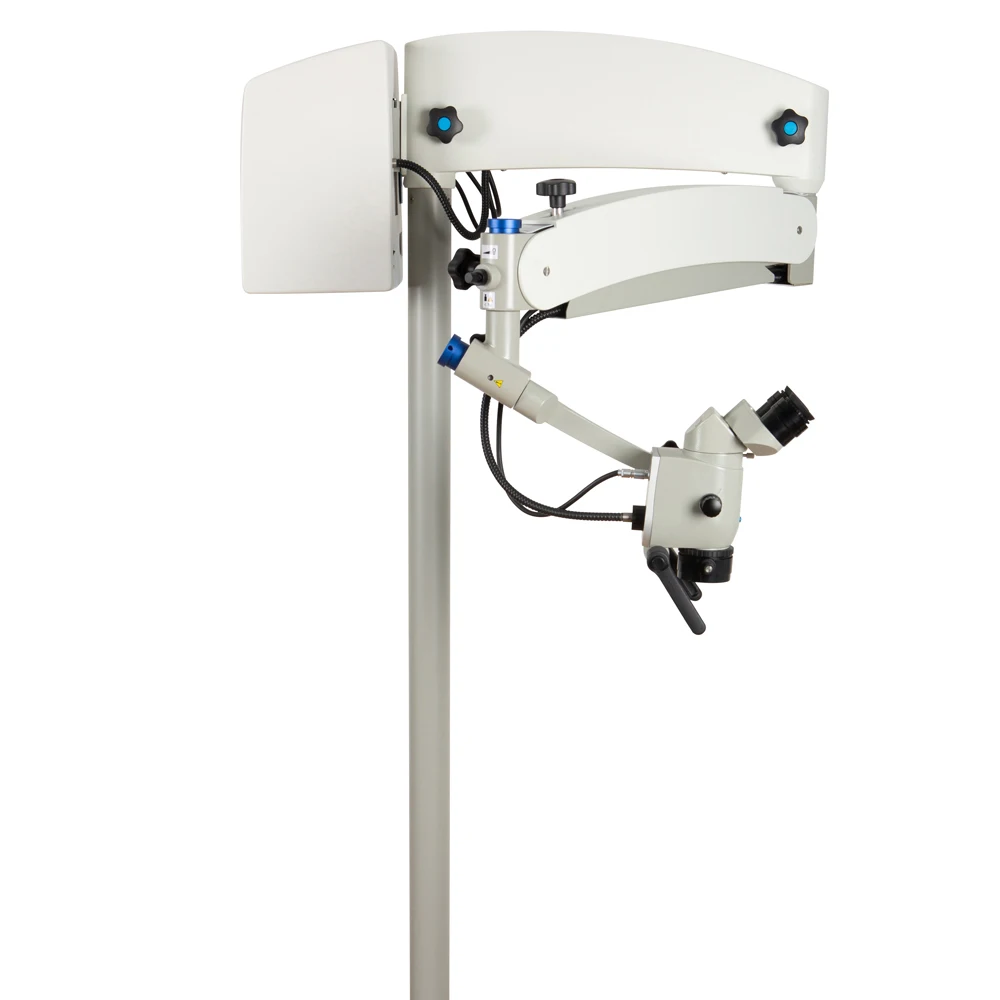

SME3600 LED Dental Microscope ENT operation surgery 0-180degree hospital use Zumax type | ||

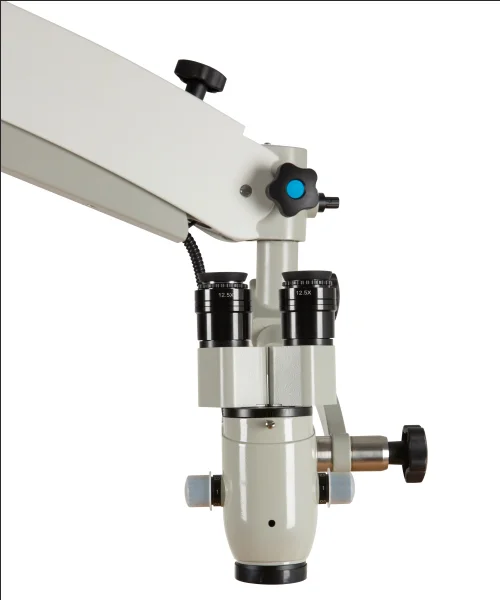

1 | The main scope adopts optical gemel binocular. The max tilting angle:180 degree. | |
2 | Objective lens 200mm & 250mm with fine micro-focusing adjustment knob.(the range of adjusting: 20mm),if you need, you may select 250mm apo-achromatic objective lens. | |
3 | Easily maneuverable optical head with tension control knobs and 2 handles (One front handle is option). The optical head can be stop at any position in the moving range. | |
4 | Optical head can be folded up to the arm at highest position. In that way you will have a clear and free working area when you don't use microscope. | |
5 | Built-in orange filter and green filter. You can select the filters by a knob located at the same place of the fiber optic cable with is connected to the back of optical head. | |
6 | Infinity corrected optical system / coaxial illumination. Fiber optic illumination system with brightness adjustment knob. The knob is just over the optical head. It is very convenience to adjust the brightness. | |
7 | Two 150W Halogen bulbs with through the lens coaxial lighting and " change on the fily" lamp selector. Should a lamp fail during an examination, this feature allows a quick change from one lamp to another resulting in an uninterrupted procedure. | |
8 | A special switch is fitted into the arm. The lamp will keep "on" when the optical head moves in normal working range and the lamp will turn off automatically while the optical head moves out of normal working range. | |
Parameter
Magnification | 5 Steps magnification changer . 0.4X,0.6X,1.0X,1.6X,2.5X |
Binoculars | 45 degree inclined binocular f'=170mmStraight binocular f'=170mm0-180 degree inclinable binocular ,f'=170mm |
Eyepiece | 12.5X,wide filed and adjustable eyecup,10X/16X/20X for options |
Total magnification and visual field | f'=250mm ,12.5X eyepiece ,45 degree binocular 3.4X 5.4X 8.5X 13.5X 21.2X 65mm 42mm 26mm 16mm 10mm |
Focus | manual ,with rang of 12 mm f'=200mm (with fine focus ,option)f'=250mm (with fine focus )f'= 300mm /350mm /400mm (option) |
Illumination | coaxial illumination by optical light -guide system |
*Halogen | 15V/150W ,two bulbs,continuously light-intensity adjustment,50000Lux(f'=250mm) |
*LED | 60Watts ,over 50000 hours life time 75000Lux (f'=300mm)90000Lux (f'=250mm) |
*field of view | 50mm (f'=250mm) |
Filter | green /yellow for Dental ,or green/blue for ENT |
Stand type and Gross weight | floor stand 125kgwall mount:80kgceiling mount:95kg |

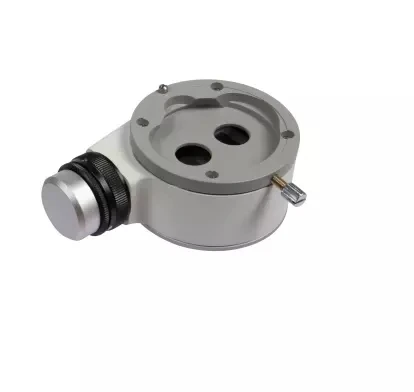

Accessories | Beam splitter 50/50 or 20/80Adaptor for 1/3 video camera Integrated beam splitter and adaptor Video system :built-in 1/2 inch CCD camera with 540TVLOr HDMI 1920*1080P ,1/3 inch HD CMOS sensor |
Packing & Delivery
Company Profile
EasyVision is specialized in manufacturing and marketing over 400 kinds of medical devices, catering to the needs of hospitals, clinics, research labs, medical equipment dealers and so on. Through years of hard working, Easyvision Medical has grown up to a mature and reliable medical company. We carry a wide range of medical products aimed at fulfilling all of your needs. Our main products include: Ultrasound Scanner, X-ray Machine, Operation Room Equipment, Laboratory Equipment, Pediatric/Gynecology Equipment, Dental/Ophthalmic/ENT Equipment, Hospital Furniture etc. Products are manufactured either by ourselves or by cooperating with some reputed companies in China, and certified by CE, ISO, so our products are not only with very competitive price in the international market, but also stand for the safe and reliable quality. Meanwhile, high efficient, whole-hearted
service and on-time delivery help us win trust and great popularity among customers from different countries and districts, such as, Malaysia, Philippines, Indonesia, Azerbaijan, Pakistan in Asia; USA, Canada, Colombia, British, Uruguay, Chile, Nicaragua, Guatemala in America; Germany, Italy, France, Portugal, Spain, Sweden, Ukraine, Russia, Kazakhstan, Uzbekistan in Europe; South
Africa, Nigeria, Kenya, Uganda, Cameroon, Mozambique, Mauritius, Somalia, Mali, Tanzania etc in Africa; Saudi Arabia, Turkey, Iraq, Iran, UAE etc in Middle East, and also Australia and New Zealand. Several years of industry experiences and close relationship with customers help us have a deep understanding of medical equipment market not only in China but also world-wide.
We value your business, care for your needs, and want to serve you in the best way possible. If you have interests in our Easyvision Medical, we sincerely appreciate that. Please do not hesitate to contact us, we are looking forward to developing a long-term partnership with you.
service and on-time delivery help us win trust and great popularity among customers from different countries and districts, such as, Malaysia, Philippines, Indonesia, Azerbaijan, Pakistan in Asia; USA, Canada, Colombia, British, Uruguay, Chile, Nicaragua, Guatemala in America; Germany, Italy, France, Portugal, Spain, Sweden, Ukraine, Russia, Kazakhstan, Uzbekistan in Europe; South
Africa, Nigeria, Kenya, Uganda, Cameroon, Mozambique, Mauritius, Somalia, Mali, Tanzania etc in Africa; Saudi Arabia, Turkey, Iraq, Iran, UAE etc in Middle East, and also Australia and New Zealand. Several years of industry experiences and close relationship with customers help us have a deep understanding of medical equipment market not only in China but also world-wide.
We value your business, care for your needs, and want to serve you in the best way possible. If you have interests in our Easyvision Medical, we sincerely appreciate that. Please do not hesitate to contact us, we are looking forward to developing a long-term partnership with you.
