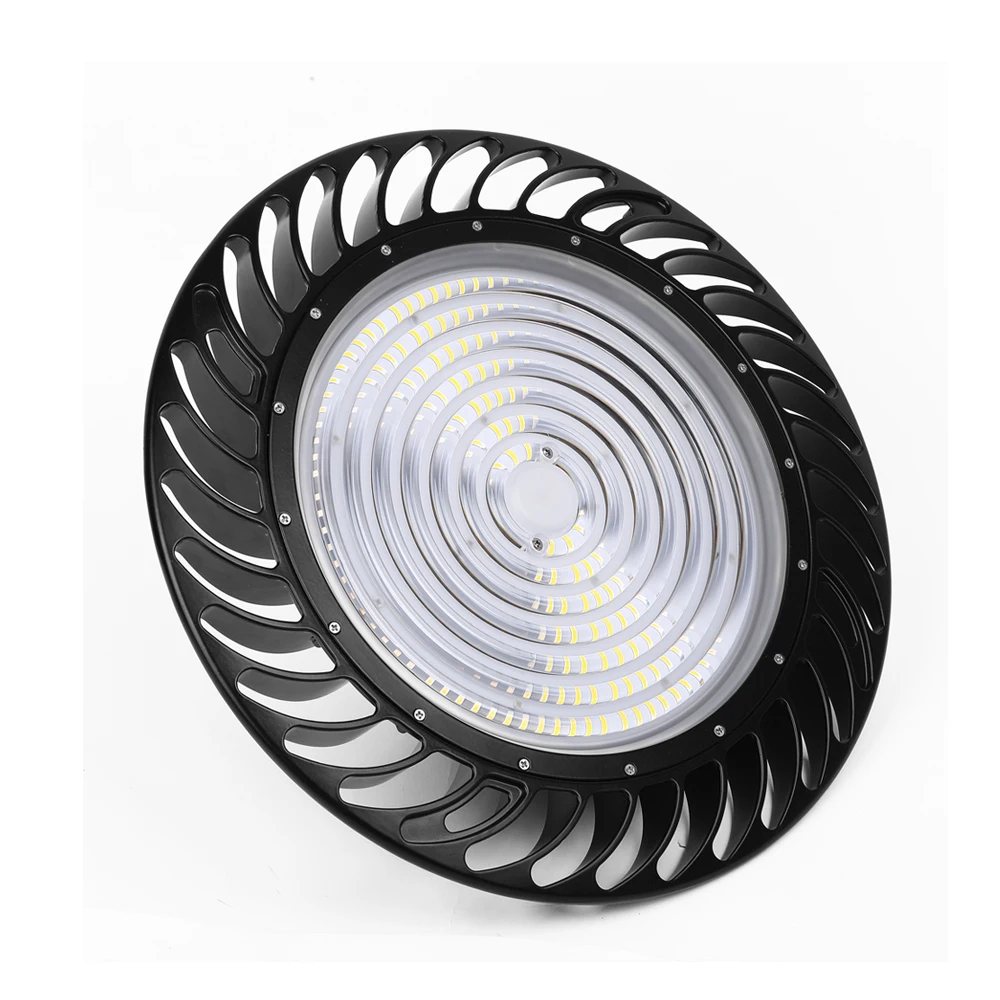

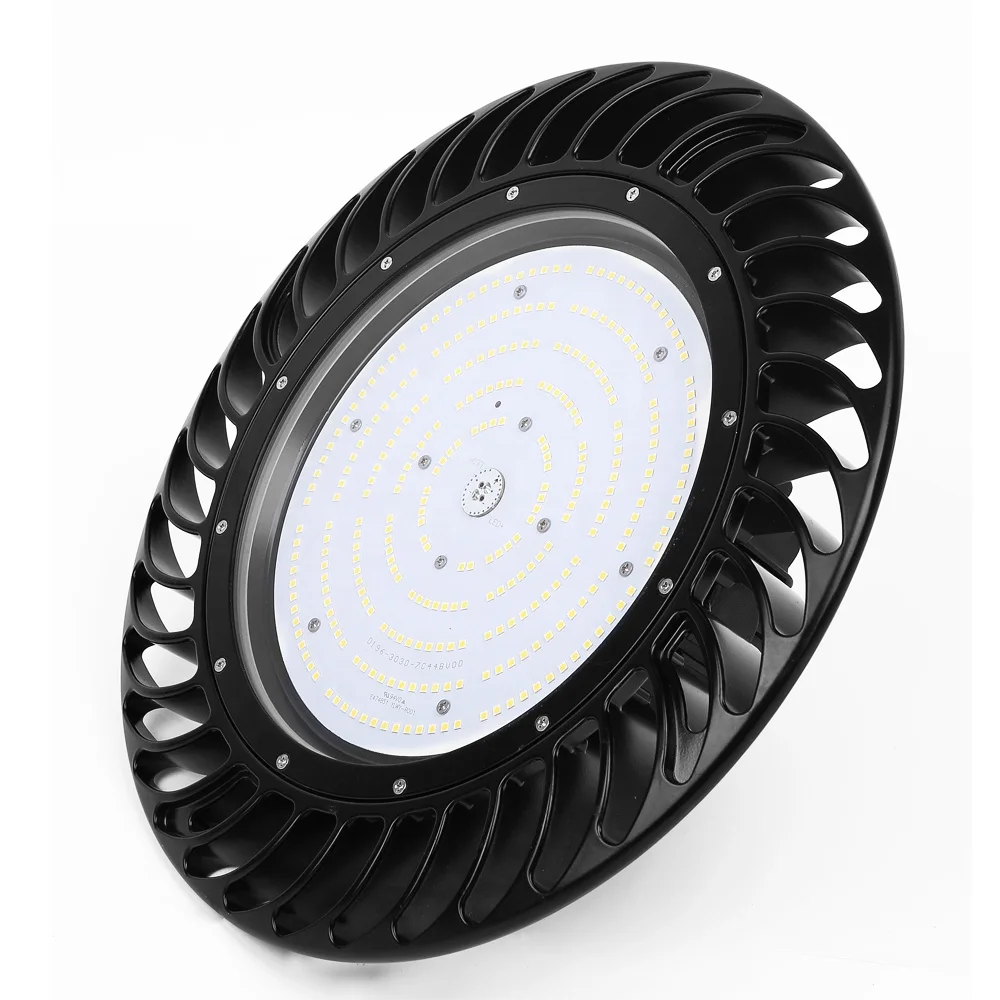

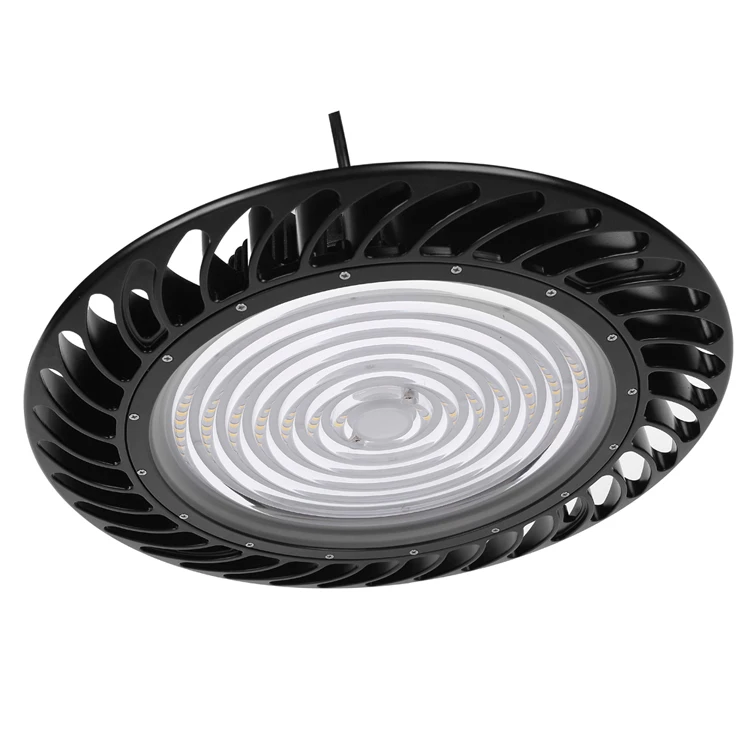

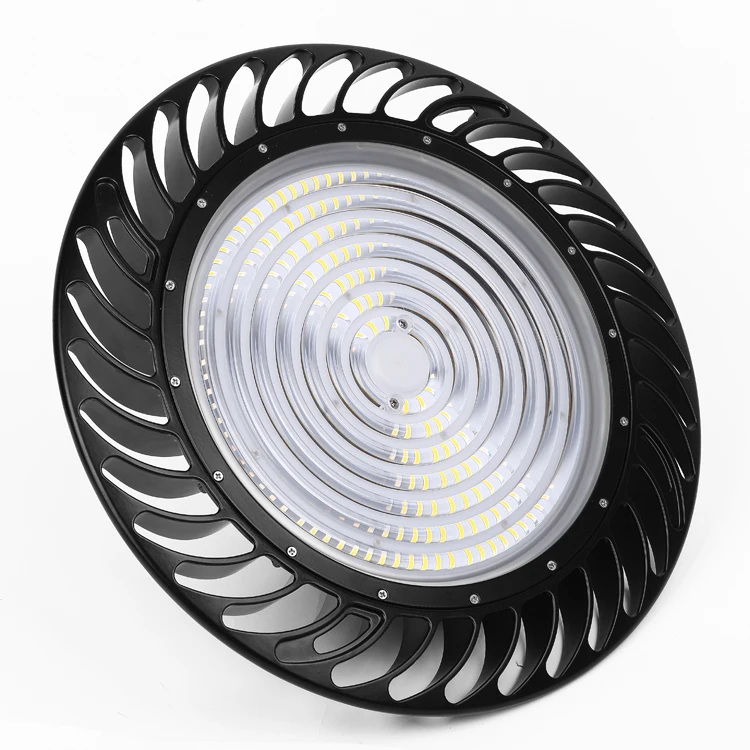

Olamlight Factory Wholesale Led 240W Ufo 150W 150 Watt 100 Sensor Mart Long Life 400W Explosion Proof High Bay Light
- Category: >>>
- Supplier: Olam Lighting Shenzhen Co. Ltd.
Share on (1600559749554):
Product Overview
Description
Product Paramenters
Technical Parameters--Windy Series(>140lm/W) | ||||||||
Model | OL-UFO280-N100W | OL-UFO340-N150W | OL-UFO400-200W | OL-UFO400-240W | ||||

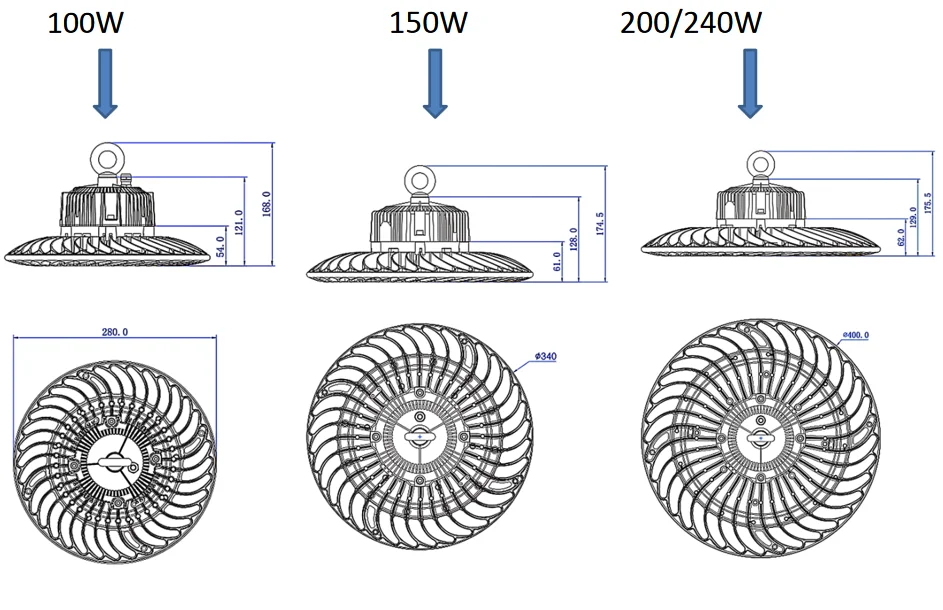

Dimension | Dia280*168mm | Dia340*174.5mm | Dia400*175.5mm | Dia400*175.5mm | ||||
Power | 100W | 150W | 200W | 240W | ||||
Luminous flux | 14000-15000lm | 21000-22500lm | 28000-30000lm | 33600-36000lm | ||||
LED qty(pcs) | 133PCS | 210PCS | 315PCS | 343PCS | ||||
Input Voltage | AC100-277V,50/60Hz | |||||||
Power factor(P.F.) | >0.95 | |||||||
Luminous Efficiency | >140lm/w | |||||||
LED source | LUMILEDS 3030, CRI>80Ra | |||||||

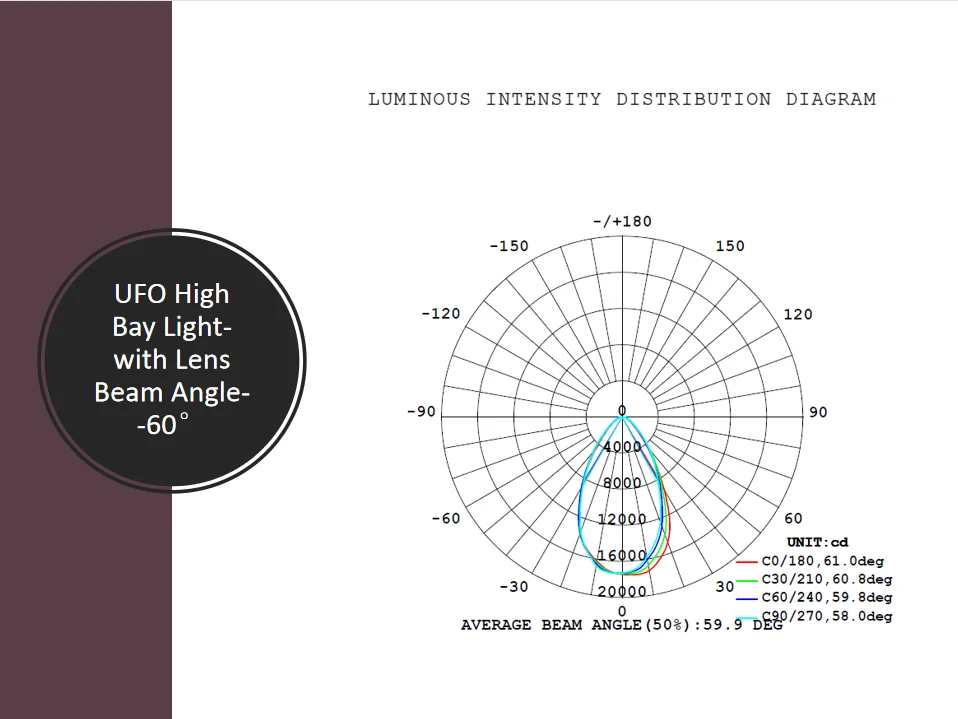

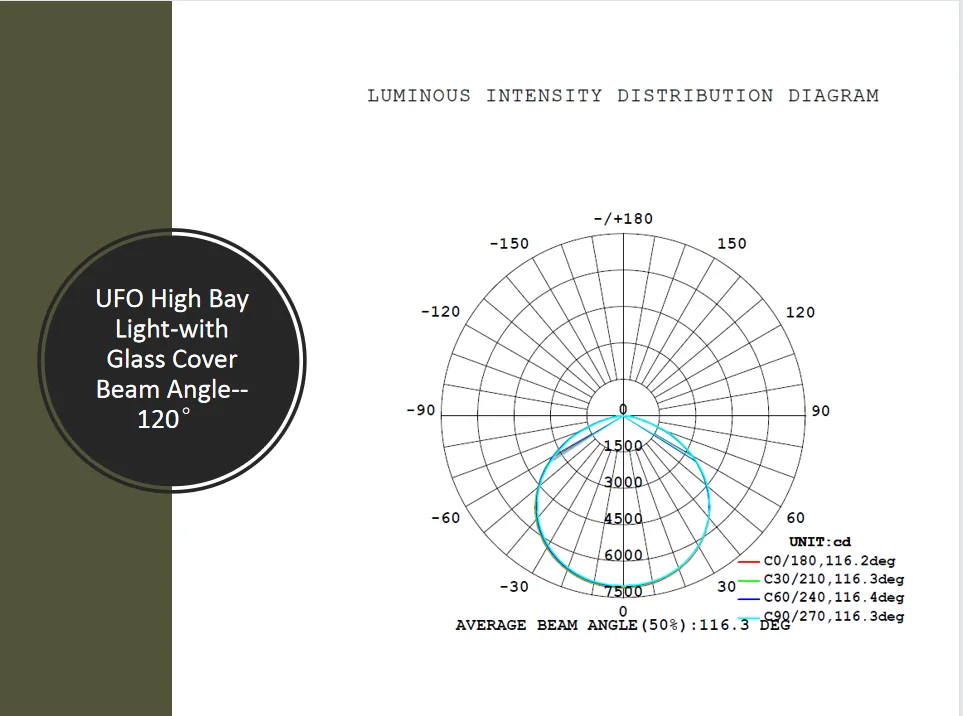

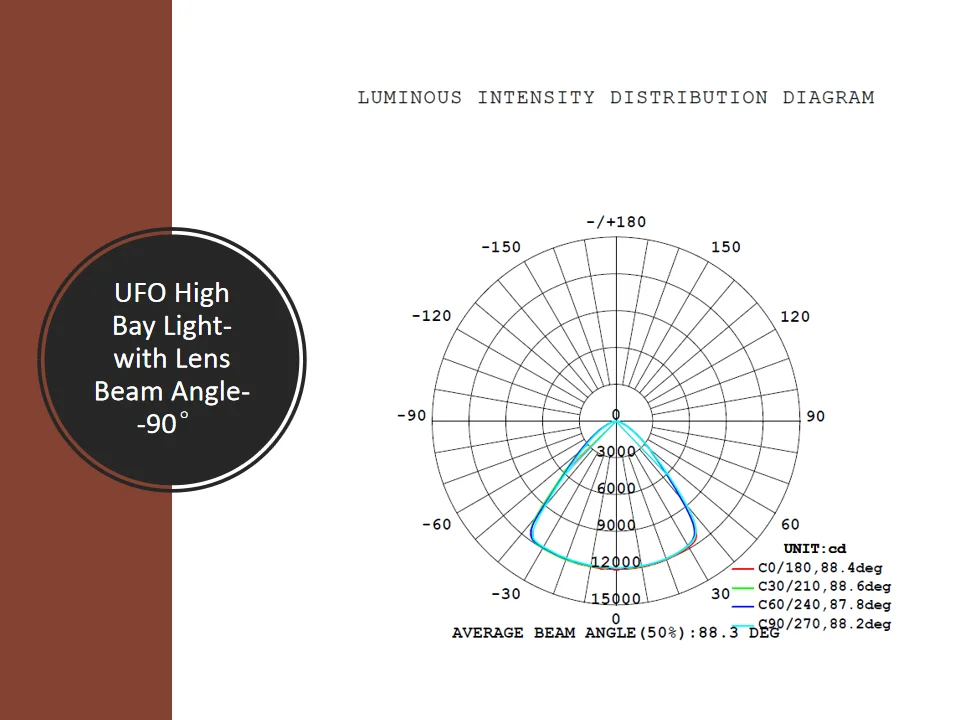

Beam Angle | 60°/90°/120° | |||||||
Housing material | Aluminum Housing and Lens Cover or Glass Cover | |||||||
IP Grade | IP65 | |||||||
Dimming | Non-dimmble, 1-10V, DALi dimmable driver for option. | |||||||

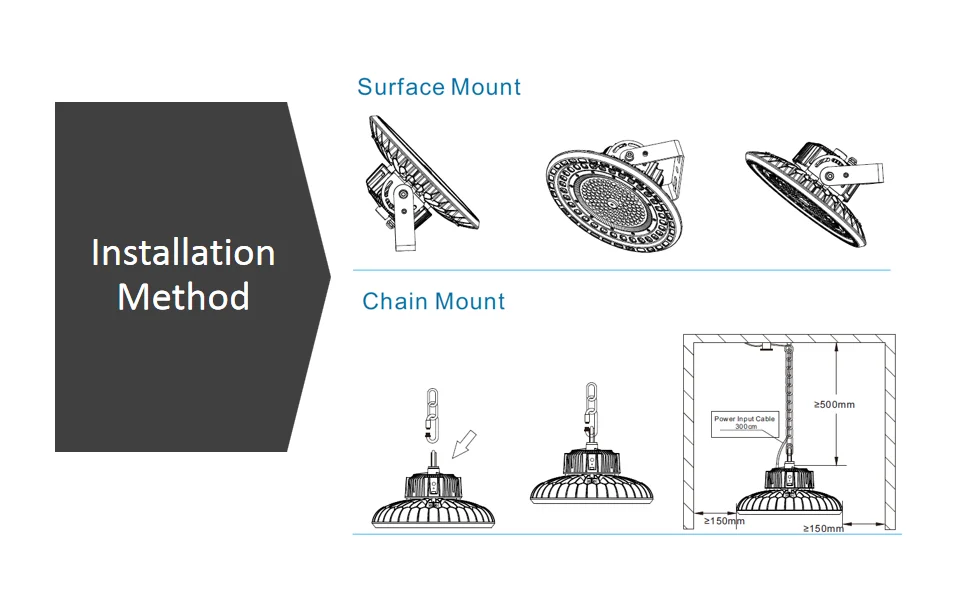

Installation Method | Wall mounted ,Suspension with Chain | |||||||
Working temperature | -20°C~+50°C | |||||||
Lifetime | 50000hrs | |||||||
Warranty time | 5 years | |||||||
Technical Parameters--Windy Series(>170lm/W) | ||||||||
Model | OL-UFO280-N100W | OL-UFO340-N150W | OL-UFO400-200W | OL-UFO400-240W | ||||
Dimension | Dia280*168mm | Dia340*174.5mm | Dia400*175.5mm | Dia400*175.5mm | ||||
Power | 100W | 150W | 200W | 240W | ||||
Luminous flux | 17000-18000lm | 22500-27000lm | 34000-36000lm | 40800-43200lm | ||||
LED qty(pcs) | 196PCS | 308PCS | 420PCS | 448PCS | ||||
Input Voltage | AC100-277V,50/60Hz | |||||||
Power factor(P.F.) | >0.95 | |||||||
Luminous Efficiency | >170lm/w | |||||||
LED source | LUMILEDS 3030, CRI>80Ra | |||||||
Beam Angle | 60°/90°/120° | |||||||
Housing material | Aluminum Housing and Lens Cover or Glass Cover | |||||||
IP Grade | IP65 | |||||||
Dimming | Non-dimmble, 1-10V, DALi dimmable driver for option. | |||||||
Wall mounted ,Suspension with Chain | ||||||||
Working temperature | -20°C~+50°C | |||||||
Lifetime | 50000hrs | |||||||
Warranty time | 5 years | |||||||
Advantages
2.Annulus Lens. the LED quantity can be changed according to customer requirements.
3.>140lm/W and > 170lm/W for option
4.Bean angle: 60/90/120 degree for option
1.Air convection design, that can keep the natural wind long time for heat disspation
2.Annulus Lens. the LED quantity can be changed according to customer requirements.
3.>140lm/W and > 170lm/W for option
4.Bean angle: 60/90/120 degree for option

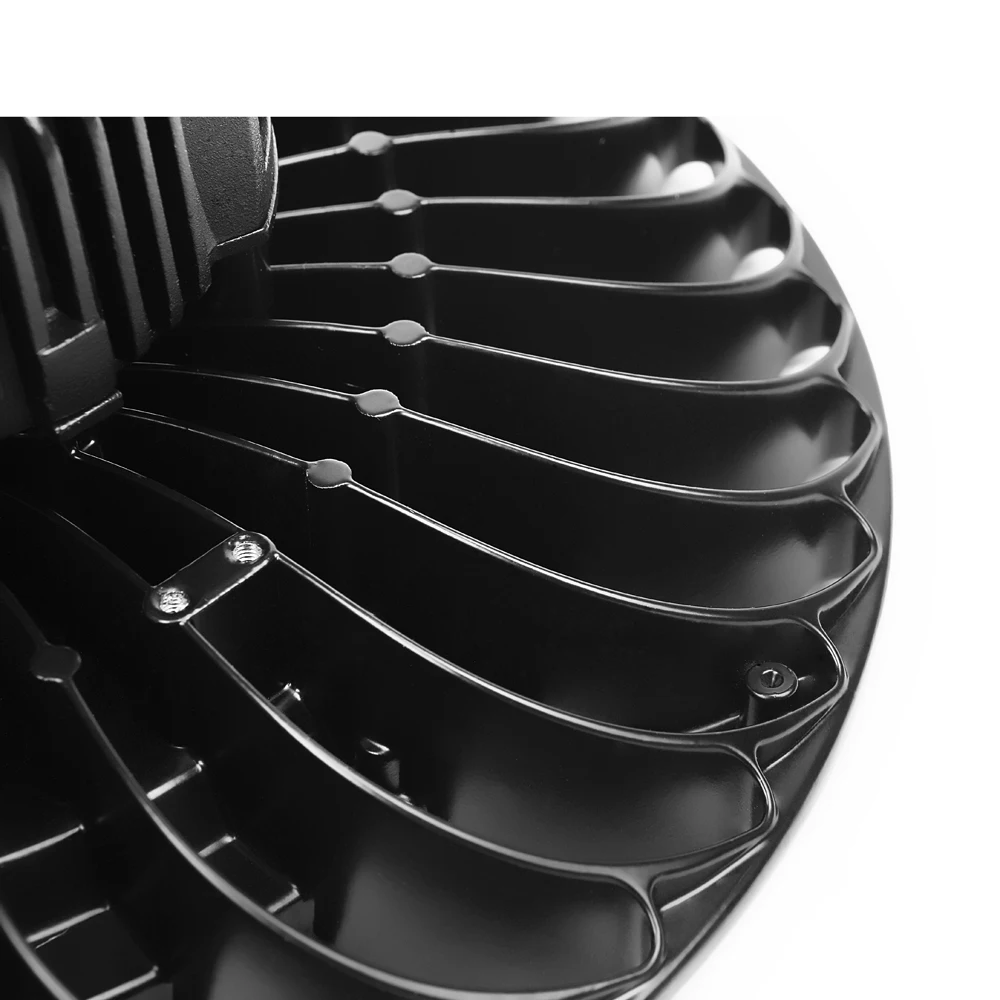

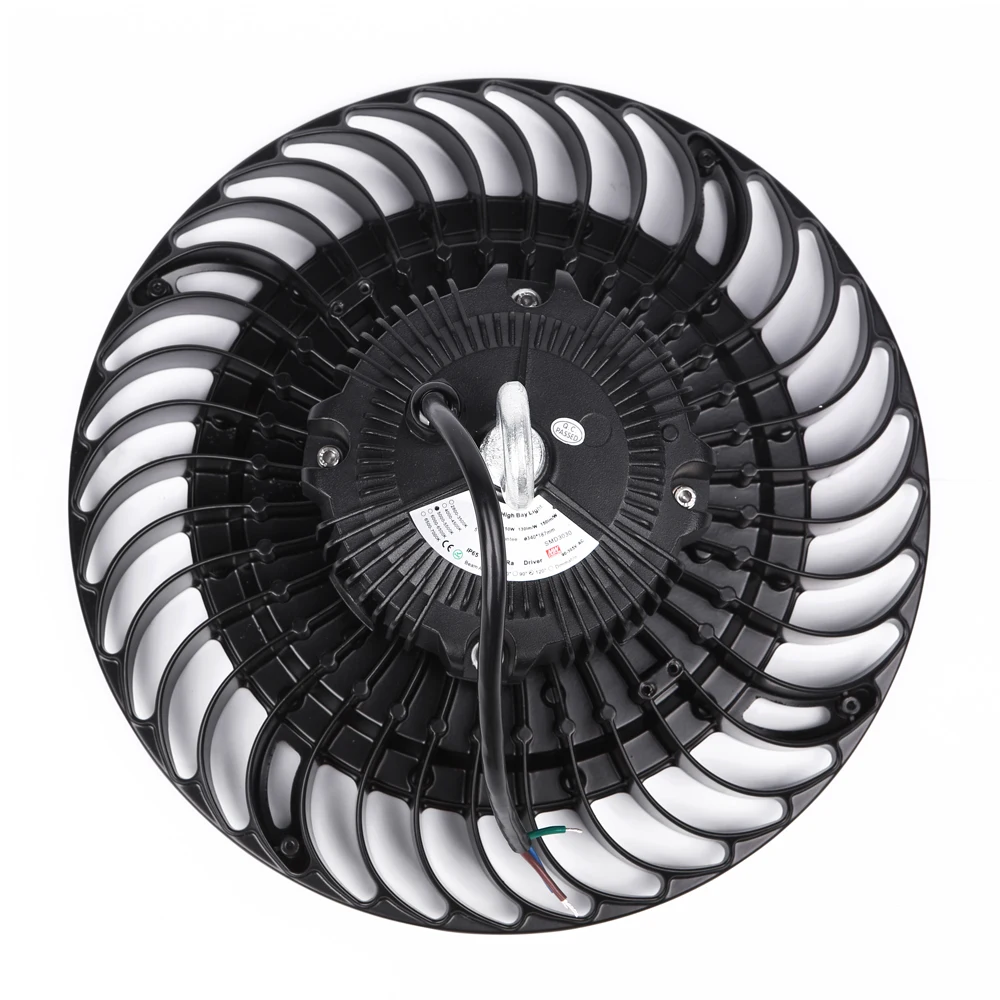

Air convection design good for heat dissipation
Details Images

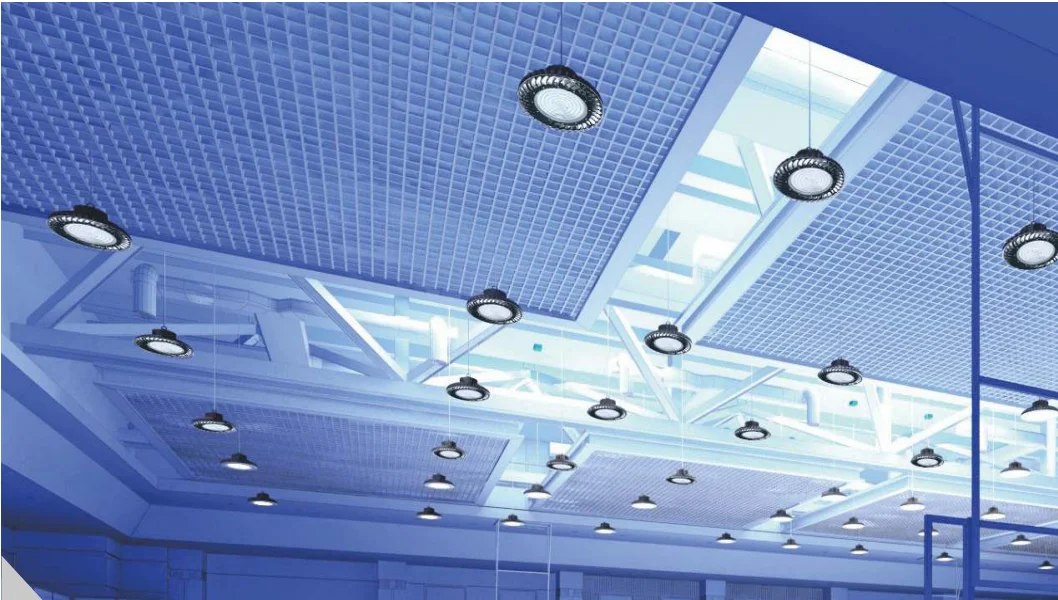

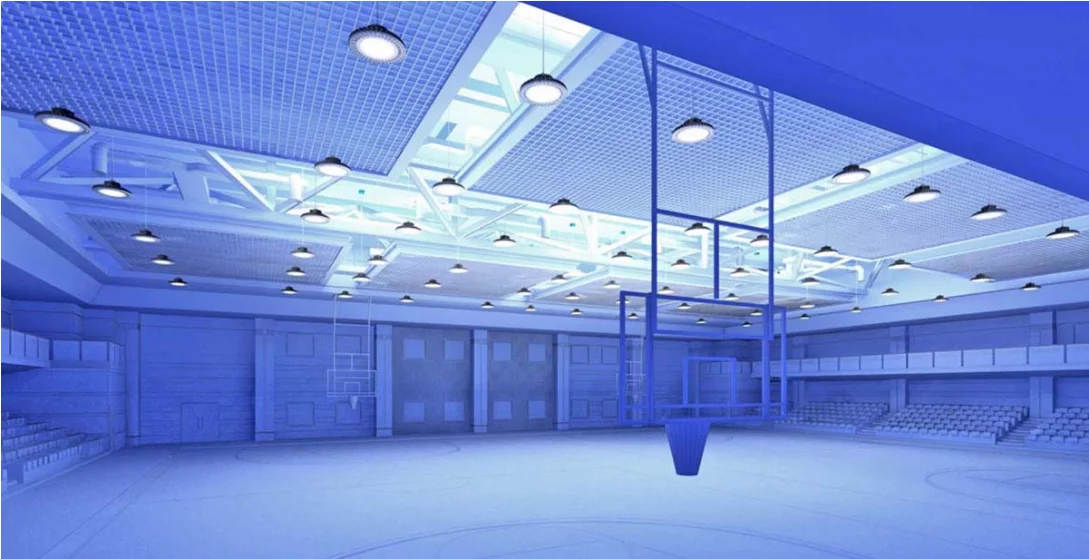

Application
Application：
--Gymnasium ,Building,Factory,Warehouse
--Supermarket,Garage Lighting,Workshop
--Storage Lighting,Court,Station
--Supermarket,Garage Lighting,Workshop
--Storage Lighting,Court,Station
Company information
Who We Are?
--Excellent Supply Chains--
In the past 12 years, we have built a cooperative and efficient supply chain which results in a 7-10 days faster delivery
time than our peers and an 8 hour response time to any of your requests.
--Excellent Supply Chains--
All raw materials conform to international certifications and environmental protection standards.
100% Inspection before shipment.The defect rate of the product used for more than 10 years is less than 0.1%
--Export Service--
More than 12 years of export experience, Serving thousands of customers in over 40 countries.
--Research/Development--
A 5-person R & D team with 15 years of experience in the lighting industry
--Fast Delivery--
3 working days for standard sample order.
15 working days for bulk order.
3 working days for customized products CAD drawing,
7 working days for prototypes.
Product History Schedule.
We are targeting commercial and industrial lighting like LED Triproof Tubular Light, UGR LED Panel light, LED
Batten Light LED Linear Highbay Light etc.
