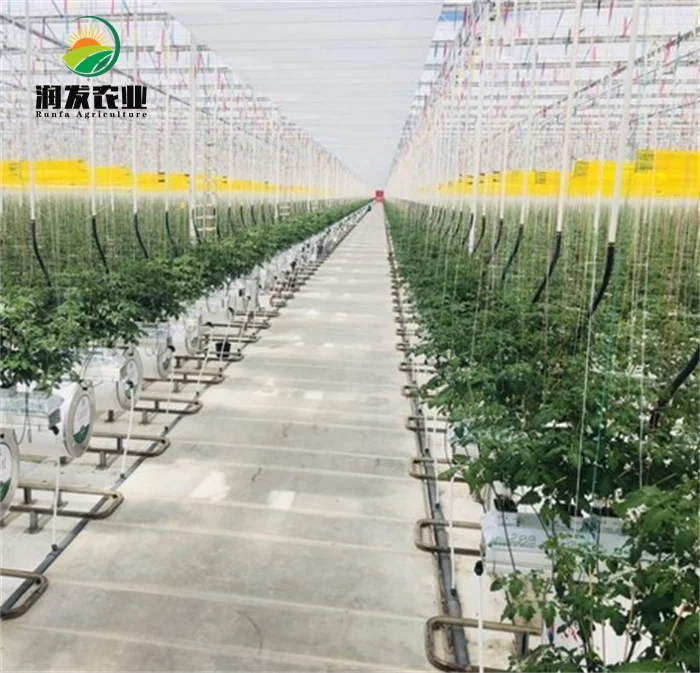

Large Multi Span Victorian Greenhouses Commercial Venlo Glass Greenhouse With Irrigation&Hydroponics Equipment
- Category: >>>
- Supplier: Shouguang Runfa Agricultural Technology Co. Ltd.
Share on (1600559756930):
Product Overview
Description

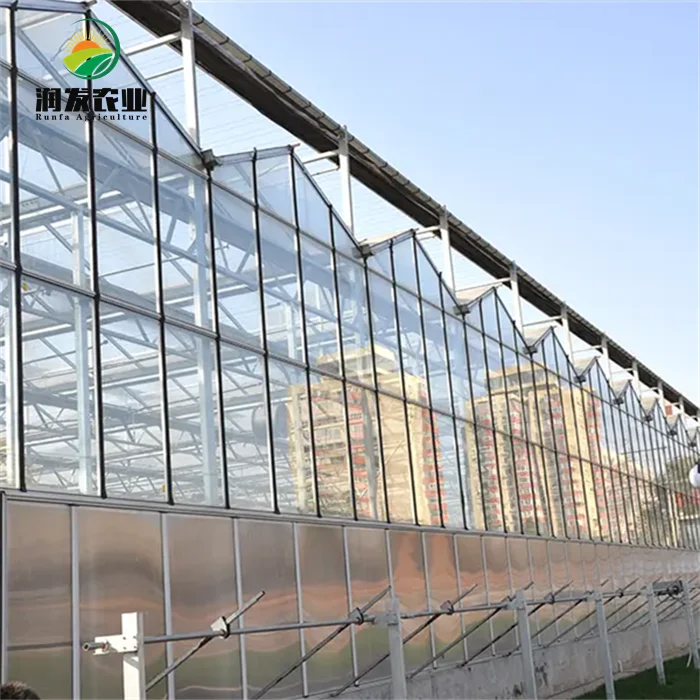

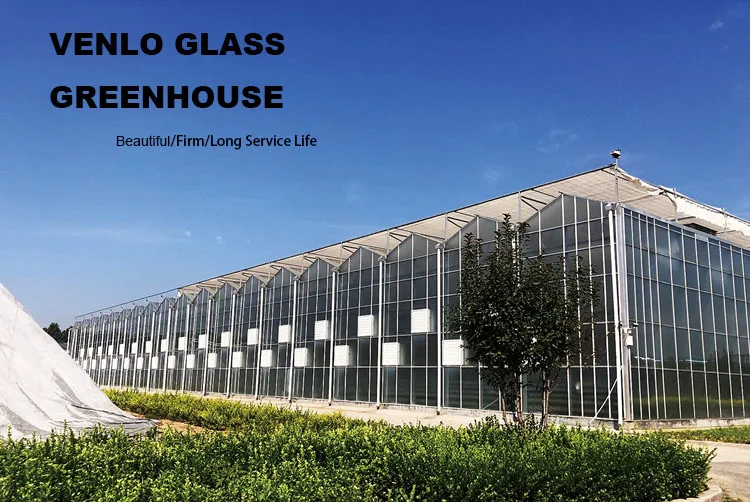

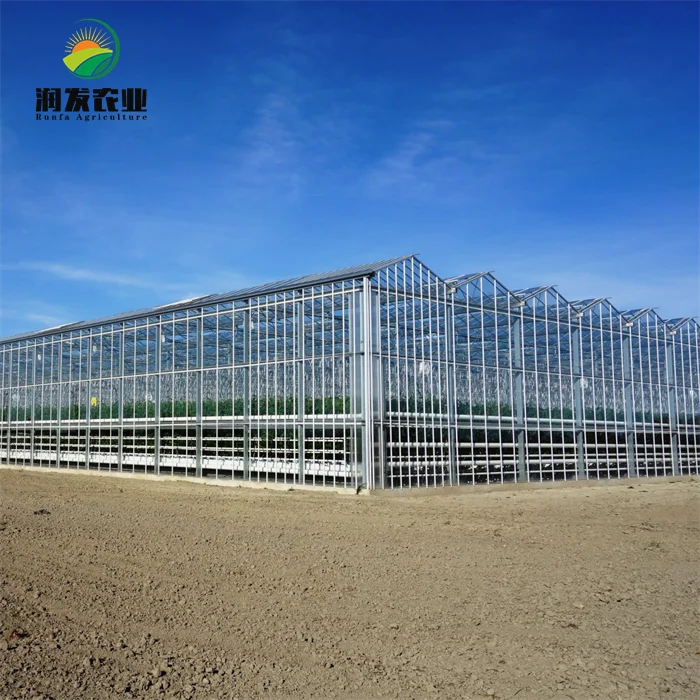

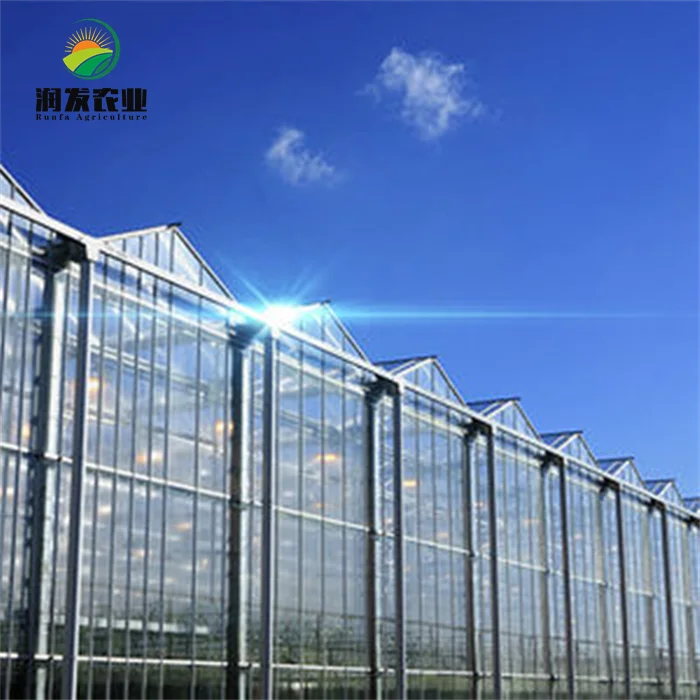

Glass Greenhouse
In all kinds of cultivation facilities, glass greenhouse has the longest service life, suitable for a variety of regions and climate conditions.
1. Large lighting area, uniform illumination.
2. Long service time, high intensity.
3. Strong anti-corrosion, flame retardancy.
4. More than 90% light transmittance, and does not decay over time.
Product Overviews

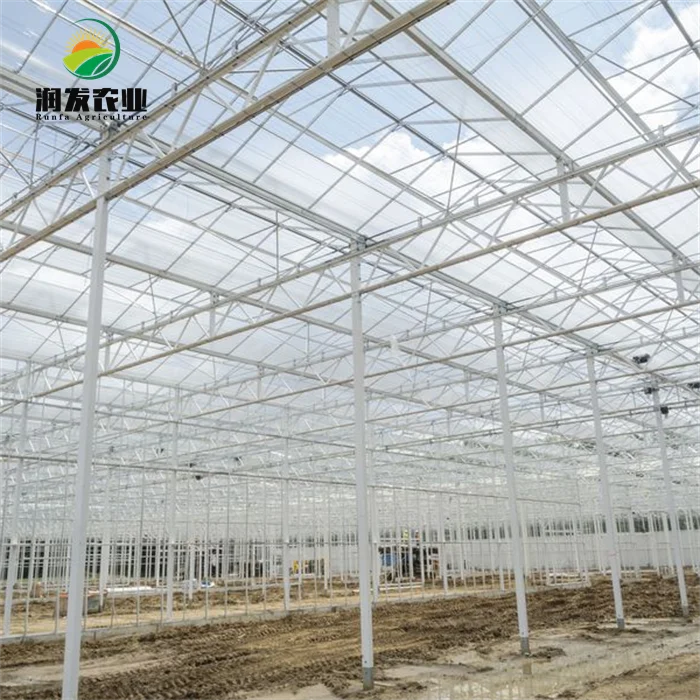

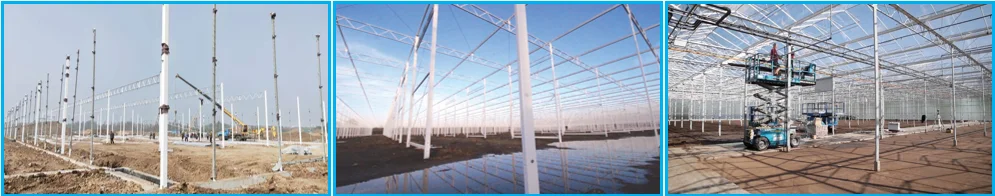

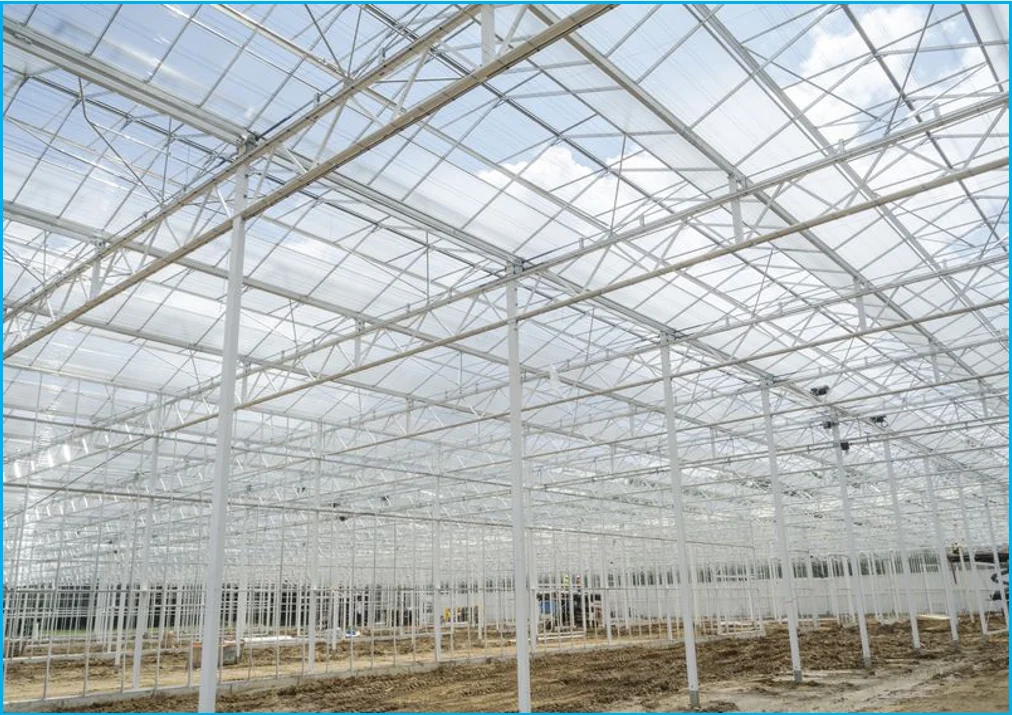

Greenhouse Structure
1.Hot Drip Galvanized Steel Structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than 200g/m².
2.Most connections of greenhouse structure are installed directly by screws or Self tapping screws.
3.The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
| Length | 84m | Width | 56m |
| Span | 12m | Section | 8m |
| Column Height | 6m | Top Height | 6.8m |
| Item | Specifications | Item | Specifications |
| Main column | 120* 120*2.5mm | Truss (drawn structure) | 600*12000+500*800mm |
| Side column | 60*120*2.5mm | Girt | 50*50*2.0mm |
| Ground anchor | 200*400*3.0*600mm | Water channel | t=375*4000*2.0mm |

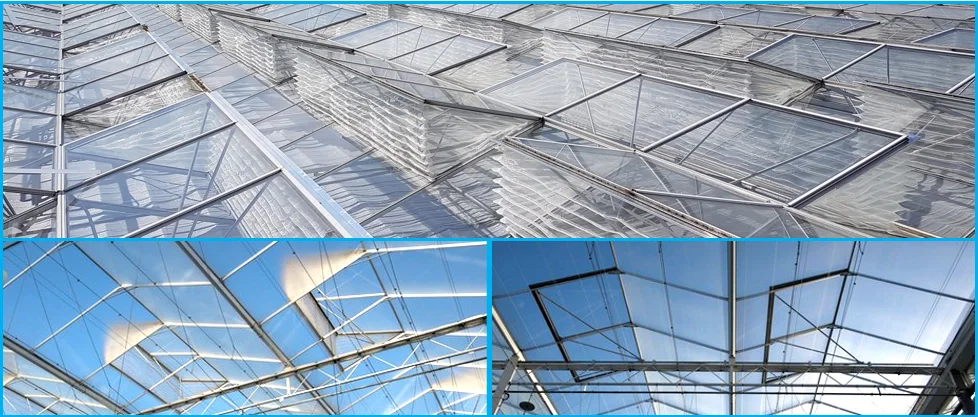

Covering Material
Roof Cover Material: 5mm tempered glass
Features: high light transmittance, high strength, safer.
Side Cover Material: 5+6+5mm double insulating glass
Features: beautiful, thermal insulation, heat insulation
Other systems

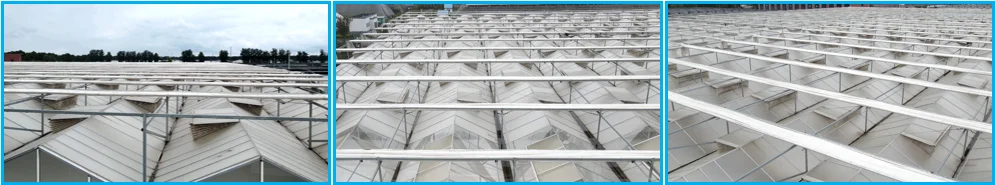

Roof Ventilation System
1. Number of windows and the form of windows are determined by the local environment.
2. Windows will be covered with insect nets to prevent pests from entering the greenhouse.
3. Transmission system of top ventilation is composed of geared motor, rack, rack seat, transmission shaft, push-pull rod and other components.
Exterior Shading System
1.Material: white or black sunshade net
2. Install 30cm higher than the top of the greenhouse. the transmission system is similar to the roof ventilation system. It is composed of geared motor, transmission shaft, rack, rack seat, push-pull rod and other parts.

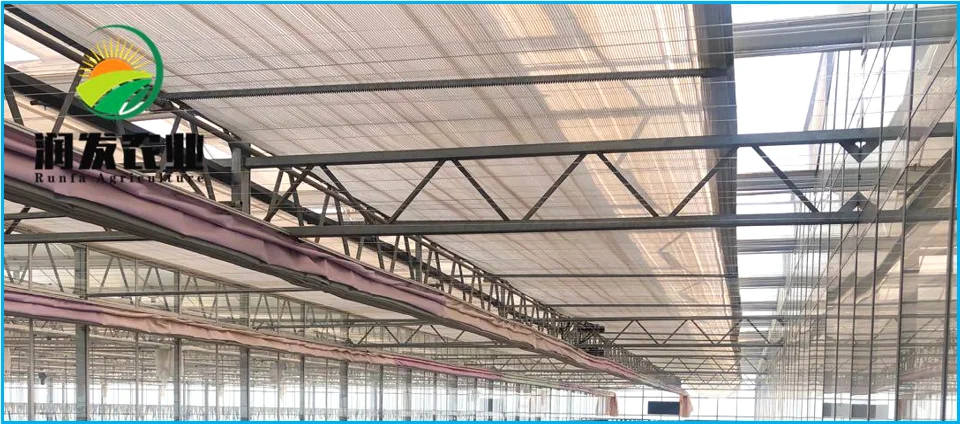

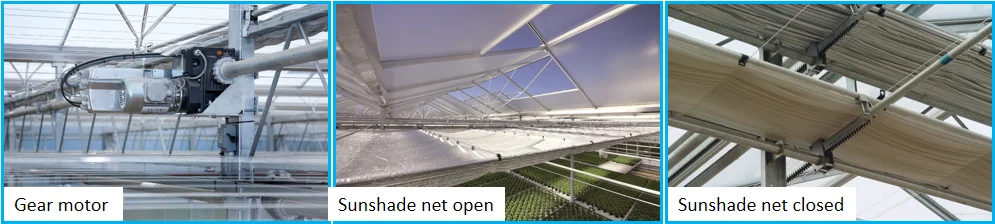

Inner Sunshade System
1.Material: Aluminum Sunshade Net
2.Installed on the lower edge of the main beam of the greenhouse, the transmission system is similar to the roof ventilation system. It is composed of geared motor, transmission shaft, rack, rack seat, push-pull rod and other parts.
3.Open the inner sunshade net, the surface of the aluminum foil will reflect the sunlight, and a small amount of light and heat will enter to achieve the purpose of lowering the temperature.

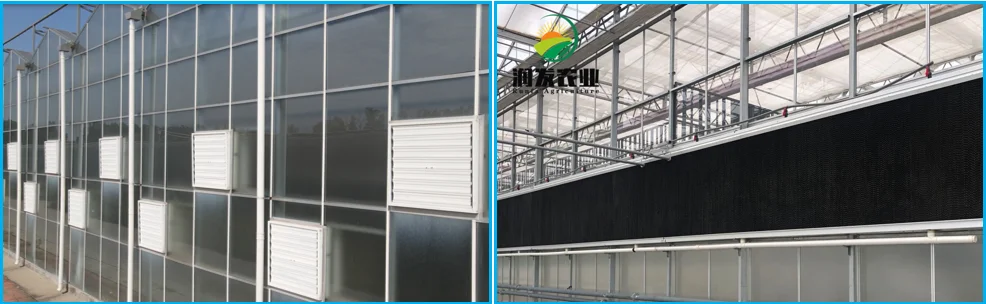

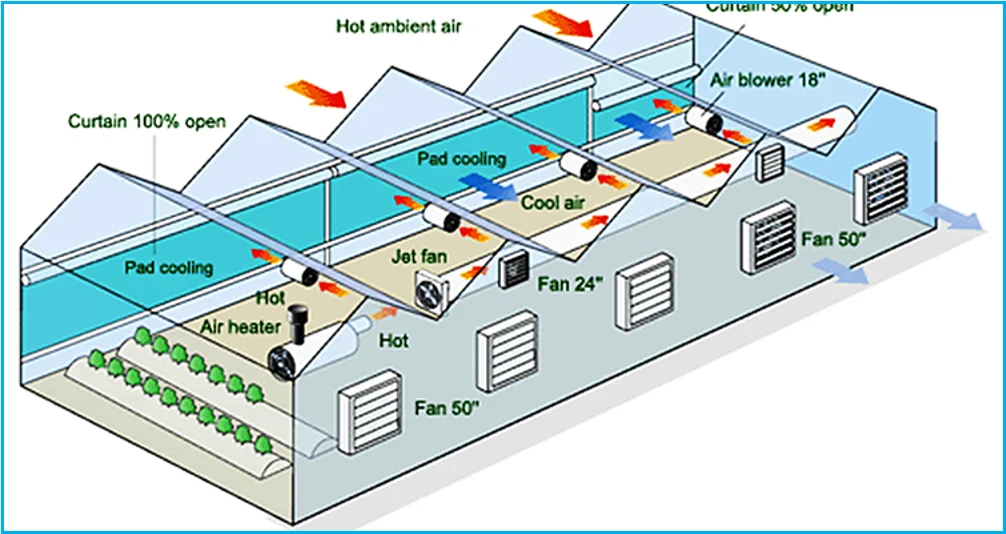

Fan cooling pad cooling system
Advantages: low price, low energy consumption, convenient installation, convenient maintenance.
Principle: the high temperature air in the negative pressure fan greenhouse is discharged to the outside. As the pressure inside the greenhouse decreases, outdoor air enters the greenhouse through the cooling pad. The high-temperature air is exchanged with the water on the cooling pad , and the water vapor volatilizes away the excess heat. The system can reduce the temperature in the greenhouse, and the cooling effect is 5-12℃.
| Negative pressure fan | 42set | Cooling pad | 78m |
| Size | 100*100*400mm | Size | 1500*78000*100mm |
Other systems

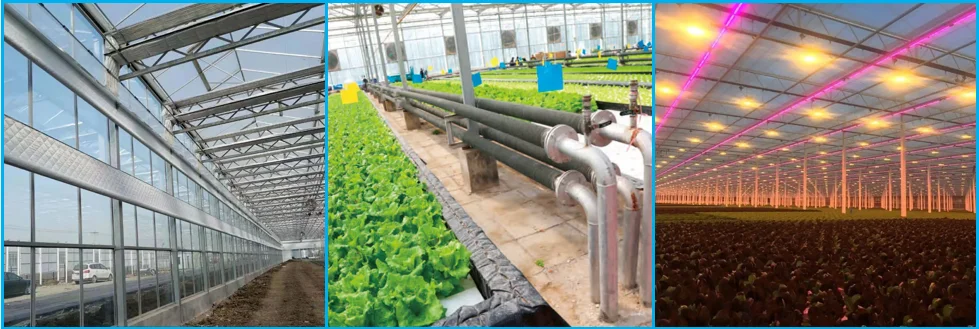

| Insulation system | Heating system | Lighting system |

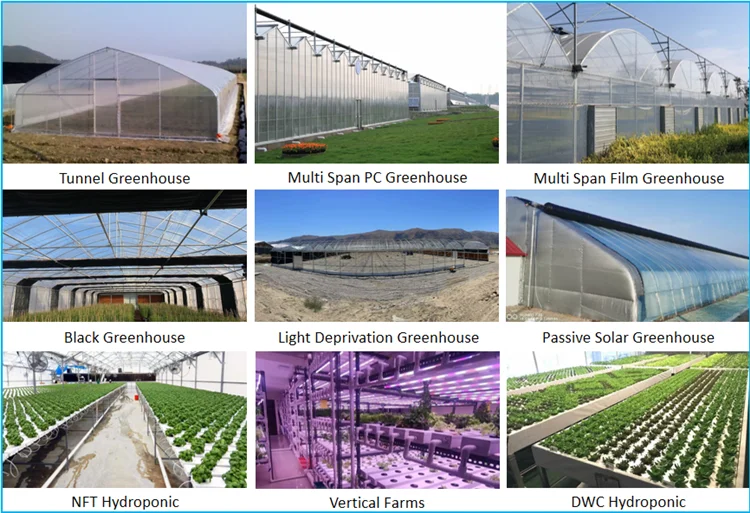

Related Products
Company Information
Shouguang Runfa Agricultural Technology Co., Ltd. is affiliated to Shandong Runfa Group and is located in Shouguang, the hometown of vegetables in China. The company is committed to the design and development of large-scale agricultural parks, the design and development and construction of various greenhouses, the design, processing and production of greenhouse skeletons, vegetable soilless cultivation technology, smart agriculture, etc. Modern agricultural industry high-tech service enterprise.

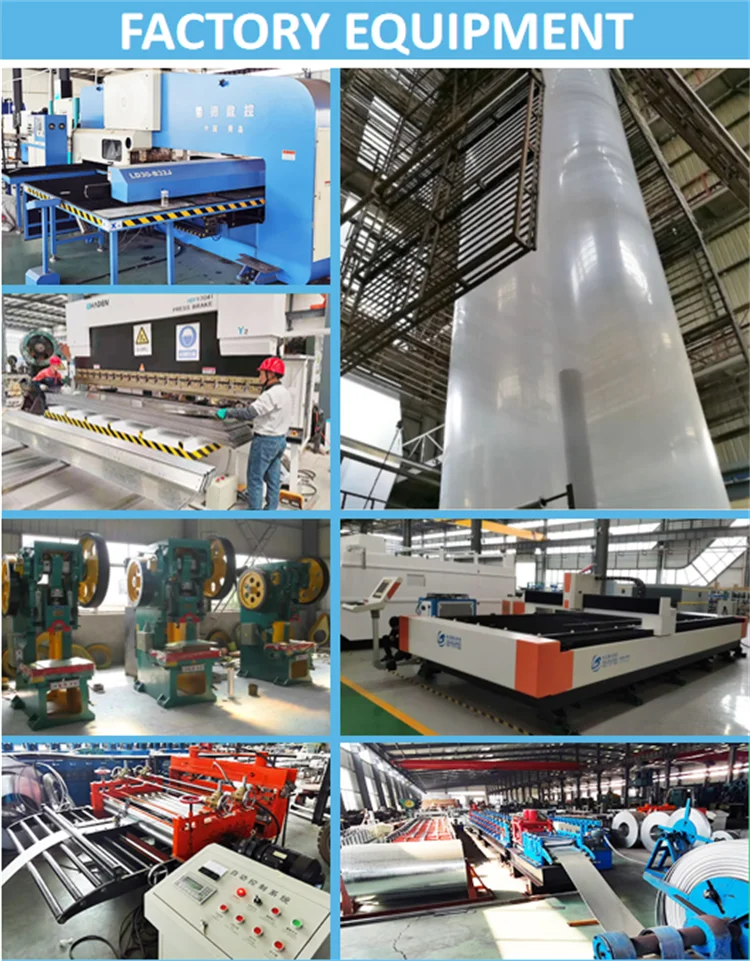

| Name | Quamtity | Verified |
| Sawing Machine | 2 | Hot dip galvanized pipe cutting |
| Bender | 5 | Hot dip galvanized accessories processing, flume processing |
Shearing Machine | 3 | Shear profile, processing profile shape, size |
| Bending Machine | 3 | Bending treatment hot dip galvanized round pipe, square pipe |
| Stamping Machine | 9 | Greenhouse accessories punching, plate punching, etc |
| Laser Cutting Machine | 1 | Fine cutting of pipes and plates, cutting of special fittings |
Buyer Feedback
| We partnered with Green Farms LLC for a Light deprivation greenhouse in Oklahoma. The first phase is a 15,000-square-meter multi-span film greenhouse, which will be completed in March 2021. The second phase is currently progressing in an orderly manner. The quality of the first batch of products received has improved by 15%, which is particularly outstanding among industry associations. The company will cooperate with 23 industry members over the next three years. | The first phase of Uzbekistan Park will build 6 multi-span film greenhouses with a total area of 40,000 square meters, and 1 multi-span PC greenhouse with an area of 5,000 square meters. There are 46 tunnel greenhouses with a total area of 18,400 square meters. It is the company's first overseas park construction project in recent years. , is also the first government bidding project to be constructed. It is the company's benchmark park in Uzbekistan. The park has now been put into operation, providing more than 1,000 tons of vegetables to local residents every year. |
Packaging & Shipping
Our Services
Before-sale service
1.Respond your requests quickly and efficiently.
2.Professional sales consultant and engineer provide you the most suitable solutions.
Mid-sale service
After you confirm the order
1. Control the product quality critically for every step during the manufacturing to the packing
2. Update the details for customers for knowing their orders going on.
After-sale service
1. Installation instructions and drawings will be sent to the customer before the container arrives at the port.
2. Engineer online/on-site installation guidance.
3. In-time after-sale service response for installation and maintain support.
FAQ
1. How long is the delivery time?
According to different requirements of customers on greenhouses, delivery time is usually is within 16 days .
2. What's your advantages?
A. Competitive price
B. On-time delivery
C. Satified service
D. Quality guarantee for productions
3. Is your company foreign trade company or manufacturer?
we are manufacturer. We have our own profressional team wihch covers design, development, production, quality insurance and logistics.
4. Can you supply sample?
Some parts on hand can be supplied for free and express charges will be required.
5. Can your company supply greenhouse design?
Greenhouse design can be supplied with design service charges required against your requirements on greenhouse.
6.What size of the greenhouse?
Products can be customized.
