UWET High Power Factor Electronic Ballast with Intelligent Energy Saving Control for Ultraviolet Lamps Driver
Product Introduction

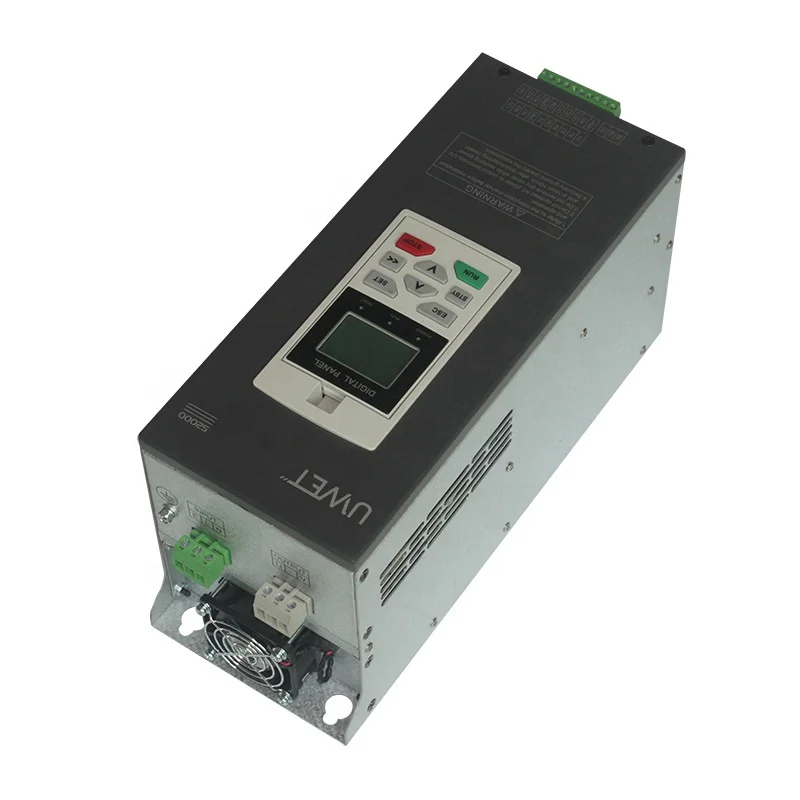

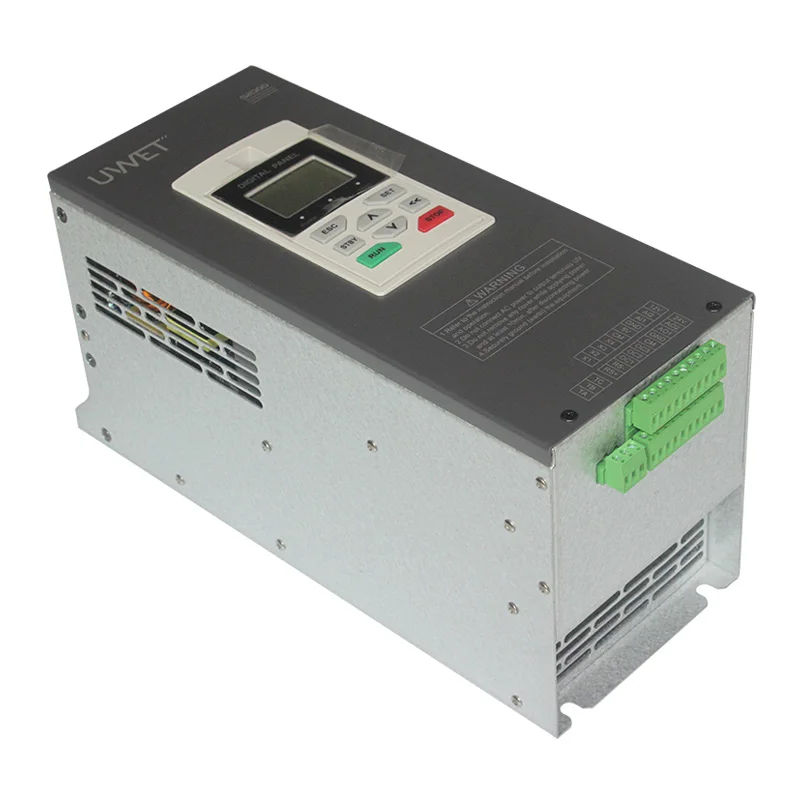

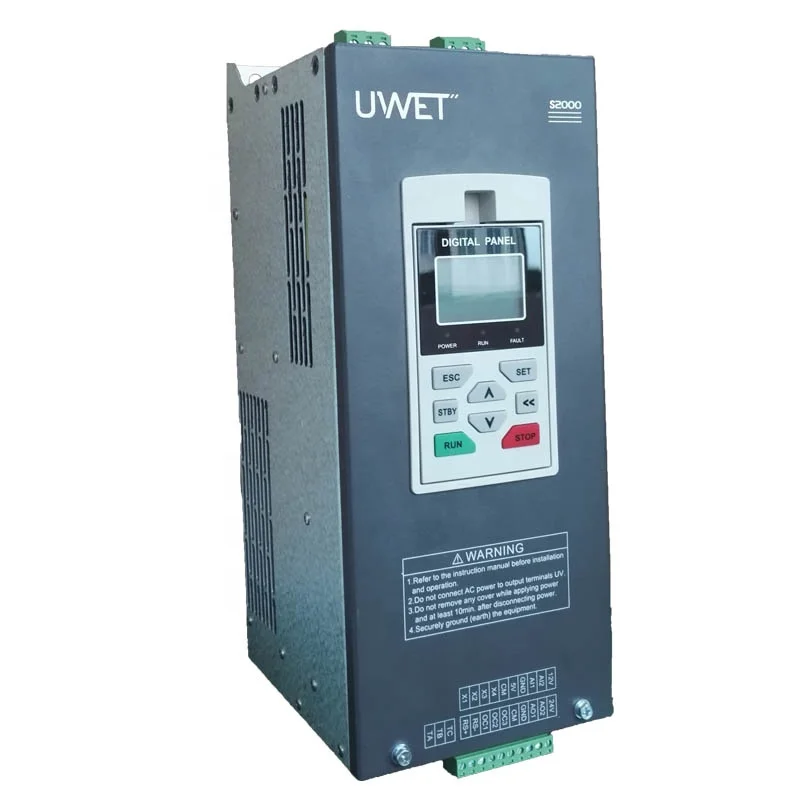

The S series is a mini model based on the H series machine platform. The S series machines have the same performance as the H series machines, but they are much smaller than the H series machines. it has strong lighting-up ability, large output current and rich external expansion functions.
Features
1)Output characteristics: 1KHz low frequency stationary square wave
2)High voltage mode: non- isolated boosting transformer
3)Flexible power regulation modes: digital panel, external analog, RS485 communication, multi-segment power, extended board, etc
4)Supports closed loop control of light intensity probe
5)Rich extended board: TCP/IP network board, CANOPEN board
6)Automatically matches tube pressure:automatically matches tube pressure according to lamp condition(within allowable range)
7)Automatically holds pressure function: when device is standby at stong pumping mode,it can start using of Voltage automatic hold to ensure teh power recovery quickly
8)Multiple programmable IO, AO, AI channels, real-time transmits of machine status
9)Built-in lamp tube exhaust control, built-in optimized PID control fan frequency converte
10)Control mode: power vector
Specifications
Input | Rated voltage,Frequency | three phase(4T#series)380V / single phase 220V 50/60Hz | ||
Voltage allowable range | Determined by model | |||
Output | Voltage | Determined by model | ||
Frequency | 1K Hz ~5K Hz | |||
Overload capability | 110% 10min | |||
Control Mode | vector control | |||
Control Characteristic | Resolution | 1% | ||
Current limitation | Power allowable setting | |||
Voltage limitation | 110% of rated lamp tube Voltage | |||
power limitation | Maximum rated output power of the lamp | |||
Under-voltage suppression in operation | Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy. | |||
Typical Function | Standby | sets standby power consumption when equipment is intermittent for energy-saving applications | ||
Working time record
| can read lamp working time in operation | |||
RS485 Communication | Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading | |||
Operation | Using external Dry Contact Control to Start and Stop | |||
Fault analysis
| with function of fault record query and fault cause analysis | |||
Display | Operation panel display | operation Status | Monitor output voltage, output current, set power, output power, etc. | |
parameter setting | Set the relevant parameter values according to actual requirements.
| |||
Protection / Alarm | Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure | |||
environment | Ambient temperature | -10ºC--+50ºC(not frozen) | ||
Ambient humidity | Below 90%(no frost) | |||
Ambient environment | Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
| |||
Altitude | Below 1000m | |||
Structure | degree of protection | IP52 | ||
Cooling method | Independent air-duct design forced air cooling | |||
| Model No. | Input Current | Power LEvel | Output Voltage Range | Max. Output Current | Recommended Tube Voltage |
| S2000-2SC010 | 4.6 | 1KW | 100-220V | 10A | 200V |
| S2000-2SC020 | 9 | 2KW | 160-220V | 13A | 200V |
| S2000-2SC025 | 13.6 | 2.5KW | 190-220V | 16A | 200V |
| S2000-4TB030 | 4.6 | 3KW | 300-420V | 12A | 400V |
| S2000-4TB040 | 6.1 | 4KW | 300-420V | 14A | 400V |
| S2000-4TB040 | 8.0 | 5KW | 300-420V | 14A | 400V |
Trade Show
Application
1. UV fast ink curing for printing industry
2. UV fast paint curing for woodwork
3. UV fast surface coating curing for rubber and plastic products
4. UV fast surface coating curing for metallic products
5. UV fast surface coating curing for electronic products
6. UV fast surface coating curing for various painting production lines
