WELDON 7956 7906plastic modular belt conveyor
US $190.00-$200.00
split plastic sprocket de polietileno
- Category: Beverage & Wine Machine Parts >>>
- Supplier: Yangzhou Weldon Transmission Equipment Co. Ltd.
Share on (1600559774856):
Product Overview
Description
Product Description

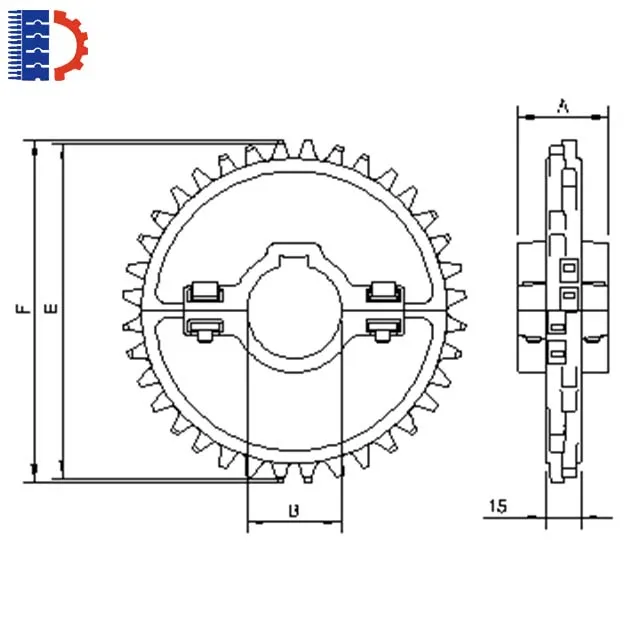

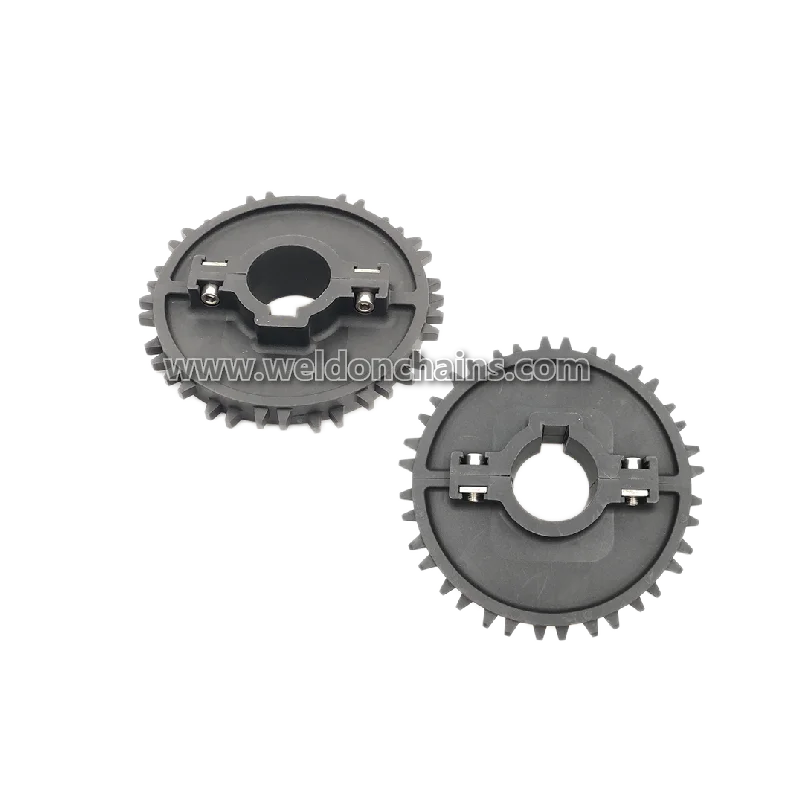

plastic modular belt drive conveyor sprocket
| ROUND | Name | Model no. | No.of teeth | Bore(mm) | Pitch diameter(mm) | Outside diameter(mm) | Hub width(mm) |
| 1200 Series sprocket | SS1200-14-R40 | 14 | 40 | 114.15 | 116 | 39 | |
| SS1200-16-R30 | 16 | 30 | 130.2 | 130.6 | |||
| SS1200-16-R35 | 35 | ||||||
| SS1200-16-R40 | 40 | ||||||
| SS1200-18-R30 | 18 | 30 | 146.3 | 146.8 | |||
| SS1200-18-R35 | 35 | ||||||
| SS1200-18-R40 | 40 | ||||||
| SS1200-20-R30 | 20 | 30 | 162.4 | 163.1 | |||
| SS1200-20-R35 | 35 | ||||||
| SS1200-20-R40 | 40 | ||||||
| ROUND | 1200 Series Idler | SI1200-14-R40 | 14 | 40 | 114.15 | 116 | 39 |
| SI1200-16-R30 | 16 | 30 | 130.2 | 130.6 | |||
| SI1200-16-R35 | 35 | ||||||
| SI1200-16-R40 | 40 | ||||||
| SI1200-18-R30 | 18 | 30 | 146.3 | 146.8 | |||
| SI1200-18-R35 | 35 | ||||||
| SI1200-18-R40 | 40 | ||||||
| SI1200-20-R30 | 20 | 30 | 162.4 | 163.1 | |||
| SI1200-20-R35 | 35 | ||||||
| SI1200-20-R40 | 40 |
