High Speed High Definition Fixed Focus Document Scanner Ocr Pro Usb Desktop 20MP A3 Portable Document Camera
- Category: >>>
- Supplier: Guangzhou Longshun Electronic Co. Ltd.
Share on (1600559781990):
Product Overview
Description
Product Description
High Speed DocumentScanner Ocr Pro Usb Desktop 20MP A3 Portable Document Camera
Size | 125*318*350mm | Weight | NW: 815g, GW: 2170g |
Type of focusing | fixed-focus | Scanning speed | 3s |
Scanning size | A3, A4, A5 | Pixel | 20 million |
Storage | TIF card(max 64 GB) | Screen | 5 inch LCD screen |
Picture format | JPG,GIF,BMP,TIF,PDF | Port | USB |
Specification
1. Sensor type: HD CMOS
2. Scanning format: single-page document support is not less than A3, and the bound file material is not less than A4

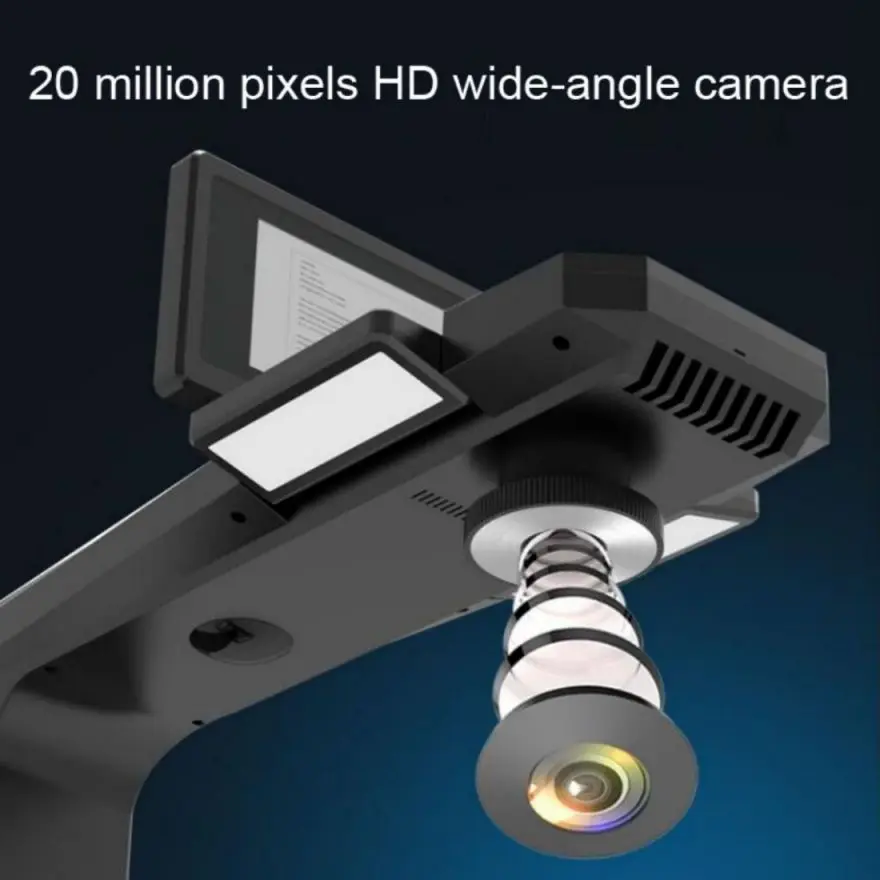

3. Lens pixels: ≥20 million pixels, resolution ≥5160*3870
4. Filter: 650±10nm, which can filter out infrared light that interferes with image quality
5. Collection speed: single page document ≤ 2 seconds/page; booklet ≤ 2 seconds/ double page
6. Scanning media: documents, books, magazines, files, forms, bills, certificates,three-dimensional objects, etc.
7. File output format and generation: PDF/searchable PDF/TIFF/Excel/Word/JPG, support arbitrary ratio compression, video format ,supports MJPG

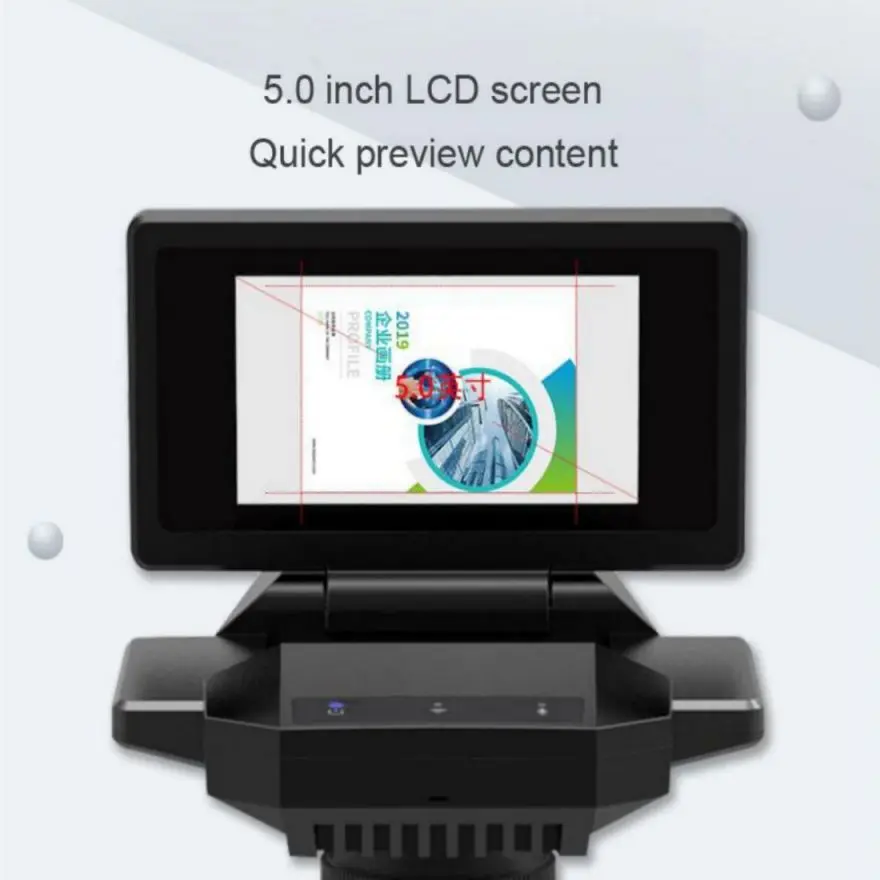

8. Support video visuliazer: TFT display: ≥5 inches (ratio 16:9), resolution 854*480 (only preview), support HDMI direct
connection, USB-PC dual-screen presenter mode, video parameters: video presenter(HDMI ): 1080 i@30Fps; Video presenter USB-PC):
2048*1536@30Fps; Scanner (USB-PC): 1920*1080@30Fps
9. Support screen recording, video recording and audio recording function, which can realize multimedia demonstration

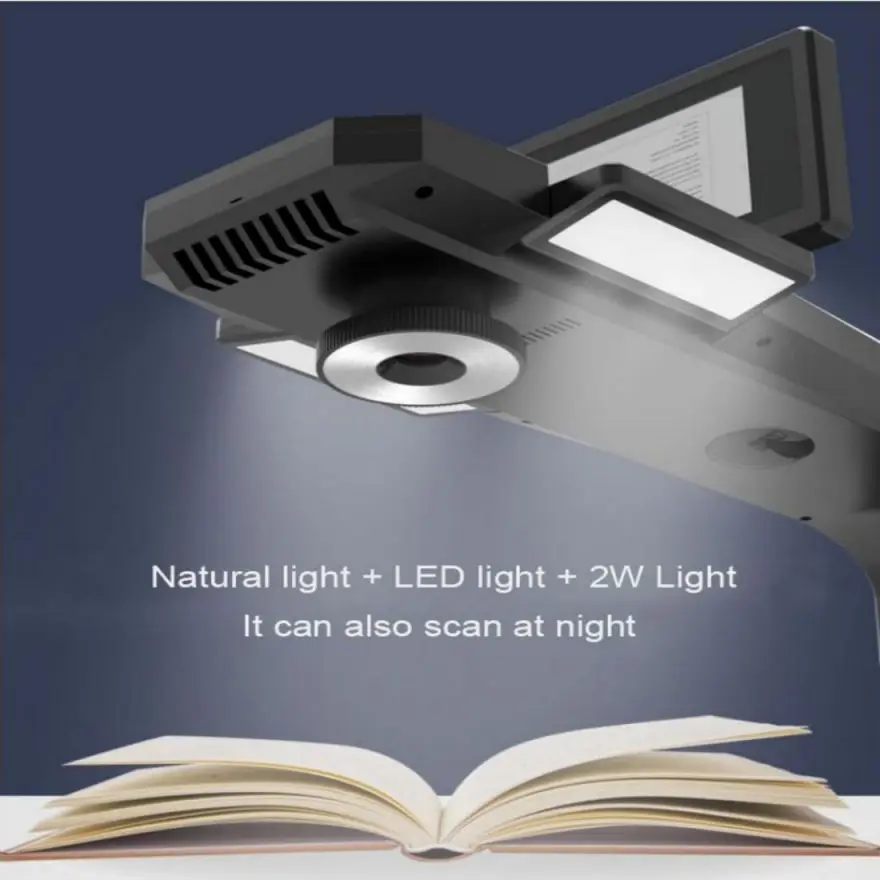

10. Light source: natural light, LED light, mechanical switch of supplementary light on the base ≥ 3 gears
11. Scanning method: supports at least five ways to detect page turning automatic scanning, device body buttons, PC software
trigger, and external hand buttons and foot pedal buttons; support detecting page
turning automatic scanning function, which can completely release hands and feet, only need to turn Page, the software
automatically scan, and transfer to the PC side, automatic processing, to achieve fully automatic scanning processing.
12. Data interface: USB2.0 High-Speed
13. Surface flattening technology: It has the core algorithm of three-dimensional
surface flattening and image processing, which can effectively flatten the surface of books and periodicals.

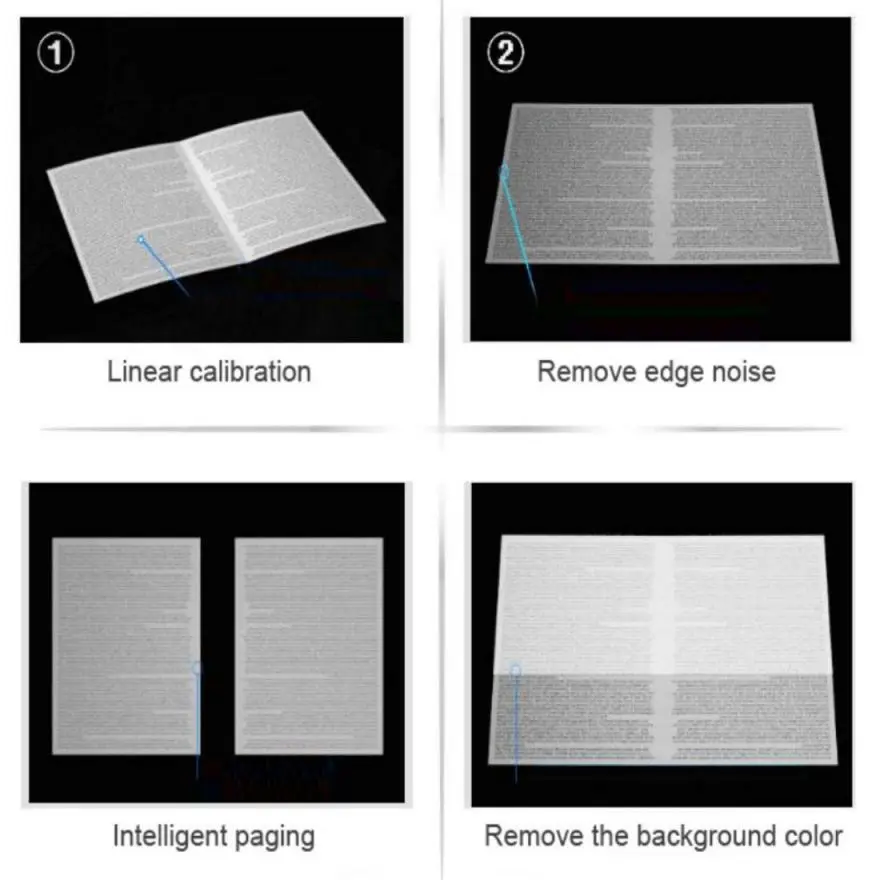

14. Software functions: support wearing special finger cots to clear and press fingers,
white paper stamp mode, smart paging, page extraction, noise removal, background color removal, smart
correction/trimming,distortion correction.15. Adopt core algorithm and image processing technology to support image watermarking
function.
16. Support OCR character recognition, professional OCR recognition function of no less than 180 languages and characters
17. Support user-defined storage path, and can choose to store it according to different
shooting schemes.
18. Power supply type: input 100-240V, 50/60Hz; output 5V/5A
19. System support: the device is suitable for WINDOWS XP/WIN 7/WIN 8/WIN 10 system
1. Sensor type: HD CMOS
2. Scanning format: single-page document support is not less than A3, and the bound file material is not less than A4
3. Lens pixels: ≥20 million pixels, resolution ≥5160*3870
4. Filter: 650±10nm, which can filter out infrared light that interferes with image quality
5. Collection speed: single page document ≤ 2 seconds/page; booklet ≤ 2 seconds/ double page
6. Scanning media: documents, books, magazines, files, forms, bills, certificates,three-dimensional objects, etc.
7. File output format and generation: PDF/searchable PDF/TIFF/Excel/Word/JPG, support arbitrary ratio compression, video format ,supports MJPG
8. Support video visuliazer: TFT display: ≥5 inches (ratio 16:9), resolution 854*480 (only preview), support HDMI direct
connection, USB-PC dual-screen presenter mode, video parameters: video presenter(HDMI ): 1080 i@30Fps; Video presenter USB-PC):
2048*1536@30Fps; Scanner (USB-PC): 1920*1080@30Fps
9. Support screen recording, video recording and audio recording function, which can realize multimedia demonstration
10. Light source: natural light, LED light, mechanical switch of supplementary light on the base ≥ 3 gears
11. Scanning method: supports at least five ways to detect page turning automatic scanning, device body buttons, PC software
trigger, and external hand buttons and foot pedal buttons; support detecting page
turning automatic scanning function, which can completely release hands and feet, only need to turn Page, the software
automatically scan, and transfer to the PC side, automatic processing, to achieve fully automatic scanning processing.
12. Data interface: USB2.0 High-Speed
13. Surface flattening technology: It has the core algorithm of three-dimensional
surface flattening and image processing, which can effectively flatten the surface of books and periodicals.
14. Software functions: support wearing special finger cots to clear and press fingers,
white paper stamp mode, smart paging, page extraction, noise removal, background color removal, smart
correction/trimming,distortion correction.15. Adopt core algorithm and image processing technology to support image watermarking
function.
16. Support OCR character recognition, professional OCR recognition function of no less than 180 languages and characters
17. Support user-defined storage path, and can choose to store it according to different
shooting schemes.
18. Power supply type: input 100-240V, 50/60Hz; output 5V/5A
19. System support: the device is suitable for WINDOWS XP/WIN 7/WIN 8/WIN 10 system
