2022 New Arrival CE Certificate G80 Chain 1 2 3 5 10 20 50 Ton Hand Chain Hoist Chain block
- Category: Hoists >>>
- Supplier: Baoding,Chendiao,Hoisting,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
2022 New Arrival CE Certificate G80 Chain 1 2 3 5 10 20 50 Ton Hand Chain Hoist Chain block
Product Description
Key Capacity :
1ton 2ton 3ton 5ton 10ton 20ton 50ton or customized
Product introduction :
1. Load limiter is available at extra cost
2. Low effort to lift maximum load
3. Premium grade alloy load chain and zinc plated hand chain as standard
4. Drop forged and expertly heat treated hooks for great strength and long wearing
5. Construction chain block capacity ranges from 1t to 20t, heavy duty 30t, 50t is available
Parameter
HSZ-C Type Chain Block | ||||||
Model | HS-C1 | HS-C2 | HS-C3 | HS-C5 | HS-C10 | HS-C20 |
Capacity(t) | 1 | 2 | 3 | 5 | 10 | 20 |
Lifting Height(m) | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
Test load(t) | 1.5 | 3 | 4.5 | 7.5 | 12.5 | 25 |
Min Distance between hooks(mm) | 306 | 444 | 486 | 616 | 700 | 890 |
Chainpull to lift full load(N) | 304 | 314 | 343 | 383 | 392 | 392 |
No. of load chain fall lines | 1 | 2 | 2 | 2 | 4 | 8 |
Diameter of load chain(mm) | 6 | 6 | 8 | 10 | 10 | 10 |
N.W(kg) | 10 | 14 | 24 | 36 | 68 | 156 |
G.W(kg) | 11.5 | 17 | 28 | 45 | 83 | 194 |
Packing measurement L × W × H(cm) | 30×24×18 | 33×25×19 | 38×30×20 | 45×35×24 | 62×50×28 | 70×46×75 |

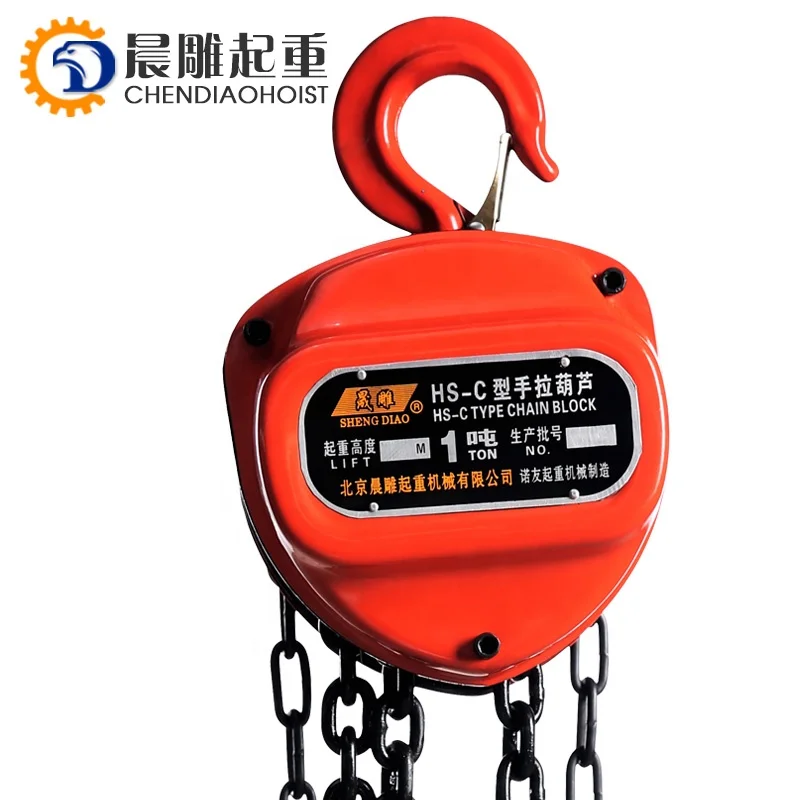

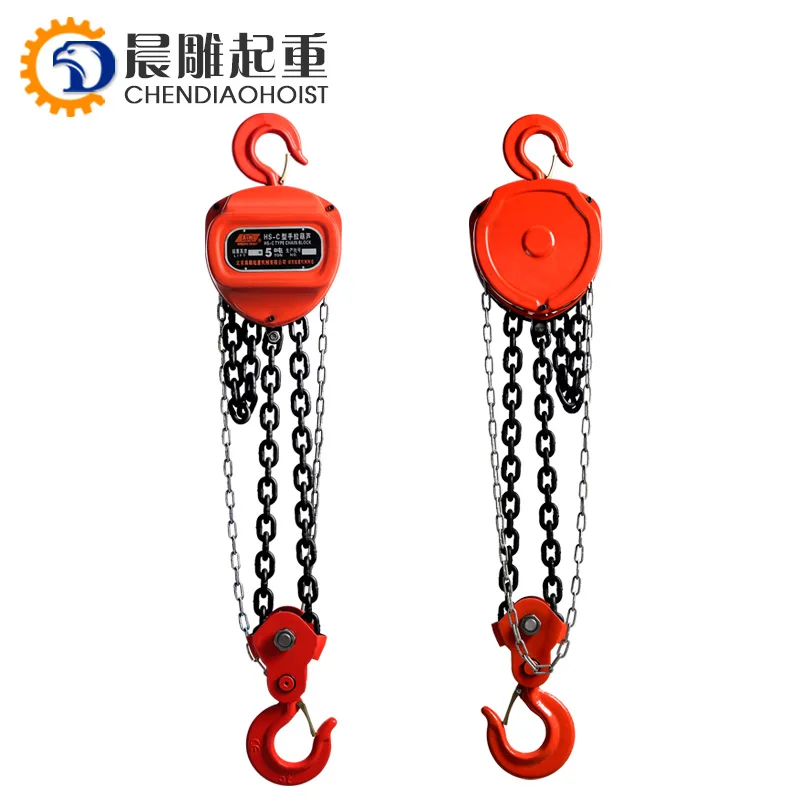

Detailed Images
Technology advantage
Product Advantage :
1. The chain hoist lifting load from 0.5T to 20T, Minimum headroom required and very versatile in operation
2. The chain hoist system use automatic double-pawl braking system
3. The lifting chain hoist chain guides provide smooth chain operation
4. Roller of the chain hoist bearing supported load sheaves for avoiding abrasion
5. The chain of chain hoist are made of special alloy steel that is exclusively
6. Lifting chain hoist use drop forged hooks to ensure superior quality and safety
7. The block of the chain hoists are in high efficiency.
8. Manual hand chain block surface : Automotive painting.
