Product Overview

Description

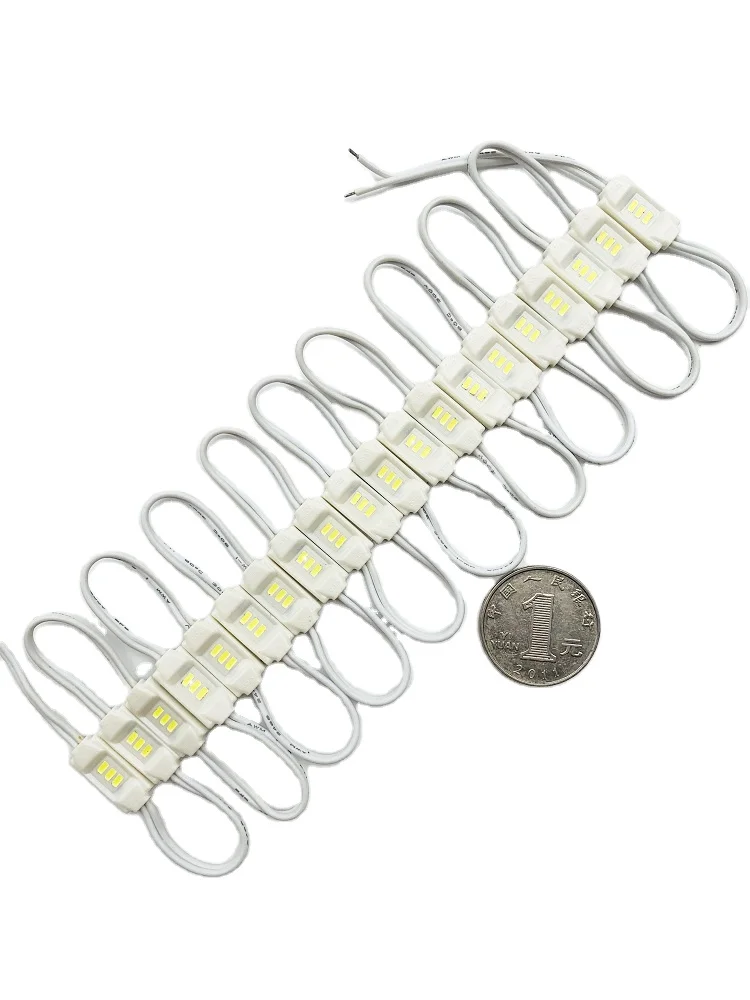

Factory direct Price 3014 3leds 12V DC Outdoor IP65 Mini Size LED Injection Module For Letters

Item No.: DV-WNMM-3S3014-W-12



Description

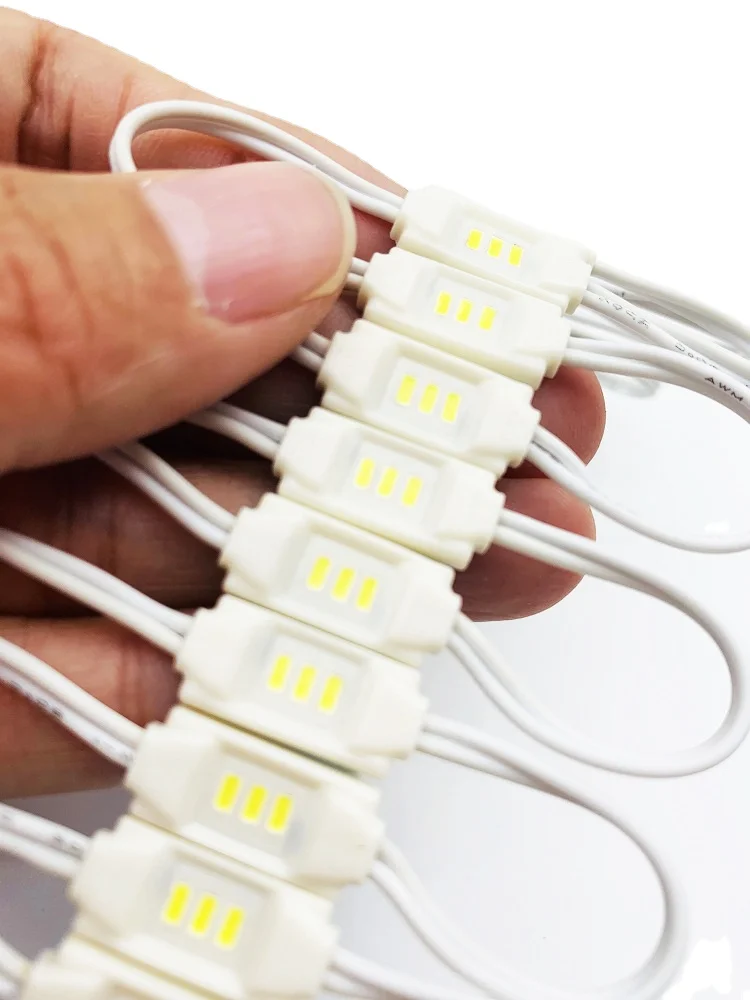

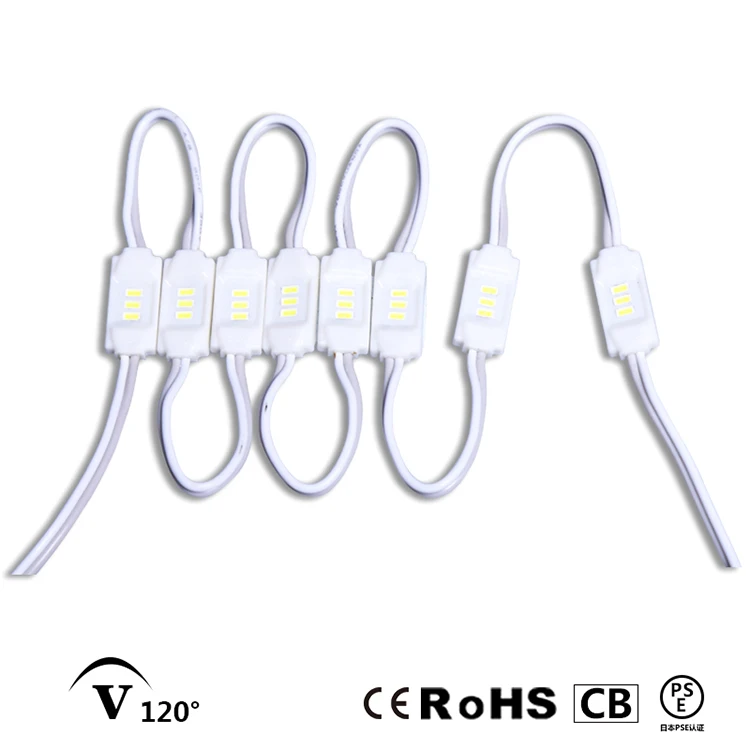

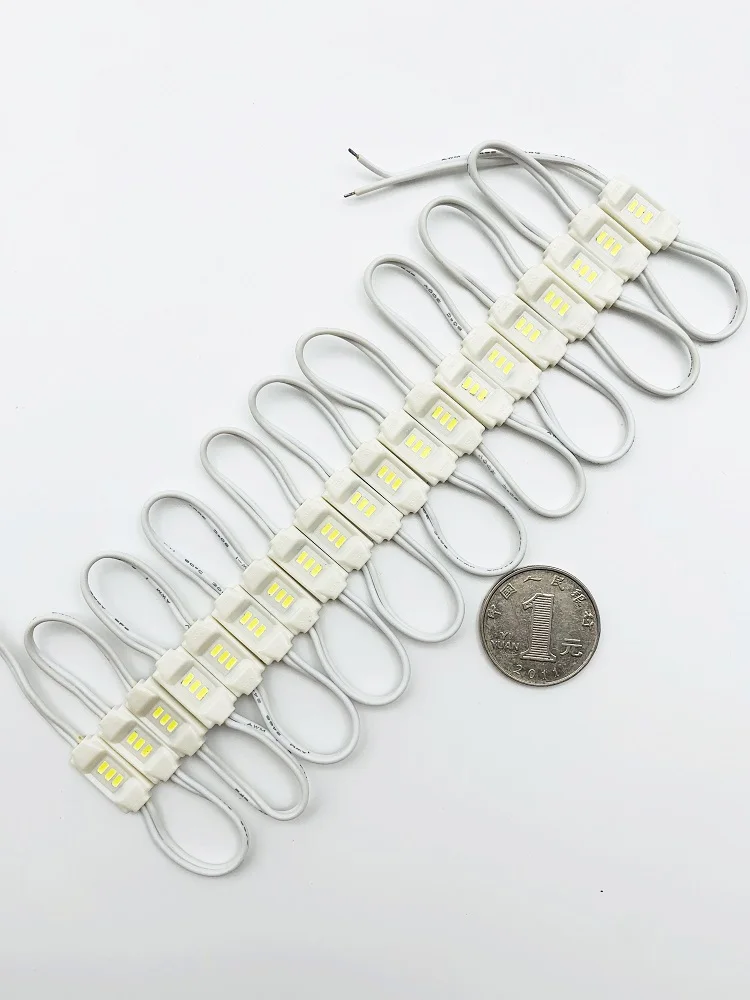

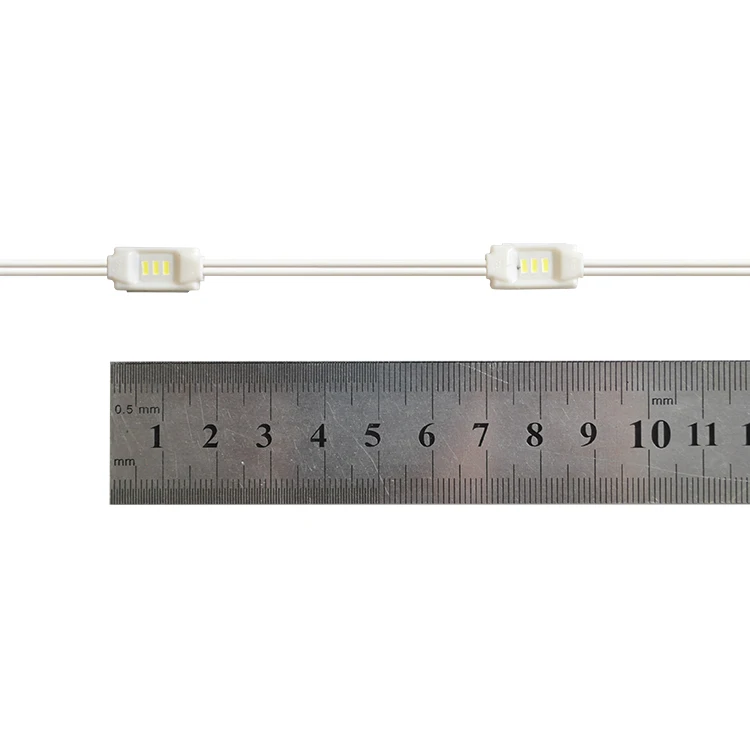

3014 Mini led module is small size at only 18*8mm. We use 3leds,  3014 LED as the light source. This Injection module is good at waterproof treatment, widely used indoor and outdoor, advertising market, mini letter, 3D letter, Indoor decoration, etc.



Feature and Advantage

1.Mini module is beautiful, high-end, generous, elegant.

2.Module size is small, brightness is wonderful.

3.This is high light efficiency, no light decay at the first 1000 hours, life span is 50000hours.

4.UV-resistant, flame-retardant engineering plastic shell, strong weather resistance, no discoloration.

5.Waterproof IP grade is IP65

6. Input voltage is DC12V only , built-in constant voltage, safe to use.

7.The maximum number of cascades reaches max 60pcs Dual-end power supply. If single-end. Power supply, it can reach 30pcs max.



Application

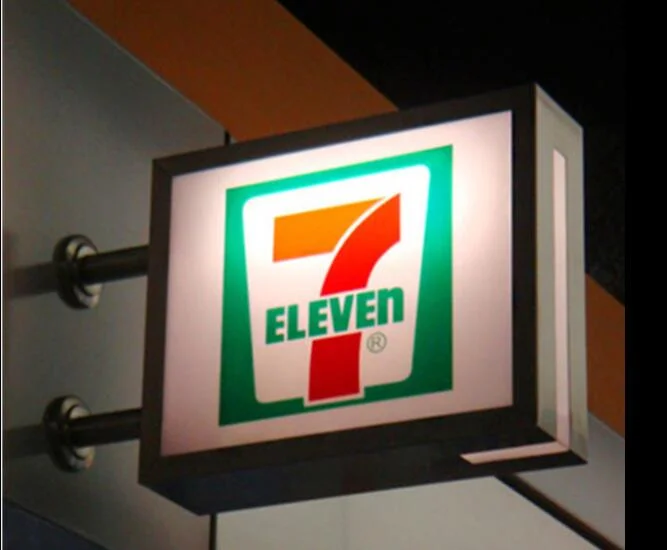

For Mini Letter and Signage with the depth is 5-10cm

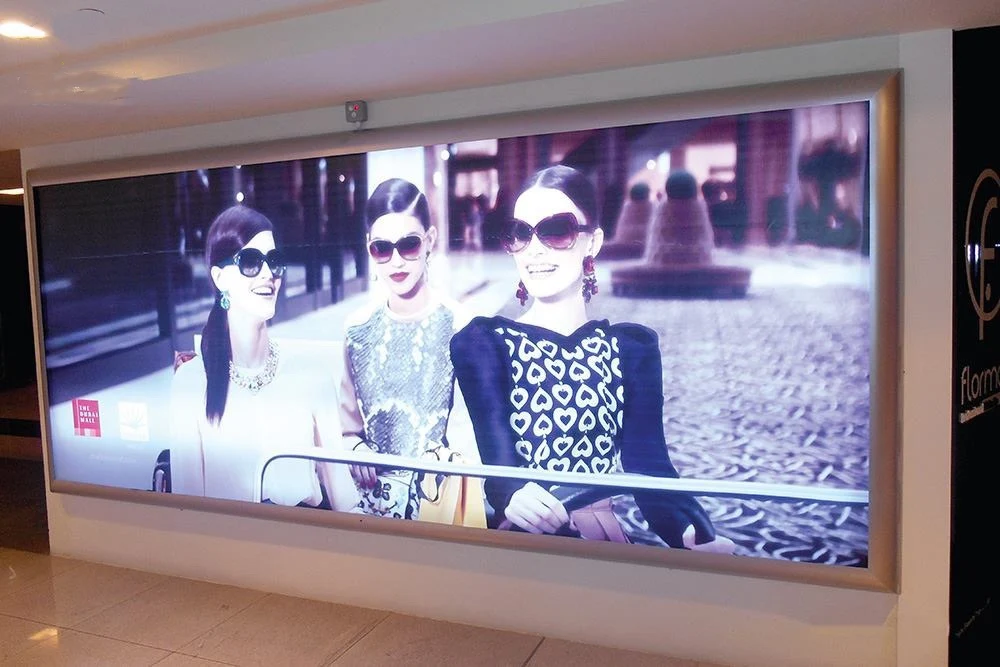

Applicable occasions: airports, subways, banks, buildings, shopping malls, etc.





Parameters



Size

Power

Voltage

Body Materials

Lm Flux

Intensity

Color

Color Temp

Working Temp

Angle

IP Rate

Packing

Warranty

18*8*3MM

0.24W

DC12V

PC

20-28lm

90lm/w

Warm White/ Pure White/ Cold White

3000-3500K/  6000-6500K/ 10000-12000K

-25°C~+60°C

120°

IP65

50pcs/strip

3years



Profile Drawings

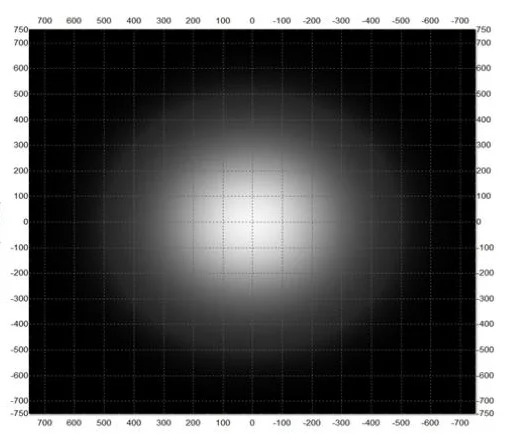

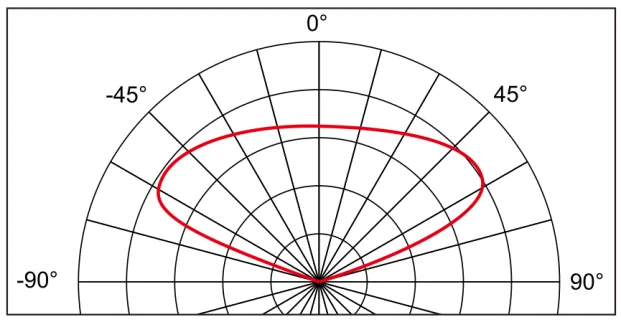

Light distribution curve & optical patterns
