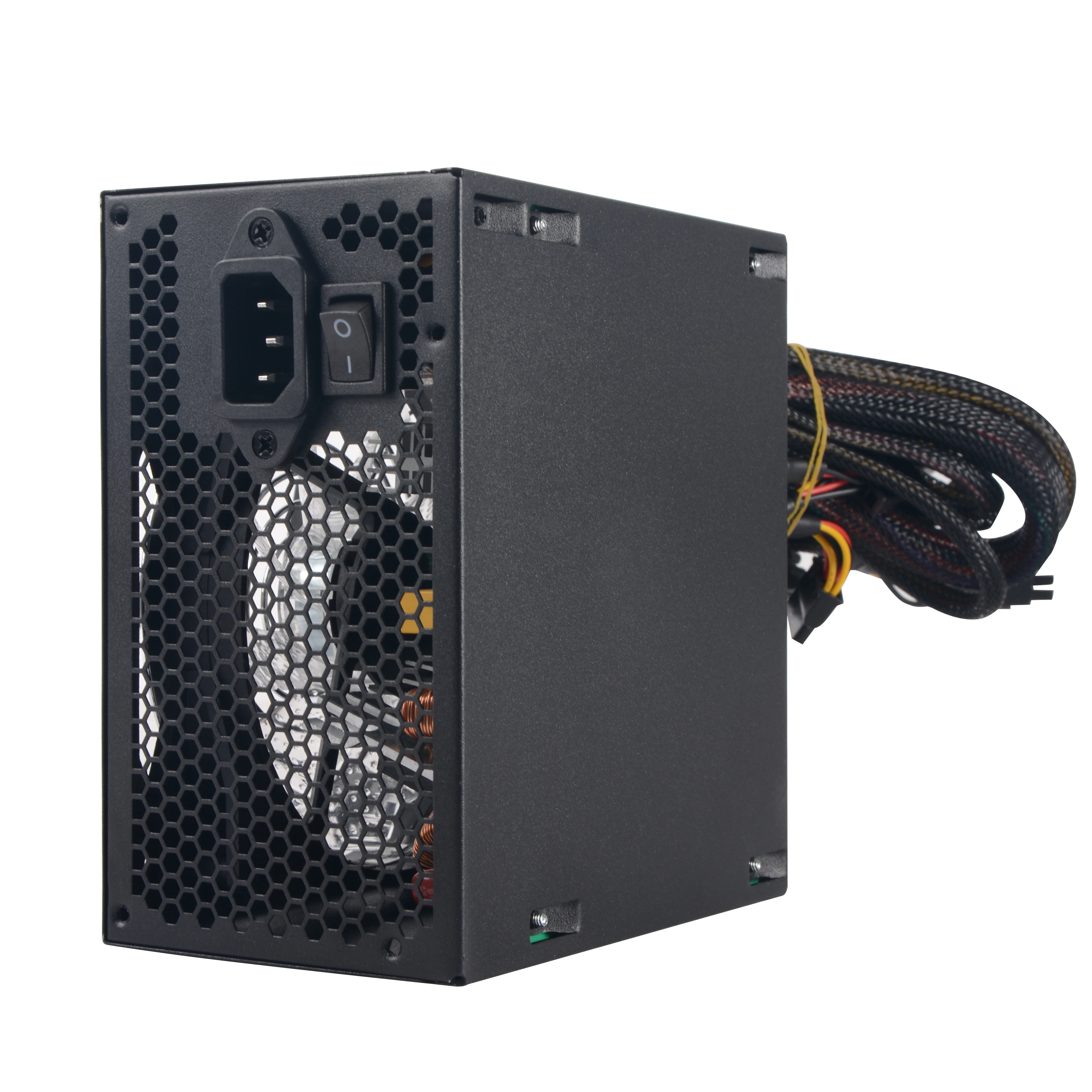

Cooler Master MWE650 650W Desktop Computer Power Supply
US $1.00-$14.70
computer gaming p4 600w server 80 plus atx switching game power supply
- Category: PC Power Supplies >>>
- Supplier: Shenzhen,Shunxinjie,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
SPECIFICATIONS | |||||||||
MODEL | ATX-500W | ||||||||
RATE POWER | 500Watts PSU | ||||||||
AC INPUT RANGE | 100~274V | ||||||||
FICATION | CE,ROHS.FCC. 80PLUS | ||||||||
PFC | APFC | ||||||||
TEMPERTURE CONTROL | YES | ||||||||

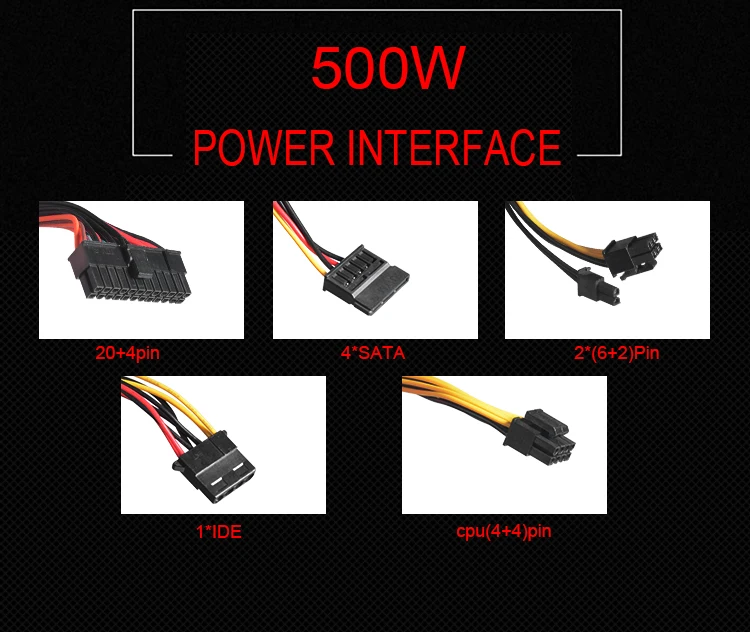

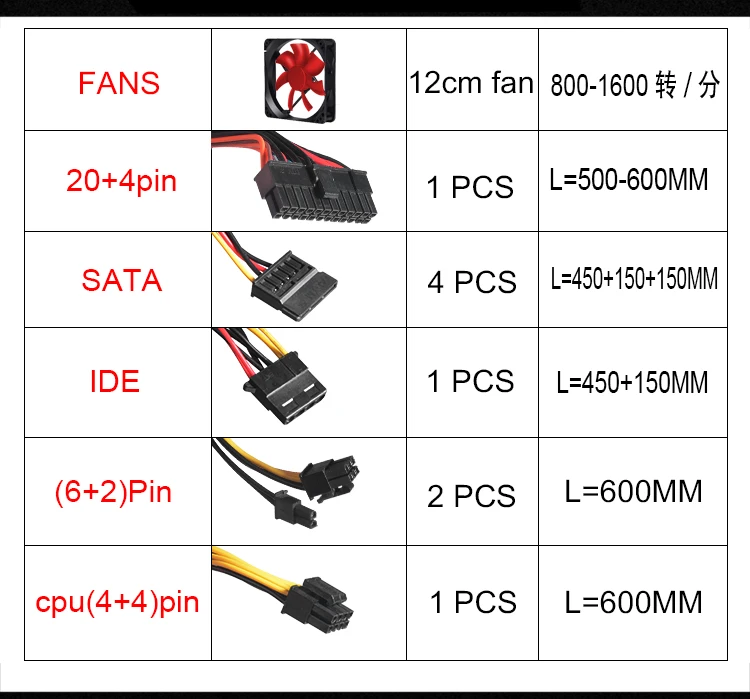

CABLE | 20+4pin (black mesh) Line length L = 500 mm cpu(4+4)pin Line length L = 600 mm 2*(6+2)Pin Line length L = 600 mm 1*IDE 4*SATA Line length L = 450 + 150 + 150 mm Optional | ||||||||
I / O switch（I/O开关) | Optional | ||||||||
POWER CORD | Yes | ||||||||
HOUSING SIZE | 150*140*86mm | ||||||||
HOUSING MATERIAL | Secc OR Black; Optional | ||||||||
FAN&FAN GUARD | 12cm OR 14cm silant fan Optional | ||||||||
OTECTION | Over voltage protection | ||||||||
Over power protection | |||||||||
Over current protection | |||||||||
Over circuit protection | |||||||||
Short circuit protection | |||||||||
Under voltage protection | |||||||||
DC OUTPUT | +12V | +5V | +3.3V | -12V | +5Vsb | ||||
OUTPUT CURRENT | 33A | 10A | 8A | 0.5A | 2A | ||||
PK.OUTPUT CURRENT | 40A | 25A | 20A | 0.5A | 2.3A | ||||
POWER | 407W | 77W | 16W | ||||||
484W | |||||||||
500W | |||||||||
