Высокоэффективный автоматический сварочный станок с ЧПУ с несколькими головками
- Category: Other Welding Equipment >>>
- Supplier: Shanghai,Trintfar,Intelligent,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product advantages

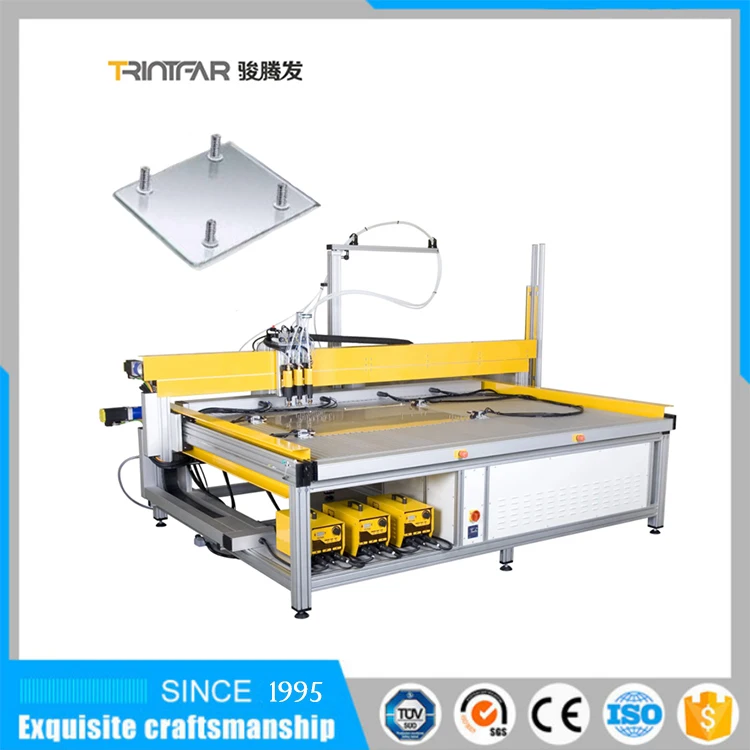

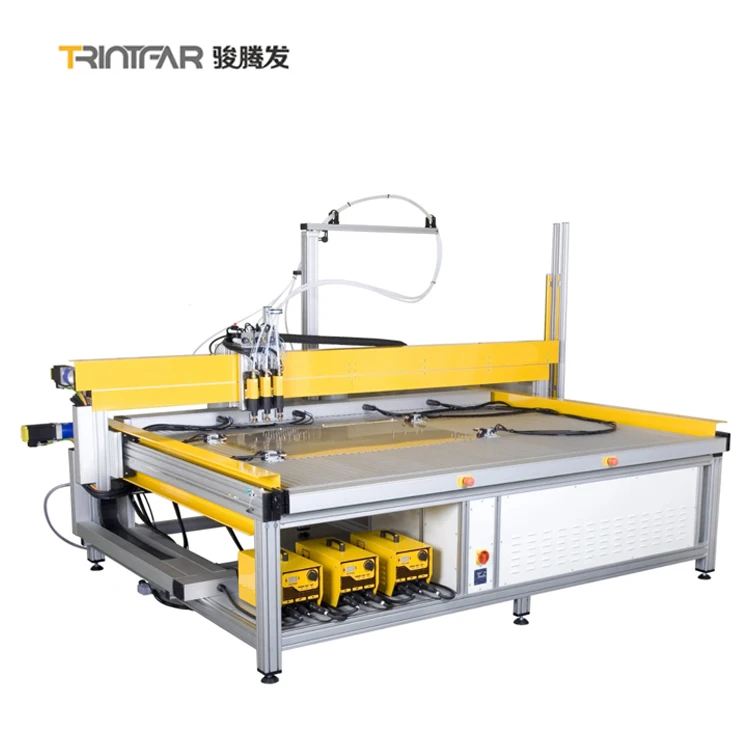

The equipment is composed of a two-axis linkage NC platform. Its structure adopts the gantry type. The welding torch is installed on the gantry frame. Through the precise displacement of the gantry frame and the welding gun frame, the welding can be accurately and quickly positioned within the scope of the working platform. Welding. The working platform adopts a single-station platform; according to different products, replace the corresponding fixture, the equipment adopts numerical control system or control, touch screen display, the key components are imported, the work efficiency is high, and the performance of replacing the corresponding fixture is stable.
Specification
Welding screw range | Diameter (D) M2~M80, Length (L) 8~35MM |
Welding materials | Working material ，low carbon， stainless，copper，aluminium alloy and brass |
X Axis movement range | Can be customized according to customer needs |
Y Axis movement range | Can be customized according to customer needs |
Welding gun lift range | 80mm |
positioning accuracy | +0.05mm |
running speed | 30m/min |
Welding speed | 15~20 studs/min |
