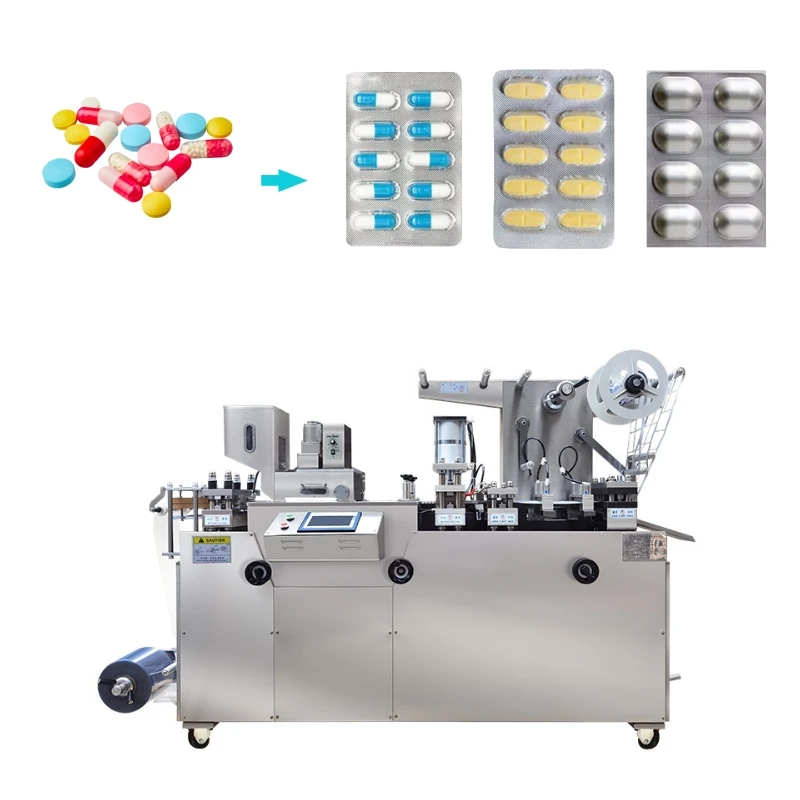

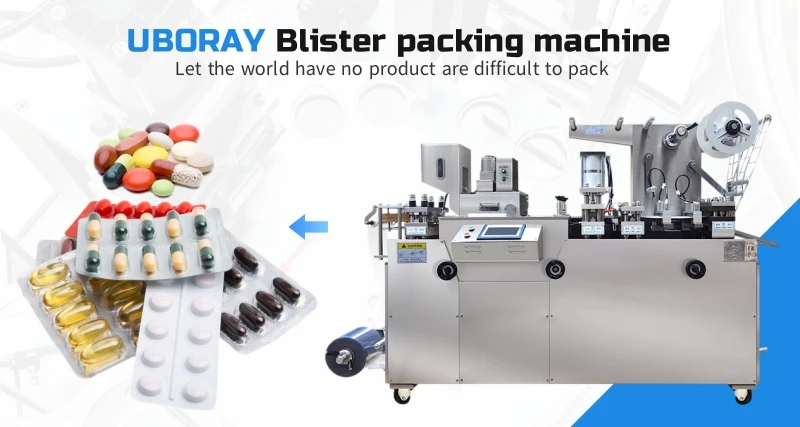

High efficiency automatic pharmaceutical capsule tablet blister packing machine
- Category: >>>
- Supplier: Foshan,Uboray,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Main Features

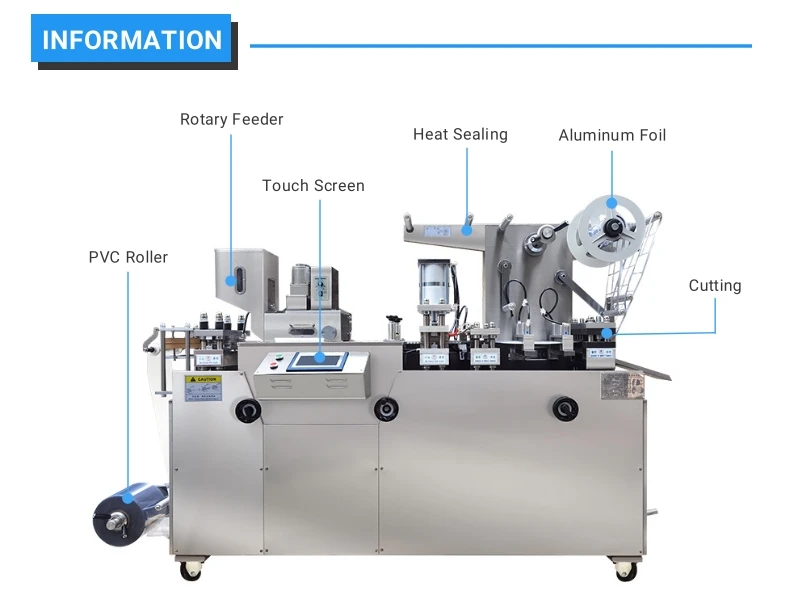

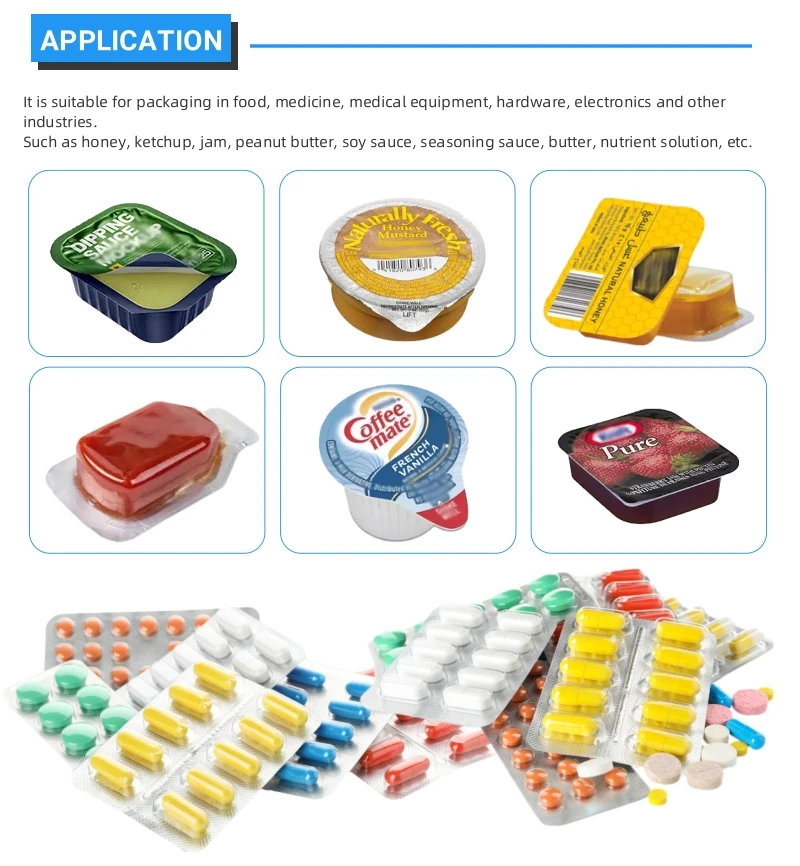

1. Flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
1. Flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
2. The main transmission part adopts parallel shaft helical gear reducer, with novel structure, stable operation, long life and low noise.

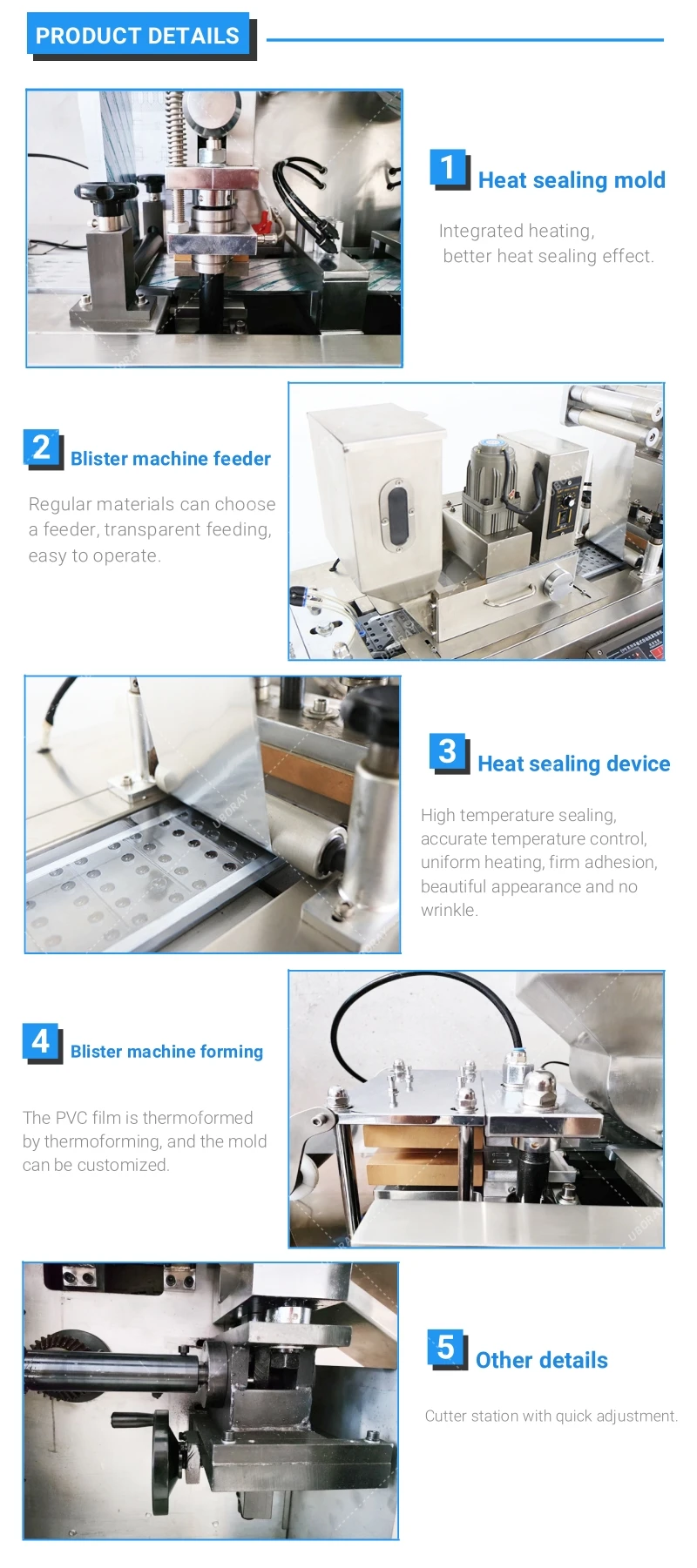

3. Heat sealing is fixed, forming, indentation, punching and other parts can be moved freely to adjust the distance, and the correction is convenient and simple.
4. Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.
3. Heat sealing is fixed, forming, indentation, punching and other parts can be moved freely to adjust the distance, and the correction is convenient and simple.
4. Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.
Model | DPB-150 |
Punch Frequency | 10-35 times/min |
Production Capacity | 1200-4200 bisters/hour |
Nosie | <75dBA |
Standard Stroke Range | 50-120mm( can be designed as per user’s required) |
Standard plate size | 80x57mm ( can be designed as per user’s required) |
Max forming area | 80X105X25(mm) |
Air pressure | 0.4-0.6Mpa |
Total power | 380V 50HZ 3.8kw |
Main electrical power | 1.5kw |
PVC hard film | (0.15-0.5)×150mm |
PTP Aluminum film | (0.02-0.035)×150mm |
Dialysis paper | (0.02-0.035)×150mm |
Cooling of mold | Tap water or recycled water |
Overall dimension | 2315×635×1405mm(L×W×H) |
Weight | 820kg |
Max. Forming area & Depth | 150x110(standard depth <=15mm) |
Max. Depth 26mm |
