Immersed Mbr Osmosis Inversa Industrial Uf Membrane Filter Quality Water Treatment Plant

Product Overview

Description

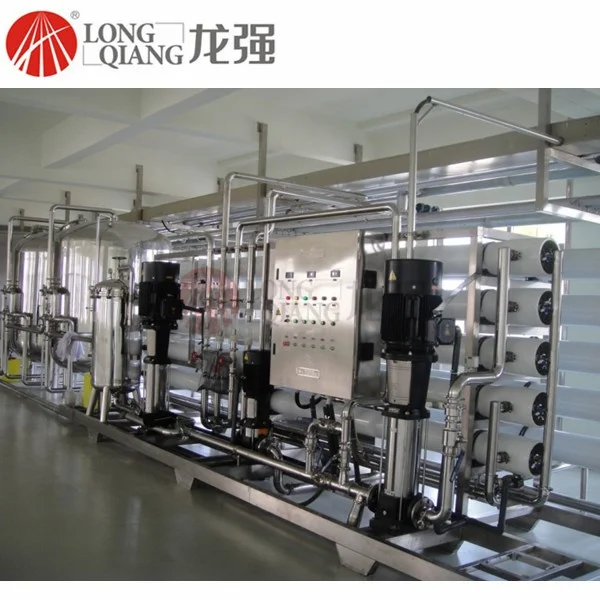

Reverse osmosis purification system

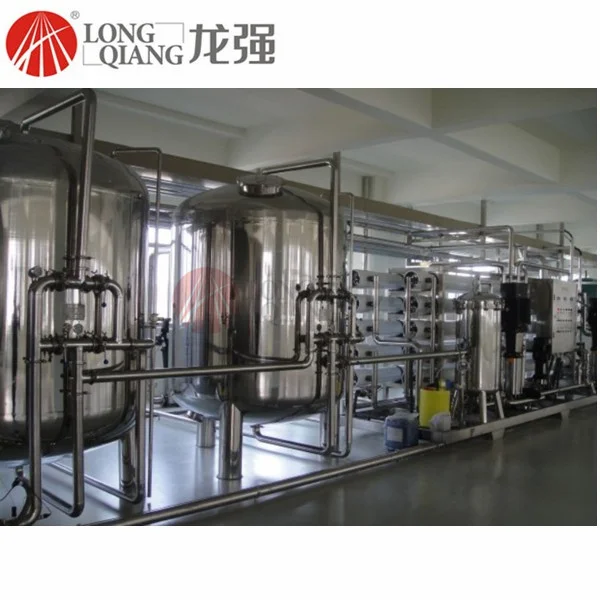

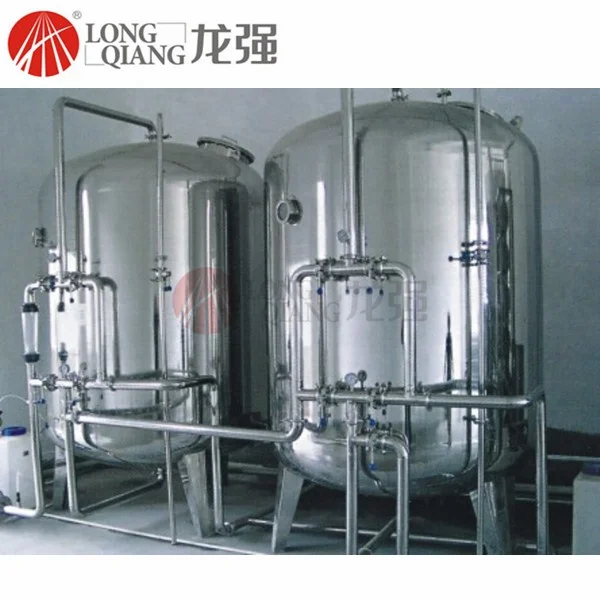

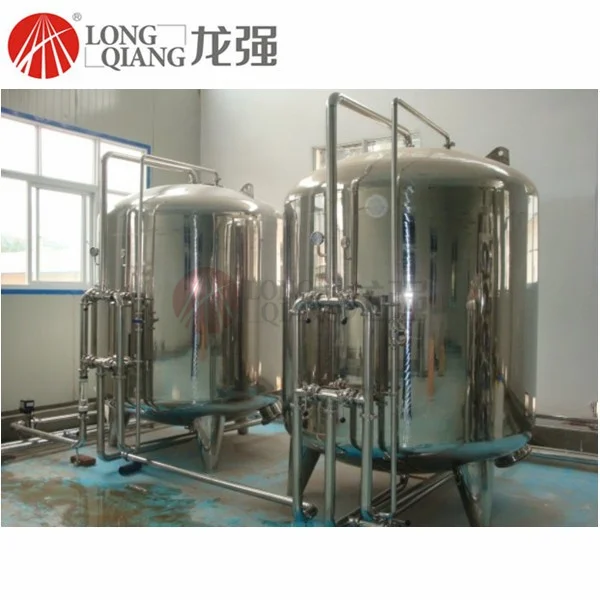

This system adopts stainless steel sand filter, active carbon filter effectively to remove big impure particles and suspending matters, improve RO membrane water inputting index, effectively remove the smell and rest chlorine of the original water, and improve the taste of water quality. The main machine adopts American high effective low-pressure compound film, with single film salt removing degree up to 99%. The high low-pressure protection imported form Korea ensures the breakdown low to 0, with the outputting water up to national pure water standard.

Reverse osmosis device

The reverse osmosis device is an equipment to purify the saline water under the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures id used to obtain the purpose to separate, extract purify and condense.

More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc can be removed by the reverse osmosis. It becomes the most idea equipment for modern pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high quality water, easy operation and maintenance.

RO systemincluding

raw water pump, sand filter, active carbon filter, chemical doser, water softener,5 u m micro filter, reverse osmosis system, back washing system, sterilization, water tank and fittings

Technical parameter

Model		RO-1000	RO-3000	RO-5000	RO-10000
Process capacity (L/h)		1000	3000	5000	5000
Raw water pump model		CHL2-40	CHL8-40	CHL8-50	CHL8-50
Sand filter		400*1500	600*1500	800*1500	800*1500
Active carbon filter		400*1500	600*1500	800*1500	800*1500
Dosing system
Micro filter	Dosing box
	Cartridge specification	65*500	65*750	65*750	65*750
	Cartridge NO.	5	5	7	7
Reverse Osmosis system
RO back wash system (including cleaning pump and cleaning box etc.)
Size (RO bar)	L	2600	2600	2600	2600
	W	700	700	900	900
	h	1900	2000	2000	2000
