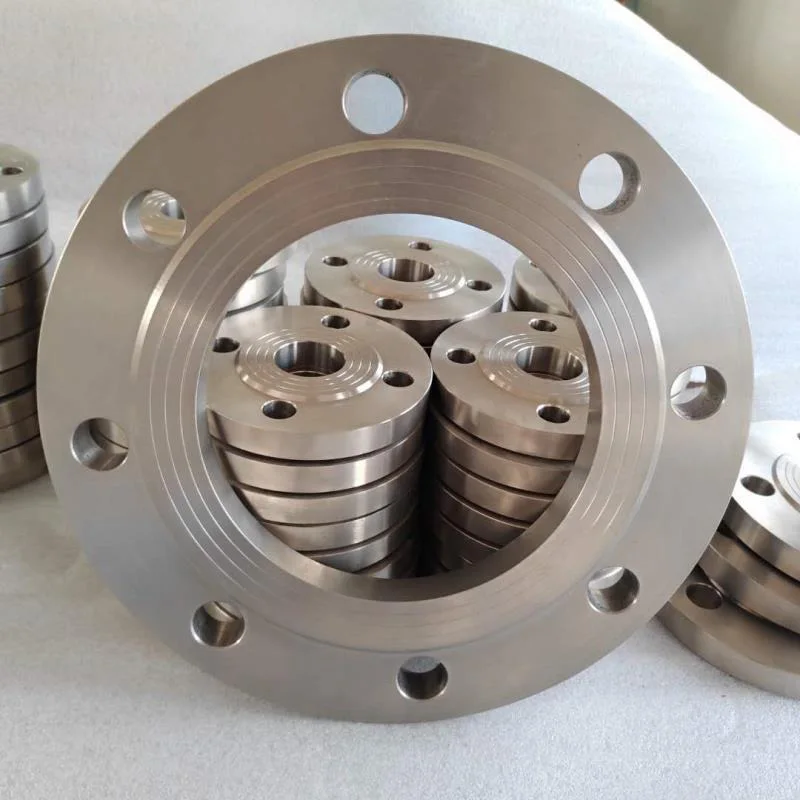

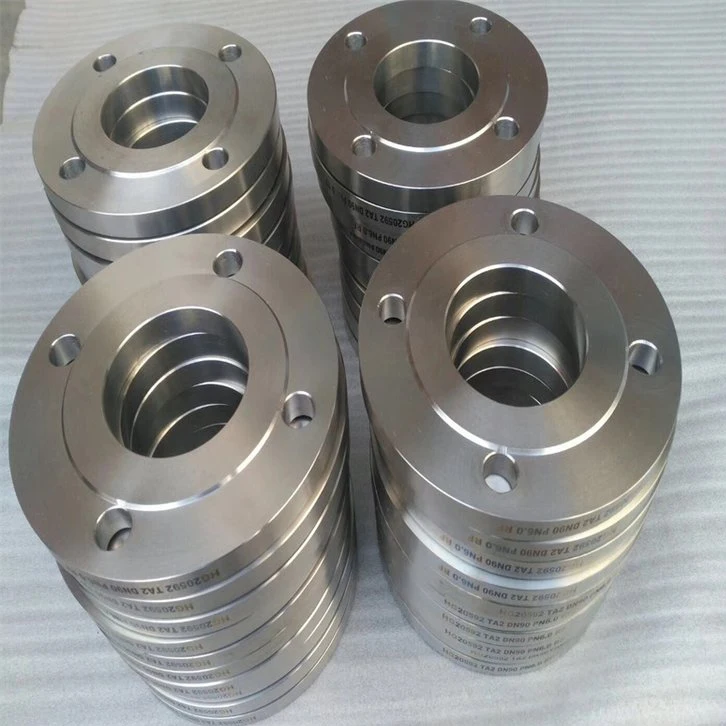

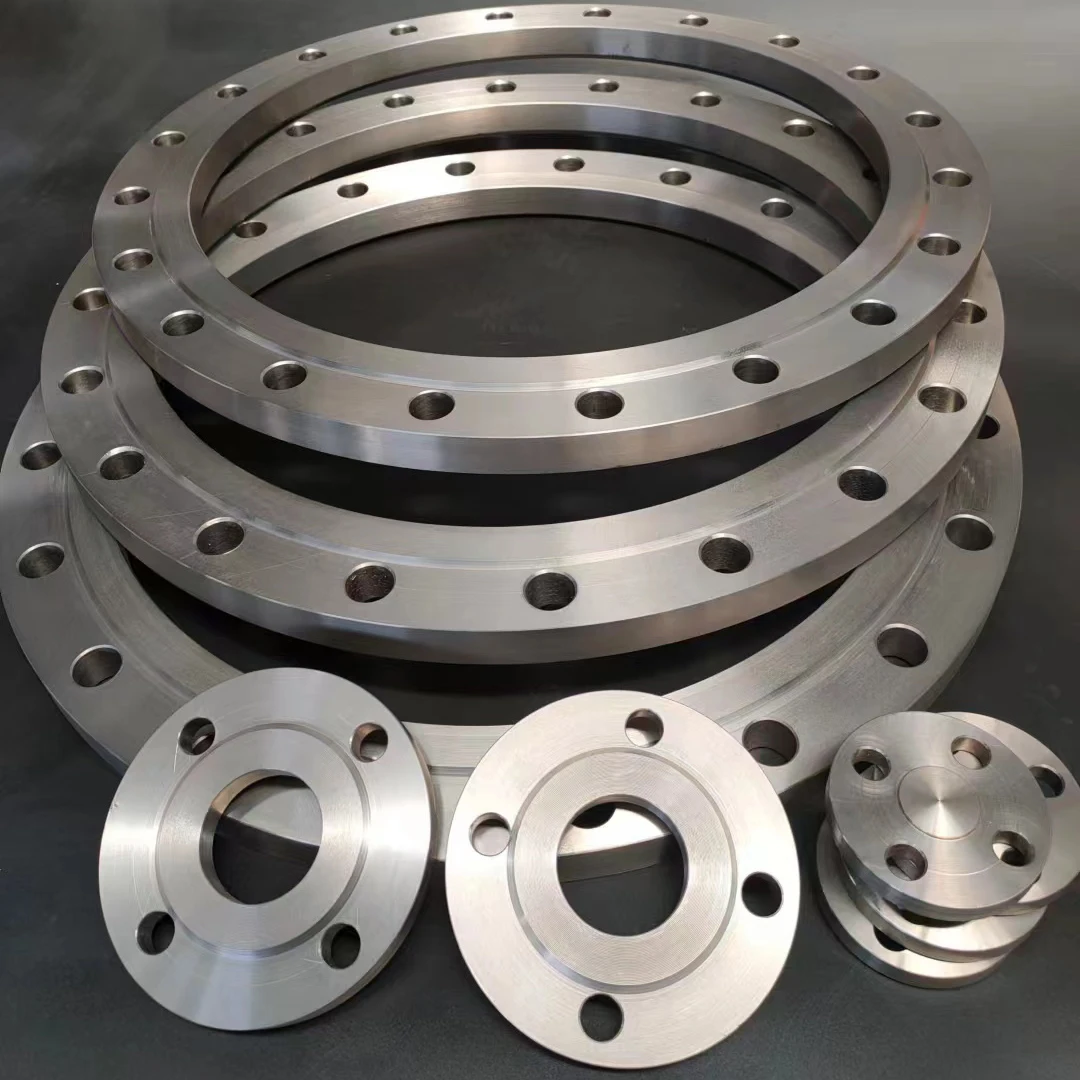

Haoyu Supplies TA1/TA2 Titanium Alloy Flange for Pipe Connection
- Category: >>>
- Supplier: Baoji Haoyu Metal Material Co. Ltd.
Share on (1600560201507):
Product Overview
Description
Titanium Flange and Its Application
Titanium flange is a kind of part made of non-ferrous metal titanium or titanium alloy that connects the pipe to the pipe and the pipe end.Titanium flanges have excellent corrosion resistance in many media. Acid and alkali resistance, long service life, low density, high strength, light weight equipment, smooth surface, no dirt, greatly reduced dirt coefficient. Widely used in petroleum, chemical industry, electric power, metallurgy, chemical fiber, food, pharmaceutical, chlor-alkali, vacuum salt production, fine chemical industry, biological engineering, seawater desalination, marine engineering and other industries.
Chemical Requirements | ||||||||||||||||||
Grade | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |||||||||
Gr1 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal | |||||||||
Gr2 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal | |||||||||
Gr5 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | Bal | |||||||||
Gr7 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | Bal | |||||||||
Gr9 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Bal | |||||||||
Gr12 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | Bal | |||||||||
Tensile Requirements | ||||||||||
grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | |||||||
ksi | MPa | ksi | MPa | |||||||
1 | 35 | 240 | 20 | 138 | 24 | |||||
2 | 50 | 345 | 40 | 275 | 20 | |||||
5 | 130 | 895 | 120 | 828 | 10 | |||||
7 | 50 | 345 | 40 | 275 | 20 | |||||
9 | 90 | 620 | 70 | 438 | 15 | |||||
12 | 70 | 438 | 50 | 345 | 18 | |||||
Specification
item | value |
Place of Origin | Shaanxi,China |
Brand Name | Baoji Haoyu Metal Material Co., Ltd. |
Application | Industrial |
Technique | Forging |
Powder Or Not | Not Powder |
Ti Content (%) | 99.98(%) |
Material | Titanium Gr1gr2 Gr5 Gr9 Gr10 Gr12 |
Standard | ASTM B381 |
Application | Industrial |
Package | Standard Seaworthy Package |
CERTIFICATION | ISO9001 |
Technology | CNC Machining Forged |
Feature | Excellent Corrosion Resistance |
Lead Time | 7-15Days |
1.Are u a manufacturer or just trading company？
A:Our company is specialized in designing, manufacturing and supplying titanium materials.2.How to ensure the quality of your products？
A:We have a series of tests to ensure the quality of the product,such as DPI,PMI,RT,Hardness test,Bending test,Hydrostatic etc.
3.We would like to know how you will pack the product?
A:Our packing is as follows:

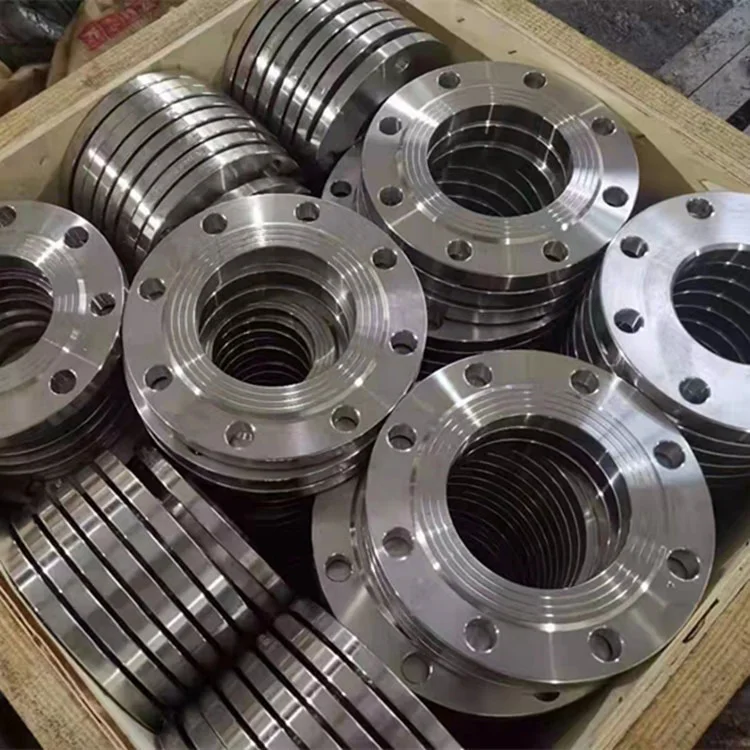

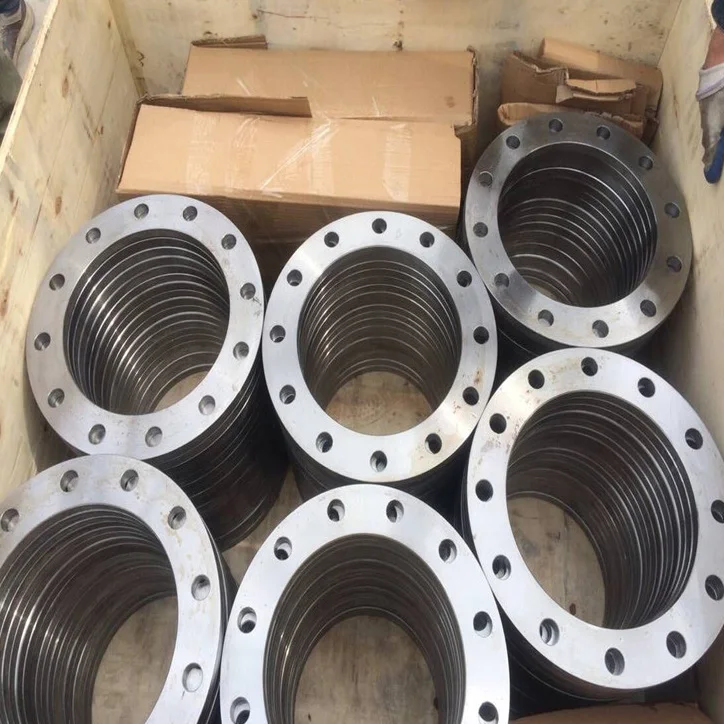

➢IPPC standard wooden case
➢Wrap pipe, fittings, and flange with plastic bag
➢Put sponge cushion at the bottom of the wooden case
➢Put goods in the case and cushion the surrounding to assure the goods unmovable in the case
➢Nail the case, stick the tags, marks or required logos on the case
➢Special package upon request
4.We need below information to quote for you:
A:1) Product name
2) Standard
3) Material Grade (chemical composition)
4) Dimension
5) Quantity
6) The diawing for special parts
