Transparent block ice making machine 3 ton for making clear sphere ice big cube ice
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600560213789):
Product Overview
Description

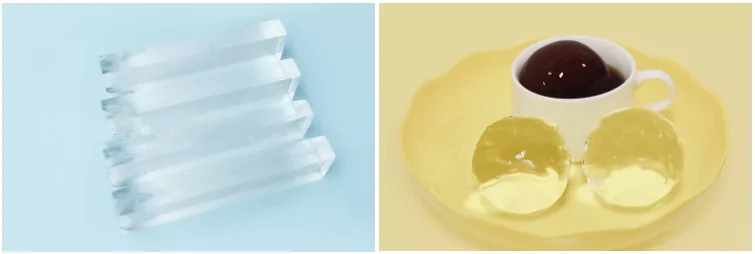

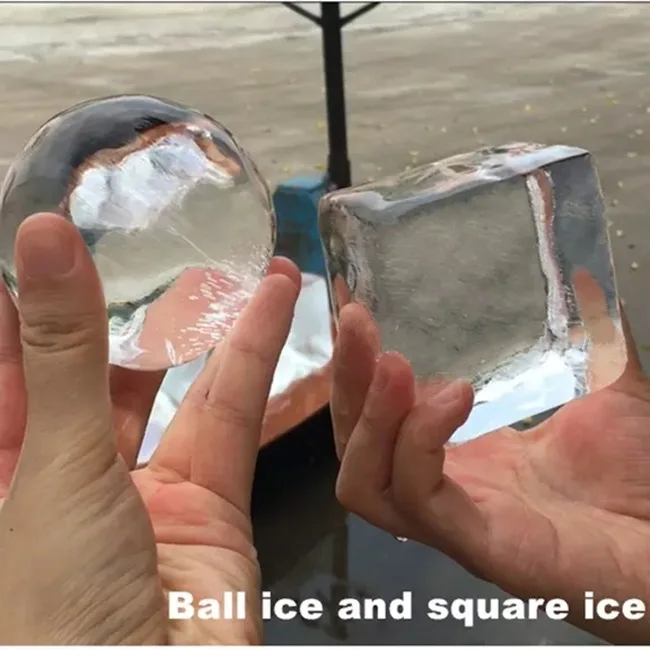

Transparent block ice making machine 3 ton clear ice block maker for making sphere ice big cube ice
Product Description

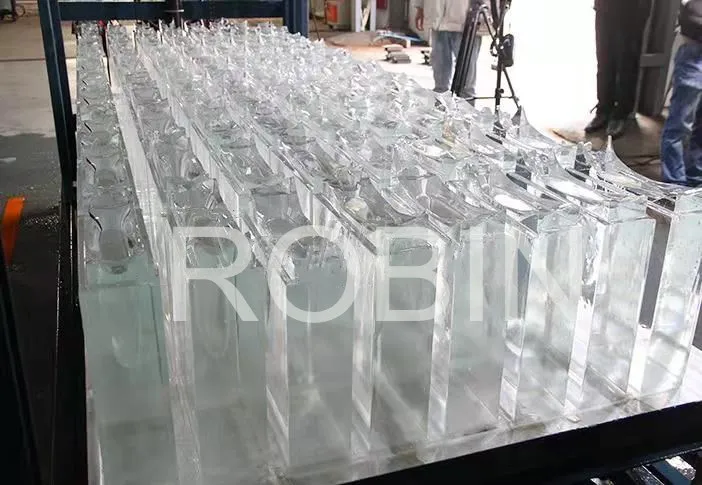

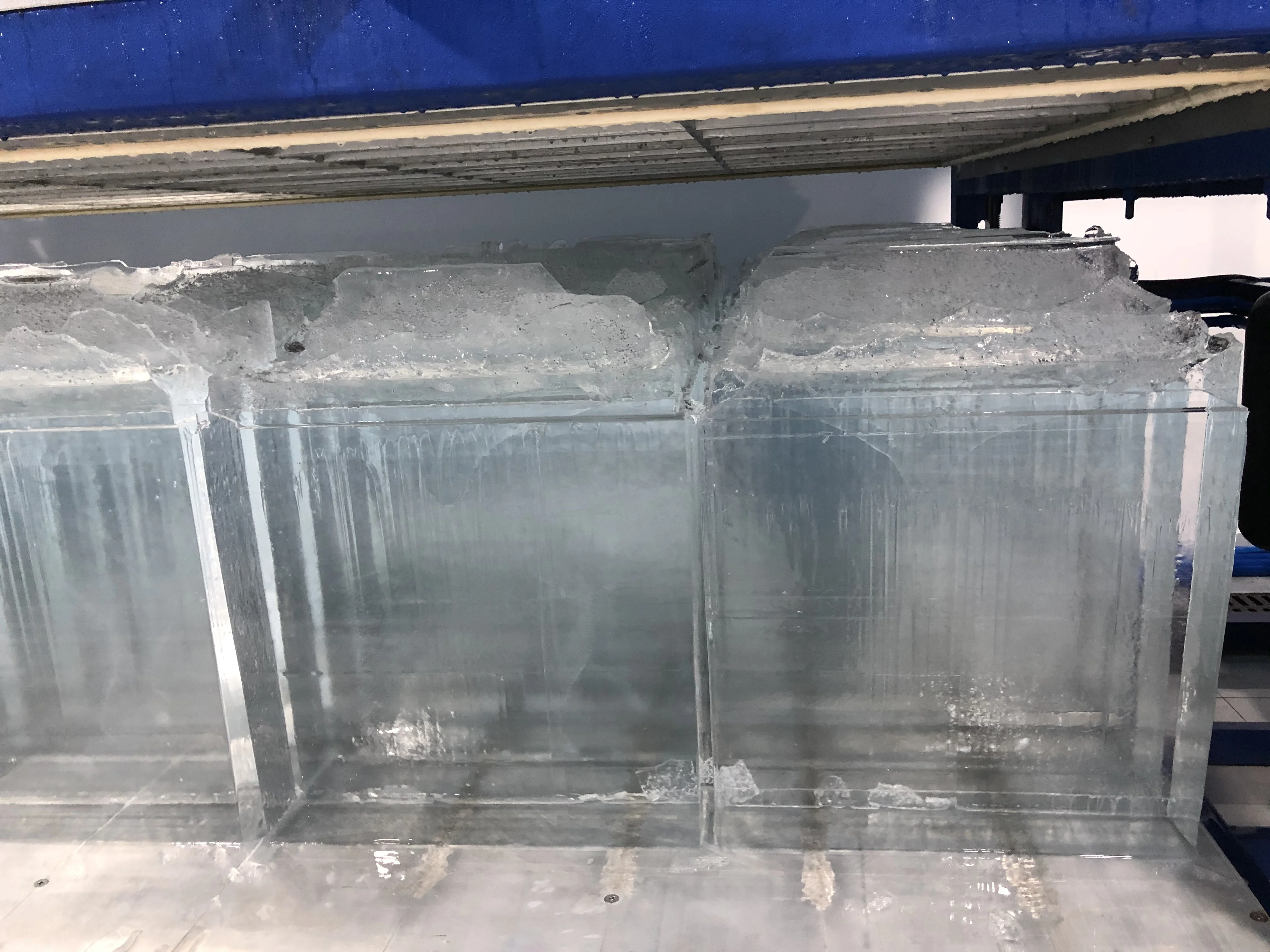

The machine can produce 3000kg transparent ice block each batch. It adopts the advanced technology, which can guarantee the 100% transparency of block ice.
Besides, the evaporator is made of food-grade aluminum plate and the ice block will be clean, sanitary, edible. It is widely used in bars, hotels, restaurants and sculpture.
Daily capacity and ice size can be custom-made.
Equipment Adopts
* 100% Transparent Ice Block
* Shorter freezing time and faster ice harvest
* Sanitary, clean and edible ice blocks.
* Small compressor, energy-saving
* Auto water adding, ice making and ice harvest.
* No need salt water.
* Food-grade aluminium evaporator, anti-rust
* Auto water adding, ice making and ice harvest.
* No need salt water.
* Food-grade aluminium evaporator, anti-rust
* Assembled evaporator without welding, longer service life
* Ice bed can be movable or motor driven.
* Using a motor-driven automatic screw rod lifting system.
* Integrated design, saving space for factory and shipment
* Perfect and special water-lock technology.
* Very strong framework, not easy to deform;
* 7 Patents.
* Ice bed can be movable or motor driven.
* Using a motor-driven automatic screw rod lifting system.
* Integrated design, saving space for factory and shipment
* Perfect and special water-lock technology.
* Very strong framework, not easy to deform;
* 7 Patents.
 |  |
Applications
1. Ice occasions in the food industry;
2. Where ice is needed but salt water is not available;
3. Ice sculpture, ice for ice exhibition;
4. Meat processing plant, live poultry slaughtering plant, seafood processing;
5. Mine cooling and factory cooling;
6. Ice for the chemical industry.
Technical Data

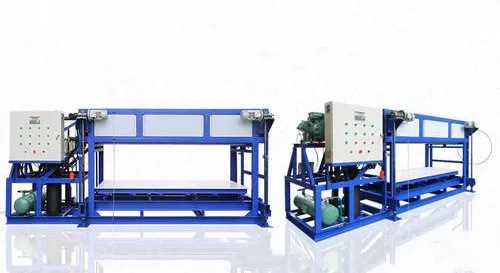

Transparent Ice Block Machine TB Series | ||
Model | RTB10 | RTB30 |
Capacity (ton/batch) | 1 Ton/batch | 3 Tons/batch |
Batch Time (hour) | 24-36h | 24-36h |
Compressor Brand | Bitzer/Copeland/Refcomp | Bitzer/Refcomp |
Compressor Power (KW) | 7.5KW | 16.5KW |
Refrigeration Way | Direct Cooling | Direct Cooling |
Ice Block Weight (KG) | 8KG | 25KG |
Ice Block Size (mm, L*W*H) | 300mm*105mm*504mm | 600mm*155mm*750mm |
Cooling Way | Air Cooling | Air Cooling |
Ice Harvest Way | Automatic | Automatic |
Note:
* Refrigerant: R22/R404A/R507
* Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
* Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
* Robin reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.
* Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
* Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
* Robin reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

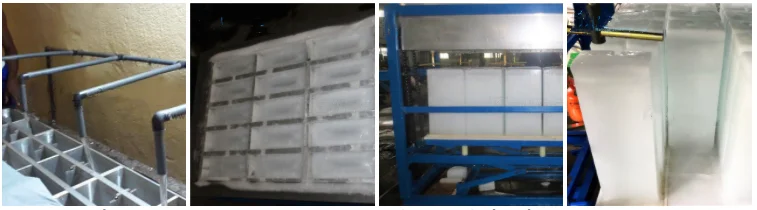

Ice block making process
# Add water into the ice moulds.
# Turn on the ice block machine
# Turn off the ice block machine, ice making time different from ice weight and thickness.
# Wait minutes, ice blocks will be fully frozen with the remained coldness
# Press the ice harvest button, hot gas will into the aluminum ice moulds, ice block will be separated from the ice moulds, then we can release the ice bed, all ice blocks will drop together.

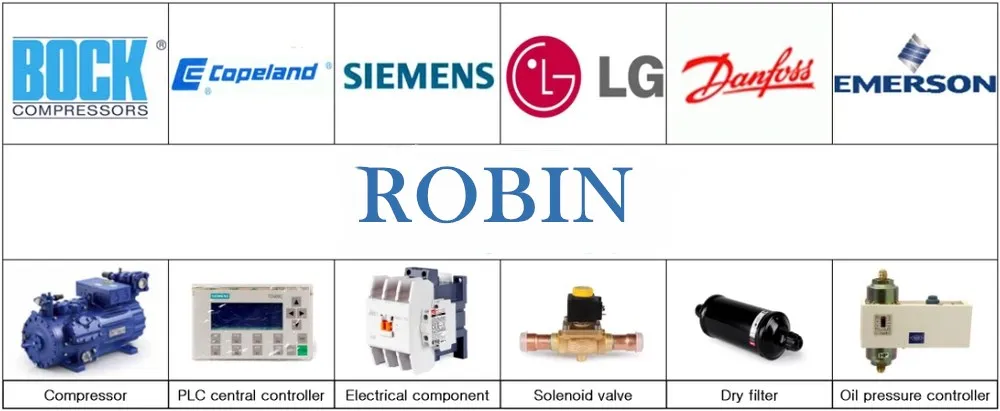

Adopt world-famous components
ROBIN direct cooling block ice machine electrical control uses Schneider's PLC and touch screen, LS electrical components, etc., using Danfoss, Emerson, Faske valve, Bitzer compressor, and other brand accessories
Company Information

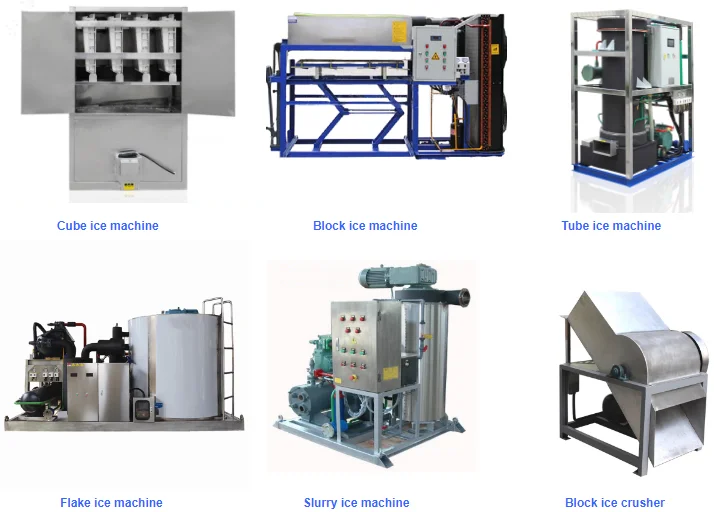

Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design, production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine, tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coal mine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Our Services
♦ Installation & Training
All the working units of the machine are installed and fixed in a SUS304 frame, easy for on-site installation, customers just need to connect the power and water supply.
ROBIN company can provide on-site or online training on installation and daily maintenance according to customers’ requirements.
♦ Warranty & Service
All the ROBIN ice machines will be tested for 72 hours before shipment.
All the ROBIN ice machines enjoy 12 months warranty in free of charge ever since B/L date.
All the ROBIN ice machines enjoy lifelong free technical support.
♦ 24*7 hours phone service
♦ On-site & online training service
♦ Engineers available service machinery overseas
♦ ROBIN service centre working time: 8:30-18:00, from Monday to Sunday.

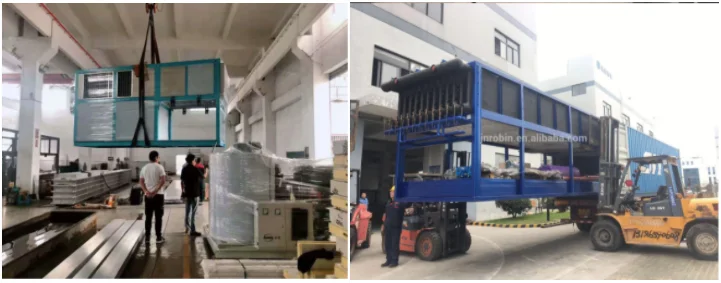

Packaging & Shipping
FAQ
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice machine. Our export ice machine is designed based on the standard of container, it is easily to load.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abroad? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
