UG67 SMS GSM RS232 LoRaWAN Gateway For LoRa Transmitter
- Category: >>>
- Supplier: Xiamen Milesight IoT Co. Ltd.
Share on (1600560221071):
Product Overview
Description
Product Description

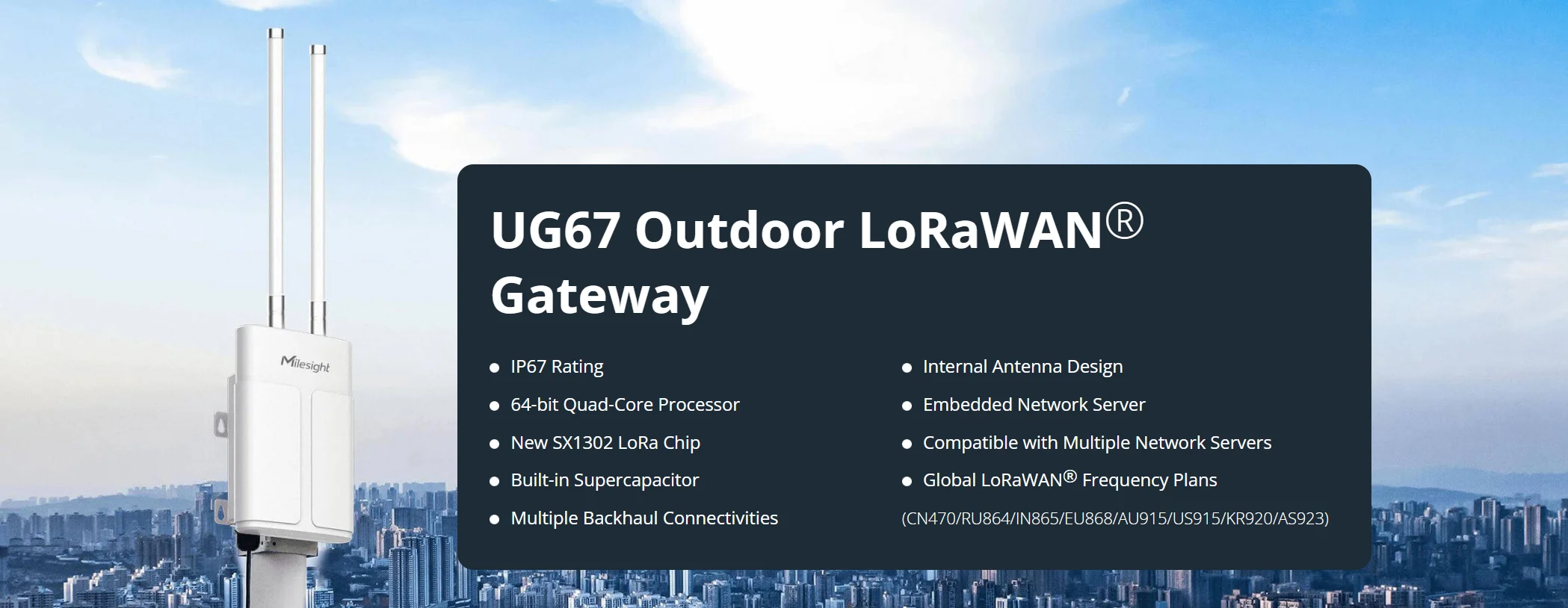

Milesight UG67 is an industrial gateway based on LoRaWAN technology. It features Edge and Fog computing capabilities with Python programming, rich serial interface and free embedded NS, available in CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 global frequency. Our LoRaWAN ecosystem partners include The Things Network (TTN), LORIOT, Ubidots, ChirpStack, IoThink Solutions, Orbiwise, LoRa Alliance and ThingWorx. The UG67 has been distributed to the dozens of regions and deployed in pilot use cases and LPWAN projects.
Quick Details of Milesight UG67 LoRaWAN Gateway
_________________________________________________________________
UG67 LoRaWAN Gateway | UG87 LoRaWAN Gateway | ||||||
Hardware | Processor | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 | |||||
Memory | 512 MB DDR4 RAM | ||||||
Ingress Protection | IP67 | ||||||
Connectivity | Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 | |||||
Channel | 8 | ||||||
Wi-Fi | IEEE 802.11 b/g/n | ||||||
Ethernet | 1 x 10/100/1000 Mbps | ||||||
Network Server | Embedded | Yes | |||||
3rd Party's | TTN, LORIOT, ThingWorx | ||||||

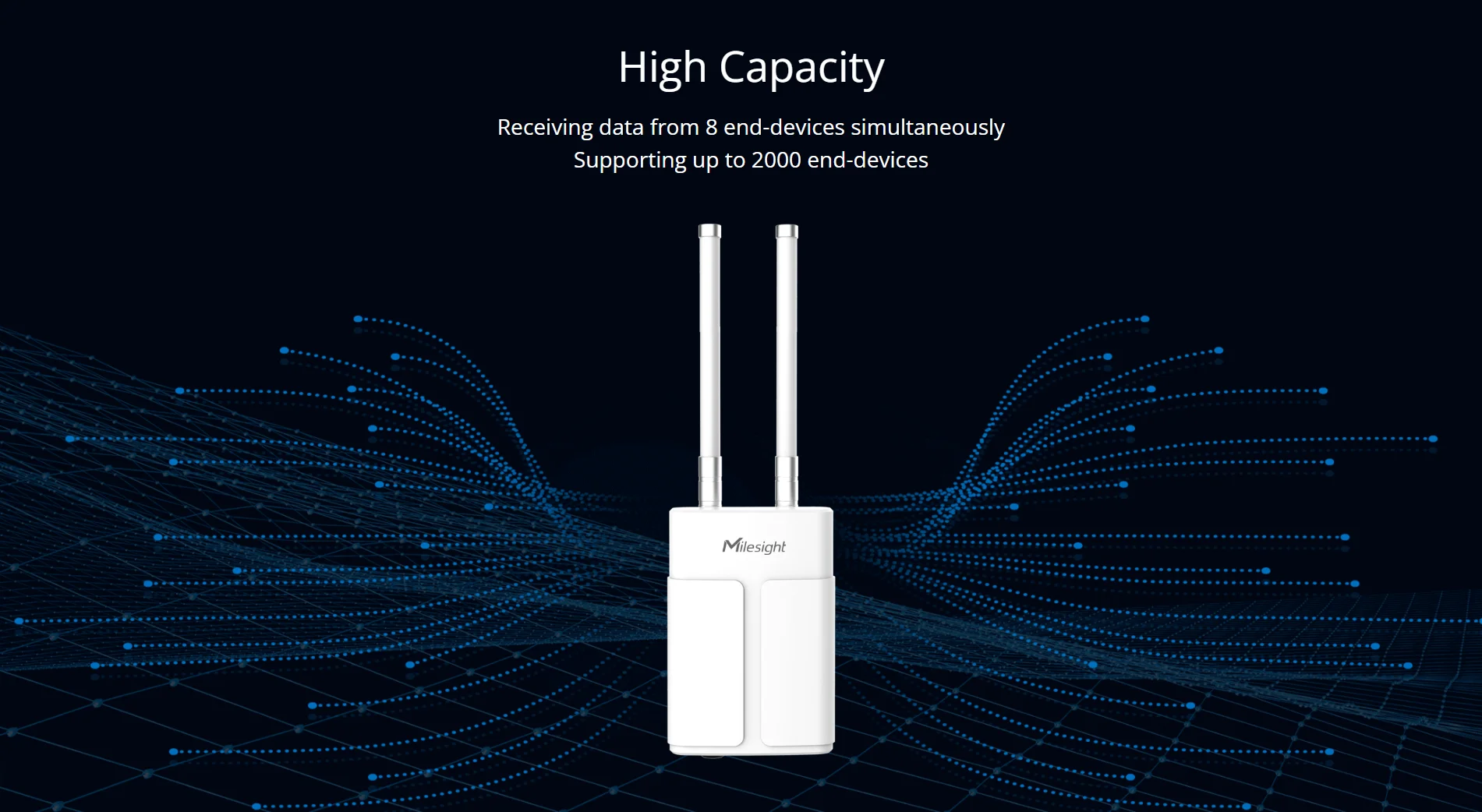

Capabilities | Nodes Connection | Up to 2000 | |||||
Radio Range | Up to 10 km | ||||||
Develop Device-to-Cloud Connection

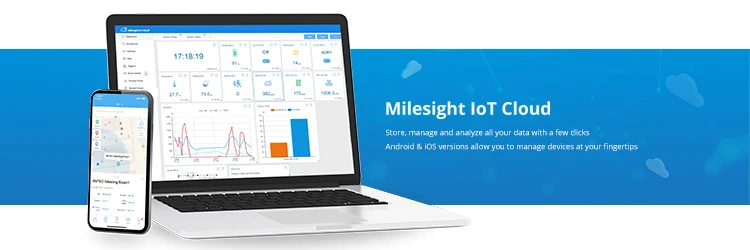

The Milesight IoT Cloud is a comprehensive cloud service provides unparalleled levels of vertical integration with Milesight LoRaWAN Gateway to link vertical, back-end applications to remote assets. The FREE Trial is ongoing. Don't miss it!
Try it out: https://cloud.milesight-iot.com/
Partners
Success Story
More Info
https://www.milesight-iot.com/success-stories/
Specifications
Model | UG67 | |||
Hardware | ||||
Processor | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 | |||
Memory | 512 MB DDR4 RAM | |||
Flash | 8 GB eMMC | |||
Software | ||||
Network Protocol | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. | |||
VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN | |||
Connectivity | ||||
Ethernet | 1 x 10/100/1000 Mbps | |||
Cellular (optional) | 1 x SIM Slot | |||
Wi-Fi (Optional) | IEEE 802.11 b/g/n | |||
Console | 1 x Console (RJ45) | |||
GPS + GLONASS | Yes | |||
LoRaWAN | ||||
Channel | 8 | 8/16 | ||
Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 | |||
Sensitivity | -140dBm Sensitivity @292bps | |||
Output Power | 27dBm Max | |||
Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C | |||
Others | ||||
Operating Temp | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C | |||
Storage Temp | -40°C to +85°C (-40℉ to +185℉) | |||
Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ | |||

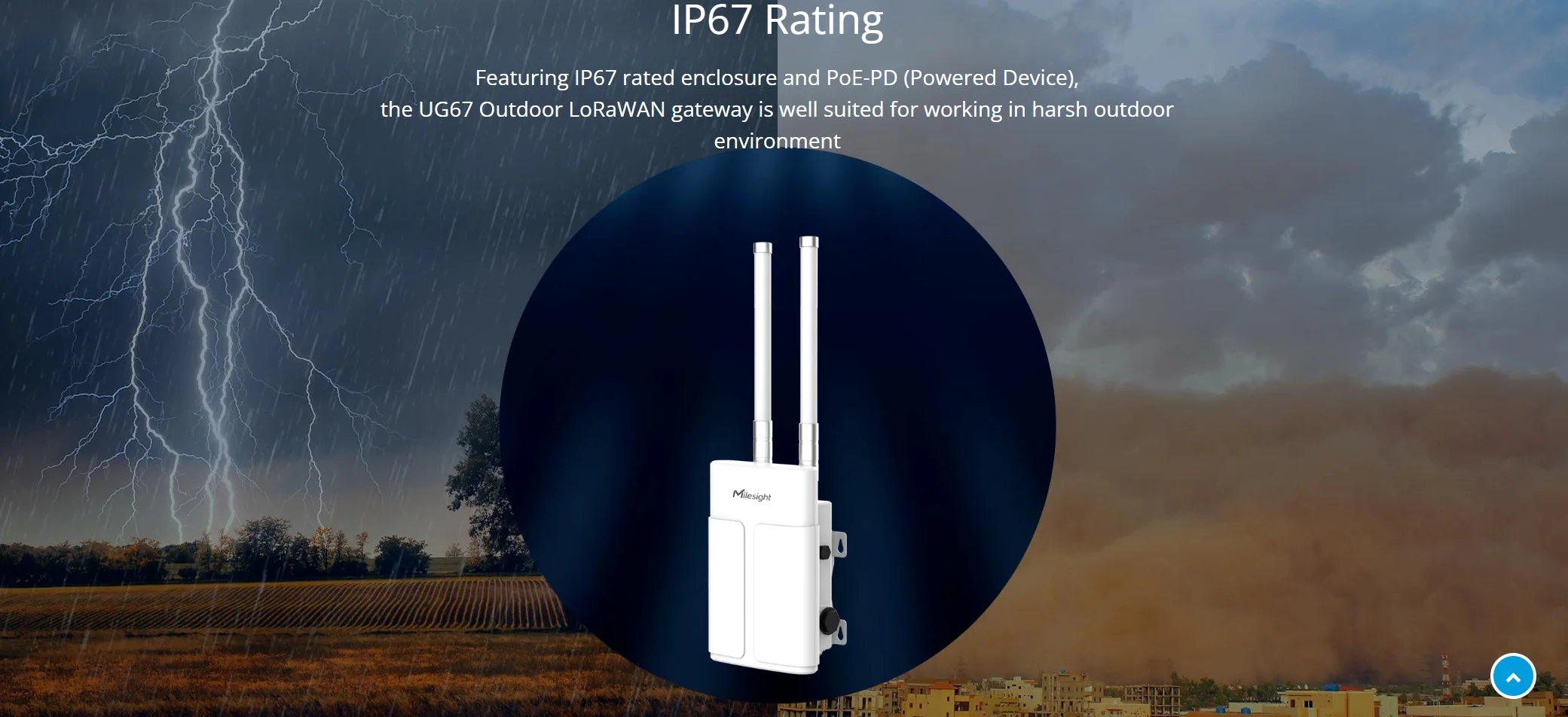

Ingress Protection | IP67 | IP67 | ||
Mounting | Desktop, Wall or DIN Rail Mounting | Wall or Pole Mounting | ||
Dimensions | 180 x 110 x 56.5 mm | 254 x 222 x89 mm (10 x 8.75 x 3.5 in) | ||
Certifications | RoHS, CE, FCC | |||
