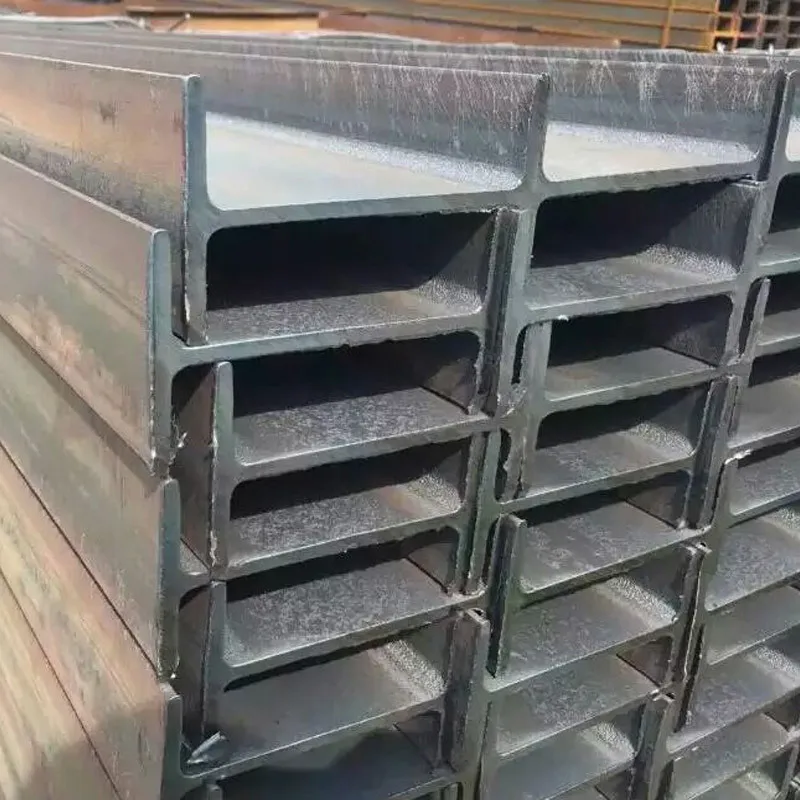

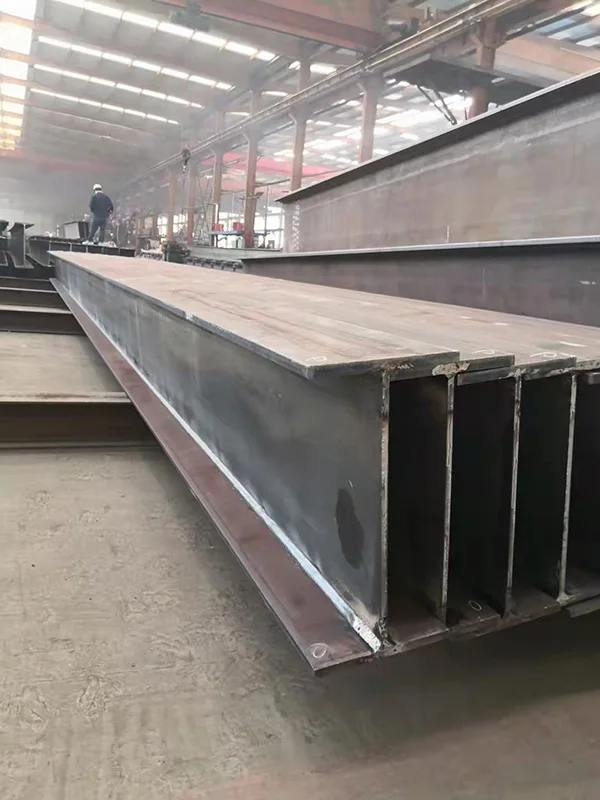

HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size
HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size

HEA/HEB/IPE Steel Beam/Section Beam/European Standard H Beam Size

Share on (1600560243363):


Price:$702.00 - $722.00

Quantity:


Product Overview

Description

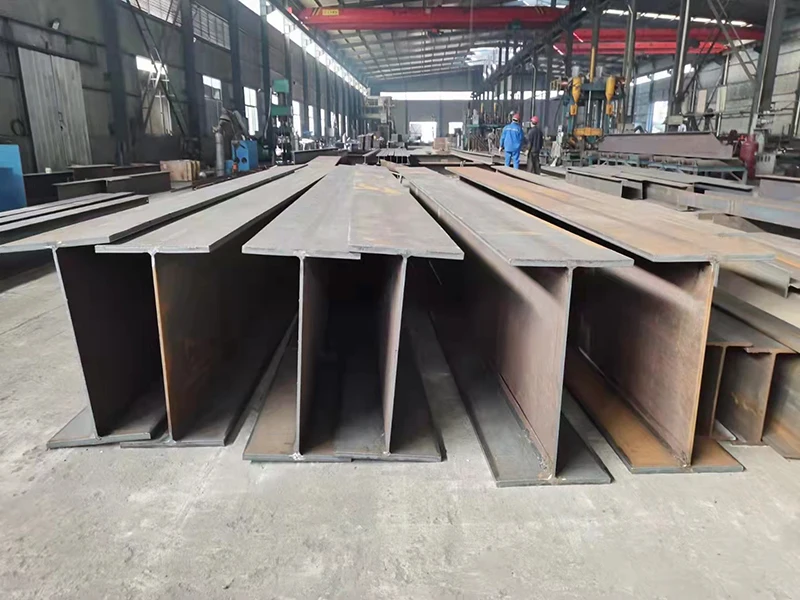

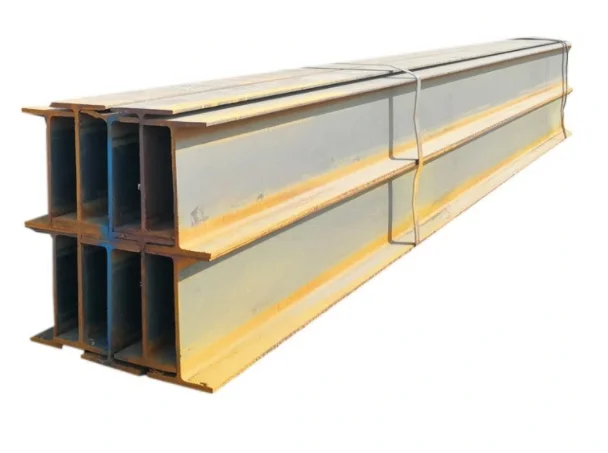

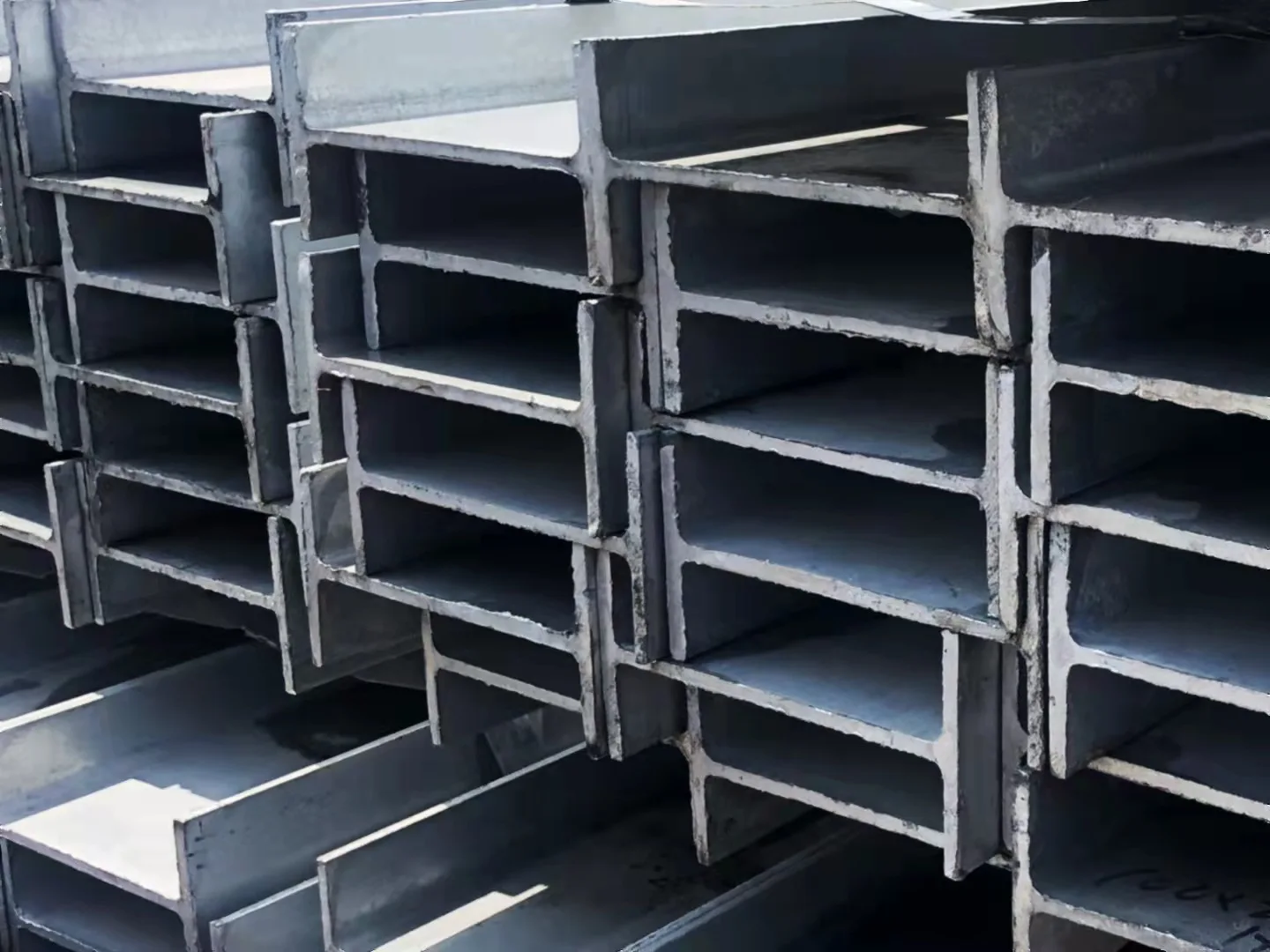

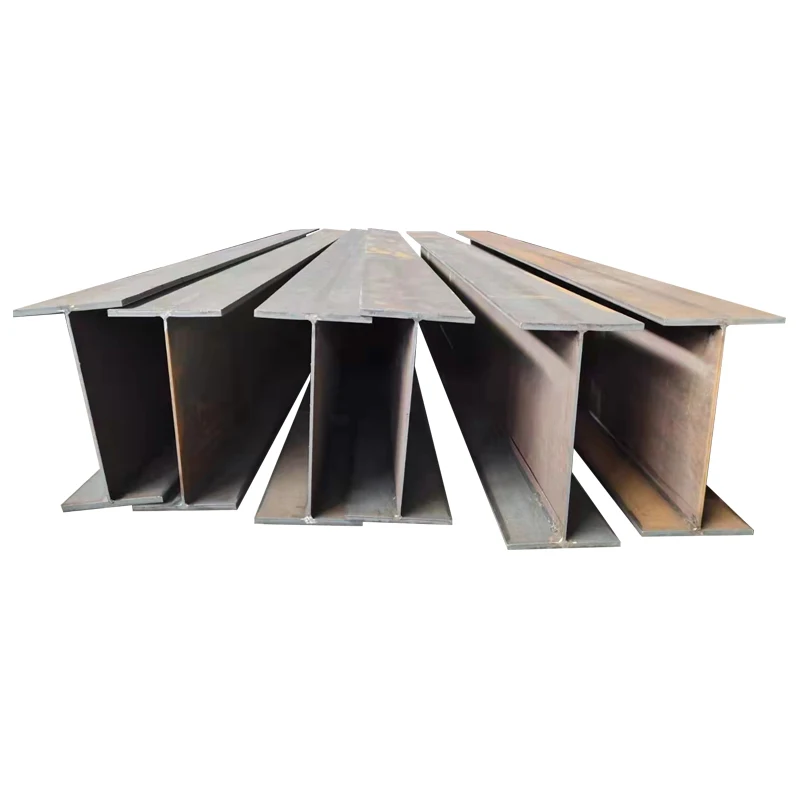

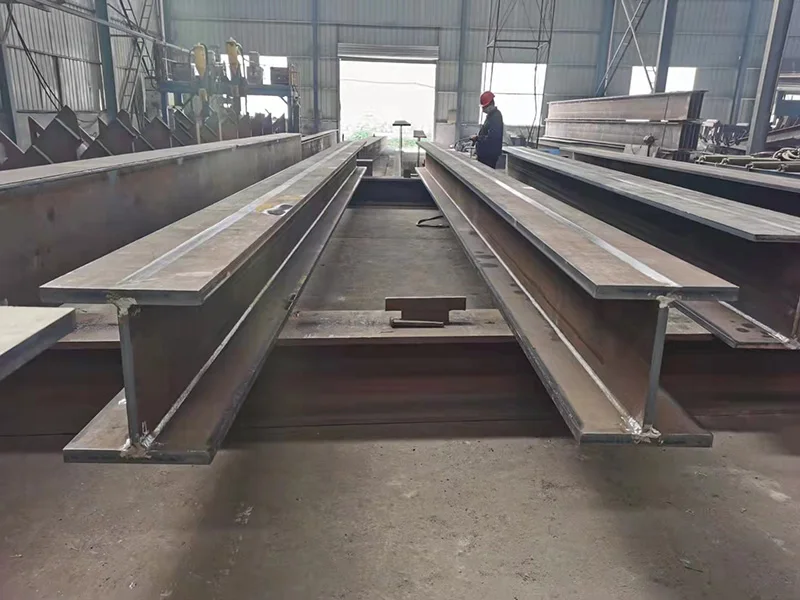

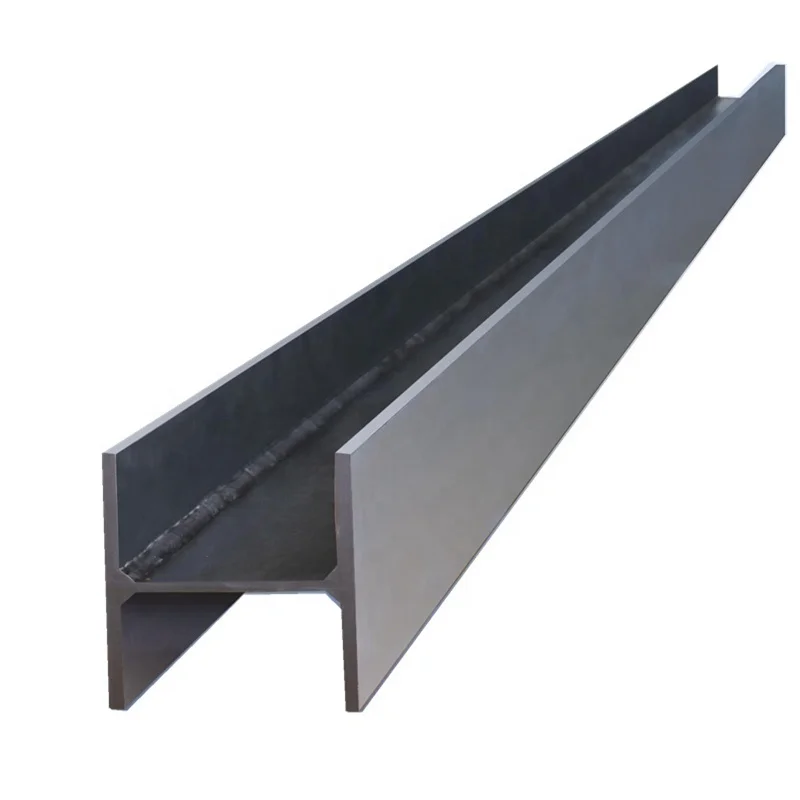

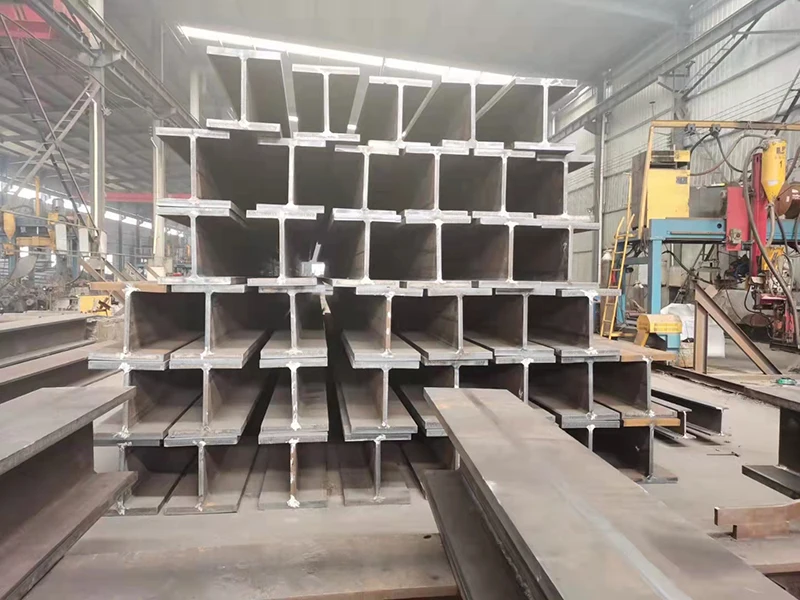

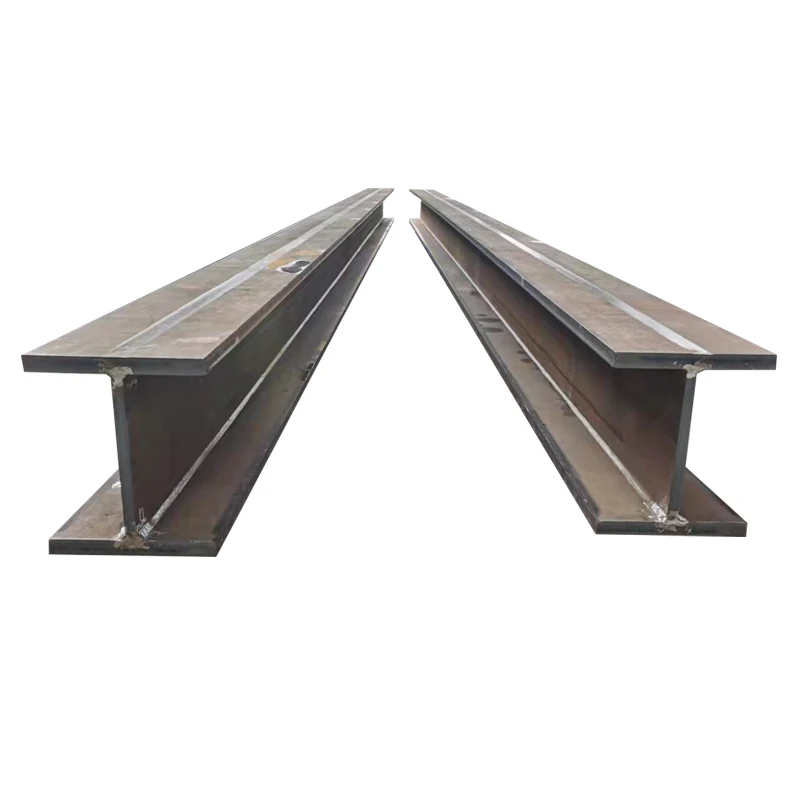

H-beam steel
H-beam steel is widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large load-bearing capacity and cross-section are required Large-scale bridges with good stability and large spans; heavy equipment; highways; ship skeletons; mine supports; foundation treatment and embankment engineering; various mechanical components.




Product name
H-Beam Structural Steel
Material grade
Q235/Q345/SS400/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
Standard
ASTM, AISI EN, ASTM GB EN JIS
Flange Thickness
3.2mm-64mm
Flange Width
96mm-1056mm
Web Thickness
4.5mm-70mm
Web Width
100mm-1000mm
Length
6-12m or customized
Weight
by actual weight
Another Name
I Beam Steel Structural, Hot rolled mild steel I beam , I beam ,steel beam ,beam


H Beam Specification
size
w/m
size
w/m
size
w/m
100*50*5*7
9.54
250*255*14*14
82.2
400*400*13*21
172
100*100*6*8
17.2
294*200*8*12
57.3
400*408*21*21
197
125*60*6*8
13.3
300*150*6.5*9
37.3
414*405*18*28
233
125*125*6.5*9
23.8
294*302*12*12
85
440*300*11*18
124
148*100*6*9
21.4
300*300*10*15
94.5
446*199*7*11
66.7
150*75*5*7
14.3
300*305*15*15
106
450*200*9*14
76.5
150*150*7*10
31.9
338*351*13*13
106
482*300*11*15
115
175*90*5*8
18.2
340*250*9*14
79.7
488*300*11*18
129
175*175*7.5*11
40.3
344*354*16*16
131
496*199*9*14
79.5
194*150*6*9
31.2
346*174*6*9
41.8
500*200*10*16
89.6
198*99*4.5*7
18.5
350*175*7*11
50
582*300*12*17
137
200*100*5.5*8
21.7
344*348*10*16
115
588*300*12*20
151
200*200*8*12
50.5
350*350*12*19
137
596*199*10*15
95.1
200*204*12*12
72.28
388*402*15*15
141
600*200*11*17
106
244*175*7*11
44.1
390*300*10*16
107
700*300*13*24
185
244*252*11*11
64.4
394*398*11*18
147
792*300*14*22
191
248*124*5*8
25.8
400*150*8*13
55.8
800*300*14*26
210
250*125*6*9
29.7
396*199*7*11
56.7
900*300*16*28
243












Application range of h-beam
* 1 Beam and column components in steel structures of industrial and civil buildings;
* 2. Steel structure load-bearing brackets for industrial structures;
* 3 Steel piles and supporting structures of underground works;
* 4 The structure of industrial equipment such as petrochemical and electric power;
* 5 large-span steel bridge members;
* 6 Ship and machinery manufacturing frame structure;
* 7.Girder brackets for trains, cars and tractors;
* 8 Port conveyor belts, highway baffle brackets
