EM22 high resolution 220*160 infrared thermal oem thermographic camera infrared thermal imaging camera with analysis
- Category: >>>
- Supplier: Shenzhen Hengxintai Industrial Co. Ltd.
Share on (1600560244995):
Product Overview
Description
Product Description

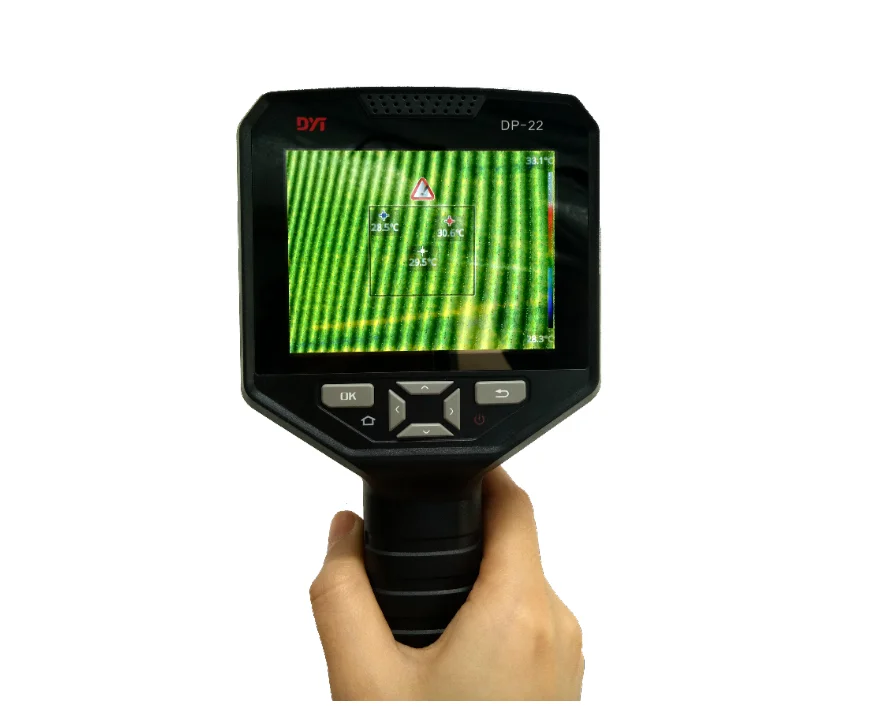

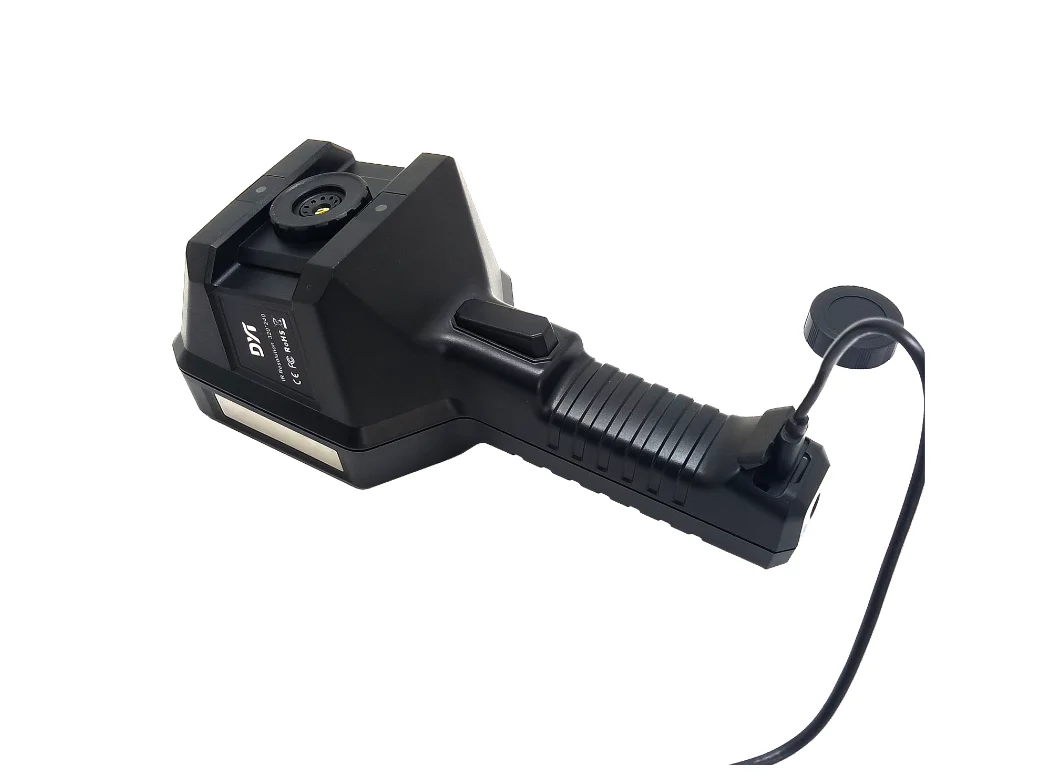

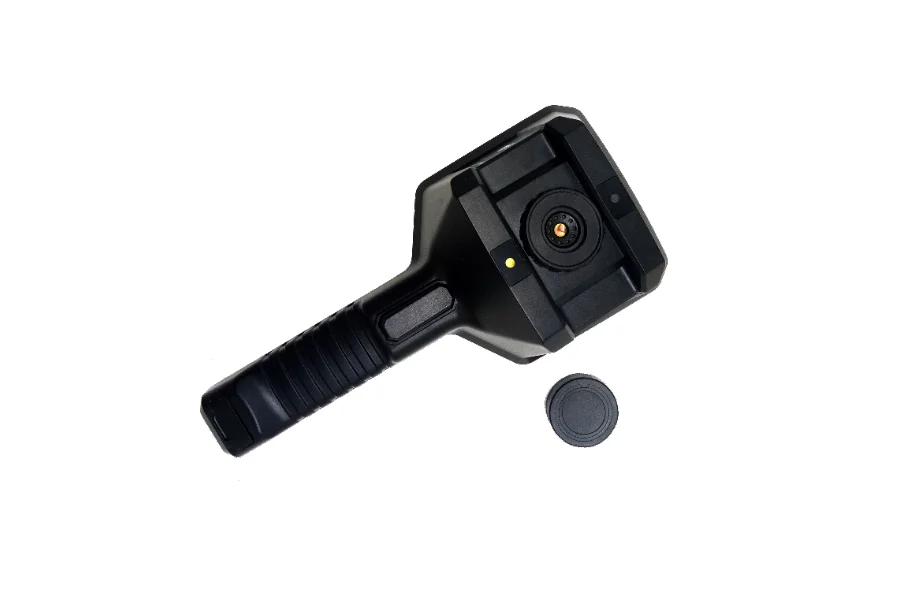

EM23 Infrared thermal imaging handheld camera is a high-precision thermal imaging handheld device.
It combines thermal imaging and visible light to display the target object imaging, which can measure all the pixel temperature of the target object, can quickly locate the abnormal temperature point, to reduce the users’ diagnostic time.
Parameter | Specification | |
Infrared Thermal Imaging | Resolution | 220x160 |
Frequency band | 8~14um | |
Frame rate | 9Hz | |
NETD | 70mK@25°C (77°C) | |
Field of view | Horizontal 56°, vertical 42° | |
Lens | 4mm | |
Temperature range | ||
Temperature measurement accuracy | ±2°C or ±2% | |
Temperature measurement | Hottest, coldest, central point, zone area temperature measurement | |
Color palette | Tyrian, white hot, black hot, iron, rainbow, glory, Hottest, coldest. | |
Visible | Resolution | 640x480 |
Frame rate | 25Hz | |
LED light | Support | |
Display | Display Resolution | 220x160 |
Display Size | 3.5 inch | |
Image mode | Outline fusion, overlay fusion, picture-in-picture, infrared thermal imaging, visible light | |
General | Working time | 5000mah battery, >4 hours in 25°C (77°F) |
Battery Charge | Built-in battery, it is recommended to use +5V & ≥2A universal USB charger | |
WiFi | Support App and PC software data transmission | |
Operating temperature | -20°C~+60°C (-4°F ~ 140°F) | |
Storage temperature | -40°C~+85°C (-40°F ~185°F) | |
Waterproof and dustproof | IP54 | |
Camera Dimension | 230mm x 100mm x 90mm | |
Net weight | 420g | |
Package dimension | 270mm x 150mm x 120mm | |
Gross weight | 970g | |
Storage | Capacity | Built-in memory, about 6.6G available, can store more than 20,000 pictures |
Picture storage mode | Simultaneous storage of infrared thermal imaging, visible light and fusion images | |
File format | TIFF format, support full frame pictures temperature analysis | |
Image analysis | Windows platform analysis software | Provide professional analysis functions to analyze full pixels temperature analysis |
Android platform analysis software | Provide professional analysis functions to analyze full pixels temperature analysis | |
Interface | Data and charging interface | USB Type-C(Support battery charging and data transmission) |
Secondary development | Open interface | Provide WiFi interface SDK for secondary development |
