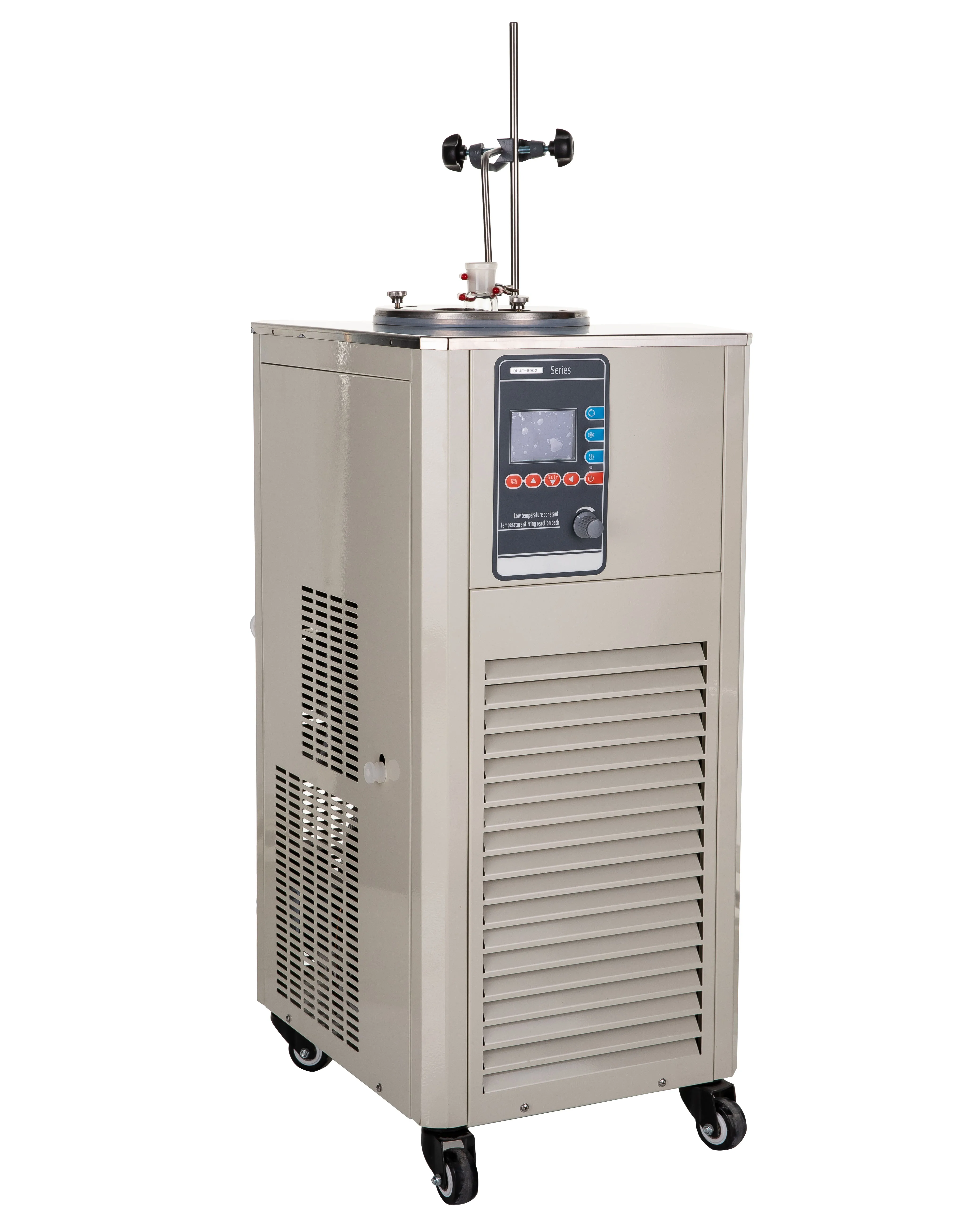

Laboratory Temperature Control System 40 To 99 Degree Celsius 5L Stirring Reaction Bath Thermostat Circulator With Open Bath

Share on (1600560253163):


Price:$1,300.00 - $1,400.00

Quantity:


Product Overview

Description



Product Description








DHJF-4005 Low Temperature ( Constant Temperature ) Stirring Reaction Bath ( also called Thermostatic Bath ) can be used as a substitute for dry ice or liquid nitrogen to carry on experiments which need to be done under low temperature condition, especially can be used for cooling and heating flasks, beakers and tubes in hospitals, research institutes, college laboratories and chemical laboratories.





Product
Low Temperature ( Constant Temperature ) Stirring Reaction Bath
Model
DHJF-4005
Minimum temperature for no-loading ( ℃ )
-40
Capacity of liquid storage tank ( L )
5
Using temperature range (℃)
-40 to +99
Temperature control
Temperature stability±2℃
Setting mode
Random setting within using temperature range, resolution ratio 0.5℃
Safety protection
Overload, delay, overcurrent, overheating




Refrigerated unit
Voltage
220V
Power
2530W
Current
11.4A
Cooling capacity
20~1400W
Refrigerant
R404A
Heating power
1500W

Circulating system
Power
100W
Flow
14L/min
Lift
4-6m
Stirring
Internal magnetic stirring, Power: 30W
Ambient temperature (℃)
≤25℃
Relative humidity ( % )
60%
Power Supply
220V±10% 50HZ
Stirring speed
100-1000r/min
Liquid storage tank
Ф250 × 130
Dimension ( mm )
480 x 330 x 635
Weight (kg)
50





1) Intelligent PID control with high precision


2) Digital temperature display for easy read and control


3) Totally enclosed magnetic stirrer with stable performance and long life time


4) An optional secondary stirring makes the materials temperature in the vessel more uniform.


5) The opening diameter can be adjusted according to flasks size, which can reduce loss of cooling liquid during stirring reaction.


6) Designed with supporting pole and clamp for fixing burette or external temperature sensor


7) High performance compressor is supplied by world famous manufacturer with stability and reliability.


8) Designed with drain port at the bottom for easy drain or replacing of bath liquid.


9) Remote control available.


10) Can be used as a stirring reaction bath or a cooling circulator.





Detailed Images

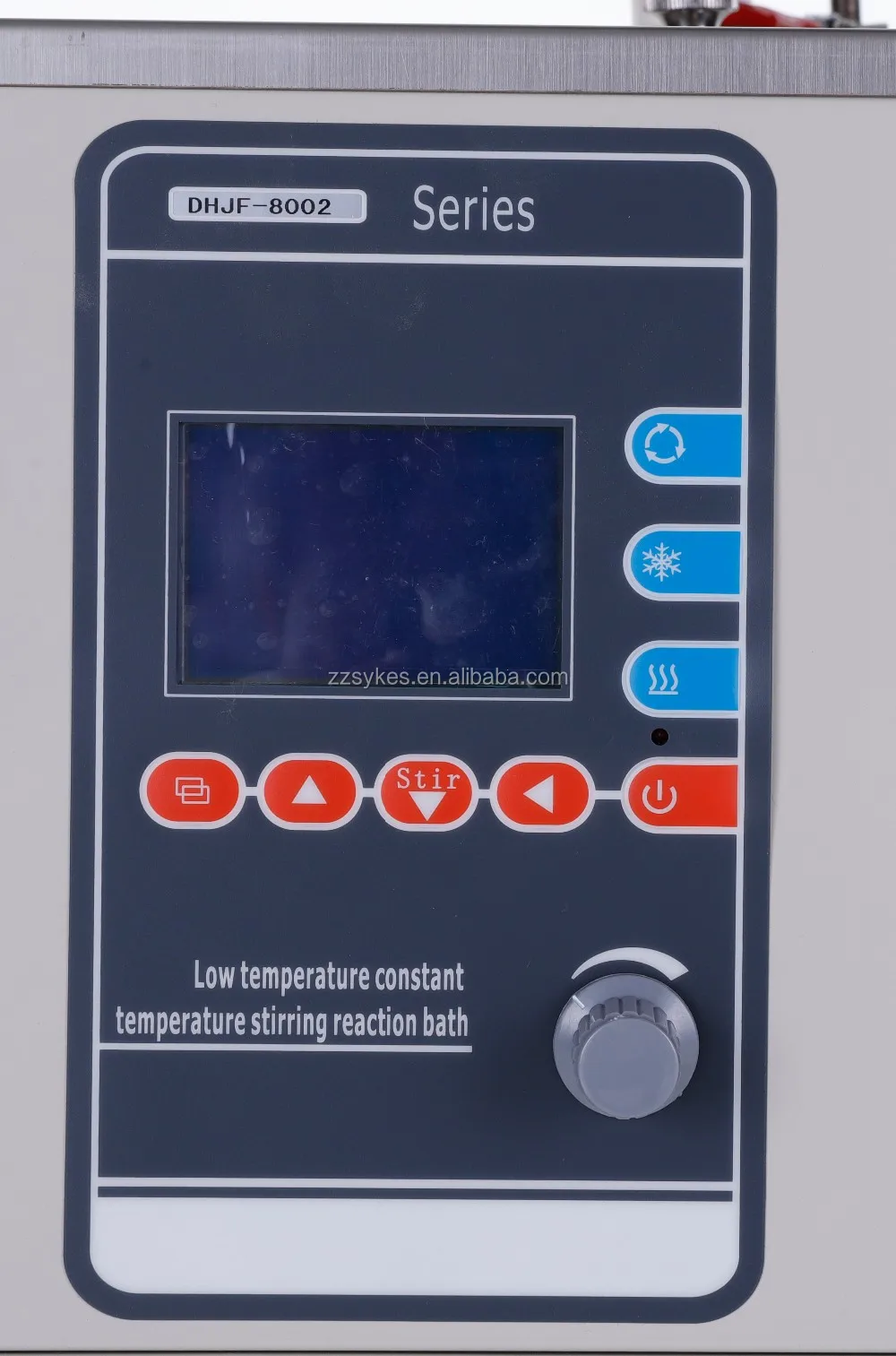

LCD Control Panel

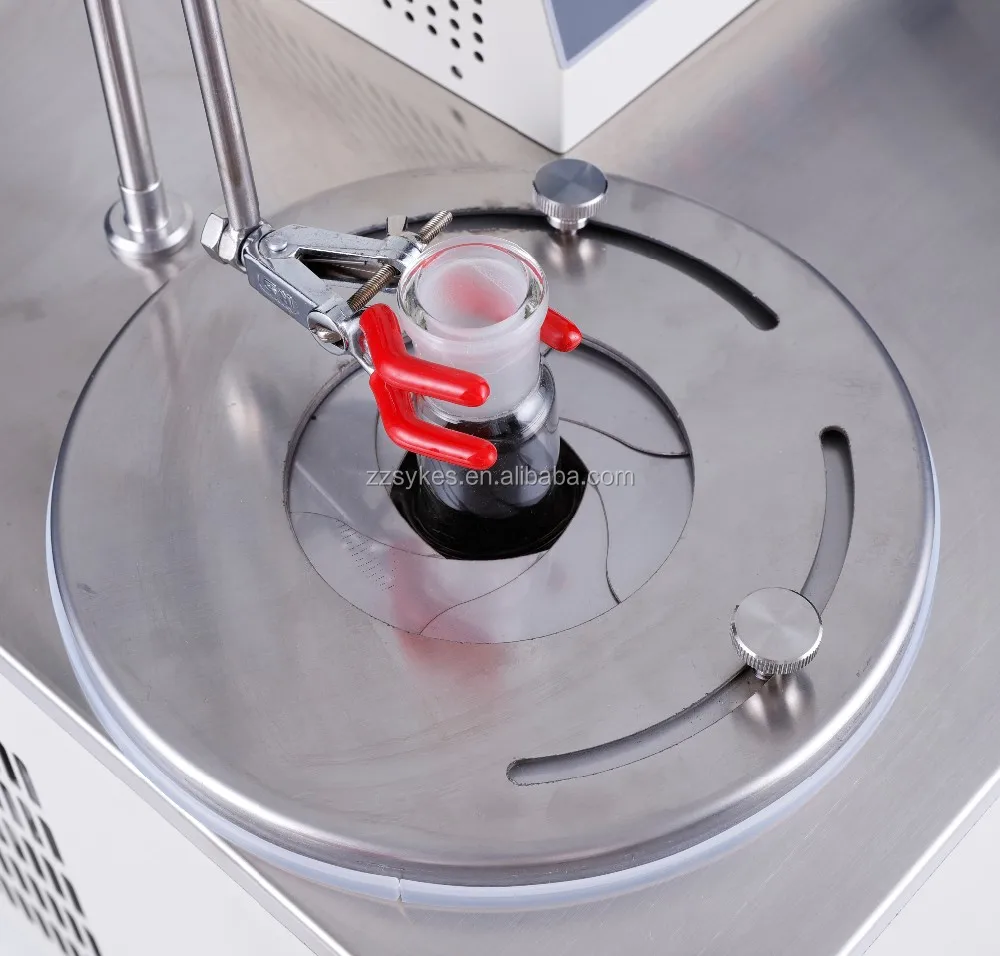

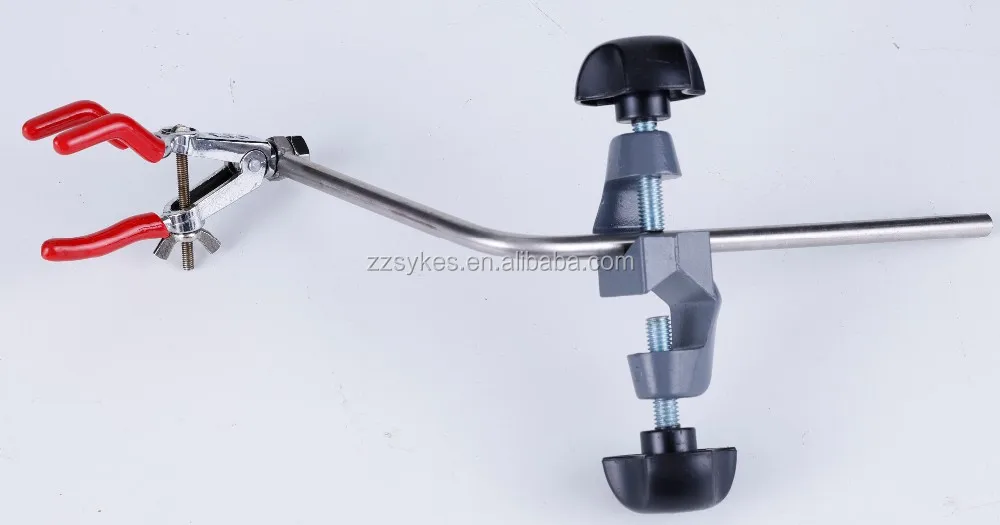

Flask Clamp

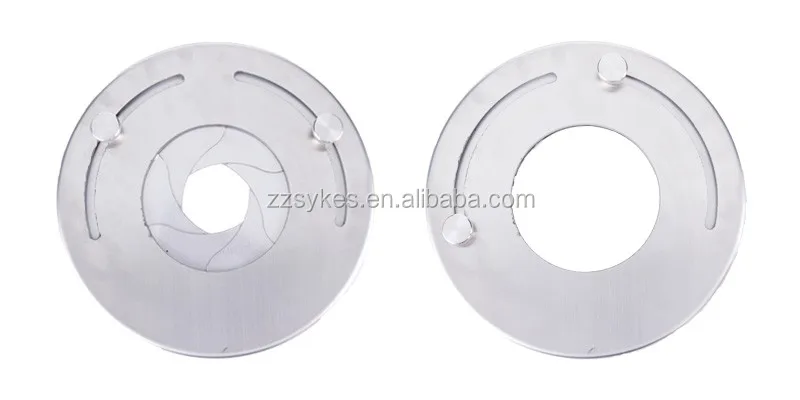

Flexible Cover

Flexible cover can be adjusted according to bottle size, reducing cold loss







Experiment Demo

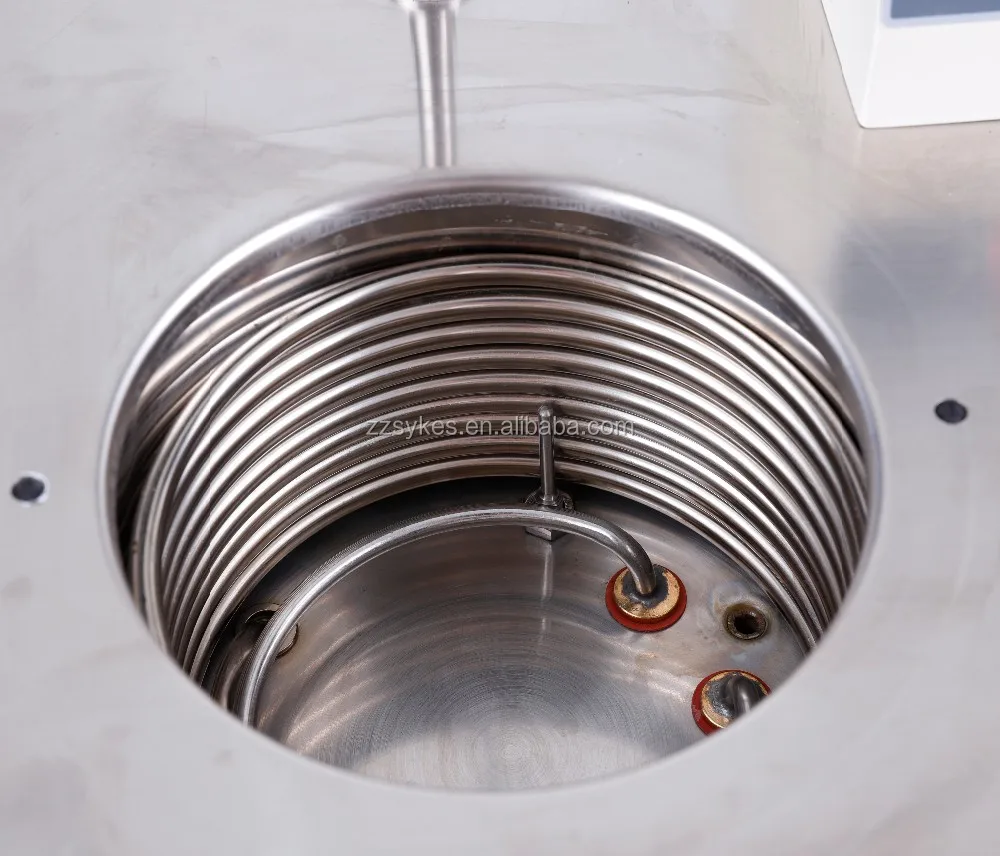

Stainless Steel Bath

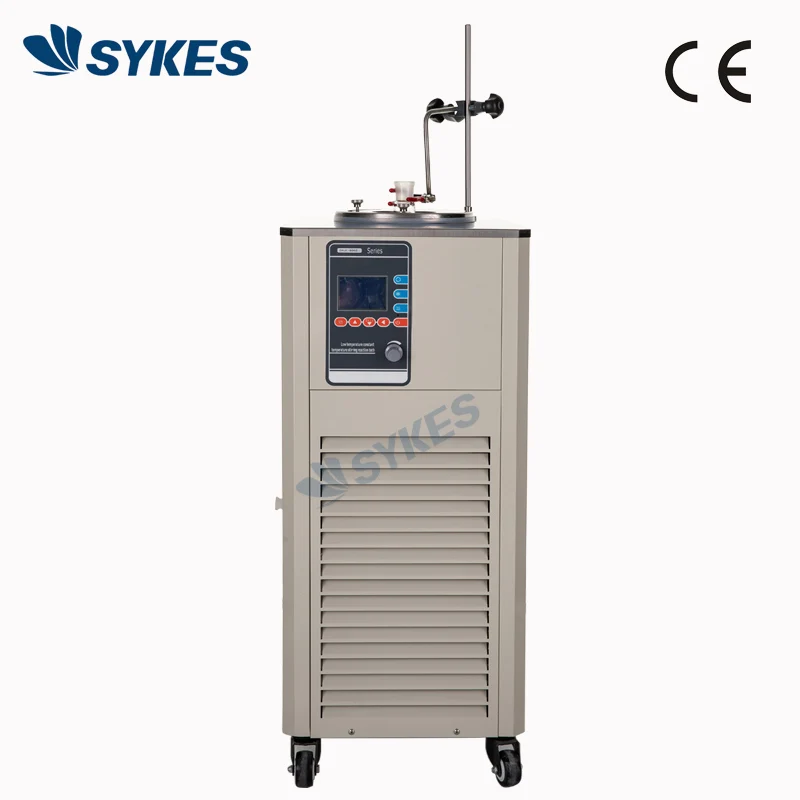

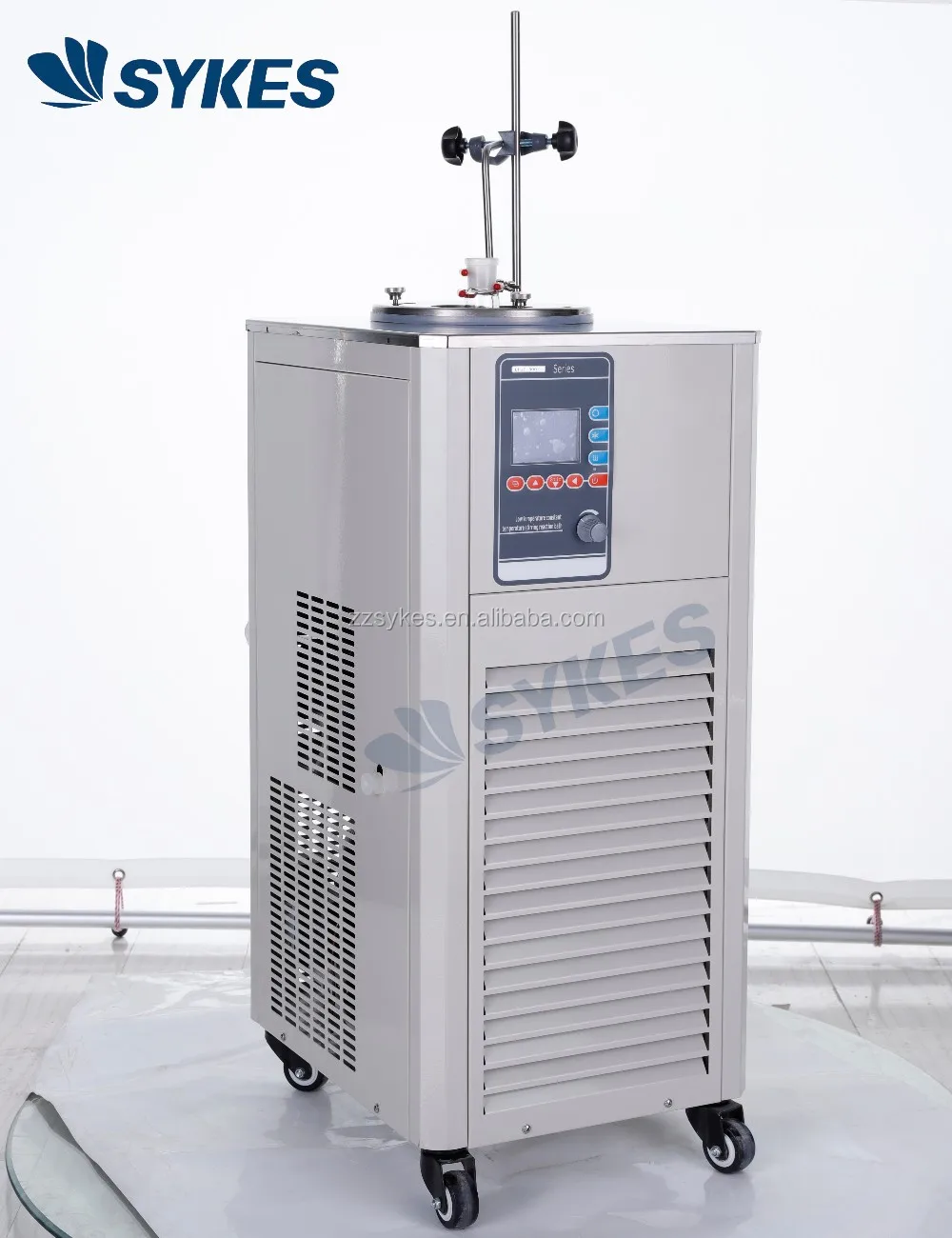

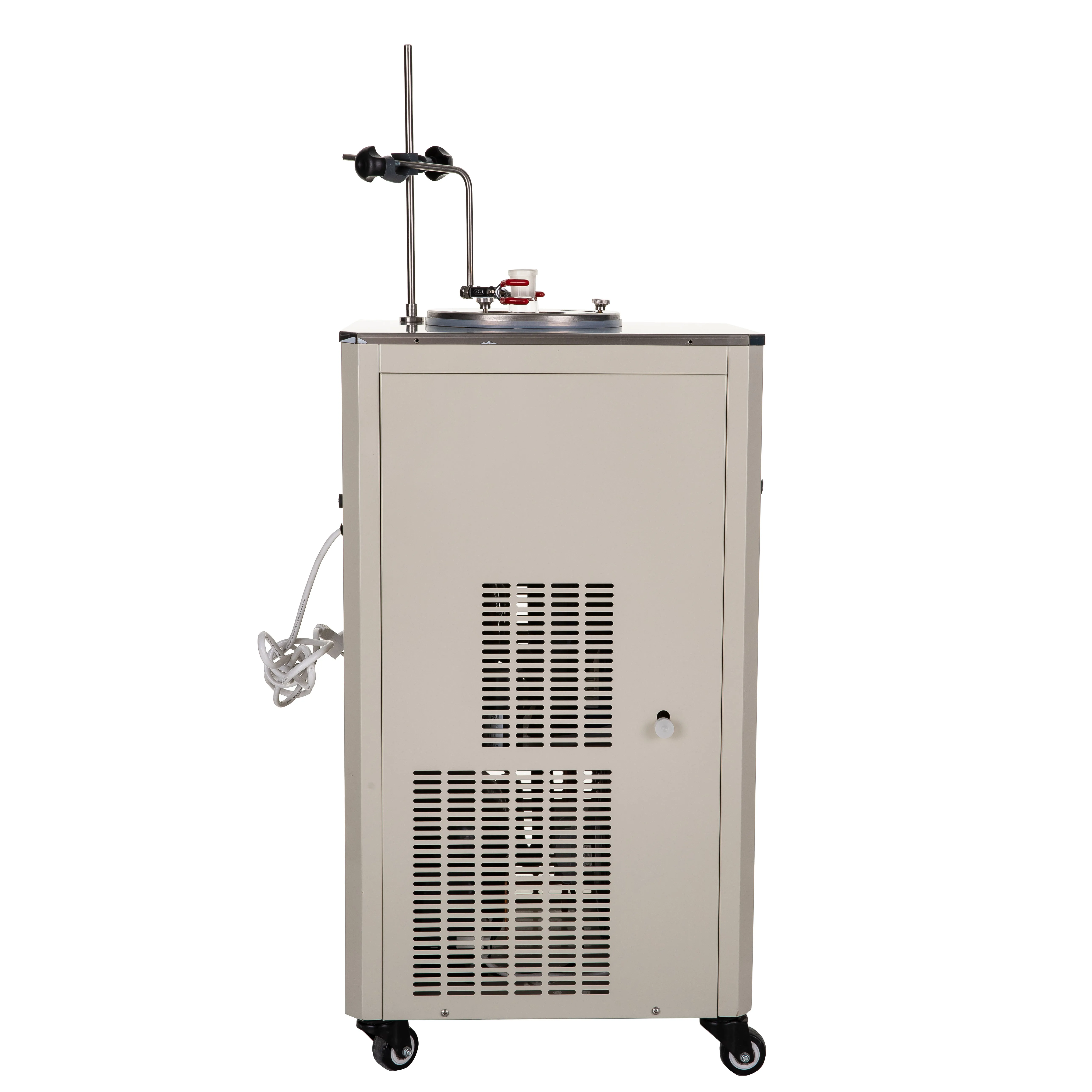

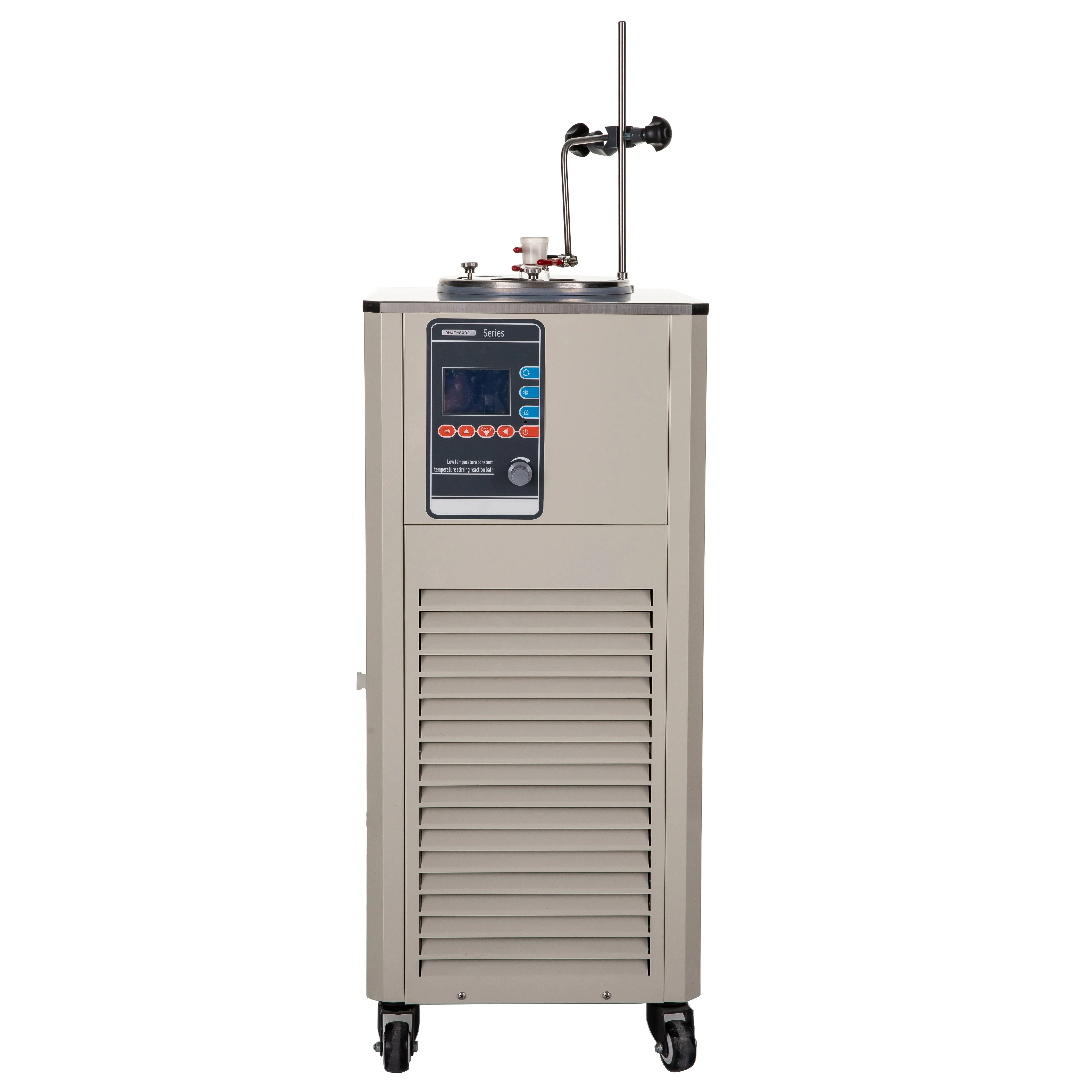

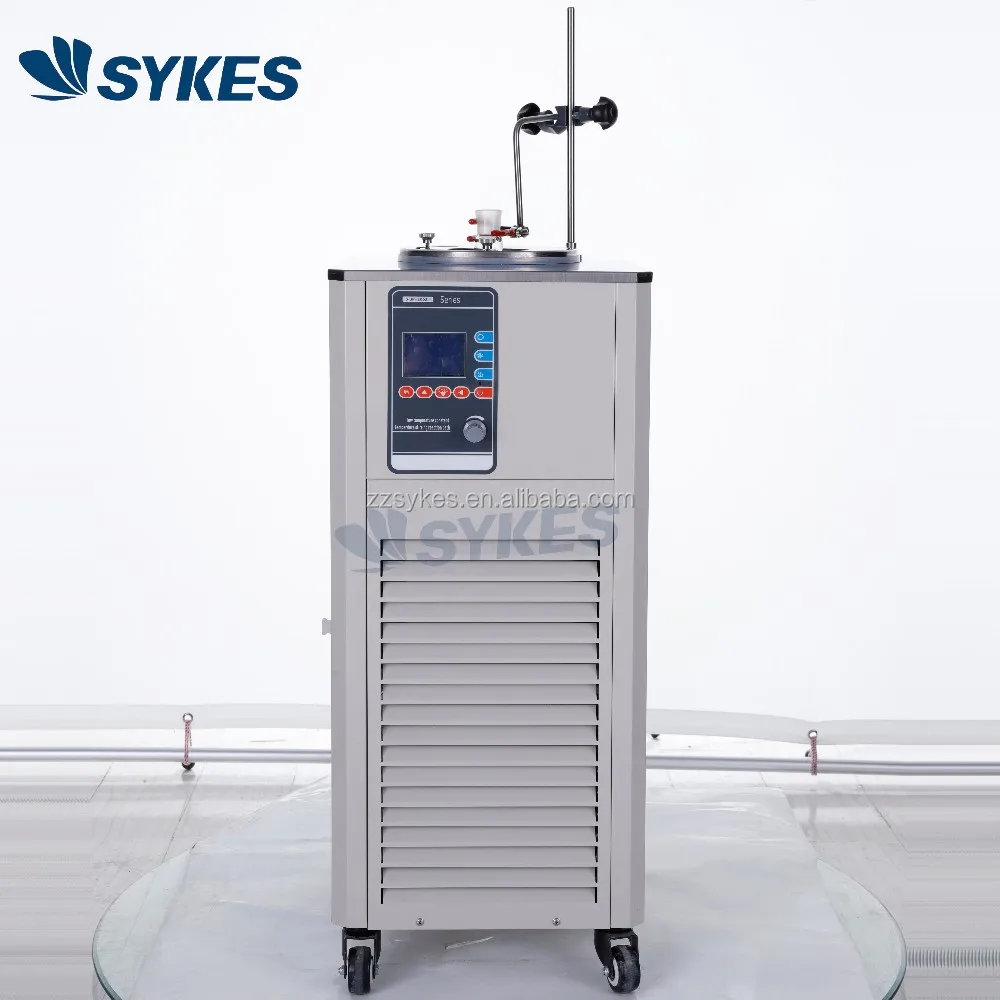

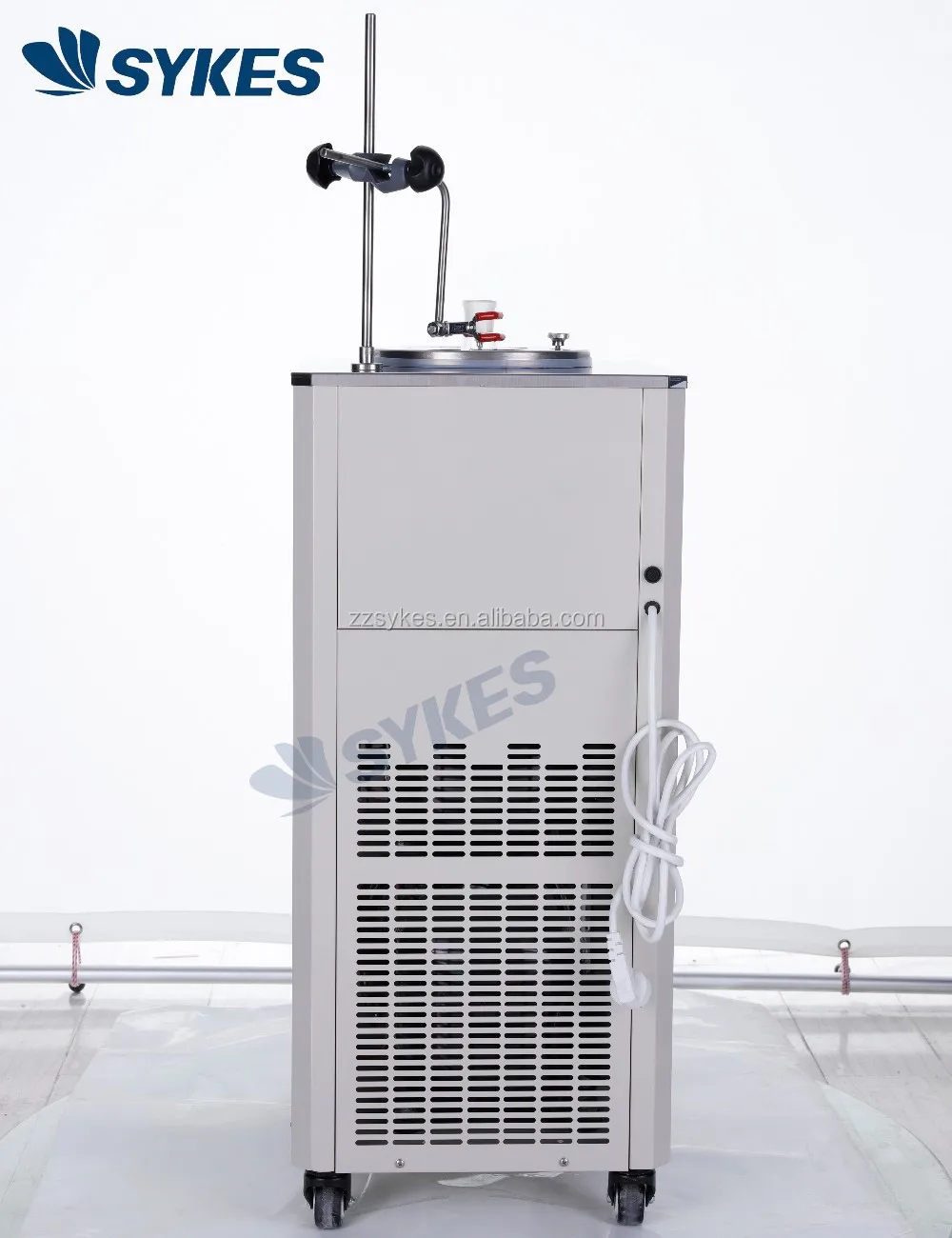

Actual Photo Show
