HTD 530-5M 535-5M 540-5M 545-5M 550-5M Timing belt

HTD 530-5M 535-5M 540-5M 545-5M 550-5M Timing Belt Replacement Pitch5mm(0.197″) ,Neoprene Rubber, Width
6mm,9mm,10mm,15mm(click here), 18mm,20mm 25mm,30mm or any width ,closed-loop 5M Timing Belt usually Fit For Laser machine,ngraving machine, Cutting machine, CNC machine,and so on.


Product Description


Product Features
Model Number
HTD 530-5M 535-5M 540-5M 545-5M 550-5M Timing belt
Material
Neoprene rubber with fiber glass core
Belt Height
3.80mm(0.15″)
Tooth Height
2.06mm(0.082″)
Pitch
5mm(0.197″)
Width
6mm,9mm,10mm,12mm,15mm,18mm,20mm,25mm, 30mm or customized
Customized
YES
Package
opp bag or carton box






Detailed Images

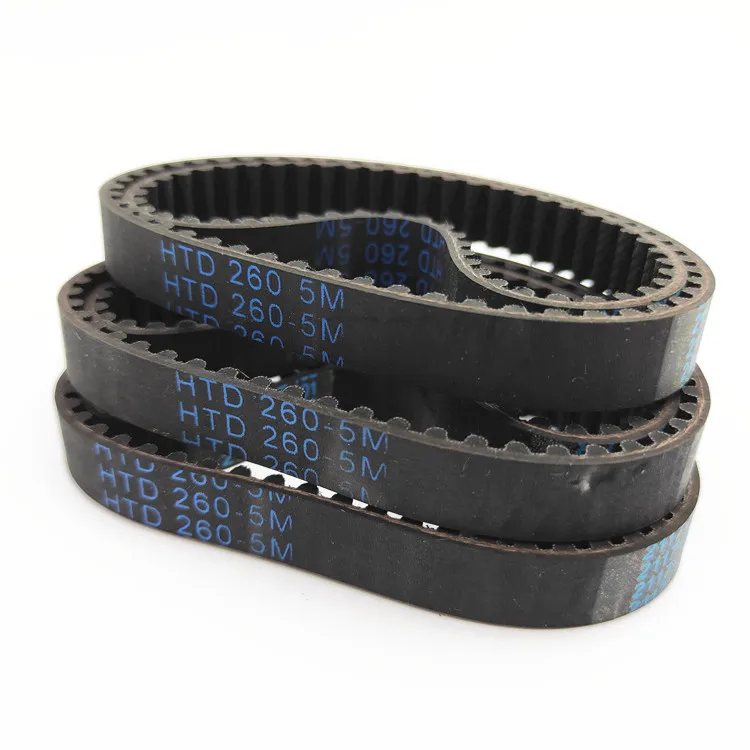

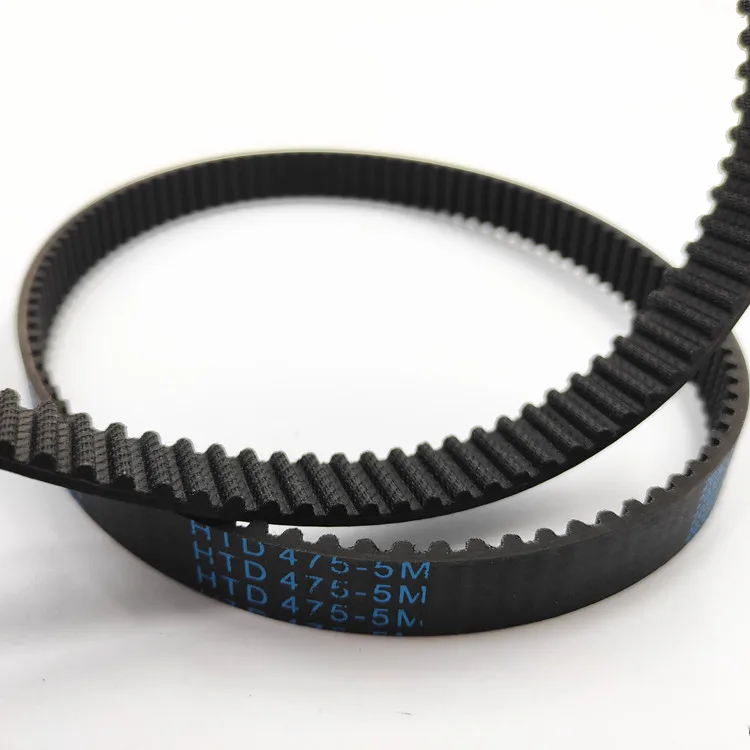

    • 5m tooth



Cut width as per request

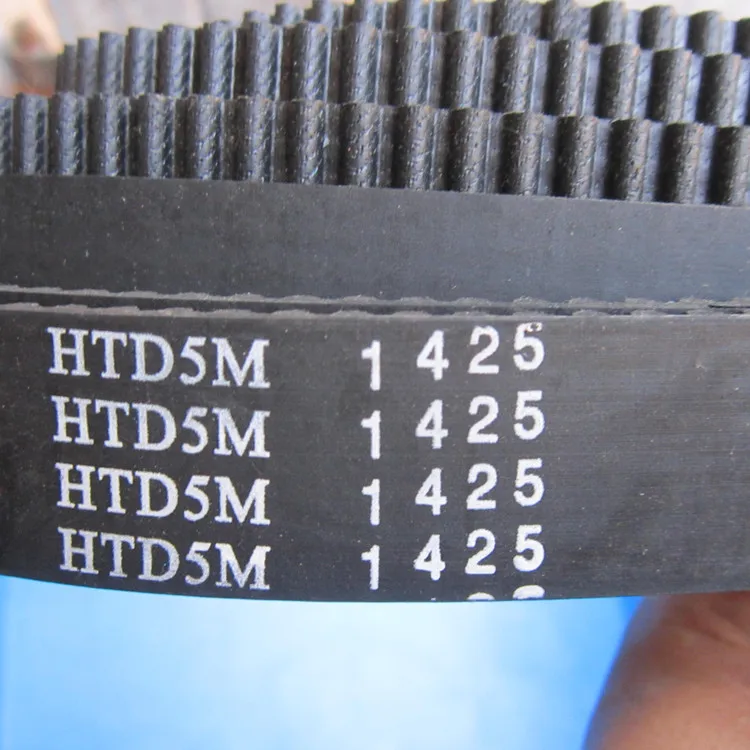

  • tooth details
