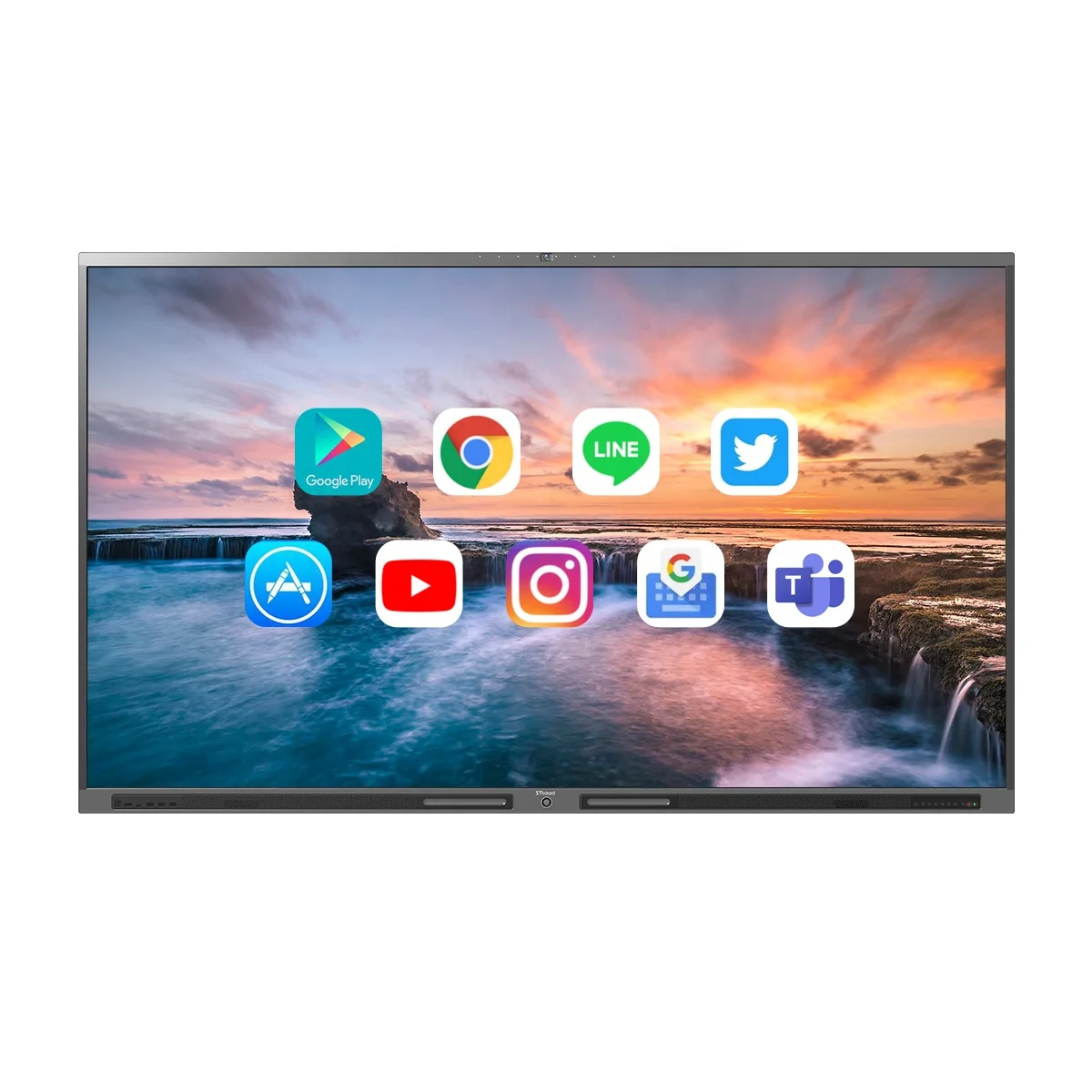

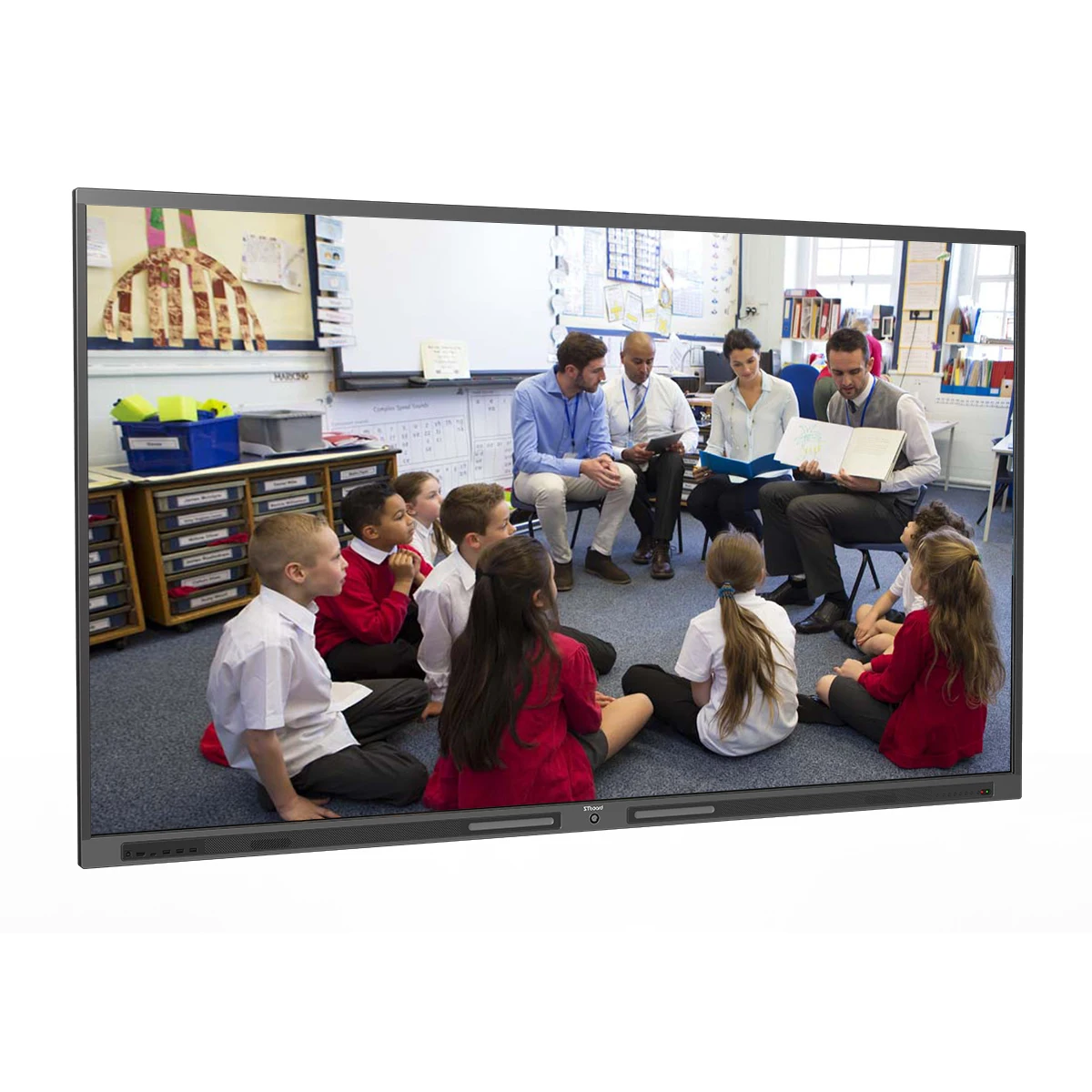

China 65inch 75inch 86inch Android 11.0 4k lcd led 86 Inch Pizarra Digital Pantalla Digital Pizarra Interactiva touchscreen
- Category: >>>
- Supplier: Shenzhen Heijin Industrial Manufacturing Co. Ltd.
Share on (1600560278812):
Product Overview
Description

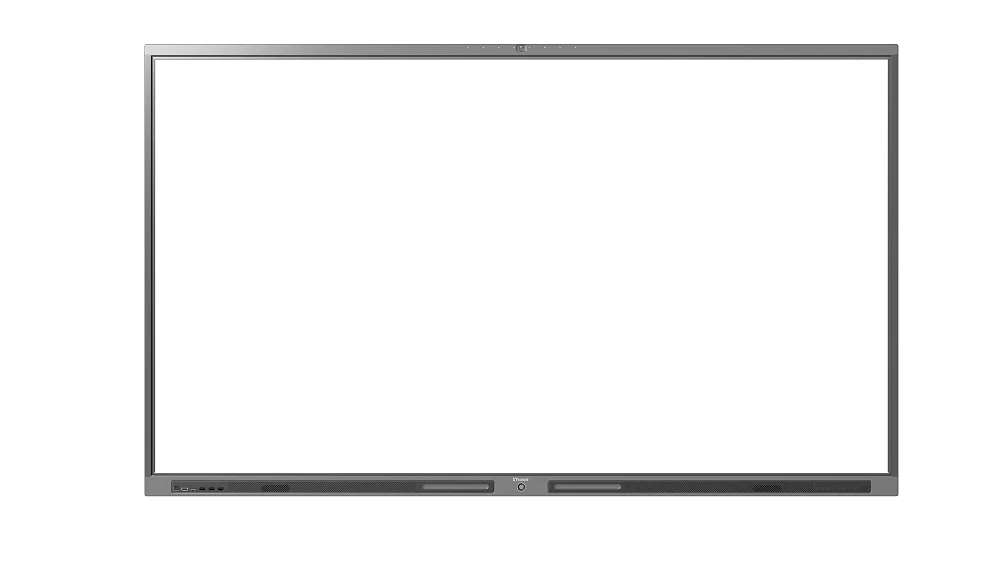

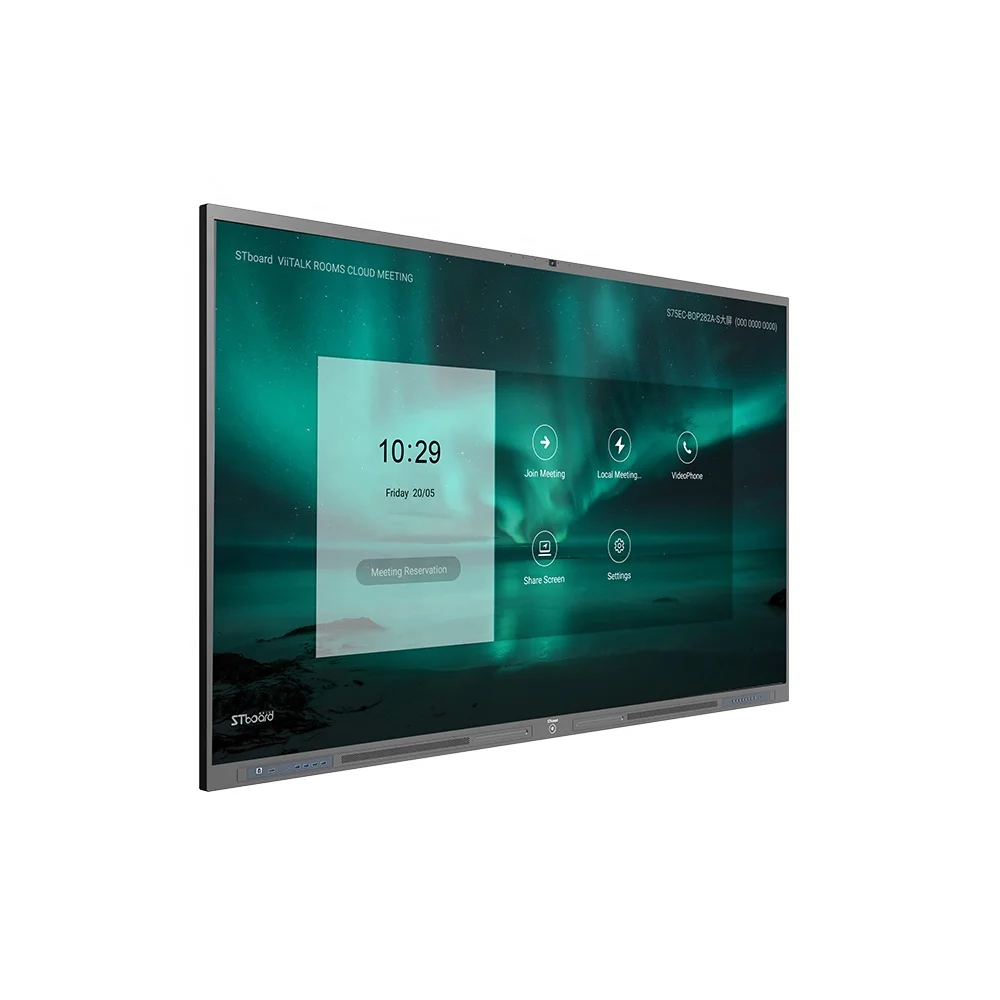

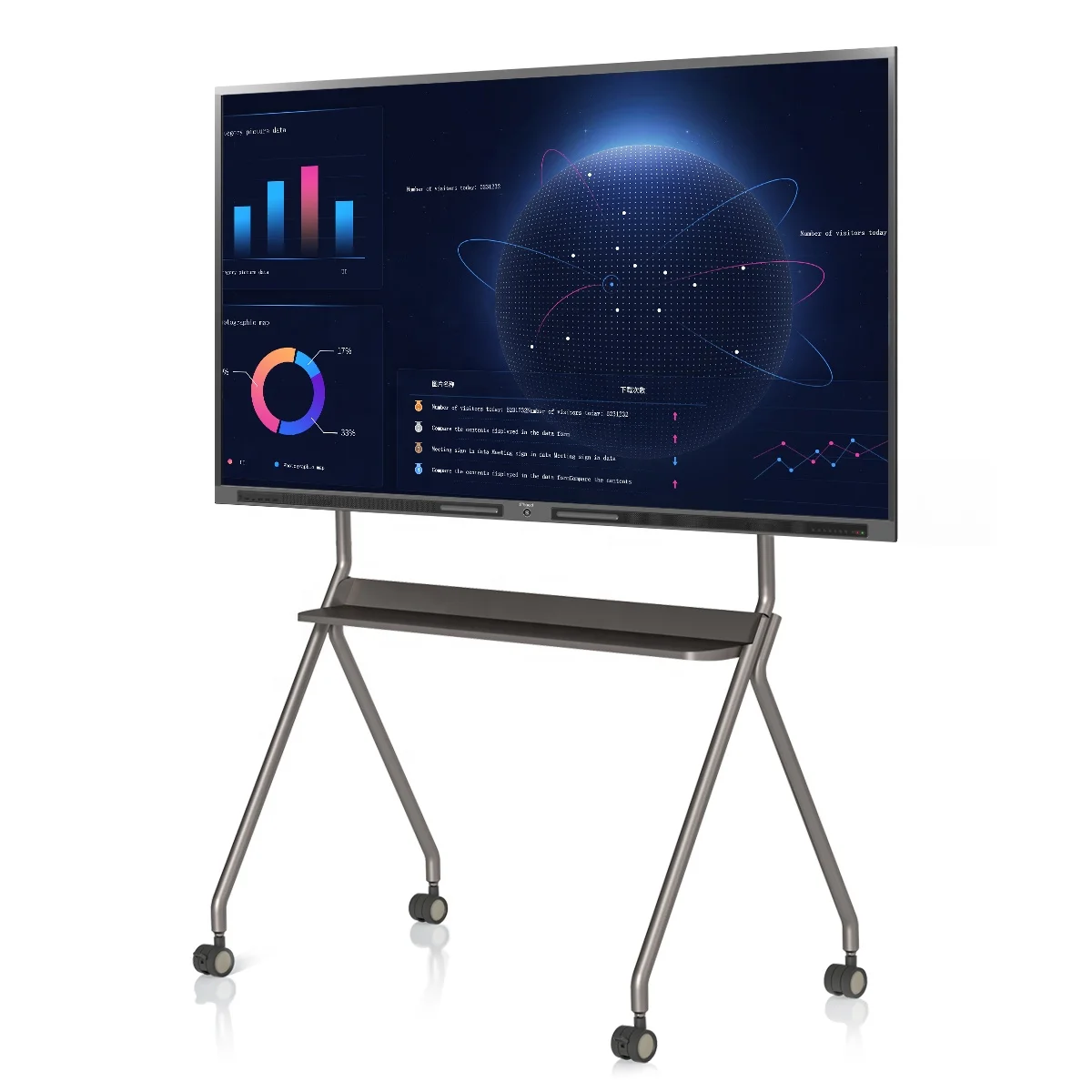

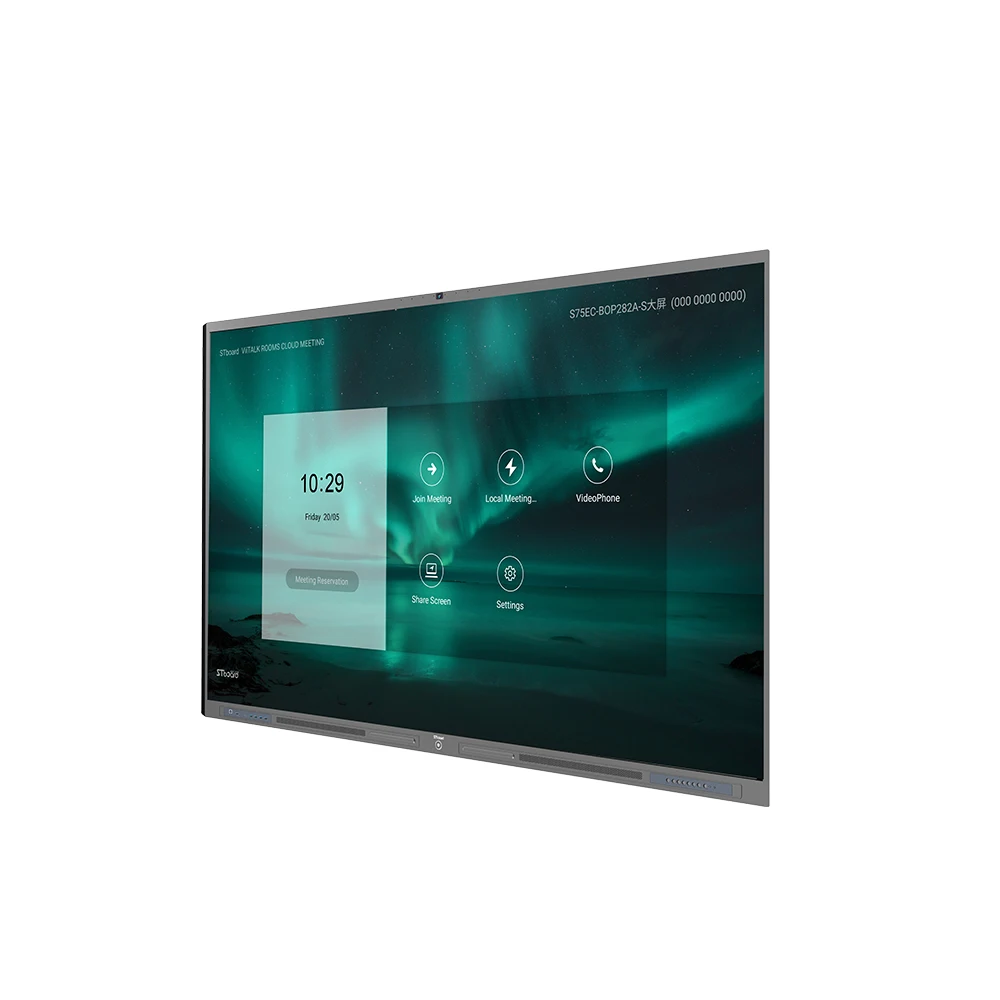

Interactive Flat Panel

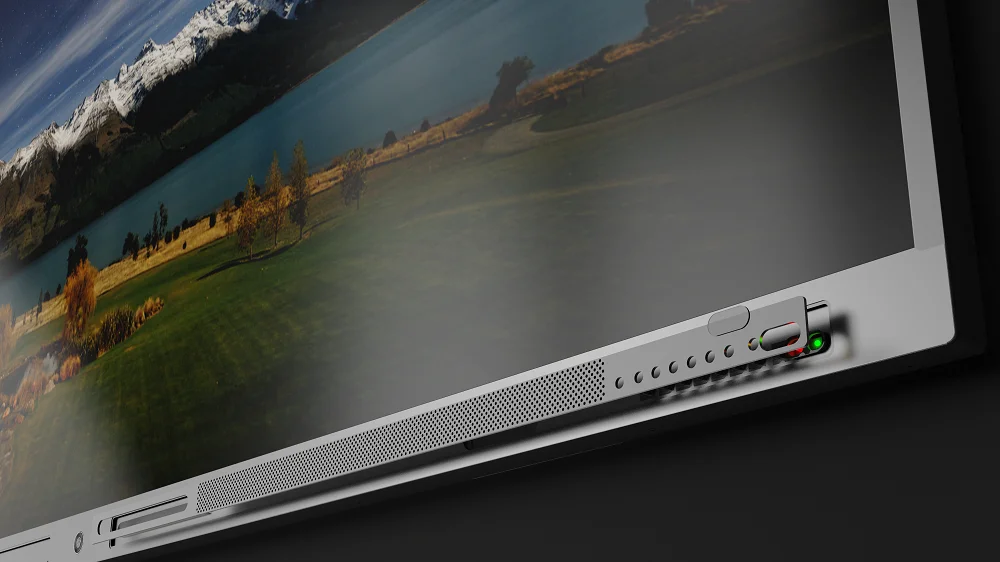

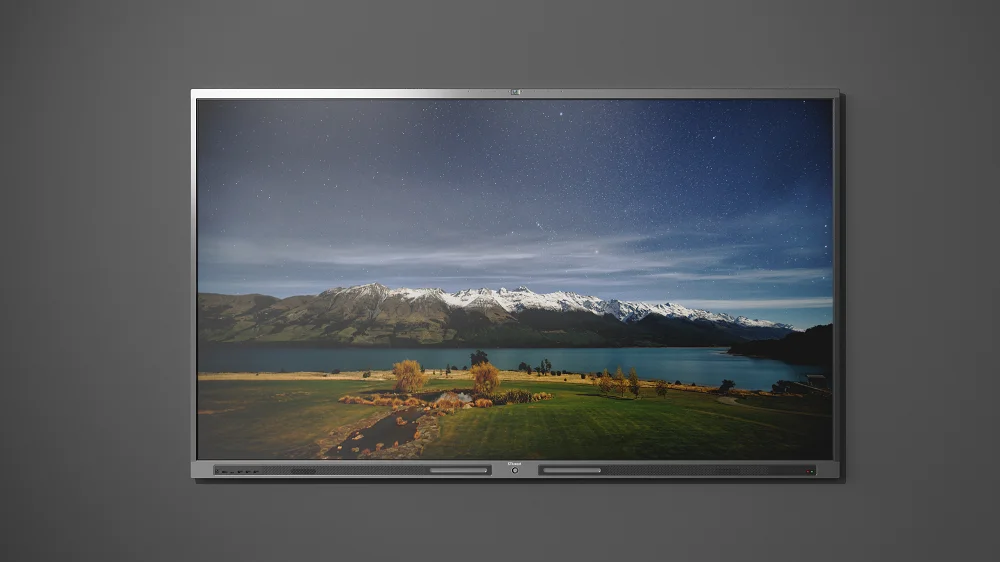

Fashion Appearance

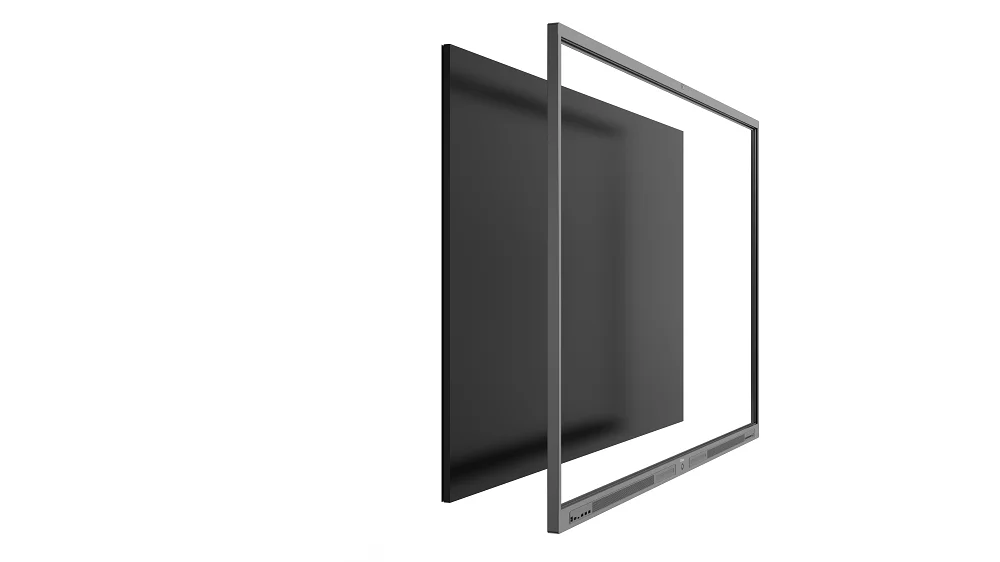

Aluminum alloy face frame, space gray,
ultra-narrow edge design; 55"/65"/75"/
86 "/98‘’

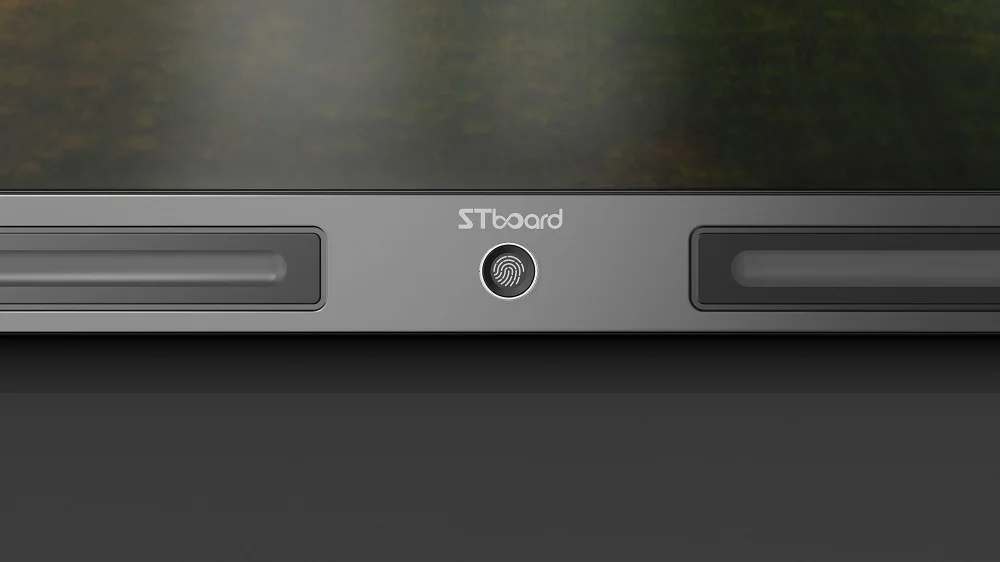

Fingerprint unlock; Camera Unlock
Air detection; Collective hearing aid
system
ultra-narrow edge design; 55"/65"/75"/
86 "/98‘’
Fingerprint unlock; Camera Unlock
Air detection; Collective hearing aid
system
High performance modular design
The integrated design of Windows and Android
systems
Whiteboard writing, multimedia playback and
intelligent recording of meeting contents
20-point touch +2mm fine pen technology,
smooth writing experience
systems
Whiteboard writing, multimedia playback and
intelligent recording of meeting contents
20-point touch +2mm fine pen technology,
smooth writing experience
Product Paramenters
Parameter | ||||||||||||
Screen Size | 65inch | 75inch | 85inch | 86inch | 98inch | |||||||
Whole Size (mm) | 1498x918x96 | 1723x1044x99 | 1965x1180x99 | 1965*1180*99 | 2212x1305x106 | |||||||
Packing Size (mm) | 1660x1065x225 | 1875x1185x225 | 2115x1325x225 | 2115*1325*225 | 2435x1490x275 | |||||||
NW (KG) | 45 | 58.5 | 77 | 77 | 92 | |||||||
GW (KG) | 59 | 73.5 | 95 | 95 | 125 | |||||||
Shell Material | Aluminum alloy frame, aluminum back shell | |||||||||||
Color | The default front frame is black (optional silver gray) and black back shell | |||||||||||
System version | Android 11.0 | ||||||
Main chip | T982 | ||||||
CPU | Quad-core ARM A55 1.92Ghz | ||||||
GPU | Mali-G52 MP2 | ||||||
DDR SIZE | 4GB/8GB | ||||||
eMMC Flash | 32GB/64GB/128GB | ||||||
OSD language | Multi-lingual（26 national languages） | ||||||

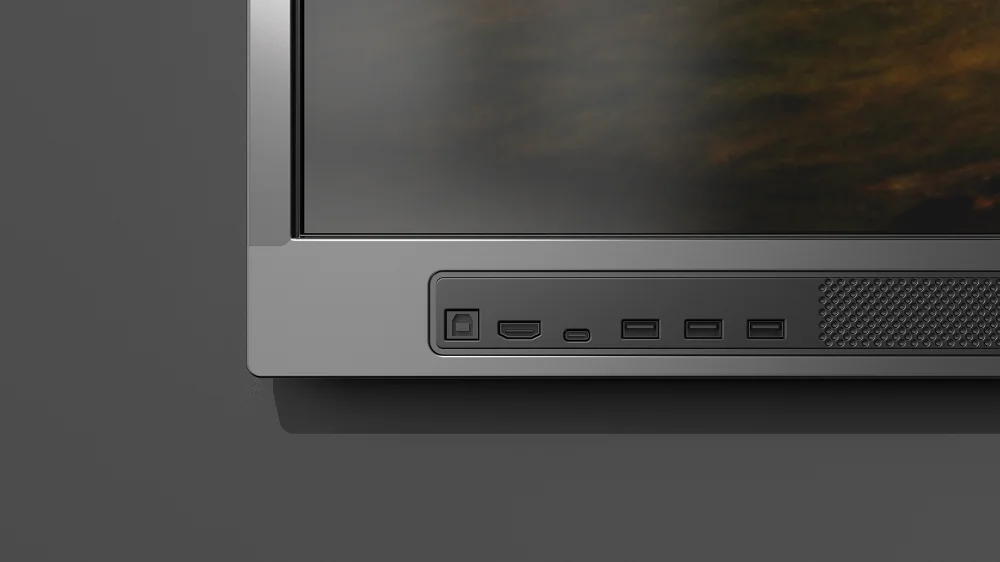

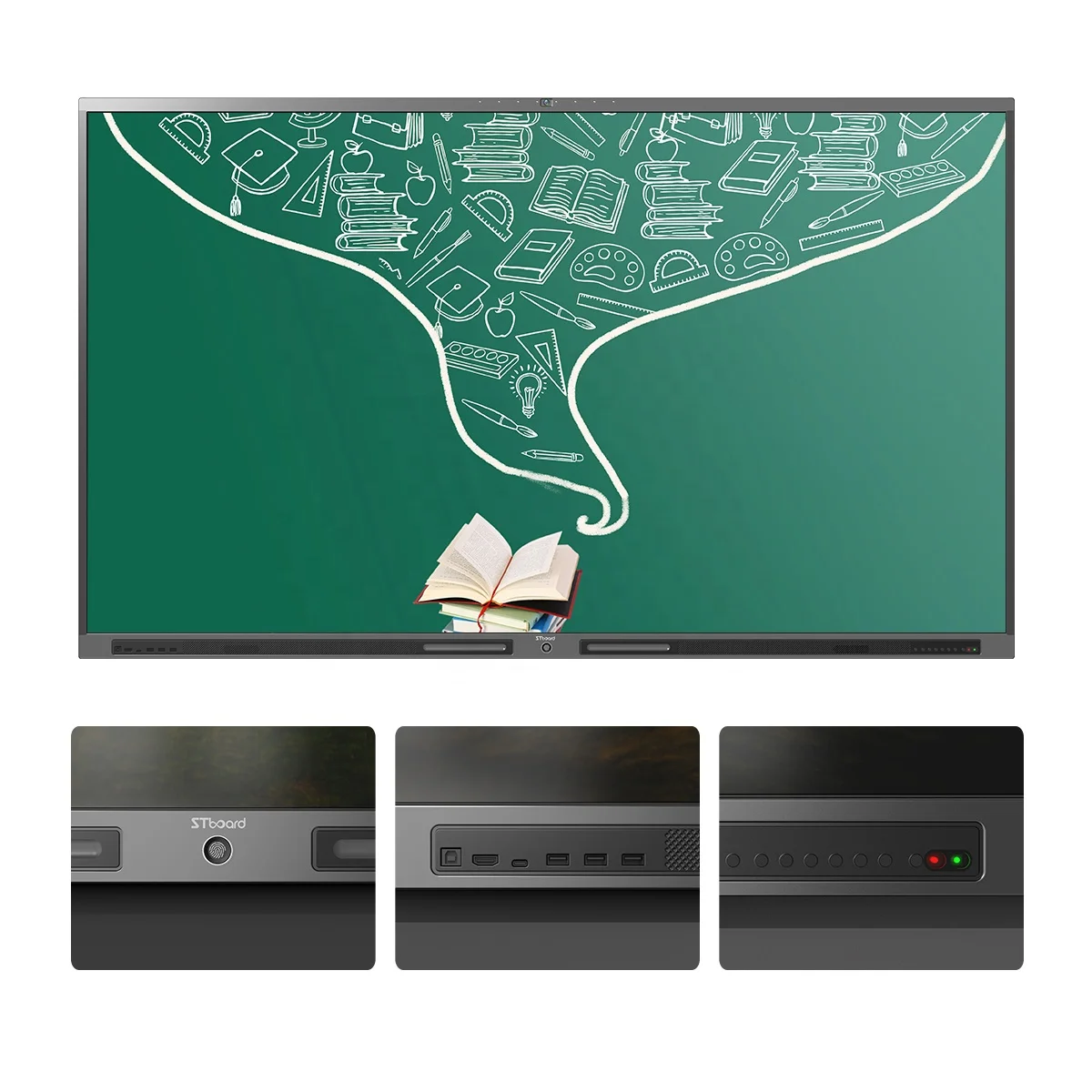

Front interface | USB TOUCH*1，HDMI IN*1，USB 3.0*3，Type-c | ||||||
Side interface | USB2.0 ，USB3.0 x2，RS232 ，HDMI ，HDMI ，SPDIF，DP,TYPE-C,MIC IN,HDMI OUT | ||||||
Bottom interface | Touch USB， RJ45in， RJ45out， AV IN ，AV OUT， Audio in ，VGA， EARPHONE | ||||||
Display Specification | ||||||||||||
Display size (mm) | 1428x804 | 1650x929 | 1872x1053 | 1895*1066 | 2159 x1215 | |||||||
Backlight type | DLED | |||||||||||
Resolution | 3840 * 2160 | |||||||||||
Brightness | 450cd/㎡ | |||||||||||
Dynamic contrast | 5000:1 | |||||||||||
Viewing angle | 178° | |||||||||||
Screen ratio | 16:9 | |||||||||||
Display color | 10Bit/1.07Billions | |||||||||||
Refresh rate | 60Hz | |||||||||||
Life time | 50000 hours | |||||||||||
Touch parameter | ||||||||
Touch panel | 4mm ordinary explosion-proof glass/AG anti-glare glass | |||||||
Touch technology | Infrared/capacitive touch | |||||||
Touch points | Android 20 points，Windows 40 points | |||||||
Touch resolution | 32768 * 32768 | |||||||
Touch accuracy | 2mm | |||||||
Response time | 5ms | |||||||
Write Methods | Finger or non-transparent object | |||||||
Power | ||||||||
Input Power | AC 180-240V 50/60Hz | |||||||
Power consumption | 240W | 320W | 350W | 380W | ||||
Optional Configuration | ||||||||

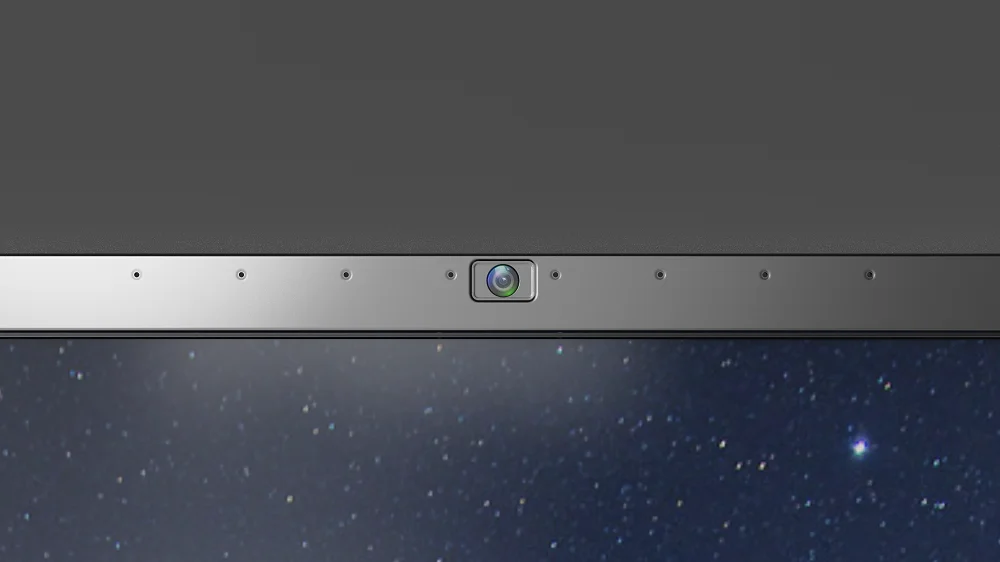

Camera, Fingerprint, Hearing Loop, Light Sensitive | ||||||||
Product Details
Combine the multi-function together

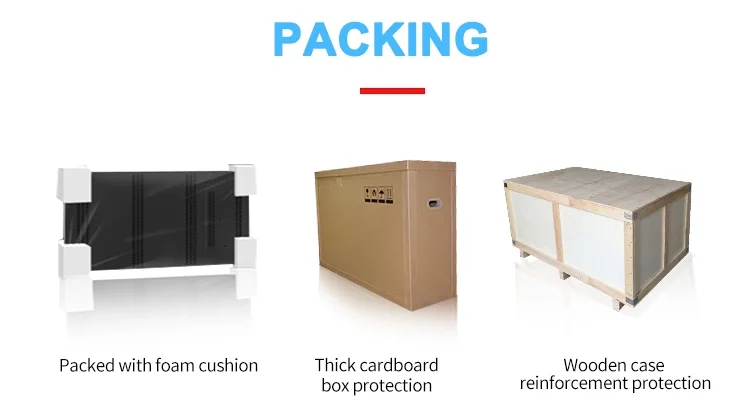

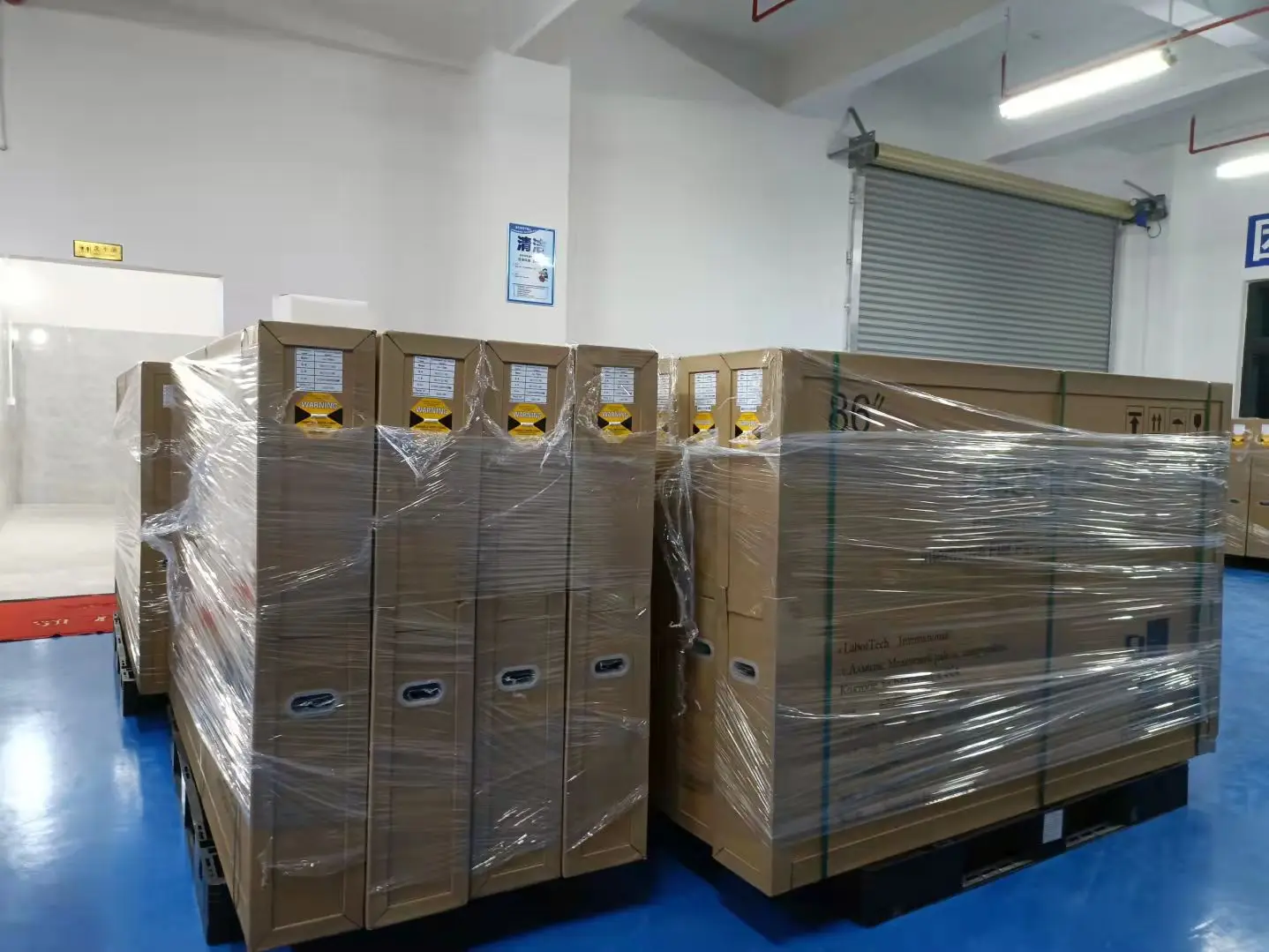

PACKING & SHIPPING

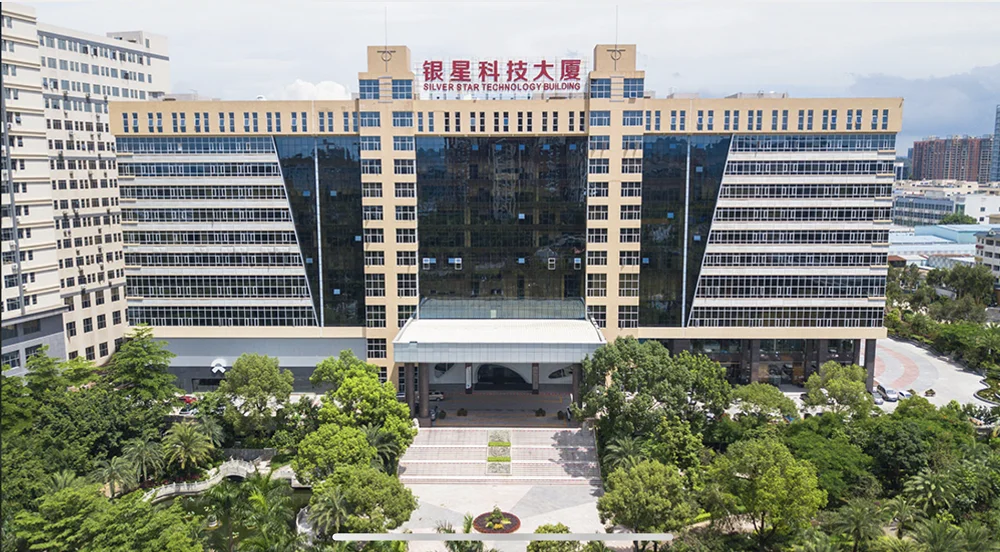

Company Profile
Shenzhen Heijin Industrial Manufacturing Co.,Ltd
Shenzhen Heijin Industrial Manufacturing Co., Ltd. is a high-tech enterprise focusing on providing comprehensive and systematic
digital home solutions and services for global users, focusing on the new generation of ultra-high-definition video industry,
smart education, campus security, conference equipment, audio and video solutions, etc. Layout of strategic emerging industries.
digital home solutions and services for global users, focusing on the new generation of ultra-high-definition video industry,
smart education, campus security, conference equipment, audio and video solutions, etc. Layout of strategic emerging industries.
Our Activity
Exhibition

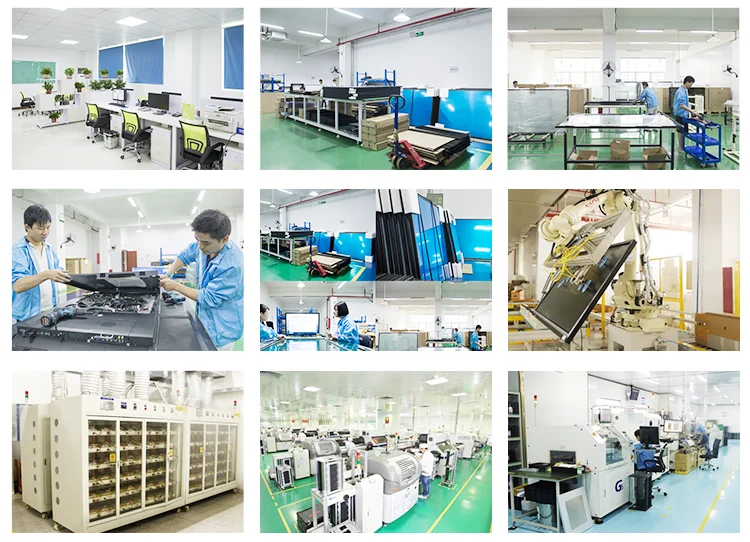

Workshop
Certification
Contact Us
FAQ
FAQ:Q1: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution
for you.
Q2: What's your MOQ?
A: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per customized
products, please contact us for further confirmation.
Q3: What's the lead time?
A: Mass order: 7--15 days depending on order quantity. Sample: 1 day when there is stock, 7-15 days for custom design.
Q4: What's your guarantee for the products?
A: All our products have 3-years guarantee from the shipping date.
Q5: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card,etc.
Q6: Return Policy?
A: For shipping destroy issue, we can arrange the new shipping soon once customer confirm the destroy with us.
A: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution
for you.
Q2: What's your MOQ?
A: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per customized
products, please contact us for further confirmation.
Q3: What's the lead time?
A: Mass order: 7--15 days depending on order quantity. Sample: 1 day when there is stock, 7-15 days for custom design.
Q4: What's your guarantee for the products?
A: All our products have 3-years guarantee from the shipping date.
Q5: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card,etc.
Q6: Return Policy?
A: For shipping destroy issue, we can arrange the new shipping soon once customer confirm the destroy with us.
