Flat yarn extruder Tape extrusion line PP Woven Bag Making Machine

Product Overview

Description

PP Flat yarn extruder Tape extrusion line



Performance and Characteristics:

This machine is suitable for not only new PP raw material but also PP recycling materials.

The machine using material of polypropylene & high density polyethylene, through heating extruding and drawing makes tape that is then winded for the weaving of thecircular loom.

Through our sustained improving , the machine can use 100% regenerated PP & PE ,powder or grain PP & HDPE to produce tapes .The screw and cylinder of extruder are of 38 CrMoAIA alloy steel, the hardness is over HV 950 after nitrogenation treatment. Helical gear reducer made of 20 CrMnTi Tially steel is applied to the extruder, the gears & chain wheels are made of 45# medium carbon steel and done the treatment of high frequency quench.The driving rollers are plated with hard Cr, tension self-controlling of winding-rollers are applied to the driving unit.



Main Technical Parameters:

Type	LSJ-120/1000
Diameter of  screw(mm)	125
L/D Ration of screw	24:1
Rotational speed of screw(r/min)	20-80
Width of die(mm)	1000
Motor power of extruder(kw)	30
Heating power of extruder(kw)	80
Power driving motor(kw)	3-5.5
Heating power of the oven(kw)	35
Thickness of Tape(mm)	0.025-0.08
Capacity(kg/h)	50-100

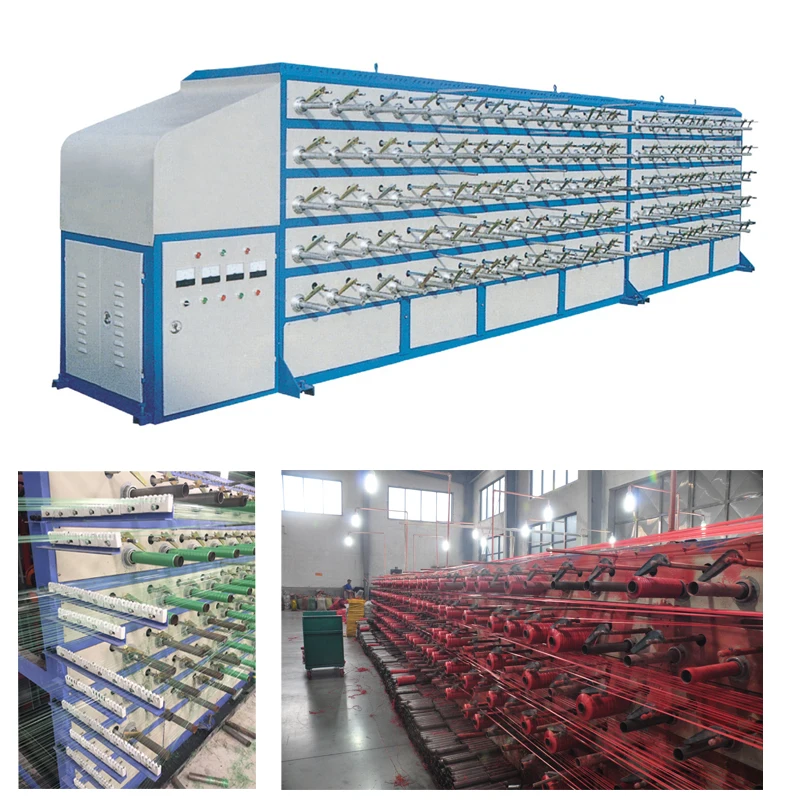

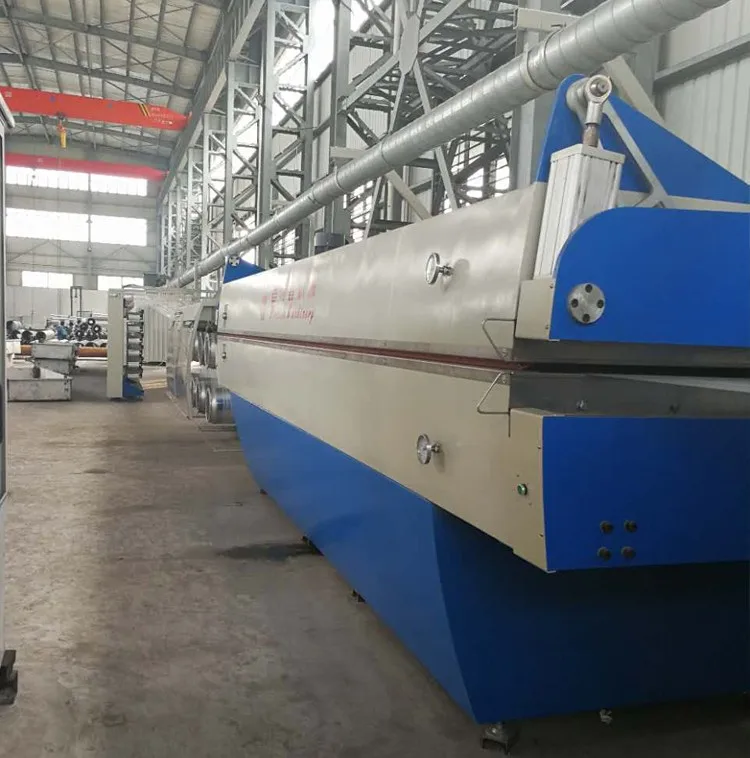

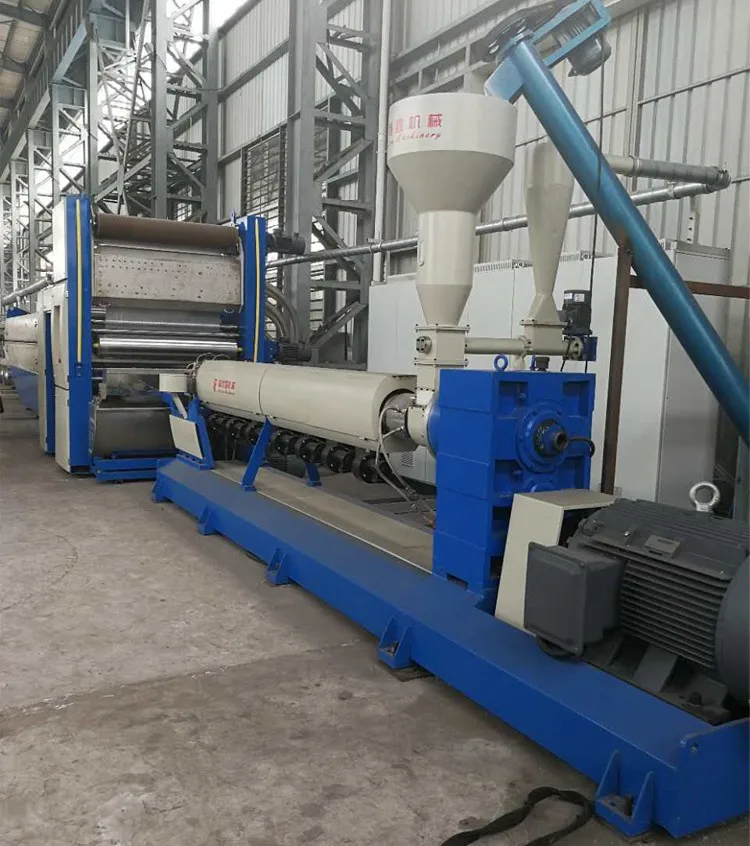

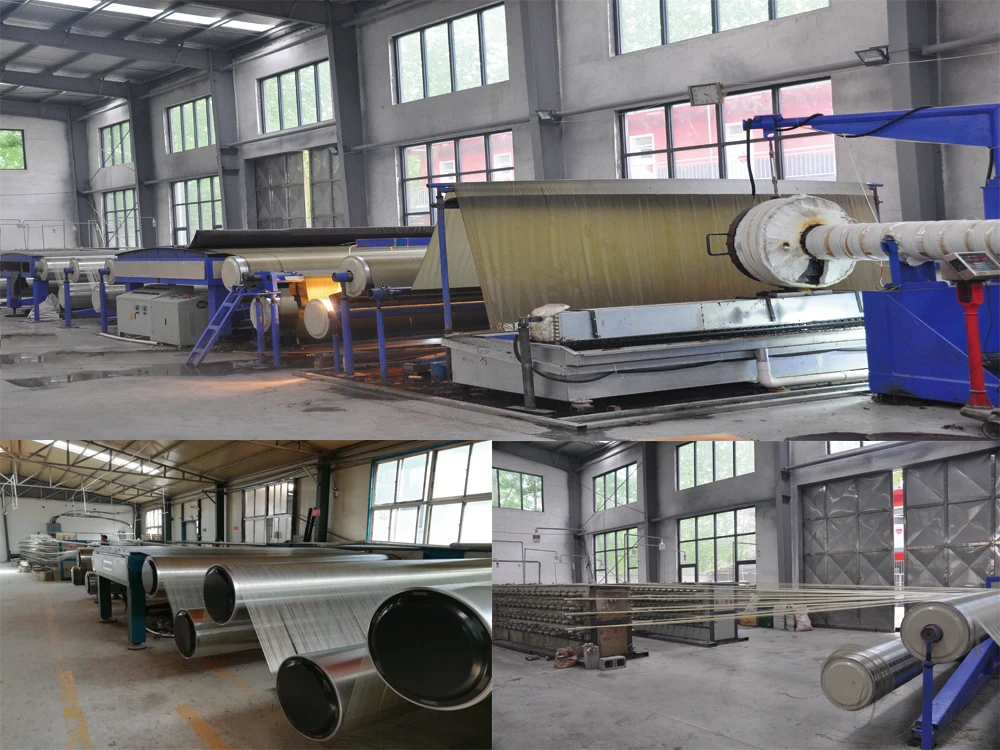

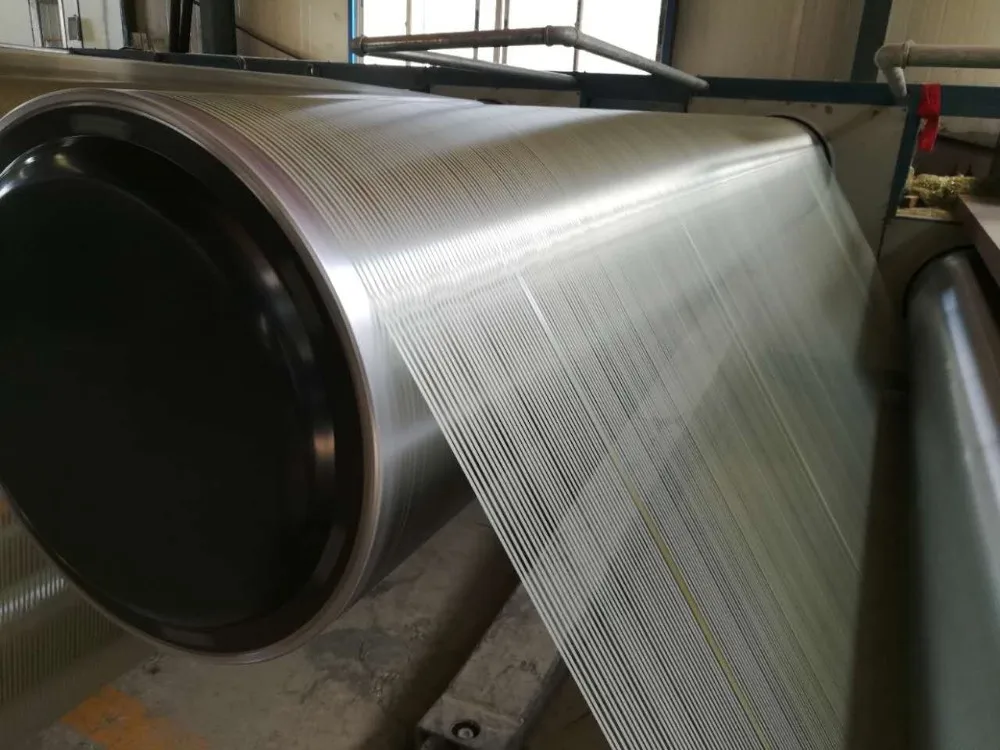

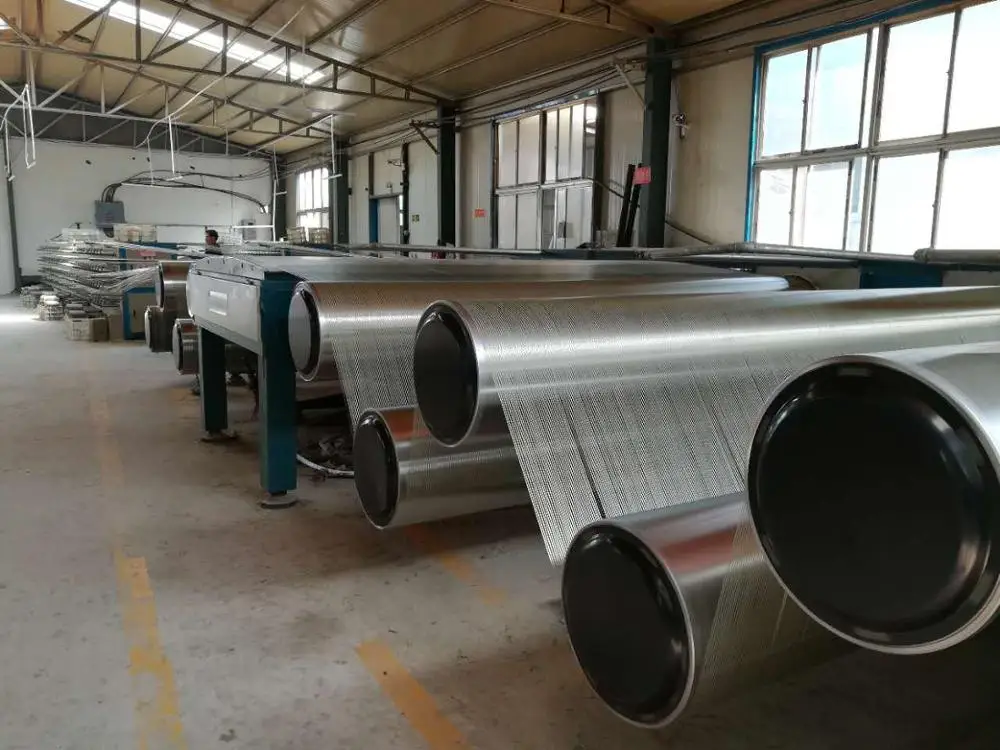

Machine Pics:
