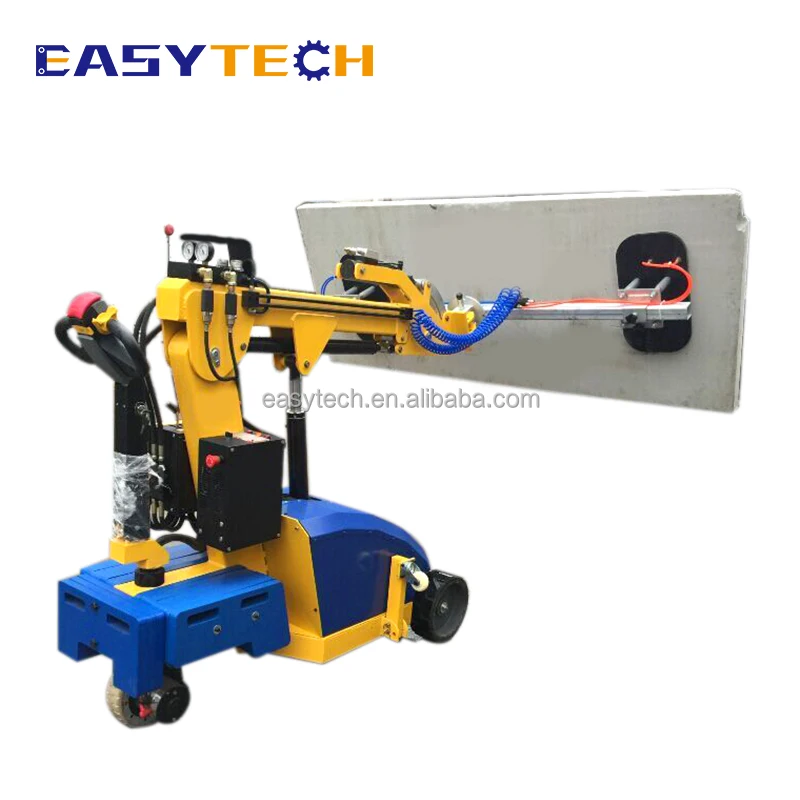

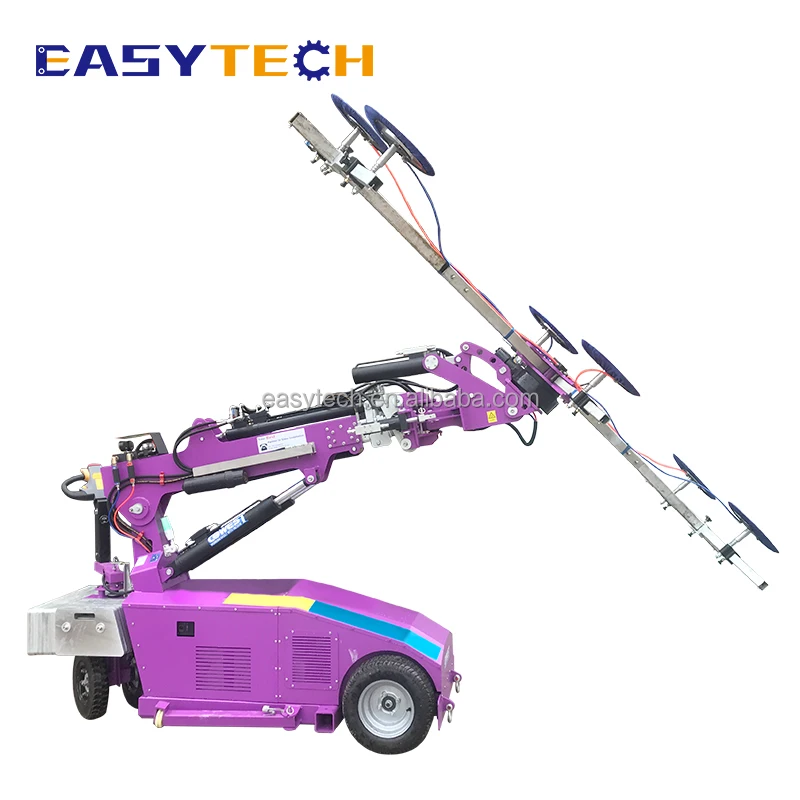

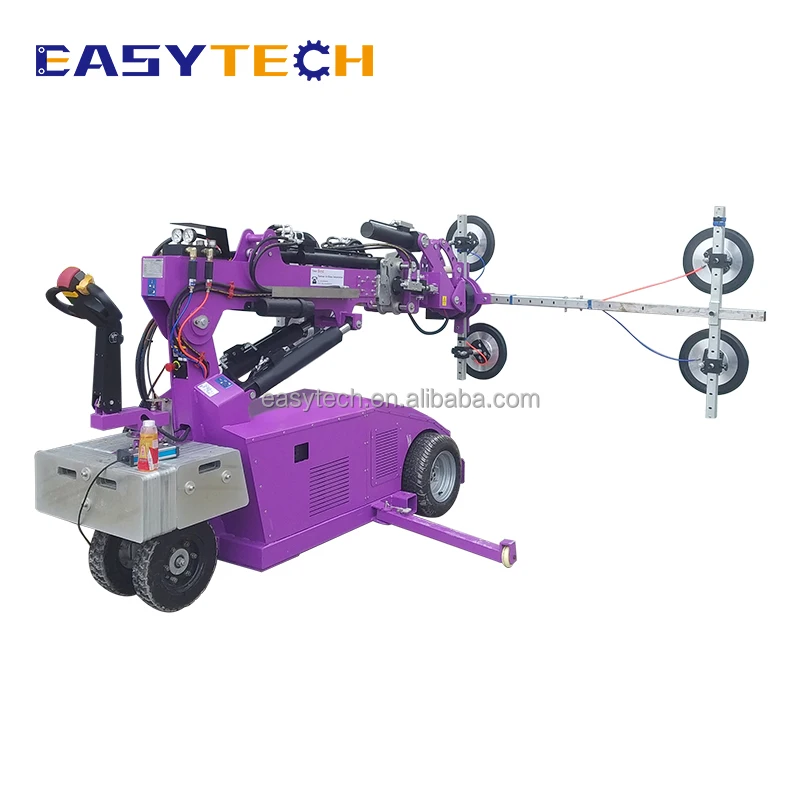

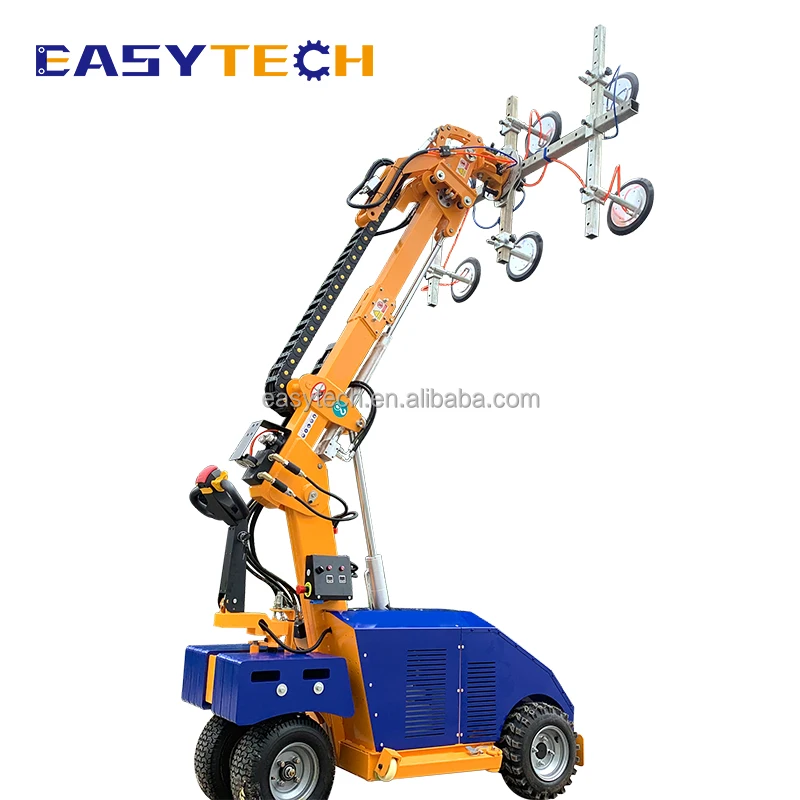

Installation robot manipulator insulating glass lifter for machine new glass lifter vacuum suction cup lifting equipm

Product Overview

Description



Our solutions can be optimized for different customer requirements and environments. With a series, with columns of suckers and grips, vacuum lifter can grasp, lift and carry almost anything, packages include: parcels, luggage, sacks, bags, sheets, glass, casks, barrels, bottles, food, stones, the Windows, etc.

Flexible solutions are available in almost every case...



Almost everything can be lifted

With custom-made tools we can solve your specific needs. Please contact us for more information



Model NO.	EST-600	EST-800L	EST-800/ES
Maximun loads	600kg/400kg	800kg/600kg	800kg/350kg
Batteries	2*DC12V,150Ah	2*DC12V,150Ah	2*DC12V,160Ah
Endurance time	20 hours	20 hours	20 hours
Charging time	8 hours	8 hours	8 hours
Charging power	AC 110-220V	AC 110-220V	AC 110-220V
Driving motor	AC,2.2KW	AC,2.2KW	AC,2.2KW
Front wheels	2*(d)450*(w)205mm	2*(d)450*(w)205mm	2*(d)450*(w)205mm
Front wheels material	Foam filled solid type	Foam filled solid type	Foam filled solid type
Rear wheels	2*dia.400mm, solid rubber	2*dia.400mm, solid rubber	2*dia.400mm, solid rubber
Maximun lifting height	3600mm	3600mm	4200mm
Hydraulic station	1.2kw	1.2kw	1.2kw
Lifting	By 1*cylinder	By 1*cylinder	By 1*cylinder
Extension cylinder	By 1*cylinder	By 1*cylinder	By 1*cylinder
Tiling cylinder	By 1*cylinder	By 1*cylinder	By 1*cylinder
Rotation hydraulic motor	1piece, endless rotation	1piece, endless rotation	1piece, endless rotation
Side-turning	By cylinder,22.5*on two sides	By cylinder,22.5*on two sides	By cylinder,22.5*on two sides
Parallel moving	By clinder,150mm	By clinder,150mm	By clinder,150mm
Vaccum pump	2 pump,DC24V,60W,35L/M	2 pump,DC24V,60W,35L/M	2 pump,DC24V,60W,35L/M
Vacuum circle	Dual circles	Dual circles	Dual circles
Vacuum cups	6* Dia.300mm	6* Dia.400mm	6* Dia.400mm

Contact our experienced experts now for a non-binding consultation. We will find the solution for your goods lifting tasks.





Main Features



*  User friendly

* 1500KG capacity, rotation 360degree, tiling 90 degree.

* Easy installation and maintenance

* Unique personal safety

* Productivity

* Application specific solutions

1. In order to ensure maximum safety, the equipment adopts double pump and double vacuum system. Each vacuum system contains a set of independent vacuum fittings
2. Considering the large size and weight of the glass, the equipment adopts the design of hydraulic turnover. Compared with the traditional electric drive structure such as push rod, worm wheel, worm or gear, its performance is more stable, and it has the advantages of adjustable speed and small mechanical wear
3. In the design of the frame structure, the extension beam is adopted. The main size is 1800mm*1050mm, which can be extended according to the size of the glass panel, with large variable parameters
4. The sucker part is connected with the main frame with a fast pin. The position of the sucker can be adjusted at will or the unnecessary suckers can be removed at will.
5. Other options can be selected according to needs, such as adding rotating mechanism, vertical grab auxiliary device, etc





 How to define a design concept?

6 Key Items to Check

1-Min & Max weight of loading

2-Min & Max dimensions

3-Min & Max lifting height

4-Lifting cycles per hour

6-Actions requires, up and down, tilting, rotation
