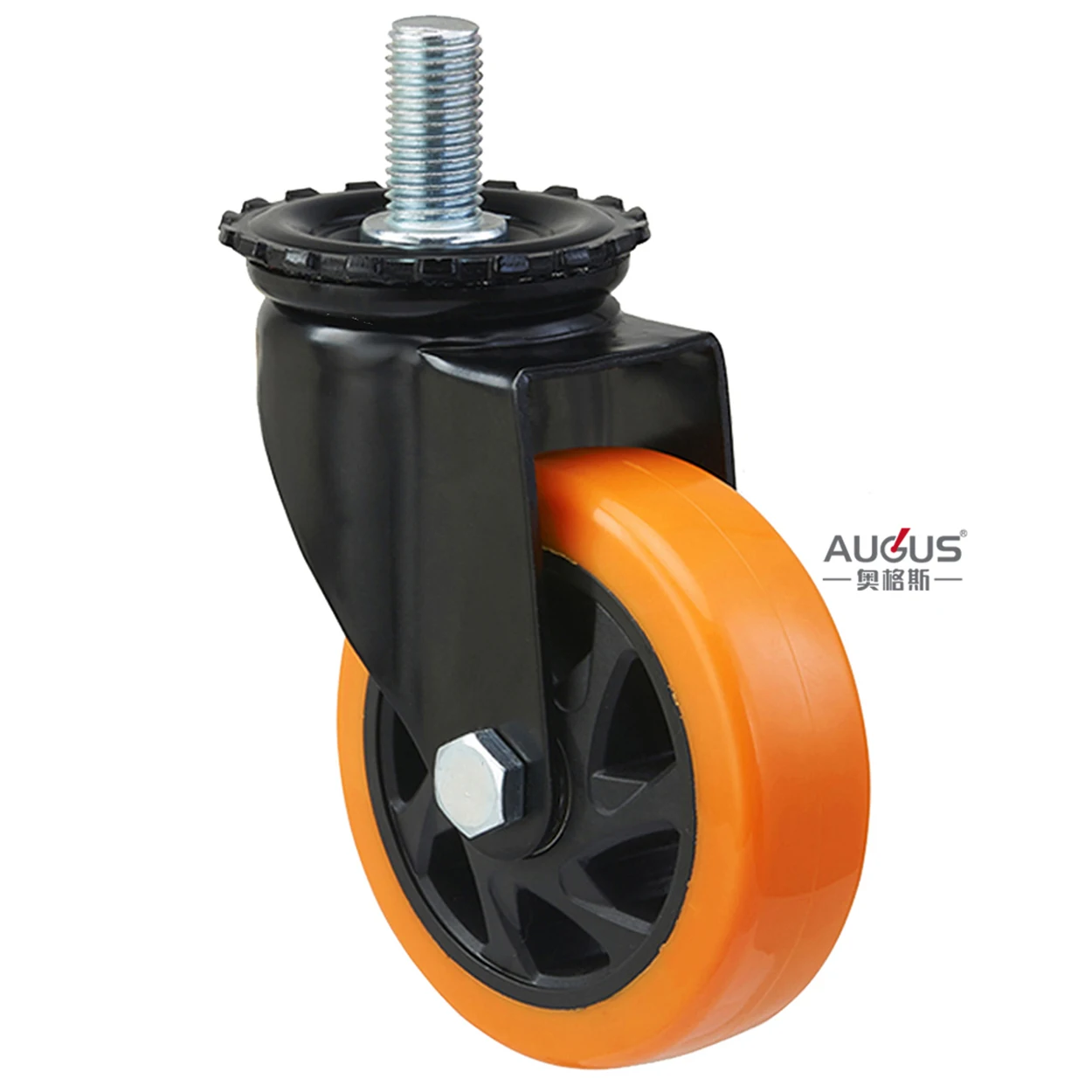

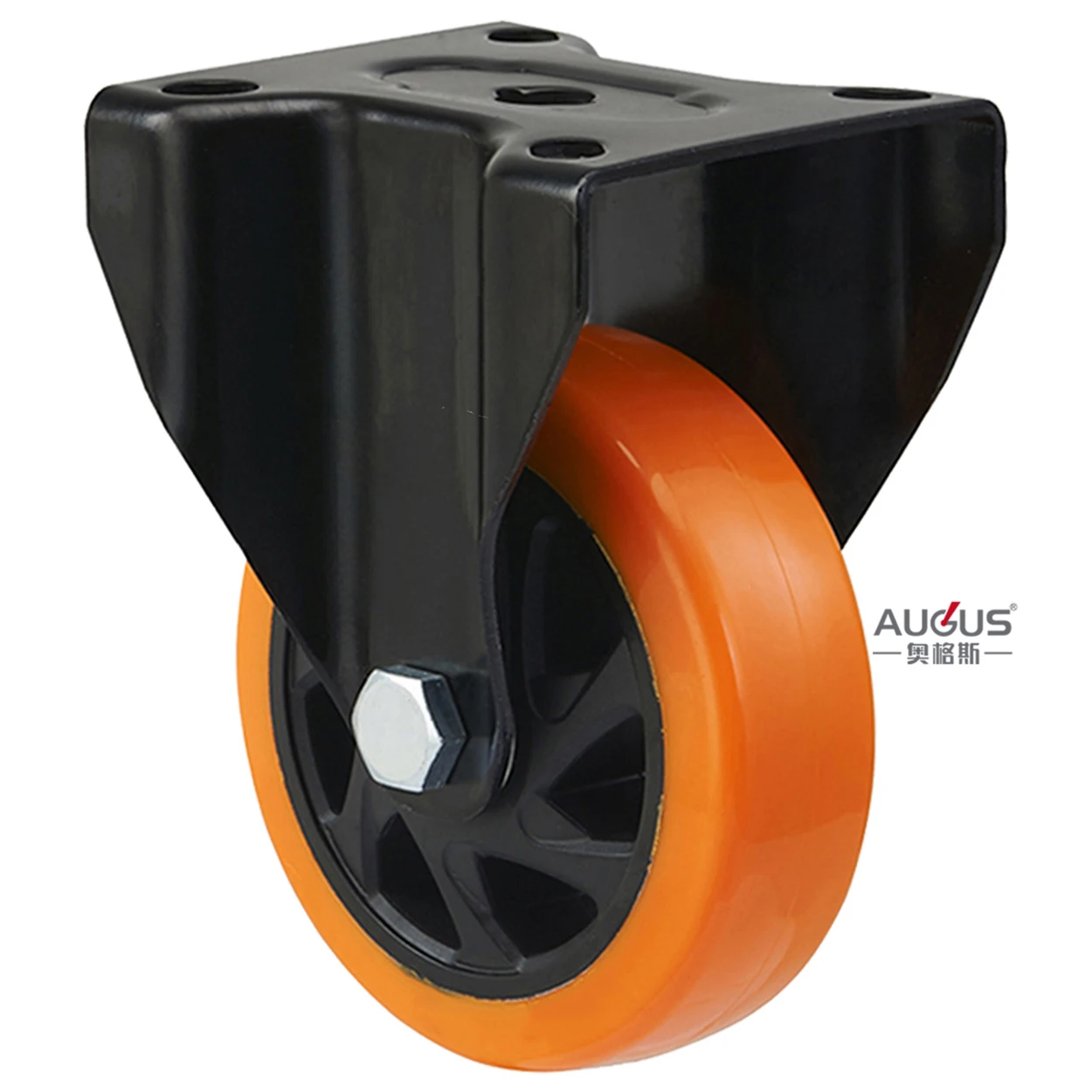

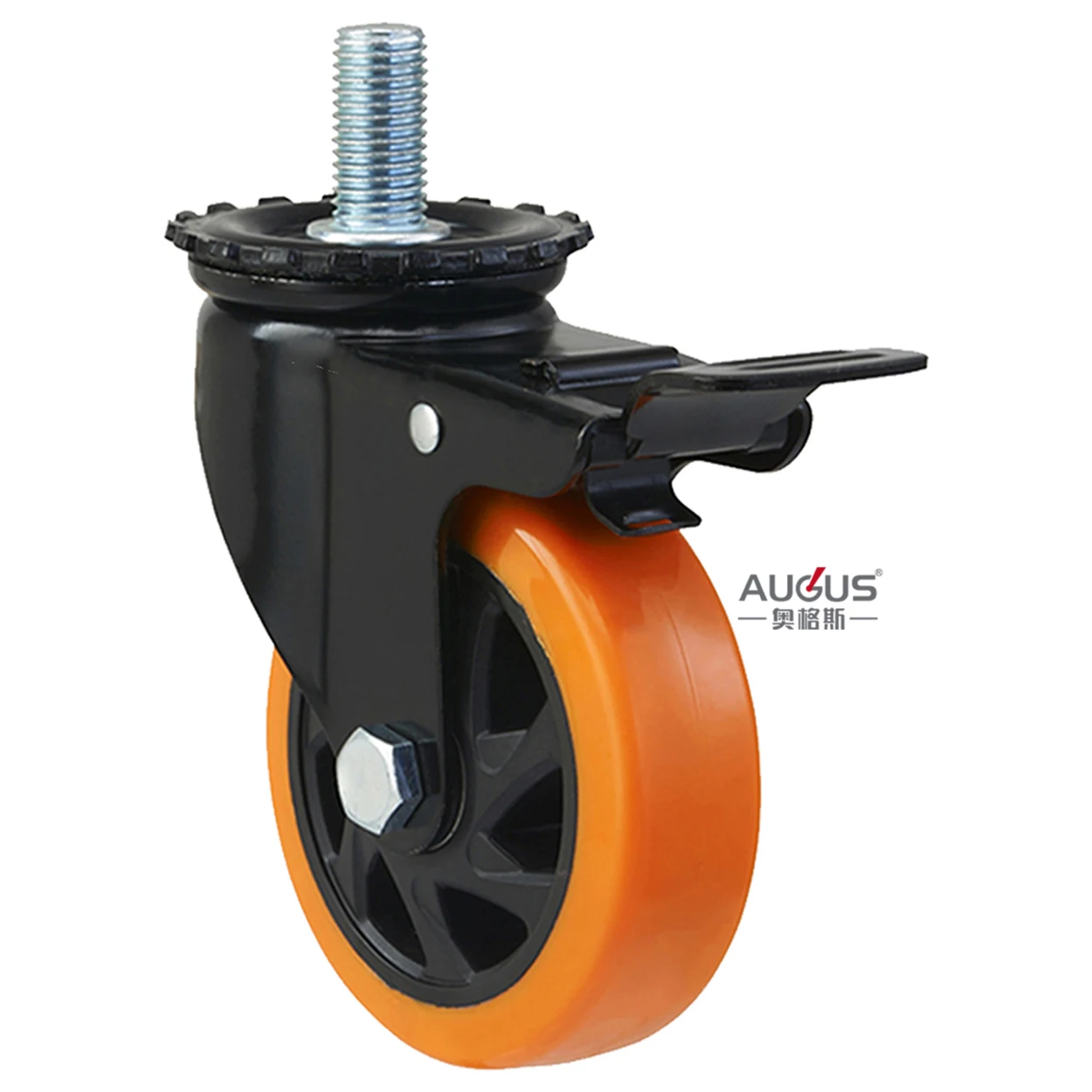

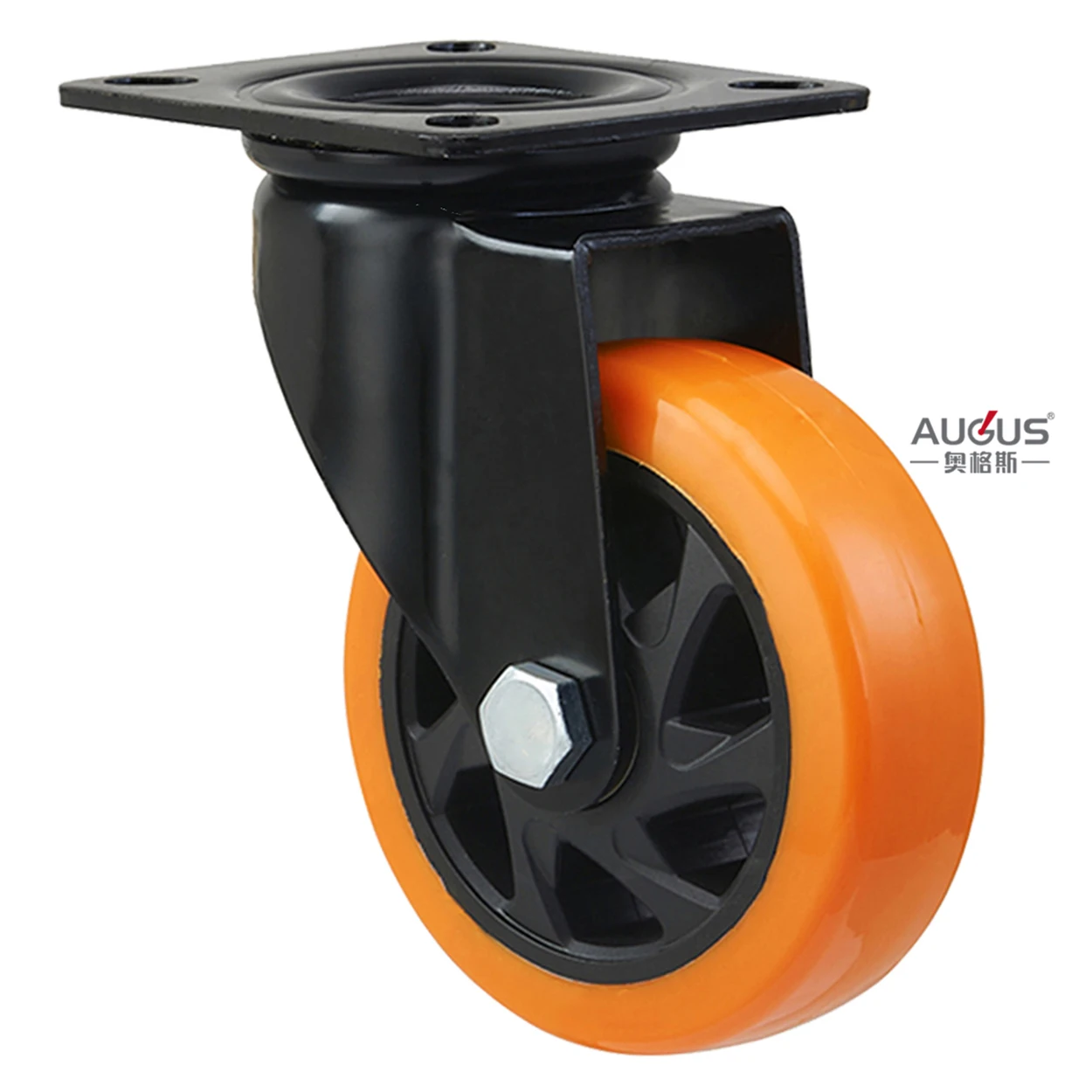

150 mm x 40 mm polyurethane wheel for trolley heavy duty caster with brake
- Category: >>>
- Supplier: Zhongshan Augus Hardware Products Co. Ltd.
Share on (1600560313244):
Product Overview
Description
Company Introduction
Details Images
Products Description

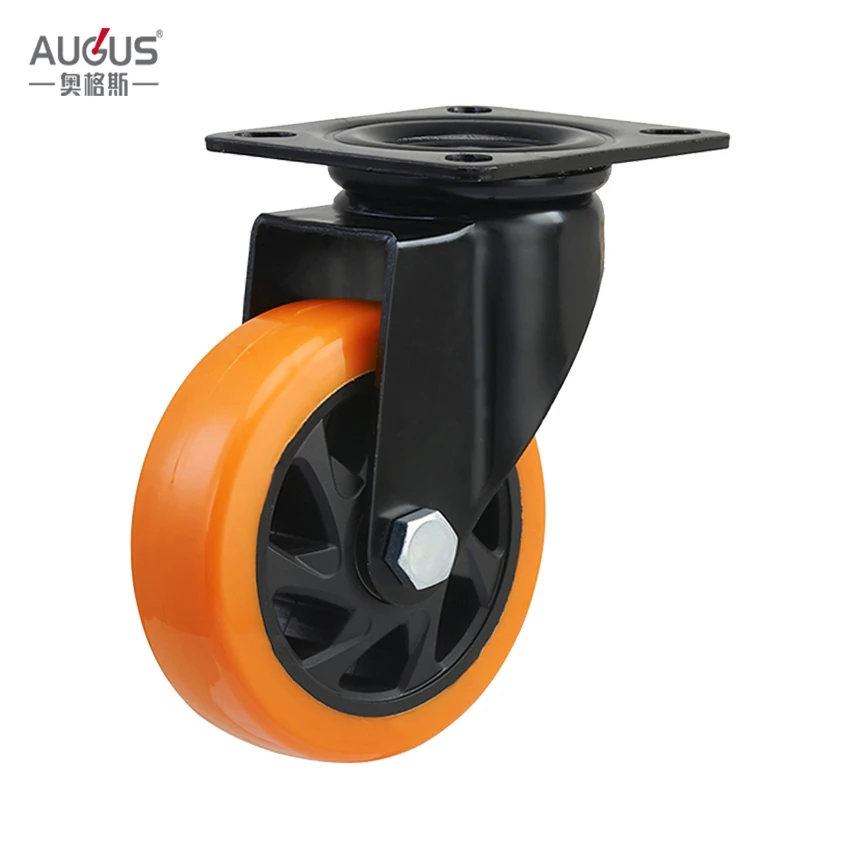

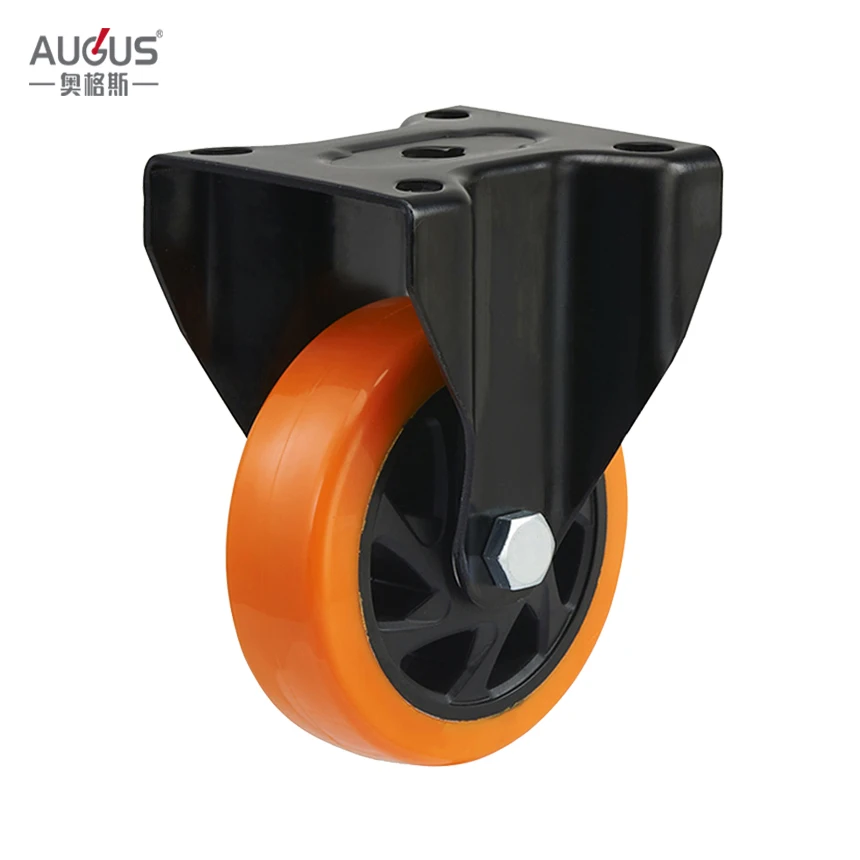

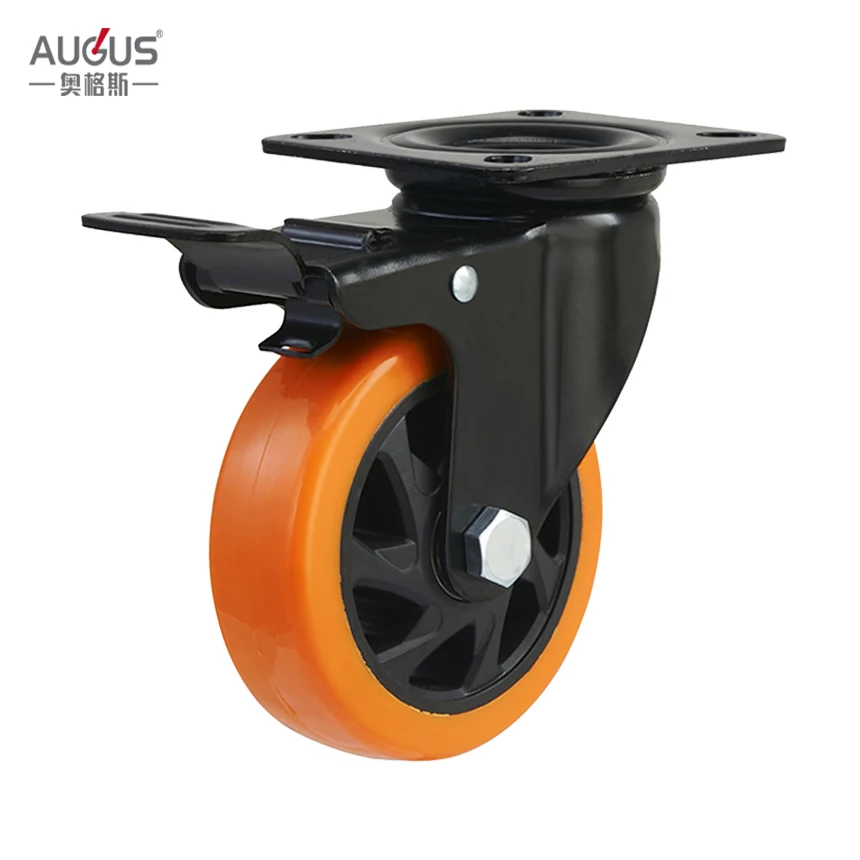

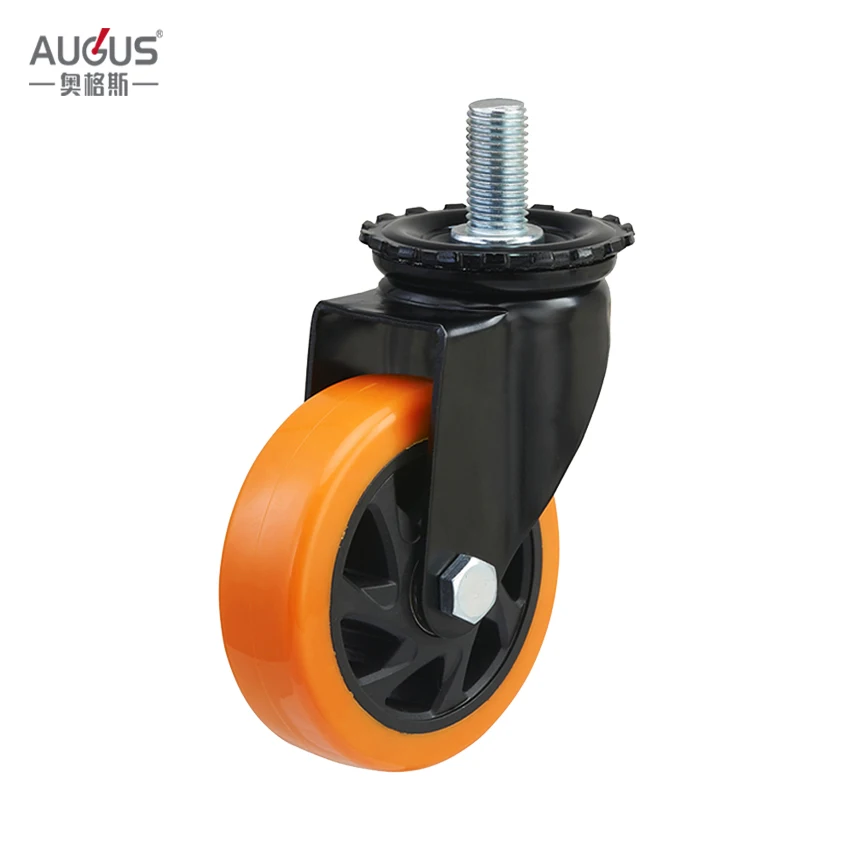

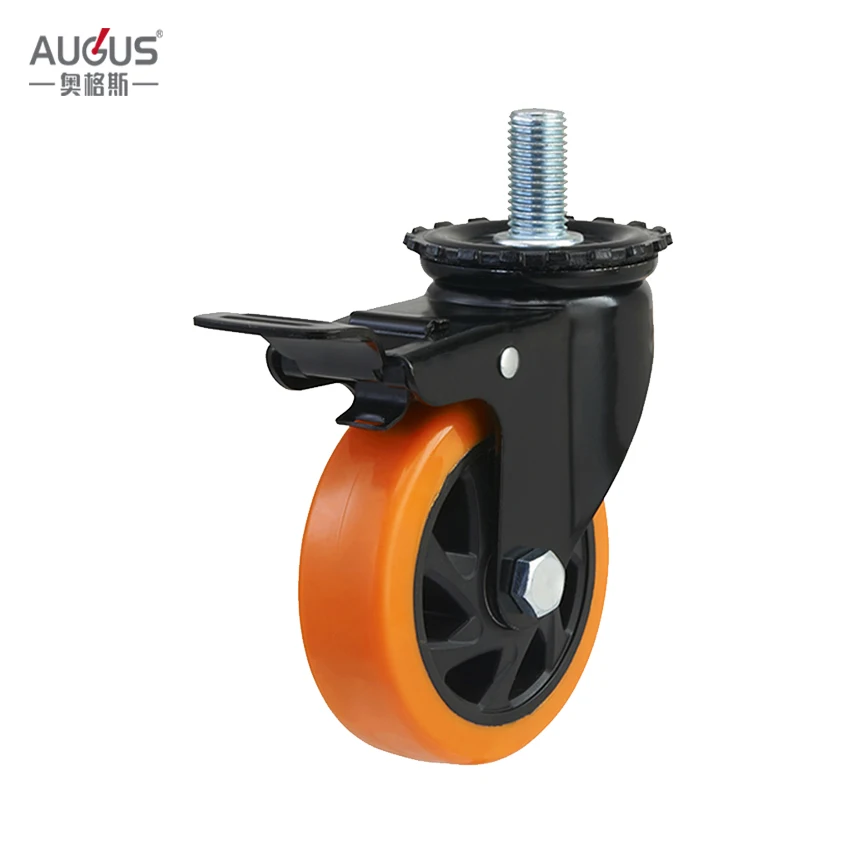

Medium-Heavy Duty 02 Series-Orange PU with Double Bearing
Description: Fix, Swivel, Stem
Brake mode: Total brake/Side brake
Bracket mode: The bracket is made of Pressed Steel, blue zinc plated, black lacquer.
Install with axle, nut and bush. The wheel tread is made of PU (polyurethane), the wheel center is made of PP (polypropylene), double bearing
Install with axle, nut and bush. The wheel tread is made of PU (polyurethane), the wheel center is made of PP (polypropylene), double bearing
Product Paramenters
Details | 4 inch | 5 inch | 6 inch |
Wheel Diameter (mm) | 100 | 125 | 150 |
Tread Width (mm) | 40 | 40 | 40 |
Overall Height (mm) | 140 | 165 | 190 |
Offset (mm) | 45 | 45 | 45 |
Load Capacity (kgs) | 130 | 150 | 180 |
Size of Plate (mm) | 112x100 | 112x100 | 112x100 |
Hole Centre Distance (mm) | 85x70 | 85x70 | 85x70 |
Screw Size (mm) | M22x40 | M22x40 | M22x40 |
