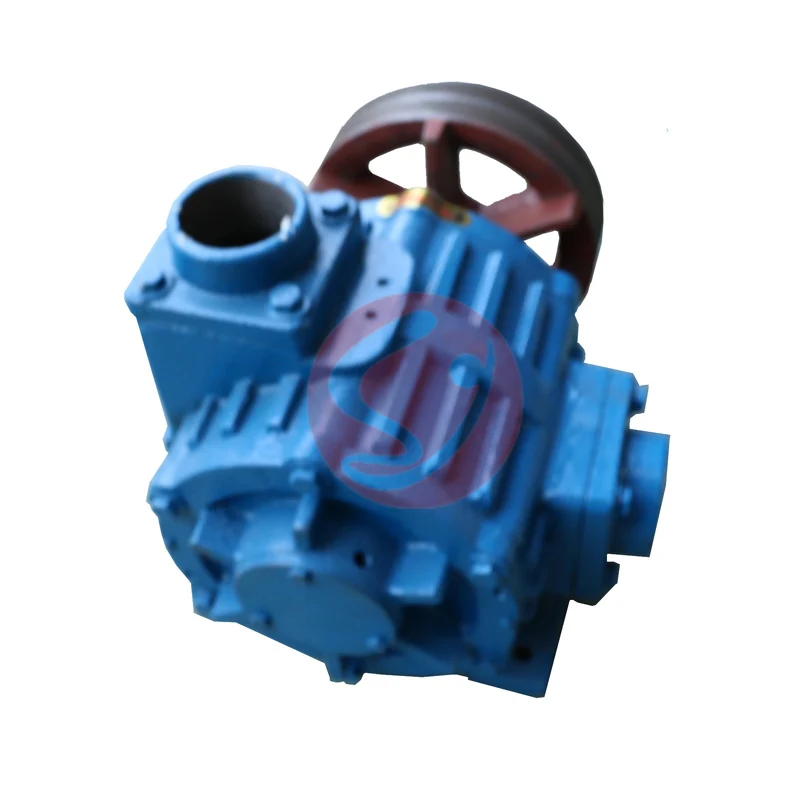

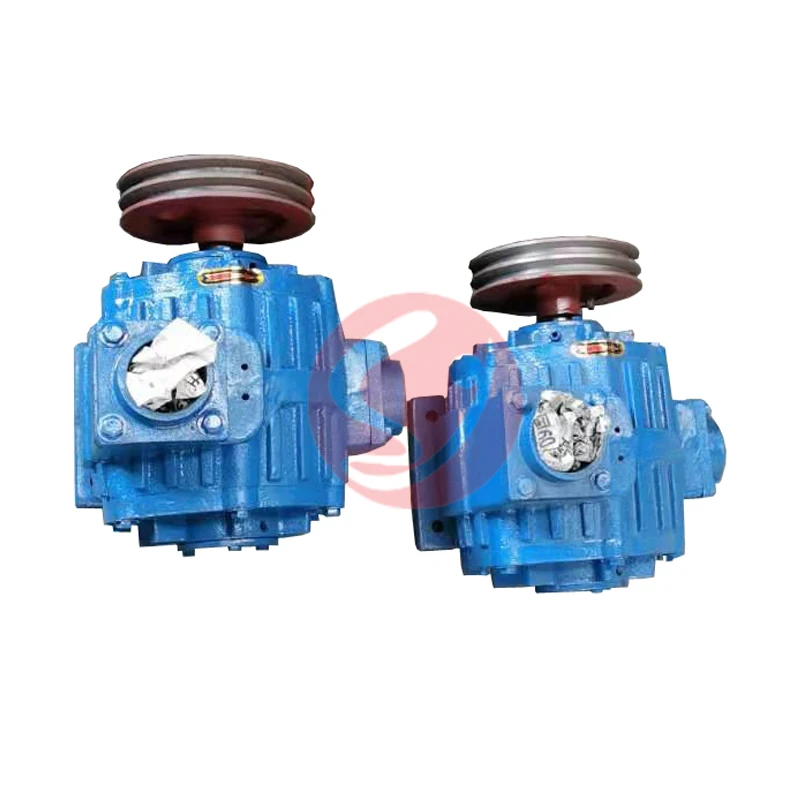

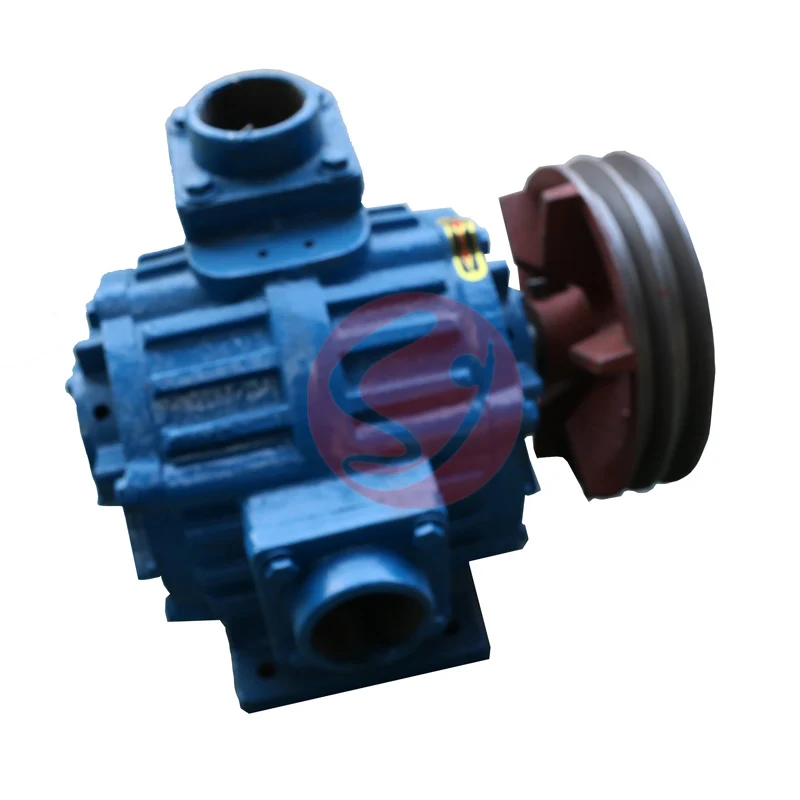

Small Electric Vacuum Pump for Goat Milking Machine
- Category: >>>
- Supplier: Zibo Shengyan Animal Husbandry Equipment Factory
Share on (1600560331567):
Product Overview
Description
Product Description
BZ-1500L vacuum pump group with 80L air tank
The function of vacuum pump is to extract air from the milking system. It is the necessary part for fixed type pipeline cow goat milking machine and milking parlor. It includes vacuum pump, motor or diesel/gasoline engine,safety cover & Air Tank.
In the majority of milking machine, vacuum pump is a rotary exhauster driven from either an electric motor or a stationary internal combustion engine, using pulley and V-belt.
When operating the vacuum degree at the pump inlet suitable for milking cows (48 kPa), the vacuum pump capacity should be sufficient for the total number of milking units connected.
In the majority of milking machine, vacuum pump is a rotary exhauster driven from either an electric motor or a stationary internal combustion engine, using pulley and V-belt.
When operating the vacuum degree at the pump inlet suitable for milking cows (48 kPa), the vacuum pump capacity should be sufficient for the total number of milking units connected.
Product Name | Vacuum pump group |
Model | BZ-1500L |
Type | Rotary Vane |
Volume | 1500L/min |
Motor | 4KW |
Air Tank | 80L |
Inner diameter of pump | 150mm |
Rotary vane Size | 164*60*6mm |
Size | 835*455*800mm |
Weight | 157kg |
Model
550L Vacuum Pump Group
Electric & Diesel Engine
850L Vacuum Pump Group
1500L Vacuum Pump Group
250L Vacuum pump
Include oil pot and silencer
300L Vacuum pump
Include oil pot and silencer
200L Dry type vacuum pump
550L Vacuum pump
With oil pot and silencer
850L Vacuum pump
With oil pot and silencer
1500L Vacuum pump
550L Vacuum pump
850L Vacuum pump
2100L Vacuum pump
Rotary vane
Totary vane from left to right for different model vacuum pump: 2100L, 1500L, 850L, 550L, 300L, 250L
Our Service
High quality
We have very skilled technique, advanced equipment and professional excellent research and development team.
Competitive price
We are the direct manufacturer, so we surely can provide to you more competitive price with stable high quality machines.
Our exhibition
We go to Russia for exhibition every year, we are very professional on the packing and loading, and even know very clearly each country's different documents required on custom clearance.
Application
Vacuum Pump Application:
Vacuum pump used in YZX-1 Electric milking machine, YQ-1 Gasoline milker, YC-1 Diesel milking equipment, YQD-2 Double cow milking machine with gasoline, YC-2 Double buckets goat milker diesel engine, YC-2 goat milking machine Diesel double transparent bucket, MD-04 Mobile milking parlor, Fixed milking system.
YZX-1 Electric milking machine
YQ-1 Gasoline milking machine
YC-1 Diesel milking machine
YQD-2 Double milking machine
gasoline engine
YC-2 Double milking machine
diesel engine
YC-2 Double milking machine
Diesel engine transparent bucket
MD-04 Mobile milking parlor
Fixed milking system
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Workshop
Our workshop
Packing & Delivery
1. Plywood packing
2. Carton packing
3. PE bag packing
4. Plywood packing
5. Loading
6. Loading
FAQ
Q: Are you trading company or manufacturer ?
A: Yes, we are indeed a direct factory.
Q: How long is your delivery time?
A: Generally is 15-20 days after your advance payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
