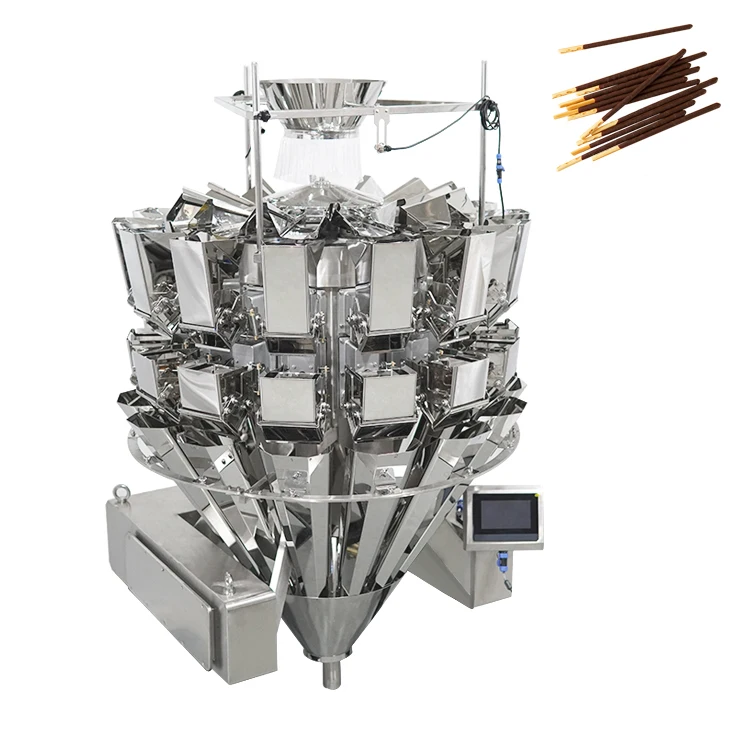

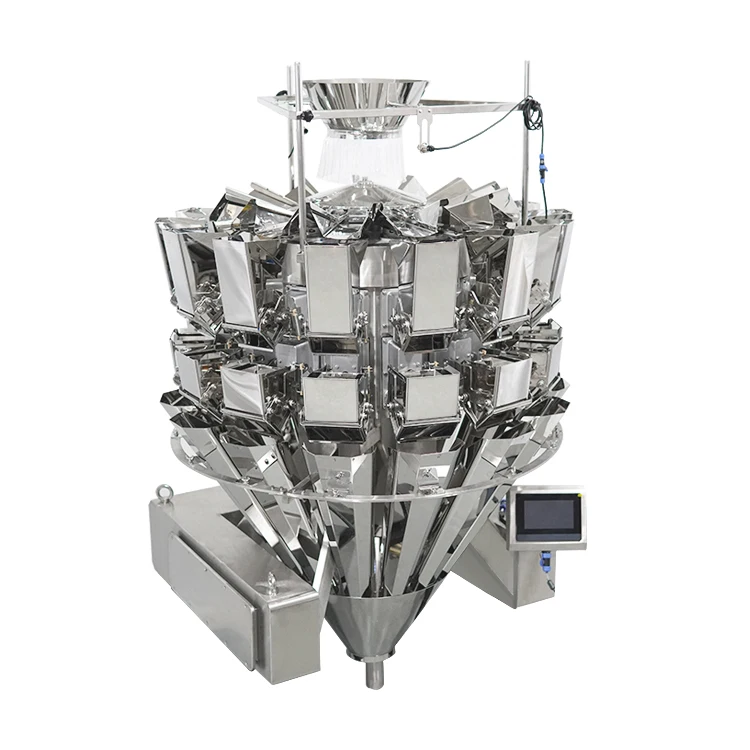

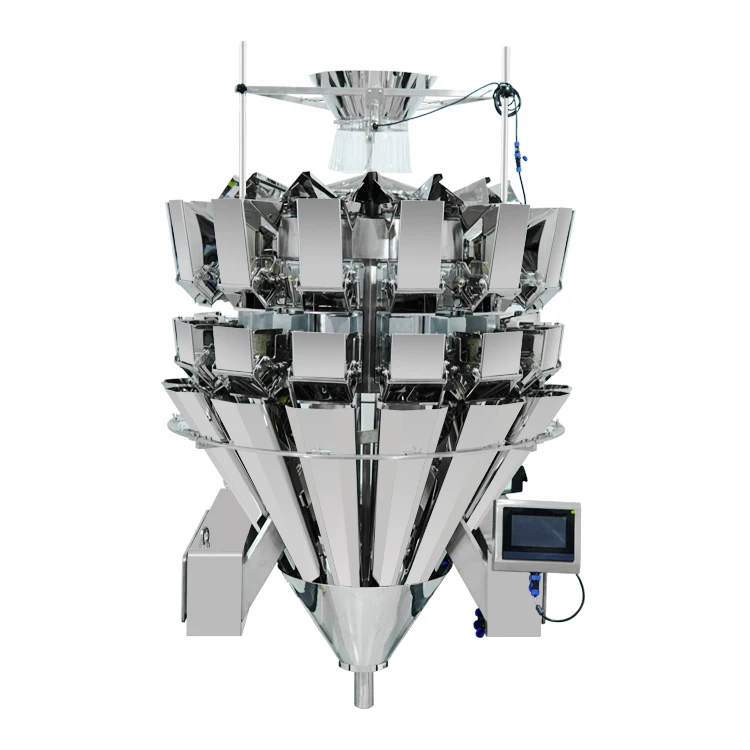

High Quality Multifunctional 14 Head Automatic Combination weigher Long strip Chocolate Biscuit Weighing Packaging Machine

Product Overview

Description

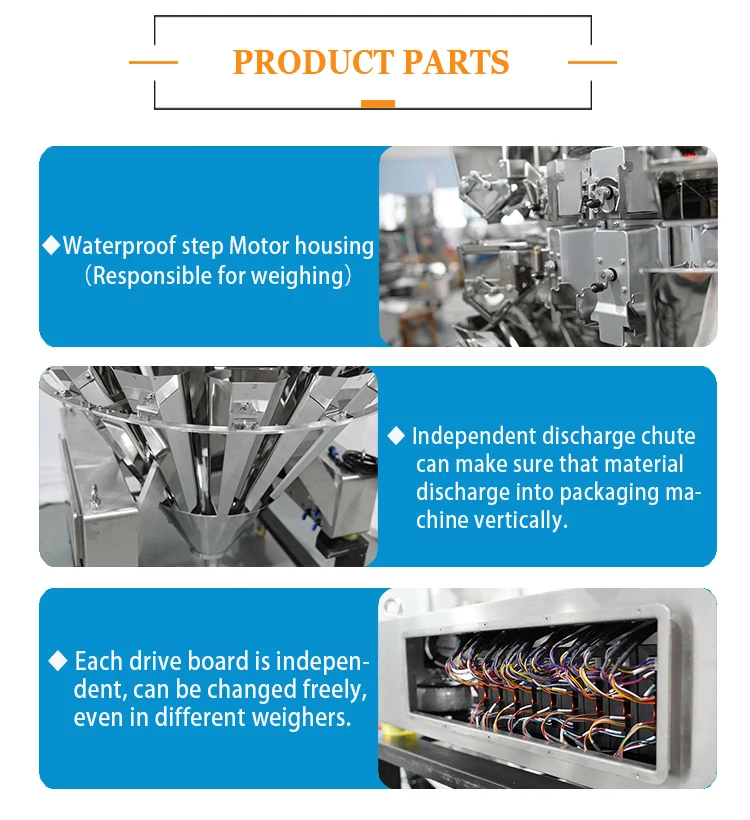

• Modular control system, AD cards no need Number, can be interchangeable.


• Each drive board is independent, can be changed freely, even in different weighers.


• Special rotary top cone dispense products evenly to each linear feeder pan.


• Special linear feeder pan to make sure of feeding process.


• Special hopper design to keep the material in a vertical state.


• Speed adjustable rotary top cone is suitable for different product feeding.

It is suitable for weighing stick shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.

Specifications

Model	CBW-1A10(25)	CBW-1A14(25)
Max. Cap.	10-1000g	10-2000g
Weighing Accuracy	0.5~2 g	0.5~2 g
Max. Weighing Speed	60 WPM	120 WPM
Control Panel	7"Touch Screen
Hopper Volume	2.5L (double-door) plain plate
Material	304 # SS
Driving System	Step Motor
Control System	Modular Control System
Power supply	AC 220V/110V ±10%50Hz(60Hz)1KW	AC 220V/110V ±10% 50Hz(60Hz)1.4KW
Options	Weight sensor/timing hopper/printer/Overweight reject system/10"touch screen

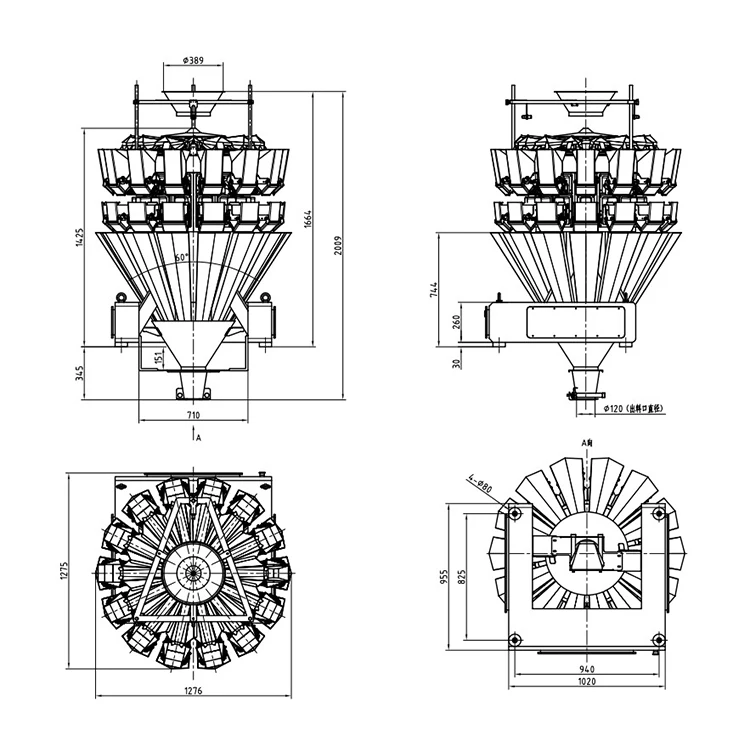

Packing dimension	L1650*W1120*H1330mm	L1720*W1120*H1330mm
Gross Wt	400kg	480kg
