MSC80A:0.15% DIN35mm Isolated Analog Input Output 0 5v,1 5v,0 10v DC Voltage Signal Isolator Converter for PCL, DCS
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600560380559):
Product Overview
Description
Product Show

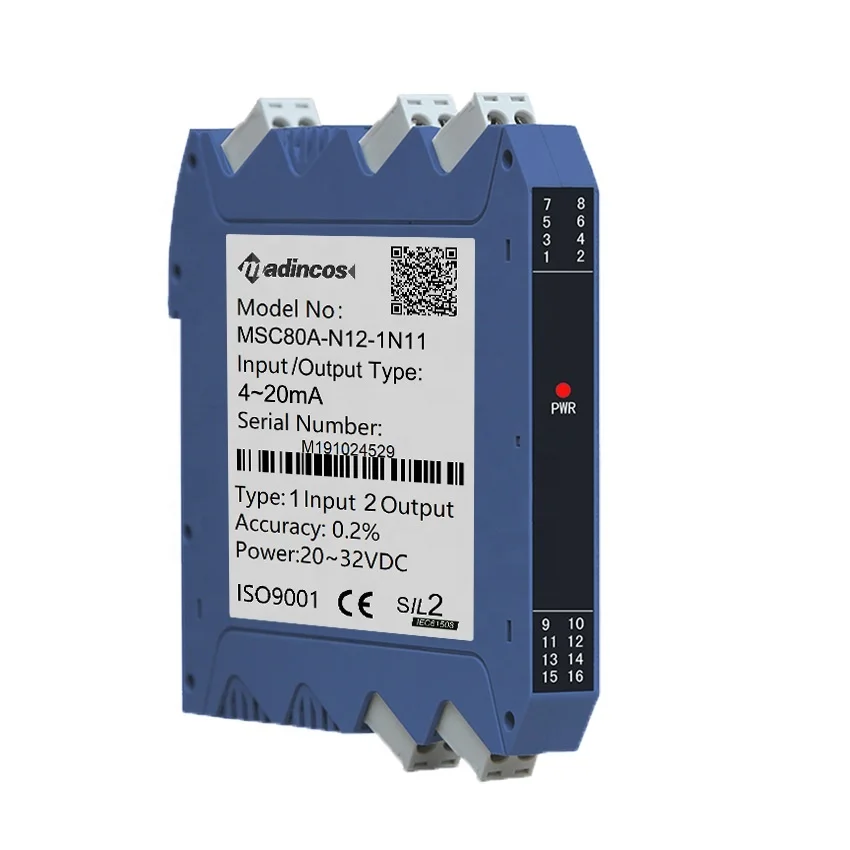

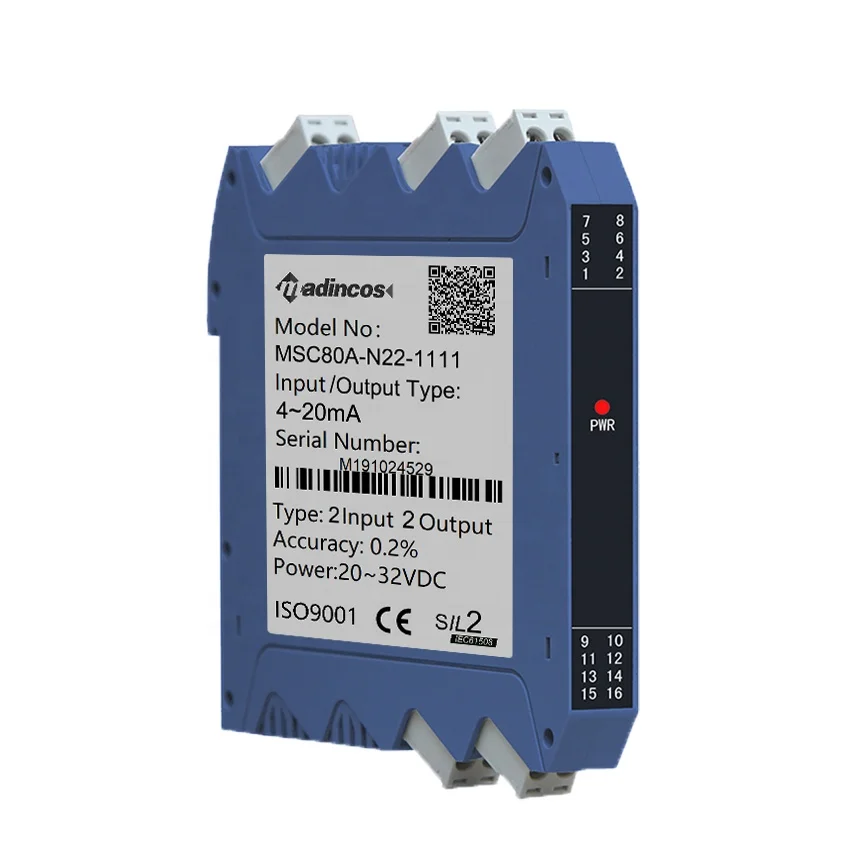

0.15% DIN35mm Isolated Analog Input Output 0-5v,1-5v,0-10v DC Voltage Signal Isolator Converter for PCL, DCS MSC80A
Model No.: | MSC80A | Name | Signal Isolator Converter |
Accuracy | 0.15%FS | Power supply | 20-32VDC; 24VDC default |
Temperature Shift | 0.0075%/℃ | EMC | GB/T18268 (IEC61326-1 |
Response Time | ＜2ms | Size/N.W. | 121.2Xx108x13mm/0.13KG |
Isolated ability | Input-output-power 2KV, 1min, 50Hz | Working condition | -20 to 60℃/25% to 85%RH |
Insulation resistance | ≥100MΩ/500VDC | Power consumption | ＜0.8W(1 output); ＜1.0W (2 outputs) |
Type | 1 input 1 output, 1 /2input 2 outputs Isolated power distributed for transmitter | Distribtued type | ＜1.5W(1 output); ＜2.6W (2 outputs) |
Input | Specification | Output | Specifciaton | ||
Input Signal | 4-20mA,0-20mA; 1-5V,0-5V,0-10VDC | Output Signal | 4-20mA,0-20mA; 1-5V,0-5V,0-10VDC | ||
Input impendence | ≤50Ω when current mA input; | Load Resistance | ≤400Ω when 4-20ma,0-20mA | ||
≥250KΩwhen voltage VDC put | When mA Input | ≥250kΩ when 0-5V,1-5VDC | |||
Distributed power | 19-25VDC, ≤30mA | ≥500kΩ when 010VDC | |||
Max. Input Value | ≤30mA, ≤10.5V | Load Resistance | ≤400Ω when 4-20ma,0-20mA | ||
When VDC Input | ≥20kΩ when 0-5V,1-5V,0-10VDC | ||||
Notes： | *Signal isolator converter will be converted according to the same ratio when ma current input as follows: e.g1.:4-20ma to 4-20ma or 1-5vdc; e.g.2: 0-20ma to 0-20ma or 0-5vdc or 0-10vdc e.g.3: 1-5vdc,0-5vdc,0-10vdc to 1-5vdc,0-5vdc,0-10vdc ; 4-20ma,4-20ma, 0-10ma *When 2 input 2 outputs, it will be only mA current type or VDC voltge input for 2 inputs | ||||

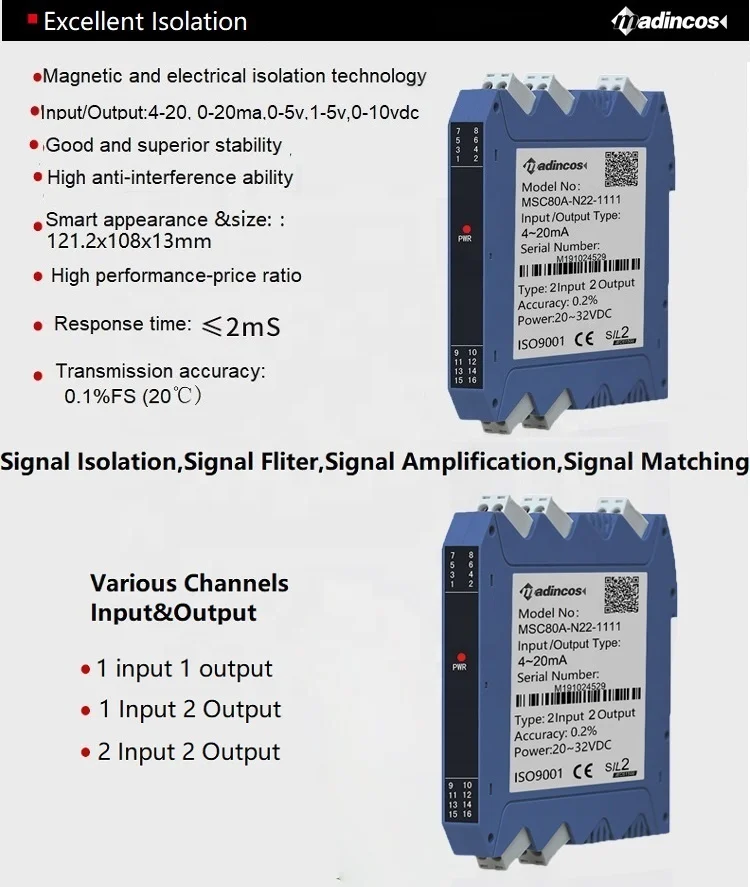

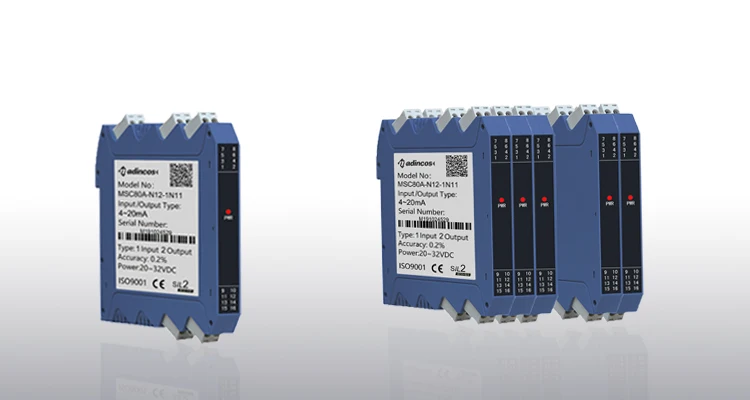

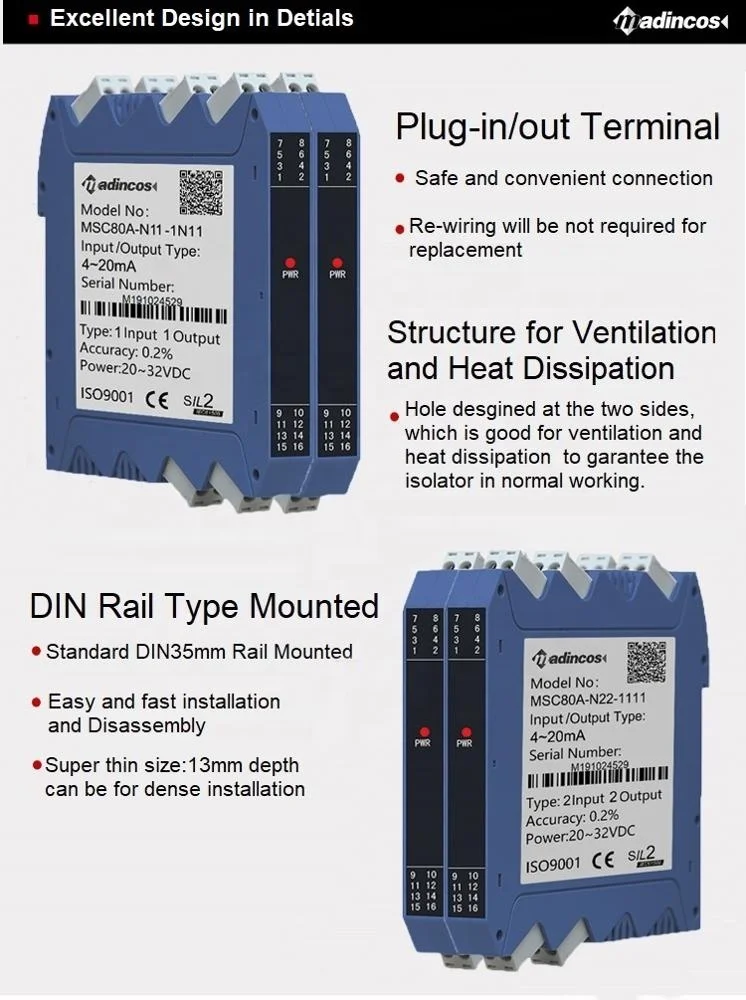

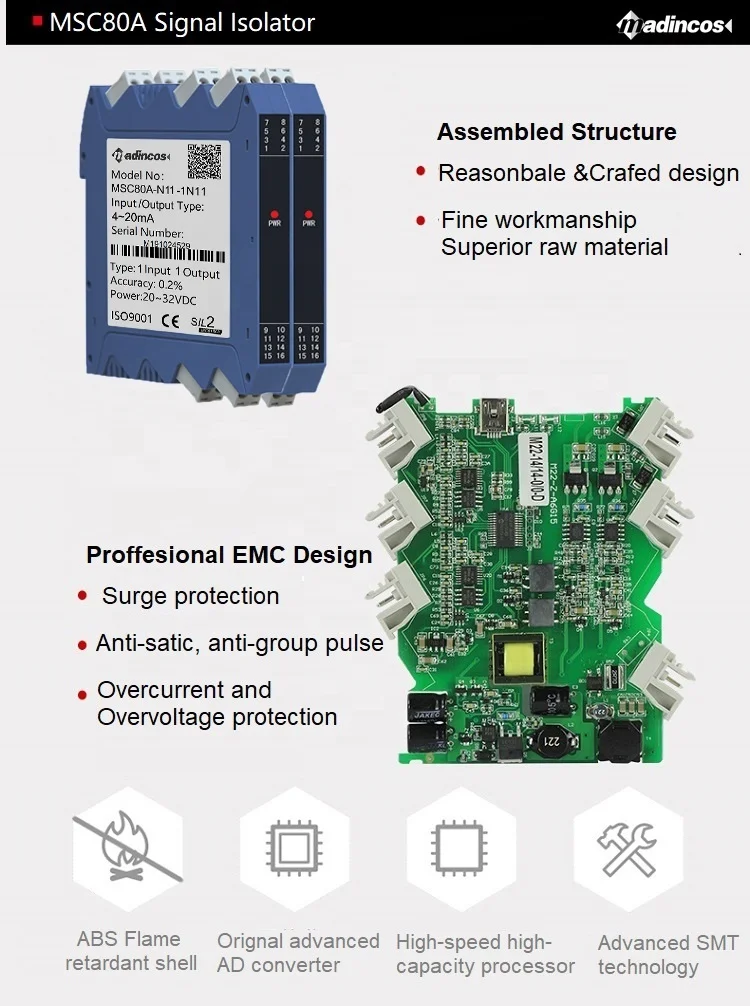

Details Images

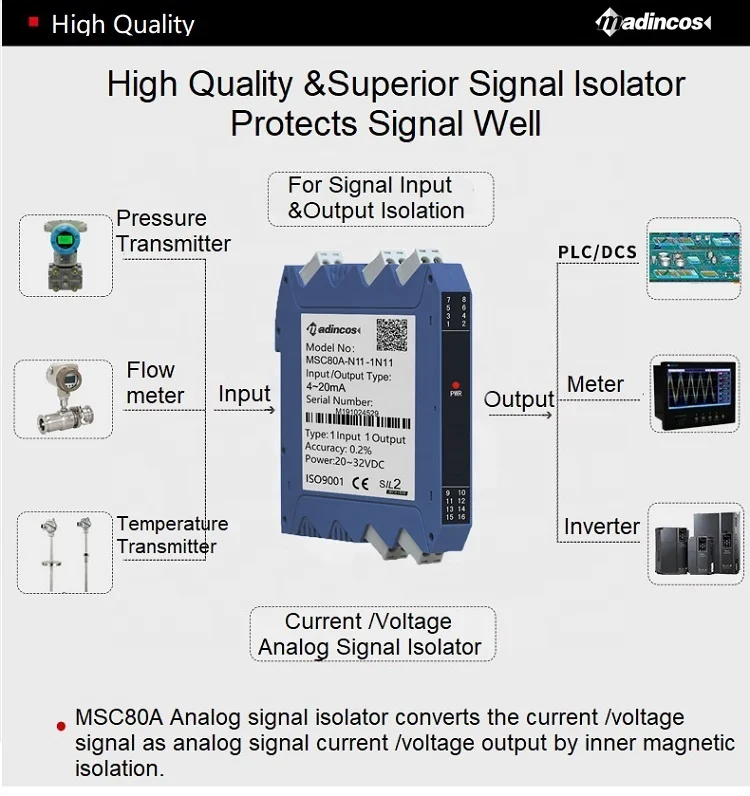

Application
.with 2KV input-output-power isolated, working with Field Instruments, DCS, PLC etc control systems;
.Widely used in major projects in the oilfield, petrochemical, LNG, CNG, manufacturing, power,
metallurgy, cement, pharmaceutical, environmental protection, and automated manufacturing industries
metallurgy, cement, pharmaceutical, environmental protection, and automated manufacturing industries
Product packaging
Package | ||
Size | 121.2Xx108x13mm | |
Weight | 0.2kg per pc | |
Package | Package: The normal package is paper box.: PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
