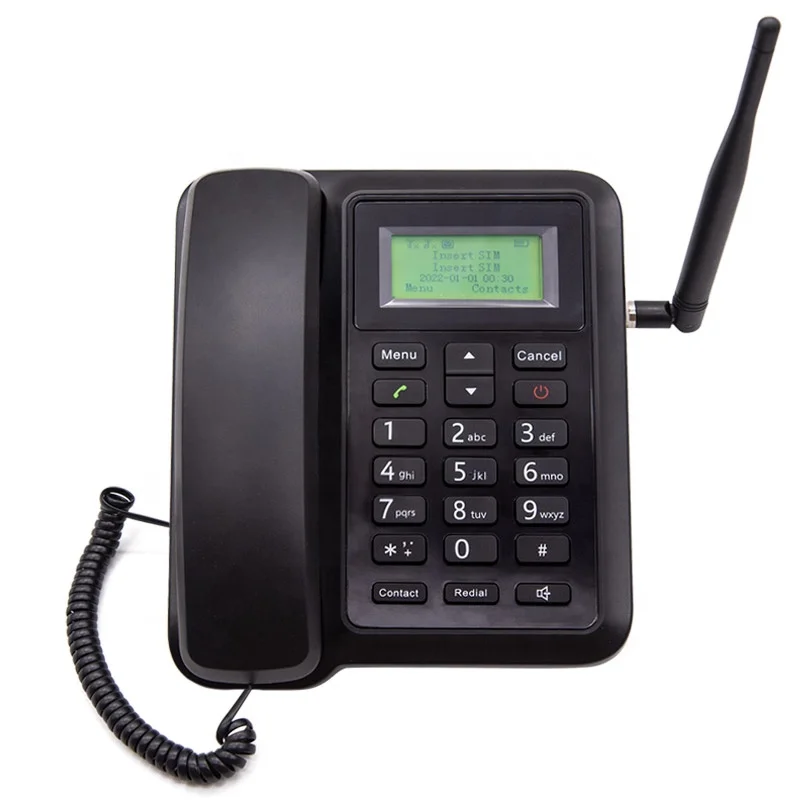

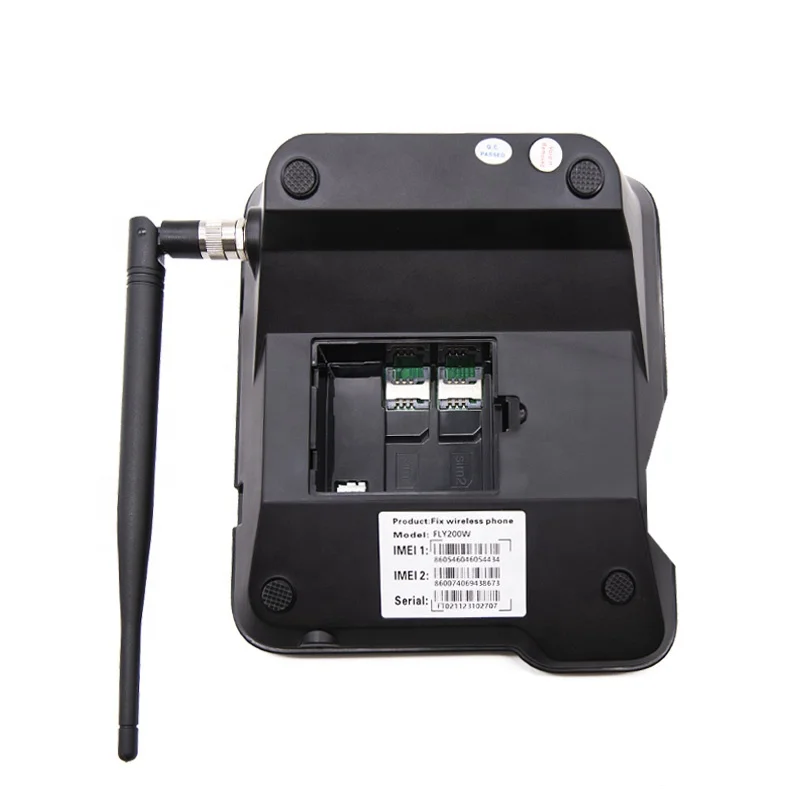

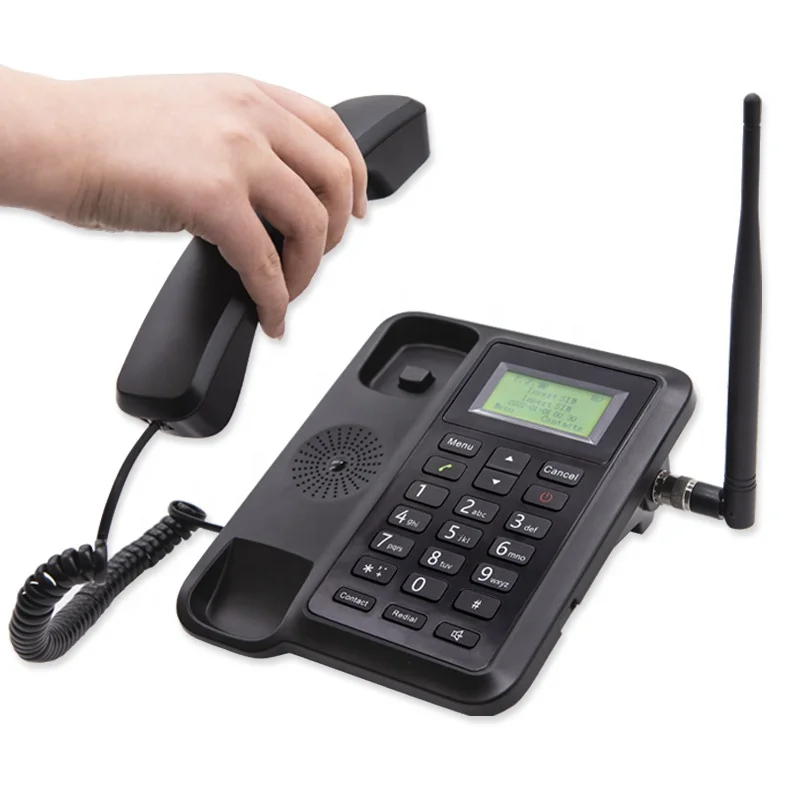

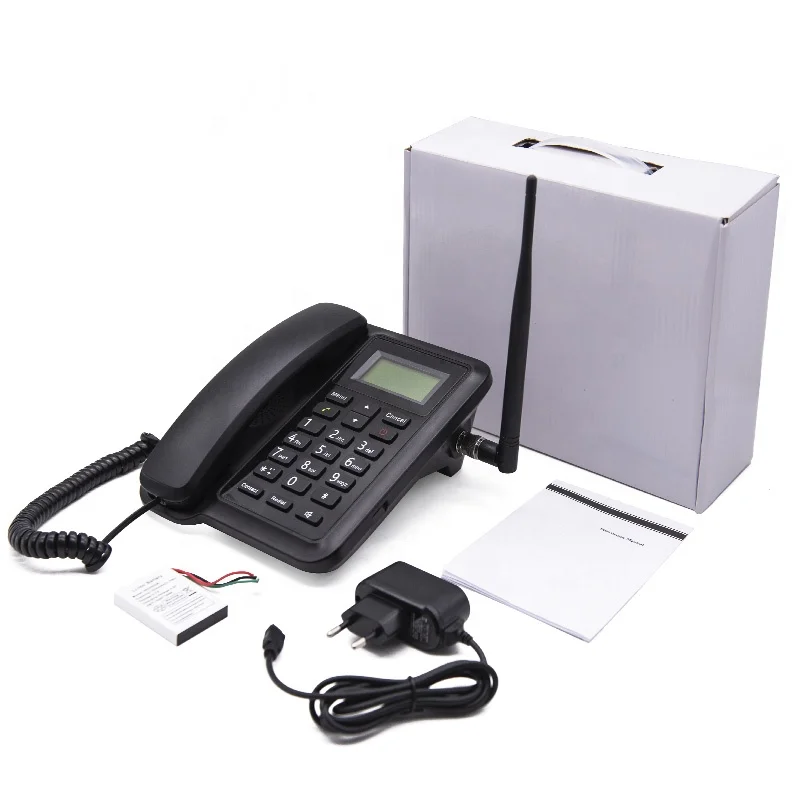

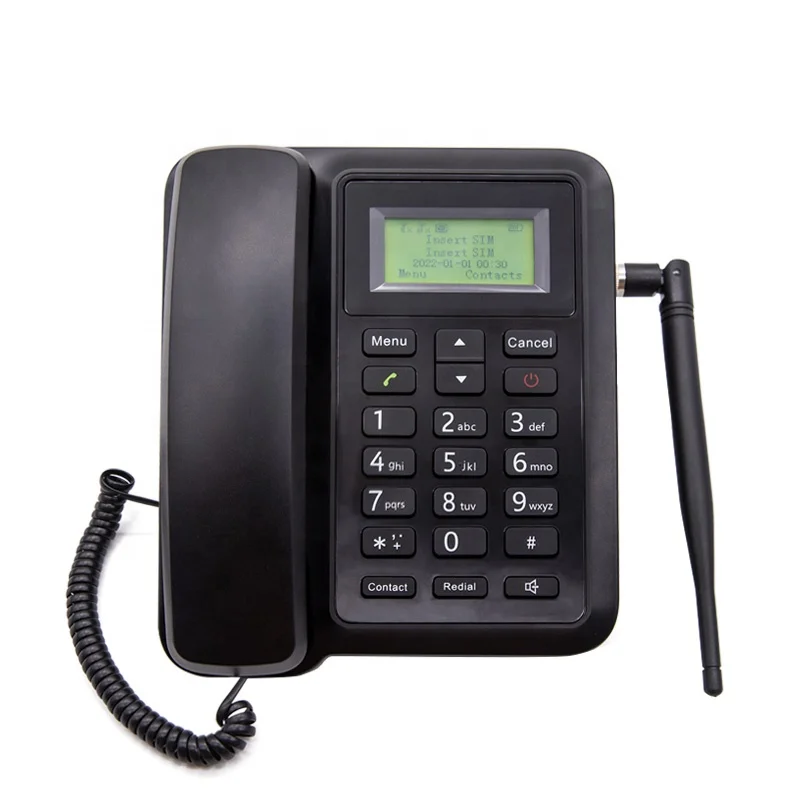

Wcdma 3G Gsm Wireless Landline Desktop Phone
- Category: >>>
- Supplier: Tianjin Fei Tu Tong Hui Technology Co. Ltd.
Share on (1600560423820):
Product Overview
Description
Product Display
Competitive Price Smart Senior 3G Gsm Wireless Landline Desktop Phone | ||
Basic Features | ||
Model Name | FLY200W SEIRES | |
Frequency Band | UMTS/HSPA+: 850 MHz/1900 MHz or 900 MHz/2100 MHz EDGE/GPRS/GSM: 850 MHz/900 MHz/1800 MHz/1900 MHz | |
Technical Standard | l EGSM/GPRS 3GPP Release 99 compliant | |
Operating Frequency | UMTS/HSPA+: 850 MHz/1900 MHz or 900 MHz/2100 MHz EDGE/GPRS/GSM: 850 MHz/900 MHz/1800 MHz/1900 MHz | |
Antenna Interface | TNC antenna (Combo antenna selectable) | |
Internal Memory | 32Mb+8Mb | |
LCD | 128*64 Pixels | |
External Interface | ||
USB port | Standard USB 1.1, Download SW | |
DC Connector | 5.0V/1.0A | |
Power Switch | No power switch, Power On/Off key | |
Battery Connector | 3 PIN connector | |
SIM interface | Standard 6 pin,1.8/3.0V SIM Card (Dual-SIM card selectable) | |
Antenna Connector | TNC/Combo antenna(External) | |
Environment Specification | ||
Operating Temperature | -20ºC to 45ºC | |
Storage Temperature | -30ºC to 75ºC | |
Operating Humidity | 10～95％ | |
Antenna
Items | Specification |
Interface | TNC/Combo Antenna |
Frequency bandwidth | UMTS/HSPA+: 850 MHz/1900 MHz or 900 MHz/2100 MHz EDGE/GPRS/GSM: 850 MHz/900 MHz/1800 MHz/1900 MHz |
Voltage standing wave ratio | <3.0 |
Input resistance | 50Ω |
Frequency(MHZ) | 824 | 880 | 894 | 960 | 1710 | 1880 | 1900 | 2170 |
Gain(dBi) | 2.1 | 2.0 | 1.7 | 1.8 | 2.4 | 2.5 | 2.7 | 2.8 |
Battery
Items | Specification |
Type | Li-ion |
Capacity | 800 mAh |
Voltage | 3.7V |
Talk time | About 4 hrs (Depending on network) |
Standby time | About 72 hrs (Depending on network) |
Power Adapter
Item | Parameters |
Input Voltage | AC , 100~265 V |
Frequency | 50~60HZ |
Max input current | 300mA |
Output Voltage/Current | 5.0V/1.0A |
Efficiency | >78% |
Software Specifications
General Features | ||
Network type | UMTS/HSPA+ /GSM/GPRS/EDGE | |
Band class | UMTS/HSPA+: 850 MHz/1900 MHz or 900 MHz/2100 MHz EDGE/GPRS/GSM: 850 MHz/900 MHz/1800 MHz/1900 MHz | |
Voice code | FR/EFR/HR/AMR | |
AMR Code | Support | |
SIM Tool Kit (UTK) Functions | Support | |
Language | Portuguese,English, Spanish, Russian(can be customized) | |
Input method | CSTAR,English Intelligent Text Input | |
Call log | 20 pcs (dialed/ received/ missed) | |
SMS Storage capacity | Up to 100 items in phone | |
Contact capacity | 200 items in phone+ Capacity in USIM | |
Group SMS | Support（Support to send 20pcs SMS in one group） | |
FM | Support | |
Alarm | Support | |
Clock | Support | |
Calculator | Support | |
DTMF | Support | |
Auto Redial | Not Support | |
Speed dial | Support | |
Caller ID | Support | |
Backlight Time | Support | |
Call duration | Support | |
LCD backlight adjustment | Support | |
Programmable ring volume control | Support | |
Programmable voice volume control | Support | |
Hands- free mode | Support | |
Speaker volume control in hands free operation. | Support | |
Key tone volume adjustments | Not Support | |
Missed calls & incoming message indication on display | Support | |
GPRS Modem function | Support | |
Network Dependent Features | ||
Call Forwarding | Support. Network Dependent. | |
Call wait/call hold | Support. Network Dependent. | |
Conference call | Support. Network Dependent. | |
Call barring | Support. Network Dependent. | |
Display | ||
Key digit input display | Support | |
Banner Display | Not Support | |
Time Display (Date, Month, Year and Day of the week) | Support, the time and date format is adjustable | |
Operator name display | Support | |
Display icon | ||
RSSI Indication | Support | |
No Service/ Service Indication | Support | |
Voice call Indication | Support | |
Power status indicator | Support | |
Alarm Indication | Support | |
New SMS Indication | Support | |
Voice Message Indication | Support | |
Tone and Sound Generation | ||
Tone type | MIDI | |
Busy tone | Support | |
Ringer tone | Support | |
Incoming call alert | Support | |
Ring tone volume adjustments | Support | |
SMS Receive Alert | Support | |
Keypad tone | Support | |
Lock function | ||
Lock Cell | Selectable | |
Lock Operator | Selectable | |
Lock Pin / SIM Card | Selectable | |
Tools | ||
Download tool | Support | |
Configuration tool | Not Support | |
