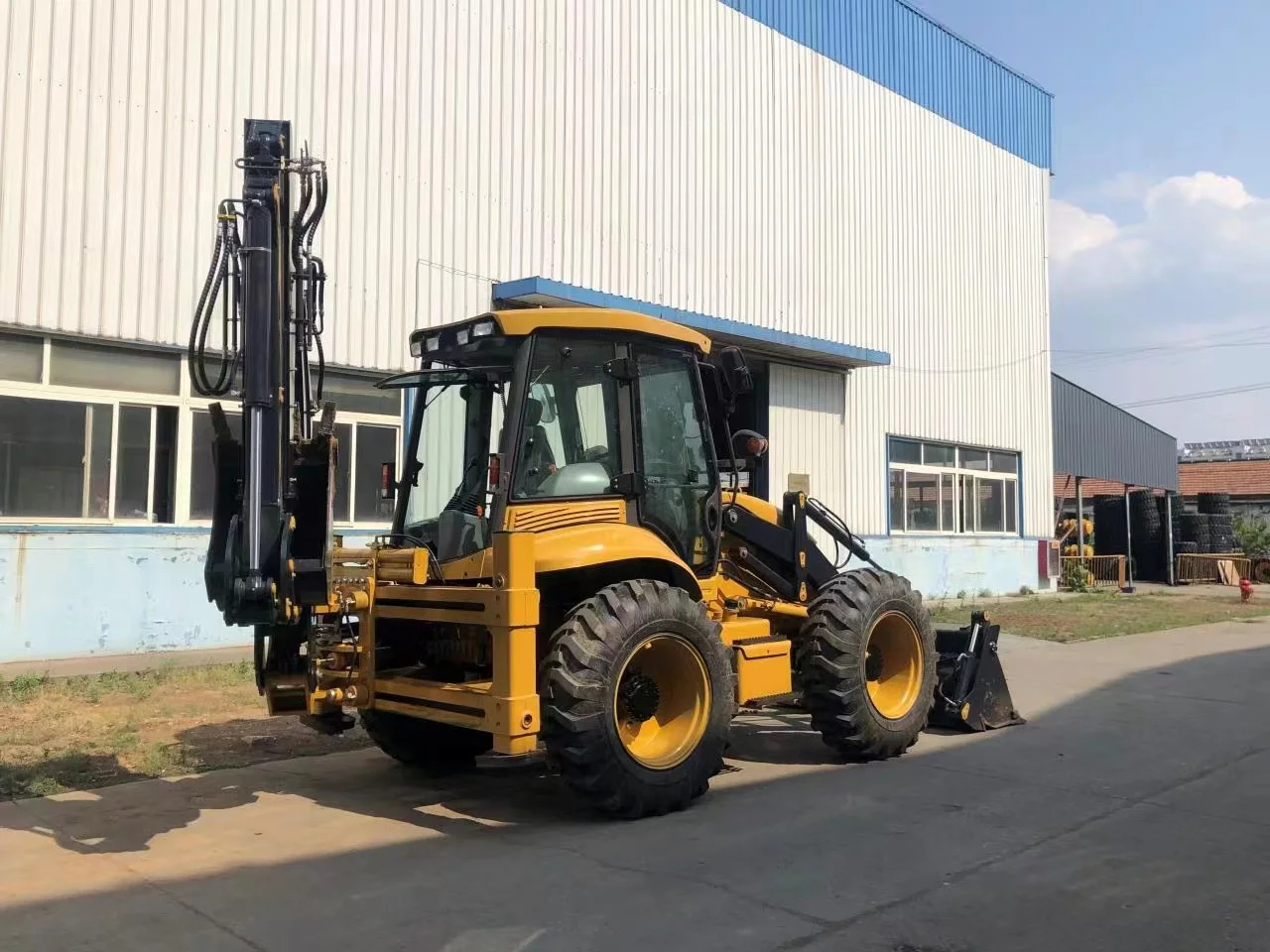

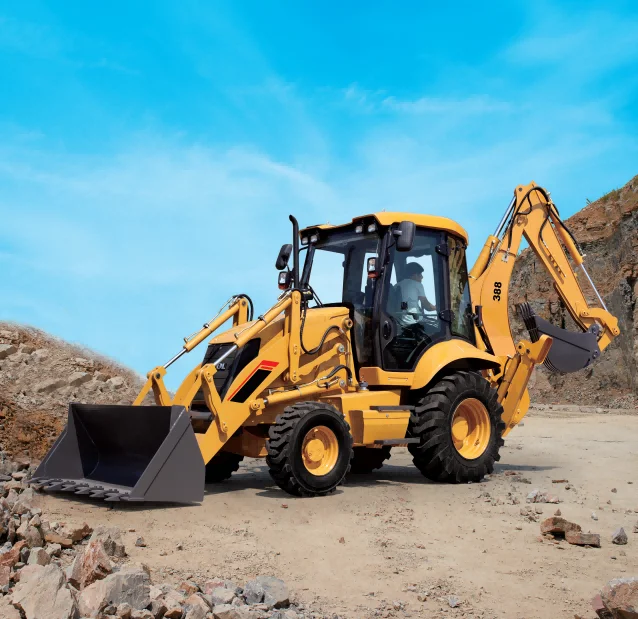

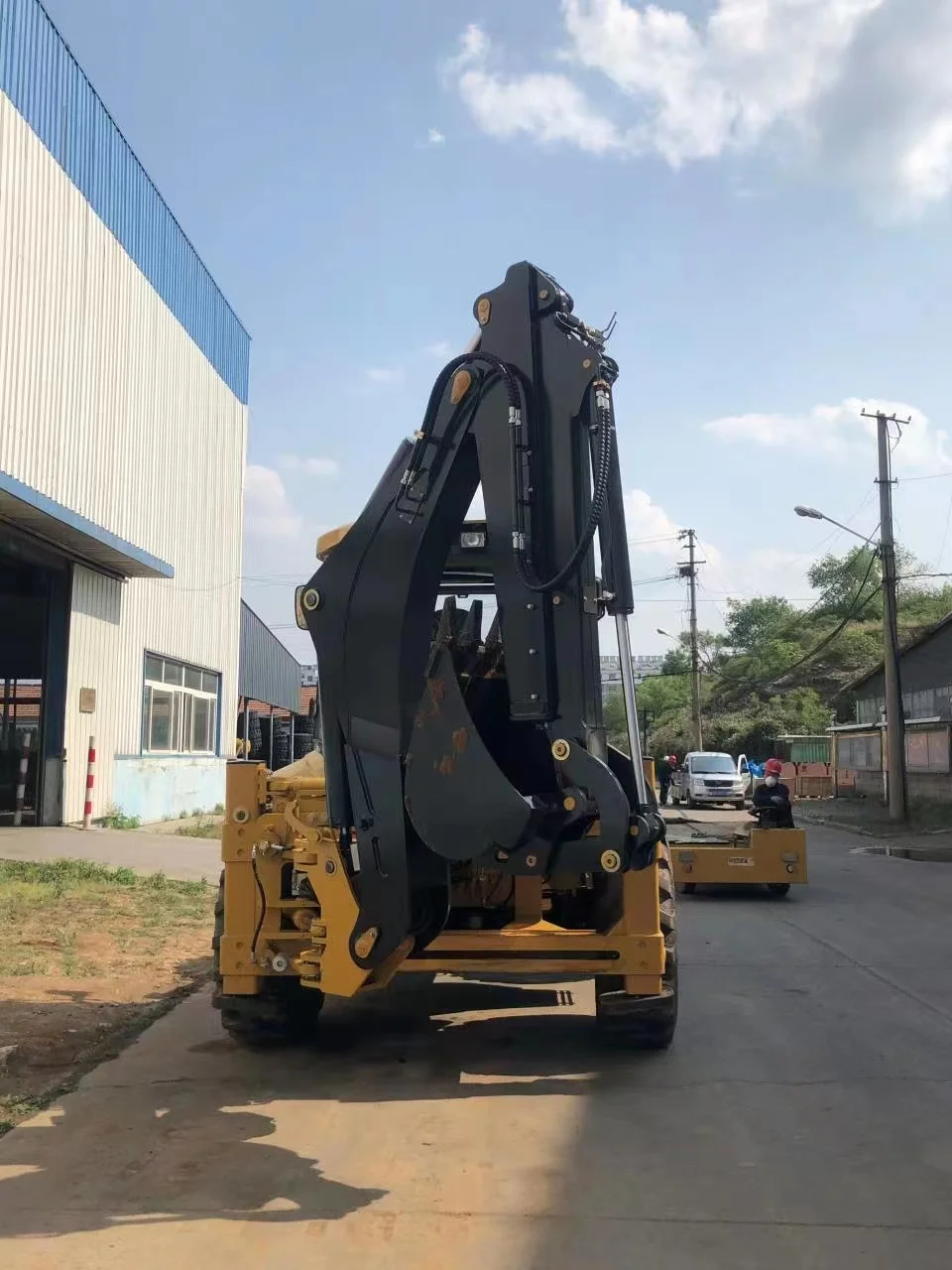

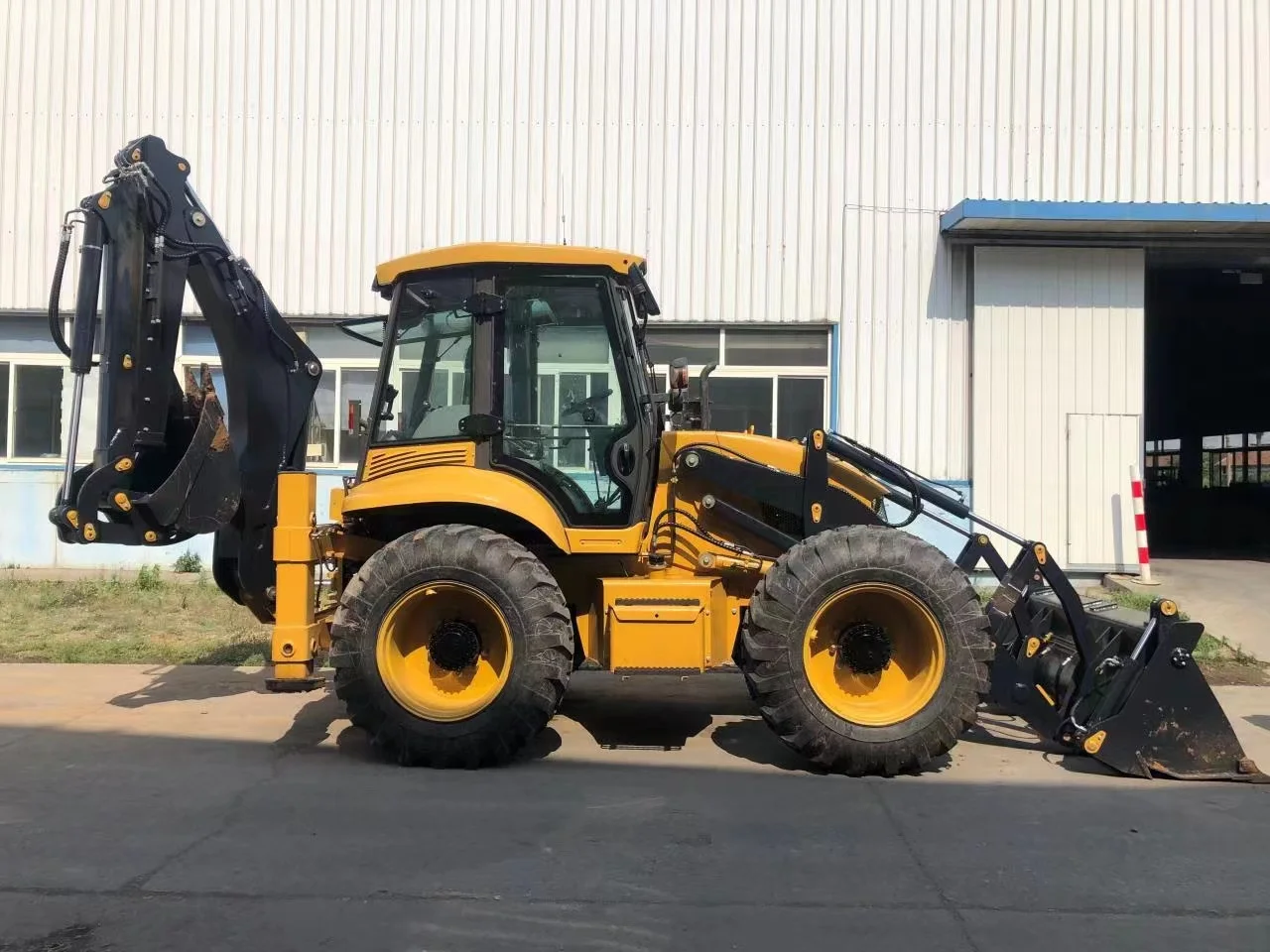

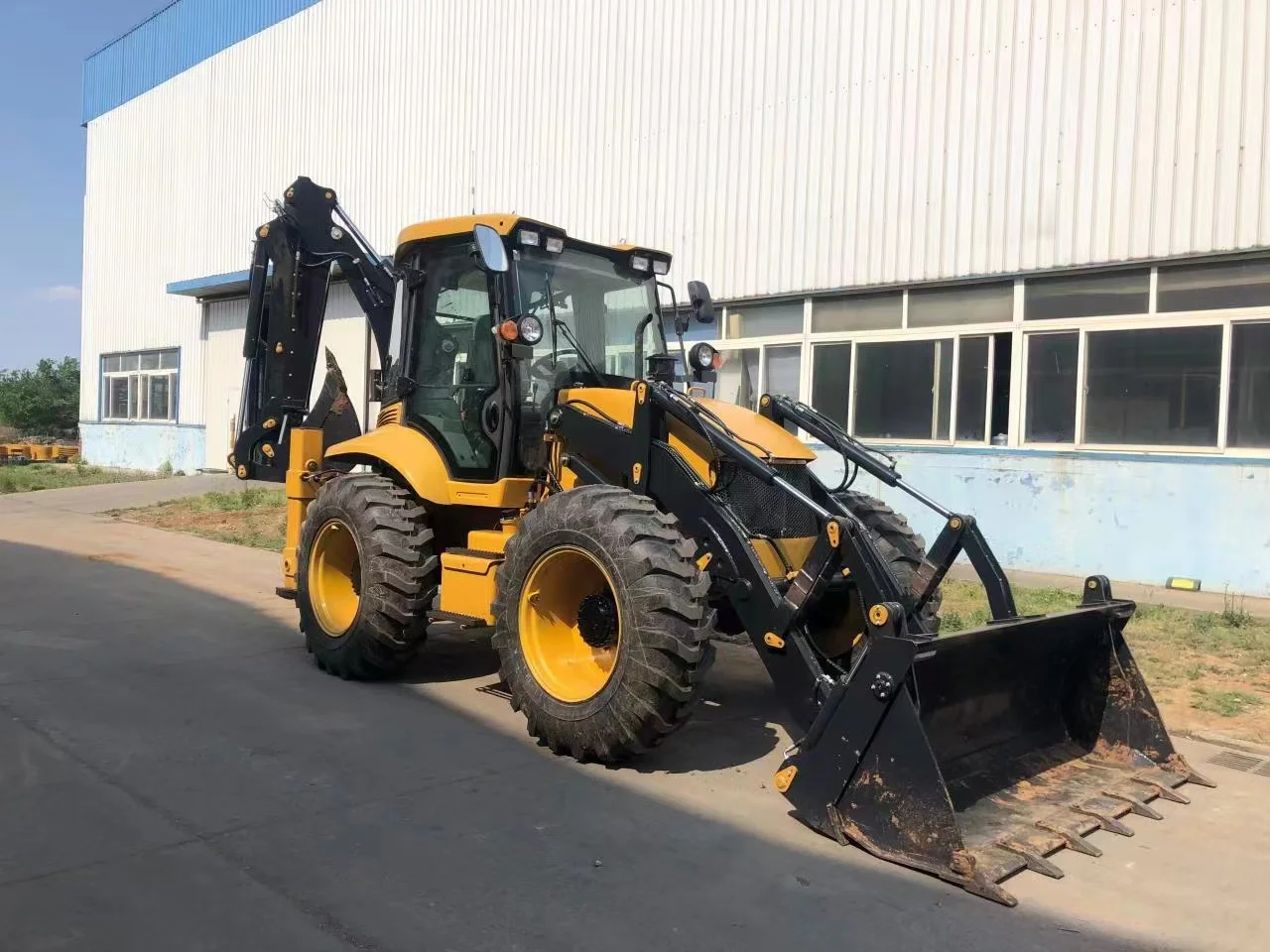

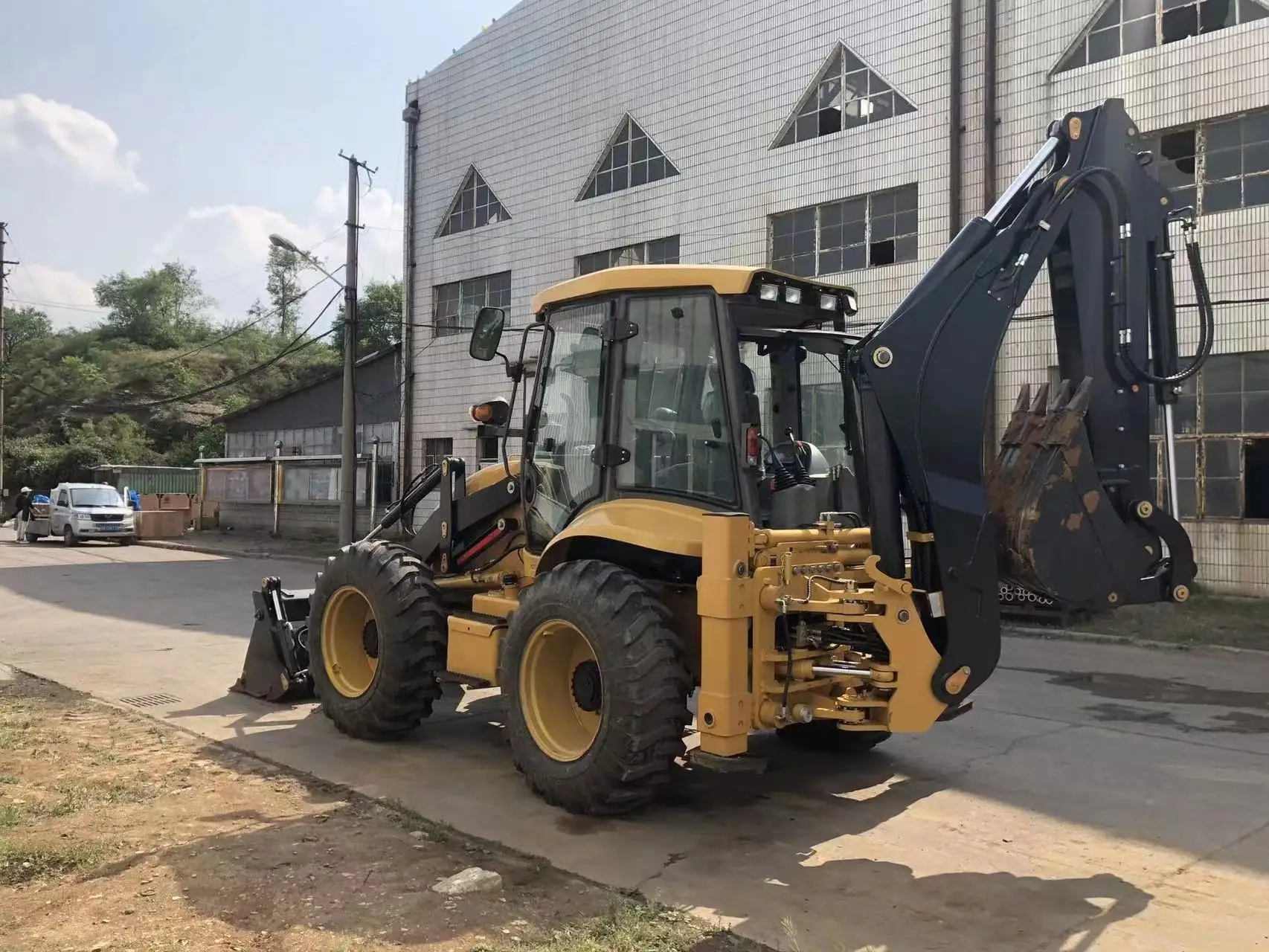

Four Wheel Steering Loader 388H Construction Equipment Hot Selling Backhoe Loader
- Category: >>>
- Supplier: Jiangsu Jitian International Trade Co. Ltd.
Share on (1600560432019):
Product Overview
Description
Detailed description

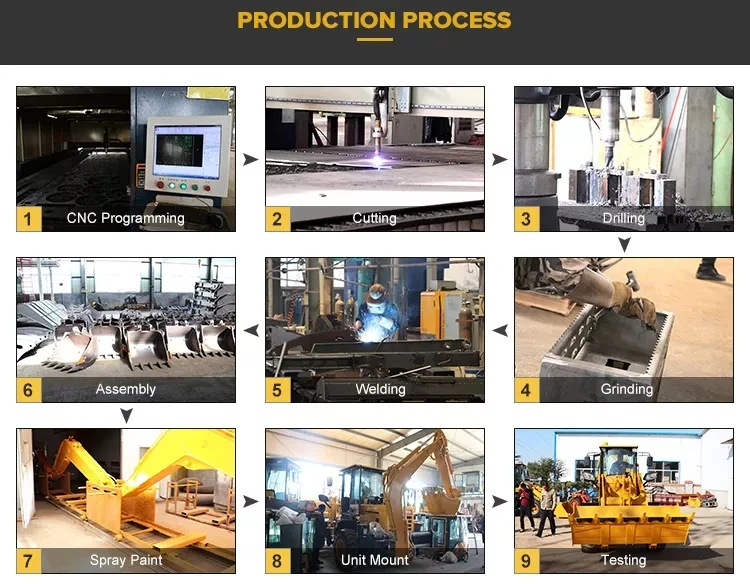

Manufacturing Technique

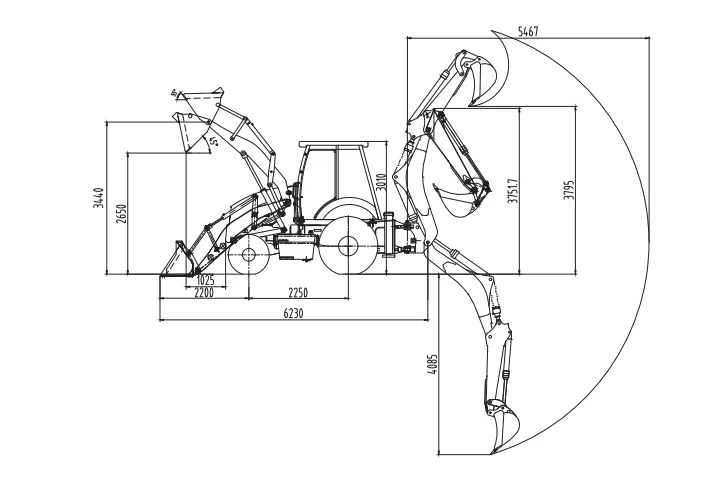

1 | Overall length of the whole machine (the bucket is placed on the ground) | 6450 ± 80mm |
2 | Overall width of the whole machine (outer edge of tire) | 2650 ±20mm |
3 | Bucket width | 2620mm |
4 | Overall height (to the top of the cab) | 3120 ±10mm |
5 | Overall height (to the top of the digging arm) | 3940± 20mm |
6 | wheelbase | 2335 ±10 mm |
7 | wheelbase | 2139 ±10mm |
Loading main technical parameters | ||
1 | Rated load capacity | 2500KG |
2 | operating weight | 9120kg |
3 | Rated bucket capacity | 1.2m3 |
4 | Maximum unloading height (41° unloading angle) | 3050 ± 50 mm |
5 | unloading distance | 870 ± 20 mm |
6 | Turning radius Bucket outer edge | 5750 ± 50mm |
Mining main technical parameters | ||
1 | Rated digging bucket capacity | 0.3m3 |
2 | Maximum excavation depth | 3820 + 20 mm |
3 | Maximum digging radius | 5345 +20mm |
4 | maximum loading height | 3740 +20mm |
5 | maximum digging force | kqf |
6 | Maximum excavation height | 5470 ±20mm |
7 | Maximum Digging Radius Lifting Force | 1220kg |
8 | Maximum digging depth (telescopic boom) | 4970±20 mm |
9 | Maximum loading height (telescopic boom) | 4983±20mm |
10 | Maximum digging height (telescopic boom) | 6680±20mm |
engine | ||
1 | engine model | YC4A105Z-T20 |
2 | cooling form | water-cooled |
3 | rated power | 75 (kW) |
4 | Exhaust volume | 4.8(L) |
5 | Rated speed | 2200(r/min) |
6 | maximum torque | 400(N.M) |

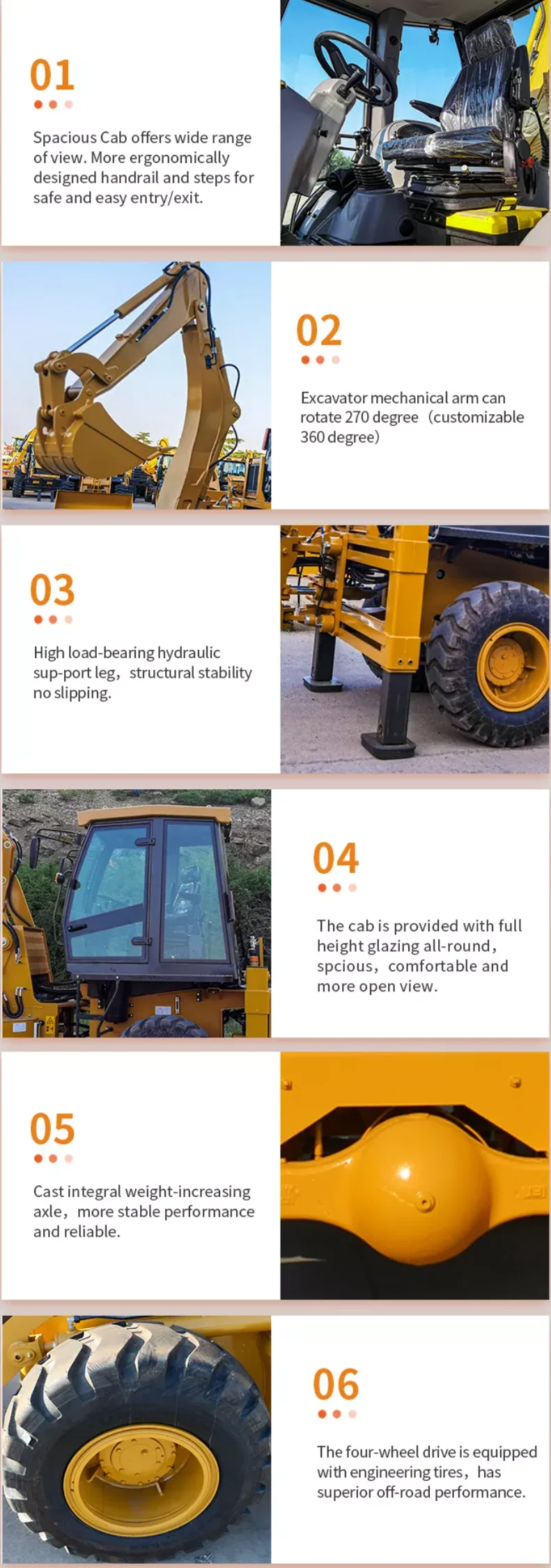

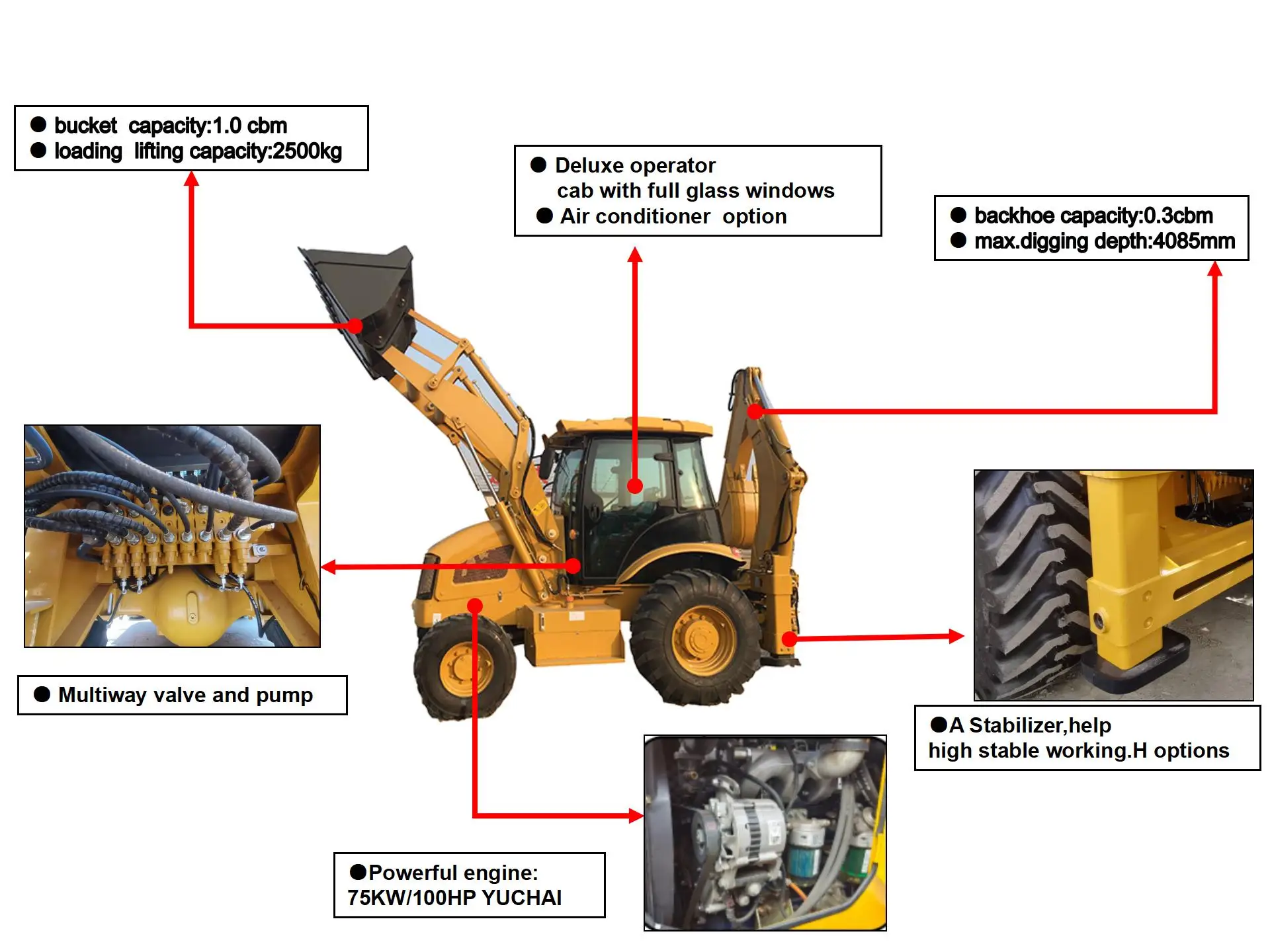

Product Description

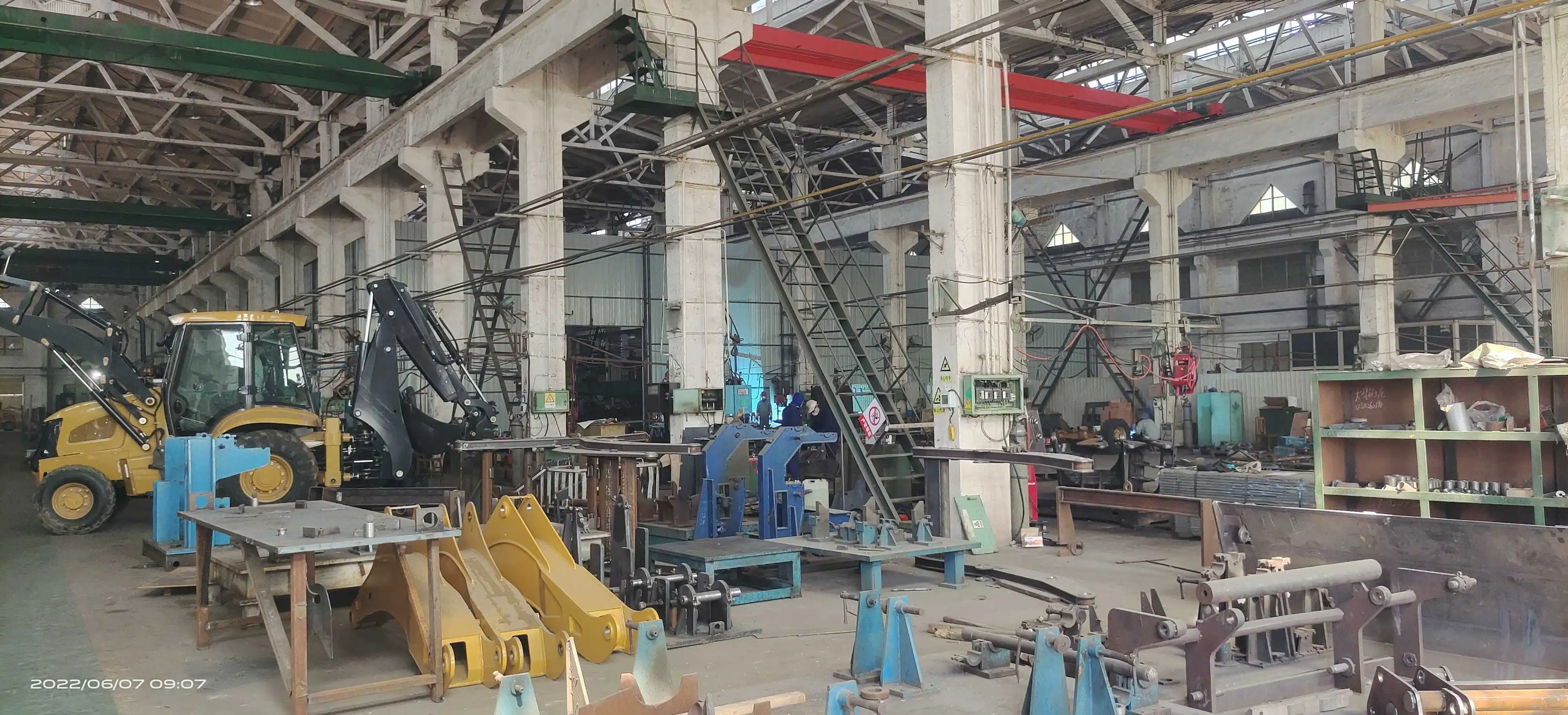

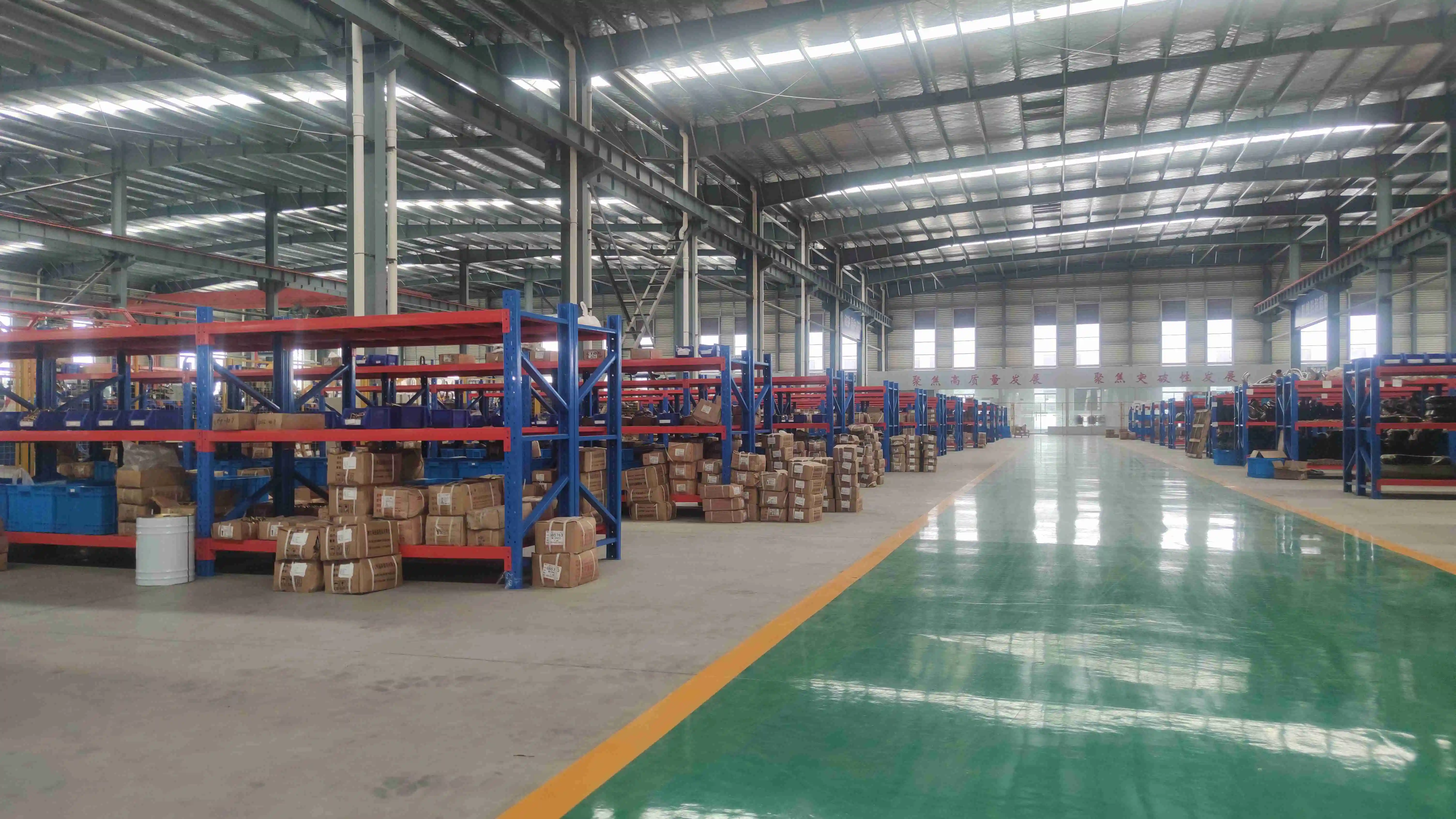

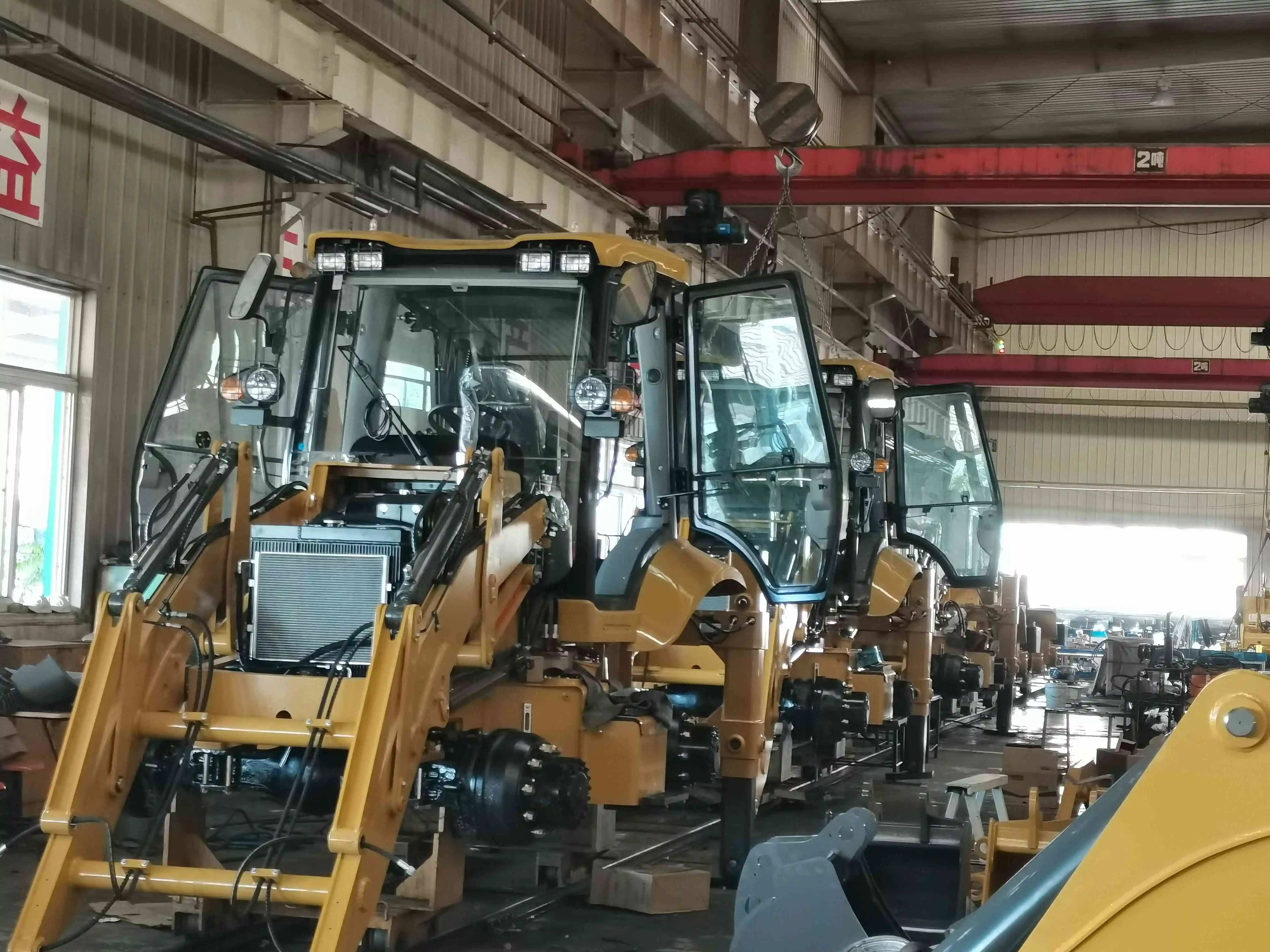

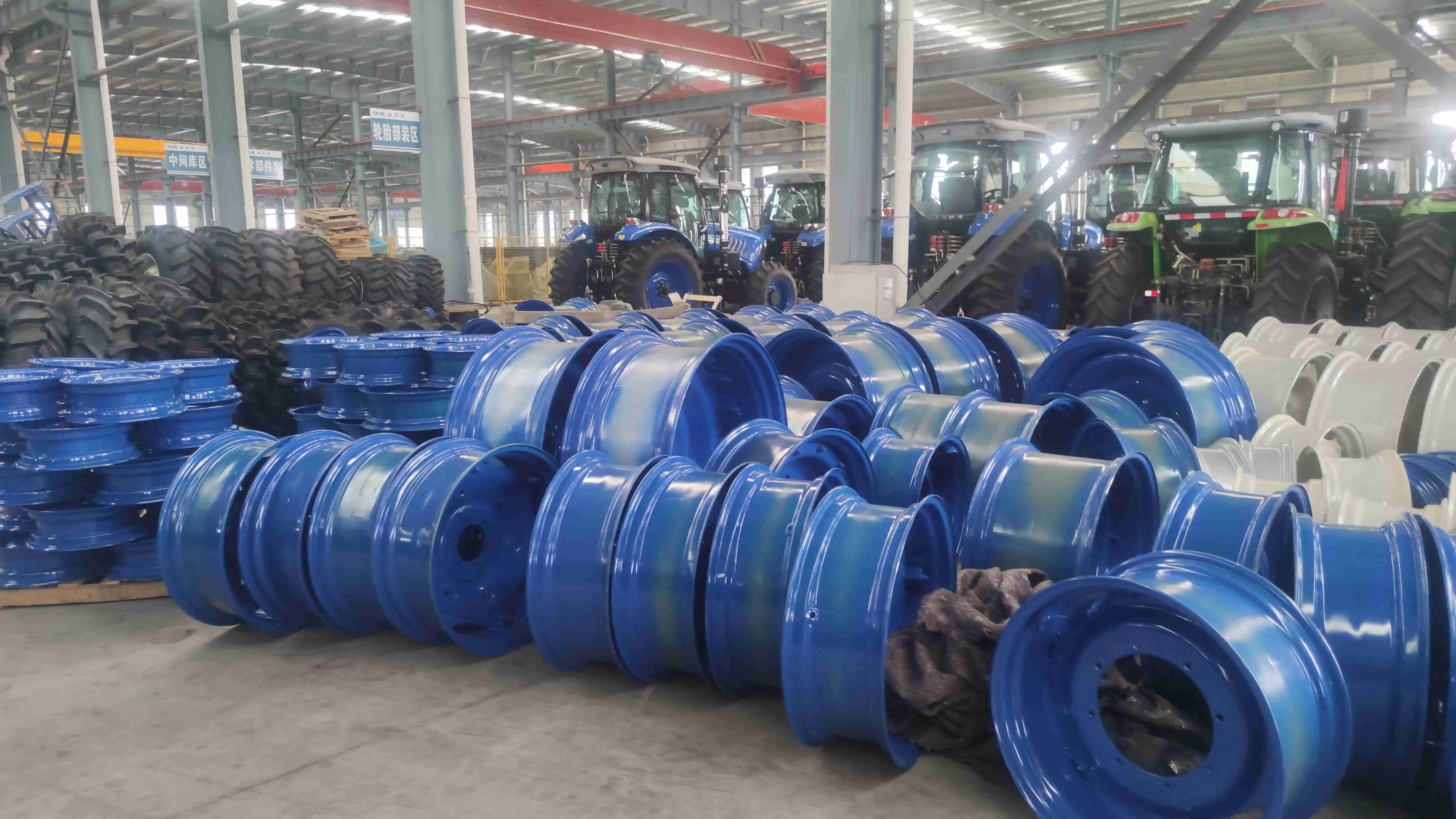

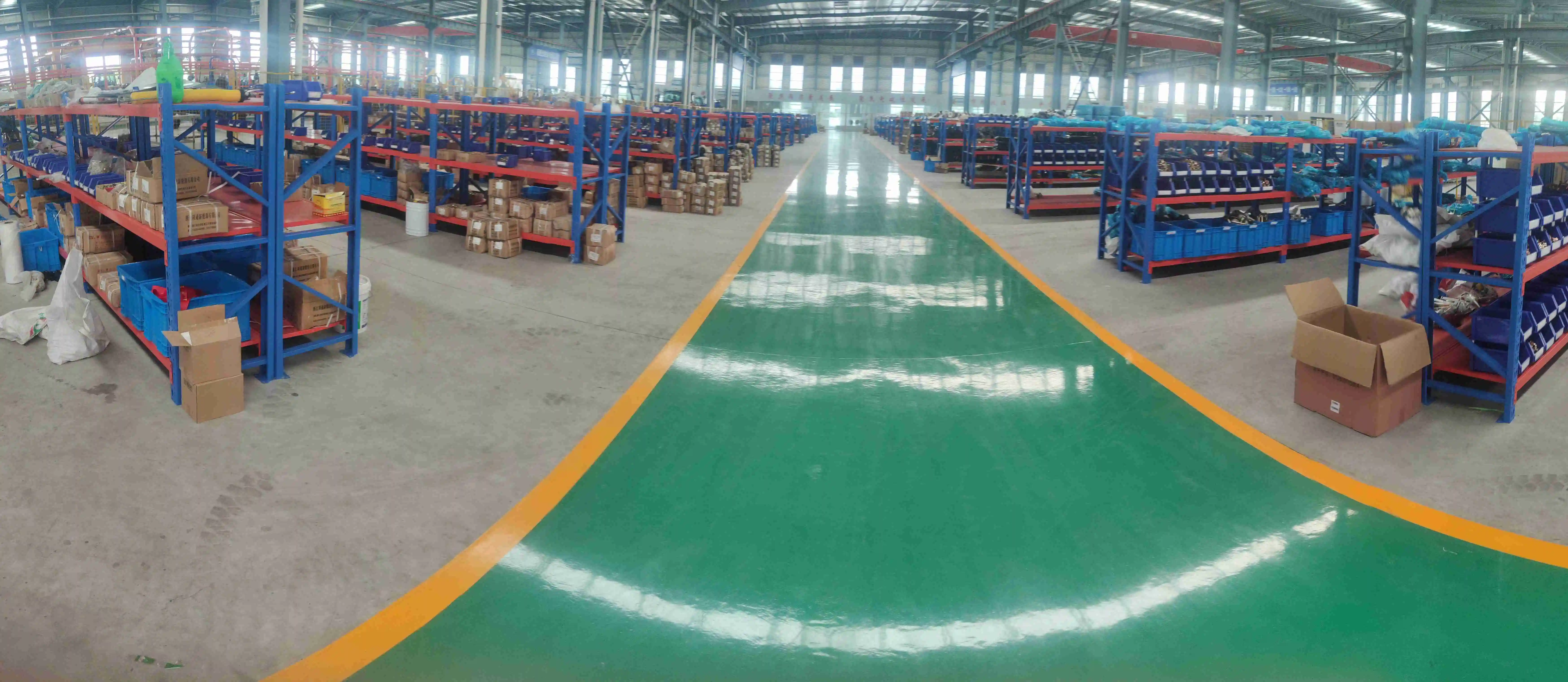

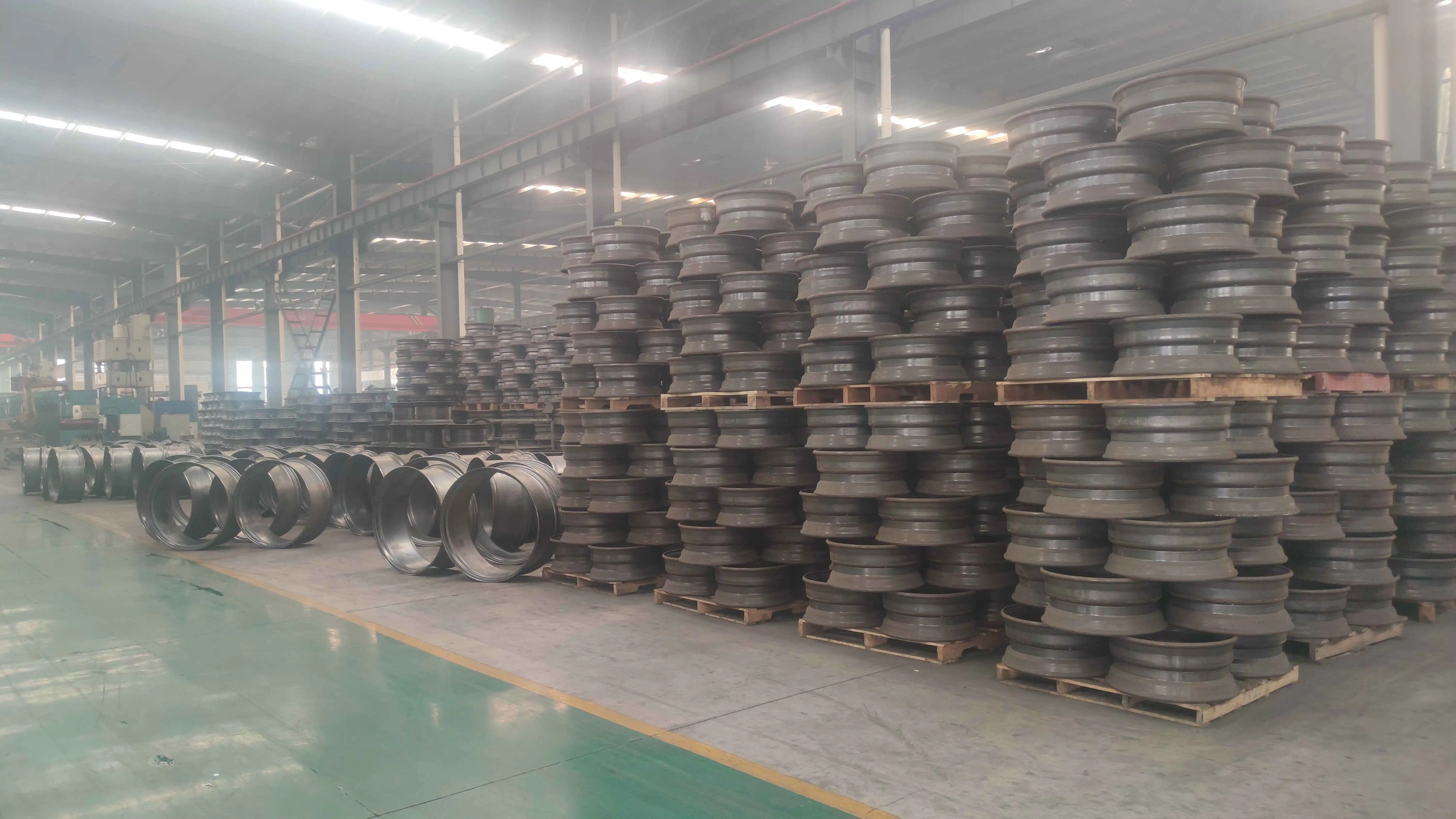

Workshop

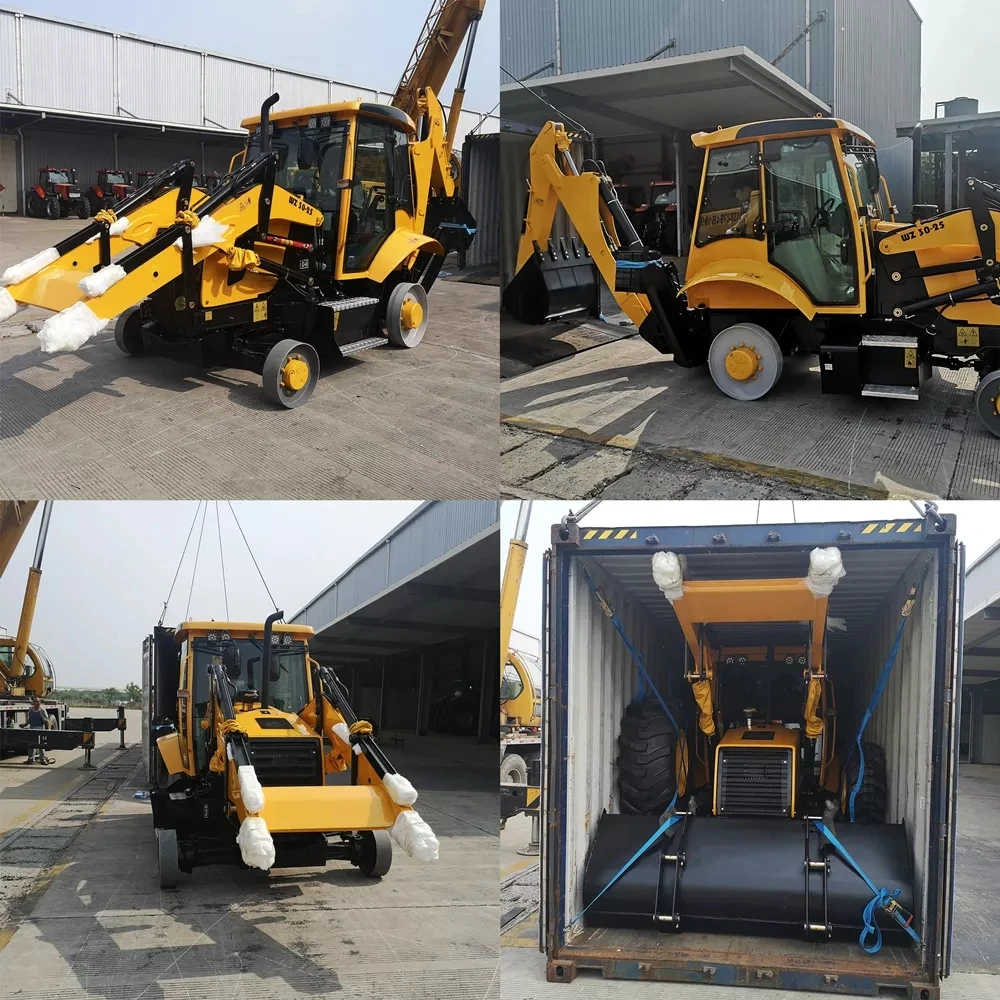

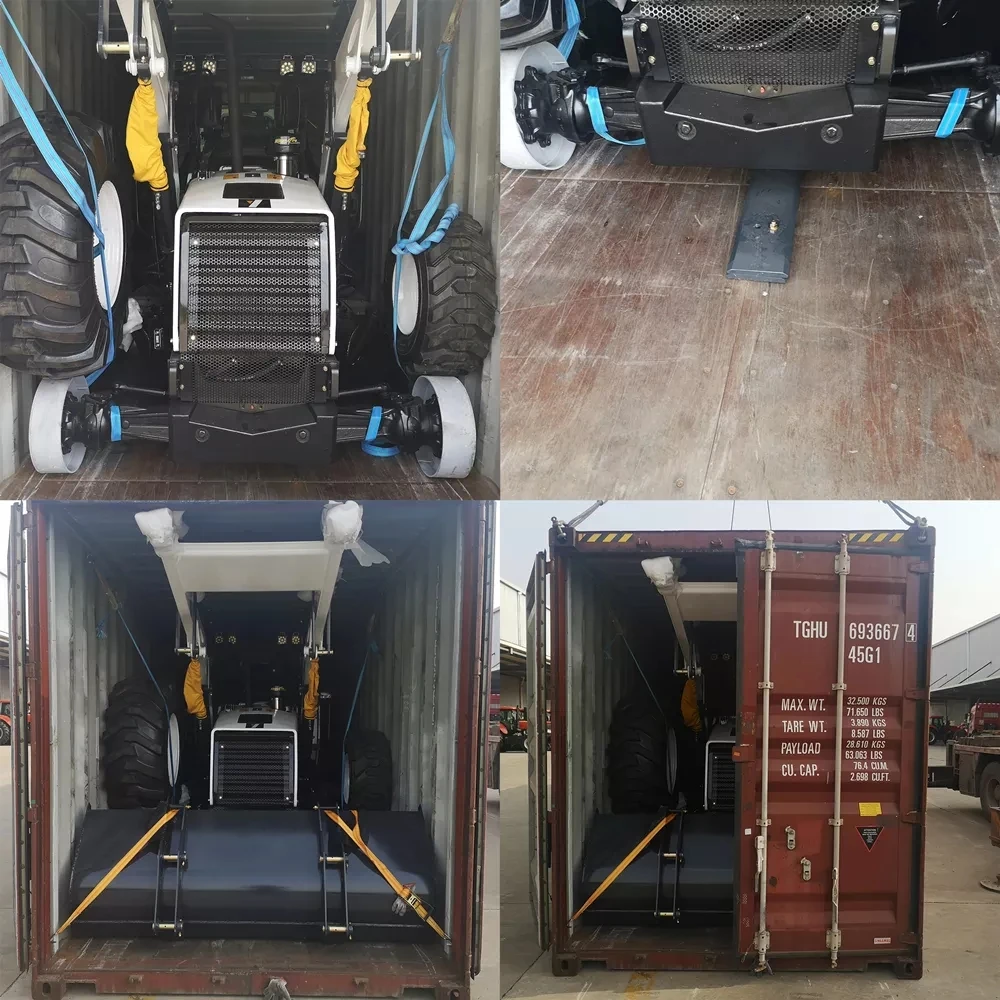

Packing&Shiping
Company Profile
Jiangsu Jitian International Trade Co., LTD, a wholly-owned subsidiary of Jiangsu Jitian Agricultural Machinery Group Co., Ltd was established in 2010 and is located in Xuzhou, Jiangsu province, enjoying convenient transportation and beautiful environment. Our company covers an area of 12,000 square meters and has 80 employees. We are specialized in the supply of agricultural machinery and its accessories.
