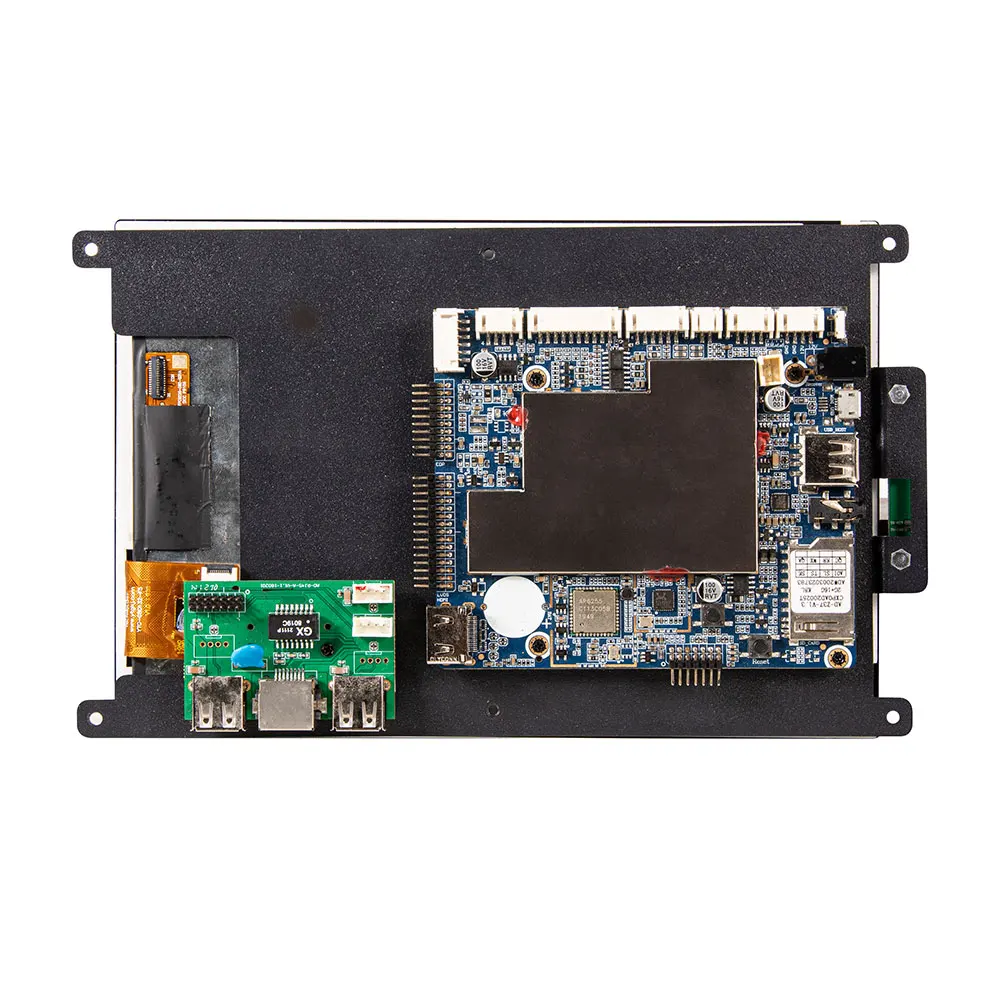

WIFI LAN BT Rockchip PX30 UART USB HD 7 Inch Touch Interactive Android Embedded LCD Display Module
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.
Share on (1600560466062):
Product Overview
Description
Product Description
Overview:

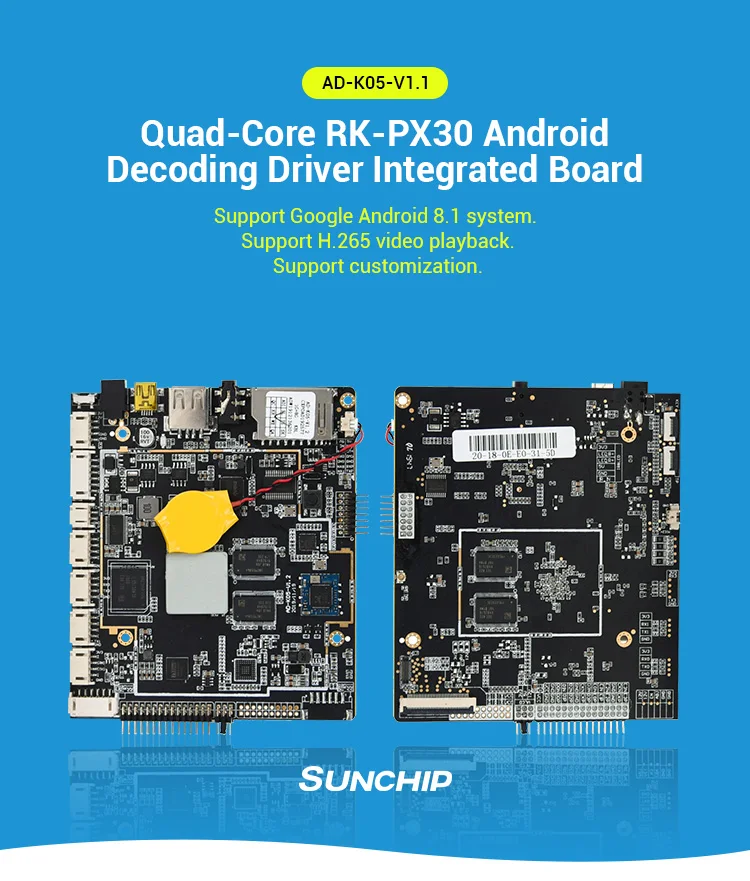

The intelligent industrial all-in-one board adopts Rockchip RK-PX30 quad-core chip solution and supports Android 8.0 system. Powerful computing power. Rich interface, enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
Feature:
u
u Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920*1080).
u Support EDP interface display
u Support MIPI interface display
u A variety of interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch
u Various network interfaces: Ethernet, Wireless Wifi, BT.
u Multi-channel USB interface, serial port
u Strong anti-electromagnetic interference and electromagnetic compatibility

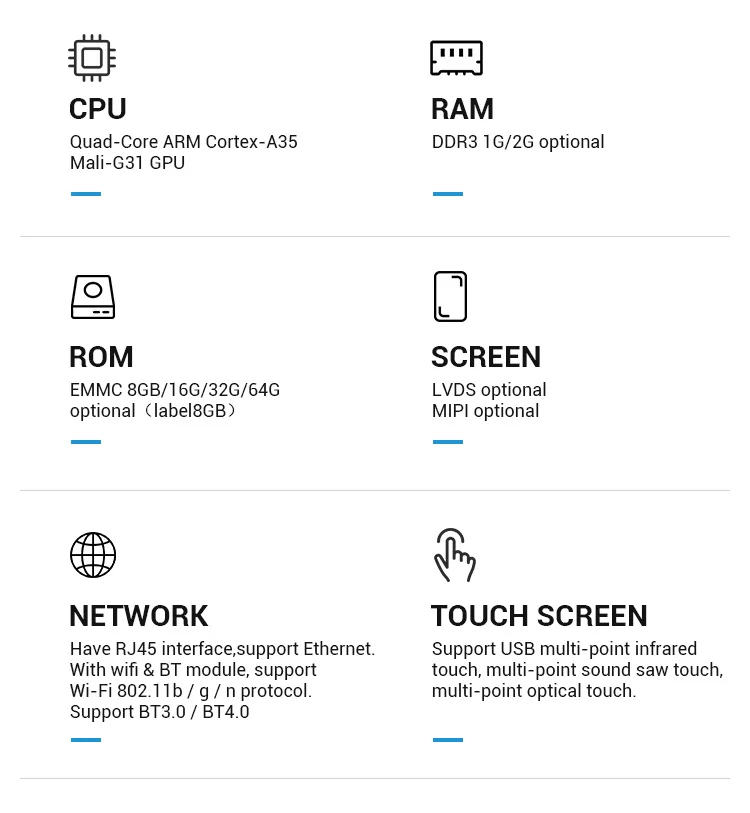

Basic Hardware specifications
CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU |
Main frequency | Up to 1.5GHz |
RAM | LPDDR3 1G/2G Optional |
Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
Display interface
| LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP screen interface |
| MIPI screen interface |
Screen voltage | Support 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet
| With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
| 2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals) |
| 3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.) |
| SD card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HD MI 2.0 output |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats |
Video | Support 4K 60fps H.265,H.264,VC-1, MPEG-1/2/4, VP8 video decoding; support 1080P H.265/VP8 video encoding |
Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Packaging & Shipping
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.
