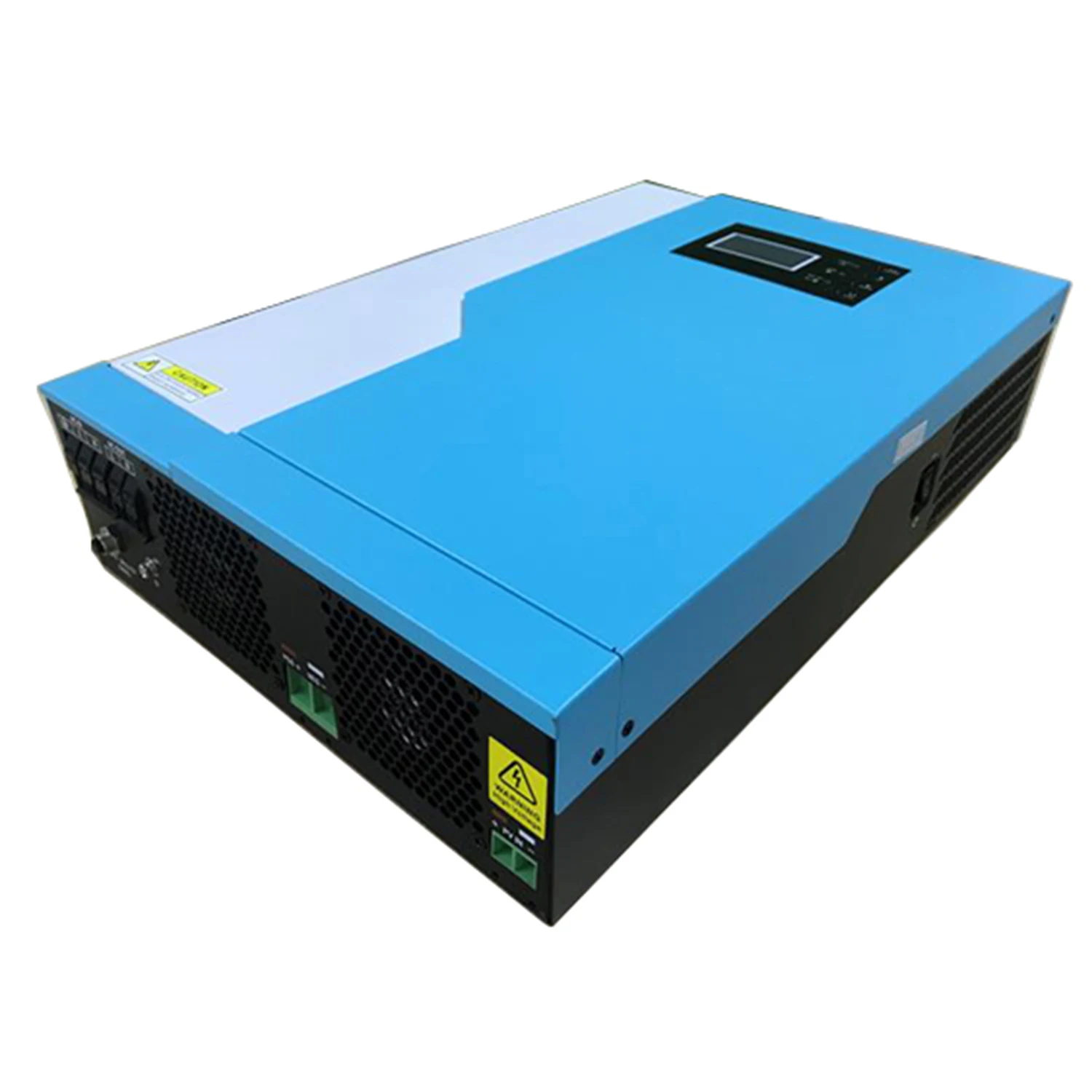

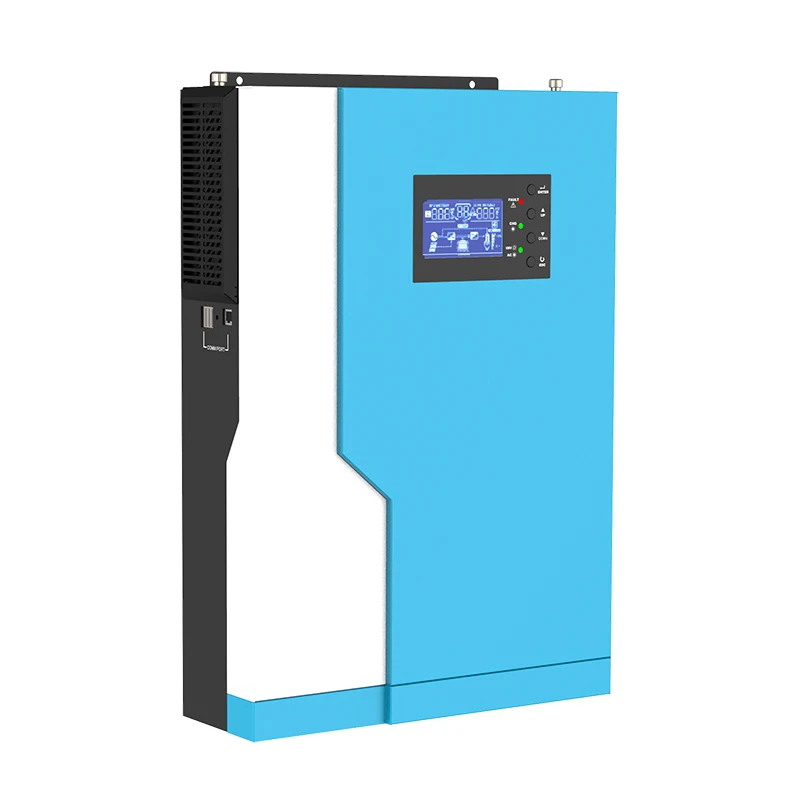

Factory Power System 30Kw Off Grid Hybrid 5Kva Price Solar Inverter 96V
- Category: >>>
- Supplier: Fuzhou Comleds Lighting & Energy Technology Co. Limited
Share on (1600560476911):
Product Overview
Description
Factory Power System 30Kw Off Grid Hybrid 5Kva Price Solar Inverter 96V
Product Description
hybrid solar inverter 1000w
hybrid 20kva three phase 12v top 10 24v sako solar inverter 96v
Specification
MODEL | MY-INVV-3.6KW 24V | MY-INVV-6.2KW 48V | ||
Phase | 1-phase | |||
Maximum PV Input Power | 6200W | 6500W | ||
Rated Output Power | 3600W | 6200W | ||
Maximum Solar Charging Current | 120A | |||
GRID-TIE OPERATION PV lnput(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
GRID OUTPUT AC | ||||
Nominal Output Voltage | 200/230/240VAC | |||
Output Voltage Range | 195.5~253VAC | |||
Nominal Output Current | 15.7A | 27.0A | ||
Power Factor | ＞0.99 | |||
Feed-in Grid Frequency Range | 49-511Hz | |||
EFFICENCY | ||||
Maximum Conversion Efficiency(DC/AC) | 97% | |||
TWO LOAD OUTPUT POWER(V2.0) | ||||
Full Load | 3600W | 6200W | ||
Maximum Main Load | 3600W | 6200W | ||
Maximum Second Load(battery mode) | 1200W | 2067W | ||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||
Main Load Return Voltage | 24VDC | 48VDC | ||
OFF-GRID OPERATION AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 30A | 40A | ||
Nominal operating frequency | 50/60Hz | |||
Surge power | 7200VA | 12400VA | ||
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC-450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 24VDC | 48VDC | ||
Output Waveform | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Nominal DC Voltage | 24VDC | 48VDC | ||
Maximum Solar Charging Current | 120A | |||
Maximum AC Charging Current | 100A | |||
Maximum battery Current | 125A | 150A | ||
GENERAL PHYSICAL | ||||
Dimension,D x W x H(mm) | 420*310*110 | |||
Net Weight(kgs) | 10 | 11 | ||
INTERFACE | ||||
Communication Port | RS232/WIFI/BMS | |||
ENVIRONMENT | ||||
Humidity | 0~90% | |||
Operating Temperature | -10 to 50℃ | |||

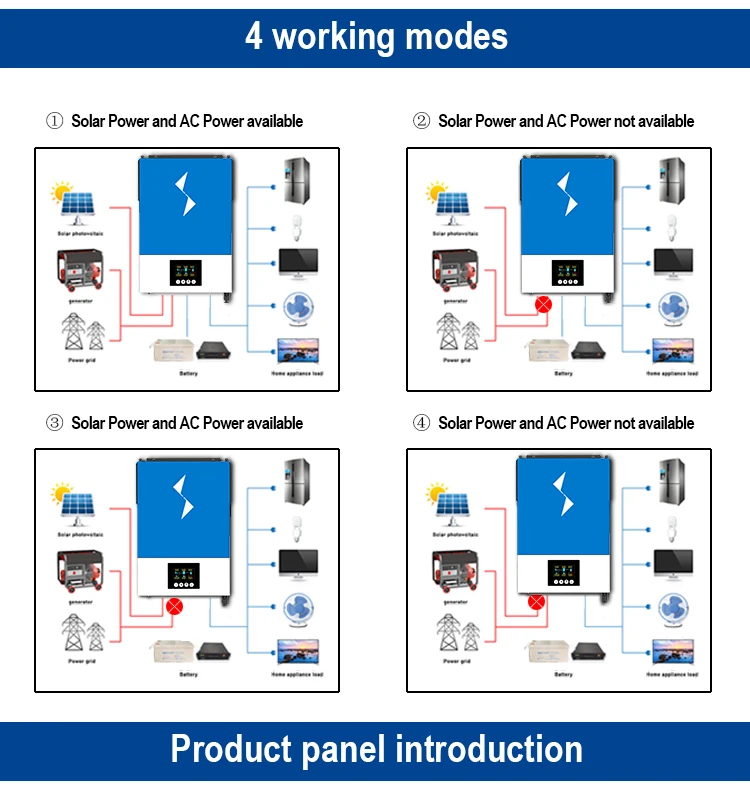

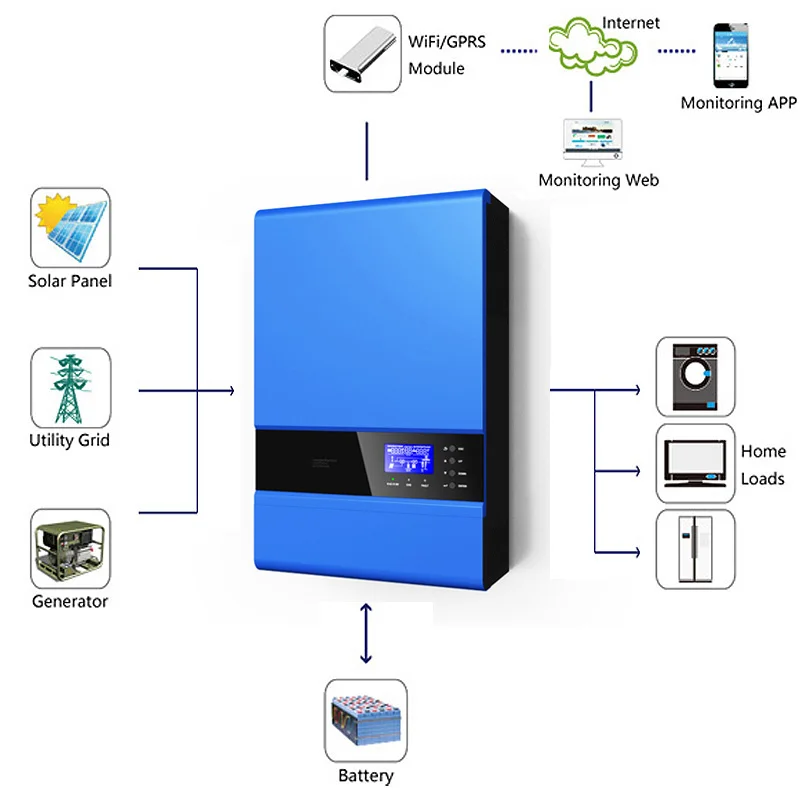

System Diagram

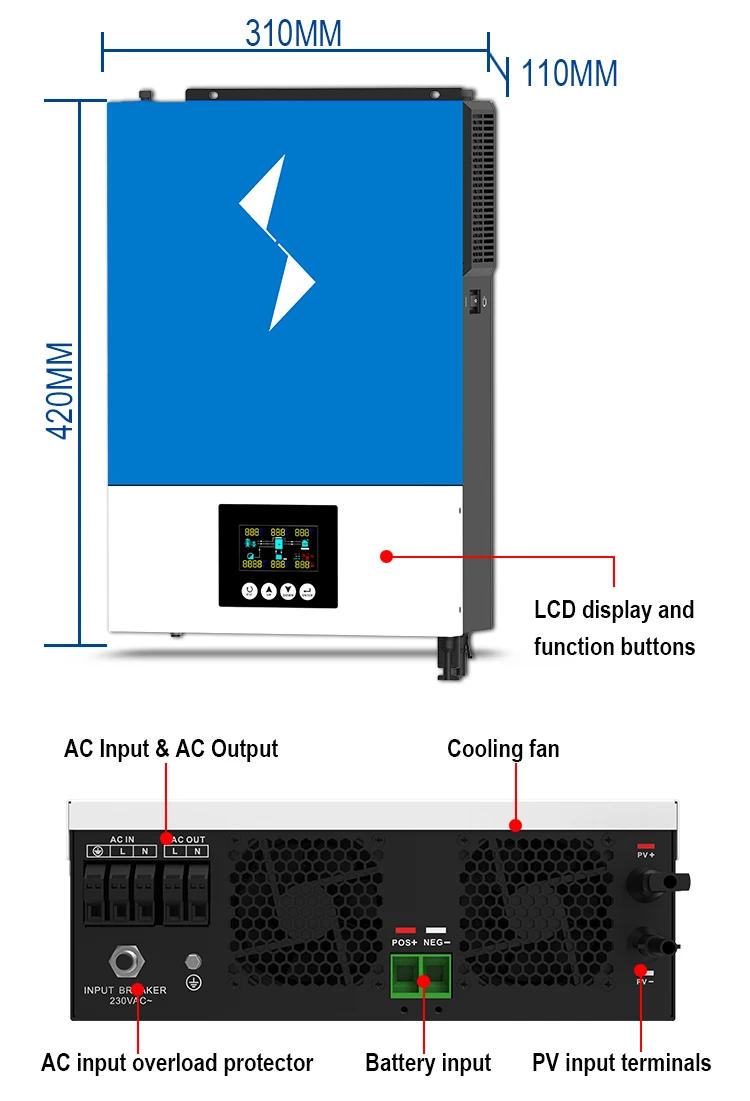

Product Panel Introduction

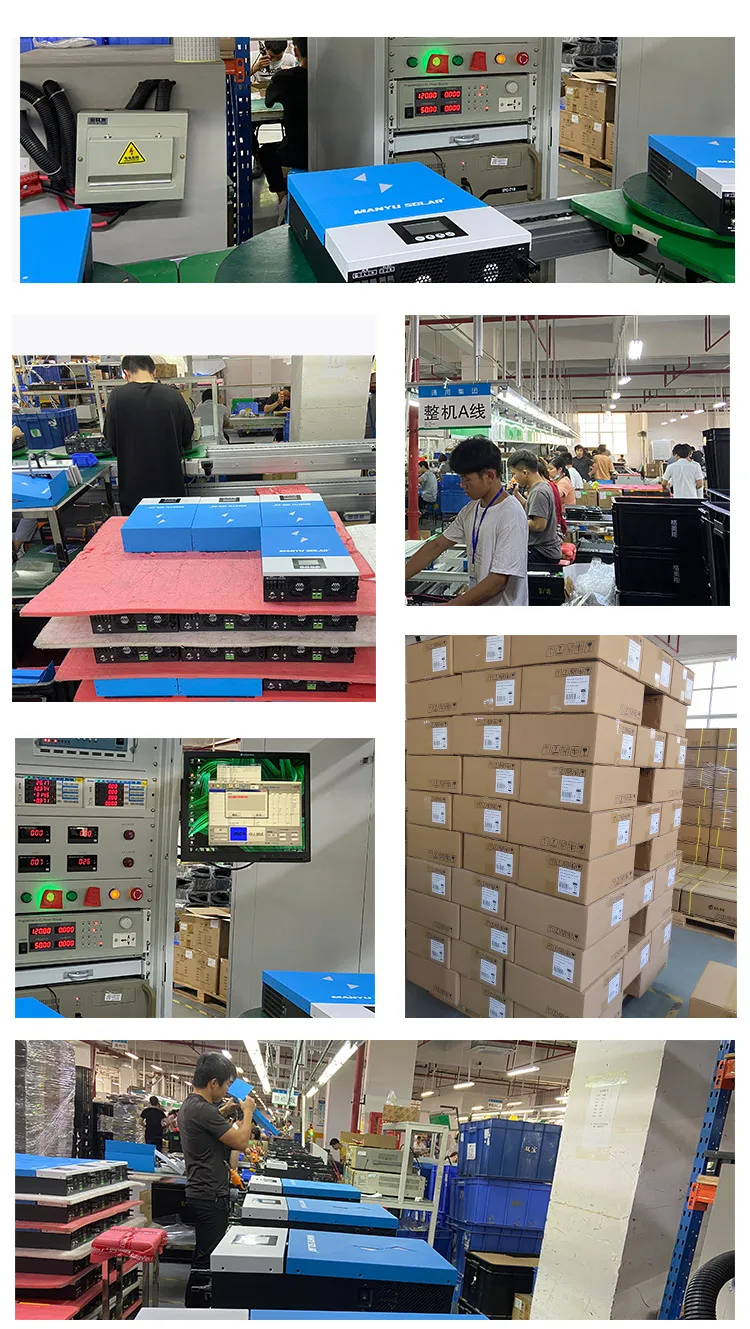

Production Site
Company Profile
Packing & Delivery
