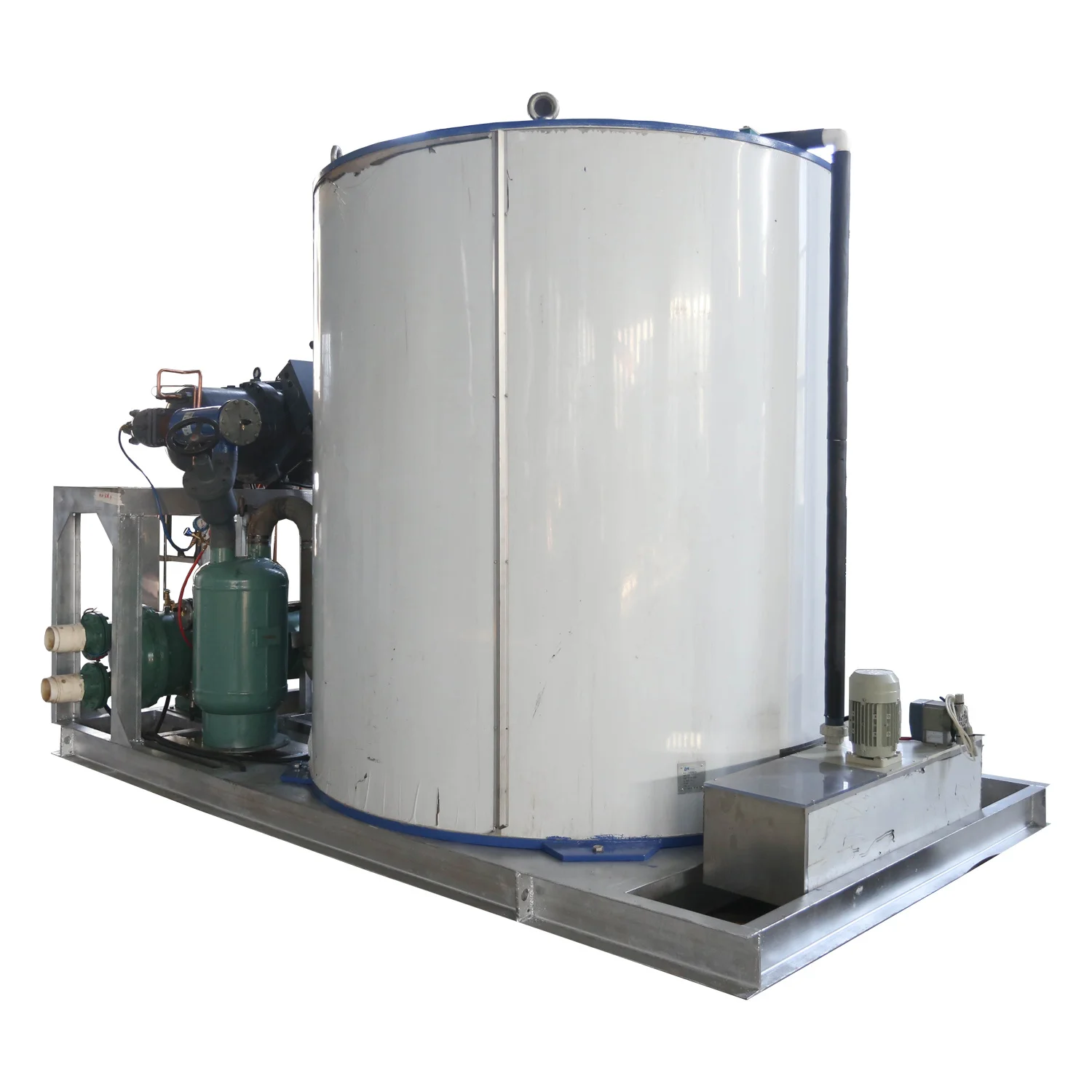

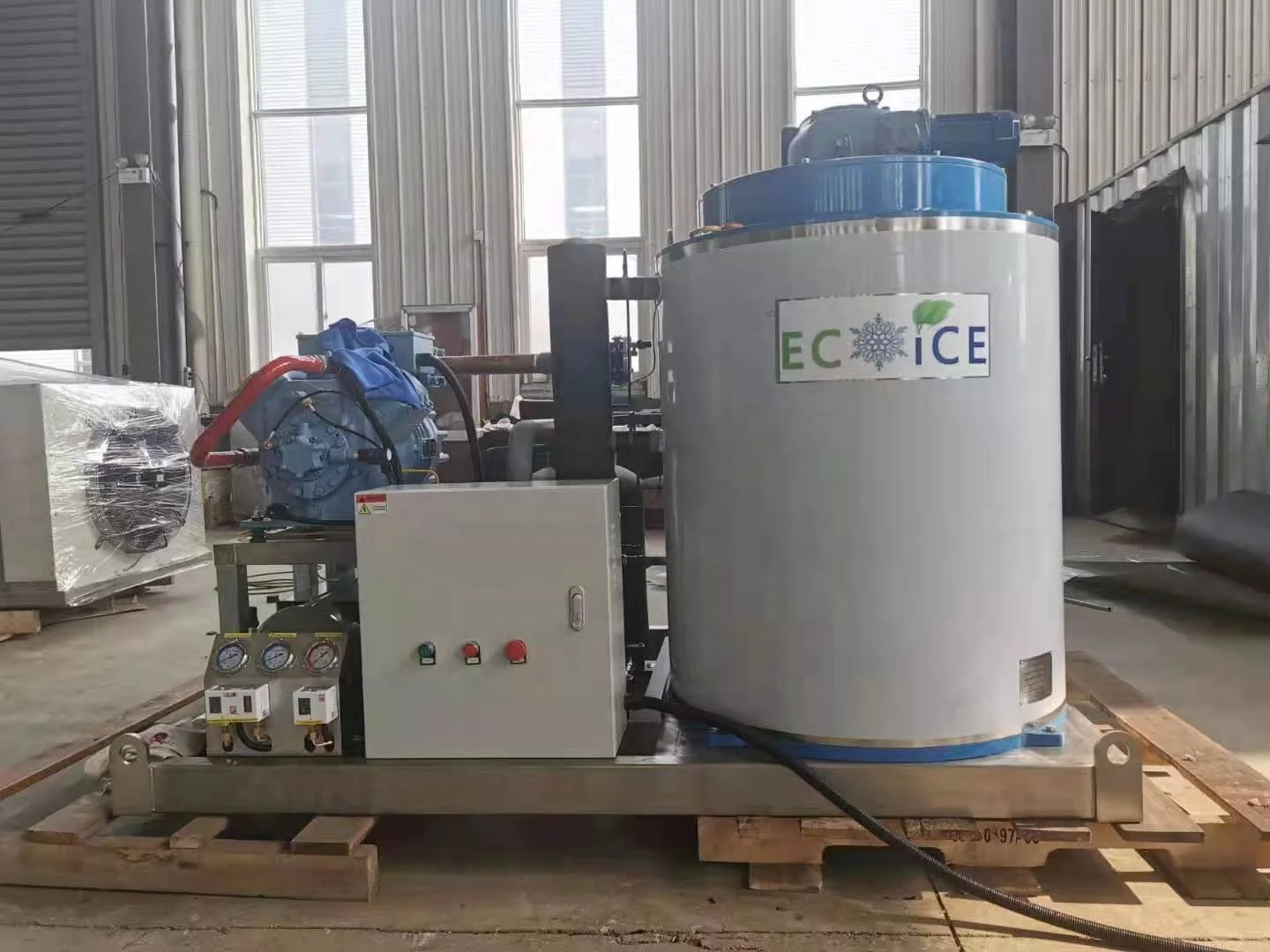

ice factory flake ice machine for meat processing concrete construction projects etc ice plant
- Category: >>>
- Supplier: Shandong Ecoice Refrigeration Co. Ltd.
Share on (1600560528467):
Product Overview
Description
Product Description
Specification
Technical Data As Below :
1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
2. Evaporating Temp : -20 ºC ;
3. Condensing Temp : 38 ºC ;
4. Power supply: 3P/380V/50HZ
5. Flake ice thickness:1.6-2.3 mm
6. Refrigerant gas type : R404a
Model | ECOF-5T | ECOF-8T | ECOF-10T | ECOF-12T |
Daily Output (Ton/24Hrs) | 5 | 8 | 10 | 12 |
Cooling Capacity (KW) | 38.7 | 54.1 | 76.5 | 83.3 |
General Power (KW) | 22.55 | 33 | 45.5 | 45.6 |
Compressor Input (KW) | 20.5 | 27.1 | 40.7 | 47.5 |

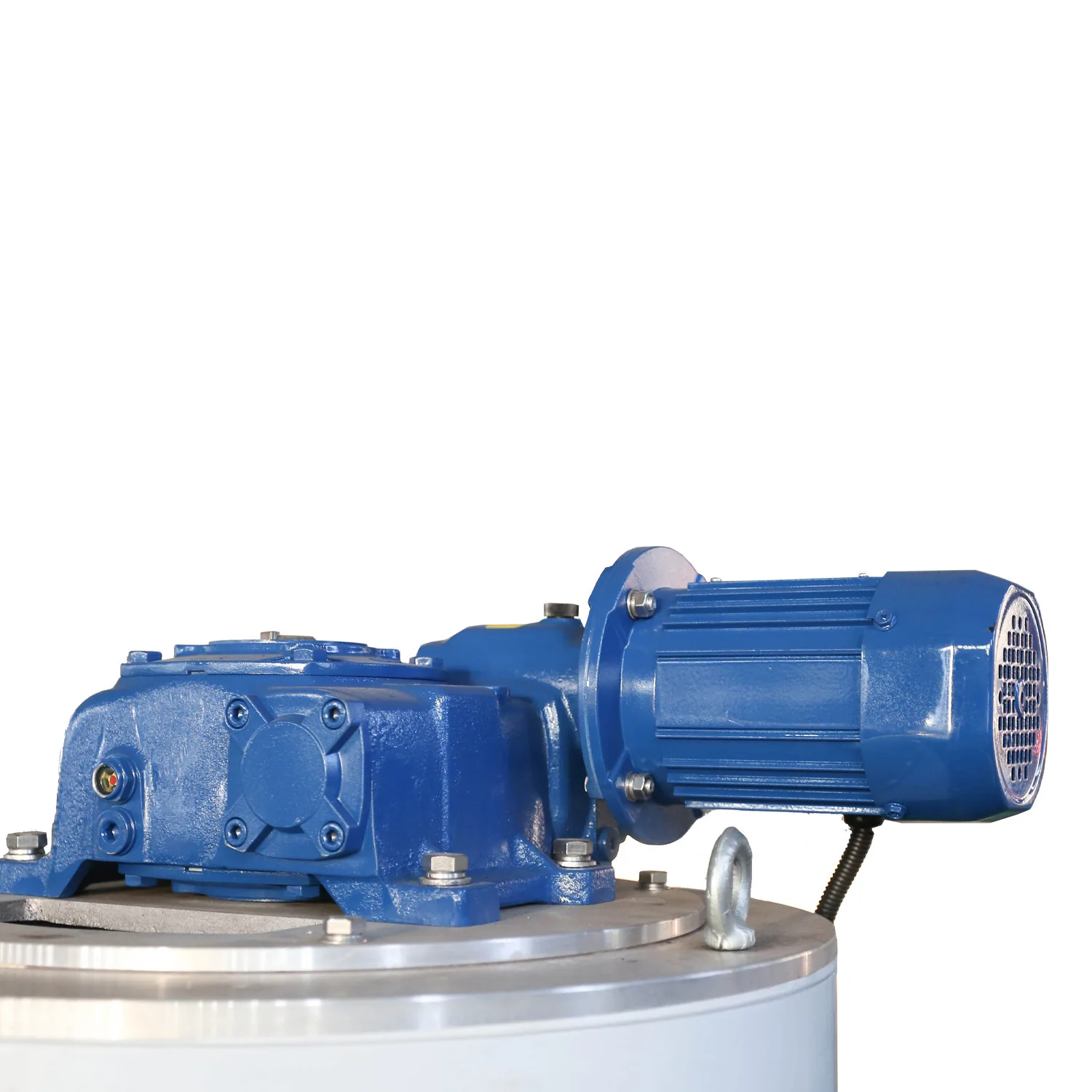

Reductor Power(kw) | 0.37 | 0.55 | 0.55 | 0.55 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Cooling Tower(m3/h) | 20 | 30 | 45 | 50 |
Water Inlet/Drain Pipe | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" |
Weight (kgs) | 980 | 1670 | 2020 | 2260 |
Dimension(mm) | 1800*1500*1470 | 2200*1890*1650 | 2200*1900*1750 | 2200*1900*1900 |

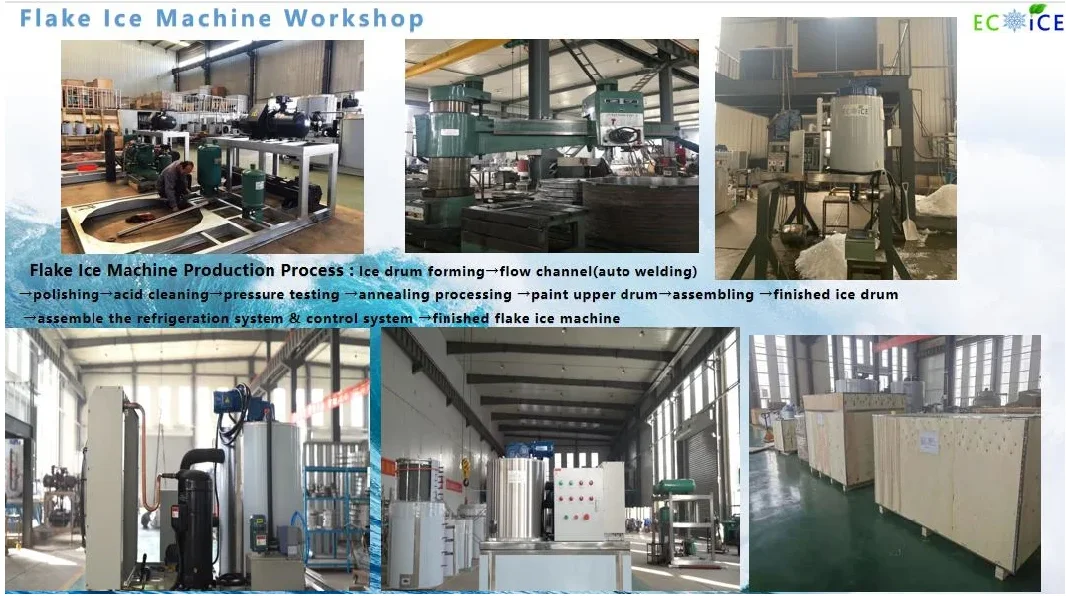

Production Process

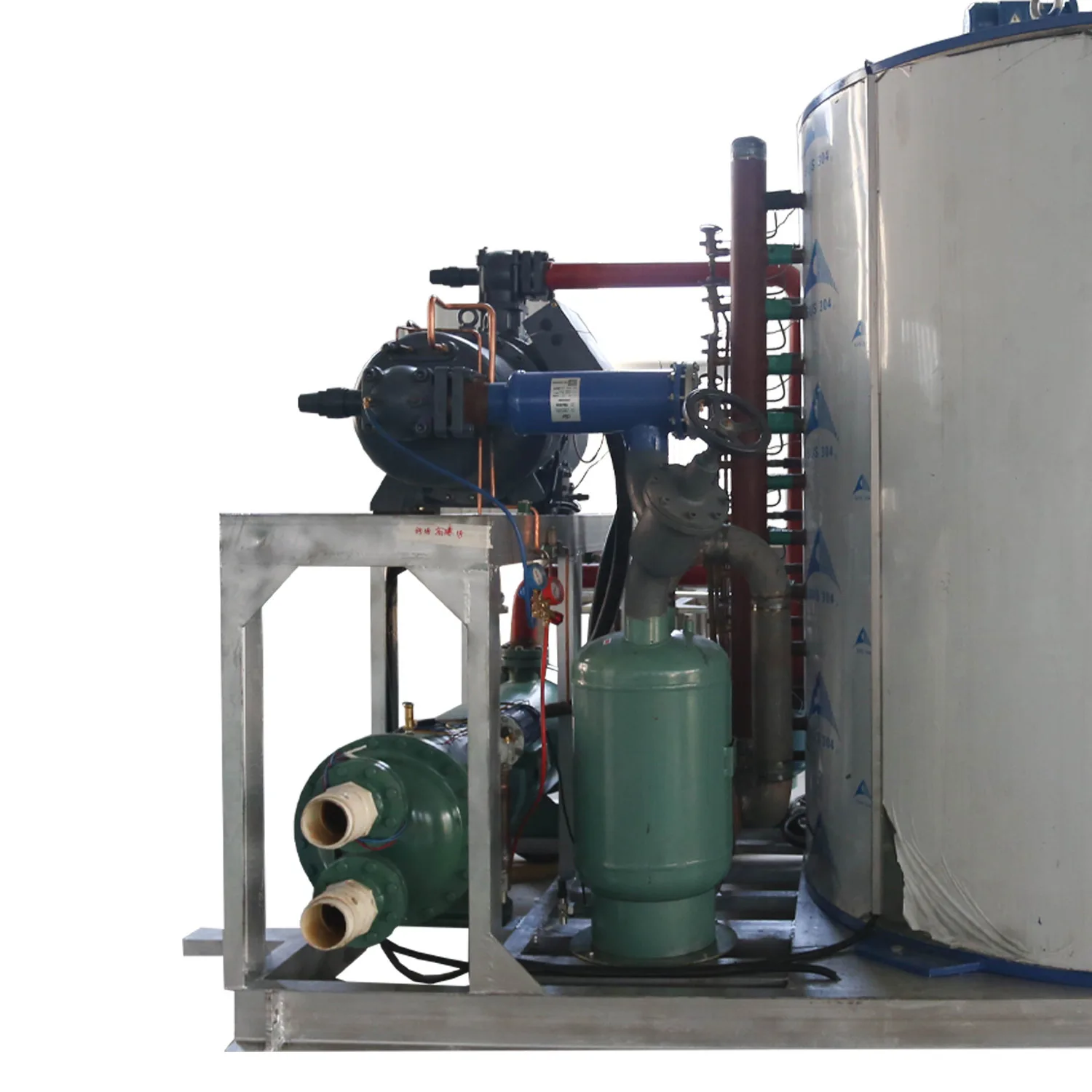

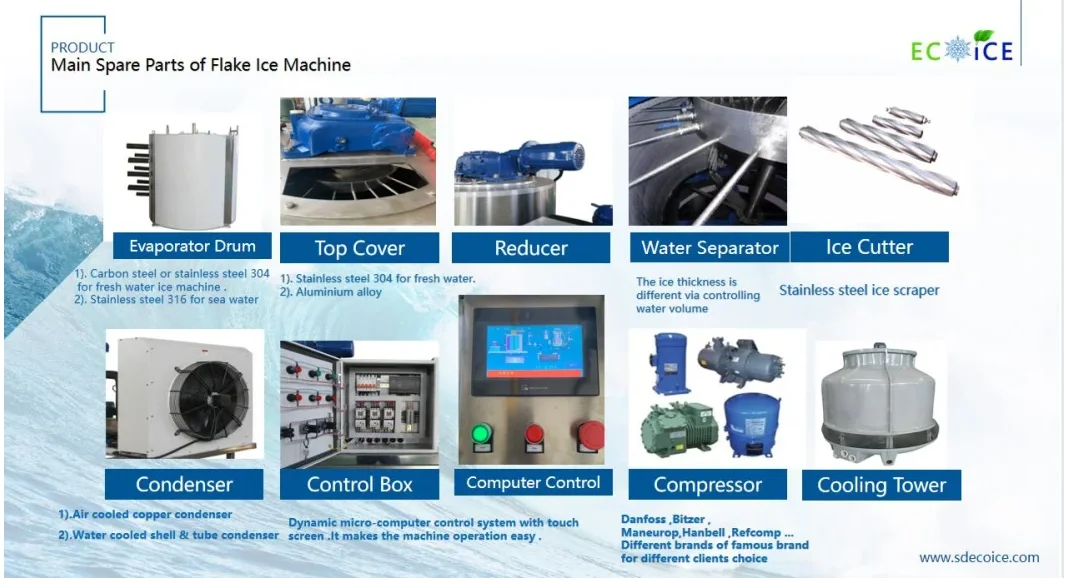

Main Spare Parts
Flake ice machine ice maker main parts introduction :
1. Evaproator drum :
1). Carbon steel or stainless steel 304 for fresh water ice machine .
2). Stainless steel 316 for sea water
2.Top Cover :
1). Stainless steel 304 for fresh water.
2). Aluminium alloy
3.Stainless steel ice scraper

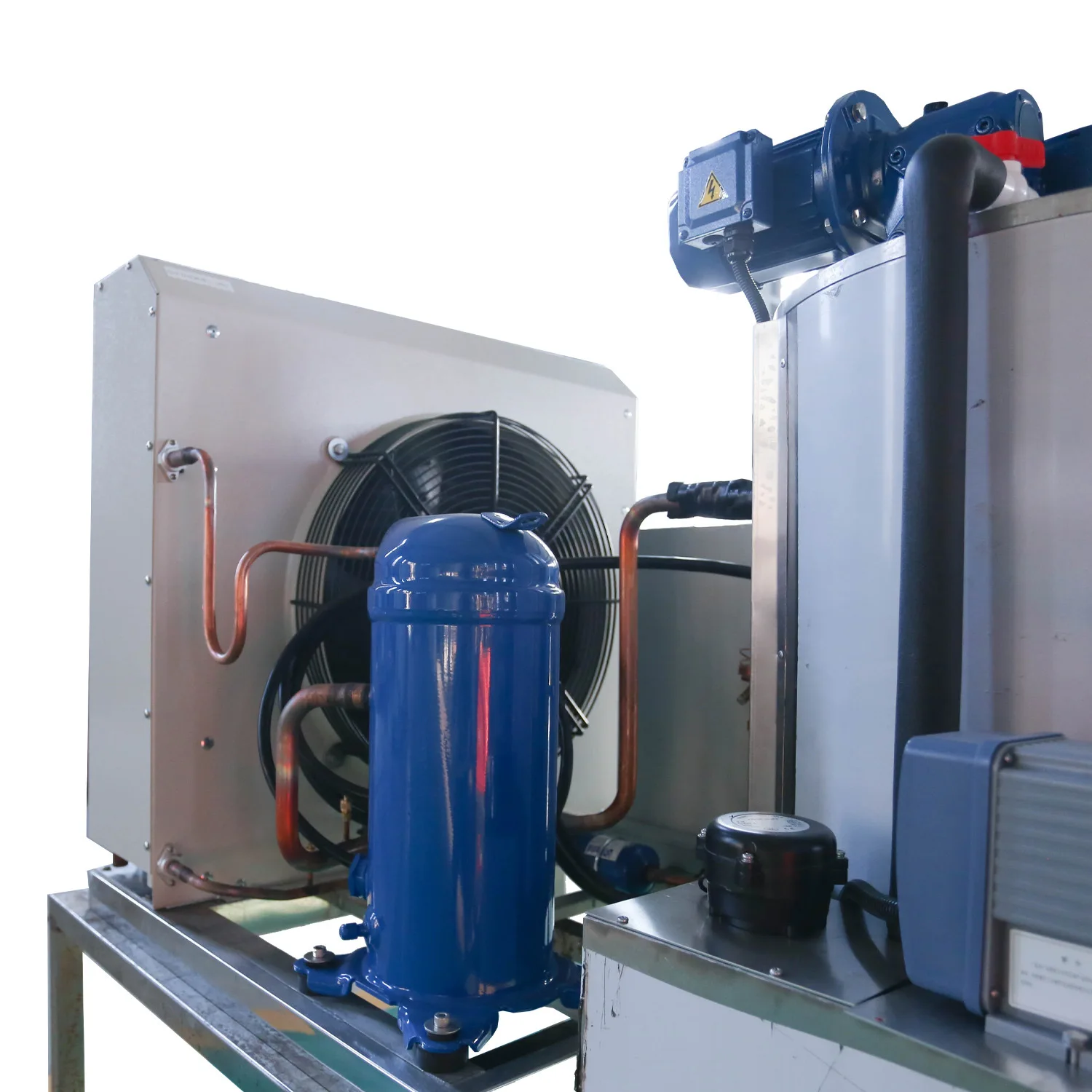

4.Condenser 1).Air cooled copper condenser 2).Water cooled shell & tube condenser
5.Control Box : Dynamic micro-computer control system with touch screen .It makes the machine operation easy .
1). Carbon steel or stainless steel 304 for fresh water ice machine .
2). Stainless steel 316 for sea water
2.Top Cover :
1). Stainless steel 304 for fresh water.
2). Aluminium alloy
3.Stainless steel ice scraper
4.Condenser 1).Air cooled copper condenser 2).Water cooled shell & tube condenser
5.Control Box : Dynamic micro-computer control system with touch screen .It makes the machine operation easy .
Application
Flake ice machine Application：
1) Fishing -Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and
other sea products.
2) Sea food process -keeps the sea food fresh.
3) Bakery -prevent the flour from self raising by adding flake ice.
4) Food processing - cool the meat and water air, also supply moisture for the products at the meantime.
5) Vegetables distribution and fresh-keeping.
6) Medicine -flake iceis the most ideal temperature-reducing carrier.
7) Concrete Cooling -Flake ice is widely used in the large projects.
1) Fishing -Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and
other sea products.
2) Sea food process -keeps the sea food fresh.
3) Bakery -prevent the flour from self raising by adding flake ice.
4) Food processing - cool the meat and water air, also supply moisture for the products at the meantime.
5) Vegetables distribution and fresh-keeping.
6) Medicine -flake iceis the most ideal temperature-reducing carrier.
7) Concrete Cooling -Flake ice is widely used in the large projects.

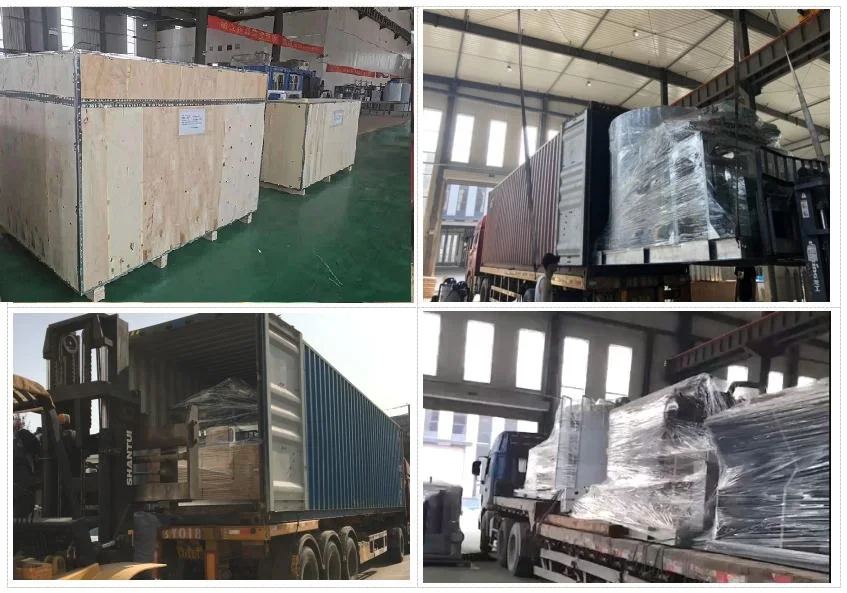

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

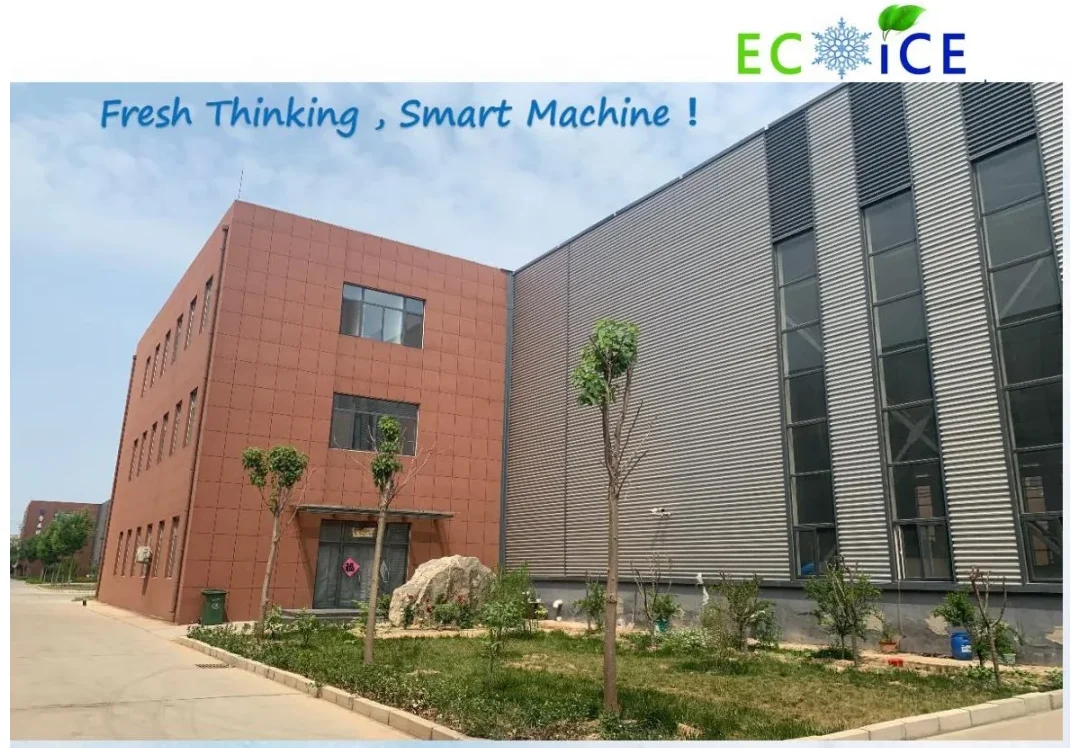

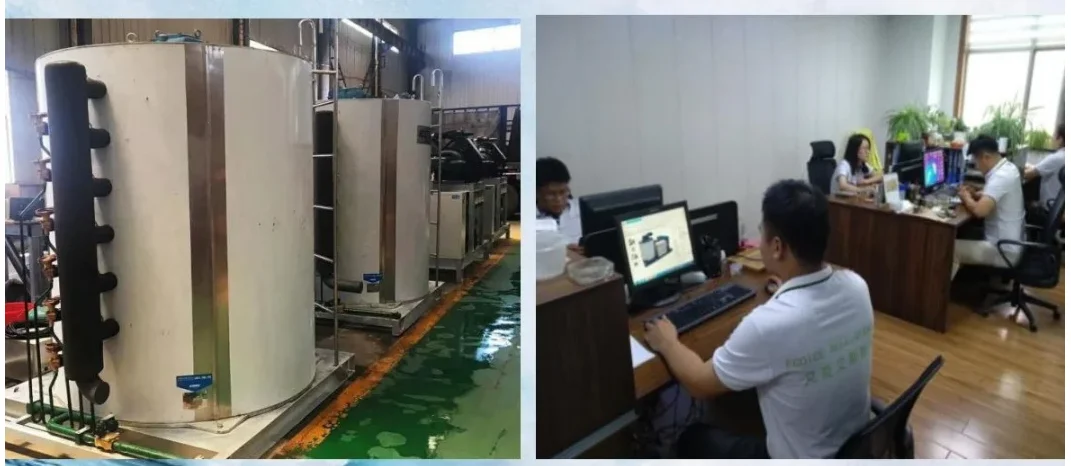

Company Profile
ShanDong EcoIce Refrigeration Co., Ltd is a professional manufacturer and exporter of ice machines and water chillers in China .
In the past 15 years , we are dedicating to design and produce ice machines with high quality , good performance .
Our flake ice machine evaporators are made by our own factory using SUS316 plate / carbon steel plate . The main parts of flake ice machine includes refrigeration system , control system and ice maker system are using famous brand products.It could assure our machines with high quality & long life .
In the past 15 years , we are dedicating to design and produce ice machines with high quality , good performance .
Our flake ice machine evaporators are made by our own factory using SUS316 plate / carbon steel plate . The main parts of flake ice machine includes refrigeration system , control system and ice maker system are using famous brand products.It could assure our machines with high quality & long life .
FAQ
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 20 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4.Q: After-sales service
A: 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
A: Yes, we have been offering specialized products in this field for 20 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4.Q: After-sales service
A: 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
