Orbital Linear Shaking Stackable Stacking Refrigerated Laboratory incubating Shaker Incubator
- Category: >>>
- Supplier: Senova Biotech (Shanghai) Co. Ltd.
Share on (1600560580337):
Product Overview
Description
Hot Sale Stackable Thermostatic Linear Orbital Shaker Incubator for Lab

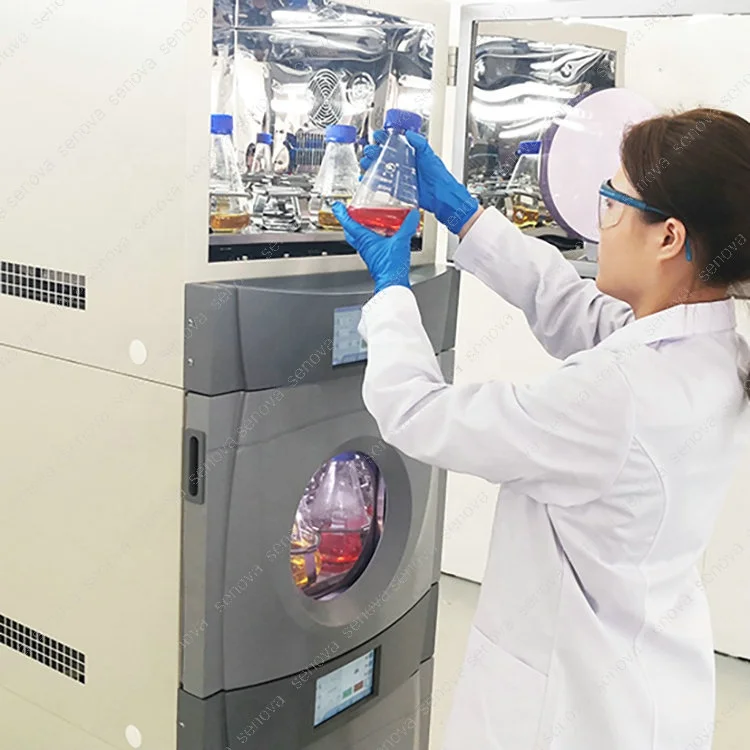

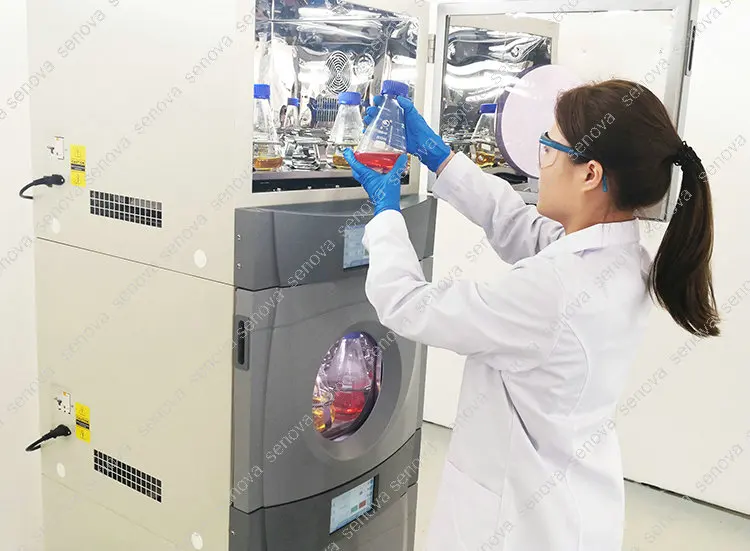

Stackable Orbital-Linear Dual Shaking Mode
Refrigerated Incubater Shaker
Model: ST-209R
Product Description
Applications
Stackable Orbital Shaker Incubator for Lab ST-209R is widely used in germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue and all those require high temperature and oscillation frequency. It has a wide and important range of application in research of medicine, biology, numerator, pharmacy, food and environmental protection.
Main Features
Powder-coated steel construction

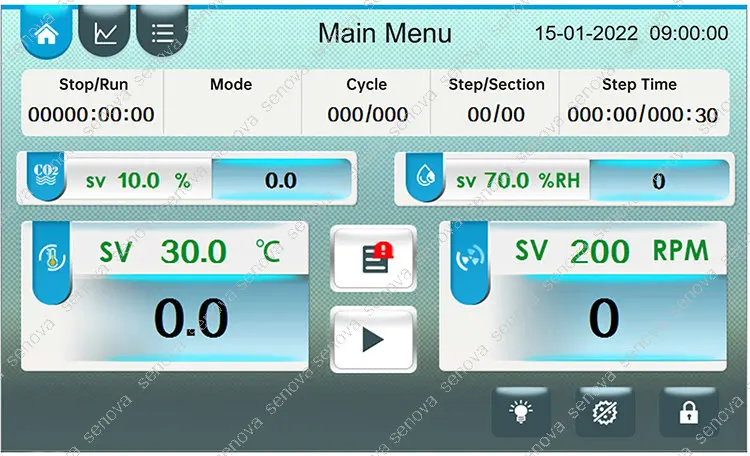

7” touch screen color LCD showing preset and real-time working parameters
SUS304 stainless steel chamber with round corners, easy for cleaning
Illumination and UV lamp
Large toughened glass window

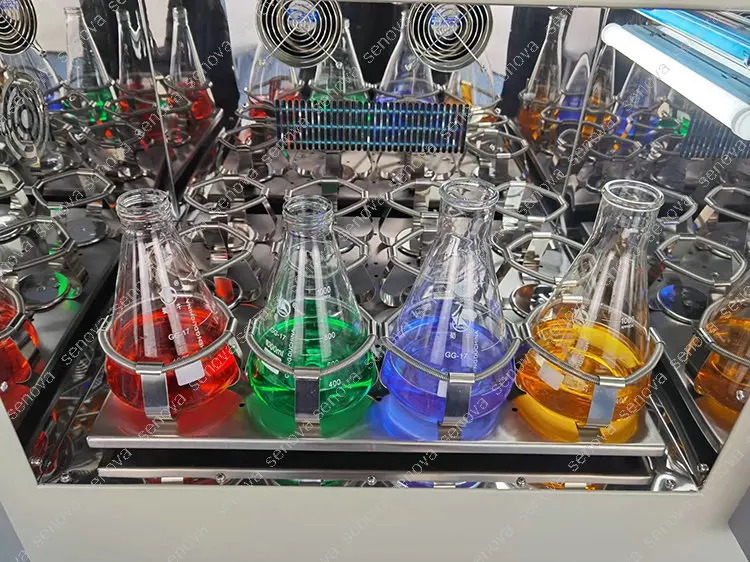

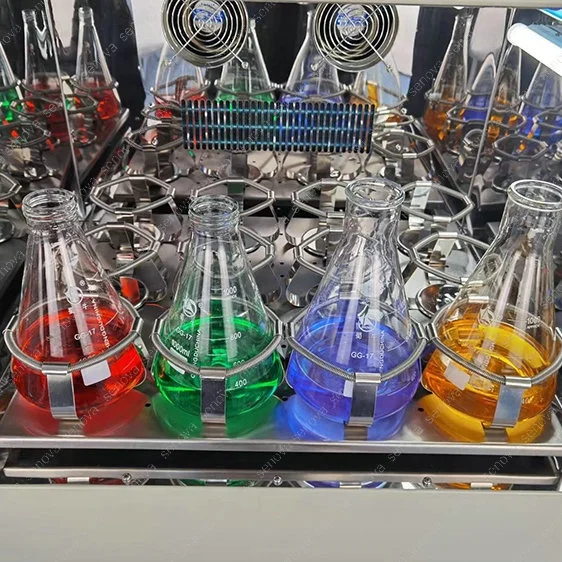

SUS304 brushed shaking platform with flask clamps in capacity 50ml~2000ml

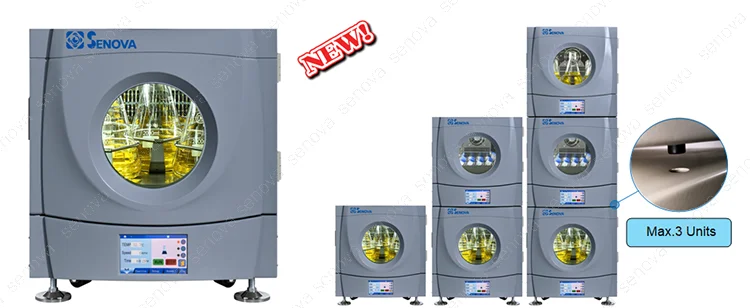

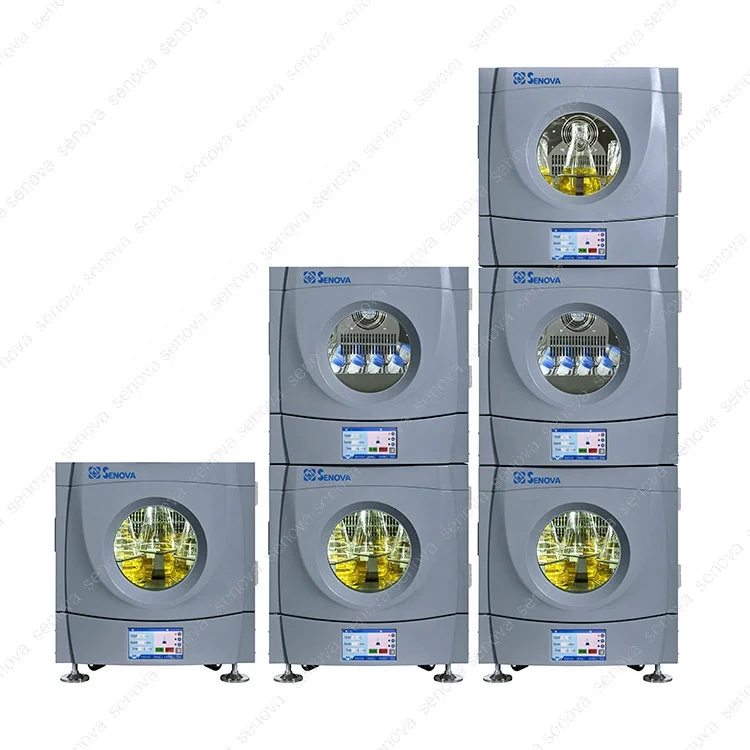

Stackable design (max.3 units stacking)
Orbital-Linear switchable dual shaking modes
Refrigerated (temperature control range 4℃-60℃)
R134a CFC-free refrigeration system
P.I.D controller with acoustic & visual alarm
8-segment programs allows settings of different temperature/speed and time for each program
Single-shaft drive technology, quite and durable
Speed range extensible to 30-300rpm
Independent electricity leakage and over load protection without disrupting other equipments
High/low limit over temperature acoustic & visual alarm, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and over load protection. Motor over-heat protection
Automatic power cut-off in case of temperature out of control or abnormal over-temperature
Repeat, increment (step) and 8-segment curve programmable setting
Speed saving, power-failure recovery, parameter memory, temperature/speed calibration, time display, and room/working temperature display
Soft start circuit to prevent sudden start and liquid splash so as to ensure reagent safety
AC inductive long-life brushless motor, with wide speed regulation, constant torque, constant speed of rotation, and maintenance-free
Standard configuration:
UV lamp, fluorescent lamp, flask shaking platform, flask clamps(1 size is offered as standard configuration)

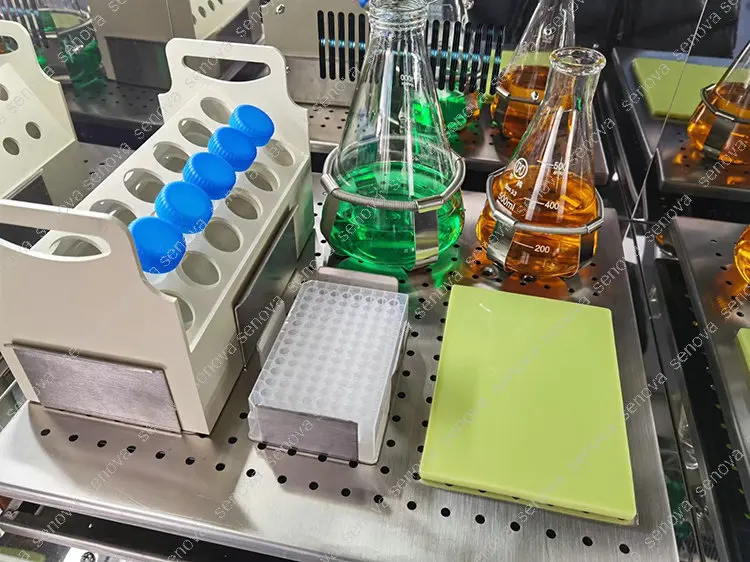

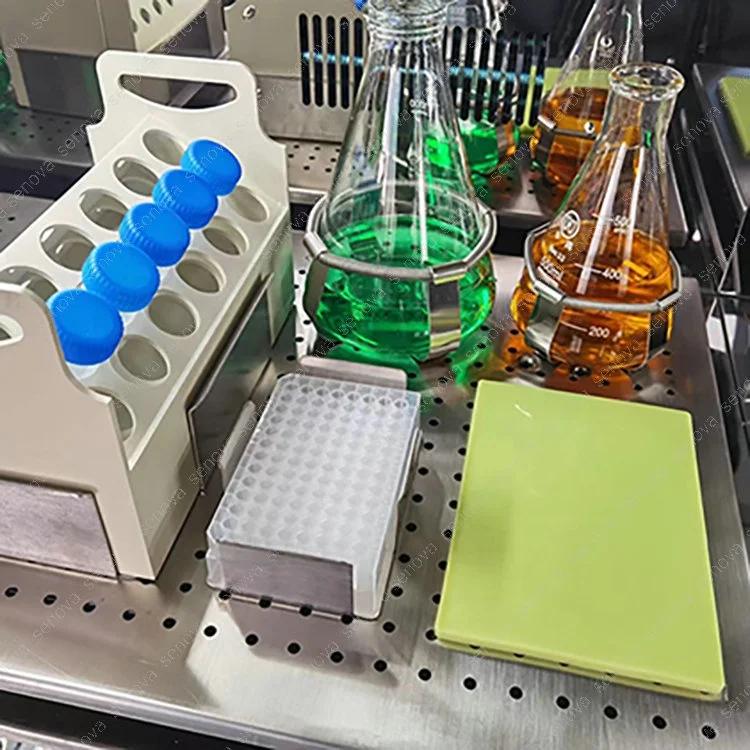

Optional:Spring platform, sticky pad
Specifications
| Product | Orbita/Linear Switech Shaker Incubator |
| Model | ST-209R |
| Control | P.I.D.(Environmental Scanning Microprocessor) |
| Display | 7" Color Touch Screen |
| Oscillation | Orbital/Linear(Switchable) |
| Working Conditions | Temperature25°C, RH20%-90% |
| Temperature Range | 4℃-60℃ |
| Temp. Accuracy | ±0.1℃ |
| Temp. Uniformity | ±1℃ |
| Speed | 30-300±1 rpm |
| Shaking Ranage | ∅25 |
| Refrigerant | R134a |
| Timing Range | 0-999.59 hr |
| Shaking Platform Size(mm) | 420x400 |
| Flask Capacity | 2000mlx5,1000mlx9,500mlx9,or,250mlx16 |
| UV Lamp | 1PC |
| Fuorlrescent Lamp | 1PC |
| Weight | 80Kg |
| Chamber Size(WxDxH,mm) | 495x455x370 |
| Dimensions (WxDxH,mm) | 580x720x580 |
| Power | 580W |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Chamber Material | Polished stainless steel |
| Housing Material | Powder coated steel |

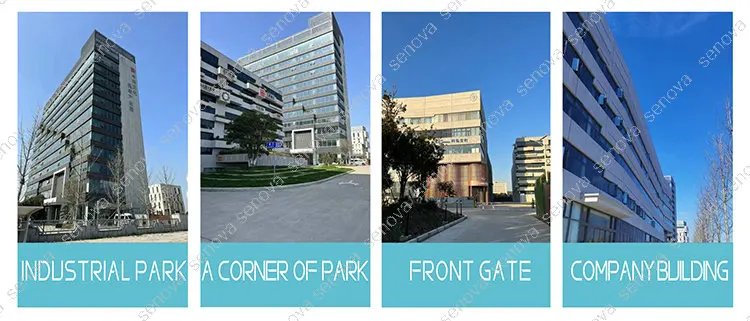

Company Profile

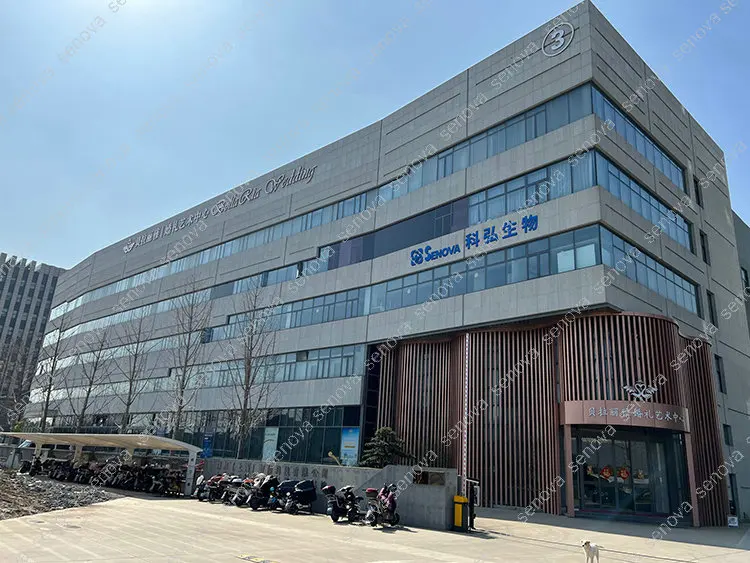

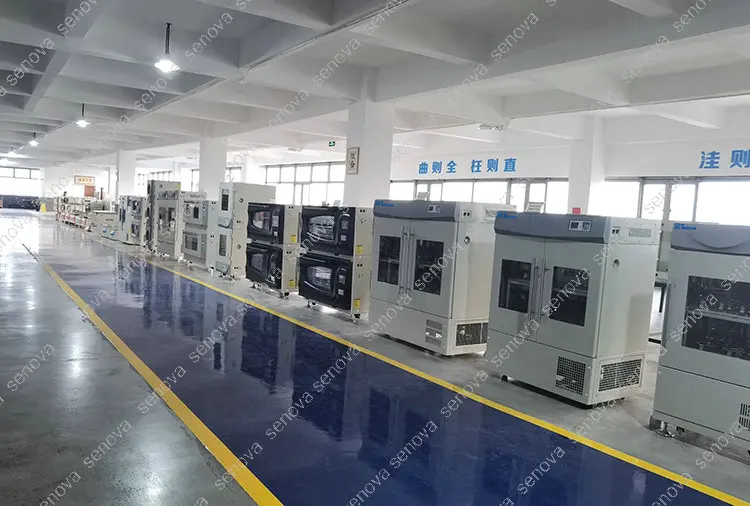

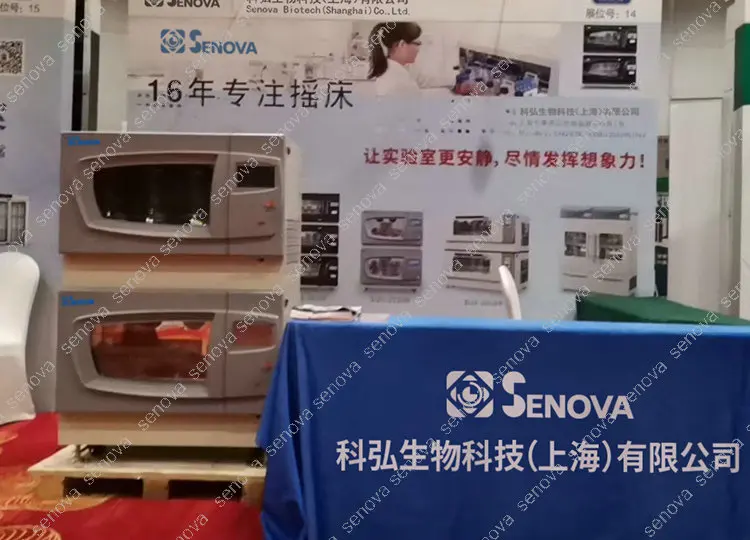

With R&D and production base in Shanghai as well as over 15 years of experience in international market for constant temperature laboratory equipment (thermal chamber), Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.
FAQ
1. Are you a factory or trading company ?
A : We are a factory with an international sales company specialized in support for global distributors. Please find our third-party factory audit (verfification) report shown above.
2 .Where is your company location ? How can we visit there ?
A :Our factory is in Shanghai, the most booming city in China , 20Km away from Shanghai Pudong International Airport. Welcome to visit us !
3. What certification do you have?
A : ISO 9001 and CE certificate.
Our Services
After-sales service
• Technical support for any enquiry for troubleshooting
• Quick supply of spare parts ensured
• Service training provided if necessary
Warranty and support
• 14-month standard warranty
• Prompt technical support and fast supply of spare parts from stock
• Maintaining stock for fast delivery of the goods for regular orders
• Opportunities for exclusive distributorship
• Enquiry forwarding
• New model and product launch
• Website download service of updated product information on brochures, price, etc.
• Special price support for big project
• Exclusive tender authorization offered upon request
• Provision of promotion material like product images and minimum brochures
• Demo units at special price
• Award discount policy
• Sales and service training
• Training material
• Electronic user & service manual
• Exhibitions cooperation
