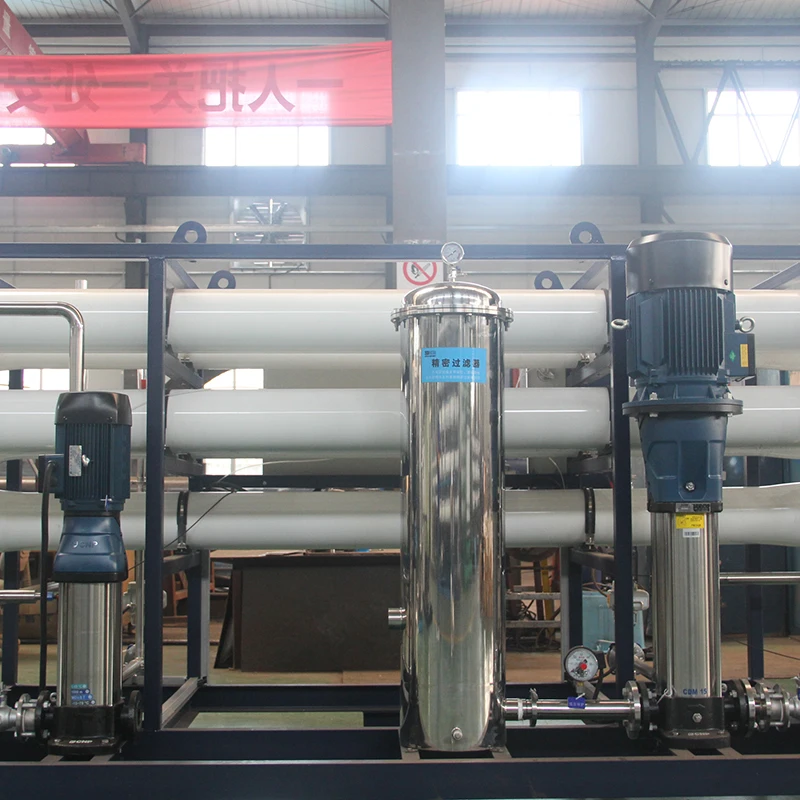

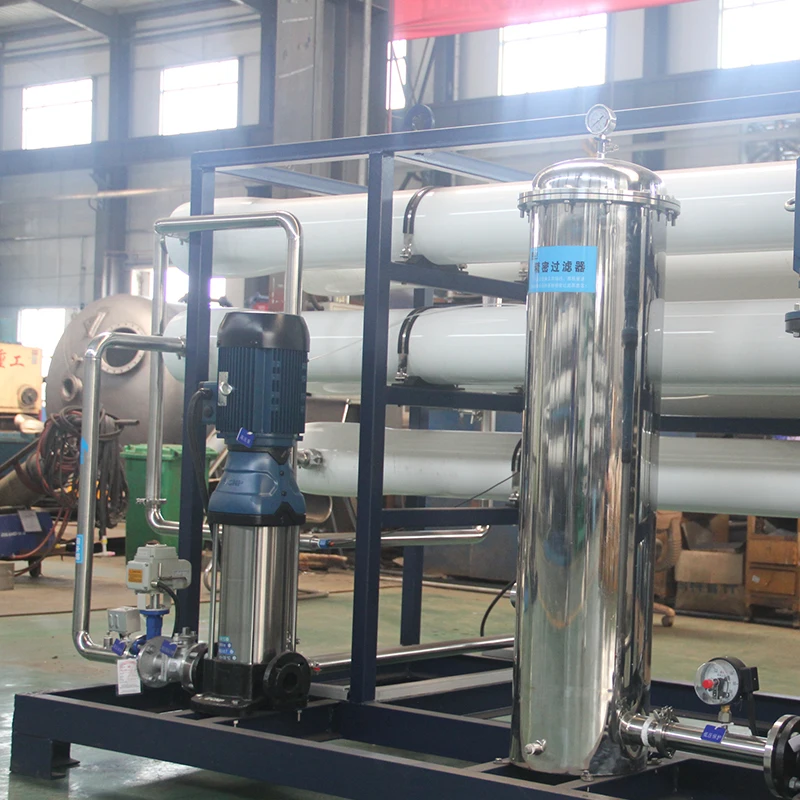

Highfine RO EDI Purification Water System Support Customization China Water Treatment System Processing Reverse Osmosis Plant
- Category: >>>
- Supplier: SiHYFLUX Co. Ltd.
Share on (1600560727975):
Product Overview
Description
Products Details
EDI is a kind of pure water manufacturing apparatus that applies to ion exchange technology, ion exchange membrane technology and ion eleyric migration technology.
It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to accellerate ions moving, so as to achieve the purpose of water purification.
Applies for super water in electrical, chemical, hospital water, medium-high pressure supplementing water, resistance 18MΩ·cm.
It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to accellerate ions moving, so as to achieve the purpose of water purification.
Applies for super water in electrical, chemical, hospital water, medium-high pressure supplementing water, resistance 18MΩ·cm.
EDI water conditions | ||
Water source: | RO water | |
Conductivity: | <=20μs/cm | |
Best conductivity: | 2-10μs/cm | |
Maximum conductivity: | <=50μs/cm | |
PH value: | 6-8 | |
Temperature: | 5-38 | |
Inlet pressure: | 0.2-0.6MPa | |
Hardness: | Less than 0.5ppm(by CaCO3) | |
Si: | Less than 0.5ppm(by SiO2) | |
Type | SMT-500 | SMT-1000 | SMT-2000 | SMT-3000 | SMT-5000 |
Size (L*W*H) | 300*301*601 mm | 307*301*601 mm | 504*301*601mm | 701*301*601mm | 1000*301*601 mm |
Flux rate of purified water (T/H) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 |
Max flux rate of purified water (T/H) | 0.67 | 1.65 | 2.8 | 4.2 | 6.8 |
Recovery rate (%) | 90-96 | 90-96 | 90-96 | 90-96 | 90-96 |
Resistance of purified water (MΩ.cm) | >=15 | >=15 | >=15 | >=15 | >=15 |
Voltage (DCV) | 0-55 | 0-135 | 0-240 | 0-320 | 0-400 |
Electricity (DCA) | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
Intake pressure (mpa) | 0.1-0.3 | 0.1-0.3 | 0.15-0.4 | 0.15-0.4 | 0.22-0.4 |
Max pressure (mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Why Choose Us
FAQ
Q: How can I know whether this membrane can be used in our project?
A: Contact here or leave messages.We will provide you with the projects we did and answer any questions.
Q: Are you trading company or manufacturer?
A: We are the professional manufacturer of Silicon Carbide Membrane.Welcome to visit our factory anytime you want.
Q: Do you have enough stock for sale?
A: Yes, we have enough stock of the normal size for sale and also we can offer you customized equipments.
Q: Can I get your price list?
A: Yes, of course.
Q: Can we be your Agency?
A: Yes, we are looking for agency around the world. We can reach an win-win cooperation.
A: Contact here or leave messages.We will provide you with the projects we did and answer any questions.
Q: Are you trading company or manufacturer?
A: We are the professional manufacturer of Silicon Carbide Membrane.Welcome to visit our factory anytime you want.
Q: Do you have enough stock for sale?
A: Yes, we have enough stock of the normal size for sale and also we can offer you customized equipments.
Q: Can I get your price list?
A: Yes, of course.
Q: Can we be your Agency?
A: Yes, we are looking for agency around the world. We can reach an win-win cooperation.
