Quad Core Cele ron J4125 J4105 HD MI VGA Dual Display Fanless Computer HTPC Nettop Win IOT AES NI Industrial Mini Desktop PC
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600560747951):
Product Overview
Description
Product Description
Processor Performance:
1. Intel J4125 , 4M cache , 2.0GHz up to 2.7GHz , Quad Core 4 Thread processor.TDP 10W
1. Intel J4125 , 4M cache , 2.0GHz up to 2.7GHz , Quad Core 4 Thread processor.TDP 10W
♦ OS support Win7, Win8 , Win10, Linux

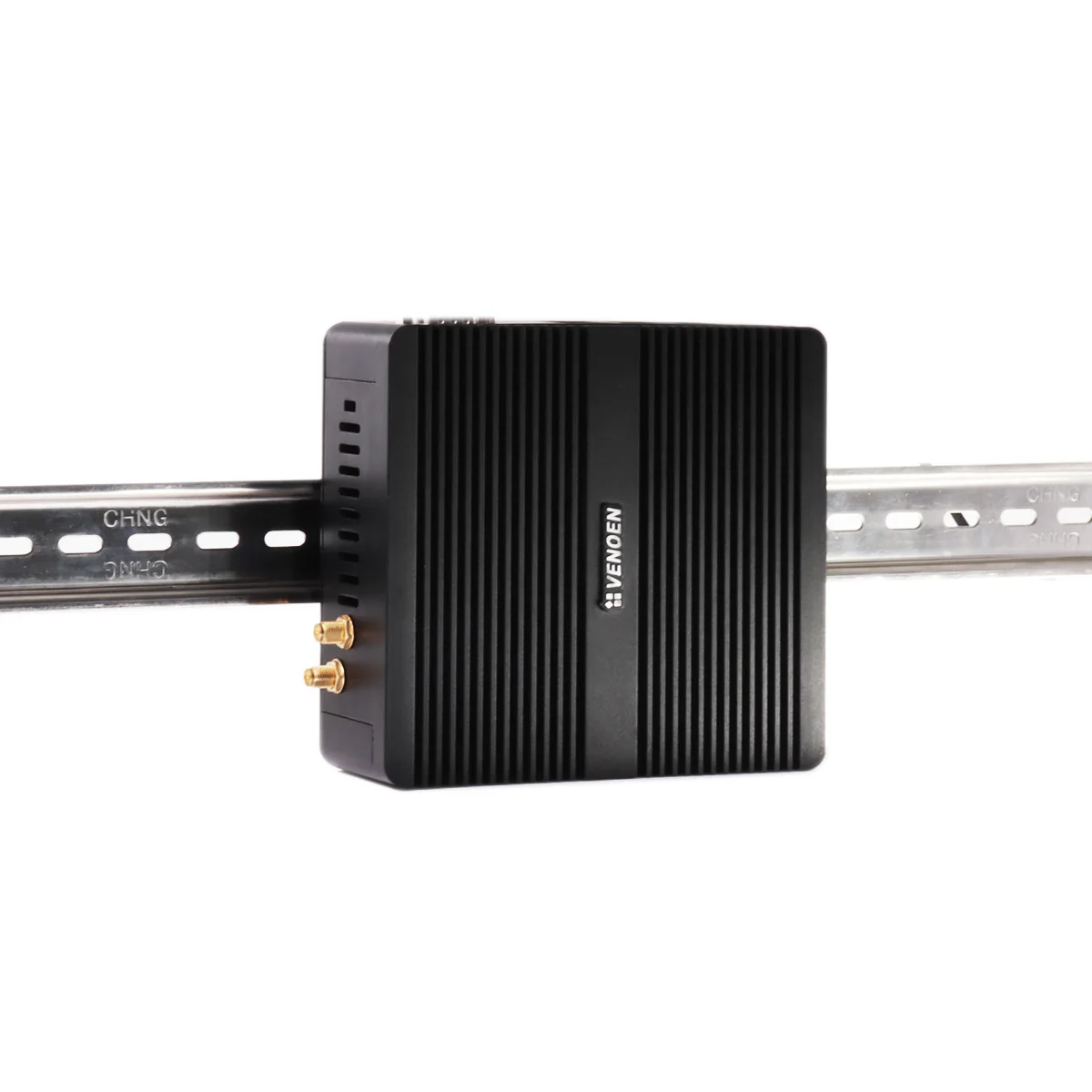

♦ AIl alloy chassis, compact structure, light weight, flexible installation
♦Fanless construction, passive cooling, aluminum case
♦ HD-MI + VGA Dual display ports,Support HD 4K display
♦ 2*Gigabit Ethernet ports, supports Wake On LAN
♦ Packing list: 1*Mini PC device, 1*EU/AM/BR/AU Power Adapter, 2*WiFi antennas,1*Warranty Card, 1*CD Driver, 1*VESA Mount & Screws(optional)
♦ CE, FCC, ROHS, BIS, Energy Star certification
♦Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
Basic Information: | ||
CPU | Onboard Intel J4125 | |
Memory | 1 x SO-DIMM DDR4 Slot Support 2GB/4GB/8GB/16GB DDR4-2133/2400MHz | |
OS | Windows7/8/10/10 IOT/Linux | |
Audio | Intel® High Definition Audio Controller | |
Network | 2 x RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN | |
Video | Intel® UHD 600 Graphics support VGA and HDMI full screen HD playback | |

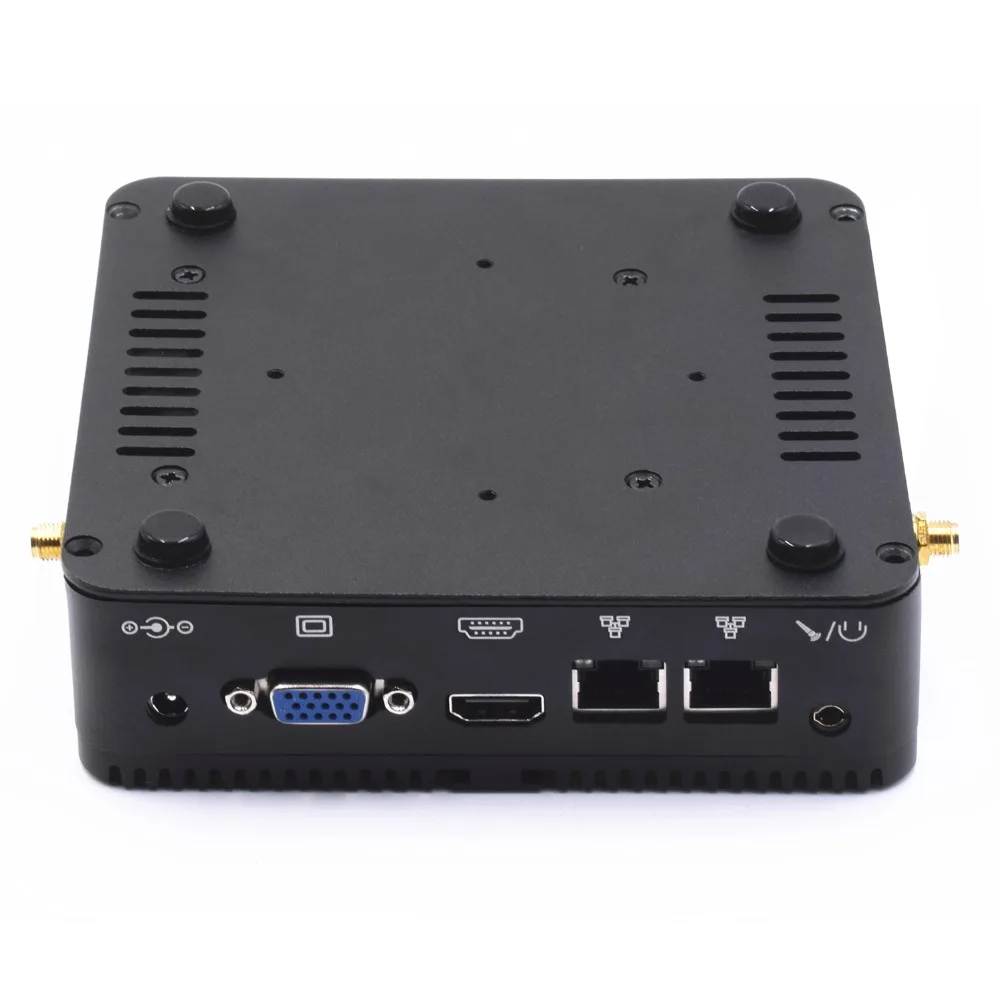

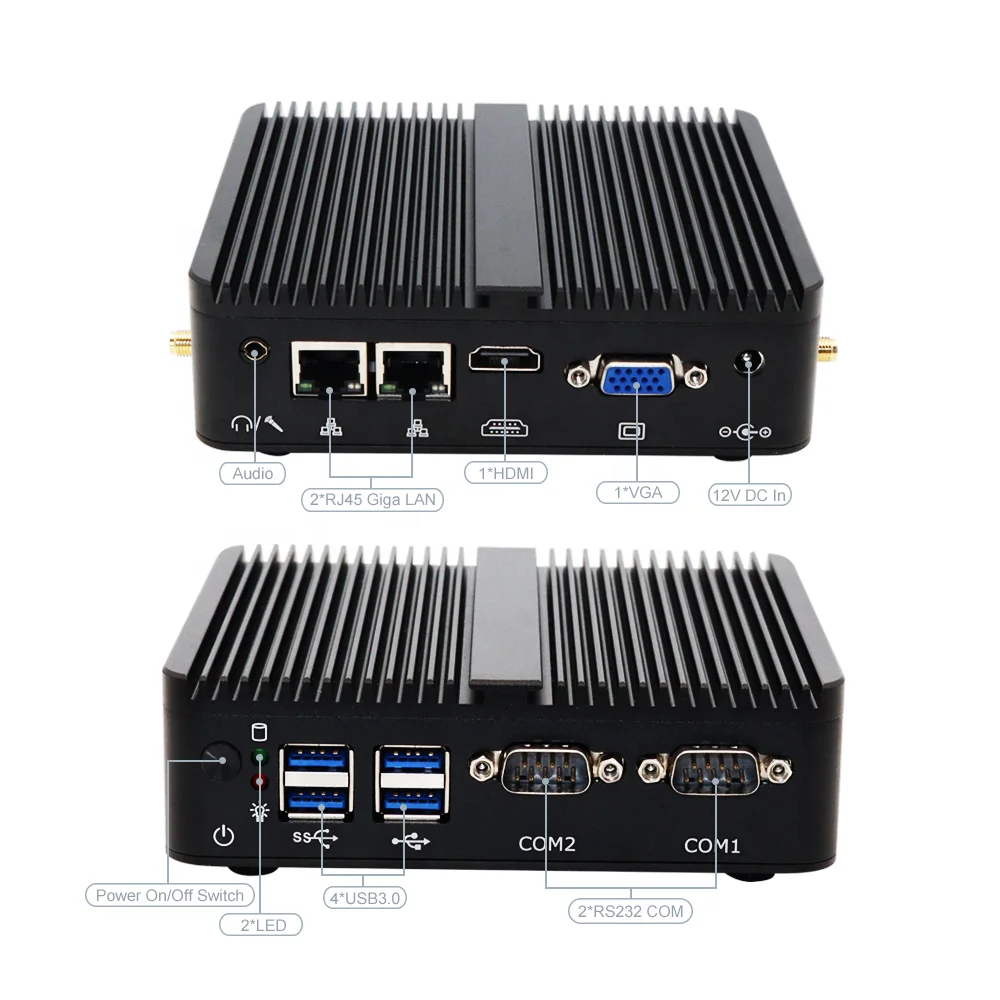

Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x Power In | |
LED | 2 x LED | |
USB | 4 x USB3.0 | |
Display | 1 x HD-MI,1 x VGA, support 4K HD | |
Serial port | 2 x RS232 COM | |
LAN | 2 x RJ45 Giga LAN | |
Audio | 1 x MIC, 1 x SPK | |

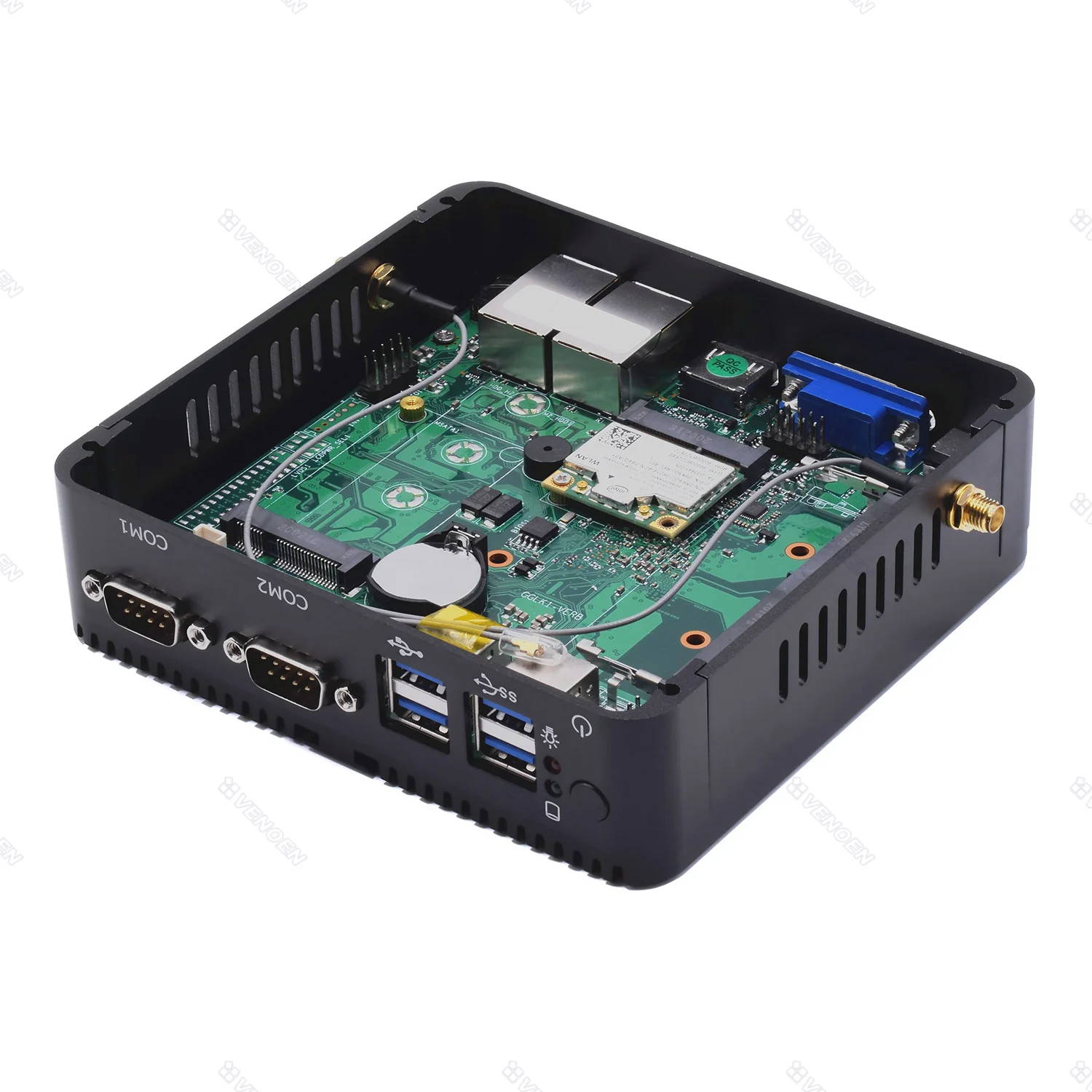

Storage | ||
MSATA | 1* MSATA 3.0 SSD 6Gb/s connectors | |
M.2 | 1 x M.2 slot for nvme SSD, support 6Gb/s | |

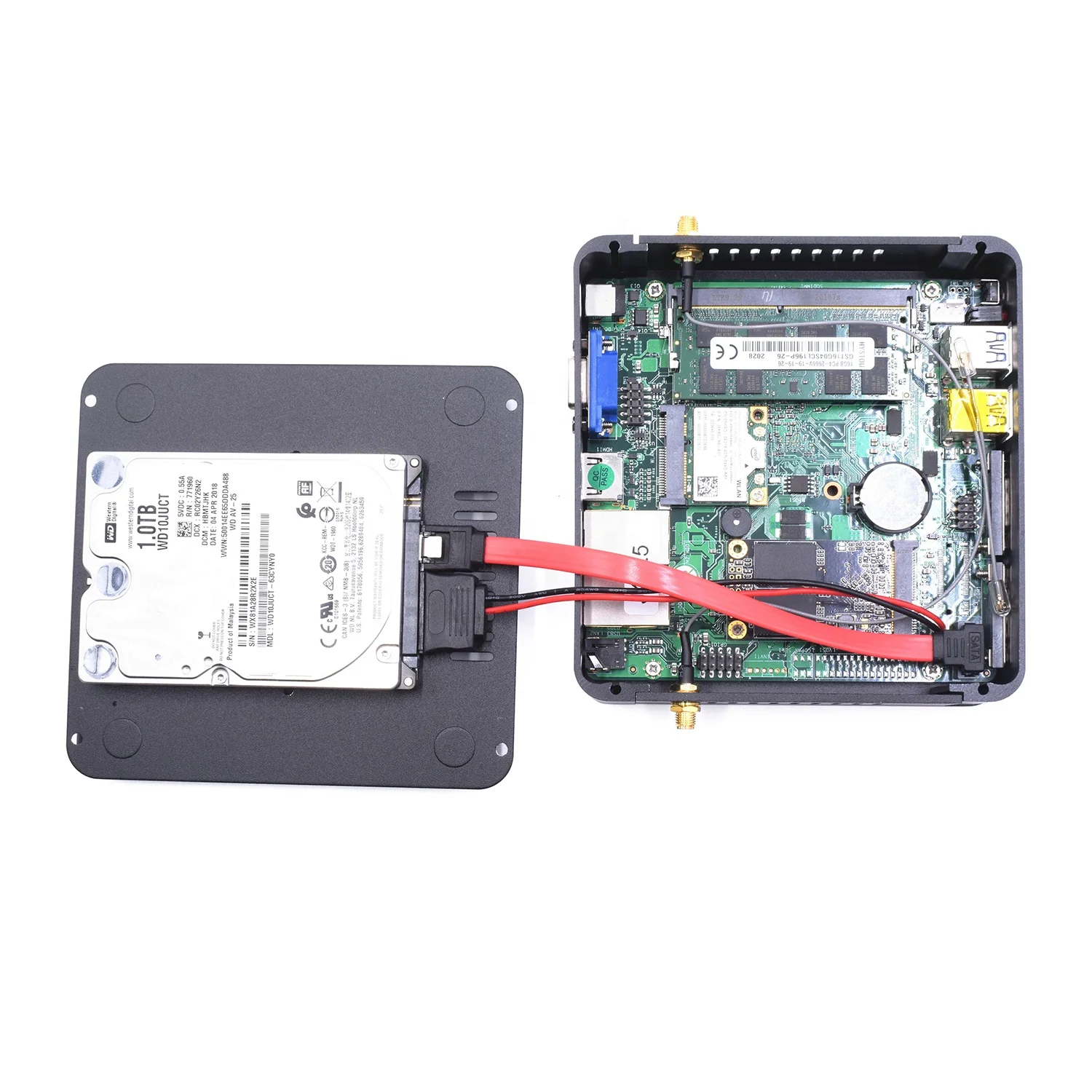

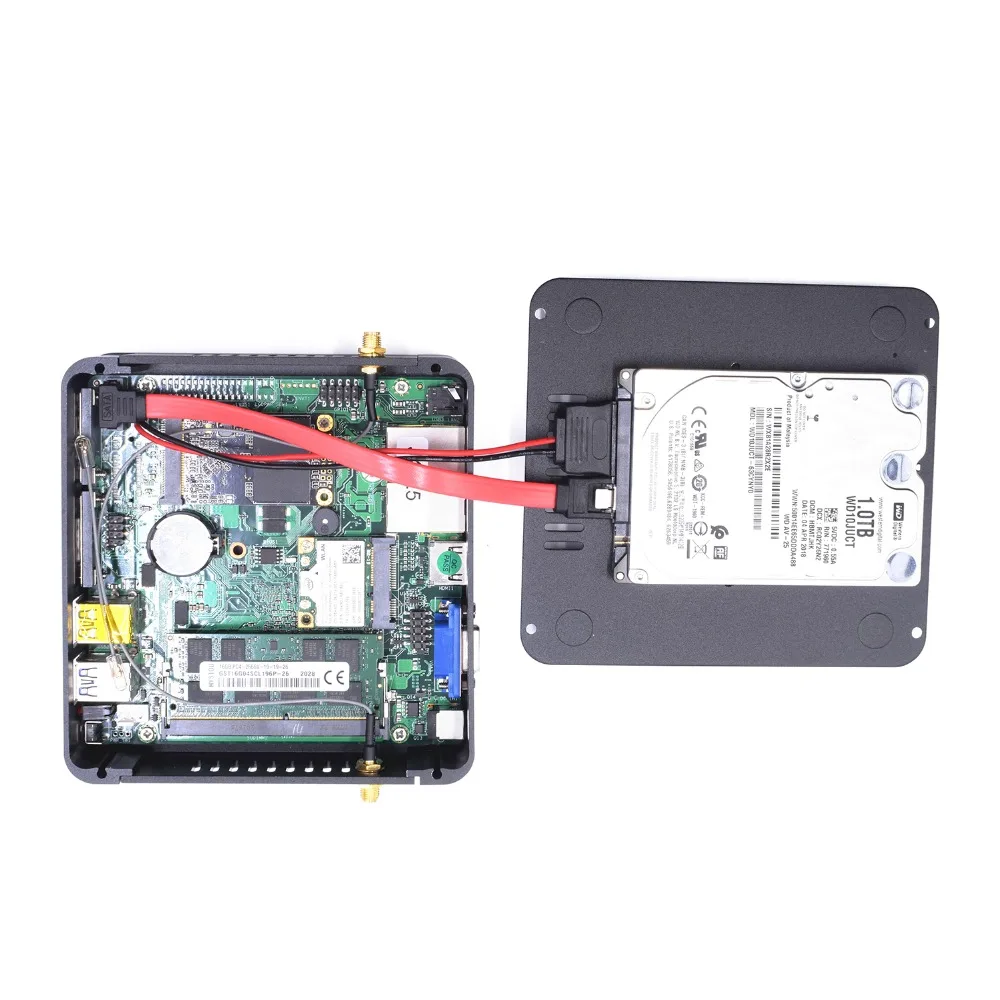

SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 3Gb/s(no space to install) | |
Wi-Fi | ||
Module | 1 x MPCIe slot for Wi-Fi module | |
Antenna | 2 x inner RF cables and without external antenna | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | 12V/5A | |
Operating Temperature | -10/60 Centigrade | |
Storage Temperature | -20/+85 Centigrade | |
Relative Humidity | 10%~90% | |

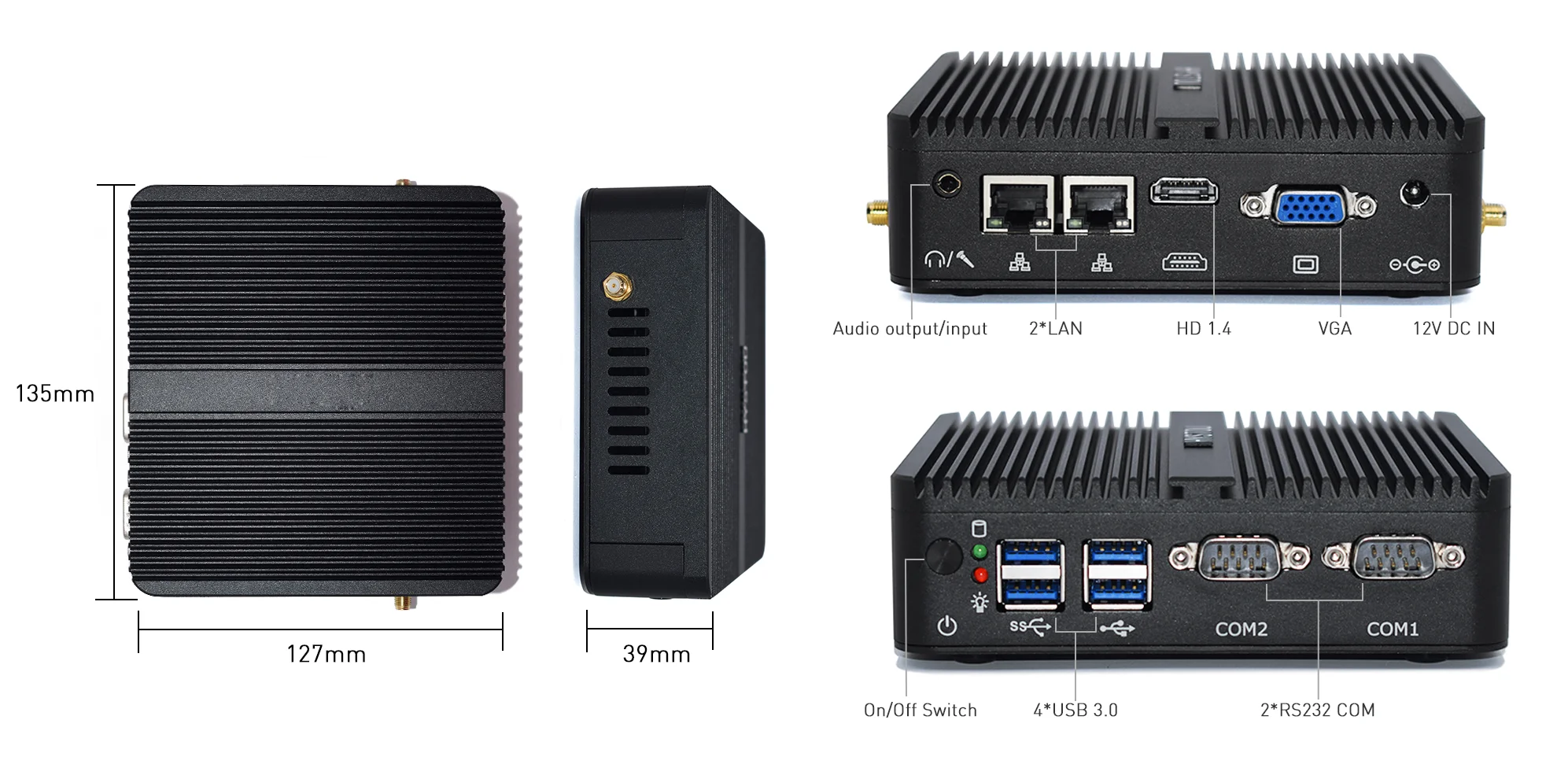

Product Dimension & Details | ||
Size | 135*127*39MM | |
Weight | Net 1.0kg, Gross 1.15kg | |
Cooling Mode | Fanless design | |
Functions | AWAL, Wake On LAN, RTC | |

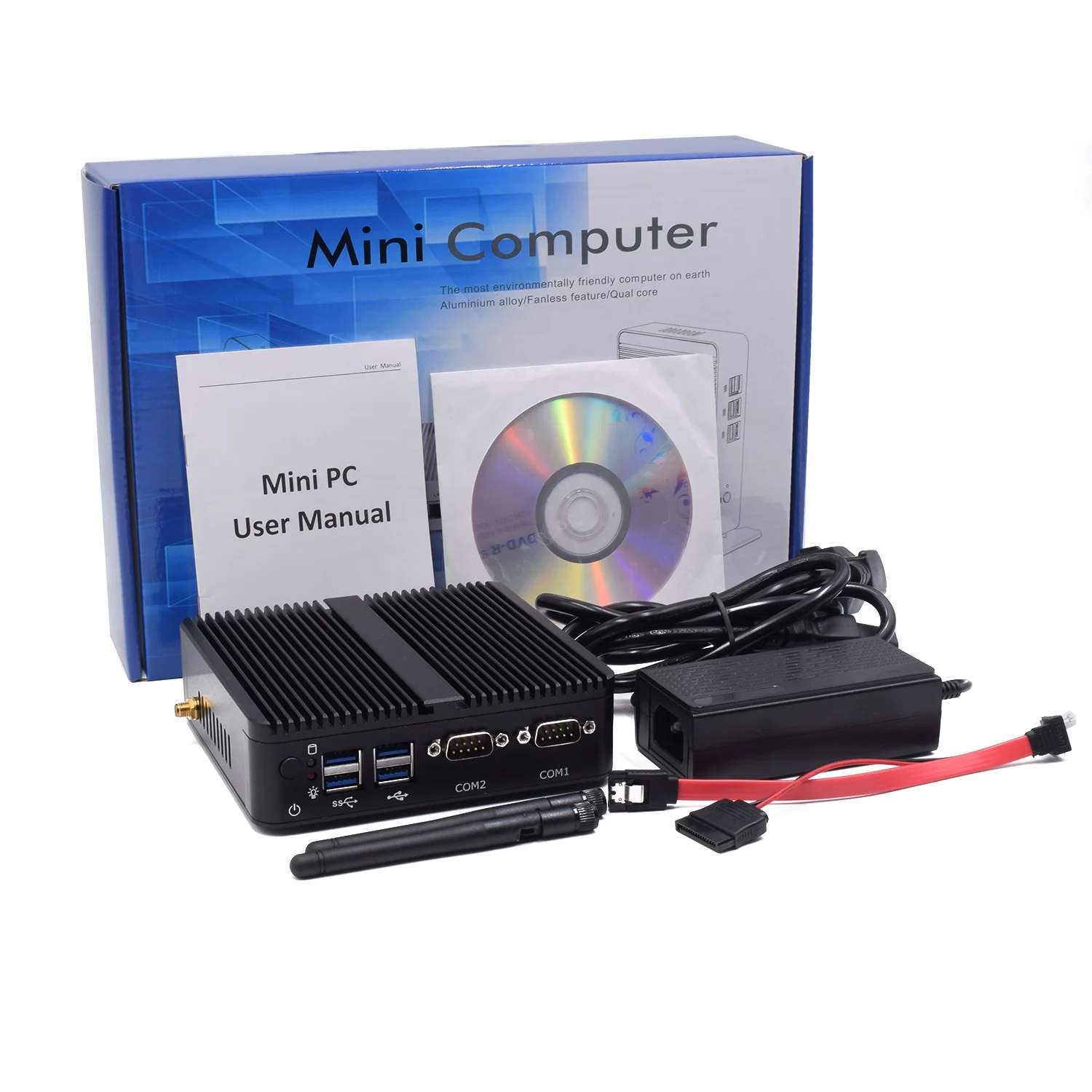

Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws, 1xHDMI cable,1xUser Manual | |
Optional | WiFi module & antennas | |

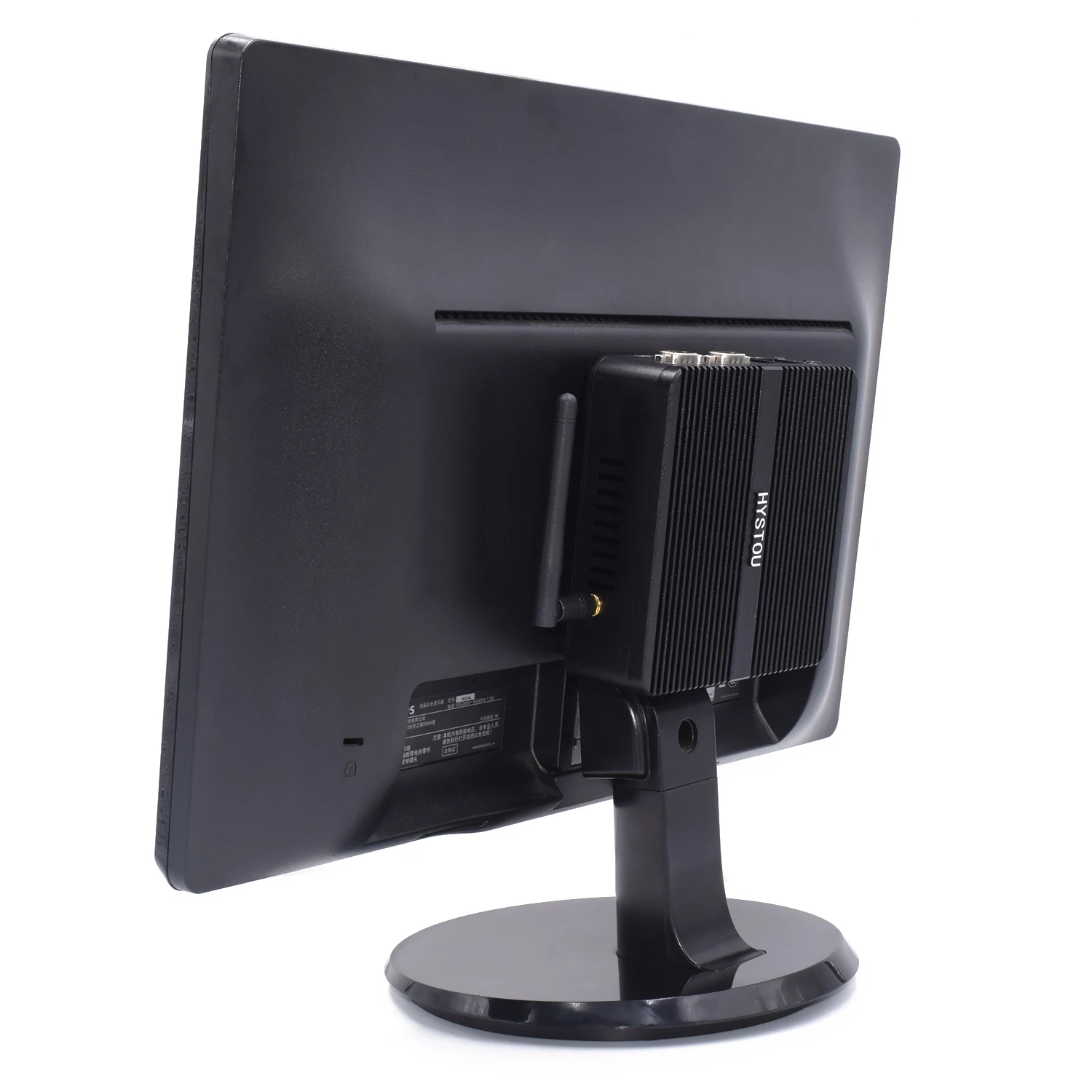

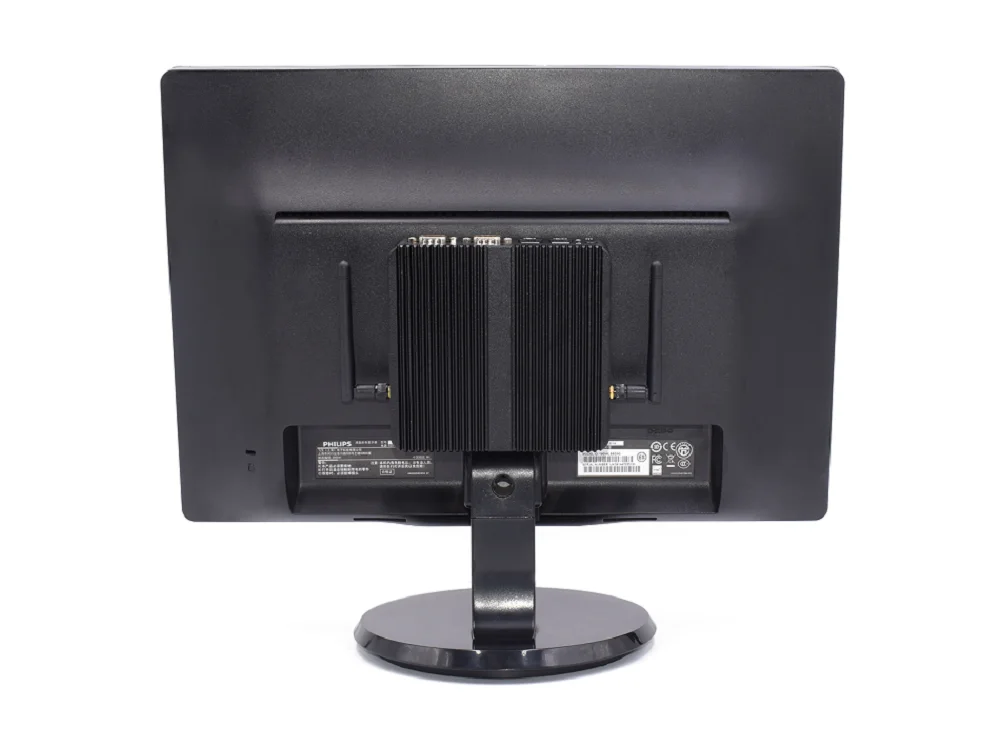

VESA Mount | ||
User Manual | ||
Product Use
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Related Products
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
