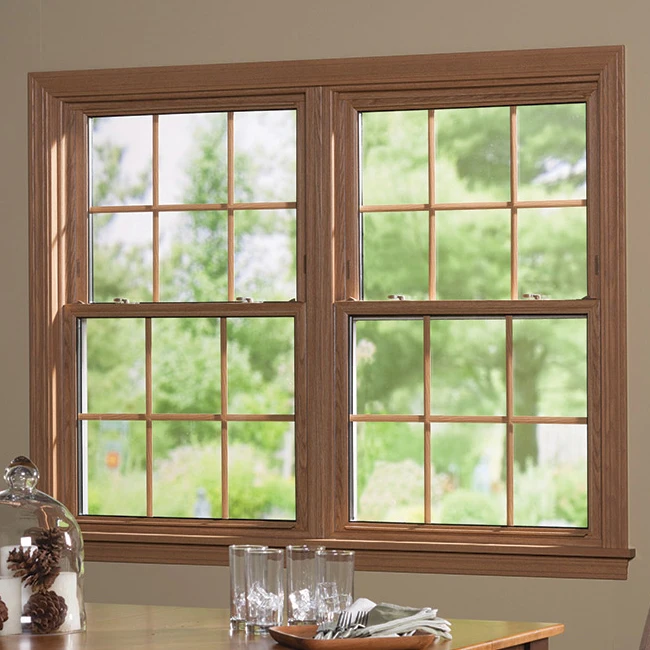

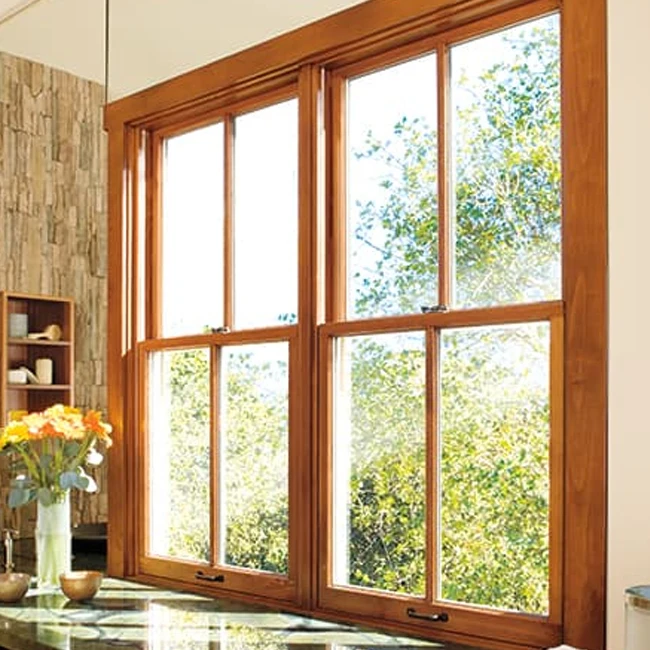

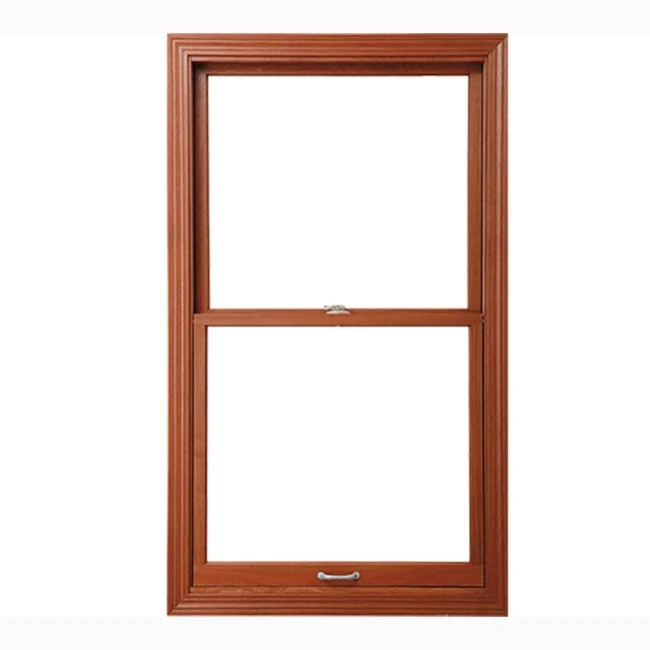

Thailand Customized/Custom/Customization Electrocoating double hung window of bathroom

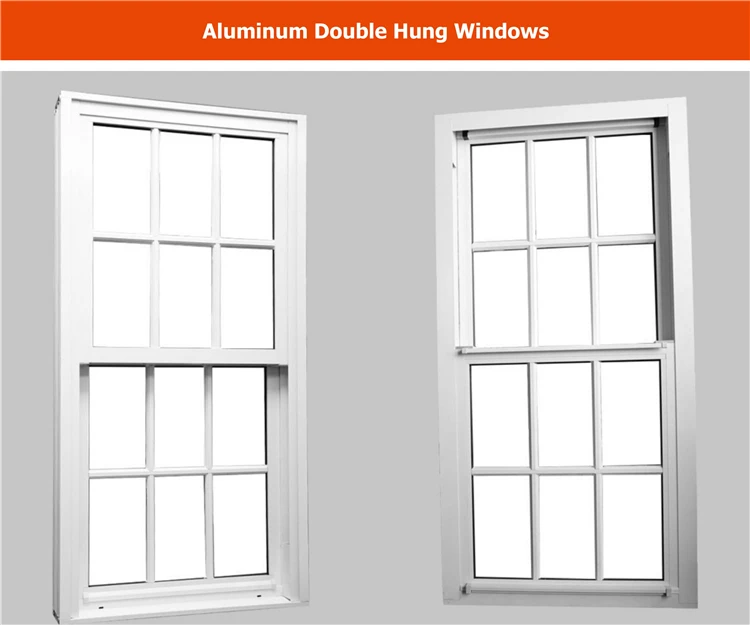

116# Double Hung Window

Structure:

Thermal Break

Insulated glass:

5+12A+5

Frame Material:

6063 T5 SYHARVEST Aluminum Profile

Aluminum Profile Thickness:

2.0 -3.0 MM

Aluminum Wall thickness:

116 MM

Visual width (exterior):

Top: 49 MM

Middle: 24.3 MM

Bottom:38.5 MM

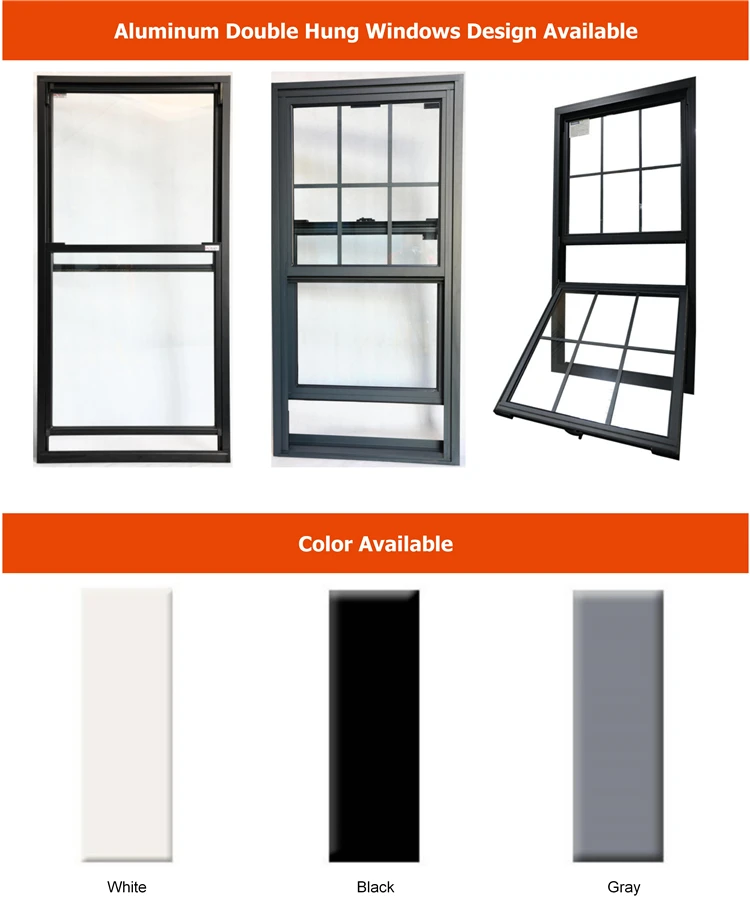

Color available:

PVDF Black, PVDF Coffee, Crystal Stone

Anti-mosquito available:

304 stainless steel in black 0.8mm

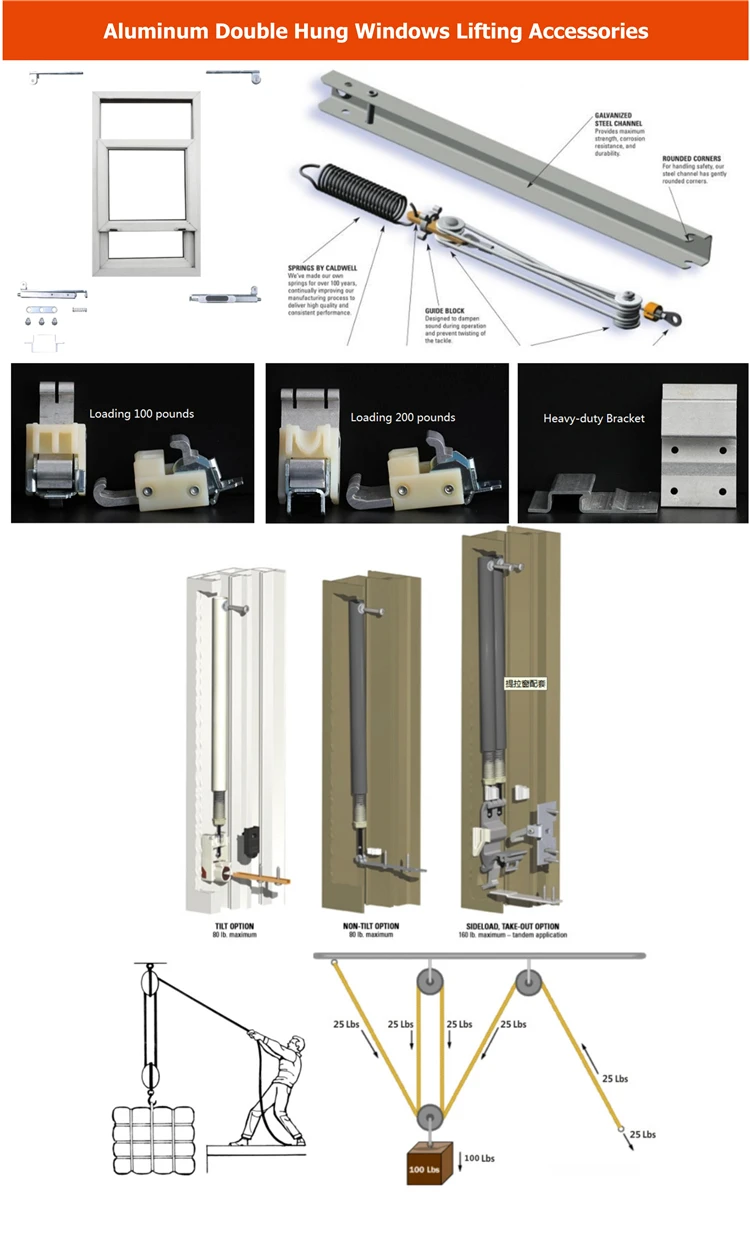

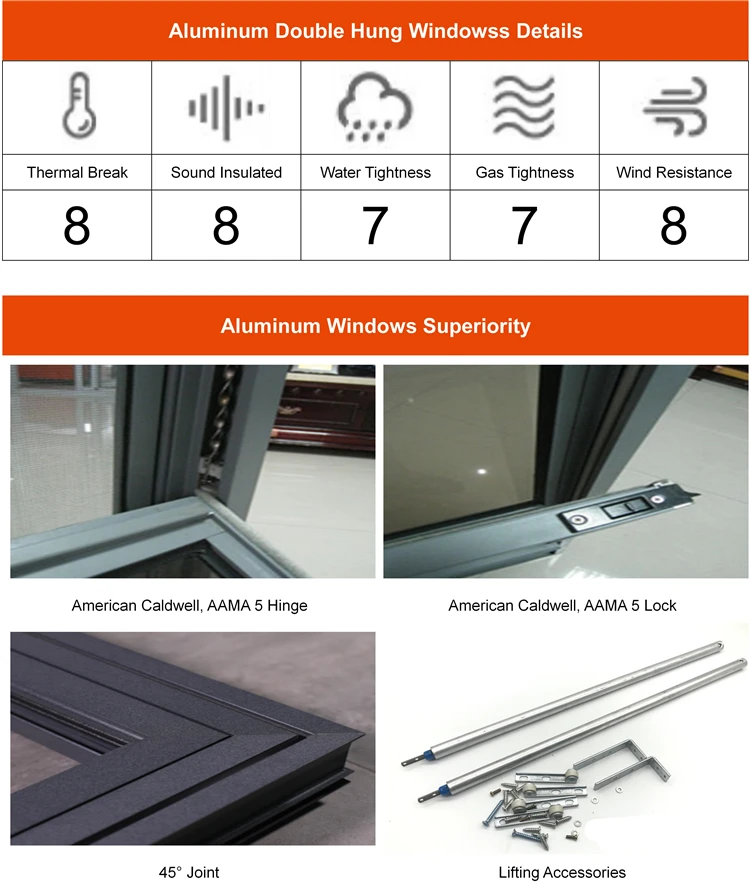

Hinge/ Accessories

American Caldwell, AAMA 5

U Value(w/(m*k)):

≤1.6, Class 7

Wind Resistance(kPa):

≥5.0, Class 9

Gas Tightness(kPa):

0.21m³, Class 8

Water Tightness(Pa):

1400, Class 6

Sound insulated(dB):

35, Class 4

Warranty available:

5 years, 10 years, 15 years, 20 years
