fireplace door fire rated clear black 4mm ceramic glass sheet

Product Overview

Description

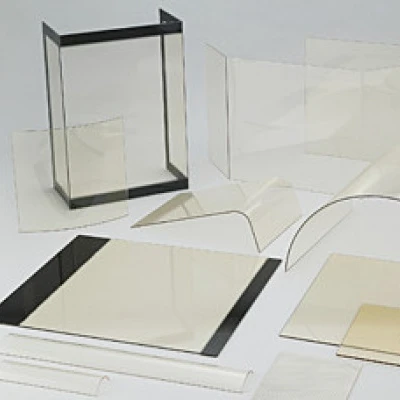

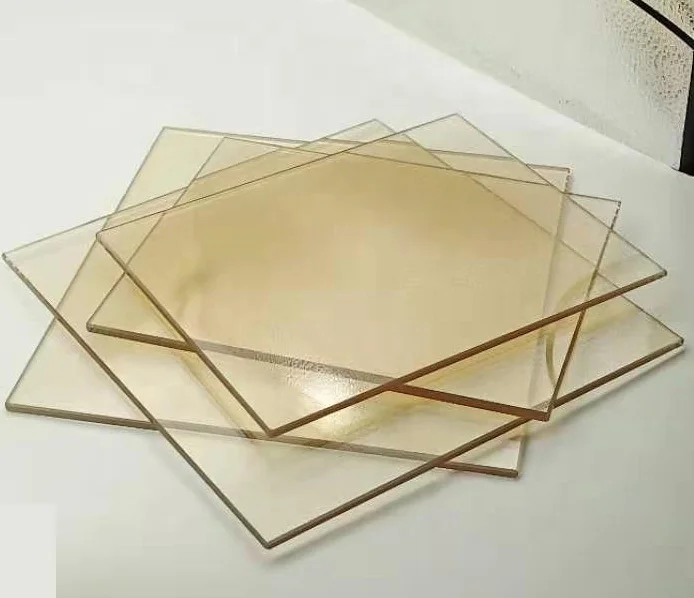

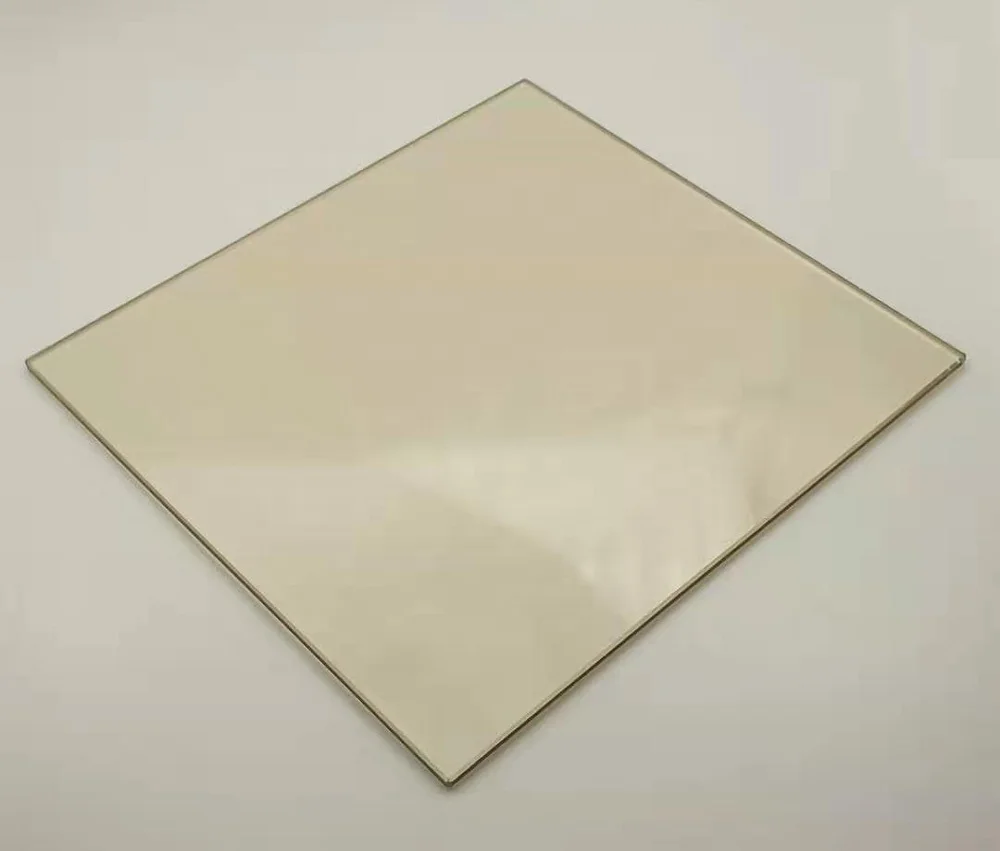

ceramic glass for fireplace





 Ceramic Glass Features



           1. Glass ceramic is resisting to heat and cold, even to extreme temperature changes.

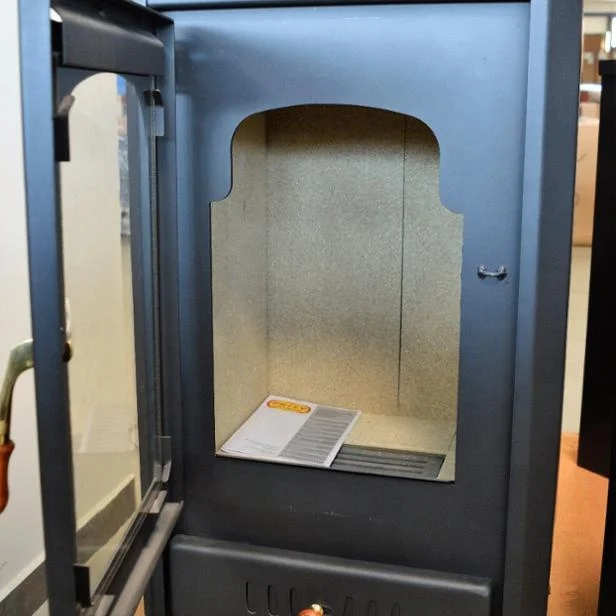

This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.

           2. Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.

Ceramic Glass Data



1. Density---approx. 2.56 g / cm3

2. Modulus of Elasticity--- approx. 93 x 103 Mpa

3. Bending Strength--- approx. 36 MPa

   The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45).

4. Thermal Characteristics

    Coefficient of Mean Linear Expansion---α(20 - 700oC)     (0 ± 0.5) x 10-7 /K

5. Resistance to Temperature Differences (RTD)

    Resistance of the panel to temperature differences between heated zone and cold panel edge       roomtemperature). No cracking due to thermal stress at Tes, max1<=700 degree C

6. Thermal Shock Resistance

   Resistance of the panel to thermal shock when the hot panel (780 degree C) is quenched with cold water (20oC    temperature). No cracking due to thermal stress at Tes, max<=700 degree C

7. Chemical Characteristics of Base Material

   Acid Resistance--- DIN 12116: at least class S3

    Alkaline Resistance---based on ISO 695: at least class A2

8. Screen printing: complies with RoHS standards, normal ink available

9. Impact resistance: A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel

10  times. No scratching or cracking.





 Ceramic Glass Applications



1.Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;

2.Cover panels for heating radiators, drying stand, towel heaters;

3.Cover panels for reflectors and high performance floodlights

4.Cover panels in IR drying appliances

5.Cover panels for beamers

6.UV blocking shields

7.Cover panels for kebab grill radiators, electric heating fish bowl

8.Safety protection (bullet proof glass

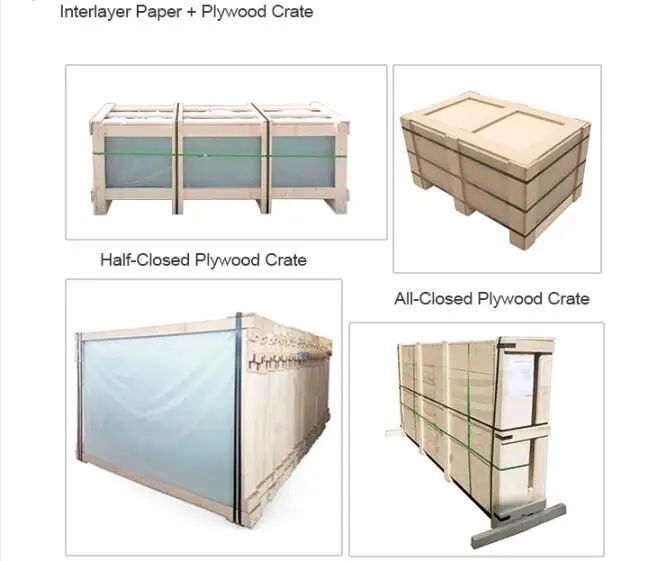

Ceramic Glass Packing

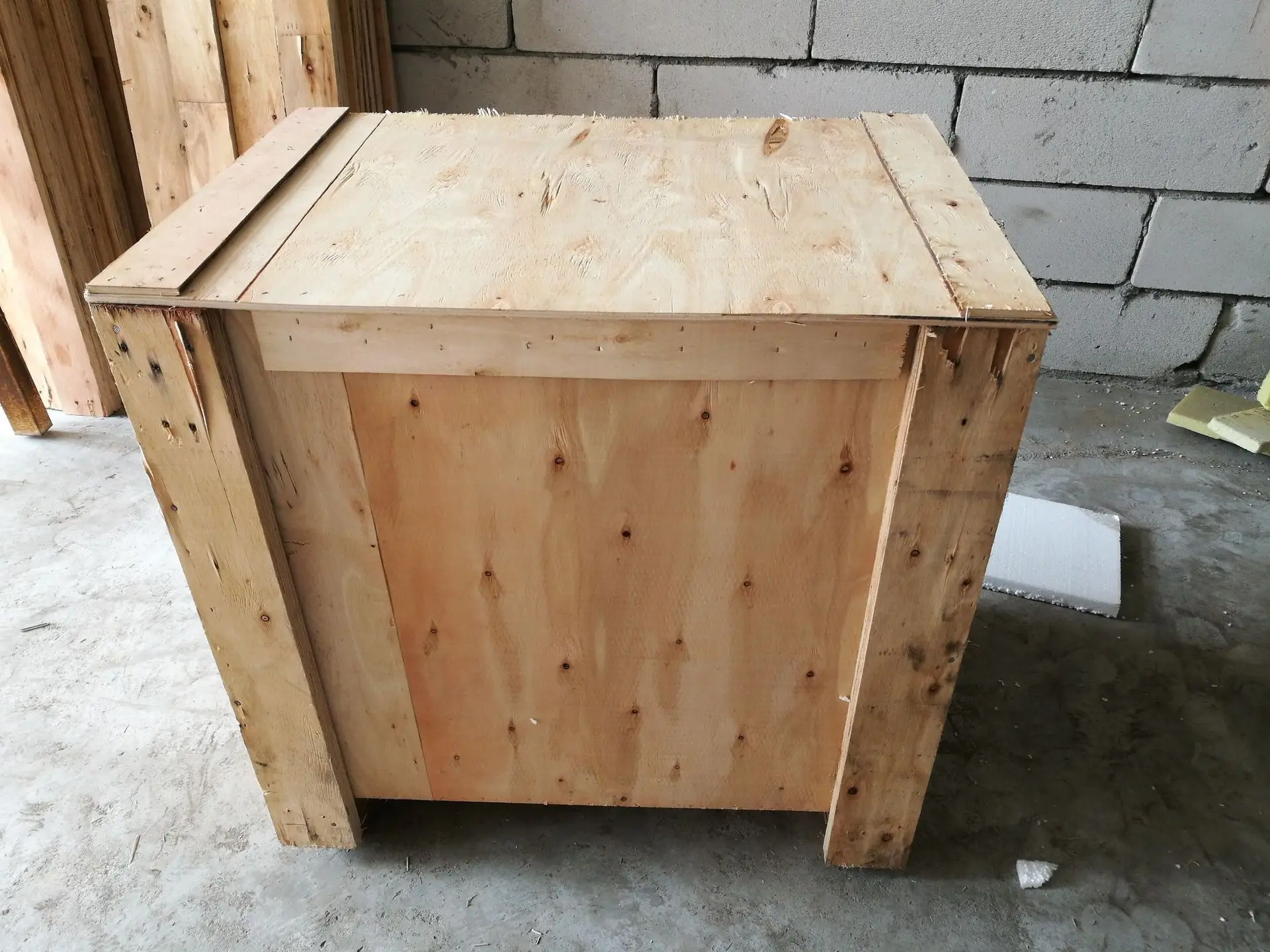

Packed by strong sea worthy wooden crates with interlayer paper.

Other packing ways can be customized by customers.
