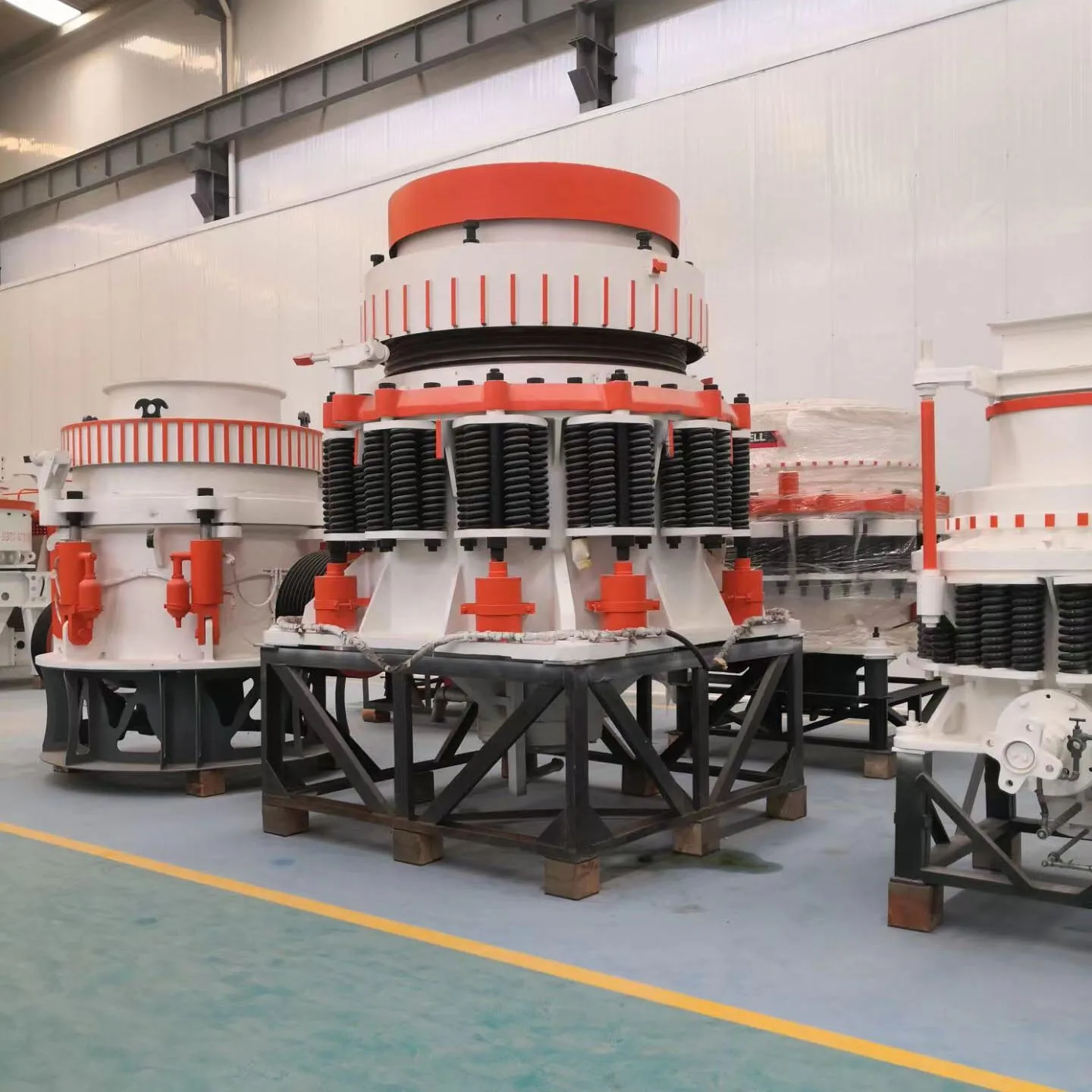

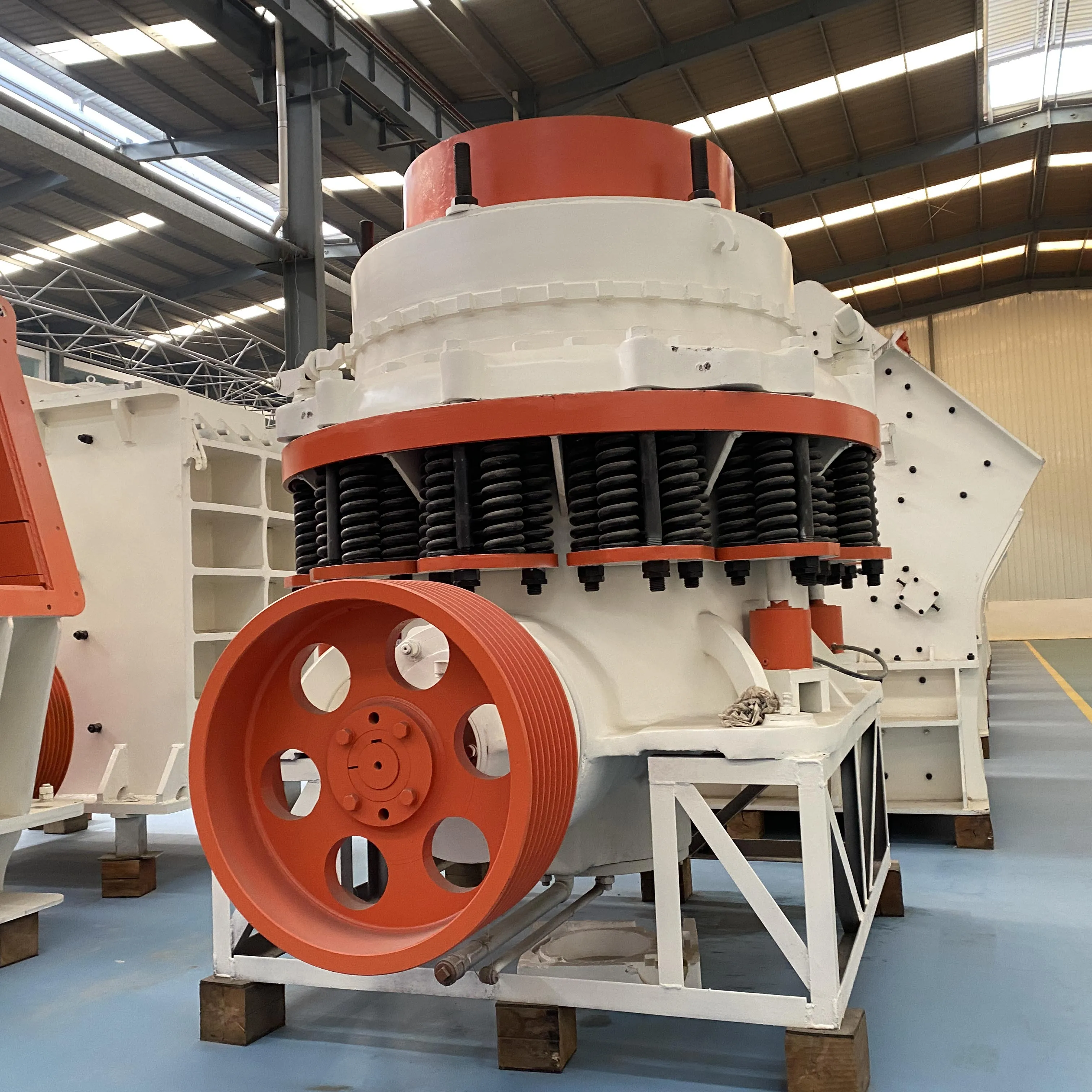

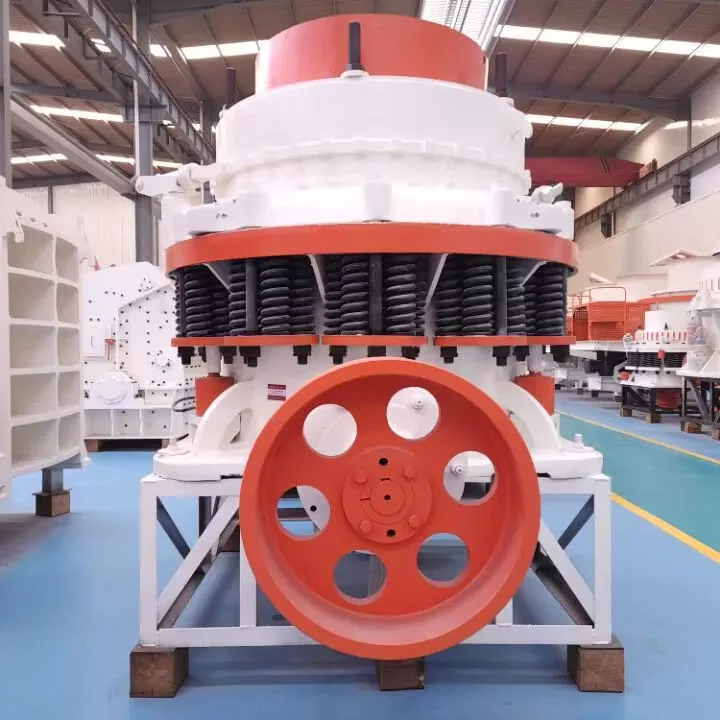

2 Foot Smallest Conical Crusher Machine 3 Foot Medium Capacity Cone Crusher Unit 4.25 Ft Symons Cone Crusher for Quarry Plant
- Category: >>>
- Supplier: Zhengzhou Shibo Machinery Manufacturing Co. Ltd.
Share on (1600560797358):
Product Overview
Description
Products Description

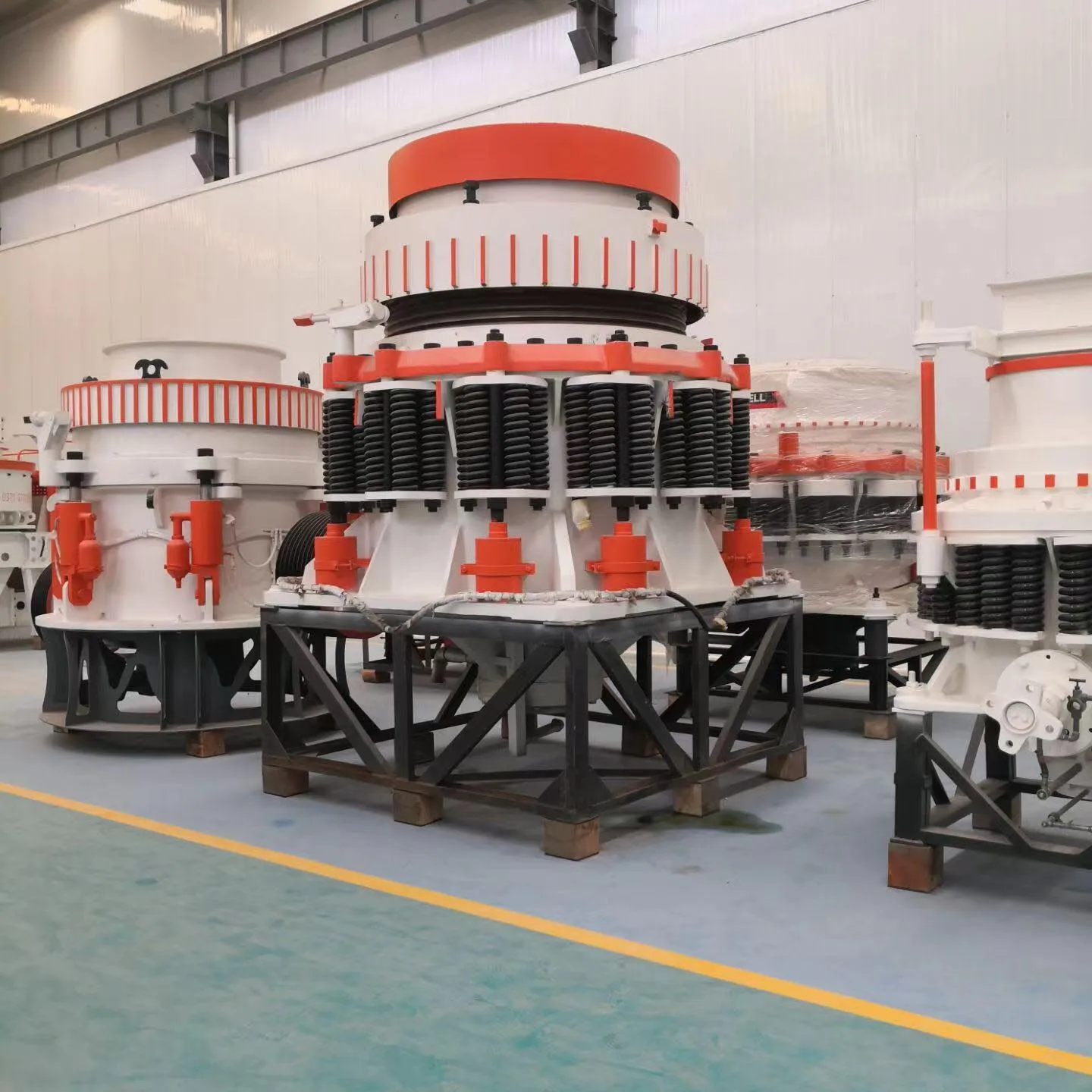

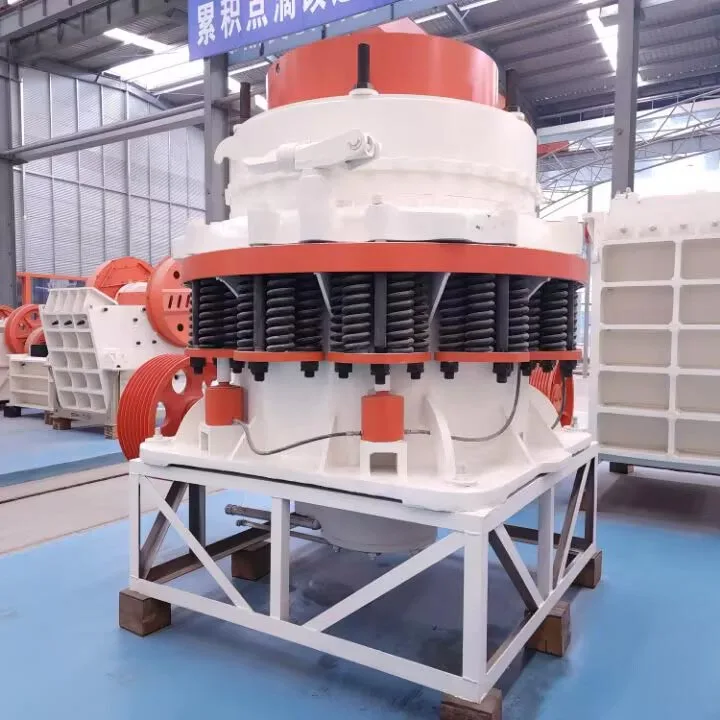

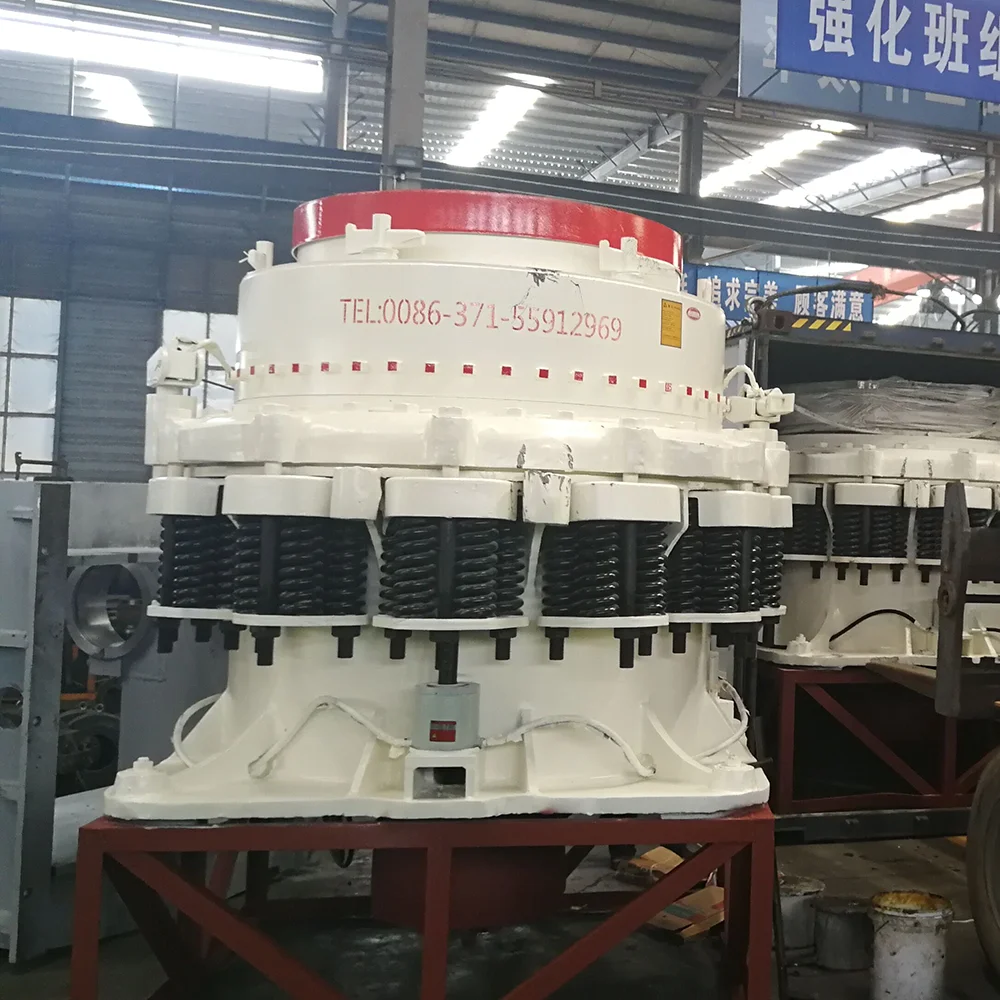

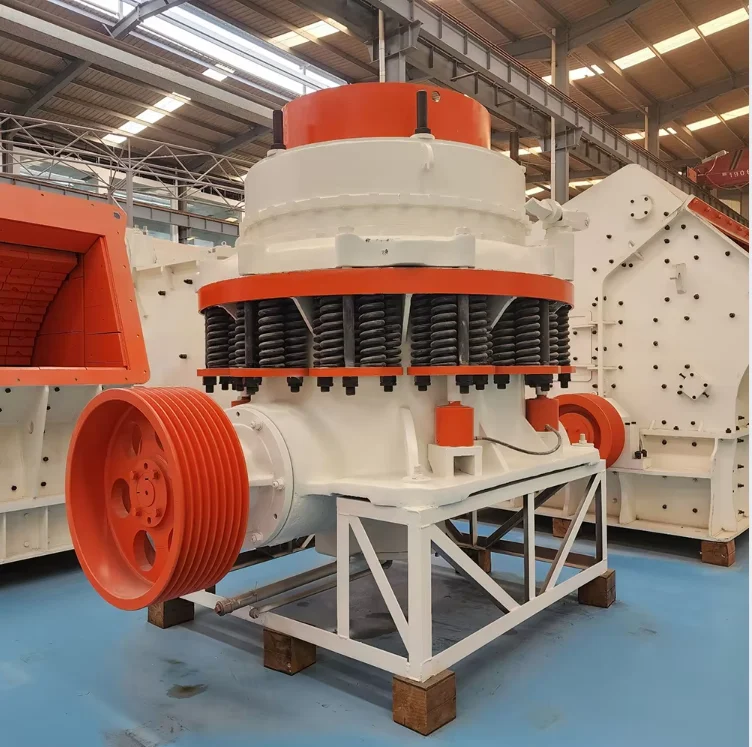

The Symons Cone Crusher is an integrated cone crusher with springs and hydraulic cylinders. It is usually used in secondary and tertiary crushing stages, with the standard type generally used for medium crushing and the short head type for medium and fine crushing. The structure of this machine is reasonably designed, and the crushed product size is uniform, reducing the wear and tear of parts. In medium and large size crushers, a multi-cylinder hydraulic cavity cleaning system is used to reduce downtime and operational labor intensity. The seal adopts compensable grease seal, which avoids the pollution of lubricating oil by dust to the maximum extent, and makes the work of each component of the whole machine more reliable and has a long service life.
Symons Cone Crusher is suitable for crushing all kinds of ores and rocks with medium and above medium hardness, such as lithium ore, iron ore, non-ferrous metal ore, granite, Basalt, river stone, sandstone and pebbles etc. It is widely used in metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry, and is the first choice cone crusher for construction, mining and coal industry.
Product Paramenters
Model | Cavity Type | Diameter of cone(mm) | Adjusting range of discharge opening(mm) | Max. Feeding Size(mm) | Capacity (t/h) | Motor Power (kw) | Weight(kG) |
CS75 | Standard | 900 | 13-38 | 85 | 45-91 | 75 | 10.5 |
Short head | 3-19 | 35 | 27-90 | ||||
CS160 | Standard | 1295 | 13-51 | 115 | 109-181 | 160 | 22.6 |
Short head | 3-25 | 54 | 36-163 | ||||
CS250 | Standard | 1676 | 16-64 | 178 | 181-327 | 250 | 43.9 |
Short head | 5-25 | 60 | 90-209 | ||||
CS400 | Standard | 2134 | 19-64 | 236 | 544-1034 | 400 | 86.7 |
Short head | 5-25 | 89 | 218-463 | 89.5 |

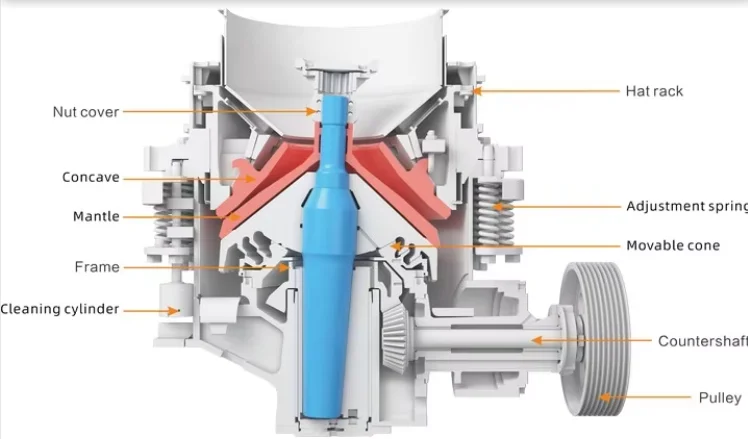

When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The main shaft is forced into elliptical rotation by the eccentric bearing bushings, which makes the mantle sometimes close to the concave, and some times far away from it. The raw materials are squeezed, impacted and finally crushed in the crushing chamber.
Product Advantage
Automatic operation
The discharge port of CS cone crusher is semi-automatic, which improves the efficiency of the crushing operation and maintenance.
Wear-resistant spare parts
The wearing parts like mantle and concave are made of Mn-13 high manganese steel with long service life, which is also very suitable for processing very hard stones.
High efficient production

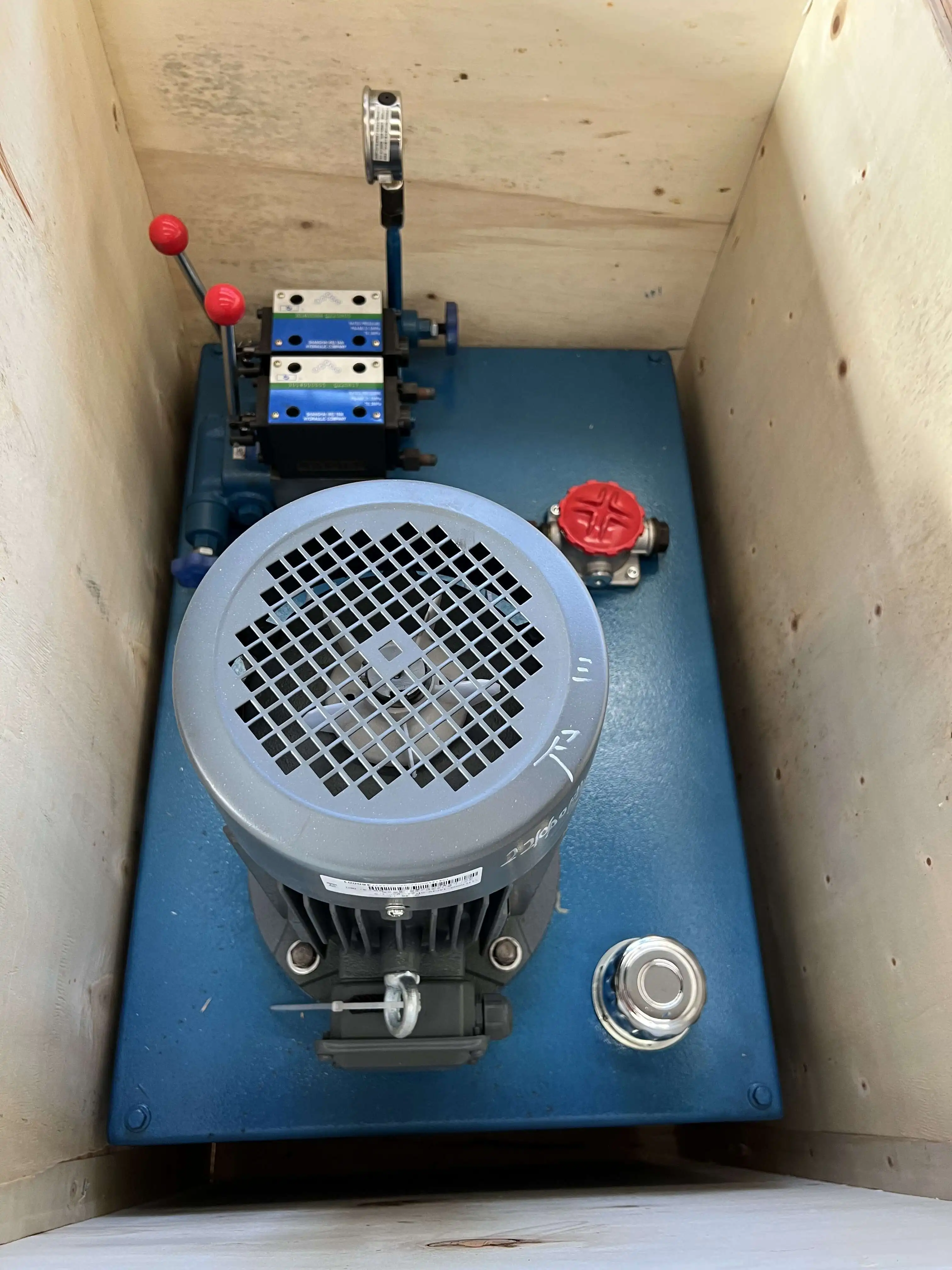

CS cone crusher adopts hydraulic cavity cleaning system and iron overload protection to reduce the time of maintenance and improve
production efficiency.
production efficiency.

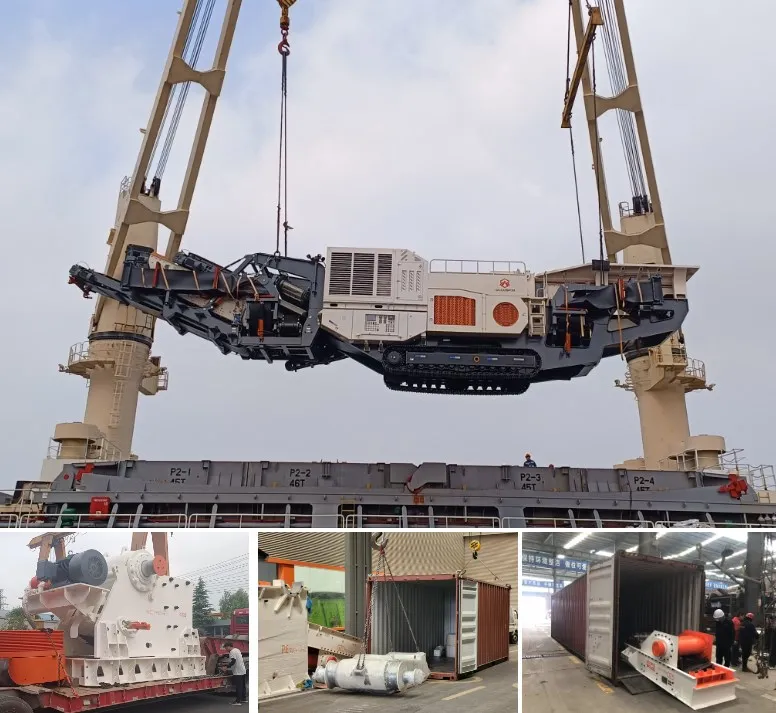

Packing & Shipping
Our motor , v-belt , anchor bolt , control cabinet, spare parts etc. are packing into wooden box. Big model jaw crushers are nude packing into container directly. Some super big jaw crusher have to disassemble and load into several container or bulk carrier.
About us

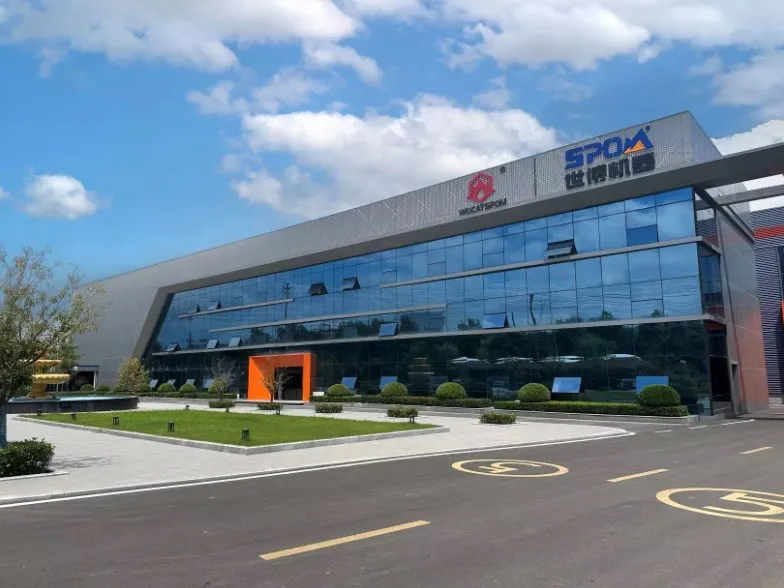

Wocat Spom Group Mineral Tech Co., Ltd., a professional manufacturer of stone crushers, grinding mills as well as solution provider, is located in Zhengzhou, Henan province with 25,000 square meters of standardized heavy industrial plants. The total number of employees is 125, of which 30 are professional technicians and engineers. We integrate research and development, design, manufacturing, sales and after-sales service, focusing on the development of automatic and mobile, energy-saving and environmental protection equipment. We are an expert in mobile crushers including crawler crusher, wheel-mounted crusher and skid-mounted crusher etc, helping to process construction waste, contributing to efficient infrastructure development and green mining.
Our products have been sold to 120 countries and regions in Southeast Asia, Eastern Europe, South America, the Middle East and Africa, and we will expand to more foreign markets in the future.
FAQ
1、If I need a complete stone production line, can you build it for us?
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
Yes, our company has a strong design, R&D and manufacturing team, we can design the complete mineral production and processing line combined with your actual needs, and provide you with relevant professional advice when needed. We have set up many mining projects in China and overseas. We can set up the complete processing line according to your requirements.
3、Which countries have your products been exported to?
3、Which countries have your products been exported to?
We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!
5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
